Bluetooth Instruments Discovery Kit

Q: Standard Delivery

Standard Delivery Instrument according to technical specifications Plastic case Lithium battery CR2032 included Quickstart Multi-purpose battery cap screwdriver

Description

Kit with 4 essential Bluetooth® instruments: caliper, micrometer, test indicator, digital indicator.

Features

Prime selection: Includes 4 essential Bluetooth® instruments: caliper, micrometer, test indicator, digital indicator.
Cost efficiency: Save big compared to purchasing instruments individually.
Enhanced experience: Connect Sylcom to the instruments it is designed for and experience its robust features.

Applications

Diameter

Form deviation

Distance

Industries

Automotive

Electronics

Aeronautics

Fastening

Packaging

Machine tool

Overview

	810-1506
Type	S_Cal EVO Smart
EAN	7640125682250
Measuring range (mm)	150
Max. Error G – external measurements EMPE (µm)	20 ²
Depth rod (mm)	▬ 4 x 1.4
Protection rating according to IEC 60529	IP67
Connection type (instrument to device)	Bluetooth® Wireless Technology ¹

¹ Device: PC, display unit, …
² 0-150 mm : 20 µm / ISO13385-1
> 150 mm : 30 µm / ISO13385-1

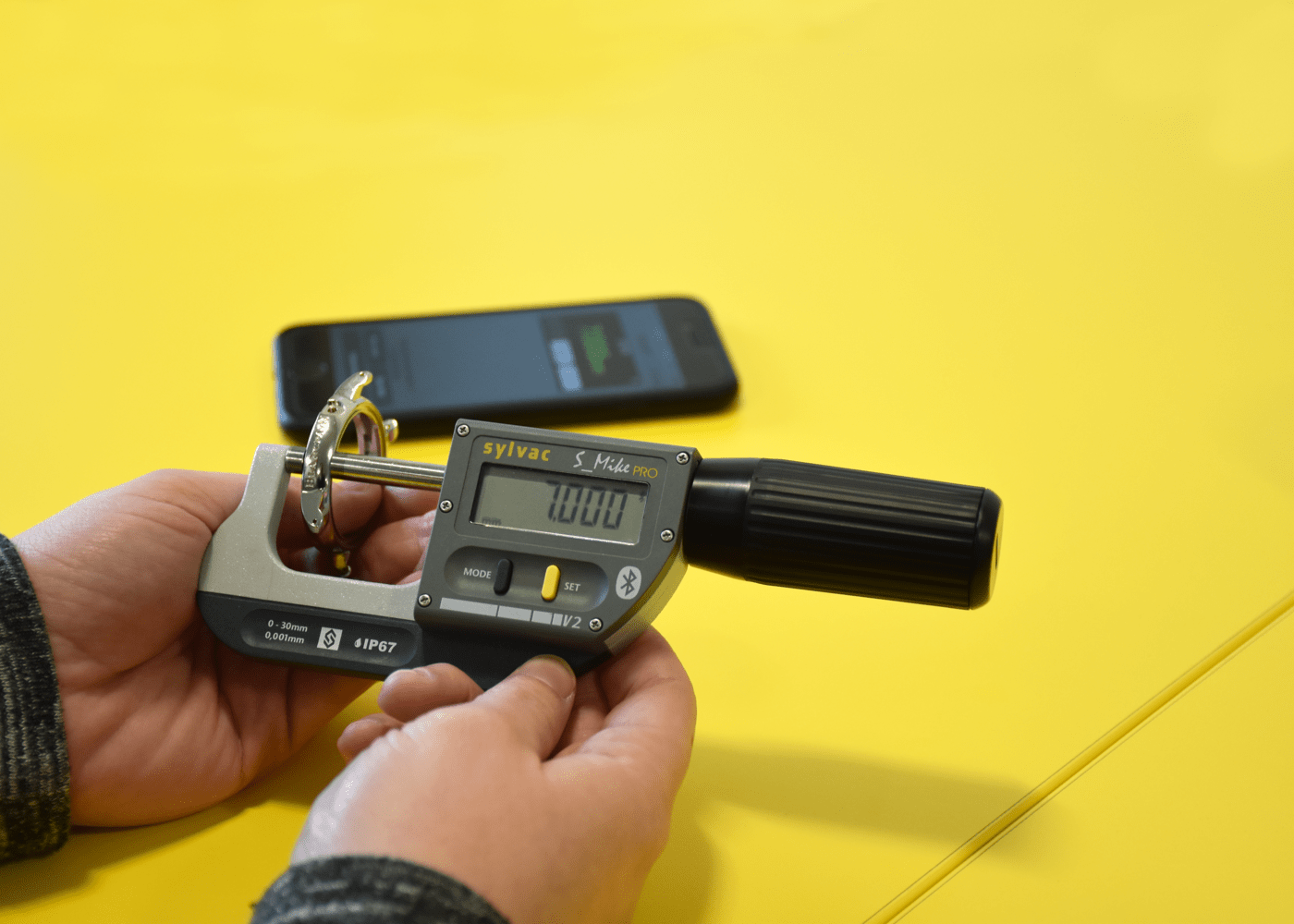

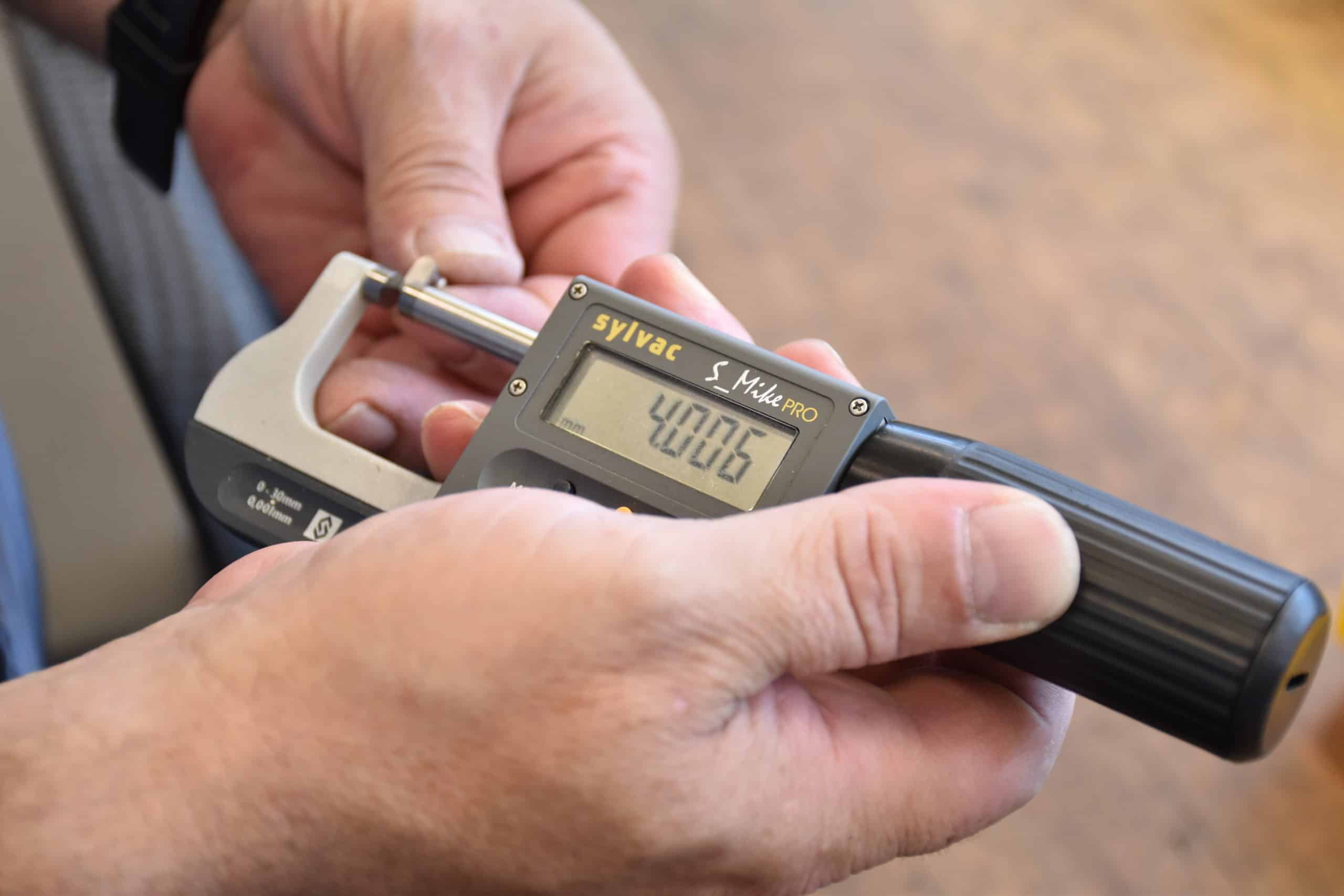

	803-0306
Type	S_Mike Pro Smart Ø6.5
EAN	7640125711905
Measuring range (mm)	0-30
Max. Error MPEյ (µm)	3 ²
Repeatability (µm)	1 ³
Protection rating according to IEC 60529	IP67
Connection type (instrument to device)	Bluetooth® Wireless Technology ¹

¹ Device: PC, display unit, …
² according to DIN 863 / ISO 3611
³ ± 1 digit

	805-6301
Type	S_Dial WORK Smart
EAN	7640125697612
Measuring range (mm)	12.5
Resolution (mm)	0.001
Max. Error fe (µm)	3
Protection rating according to IEC 60529	IP54
Connection type (instrument to device)	Bluetooth® Wireless Technology ¹

¹ Device: PC, display unit, …

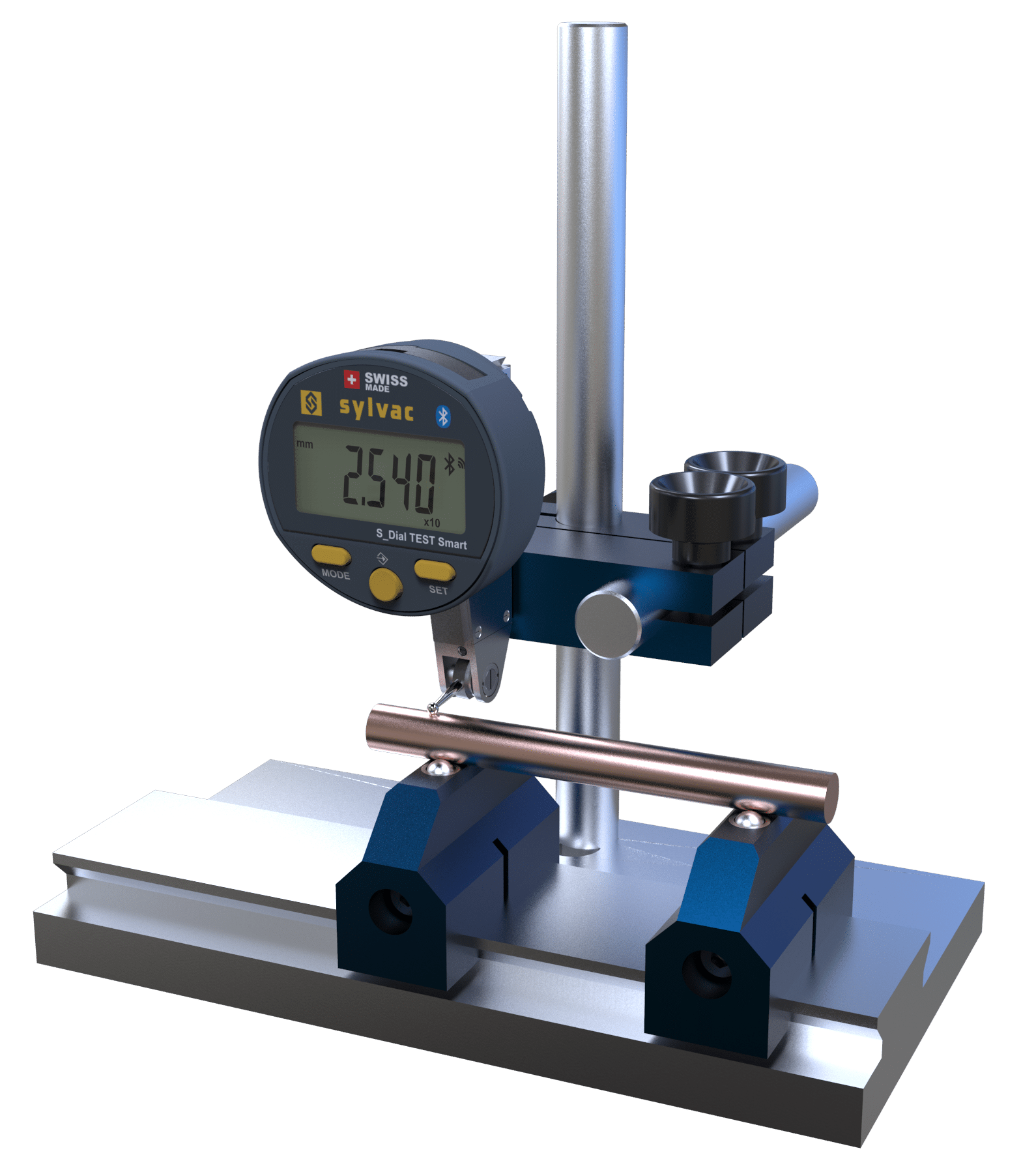

	805-4323
Type	S_Dial TEST Smart
EAN	7640125689235
Measurement capacity (mm)	0.8 / 2.0
Stylus length L (mm)	12.5 / 36.5
Accuracy fe (α=0°) (µm)	3 / 8
Protection rating according to IEC 60529	IP54
Connection type (instrument to device)	Bluetooth® Wireless Technology ¹

¹ Device: PC, display unit, …

	981-7102
Type	Dongle Smart 5
EAN	7640125696714
Coupled instruments per module	16
Automatic detection of instrument	•
Instruments and software compatibility	Sylcom & Vmux2
Transmission distance (m)	20 (80 in long range mode) ¹
Bluetooth® transmission version	Bluetooth® 5

¹ depends on the environment

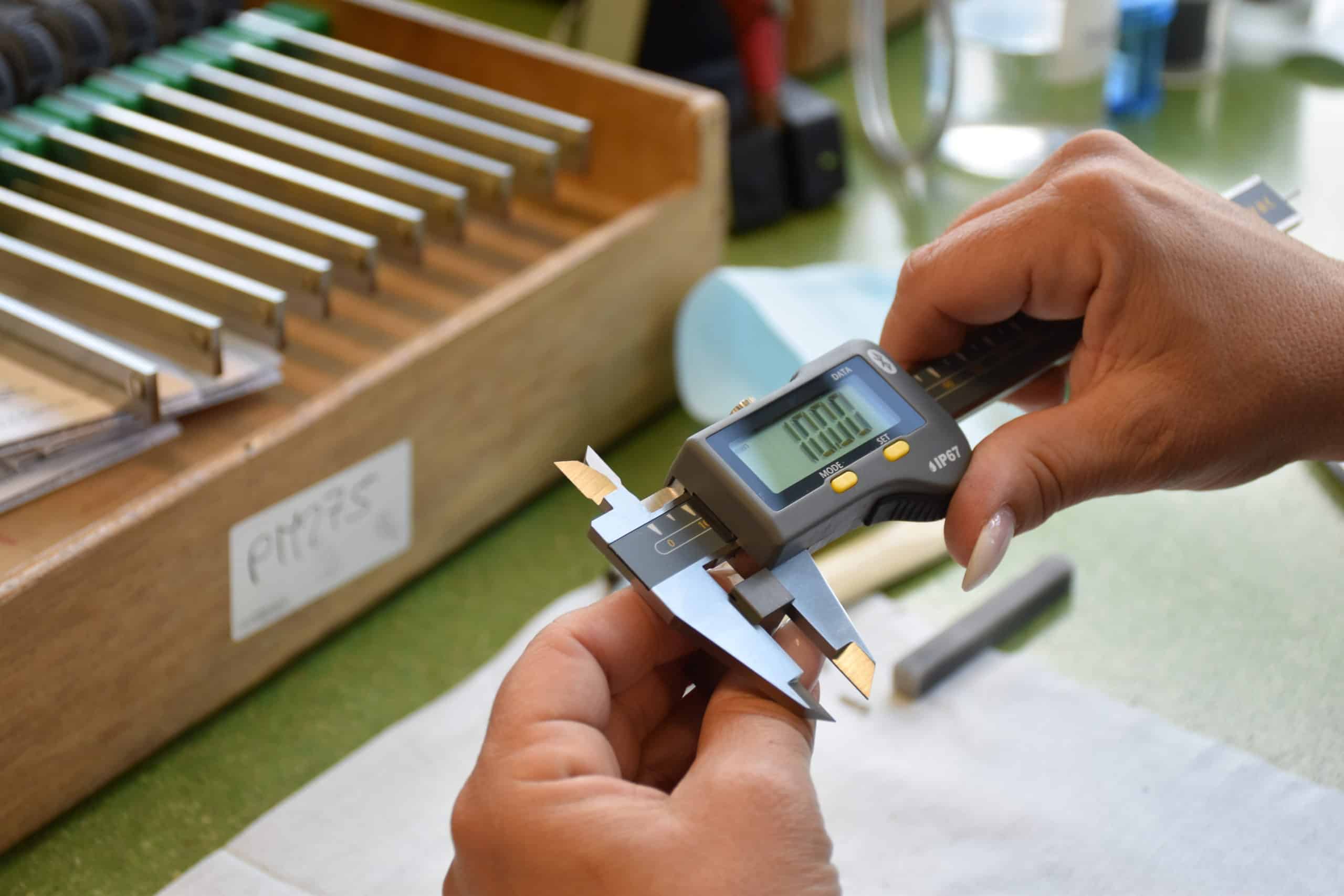

Measuring wedge with S_Cal Evo Smart
