Caliper S_Cal EVO Smart

Starting at :
CHF 226.00

*Available in different measuring ranges

Description

High-quality caliper with integrated Bluetooth® technology.
SIS
Smart Inductive System (SIS)

Features

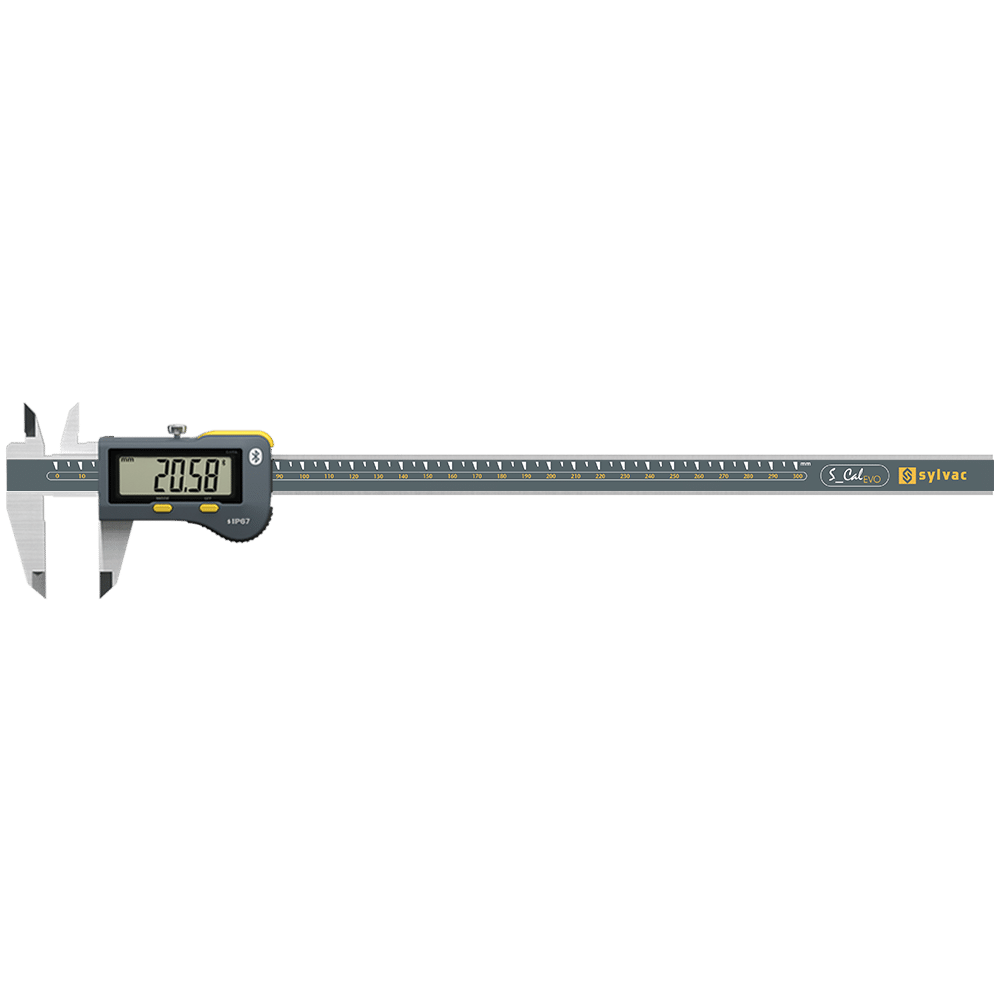

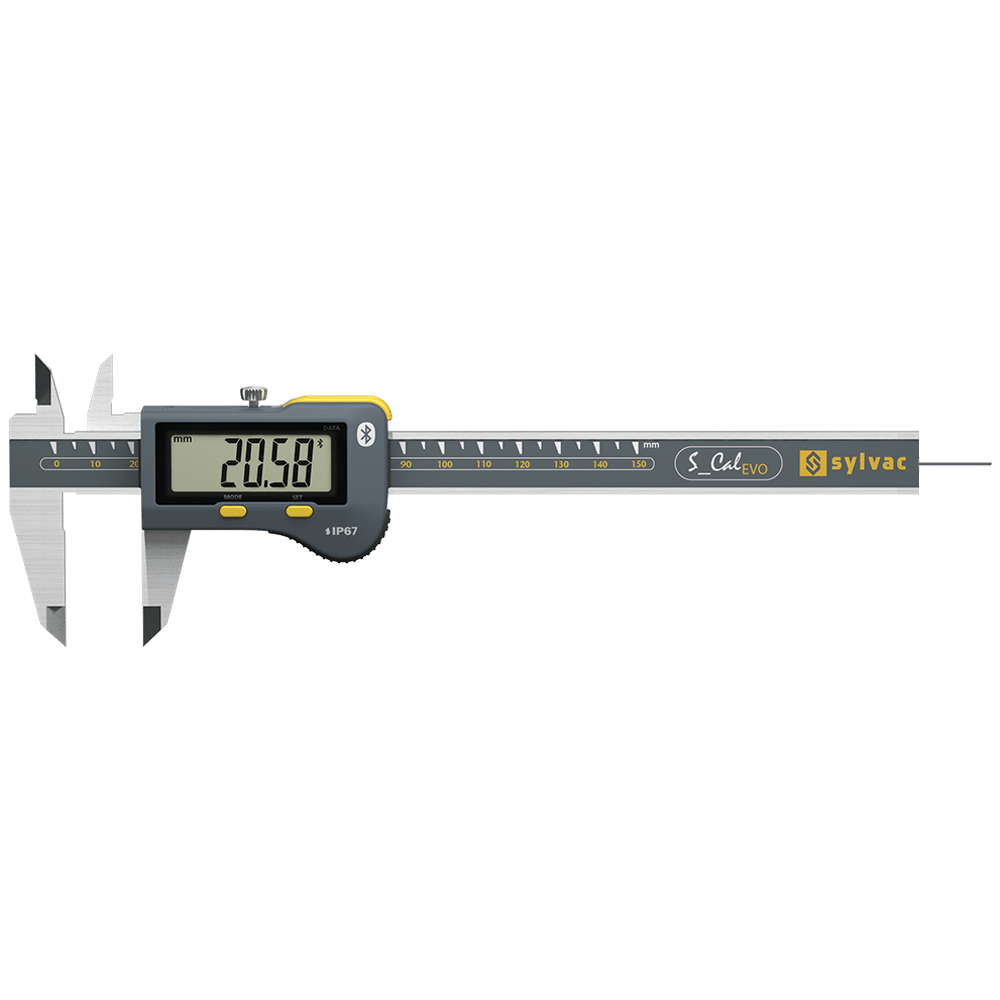

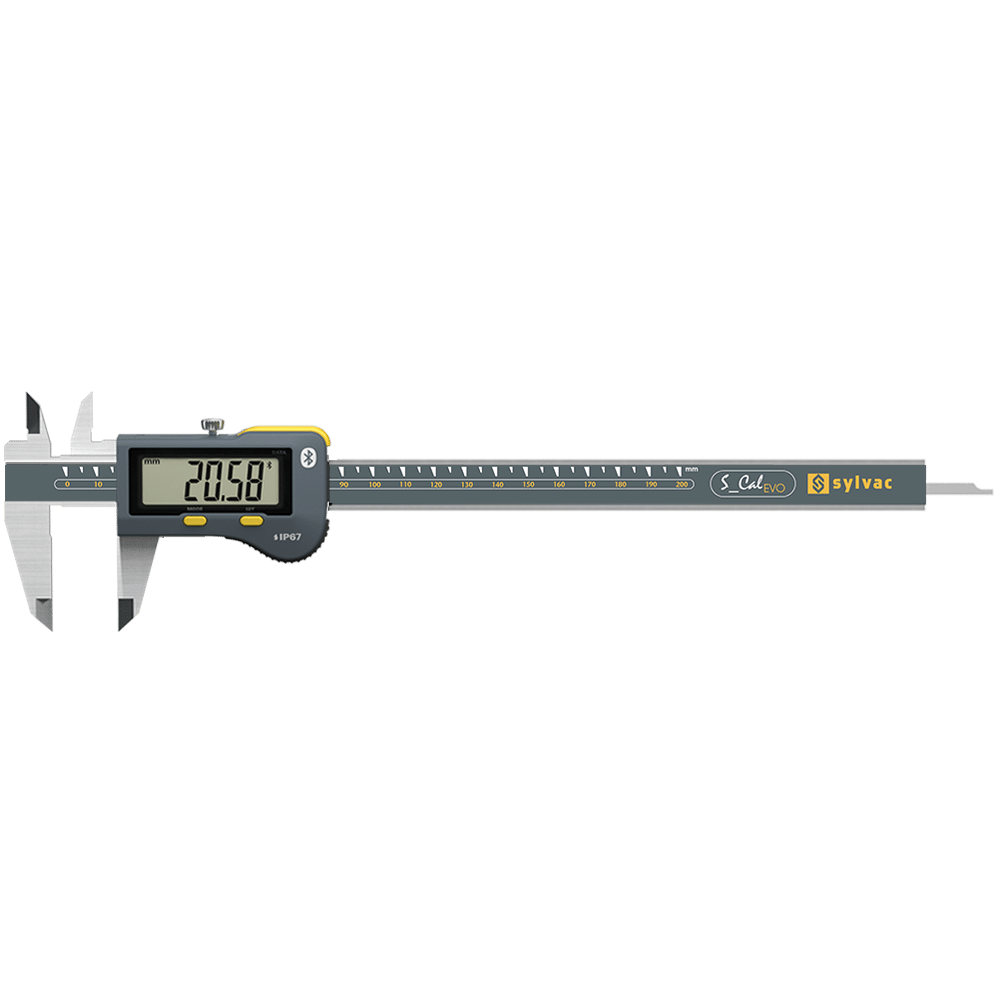

  • Versatile options : Ergonomic caliper with available measuring ranges of 150mm, 200mm and 300mm, available in a variety of configurations including rectangular and cylindrical depth rod options or no depth rod. Thumb wheel available on request.
  • Seamless Data Aquisition: Integrated Bluetooth® Smart data transmission, allowing you to transmit measurements wirelessly, quickly and error-free for enhanced productivity.
  • Built to Last: Crafted with a mechanical frame in 3.5 mm thick hardened and ground stainless steel, our IP67 caliper ensures durability and longevity, providing reliable performance in even the most demanding metrology environments. This model also features soldered carbide outer jaws.
  • Enhanced Efficiency: Maximize productivity with a swift maximum speed of displacement of 2.5m/sec and benefit from the automatic wake-up feature (Absolute System S.I.S) when moving the electronic on its frame and enjoy the energy-saving sleeping mode (Absolute System S.I.S) after 10 minutes of inactivity. The caliper memorizes the position even in sleeping mode, ensuring uninterrupted measurements.
  • User-Friendly Design: Experience effortless measurement reading with the new extra-large display unit, boasting 11.5mm high digits for exceptional clarity, reducing the risk of errors and enhancing efficiency.

Applications

icon-diameter
Diameter
logicielsDistance
Distance
icon-form-deviation
Form deviation

Industries

icon-automotive-sylvac
Automotive
icon-aeronotics-sylvac
Aeronautics
icon-fastening-sylvac
Fastening
icon-oackaging-sylvac
Packaging
icon-machine-tool-sylvac
Machine tool
icon-medical-device-sylvac
Medical device

Overview

810-1506 810-1516 810-1526 810-1536
EAN 7640125682250 7640125713169 7640125713176 7640125713183
Measuring range (mm) 150 200 300
Max. Error G – external measurements EMPE (µm) 20 ² 30 ²
Max. Error – internal measurements SMPE (µm) 20-30 ³ 30 ³ 40 ³

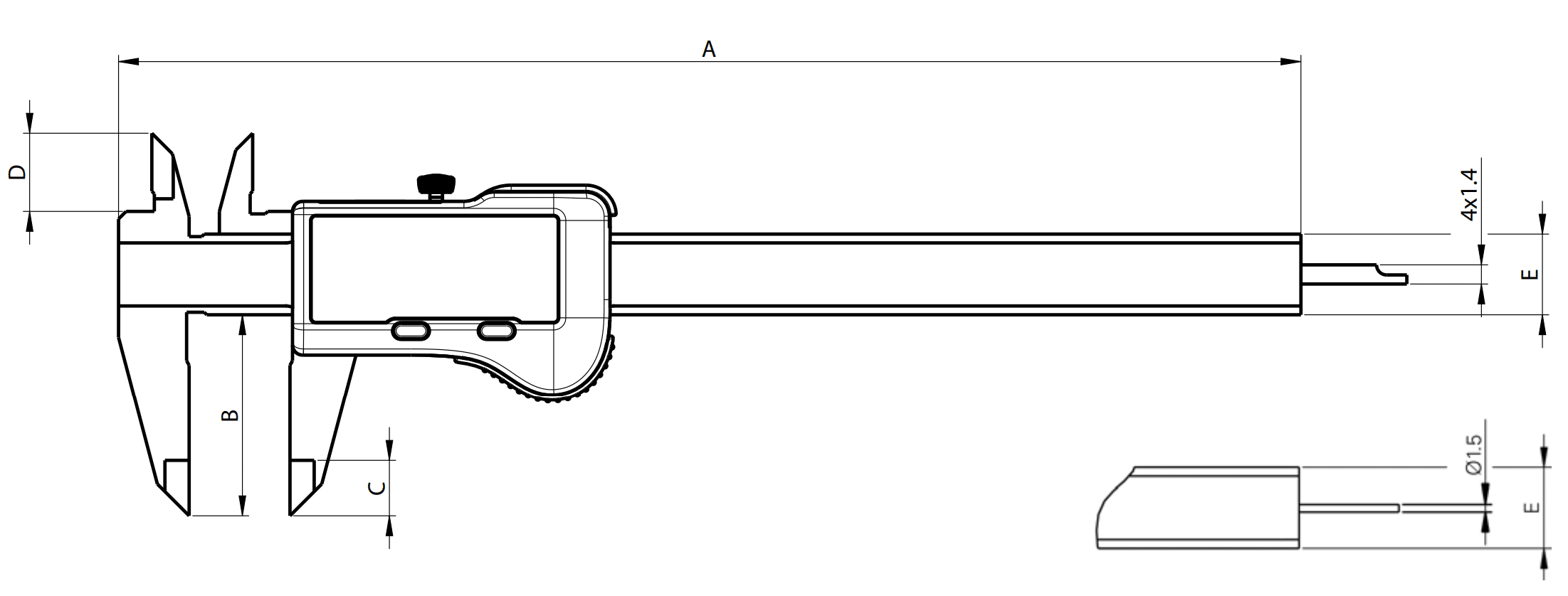

A (mm) 234.5 290.5 388
B (mm) 40 50 64
C (mm) 11 14
D (mm) 16 19
E (mm) 16 x 3.5 16 x 4
Depth rod (mm) 4 x 1.4 Ø 1.5 ▬ 4 x 1.4
Protection rating according to IEC 60529 IP67
Connection type (instrument to device) ¹ Bluetooth® Wireless Technology
Functions Zero setting, Preset (max 999.99), mm/inch, Hold, Data
Smart Inductive System (SIS)

¹ Device: PC, display unit, …

² 0-150 mm : 20 µm / ISO13385-1
> 150 mm : 30 µm / ISO13385-1

³ Ø4-25 : 20 µm / ISO13385-1
Ø26-150 : 30 µm / ISO13385-1
>Ø150 : 40 µm / ISO13385-1

810-1506 810-1516 810-1526 810-1536
EAN 7640125682250 7640125713169 7640125713176 7640125713183
Measuring range (mm) 150 200 300
Max. Error G – external measurements EMPE (µm) 20 ² 30 ²
Max. Error – internal measurements SMPE (µm) 20-30 ³ 30 ³ 40 ³
A (mm) 234.5 290.5 388
B (mm) 40 50 64
C (mm) 11 14
D (mm) 16 19
E (mm) 16 x 3.5 16 x 4
Depth rod (mm) 4 x 1.4 Ø 1.5 ▬ 4 x 1.4
Protection rating according to IEC 60529 IP67
Connection type (instrument to device) ¹ Bluetooth® Wireless Technology
Functions Zero setting, Preset (max 999.99), mm/inch, Hold, Data
Smart Inductive System (SIS)

¹ Device: PC, display unit, …

² 0-150 mm : 20 µm / ISO13385-1
> 150 mm : 30 µm / ISO13385-1

³ Ø4-25 : 20 µm / ISO13385-1
Ø26-150 : 30 µm / ISO13385-1
>Ø150 : 40 µm / ISO13385-1

Instrument according to technical specifications
Lithium battery CR2032 included
Instruction manual
Caliper S_Cal EVO Smart
CHF 226.00
