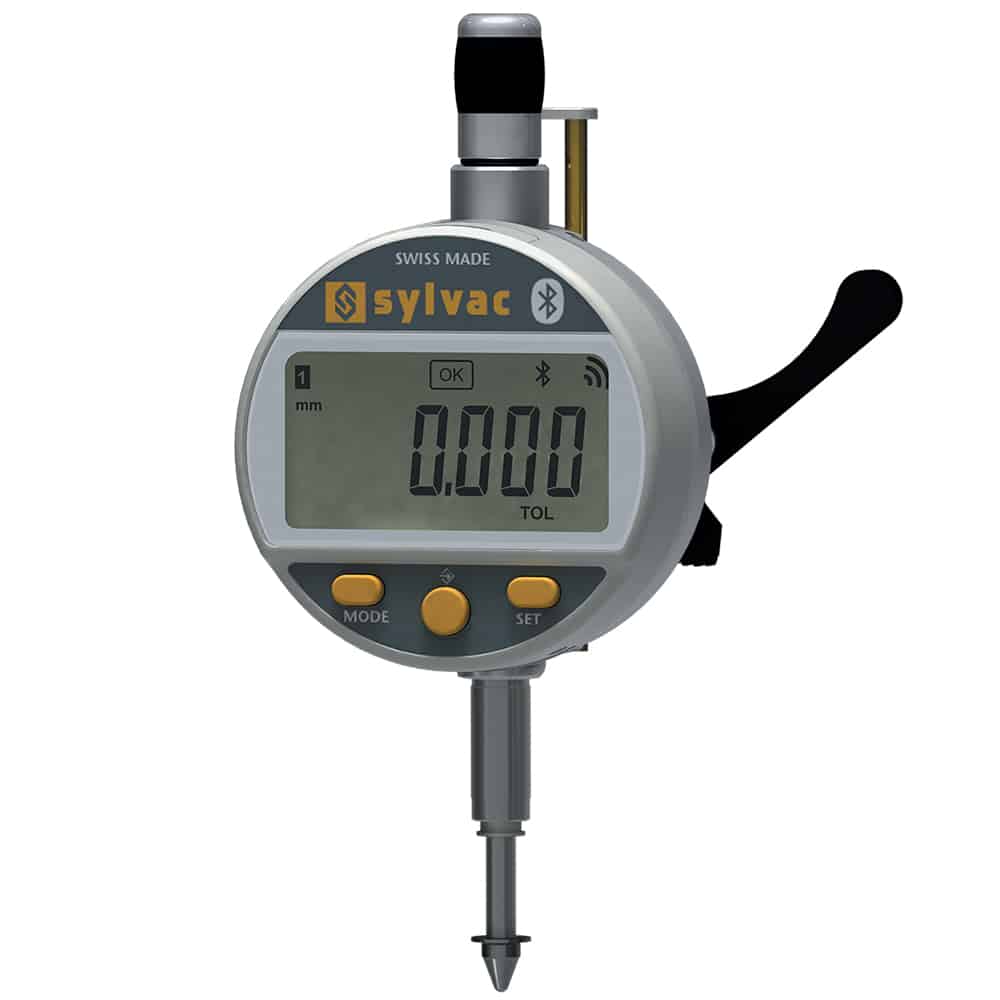

Digital indicator S_Dial WORK Smart
CHF 623.00
*Available in different measuring ranges
805-6301 | 805-6501 | 805-6621 | 805-6661 | |
EAN | 7640125697612 | 7640125697636 | 7640125697667 | 7640125697674 |
Measuring range (mm) | 12.5 | 25 | 50 | 100 |
Resolution (mm) | 0.001 | |||
Max. Error fe (µm) | 3 | 4 | 5 | 6 |
Repeatability (µm) | 2 | |||
IP rating | IP54 | |||

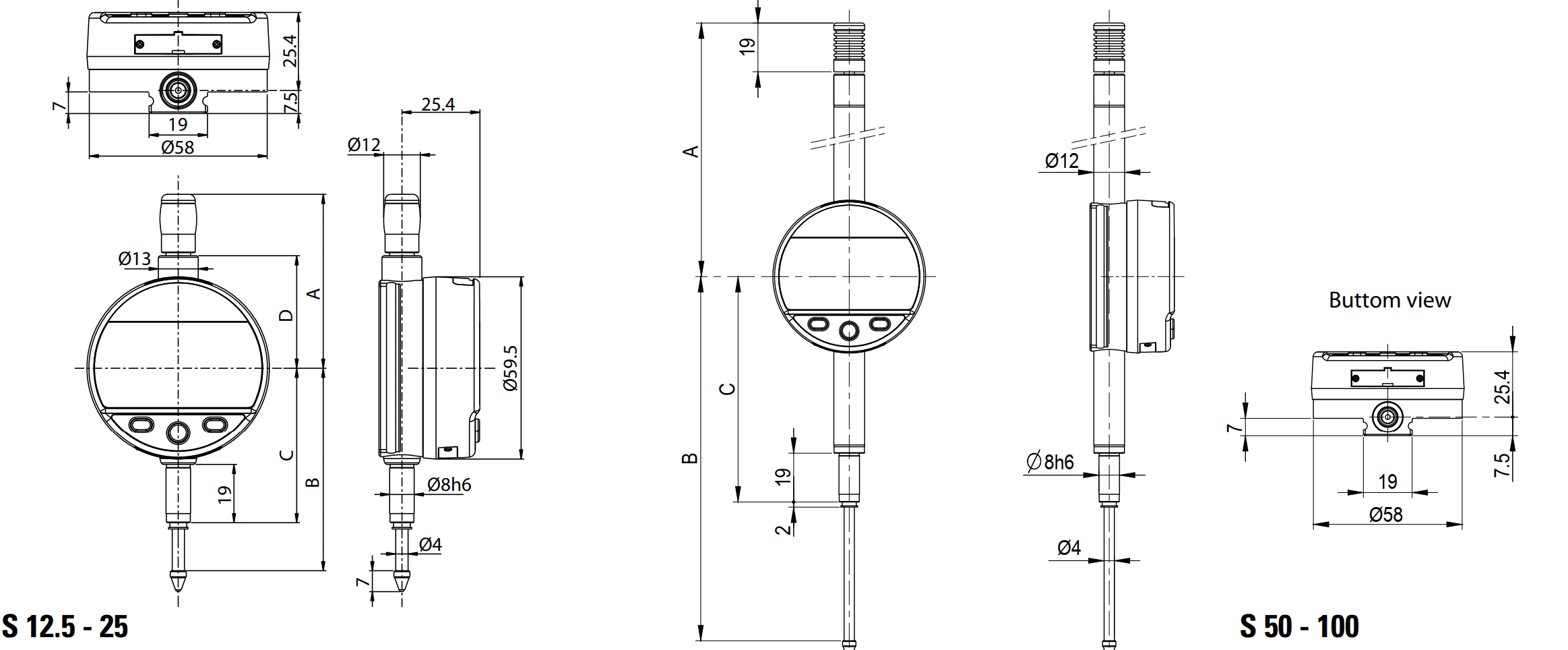

A (mm) | 56.7 | 69.4 | 121 | 172 |
B (mm) | 66.1 | 78.5 | 142 | 244 |
C (mm) | 50.5 | 50.5 | 88 | 139 |
D (mm) | 36.6 | 49.4 | – | – |
Output data | Bluetooth® wireless technology / USB / RS232 | |||
Programmable by PC | ⬤ | |||
Standard functions (customized by PC) |
mm/inch, ref I/II, preset (max 999.999) min/max/delta, toleances, resolution, direction of measurement, multiplication factor, automatic or manual switch off, key lock |
Measuring Force | 12.5 | 25 | 50 | 100 |
Standard (N) | 0.65 – 0.9 | 0.65 – 1.15 | 1.1 – 2.6 | 1.8 – 3.8 |
Low ¹ (N) | 0.4 – 0.55 | 0.45 – 0.9 | – | – |
High ¹ (N) | 1.0 – 1.6 | 0.9 – 1.8 | – | – |
Tolerance ± 20%, spindle in outgoing measurement position.
¹ on request
Standard Delivery
|
Instrument according to technical specifications |
Lithium battery CR2032 included |
Instruction manual |
Calibration certificate for instruments 0.001 mm |
Contact points M2.5 | |
905-2201 (carbide) | |
905-2202 | |
905-2203 | |
905-2206 | |
905-2204 | |
905-2205 | |
905-2207 |
Accessories by Measuring Range | 12.5 – 25 mm | 50 – 150 mm | ||
805-0214 | Lifting device, range 12.5mm | ⬤ | ||
805-0215 | Lifting device, range 25mm | ⬤ | ||
805-0213 | Lug back (delivered with 4 screws M2x4 DIN 963A) |
⬤ | ⬤ | |
905-2231 | Sleeve Ø8 –> 10mm with locking screw | ⬤ | ⬤ | |
905-2214 | Lifting device | ⬤ | ⬤ | |
905-2215 | Upper lifting device | ⬤ | ||
905-2216 | Lifting device with photo-cable | ⬤ | ||
905-2218 | Pneumatic lifting device with foot pedal | ⬤ | ||
905-2217 | Lifter only for 905-2218 | ⬤ | ||
905-2219 | Pneumatic foot pedal for 905-2218 | ⬤ | ||
905-2220 | Vacuum lifting device with foot pedal | ⬤ | ||
905-2227 | Pressure controller | ⬤ | ||
905-2228 | Vacuum foot pedal for 905-2220 | ⬤ | ||
905-2221 | Dust protection for indicator, range 12.5 mm | ⬤ | ||
905-2222 | Dust protection for indicator, range 25 mm | ⬤ | ||
905-2223 | Depth measuring base | ⬤ | ⬤ | |
905-2261 | Snap connector for pneumatic lifter x2 | ⬤ | ⬤ | |
905-2262 | Snap connector for pneumatic lifter x4 | ⬤ | ⬤ | |
905-2224 | Plastic lifting lever (bottom) | ⬤ | ⬤ | |
905-2225 | Plastic lifting ring (bottom) | ⬤ | ⬤ | |
905-4214 | Lower lifting device, range 12.5 mm | ¹ | ¹ |
¹ used on range 20 mm max
Standard Accessories | ||
905-4516 | Power RS (Standard 3 m) | |
905-4519 | Power RS (Standard ≤15 m) | |
905-4538 | Power RS (bent) (Standard 3 m) | |
926-6821 | Power USB (Standard 3 m) | |
926-6838 | Power USB (bent) (Standard 3 m) | |
926-6723 | Proximity RS232 (Standard 3 m) | |
926-6721 | Proximity USB (Standard 3 m) | |
985-2215 | Battery CR2032 | |
926-7022 | S_Footswitch Smart | |
926-7024 | Battery Pack |
