Digital indicators’ accessories

Contact points M2.5		S_Dial Mini	S_Dial TEST (805-4321)	S_Dial TEST (805-4322)	S_Dial TEST (805-4323)	S_Dial WORK 12.5 – 25 mm	S_Dial WORK 50 – 150 mm	S_Dial PRO

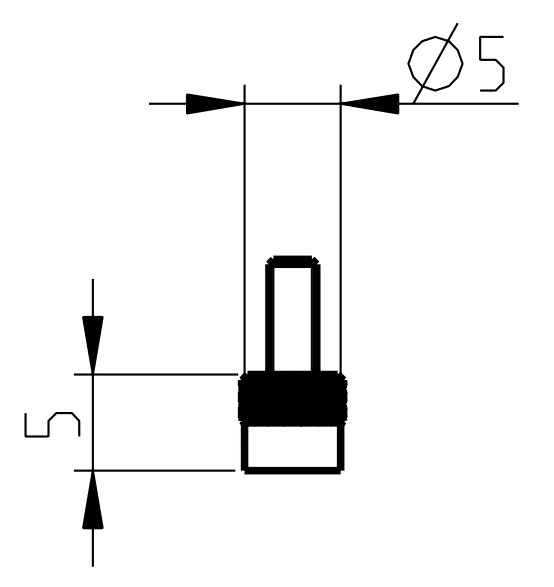

	905-2201 (carbide)	⬤				⬤	⬤	⬤

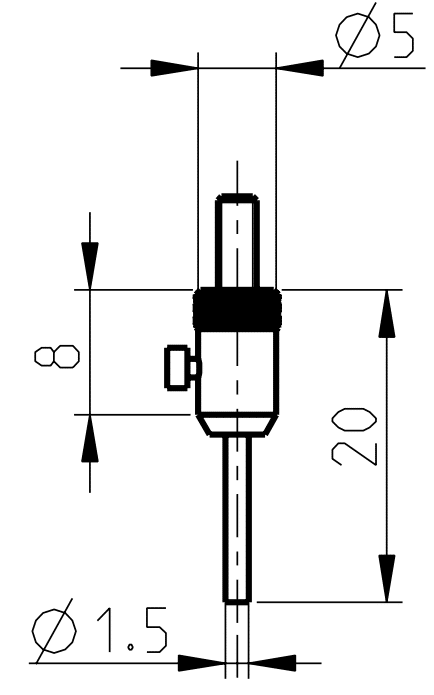

	905-2202	⬤				⬤	⬤	⬤

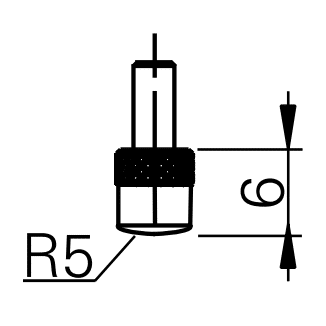

	905-2203	⬤				⬤	⬤	⬤

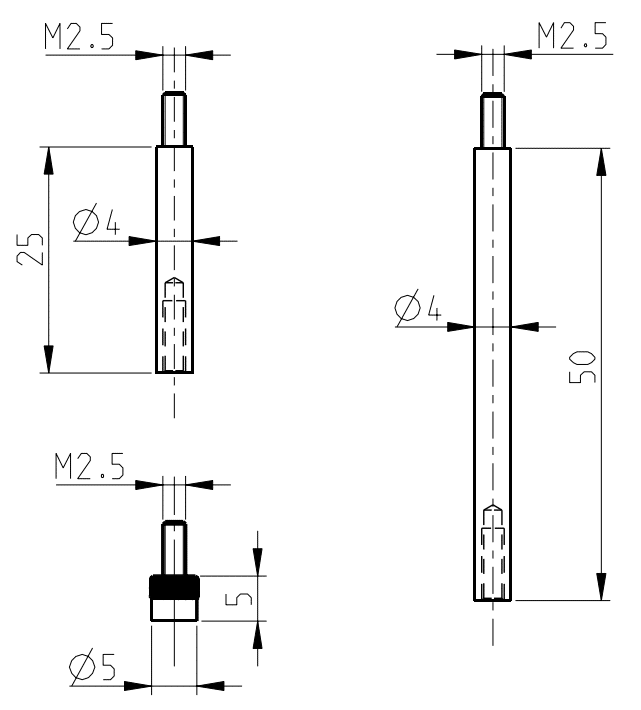

	905-2206	⬤				⬤	⬤	⬤

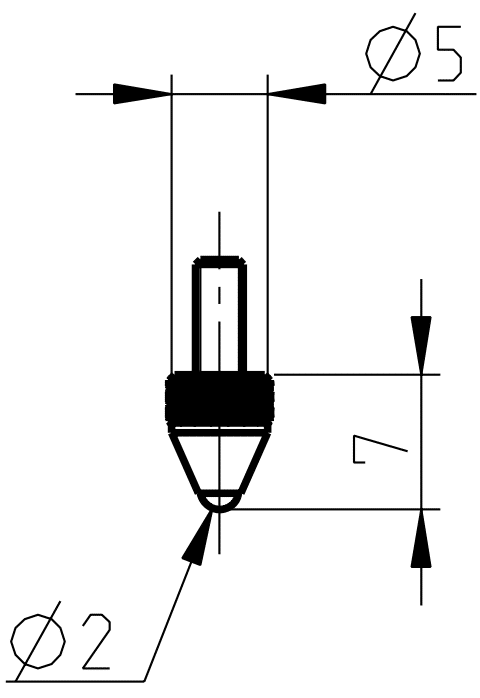

	905-2204	⬤				⬤	⬤	⬤
	905-2205	⬤				⬤	⬤	⬤
	905-2207	⬤				⬤	⬤	⬤

			S_Dial Mini	S_Dial TEST (805-4321)	S_Dial TEST (805-4322)	S_Dial TEST (805-4323)	S_Dial WORK 12.5 – 25 mm	S_Dial WORK 50 – 150 mm	S_Dial PRO

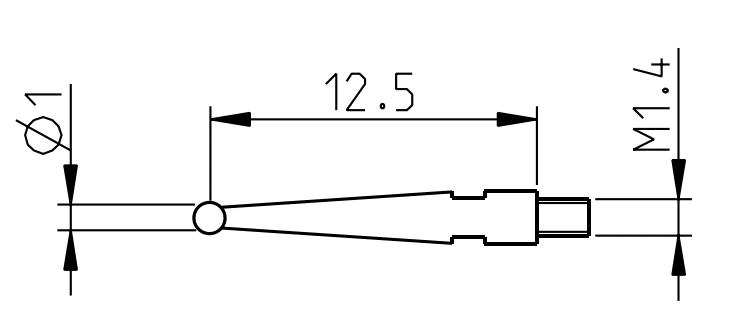

	905-2240	Short stylus, TC ball		⬤		⬤

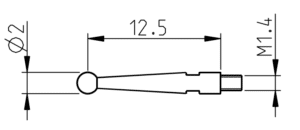

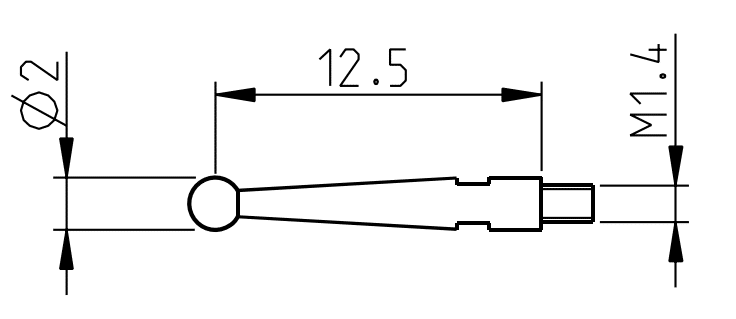

	905-2241	Short standard stylus, TC ball		⬤		⬤

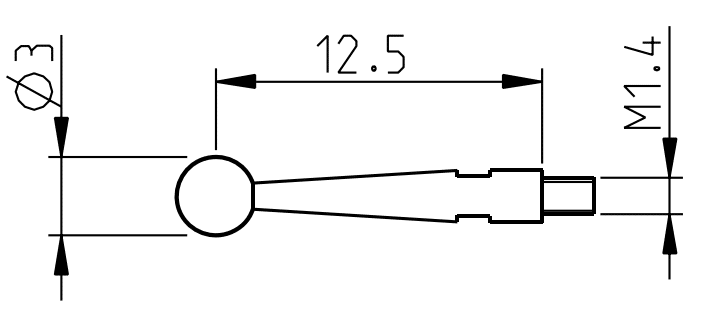

	905-2242	Short stylus, TC ball		⬤		⬤

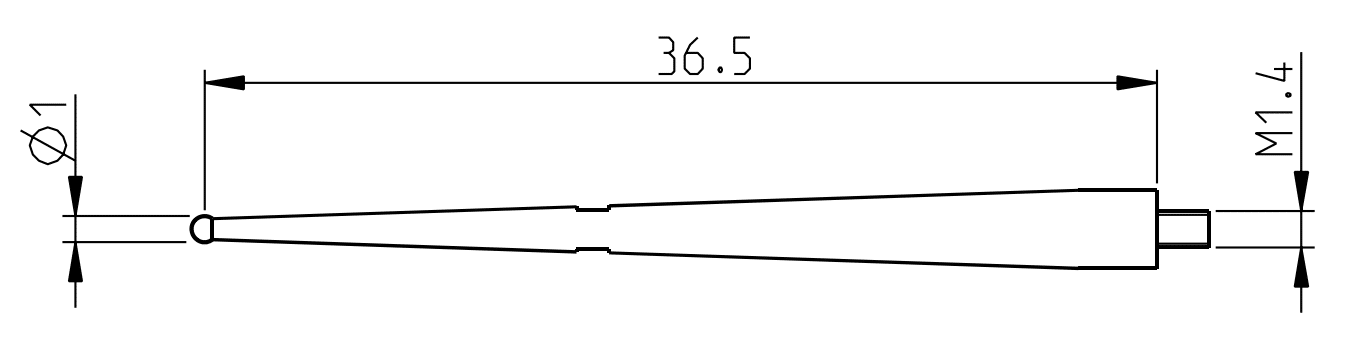

	905-2243	Long stylus, TC ball			⬤	⬤

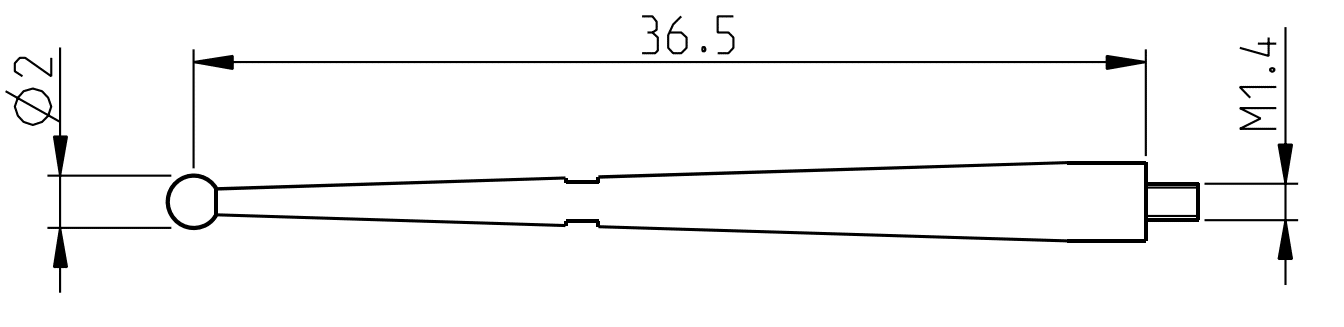

	905-2244	Long standard stylus, TC ball			⬤	⬤

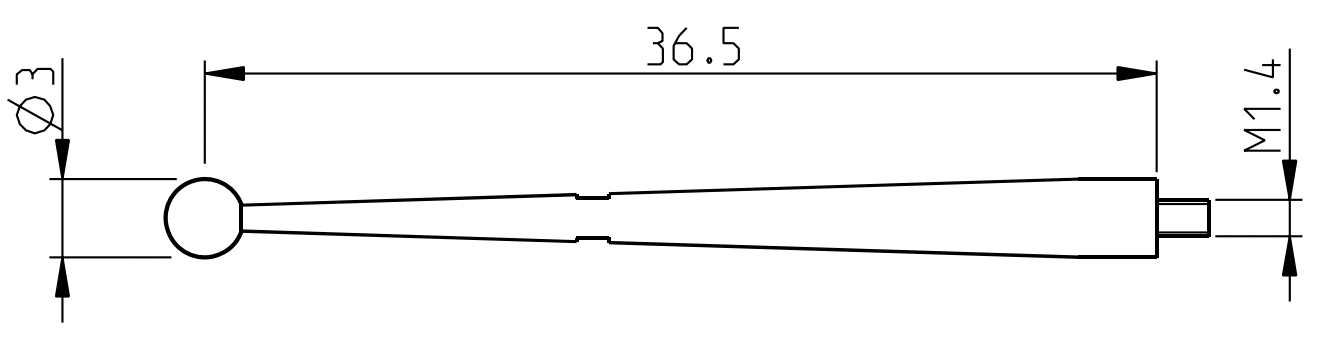

	905-2245	Long stylus, TC ball			⬤	⬤

			S_Dial Mini	S_Dial TEST	S_Dial WORK 12.5 – 25 mm	S_Dial WORK 50 – 150 mm

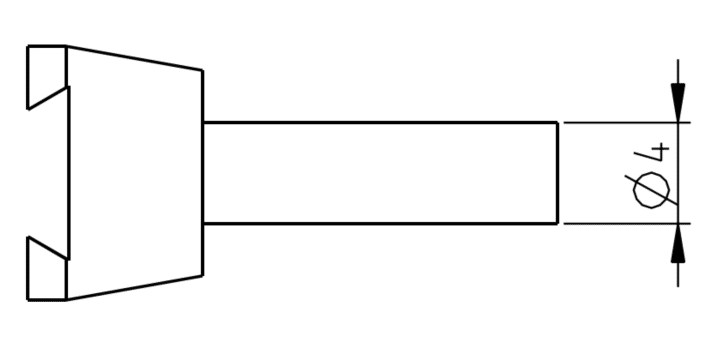

	905-2246	Clamping stem	⬤	⬤

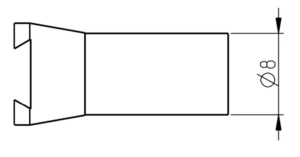

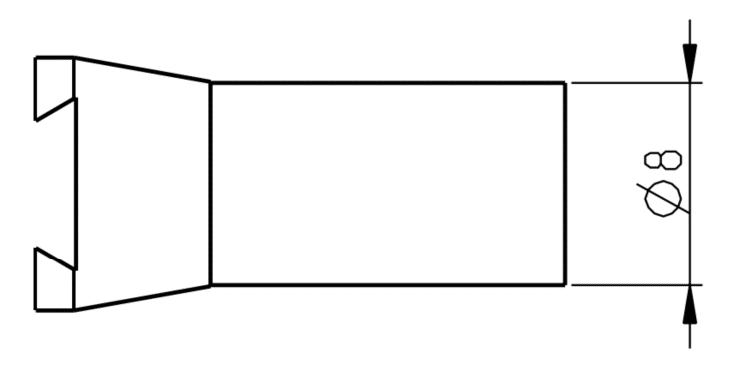

	905-2247	Clamping stem	⬤	⬤

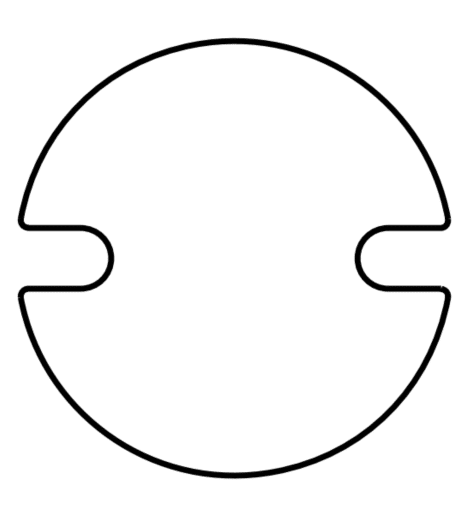

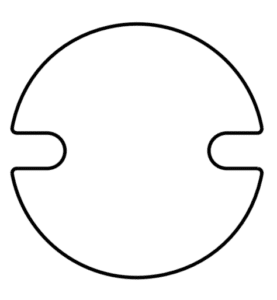

	905-2248	Spanner for probe		⬤

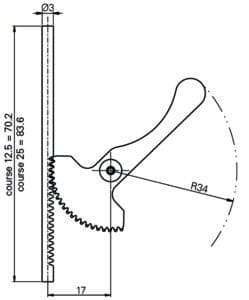

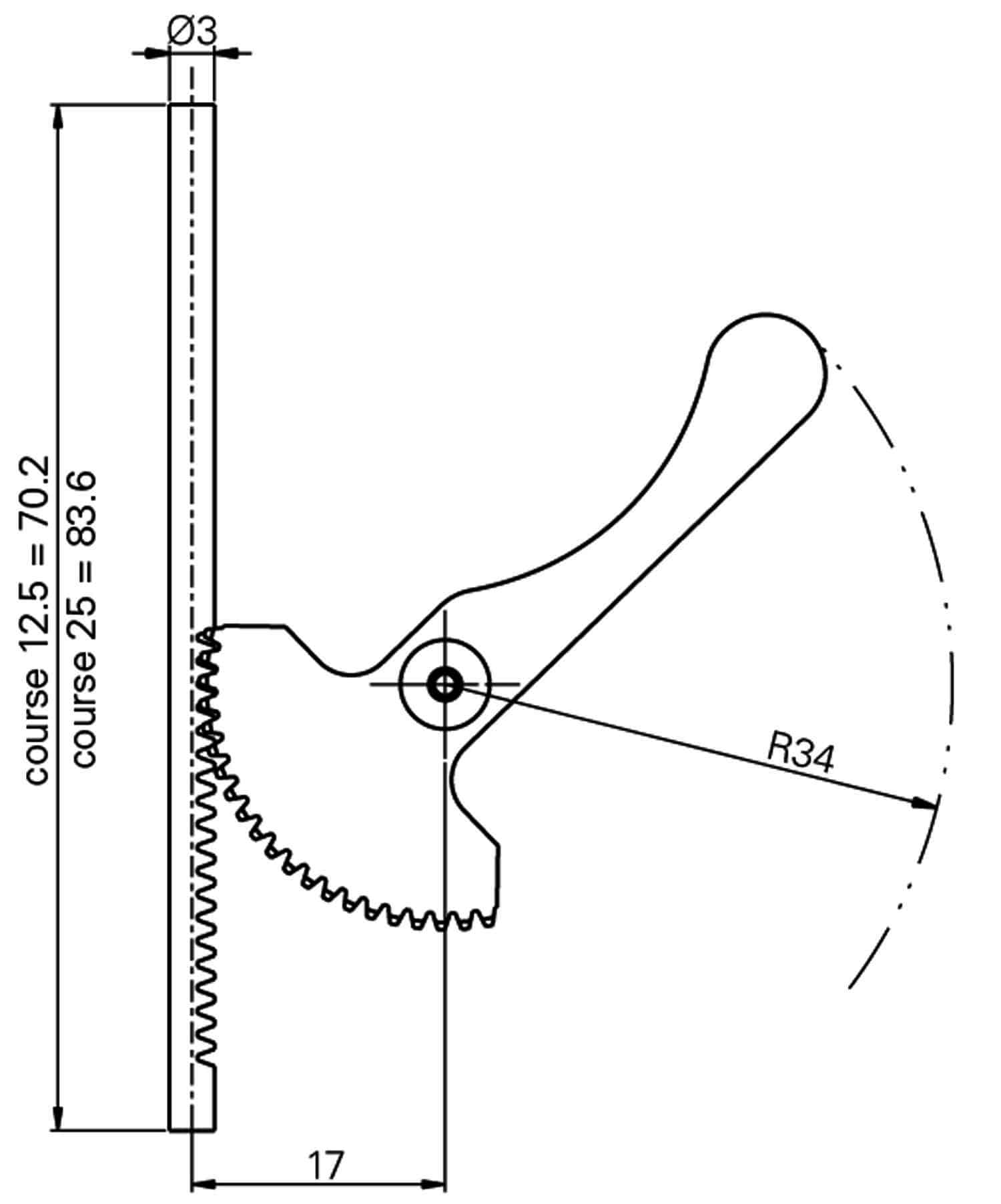

	805-0214	Lifting device, range 12.5mm			⬤¹
	805-0215	Lifting device, range 25mm			⬤¹

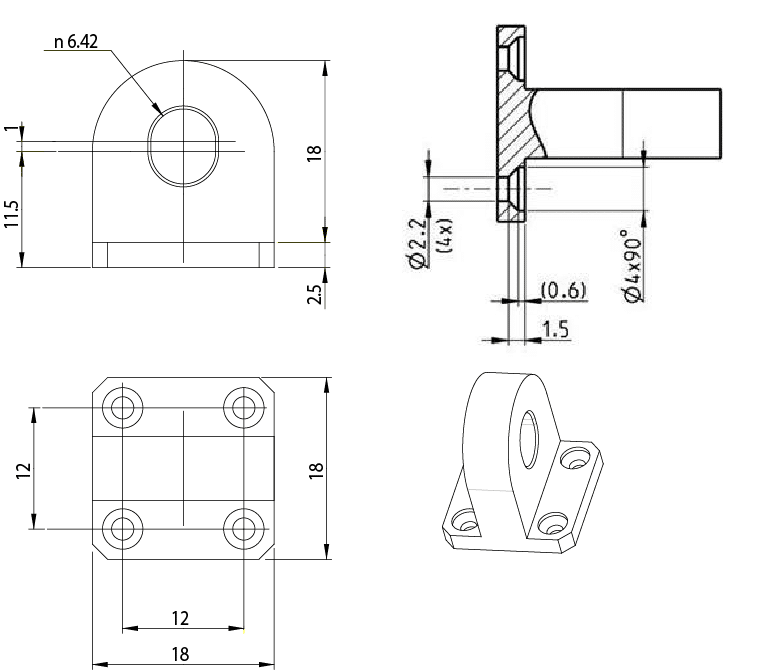

	805-0213	Lug back (delivered with 4 screws M2x4 DIN 963A)			⬤¹	⬤¹
	905-2231	Sleeve Ø8 –> 10mm with locking screw	⬤	⬤	⬤	⬤
	905-4212	Screwdriver for S_Dial MINI & TEST	⬤	⬤

¹ Except S_Dial WORK Basic

			S_Dial Mini	S_Dial TEST	S_Dial WORK 12.5 – 25 mm	S_Dial WORK 50 – 150 mm	S_Dial PRO
	905-2214	Lifting device	⬤		⬤	⬤	⬤

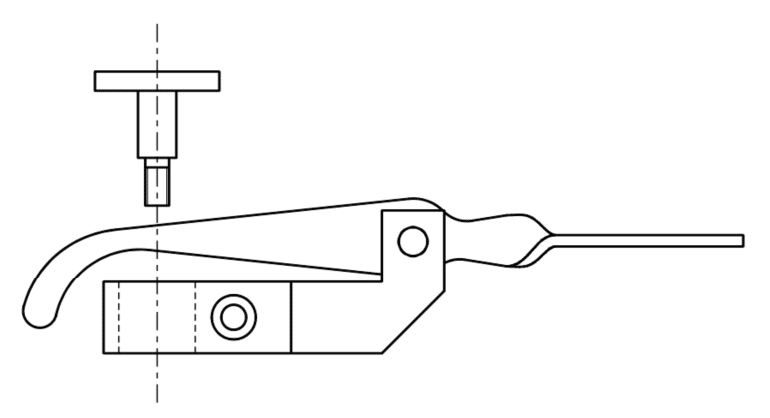

	905-2215	Upper lifting device			⬤
	905-2216	Lifting device with photo-cable			⬤

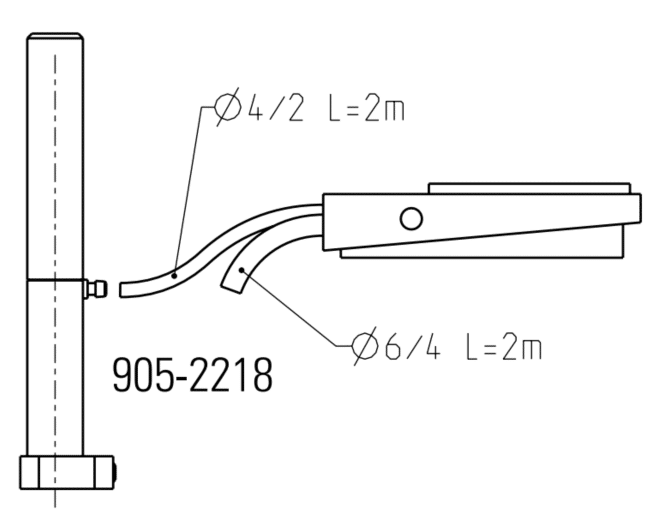

	905-2218	Pneumatic lifting device with foot pedal			⬤
	905-2217	Lifter only for 905-2218			⬤
	905-2219	Pneumatic foot pedal for 905-2218	⬤		⬤

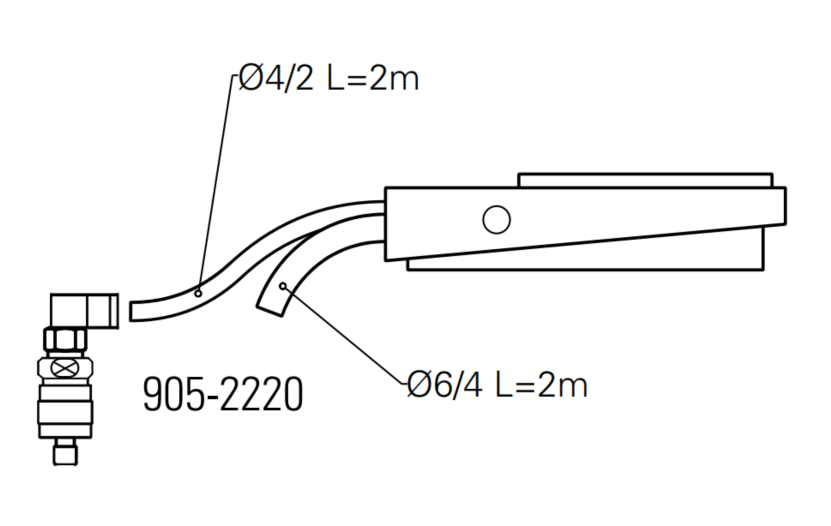

	905-2220	Vacuum lifting device with foot pedal				⬤
	905-2227	Pressure controller				⬤
	905-2228	Vacuum foot pedal for 905-2220				⬤

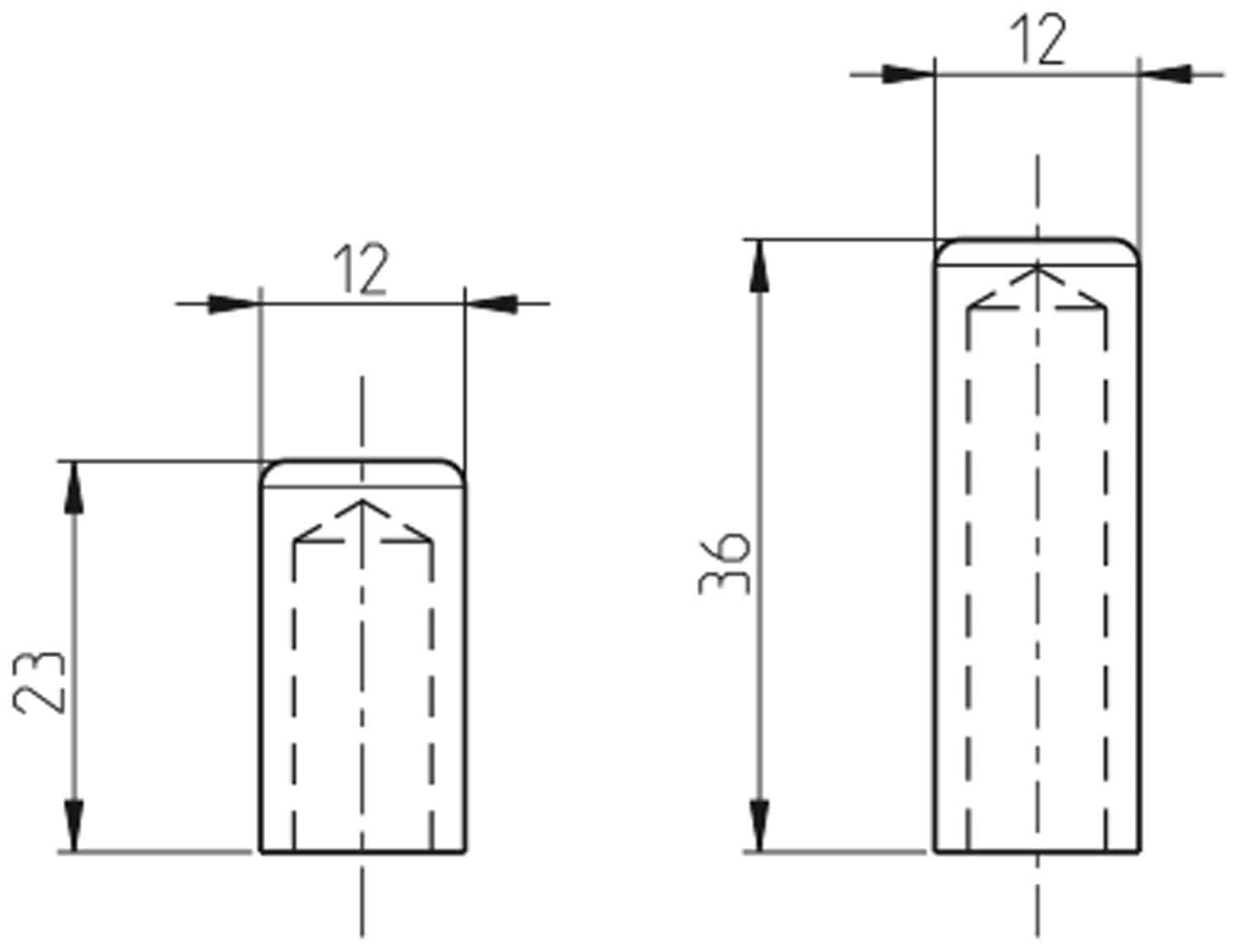

	905-2221	Dust protection for indicator, range 12.5 mm			⬤
	905-2222	Dust protection for indicator, range 25 mm			⬤

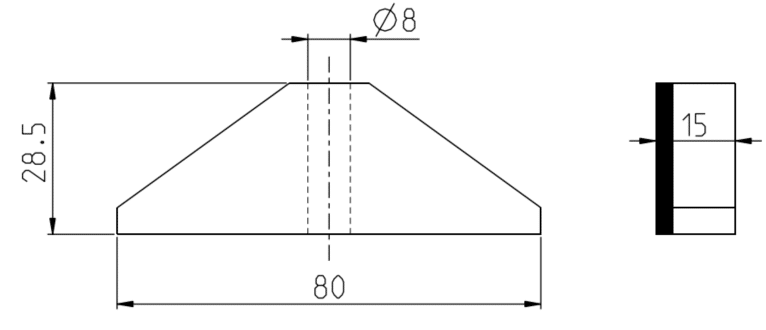

	905-2223	Depth measuring base			⬤	⬤

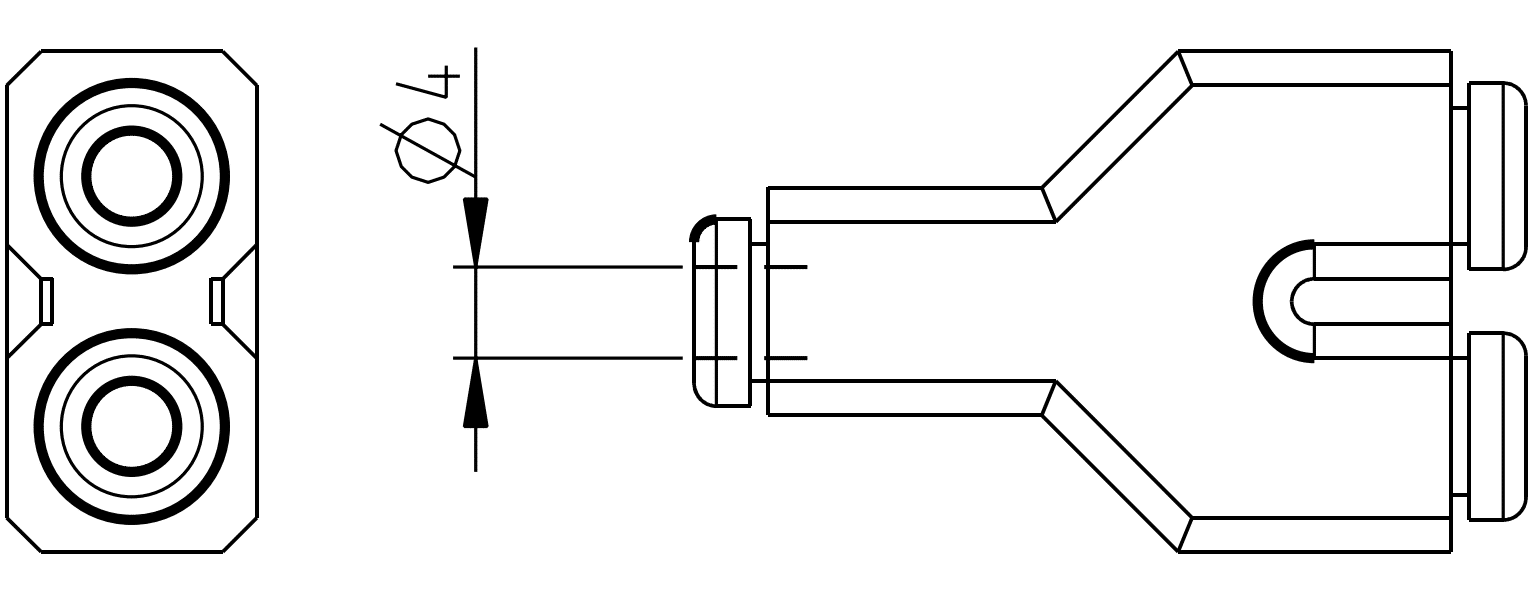

	905-2261	Snap connector for pneumatic lifter x2	⬤		⬤	⬤

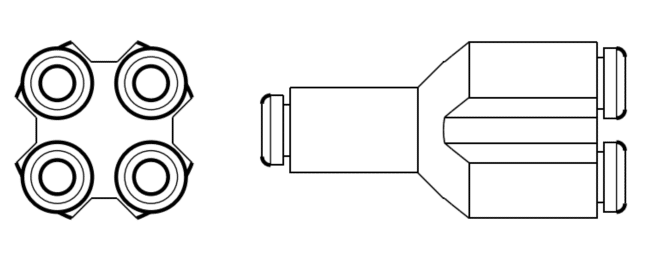

	905-2262	Snap connector for pneumatic lifter x4	⬤		⬤	⬤
	905-4211	Center lug back	⬤	⬤
	905-2224	Plastic lifting lever (bottom)	⬤		⬤	⬤	⬤
	905-2225	Plastic lifting ring (bottom)	⬤		⬤	⬤	⬤

			S_Dial Mini	S_Dial TEST	S_Dial WORK 12.5 – 25 mm	S_Dial WORK 50 – 150 mm	S_Dial WORK PLC

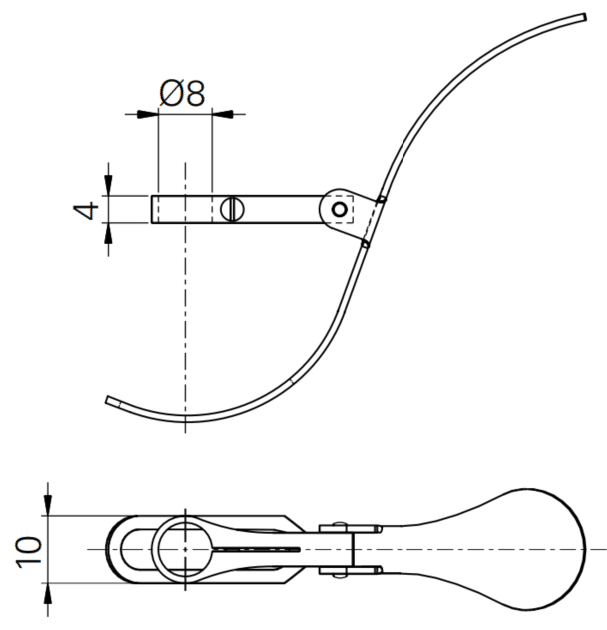

	905-4214	Lower lifting device, range 12.5 mm	⬤	¹	¹	¹	¹

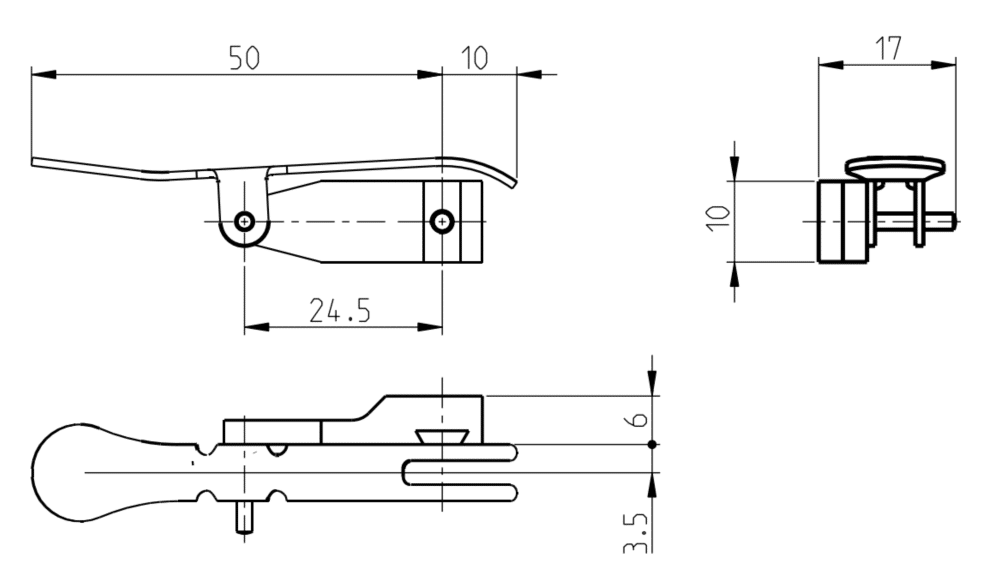

	905-4215	Upper lifting device for S (Standard) execution	⬤

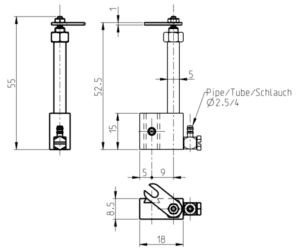

	905-4217	Pneumatic lifting device for standard type	⬤

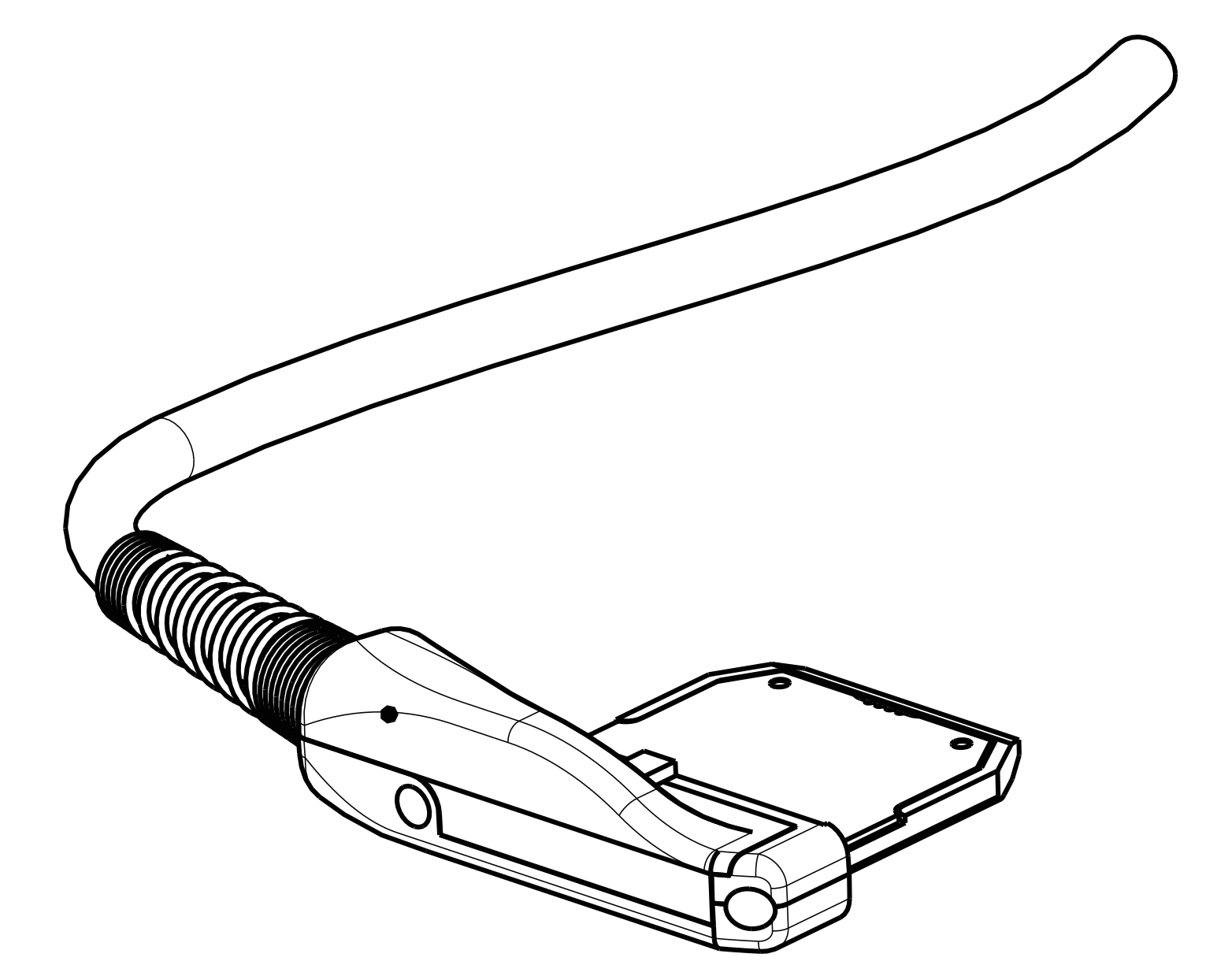

	926-6101	Replacement cable for digital indicator PLC					⬤

¹ used on range 20 mm max

Battery Pack	926-7024
Connections	Power-RS / Battery-RS
Weight (g)	71.6 (91.4g with atachment plate)
Capacity max. (mAh)	1000
Clamping	compatible with dial gauges Ø60mm
Cable length (mm)	150

Battery Pack accessory	985-2217
Description	Adapter for battery CR2032
Weight (g)	5
