Measuring stands

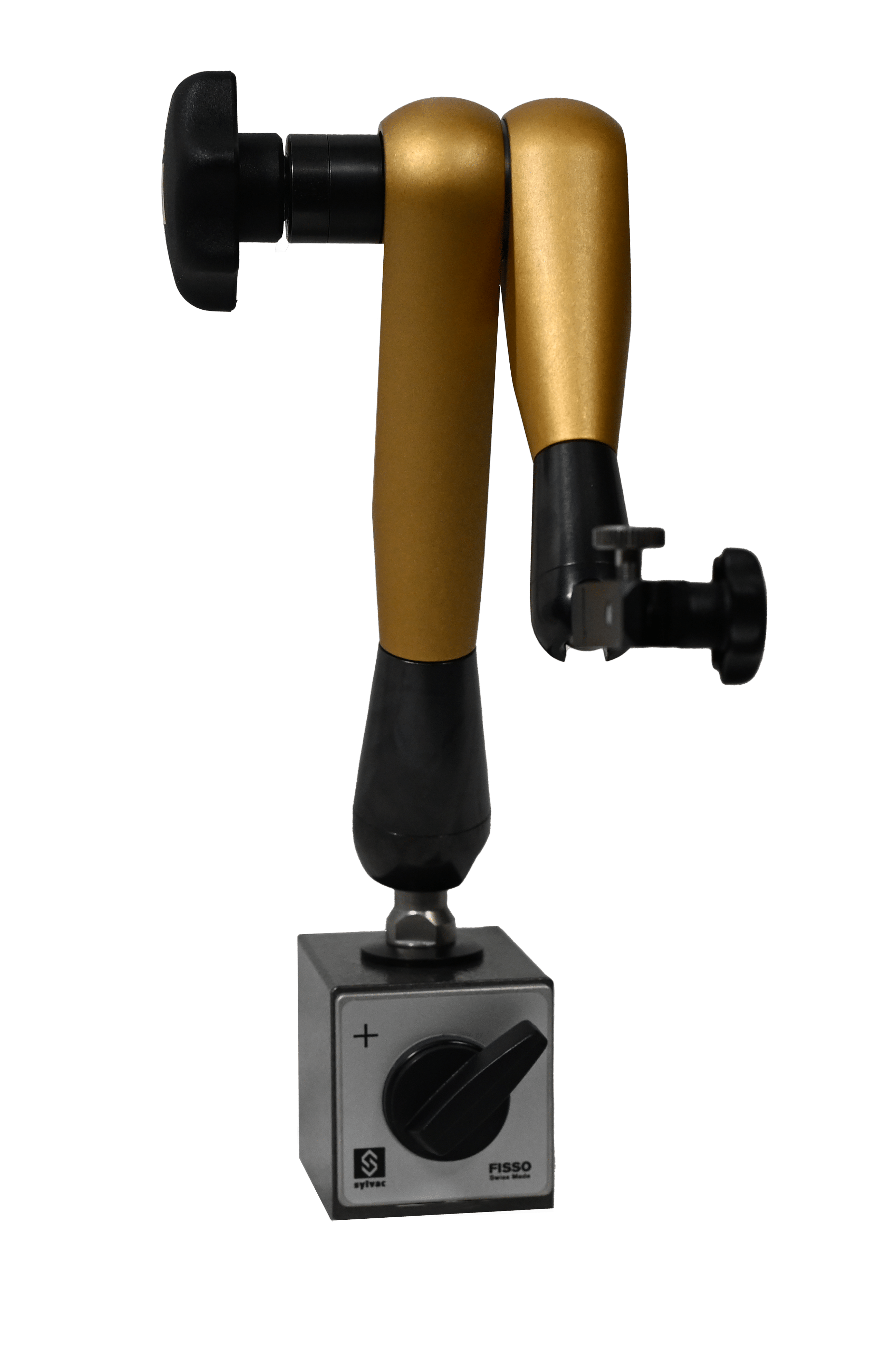

Stands with magnetic base for lever indicators
- Imported article
- Vertical rod Ø 16 mm and hinged horizontal rod Ø 12 mm
- Maximum measuring height 350 mm
- Magnetic base with attraction force 80 kg
- Clamping diameter 8 mm
- Gripping coefficient : 800N
| 908-1201 | |
| Base | magnetic ¹ |
| Base dimensions AxBxH (mm) | 60x50x55 |
| Central locking | ⬤ |
| Column (mm) | – |
| Clamping dimension (mm) | Ø 8 |
| Dist. Column.-meas. point. C (mm) | – |
| Measuring range (mm) | 0 – 267 |
| Total height (mm) | 430 |
| Weight (kg) | 2.2 |
| Fine adjustment | ⬤ |
¹ Gripping coefficient : 800N

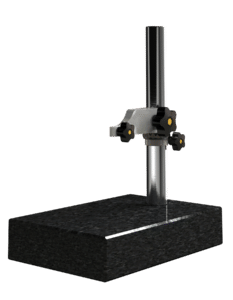

Stands for comparators and probes with ceramic table
- Imported article
- Vertical chrome steel column Ø 25 mm
- Clamping diameter 8 mm
- Maximum measuring height 115 mm
- Cast iron base with ceramic table 85 x 85 x 25 mm, grade xx
| 808-1204 | 808-1205 | |
| Base | granit grade 00 | granit grade 00 |
| Base dimensions AxBxH (mm) | 300x210x60 | 300x210x60 |
| Central locking | – | – |
| Column (mm) | Steel Ø 35 | Steel Ø 35 |
| Clamping dimension (mm) | Ø 8 | Ø 25 |
| Dist. Column.-meas. point. C (mm) | 115 | 115 |
| Measuring range (mm) | 0 – 260 | 0 – 260 |
| Total height (mm) | 360 | 360 |
| Weight (kg) | 13.4 | 13.5 |
| Fine adjustment | ⬤ | ⬤ |

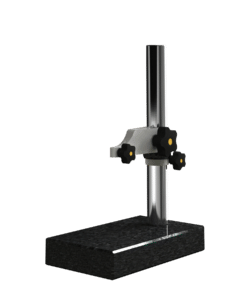

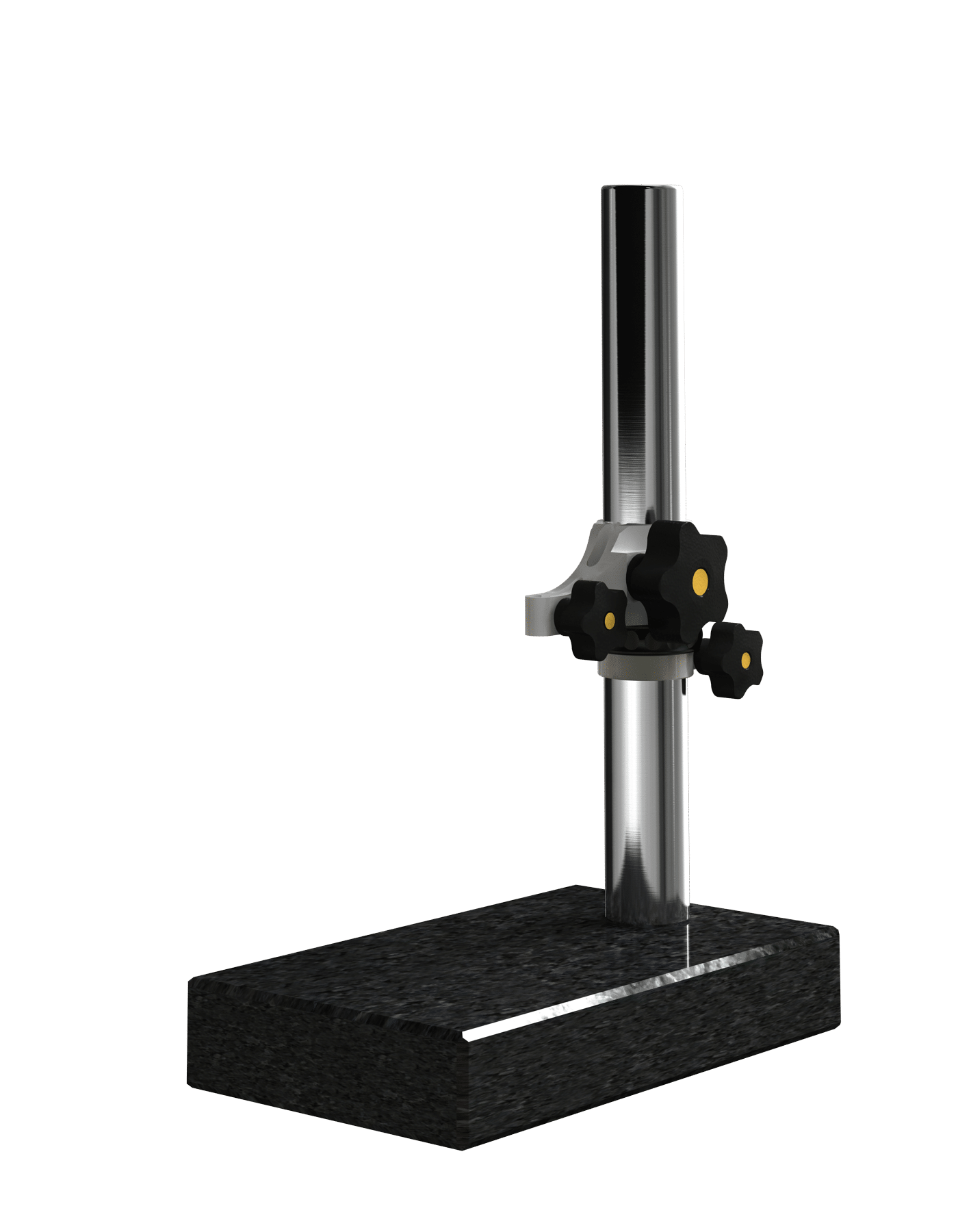

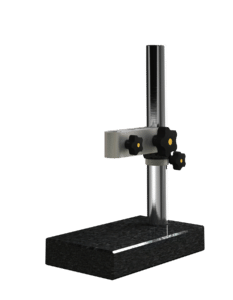

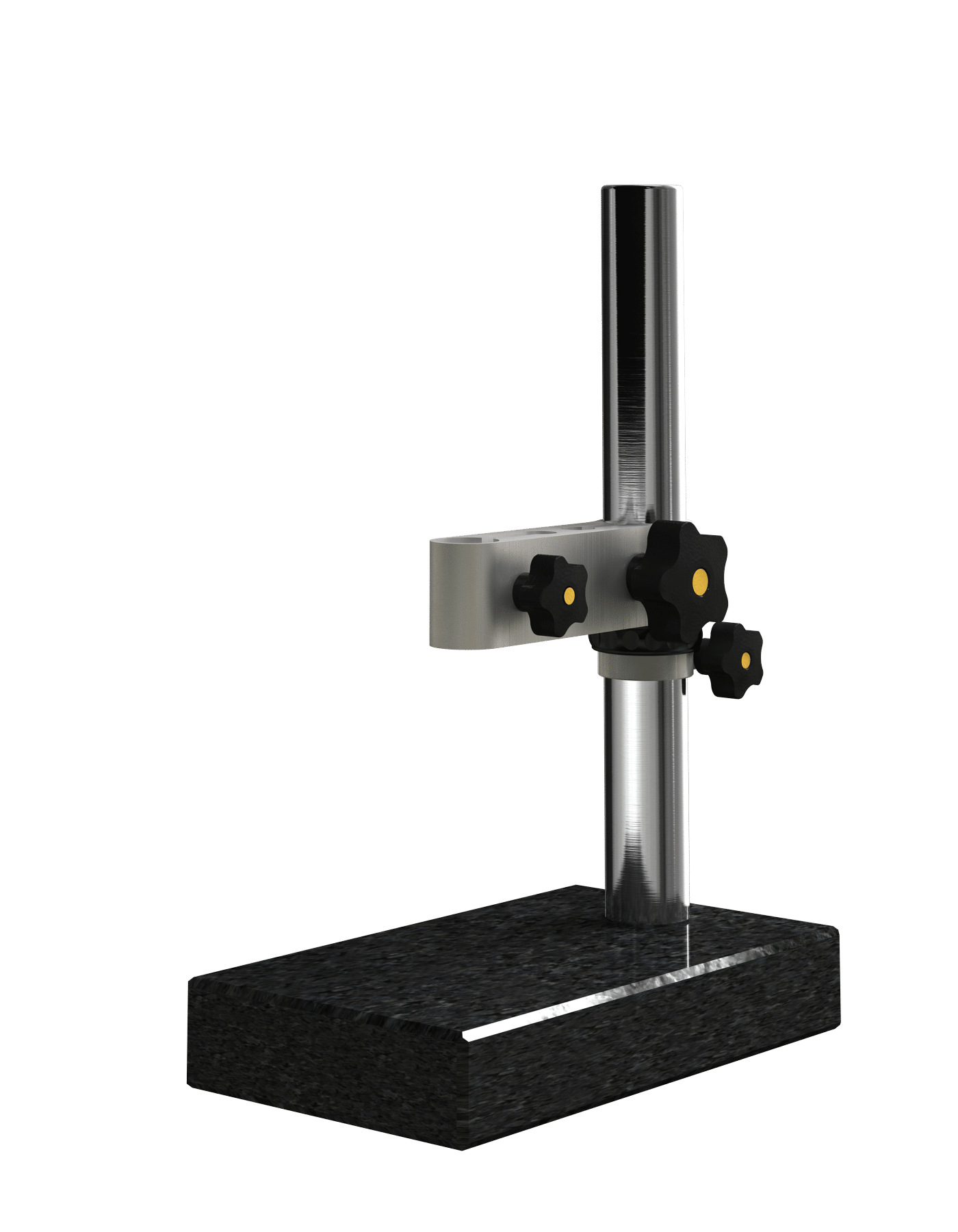

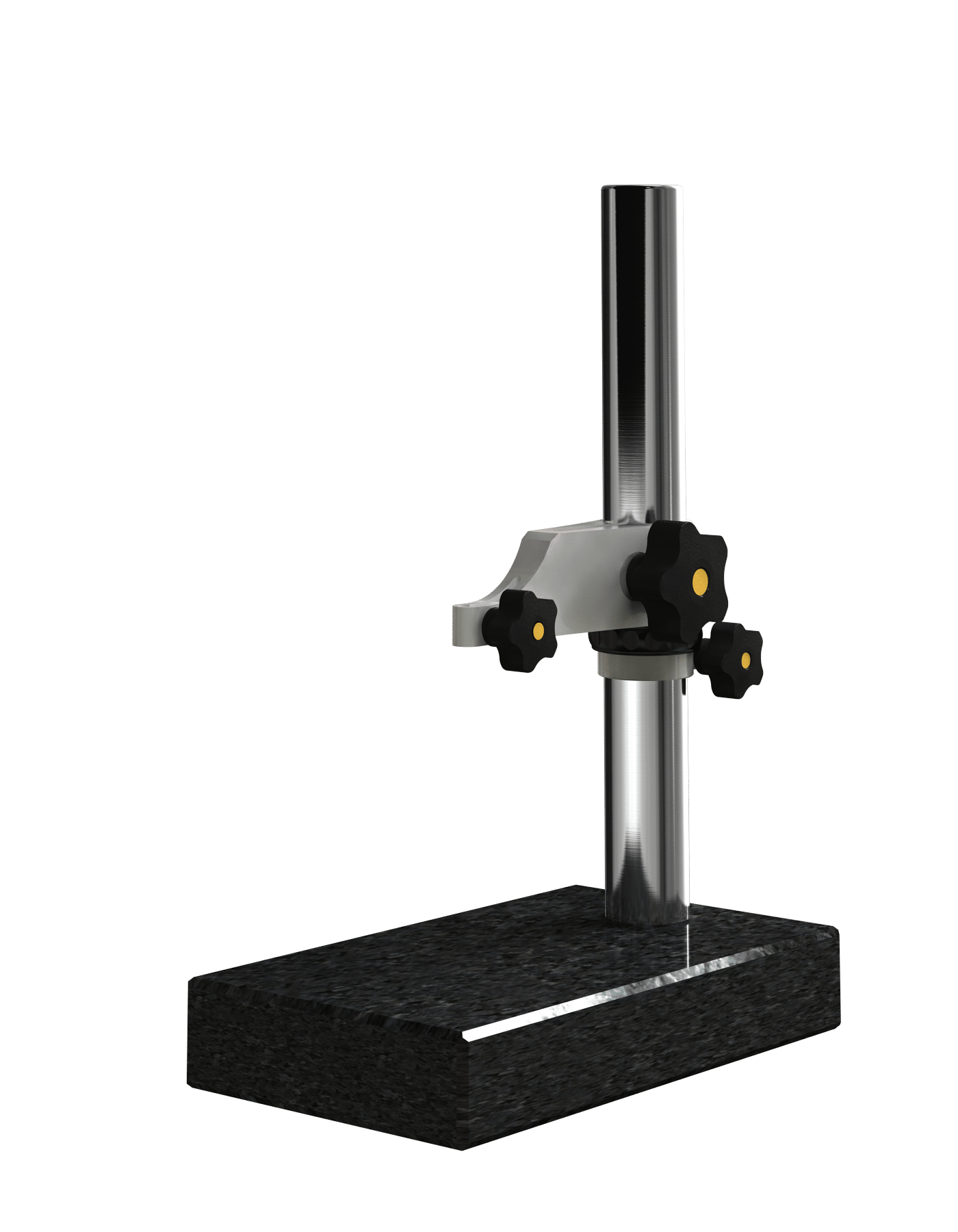

Series 808 stands for digital indicators and probes
- Made at Sylvac in Switzerland
- Superior quality compared to the Asian tables generally found on the market
- Reinforced column Ø 25 or 35 mm with precision measuring arm for excellent parallelism and high rigidity reducing the measuring error generated by the support.
- Clamping diameter 8 mm and 25 mm (for fixing S_Dial PRO dial gauges)
- Ring for fine adjustment of the vertical position
- Grade 00 granite base
| 808-1206 | 808-1207 | 808-1202 | 808-1203 | 808-1201 | |
| Base | granit grade 00 | granit grade 00 | granit grade 00 | granit grade 00 | granit grade 00 |
| Base dimensions AxBxH (mm) | 100X150X40 | 100X150X40 | 240x140x50 | 240x140x50 | 240x140x50 |
| Central locking | – | – | – | – | – |
| Column (mm) | Steel Ø 25 | Steel Ø 35 | Steel Ø 35 | Steel Ø 35 | Steel Ø 35 |
| Clamping dimension (mm) | Ø 8 | Ø 8 | Ø 25 | Ø 8 | Ø 8 |
| Dist. Column.-meas. point. C (mm) | 70 | 70 | 115 | 70 | 115 |
| Measuring range (mm) | 0 – 190 | 0 – 260 | 0 – 260 | 0 – 260 | 0 – 260 |
| Total height (mm) | 270 | 340 | 340 | 340 | 340 |
| Weight (kg) | 2.9 | 4.3 | 6.6 | 6.5 | 6.6 |
| Fine adjustment | ⬤ | ⬤ | ⬤ | ⬤ | ⬤ |
