    Mini digital indicator S_Dial MINI Smart

    *Available in different measuring ranges

    Description

    Smallest digital indicator on the market with integrated Bluetooth® technology.
    1um
    Resolution: 1µm
    MicrosoftTeams-image (5)
    Swiss made
    Cable
    Cable

    Features

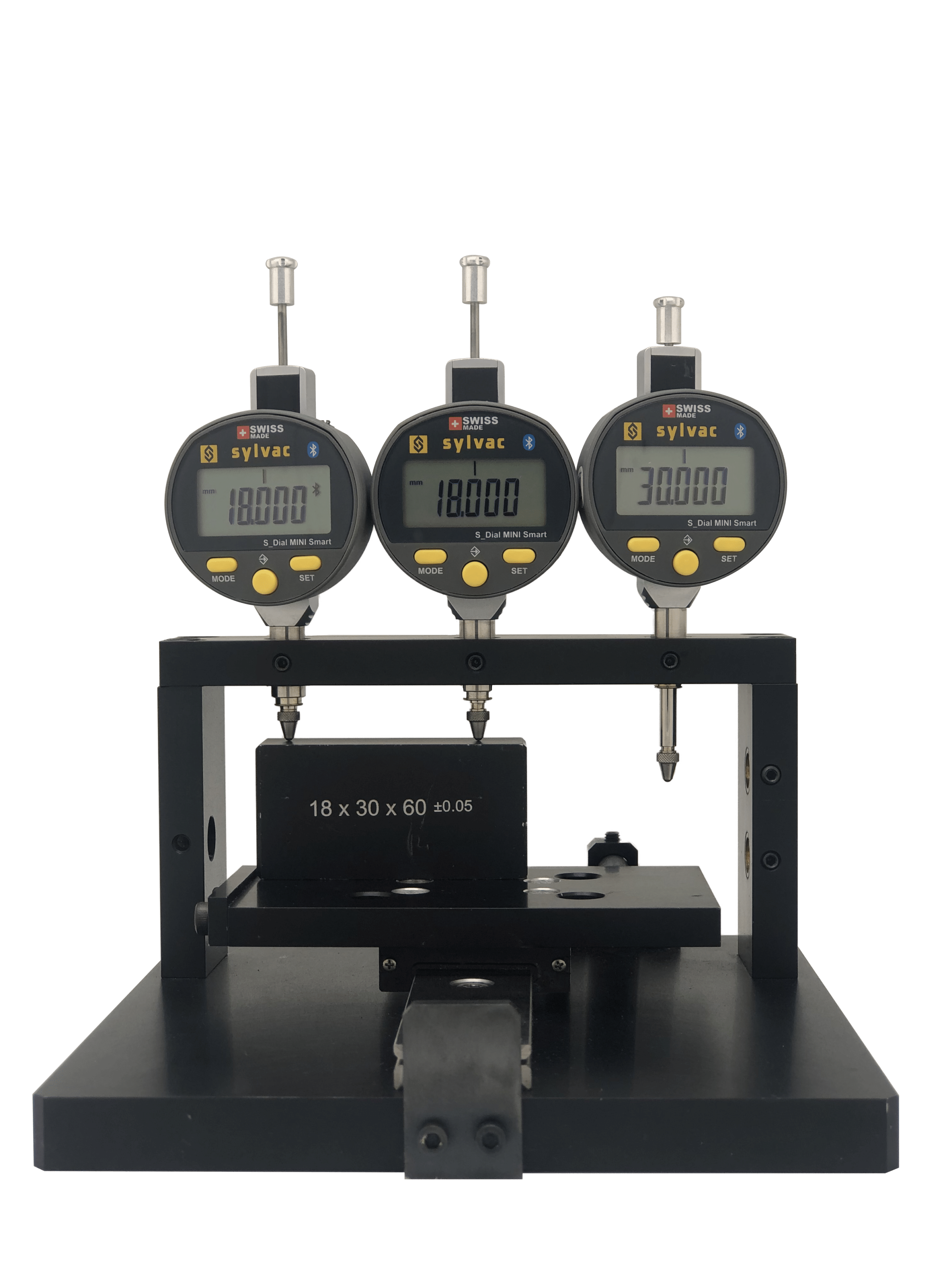

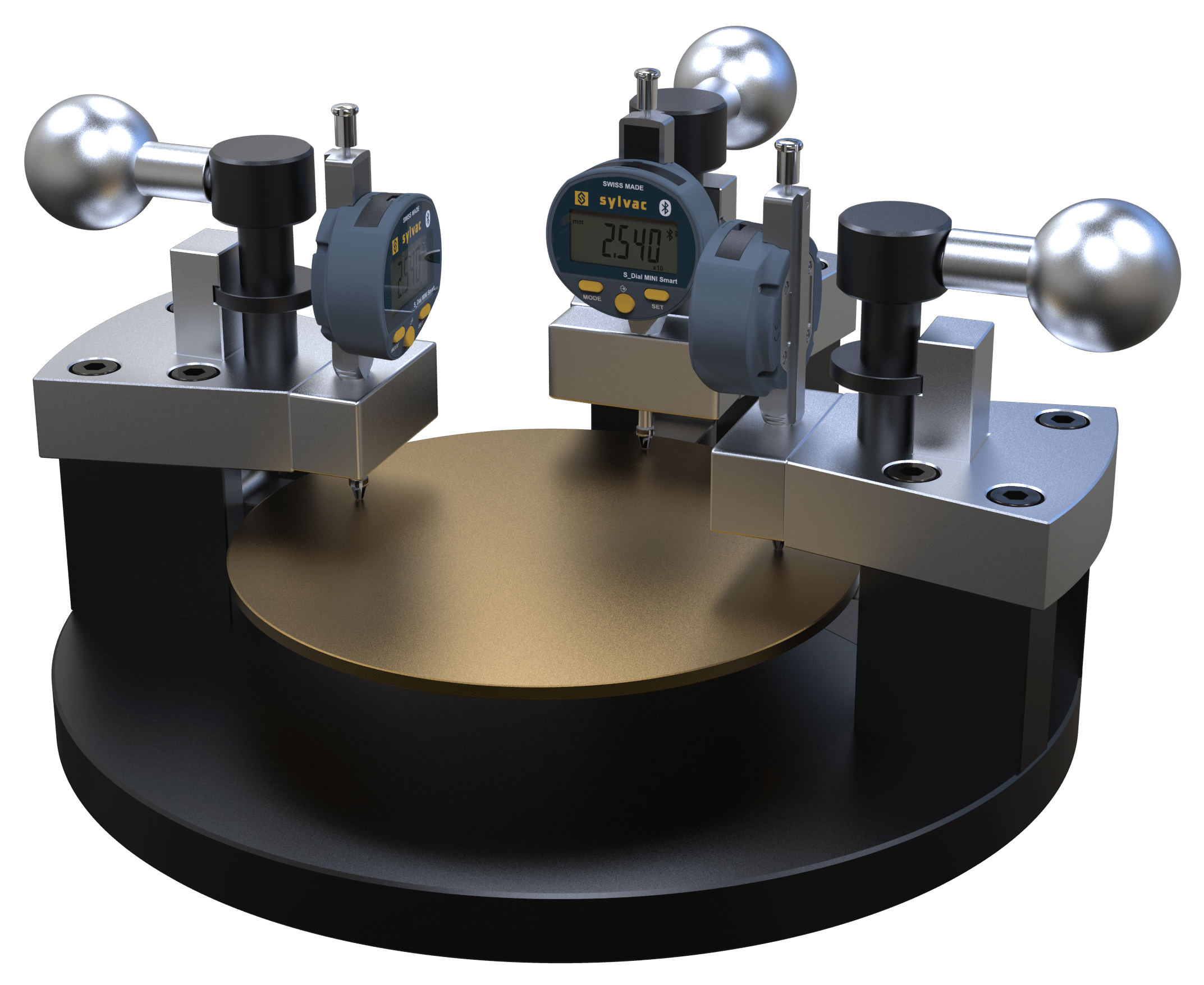

    • Seamless Integration: Integrate our digital indicator effortlessly into machines or measuring fixtures, optimizing your workflow. With it compact Ø 45 mm non-rotating housing and robust design, it is the ideal solution for space-constrained environments.
    • Wireles data acquisition: Our digital indicator is equipped with integrated Bluetooth® technology, allowing you to transmit measurements wirelessly, quickly and error-free for enhanced productivity.
    • Efficiency Perfected: Achieve optimal efficiency with a central button for preset recall and value transmission. Experience error-free operation through hidden setup, preventing user mistakes. Enjoy extended battery life with automatic power shut down. Effortlessly select mm/inch and measurement direction for accurate results.
    • Robust Executions: Tailor the execution of our digital comparator to meet your exact needs. Choose between the Protected (P) version, featuring IP67 protection with a bellows-protected spindle, or the Standard (S) version with IP54 protection and a lifting cap. Clamping stem Ø 8-h6 of hardened and ground stainless steel.
    • High Precision and Versatility: Achieve high precision with the digital display resolution options of 0.01 or 0.001 mm. With a measuring range of 12.5 mm, this comparator caters to a wide range of measurement needs.

    Applications

    icon-form-deviation
    Form deviation
    logicielsDistance
    Distance

    Industries

    icon-automotive-sylvac
    Automotive
    Electronics
    icon-aeronotics-sylvac
    Aeronautics
    icon-oackaging-sylvac
    Packaging
    icon-machine-tool-sylvac
    Machine tool
    icon-medical-device-sylvac
    Medical device

    Overview

    805-6121 805-6123 805-6125 805-6521 805-6523 805-6525
    EAN 7640125680966 7640125687996 7640125680997 7640125681109 7640125688016 7640125681116
    Measuring range (mm) 12.5
    Analog scale
    Resolution (mm) 0.01 0.001
    Execution ³ S S P S S P
    Max. Error fe (µm) 10 ¹ 4
    Repeatability (µm) 2
    Measuring force ² (N) 0.5 – 0.9 N 0.6 – 1.3 N 0.5 – 0.9 N 0.6 – 1.3 N
    Lifting cap
    Zero setting
    Resolution selection
    PRESET = (max. +999.99 mm)
    Min / max / delta display
    Selection of measuring direction
    Multiplication factor
    Output data Bluetooth® wireless technology / RS232 / USB
    IP rating IP67

    ¹ ± 1 digit

    ² Values ± 20%, indicator in vertical position, outgoing measuring spindle

    ³ S = Standard P = Protected

    Measuring force S P
    Standard 0.50 – 0.90 N 0.60 – 1.30 N
    Low ¹ 0.35 – 0.50 N
    High ¹ 1.80 – 2.30 N

    ¹ on request

    805-6121 805-6123 805-6125 805-6521 805-6523 805-6525
    EAN 7640125680966 7640125687996 7640125680997 7640125681109 7640125688016 7640125681116
    Measuring range (mm) 12.5
    Analog scale
    Resolution (mm) 0.01 0.001
    Execution ³ S S P S S P
    Max. Error fe (µm) 10 ¹ 4
    Repeatability (µm) 2
    Measuring force ² (N) 0.5 – 0.9 N 0.6 – 1.3 N 0.5 – 0.9 N 0.6 – 1.3 N
    Lifting cap
    Zero setting
    Resolution selection
    PRESET = (max. +999.99 mm)
    Min / max / delta display
    Selection of measuring direction
    Multiplication factor
    Output data Bluetooth® wireless technology / RS232 / USB
    IP rating IP67

    ¹ ± 1 digit

    ² Values ± 20%, indicator in vertical position, outgoing measuring spindle

    ³ S = Standard P = Protected

    Measuring force S P
    Standard 0.50 – 0.90 N 0.60 – 1.30 N
    Low ¹ 0.35 – 0.50 N
    High ¹ 1.80 – 2.30 N

    ¹ on request

    Instrument according to technical specifications
    Lithium battery CR2032 included
    Instruction manual
    Calibration certificate for instruments with resolution 0.001 mm
    Contact points M2.5
    905-2201 (carbide)
    905-2202
    905-2203
    905-2206
     905-2204
    905-2205
    905-2207



    Standard Accessories
    905-2246 Clamping stem
    905-2247 Clamping stem
    905-2231 Sleeve Ø8 –> 10mm with locking screw
    905-4212 Screwdriver for S_Dial MINI & TEST
    905-2214 Lifting device
    905-2219 Pneumatic foot pedal for 905-2218
    905-2261 Snap connector for pneumatic lifter x2
    905-2262 Snap connector for pneumatic lifter x4
    905-4211 Center lug back
    905-2224 Plastic lifting lever (bottom)
    905-2225 Plastic lifting ring (bottom)
    905-4214 Lower lifting device, range 12.5 mm
    905-4215 Upper lifting device for S (Standard)
    execution
    905-4217 Pneumatic lifting device for standard type
    905-4516 Power RS (Standard 3 m)
    905-4519 Power RS (Standard 15 m)
    905-4538 Power RS (bent) (Standard 3 m)
    926-6821 Power USB (Standard 3 m)
    926-6838 Power USB (bent) (Standard 3 m)
    985-2215 Battery CR2032
    926-7022 S_Footswitch Smart
    Mini digital indicator S_Dial MINI Smart
    CHF 377.00
    Scroll to Top

    Request a demo

    Mini digital indicator S_Dial MINI Smart

    Contact us

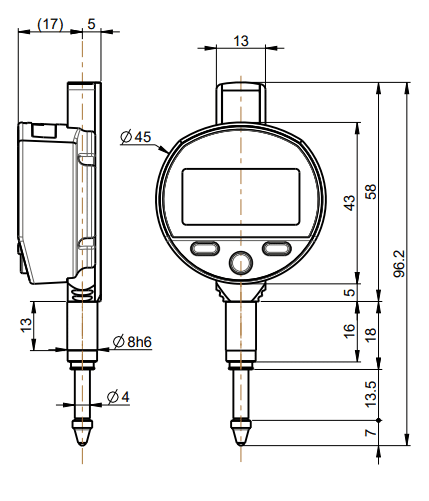

    Download Technical Plan :Mini digital indicator S_Dial MINI Smart
