Mini digital indicator S_Dial MINI Basic

Starting at :
CHF 277.00

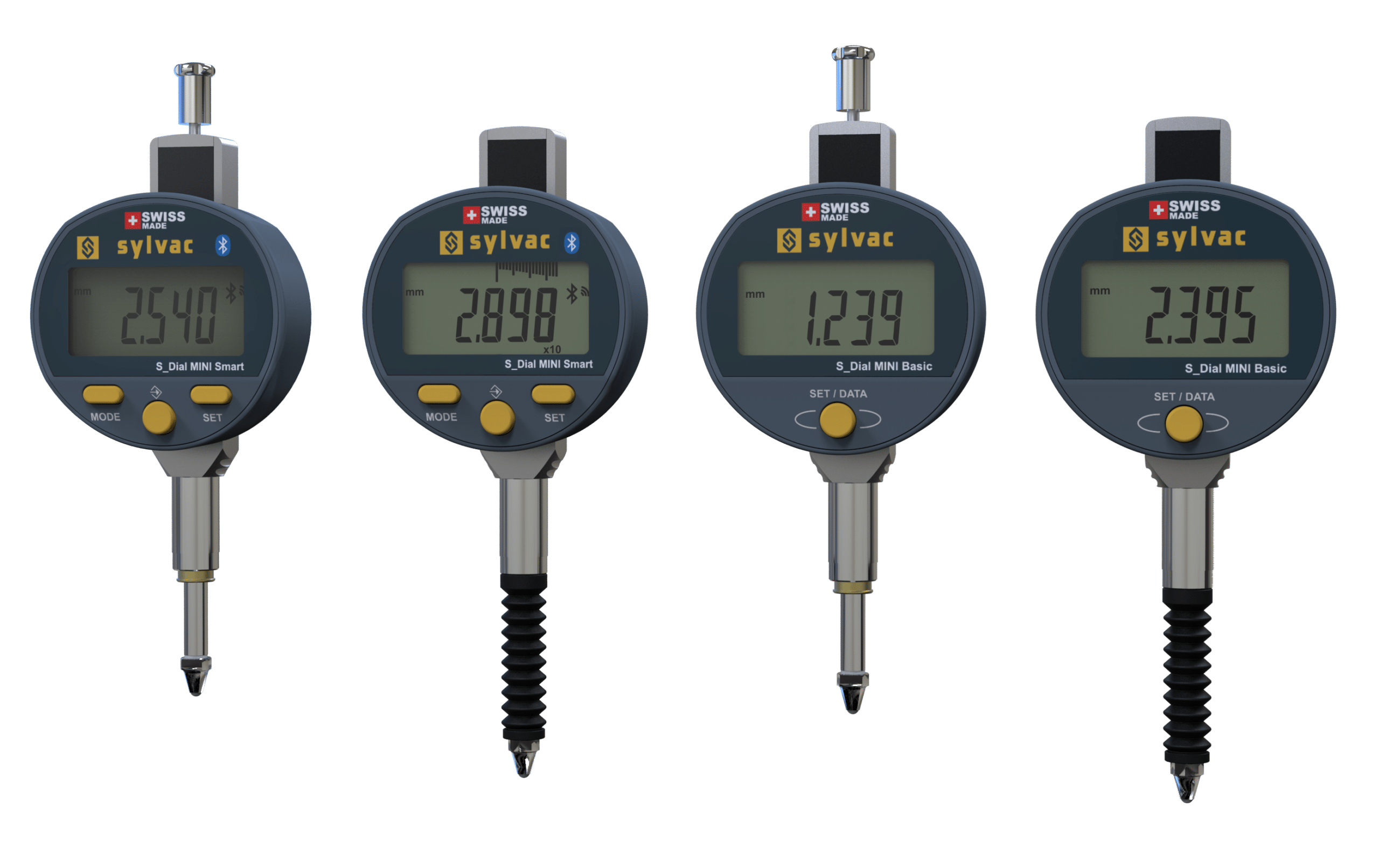

*Available in different measuring ranges

Description

Smallest digital indicator on the market.
1um
Resolution: 1µm
MicrosoftTeams-image (5)
Swiss made
Cable
Cable

Features

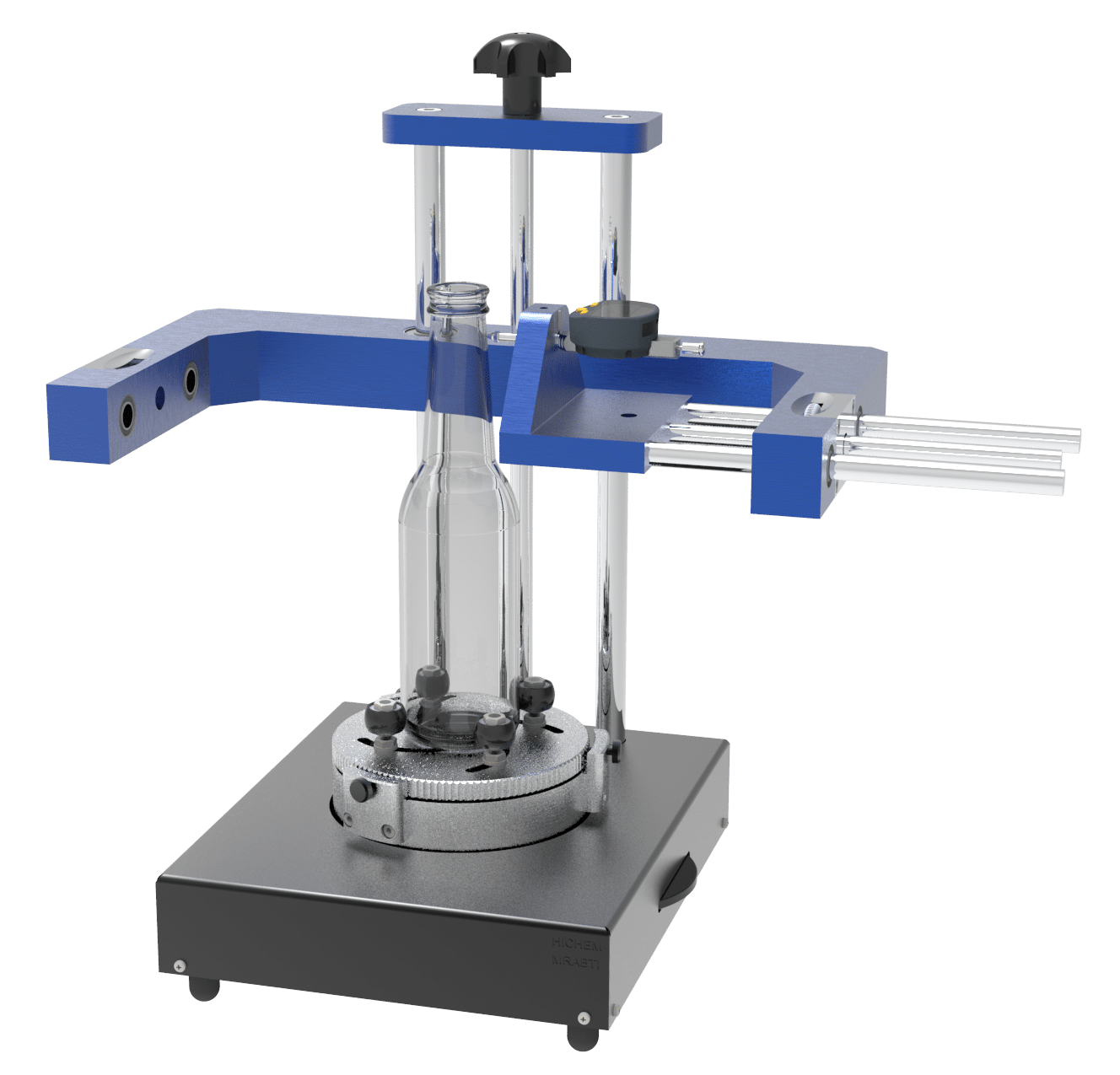

  • Seamless Integration: Integrate our digital indicator effortlessly into machines or measuring fixtures, optimizing your workflow. With it compact Ø 45 mm non-rotating housing and robust design, it is the ideal solution for space-constrained environments.
  • Efficiency Perfected: Achieve optimal efficiency with a central button for preset recall and value transmission. Experience error-free operation through hidden setup, preventing user mistakes. Enjoy extended battery life with automatic power shut down. Effortlessly select mm/inch and measurement direction for accurate results.
  • Robust Executions: Choose between the Protected (P) version, featuring IP67 protection with a bellows-protected spindle, or the Standard (S) version with IP54 protection and a lifting cap. Clamping stem Ø 8-h6 of hardened and ground stainless steel.
  • High Precision and Versatility: Achieve high precision with the digital display resolution options of 0.01 or 0.001 mm. With a measuring range of 12.5 mm, this comparator caters to a wide range of measurement needs.

Applications

icon-form-deviation
Form deviation
logicielsDistance
Distance

Industries

icon-automotive-sylvac
Automotive
Electronics
icon-aeronotics-sylvac
Aeronautics
icon-oackaging-sylvac
Packaging
icon-machine-tool-sylvac
Machine tool
icon-medical-device-sylvac
Medical device

Overview

805-4121 805-4125 805-4521 805-4525
EAN 7640125698275 7640125680881 7640125680904 7640125680911
Measuring range (mm) 12.5
Analog scale
Resolution (mm) 0.01 0.001
Execution ³ S P S P
Max. Error fe (µm) 10 ¹ 4
Repeatability (µm) 2
Measuring force ² (N) 0.5 – 0.9 N 0.6 – 1.3 N 0.5 – 0.9 N 0.6 – 1.3 N
Zero setting
Resolution selection
PRESET = (max. +999.99 mm) ⬤ ⁴
Min / max / delta display
Selection of measuring direction
Multiplication factor
Output data USB / RS232
IP rating IP54 IP67 IP64 IP67

¹ ± 1 digit

² Values ± 20%, indicator in vertical position, outgoing measuring spindle

³ S = Standard P = Protected

⁴ Preset configuration only by computer

Measuring force S P
Standard 0.5 – 0.90 N 0.6 – 1.3 N
Low ⁵ 0.35 – 0.50 N
High ⁵ 1.80 – 2.3 N

Tolerance ±20%, indicator in vertical position, spindle in outgoing measurement

⁵ on request

805-4121 805-4125 805-4521 805-4525
EAN 7640125698275 7640125680881 7640125680904 7640125680911
Measuring range (mm) 12.5
Analog scale
Resolution (mm) 0.01 0.001
Execution ³ S P S P
Max. Error fe (µm) 10 ¹ 4
Repeatability (µm) 2
Measuring force ² (N) 0.5 – 0.9 N 0.6 – 1.3 N 0.5 – 0.9 N 0.6 – 1.3 N
Zero setting
Resolution selection
PRESET = (max. +999.99 mm) ⬤ ⁴
Min / max / delta display
Selection of measuring direction
Multiplication factor
Output data USB / RS232
IP rating IP54 IP67 IP64 IP67

¹ ± 1 digit

² Values ± 20%, indicator in vertical position, outgoing measuring spindle

³ S = Standard P = Protected

⁴ Preset configuration only by computer

Measuring force S P
Standard 0.5 – 0.90 N 0.6 – 1.3 N
Low ⁵ 0.35 – 0.50 N
High ⁵ 1.80 – 2.3 N

Tolerance ±20%, indicator in vertical position, spindle in outgoing measurement

⁵ on request

Instrument according to technical specifications
Lithium battery CR2032 included
Instruction manual
Calibration certificate for instruments with resolution 0.001 mm
Contact points M2.5
905-2201 (carbide)
905-2202
905-2203
905-2206
 905-2204
905-2205
905-2207



Standard Accessories
905-2246 Clamping stem
905-2247 Clamping stem
905-2231 Sleeve Ø8 –> 10mm with locking screw
905-4212 Screwdriver for S_Dial MINI & TEST
905-2214 Lifting device
905-2219 Pneumatic foot pedal for 905-2218
905-2261 Snap connector for pneumatic lifter x2
905-2262 Snap connector for pneumatic lifter x4
905-4211 Center lug back
905-2224 Plastic lifting lever (bottom)
905-2225 Plastic lifting ring (bottom)
905-4214 Lower lifting device, range 12.5 mm
905-4215 Upper lifting device for S (Standard)
execution
905-4217 Pneumatic lifting device for standard type
985-2215 Battery CR2032
Mini digital indicator S_Dial MINI Basic
CHF 277.00
Scroll to Top

Request a demo

Mini digital indicator S_Dial MINI Basic

Contact us

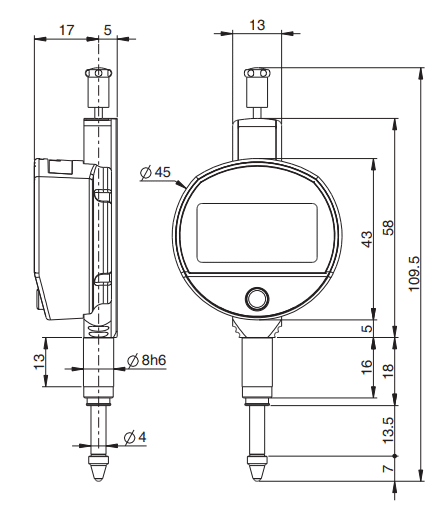

Download Technical Plan :Mini digital indicator S_Dial MINI Basic
