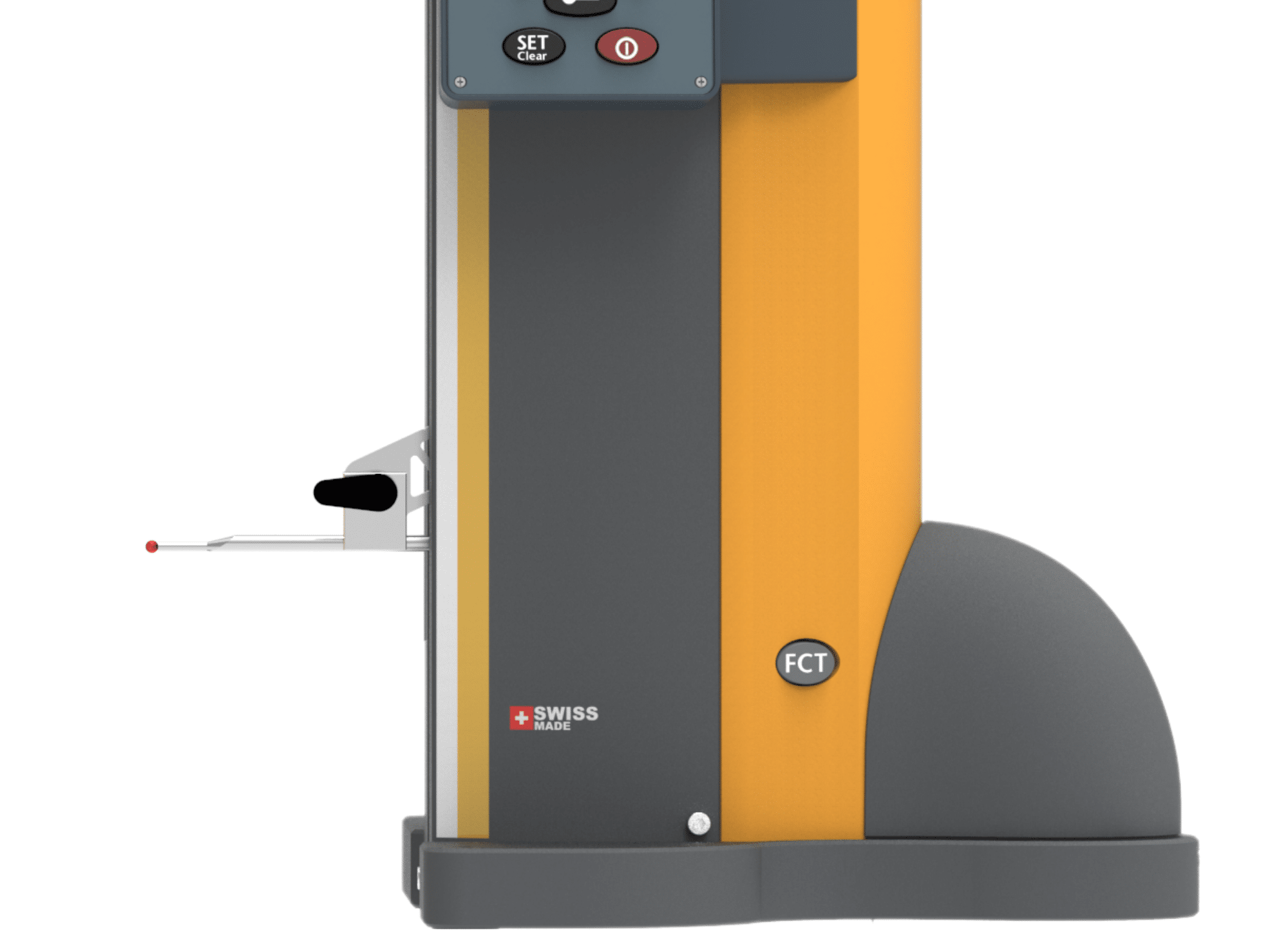

Height gauge Hi_Cal V2 Smart

Starting at :
CHF 4'034.00

*Available in different measuring ranges

Description

Motorised, high accuracy height gauge.
1um
Resolution: 1µm
MicrosoftTeams-image (5)
Swiss made
Cable
Cable

Features

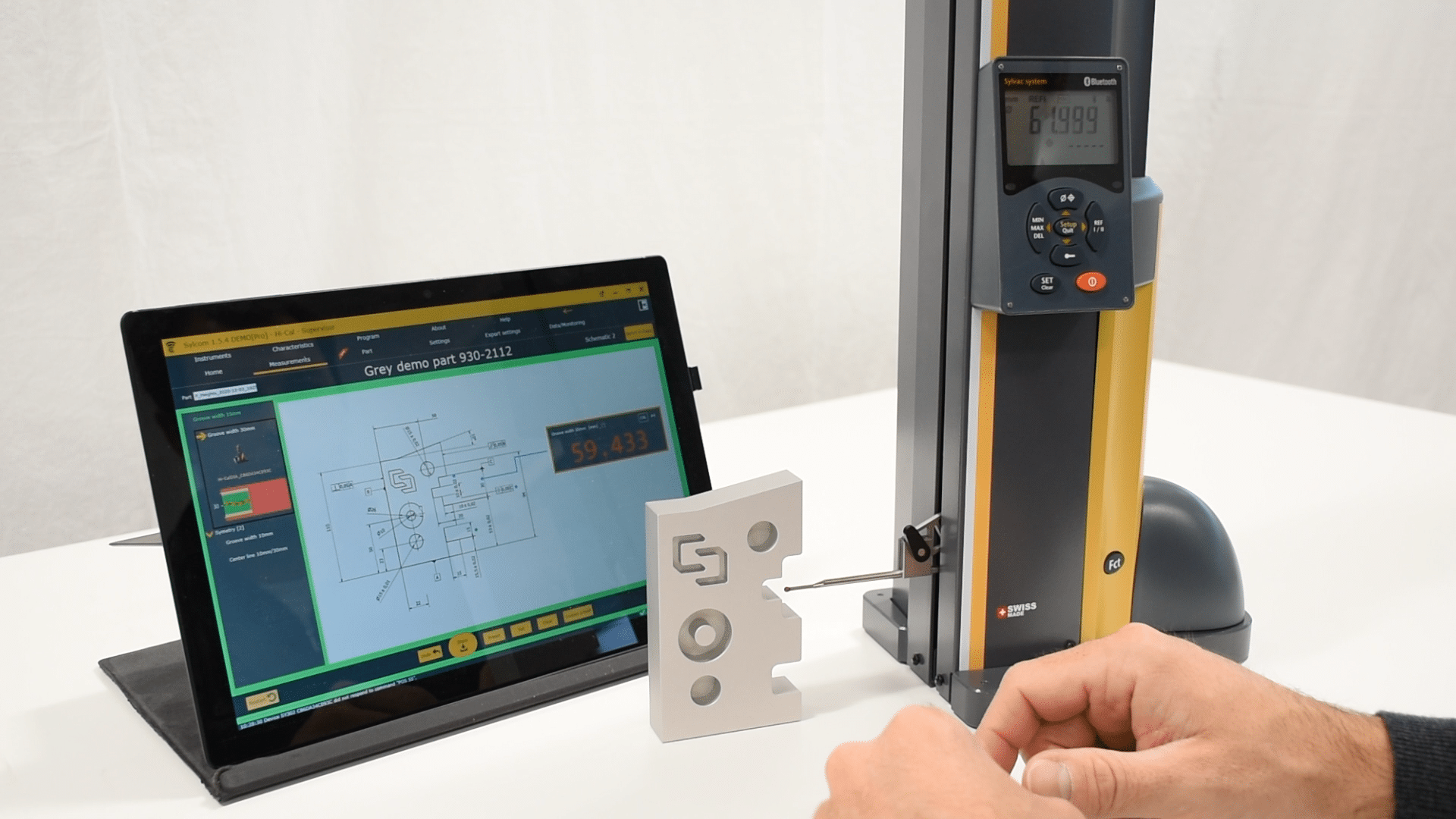

  • Precision Measuring Made Easy: Measure various geometries with ease thanks to our intuitive motorized displacement paddle and simplified guidance system.
  • Seamless data acquisition: The device features data outputs for PROXIMITY, POWER, and Bluetooth® that make it easy to integrate into any setup. It also has an integrated Bluetooth® system that allows for wireless data transfer.
  • Streamline your workflow : Benefit from our MIN/MAX/DELTA functions, selectable favorite function, and light and sound indication to validate the probing process.
  • Maximum Accuracy : Our measuring system offers unmatched accuracy, with display resolutions of 0.01 / 0.001 / 0.0005mm, and measuring range of 150, 300, and 450 mm.

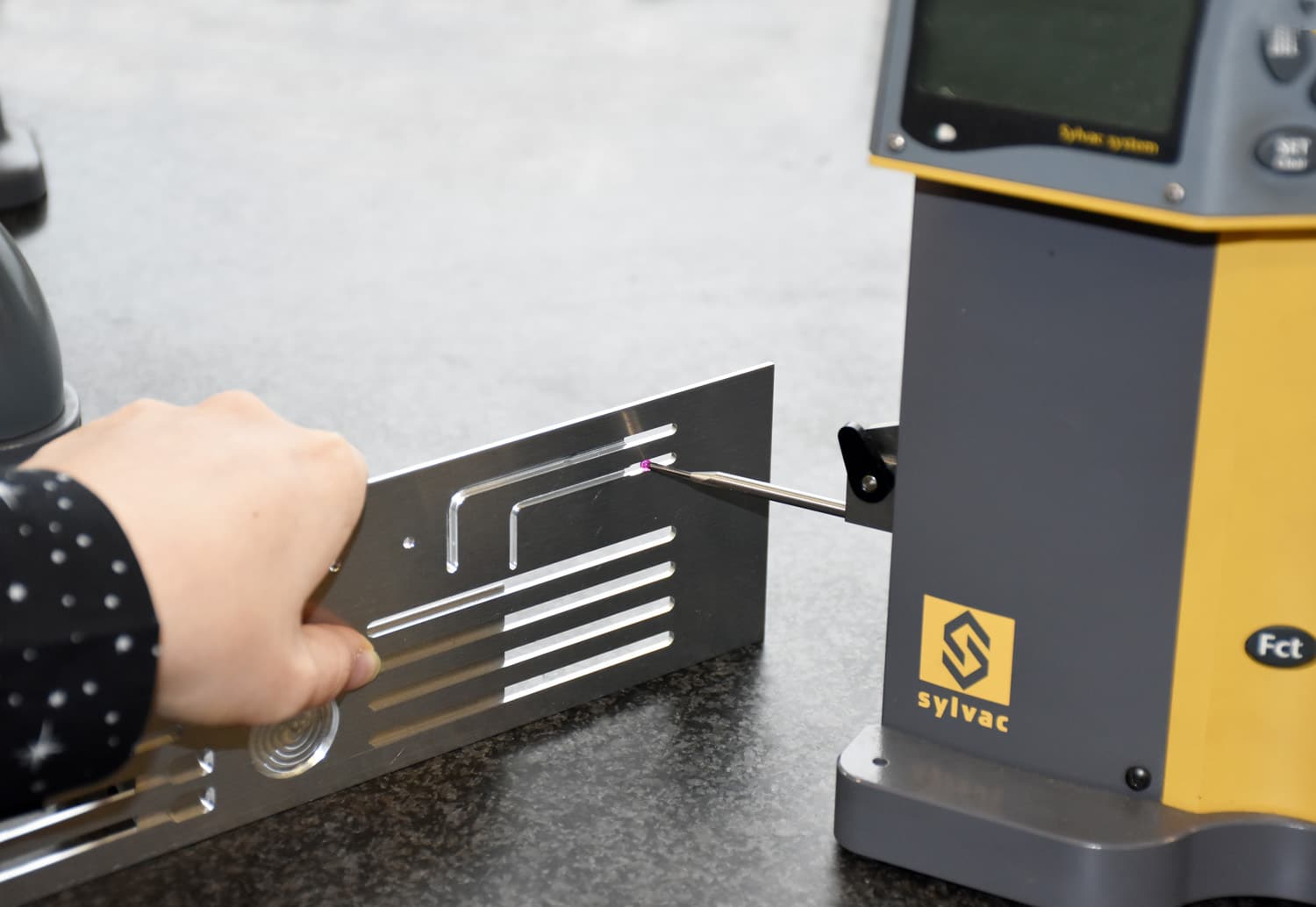

  • Durability and Reliability: Our measuring system boasts a fixed clamping probe holder, interchangeable ruby tips, and automatic pre-positioning, ensuring reliable and fast measurements every time.
  • Operator-Independent Measurements: Our system features extremely low and adjustable measuring force according to the probe, and the probe constant value is memorized even when switched off, ensuring operator-independent measurements every time.



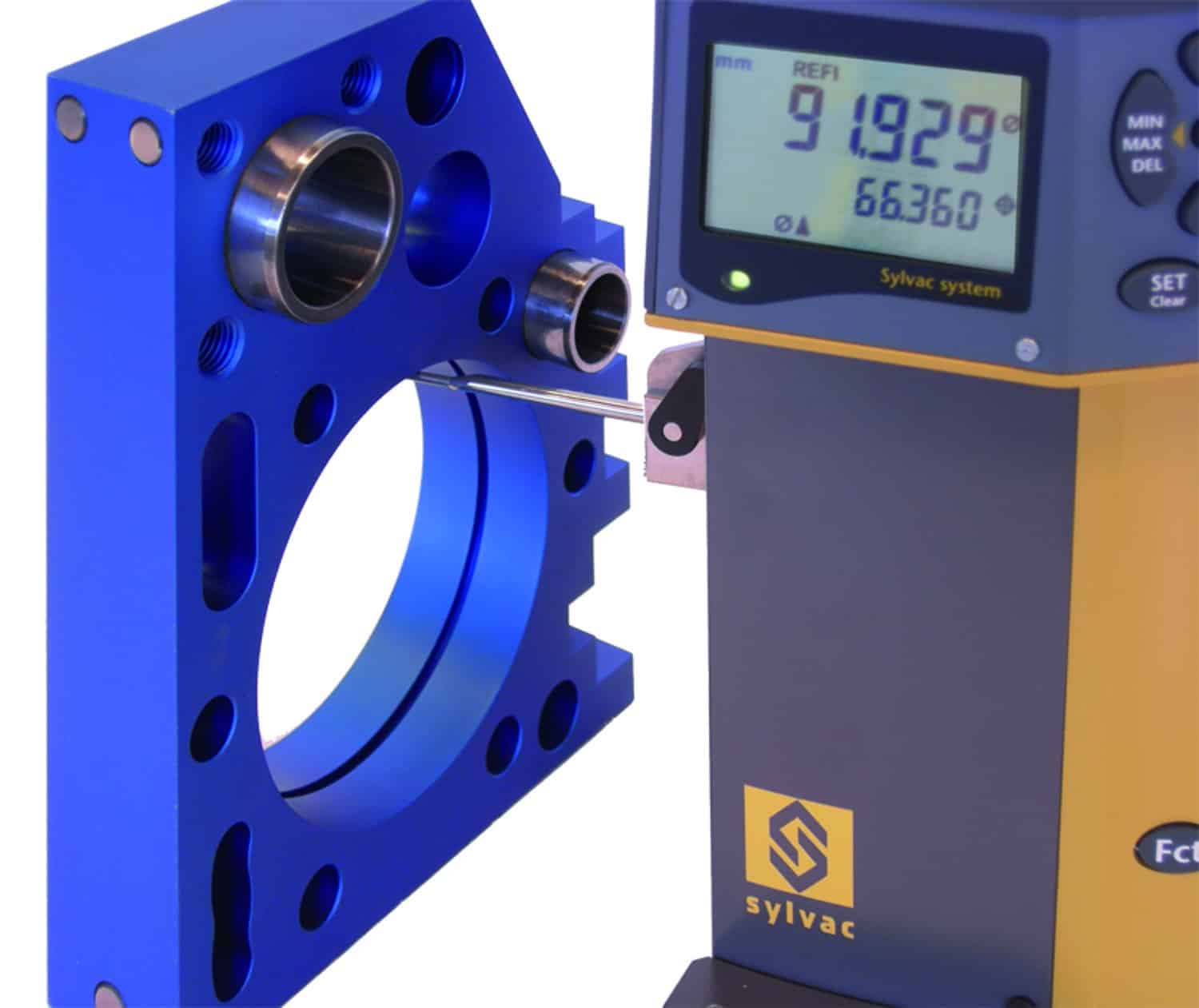

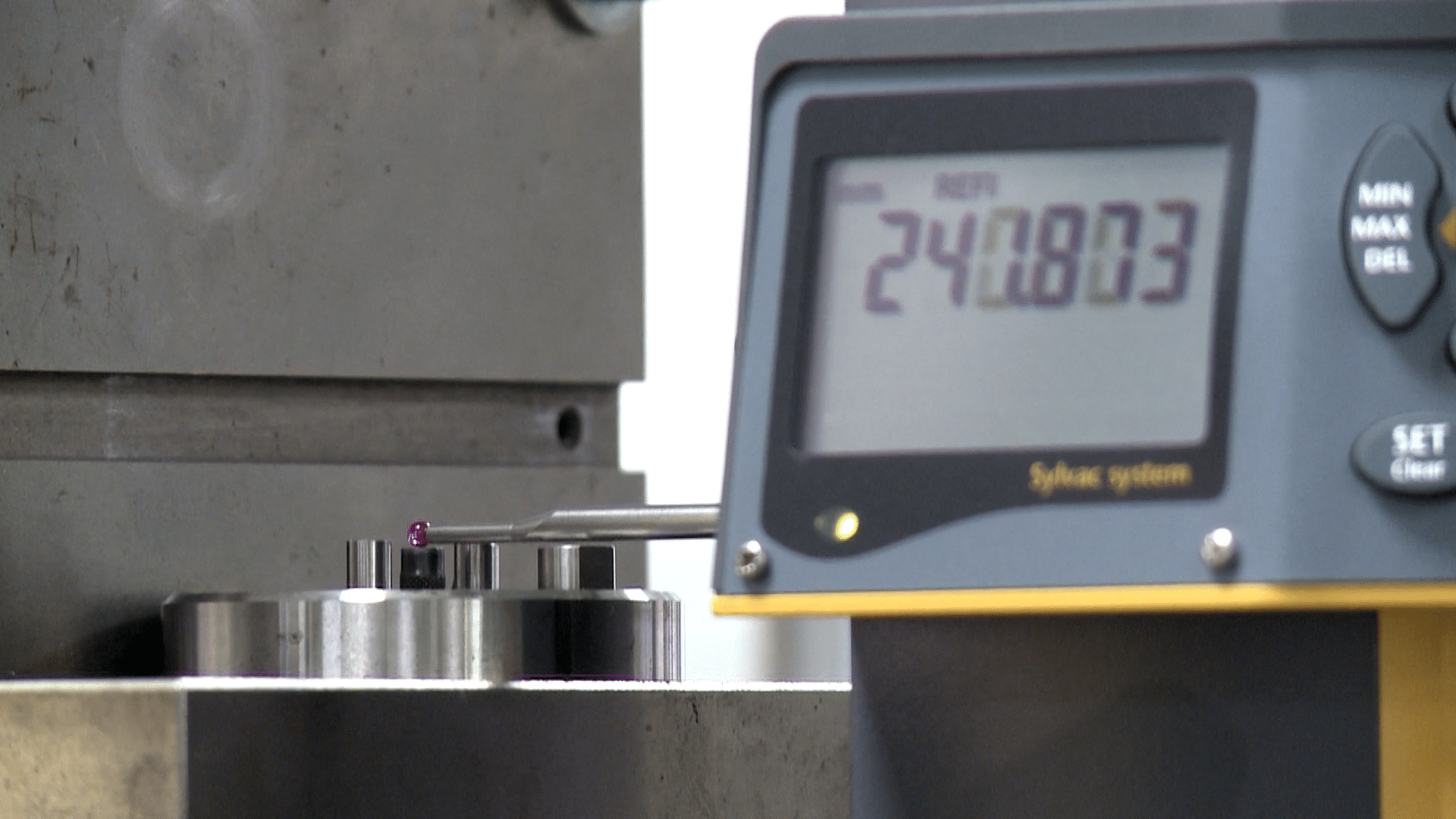

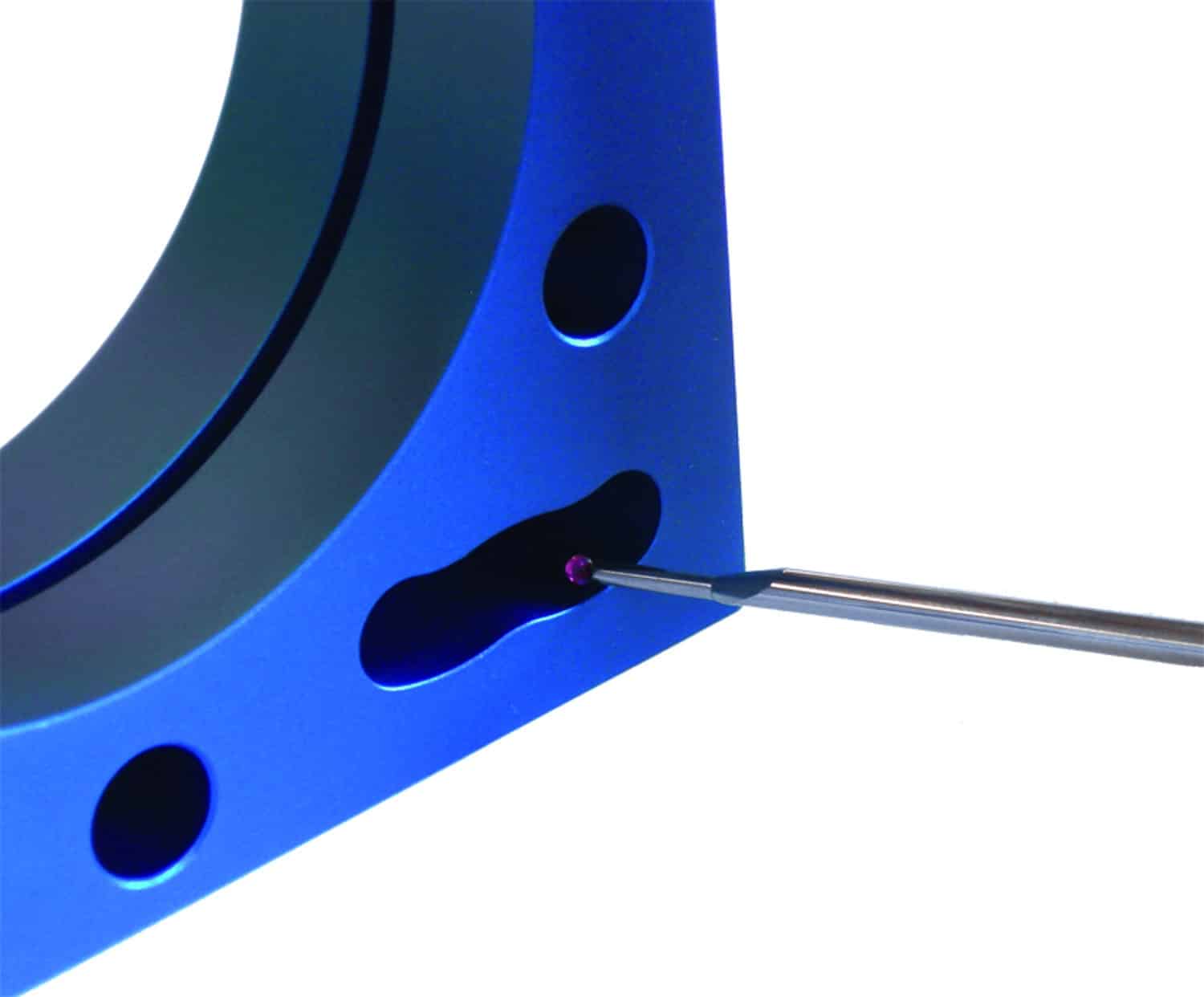

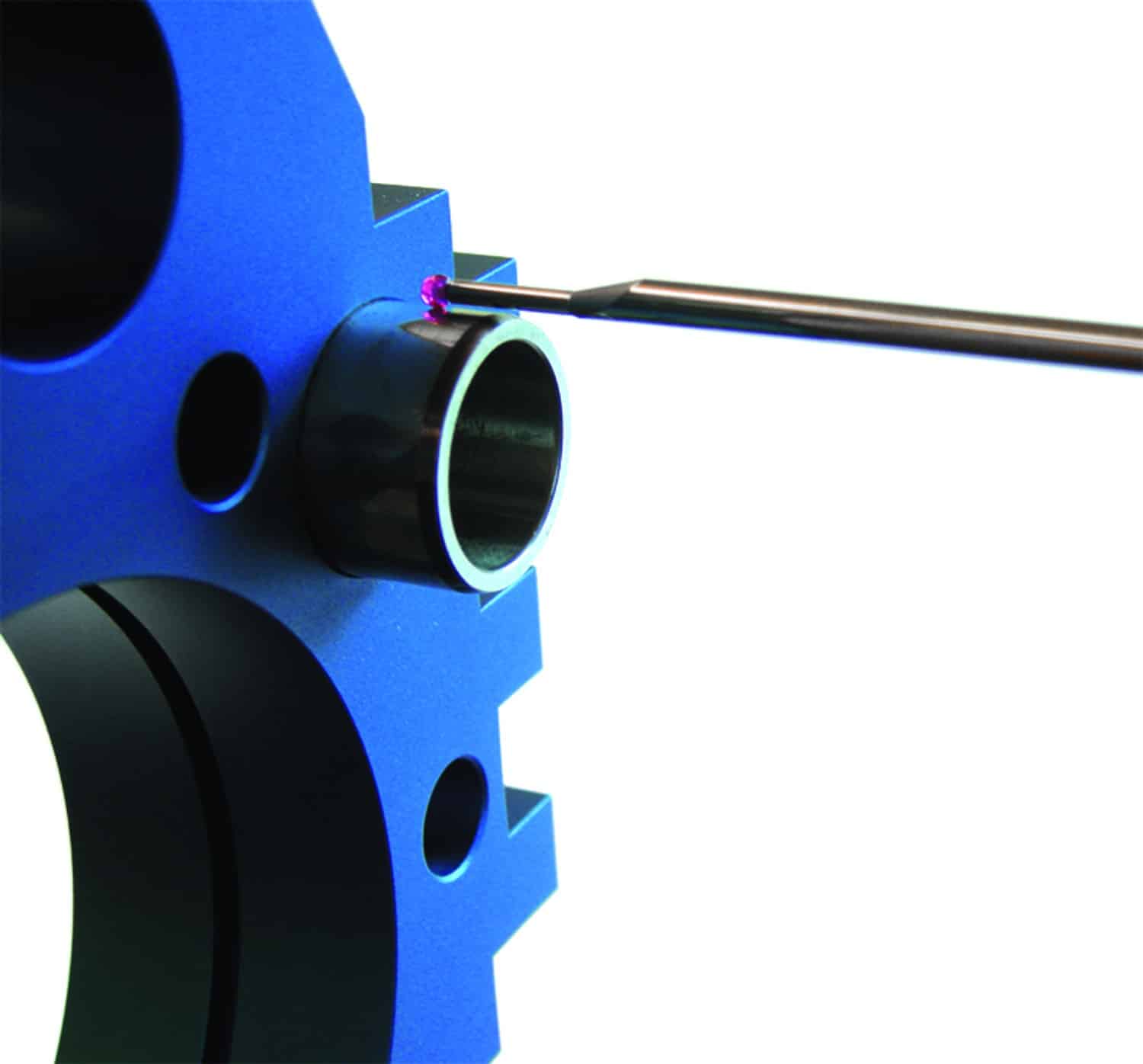

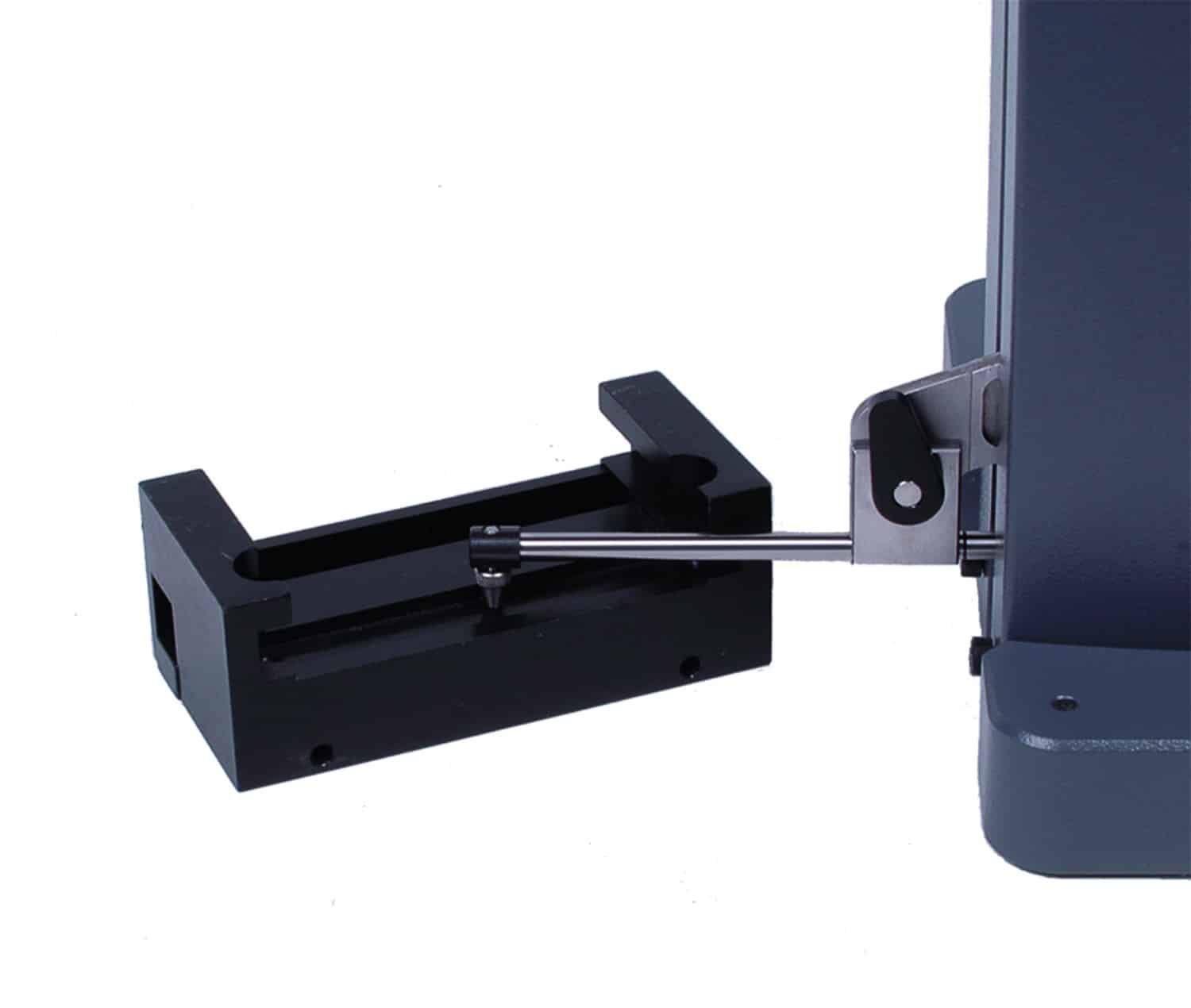

Applications

icon-diameter
Diameter
logicielsPosition
Localisation
logicielsDistance
Distance
icon-form-deviation
Form deviation

Industries

icon-automotive-sylvac
Automotive
Electronics
icon-aeronotics-sylvac
Aeronautics
icon-oackaging-sylvac
Packaging
icon-machine-tool-sylvac
Machine tool
icon-medical-device-sylvac
Medical device

Overview

830-0156 830-0306 830-0456
EAN 7640125698954 7640125698947 7640125698930
Measurement range (mm) 150 300 450
Max. Error (µm) 2.0 + L / 200 ¹
Repeatability (µm) 1
Resolution (mm) 0.01 / 0.001 / 0.0005
Velocity (mm/s) 100
Measuring force (N) 0.25 – 0.35
Autonomy of the battery (h) < 40 ²

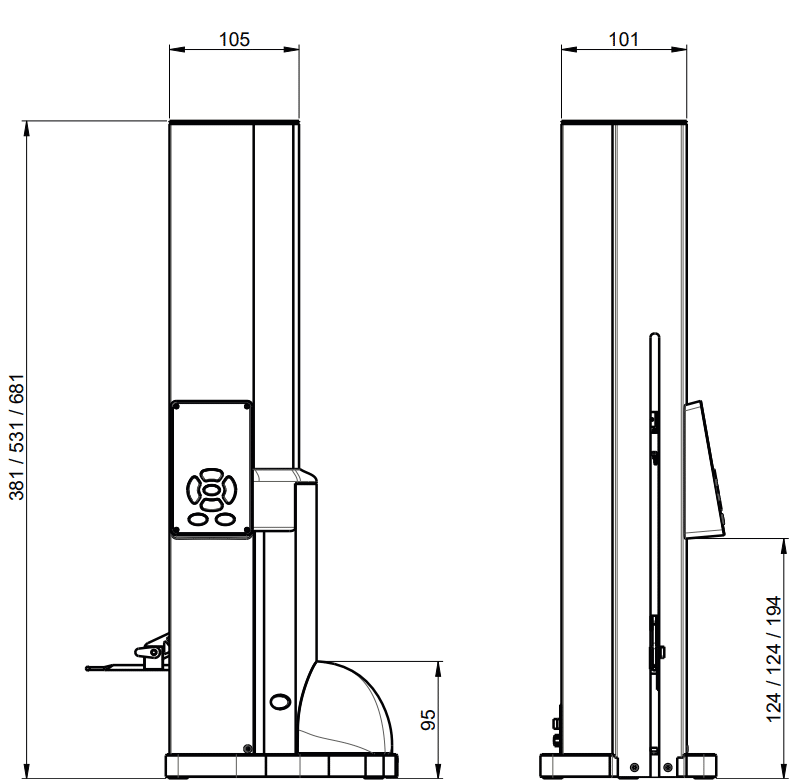

Height (mm) 381 531 681
Weight (kg) 4.0 4.7 6.8
Weight of the standard probe 7.5g, possibility of using 0-15g or 10-25g ³ probes
Output data Bluetooth® / USB / RS232
Programmable by PC
Zero setting
Min / max / delta
PRESET function
2 references
Height measurement, Ø and centerlines
1 type of progressive speed

¹ With standard probe, in laboratory conditions

² 8h/d at 20% use, 16h/d sby

³ With adjustement of the measuring force





830-0156 830-0306 830-0456
EAN 7640125698954 7640125698947 7640125698930
Measurement range (mm) 150 300 450
Max. Error (µm) 2.0 + L / 200 ¹
Repeatability (µm) 1
Resolution (mm) 0.01 / 0.001 / 0.0005
Velocity (mm/s) 100
Measuring force (N) 0.25 – 0.35
Autonomy of the battery (h) < 40 ²
Height (mm) 381 531 681
Weight (kg) 4.0 4.7 6.8
Weight of the standard probe 7.5g, possibility of using 0-15g or 10-25g ³ probes
Output data Bluetooth® / USB / RS232
Programmable by PC
Zero setting
Min / max / delta
PRESET function
2 references
Height measurement, Ø and centerlines
1 type of progressive speed

¹ With standard probe, in laboratory conditions

² 8h/d at 20% use, 16h/d sby

³ With adjustement of the measuring force





Standard Delivery
Loose cover Hi_Cal 150 (930-6001)
Loose cover Hi_Cal 300 (930-6002)
Loose cover Hi_Cal 450 (930-6005)
Charging set (904-4200 ¹) /01/03/04/05)
Ruby ball probe Ø 3 mm

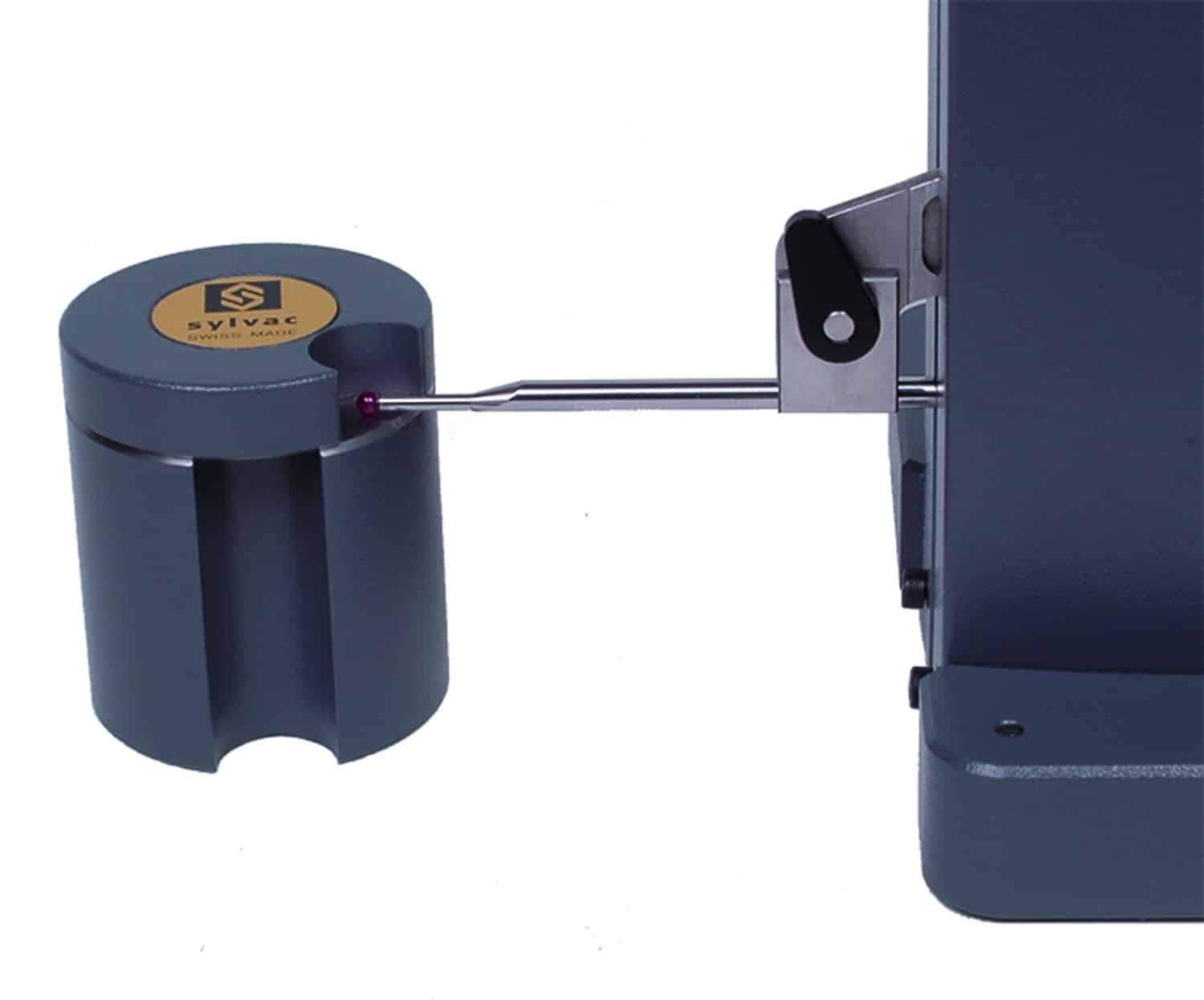

Setting gauge
Calibration certificate
Quickstart

¹ according to country

Accessories

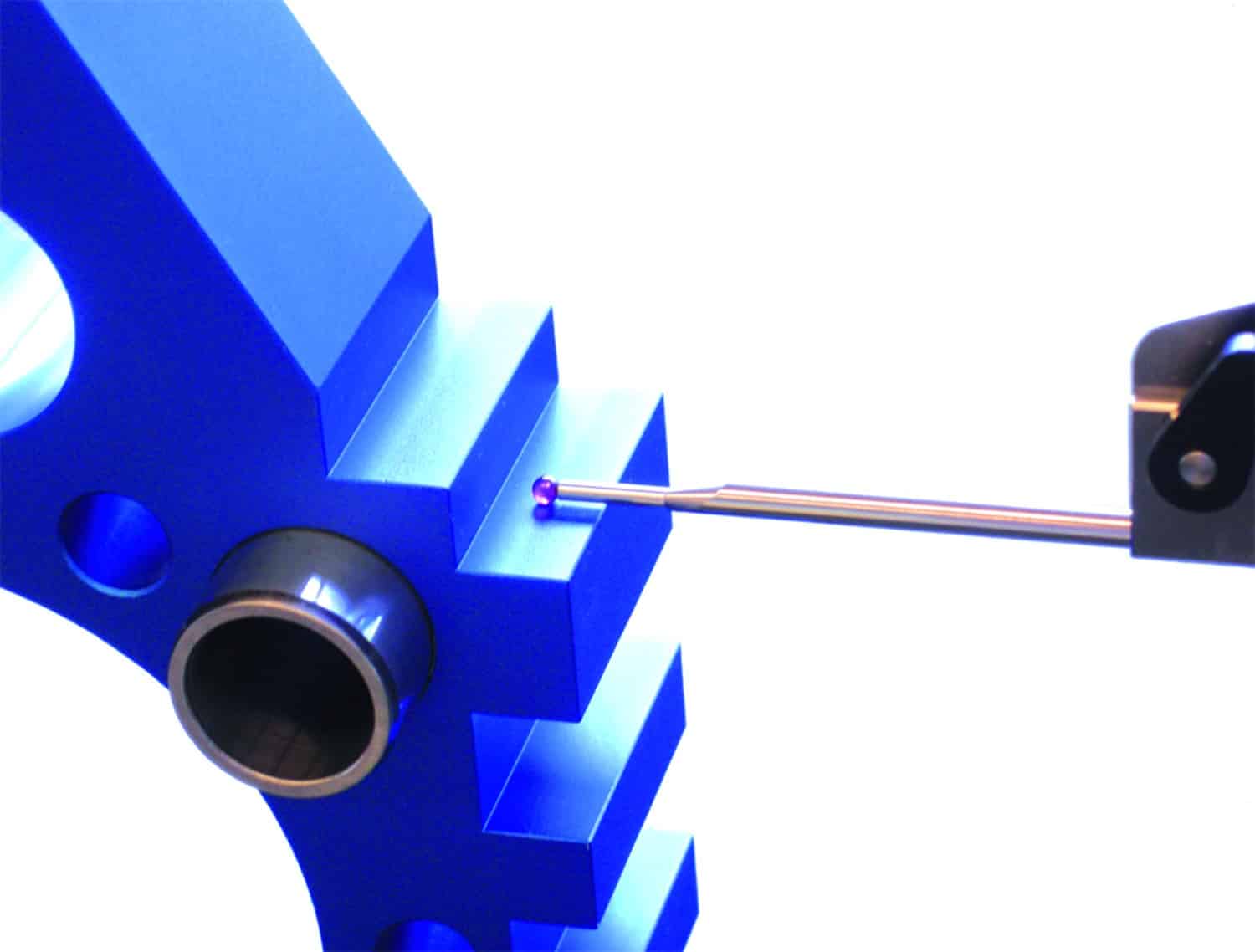

930-2101 Ruby ball probe Ø 3 mm
930-2103 Ruby ball probe Ø 2 mm
930-2104 Tungsten carbide ball probe Ø 1 mm
930-2105 Knife-edged measuring probe TC Ø 3 mm
930-2106 Cylindrical measuring probe TC Ø 3 mm

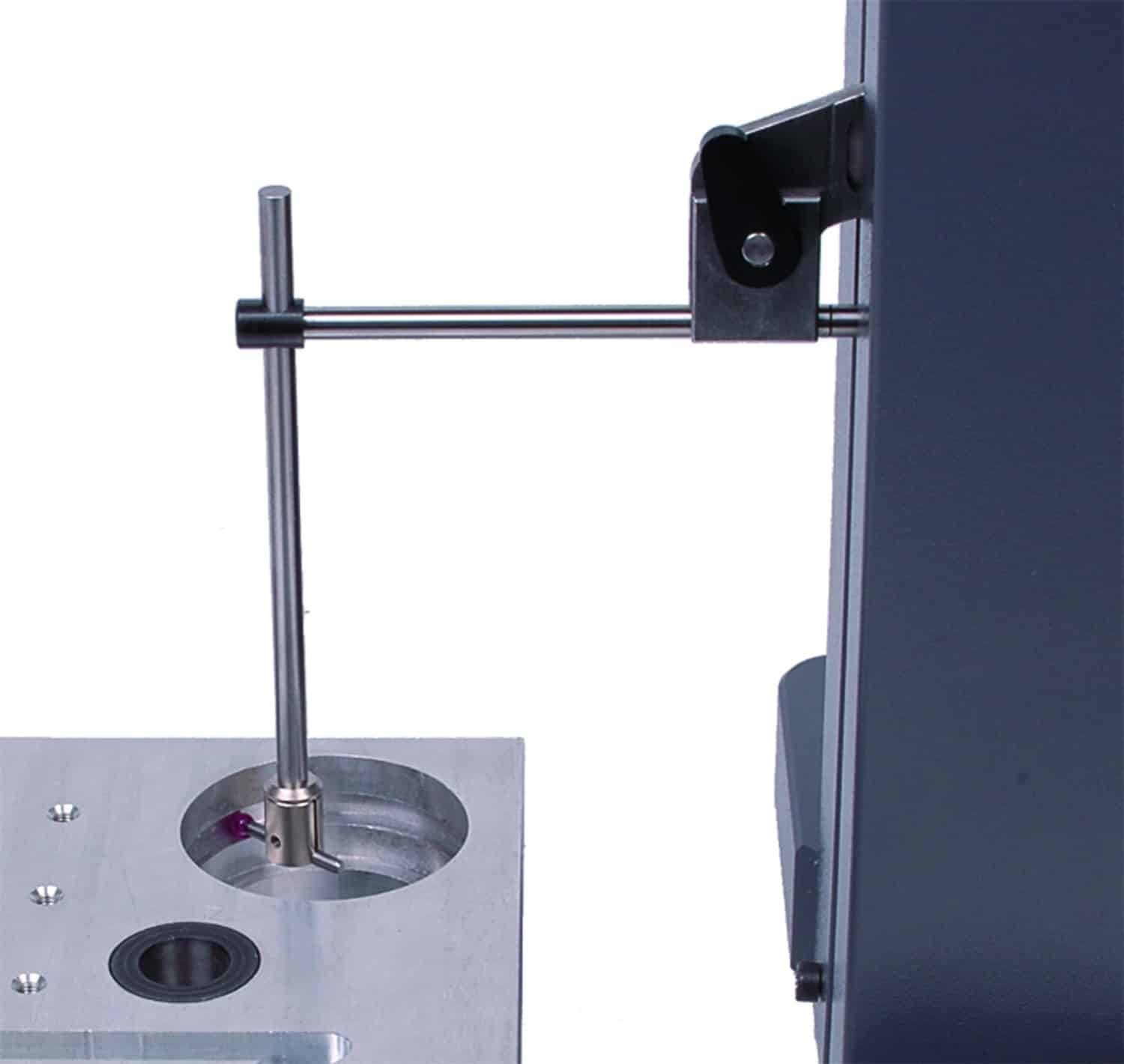

930-2107 Probe holder 90° M2.5
930-2108 Probe holder 90° Ø 4 mm
930-2002 Setting gauge
904-4200 Charging set 100-240V / 9V
904-4205 EUR cable, included in 904-4200 (CH – 904-4201)
904-4204 UK cable, included in 904-4200
904-4203 USA/JPN cable, included in 904-4200
930-2102 Swivelling tungsten carbide ball probe (M1.4)
930-2109 Extension 124 mm M2.5
930-2110 Extension 80 mm M2.5
905-2207 Probe holder and ruby ball probe Ø 3 mm, M2.5

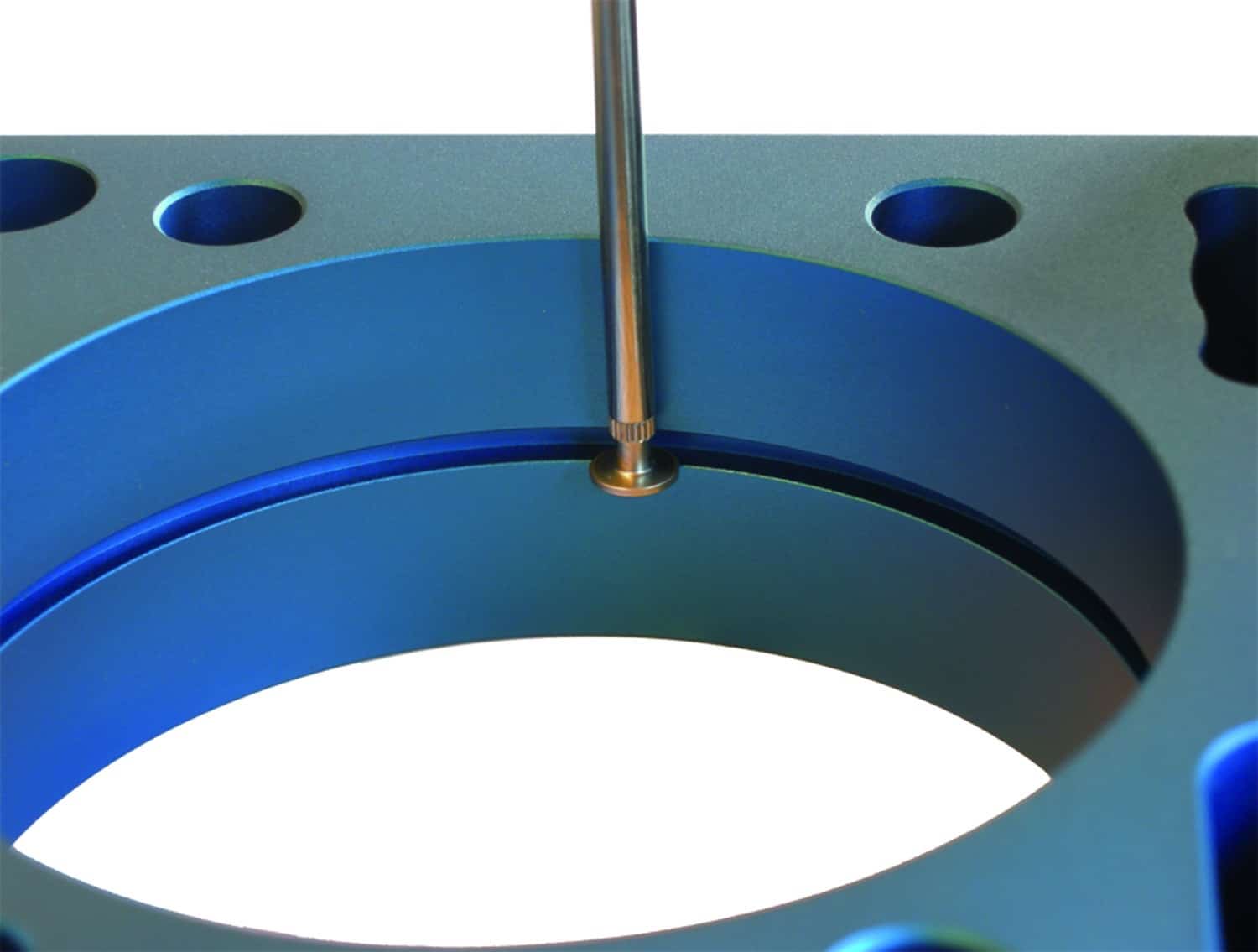

905-2205 Disk shaped anvils Ø 7.7 mm and Ø 11.5 mm, M2.5
930-2150 Full accessory set in wooden box
Content : 930-2103, 930-2104, 930-2105, 930-2106, 930-2107, 930-2108, 930-2109, 930-2110, 905-2204, 905,2205, 905-2207
930-2151 Basic accessory set in wooden box Content : 930-2103, 930-2104, 930-2105, 930-2106
904-4101 External contact (foot-pedal)

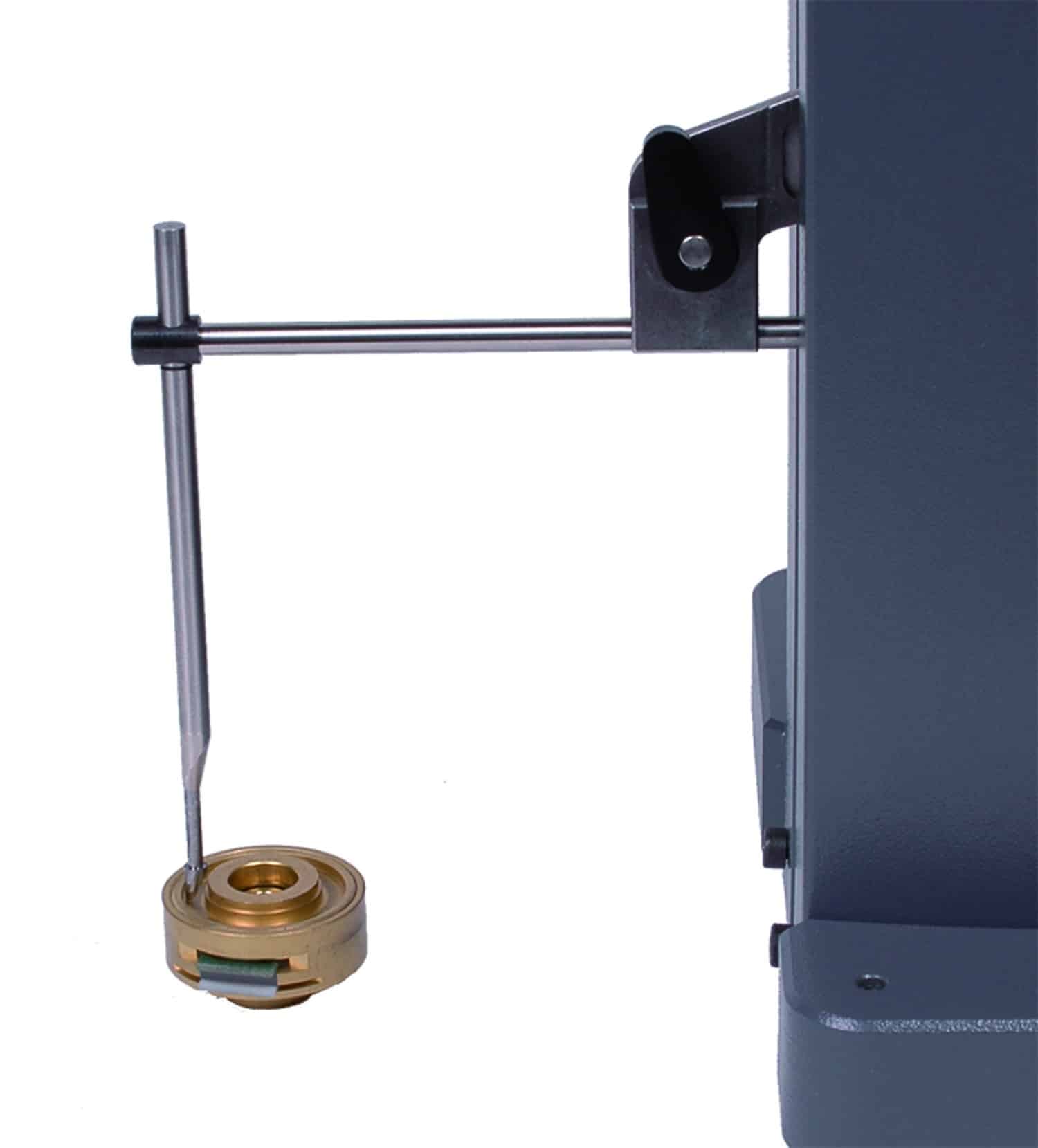

930-2111 Carbon probe-holder 200mm, Ø4mm
930-2112 Demonstration piece
926-7022 S_Footswitch Smart
