    Digital indicator S_Dial WORK Basic

    Starting at :
    CHF 331.00

    *Available in different measuring ranges

    Description

    Robust digital indicator.
    1um
    Resolution: 1µm
    SIS
    Smart Inductive System (SIS)
    MicrosoftTeams-image (5)
    Swiss made
    Cable
    Cable

    Features

    • Unmatched Durability and Resilience: The digital indicator is built with a robust construction that ensures longevity and performance, while also also water and coolant resistant, making it ideal for use in challenging conditions.
    • Efficiency at Your Fingertips: The digital indicator features a simple and robust design with a Ø 59.5 mm non-rotating housing. Its central button allows you to easily switch between preset recall or value transmission, streamlining your workflow.
    • Versatility and Convenience: S_Dial WORK offer a range of standard functions, including mm/inch conversion, preset capabilities, and direction of measurement. This versatility ensures compatibility with various measurement requirements.
    • Uninterrupted Operation: With the Automatic Wake-up and Sleeping Mode powered by the Absolute System SIS, the digital indicator saves energy and prolongs battery life. You can rely on continuous operation when you need it most.
    • Flexible Power Options: This digital indicator provides «Proximity» and «Power» data outputs, allowing you to use the instrument without batteries when connected by the provided cable.
    • Customizable Precision: Choose from two display resolutions, 0.01 mm and 0.001 mm, and select the measuring range that suits your needs—options include 12.5 mm, 25 mm, and 50 mm.

    Applications

    icon-form-deviation
    Form deviation
    logicielsDistance
    Distance

    Industries

    icon-automotive-sylvac
    Automotive
    Electronics
    icon-aeronotics-sylvac
    Aeronautics
    icon-oackaging-sylvac
    Packaging
    icon-machine-tool-sylvac
    Machine tool
    icon-medical-device-sylvac
    Medical device

    Overview

    805-1201 805-1301 805-1401 805-1501 805-1601 805-1621
    EAN 7640125697919 7640125697186 7640125697193 7640125697278 7640125697391 7640125697476
    Measuring range (mm) 12.5 25 50
    Resolution (mm) 0.01 0.001 0.01 0.001 0.01 0.001
    Max. Error fe (µm) 10 ¹ 4 10 ¹ 5 20 ¹ 7
    Repeatability (µm) 2
    IP rating IP51

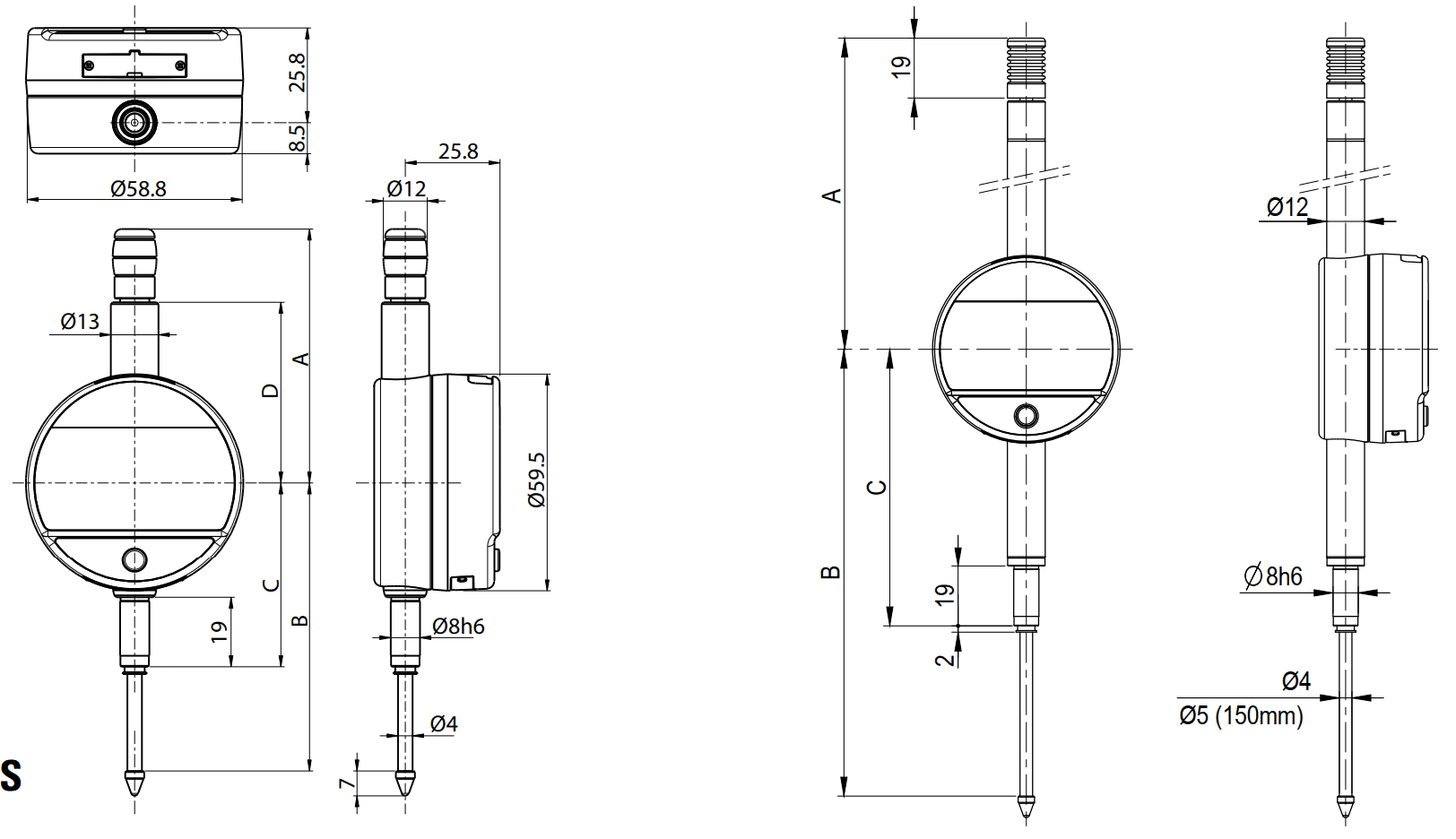

    A (mm) 56.7 69.9 121.3
    B (mm) 66.1 78.5 142
    C (mm) 50.5 88
    D (mm) 36.6 49.4
    Output data USB / RS232
    Programmable by PC
    Standard functions
    (customized by PC)
    Preset (max 999.999) only programmable by PC with cable,
    mm/inch, direction of measurement

    ¹ ± 1 digit

    Measuring force S 12.5 S 25  S 50
    Standard (N) 0.65 – 0.90 0.65 – 1.15 1.1 – 2.6
    Low ² (N) 0.4 – 0.55 0.45 – 0.9
    High ² (N) 1.0 – 1.6 0.9 – 1.8

    Tolerance ± 20%, spindle in outgoing measurement position.
    ² on request

    805-1201 805-1301 805-1401 805-1501 805-1601 805-1621
    EAN 7640125697919 7640125697186 7640125697193 7640125697278 7640125697391 7640125697476
    Measuring range (mm) 12.5 25 50
    Resolution (mm) 0.01 0.001 0.01 0.001 0.01 0.001
    Max. Error fe (µm) 10 ¹ 4 10 ¹ 5 20 ¹ 7
    Repeatability (µm) 2
    IP rating IP51
    A (mm) 56.7 69.9 121.3
    B (mm) 66.1 78.5 142
    C (mm) 50.5 88
    D (mm) 36.6 49.4
    Output data USB / RS232
    Programmable by PC
    Standard functions
    (customized by PC)
    Preset (max 999.999) only programmable by PC with cable,
    mm/inch, direction of measurement

    ¹ ± 1 digit

    Measuring force S 12.5 S 25  S 50
    Standard (N) 0.65 – 0.90 0.65 – 1.15 1.1 – 2.6
    Low ² (N) 0.4 – 0.55 0.45 – 0.9
    High ² (N) 1.0 – 1.6 0.9 – 1.8

    Tolerance ± 20%, spindle in outgoing measurement position.
    ² on request

    Instrument according to technical specifications
    Lithium battery CR2032 included
    Instruction manual
    Calibration certificate for instruments 0.001 mm
    Contact points M2.5
    905-2201 (carbide)
    905-2202
    905-2203
    905-2206
    905-2204
    905-2205
    905-2207



    Reference Specific Accessories 12.5 – 25 mm 50 – 150 mm
    805-0214 Lifting device, range 12.5mm
    805-0215 Lifting device, range 25mm
    805-0213 Lug back
    (delivered with 4 screws M2x4 DIN 963A)
    905-2231 Sleeve Ø8 –> 10mm with locking screw
    905-2214 Lifting device
    905-2215 Upper lifting device
    905-2216 Lifting device with photo-cable
    905-2218 Pneumatic lifting device with foot pedal
    905-2217 Lifter only for 905-2218
    905-2219 Pneumatic foot pedal for 905-2218
    905-2220 Vacuum lifting device with foot pedal
    905-2227 Pressure controller
    905-2228 Vacuum foot pedal for 905-2220
    905-2221 Dust protection for indicator, range 12.5 mm
    905-2222 Dust protection for indicator, range 25 mm
    905-2223 Depth measuring base
    905-2261 Snap connector for pneumatic lifter x2
    905-2262 Snap connector for pneumatic lifter x4
    905-2224 Plastic lifting lever (bottom)
    905-2225 Plastic lifting ring (bottom)
    905-4214 Lower lifting device, range 12.5 mm ¹ ¹
    905-4516 Power RS (Standard 3 m)
    905-4519 Power RS (Standard <15 m)
    905-4538 Power RS Bent (Standard 3 m)
    926-6821 Power USB (Standard 3 m)
    926-6838 Power USB Bent (Standard 3 m)
    985-2215 Battery CR2032
    926-6723 Proximity RS232 (Standard 3 m)
    926-6721 Proximity USB (Standard 3 m)
    926-7024 Battery Pack

    ¹  used on range 20 mm max
