Depth gauge S_Depth PRO Smart
Starting at :
CHF 785.00
*Available in different measuring ranges
Description
Depth gauge with rotating housing and integrated Bluetooth® system.
Features
- Compact Design with Integrated Bluetooth®: Equipped with a compact Ø 45 mm rotating housing and integrated Bluetooth® system, our depth gauges offer portability and seamless wireless connectivity.
- Versatile Bridge for Flexibility: The 100 mm wide bridge, with additional attachment holes, provides flexibility for various measurement setups. Features also interchangeable measuring key M2.5.
- Durable and Stable Construction: With IP54 protection and crafted with a flat pole measuring 20 x 5 mm in hardened and ground stainless steel, our depth gauges ensure durability and stability during measurements.
- Intuitive Operation : Featuring three buttons, including a central button with a selectable favorite function, our depth gauges offer user-friendly navigation and customization.
- Accurate Readings with Clear Display: The digital display with a resolution of 0.01 mm delivers precise measurement readings.
- Multiple Measuring Range Options: Choose from our range options of 300 mm and 600 mm to accommodate a wide range of measurement requirements.
Applications

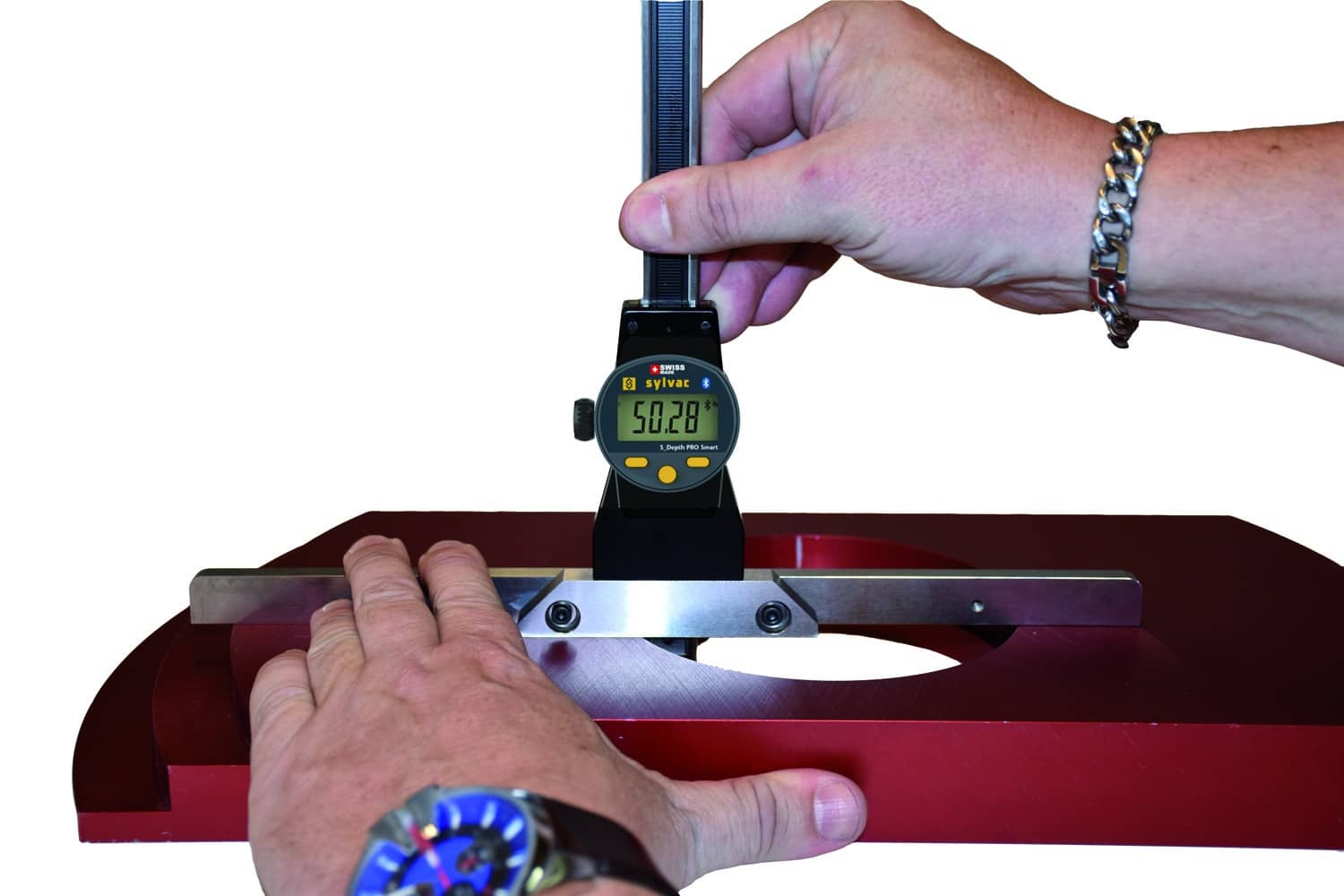

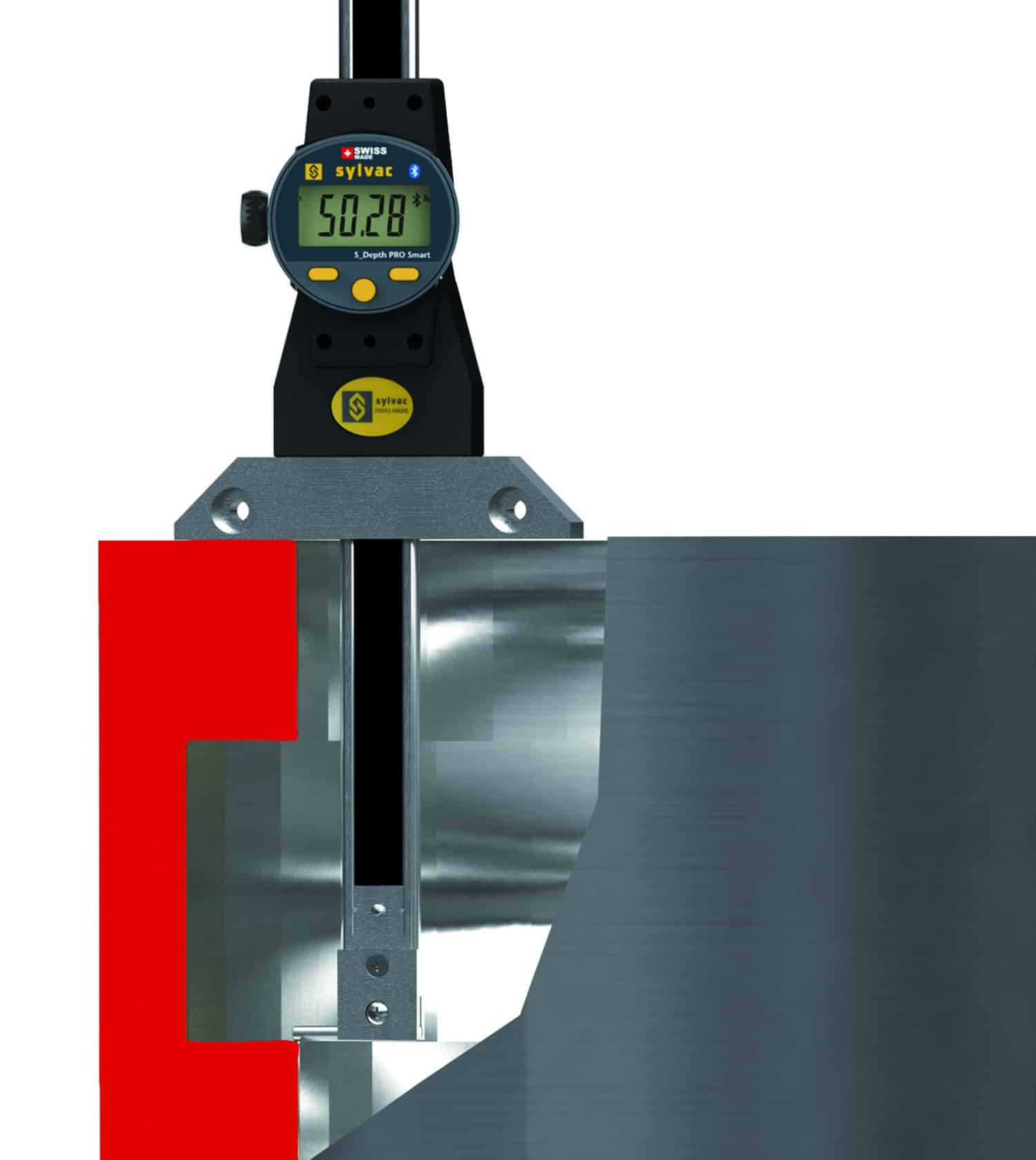

Form deviation
Distance
Industries
Automotive
Aeronautics
Packaging
Machine tool
Overview
Specifications
Standard Delivery
Accessories
Applications
Tutorials
Resources
| 805-6605 | 805-6606 | |
| EAN | 7640125689440 | 7640125689488 |
| Measuring range (mm) | 300 | 600 |
| Max. Error (µm) | 30 | 40 |
| Repeatability ¹ (µm) | 10 | 10 |

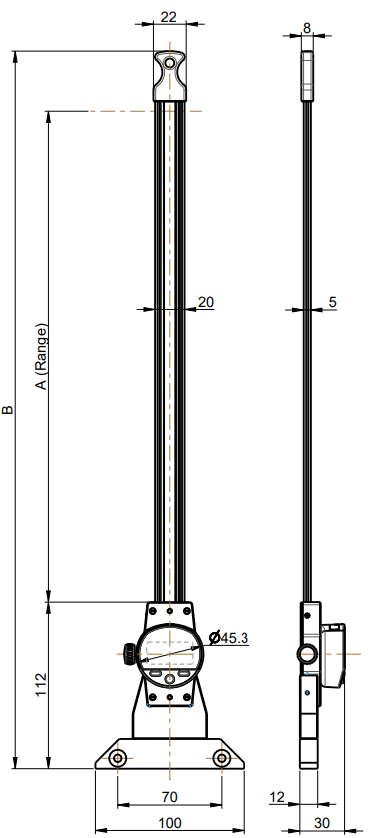

| A (mm) | 335 | 625 |
| B (mm) | 483 | 773 |
| Output data | Bluetooth® wireless technology / USB / RS232 | |
| 2 References | ⬤ | |
| Automatic reference | ⬤ | |
| PRESET function | ⬤ | |
| Multiplication factor | ⬤ | |
¹ ± 1 digit
Spécifications
| 805-6605 | 805-6606 | |
| EAN | 7640125689440 | 7640125689488 |
| Measuring range (mm) | 300 | 600 |
| Max. Error (µm) | 30 | 40 |
| Repeatability ¹ (µm) | 10 | 10 |
| A (mm) | 335 | 625 |
| B (mm) | 483 | 773 |
| Output data | Bluetooth® wireless technology / USB / RS232 | |
| 2 References | ⬤ | |
| Automatic reference | ⬤ | |
| PRESET function | ⬤ | |
| Multiplication factor | ⬤ | |
¹ ± 1 digit
Standard Delivery
| Standard delivery |
| Instrument according to technical specifications |
| Lithium battery CR2032 included |
| Quickstart |
| Ball probe M2.5 Ø2mm (805-6101) |
Accessories
| Compatible Accessories | Length | Thickness | ||
 |
812-2241 | Additionnal base | 200 mm | 8 mm |
| 812-2240 | Additionnal base | 320 mm | 8 mm | |
 |
805-6101 | Ball probe M2.5 (standard) | ||
 |
805-6102 | Anvils UP&DOWN | ||
 |
805-6103 | Anvil with pin Ø4 mm | ||
| Other Accessories | ||
 |
905-4516 | Power RS (Standard 3 m) |
| 905-4519 | Power RS (Standard <15 m) | |
 |
905-4538 | Power RS (Bent) (Standard 3 m) |
 |
926-6821 | Power USB (Standard 3 m) |
 |
926-6838 | Power USB (Bent) (Standard 3 m) |
 |
985-2215 | Battery CR2032 |
 |
926-7022 | S_Footswitch Smart |
