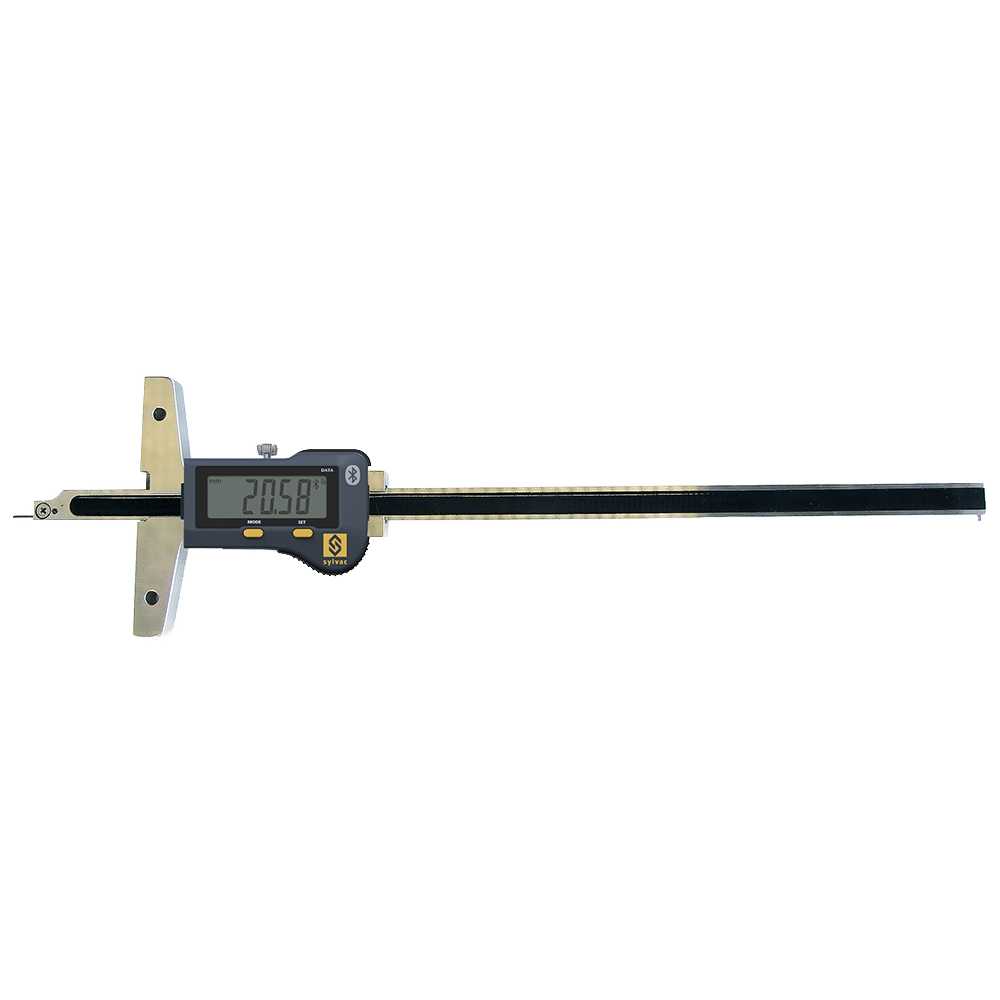

Depth gauge S_Depth EVO Rotary Pin
Description
Depth gauge with rotary pin and integrated Bluetooth® technology.
* Available in different measuring ranges
Features
- Unmatched Accuracy: Achieve precise measurements with our high-quality depth gauge featuring a rotative hardened steel measuring pin Ø 1.5mm x 5mm, a 100mm bridge with holes for attachment of additional wider bridge, and a maximum displacement speed of 2,5m/sec.
- Seamless Data Aquisition: Our ergonomic depth gauge is equipped with integrated Bluetooth® technology, allowing you to transmit measurements wirelessly, quickly and error-free for enhanced productivity.
- User-Friendly Design: Experience enhanced usability with our convenient push button, which not only facilitates easy data transmission but can also be programmed to suit your specific needs. Additionally, the new extra-large display unit with 11.5mm high digits ensures clear visibility of measurements.
- Built to Last: With a rugged construction, our gauge is designed to withstand heavy-duty work environments, including exposure to coolants and lubricants. Its water protection rating of IP67, according to IEC 60529, ensures durability and reliability. The precision of the instrument is not affected by liquids.

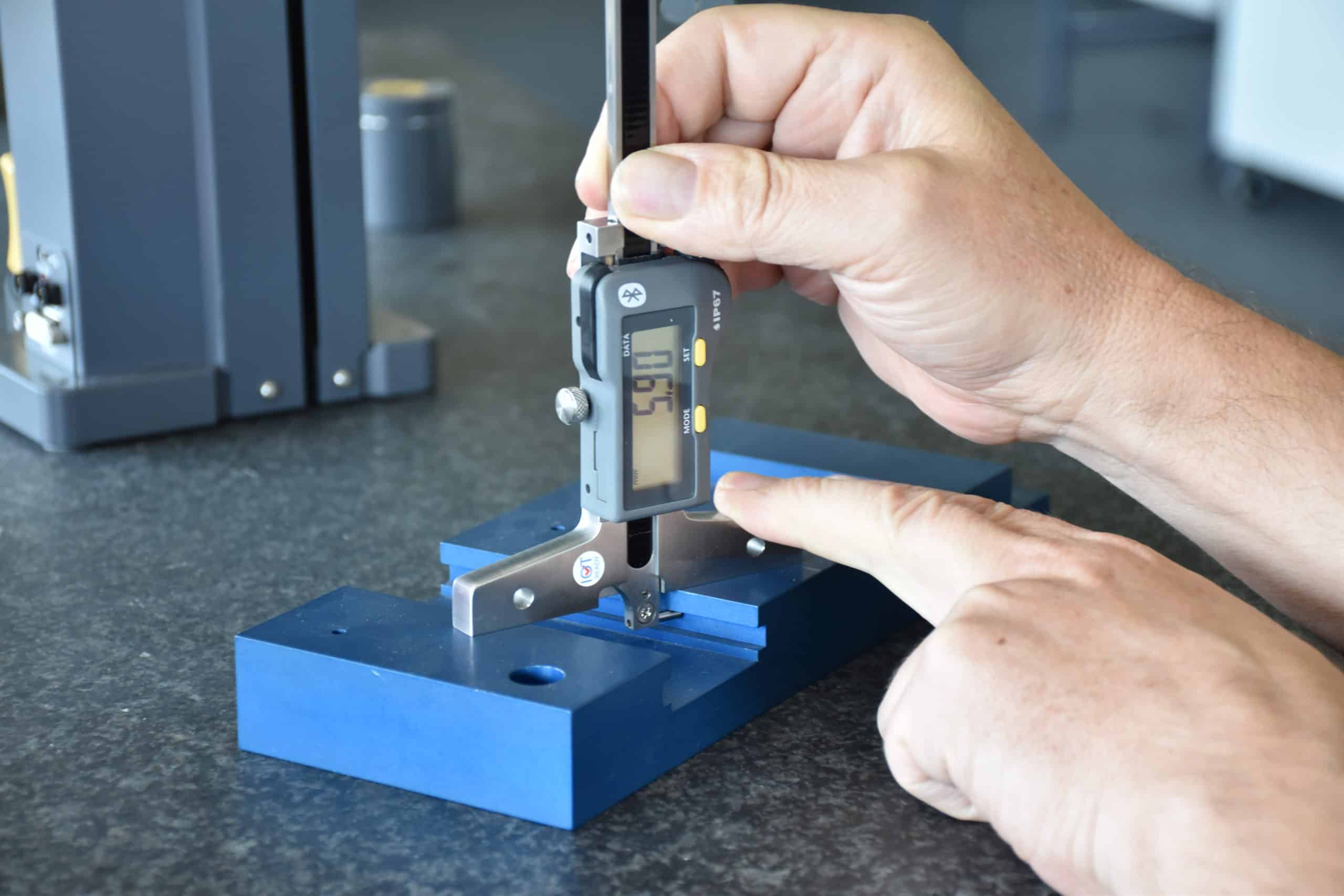

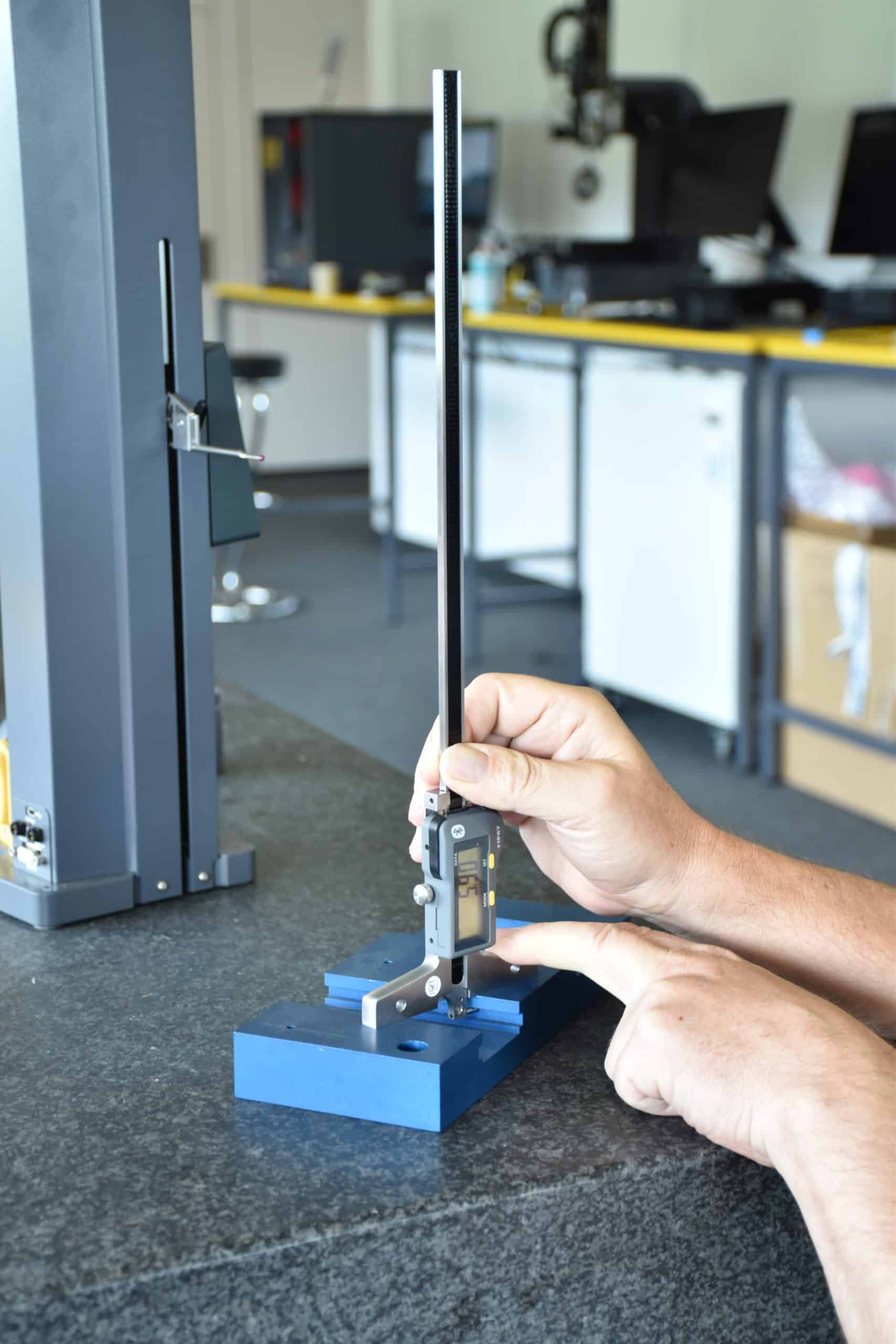

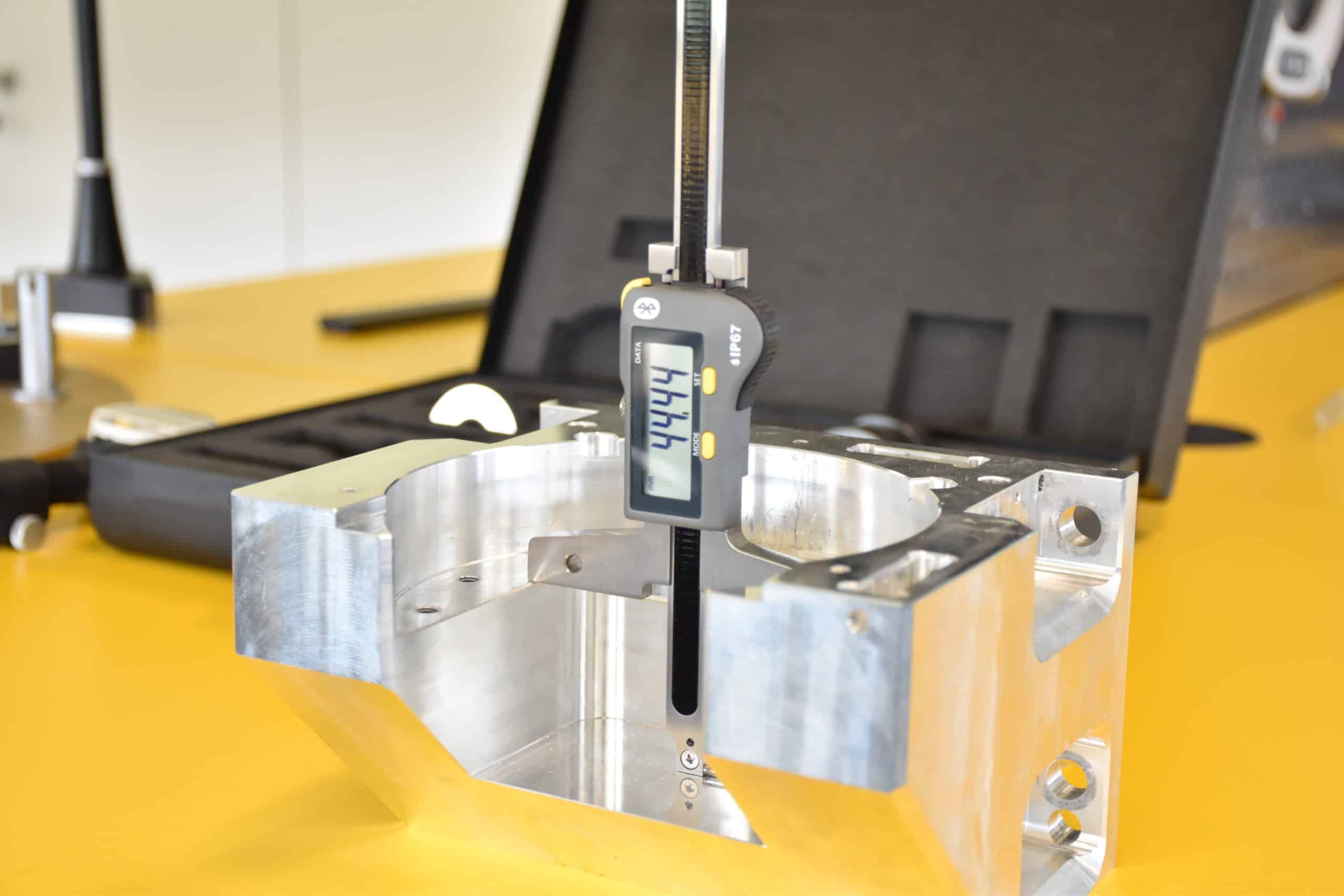

- Versatile Measurement: Our depth gauge is available in 3 different measuring range 300, 400 and 600mm. It also features a Ø 1,5 mm x 5 mm adjustable pin that can be rotated to align with the surface being measured when placed into a hole, groove or shoulder.
- Intelligent Power Management: Save energy and maximize efficiency with our device’s automatic wake-up feature upon movement, and sleeping mode activation after 20 minutes of inactivity. The absolute system S.I.S ensures that the position is memorized even in sleeping mode.
Applications

Distance
Industries

Automotive

Aeronautics

Packaging

Machine tool

Medical device
Overview
Specifications
Standard Delivery
Accessories
Applications
Tutorials
Documents
812-1621 | 812-1623 | 812-1625 | |
EAN | 7640125681338 | 7640125686395 | 7640125686500 |
Measuring range (mm) | 200 | 300 | 500 |
Max. error (µm) | 30 | 50 | |
Resolution (mm) | 0.01 | ||

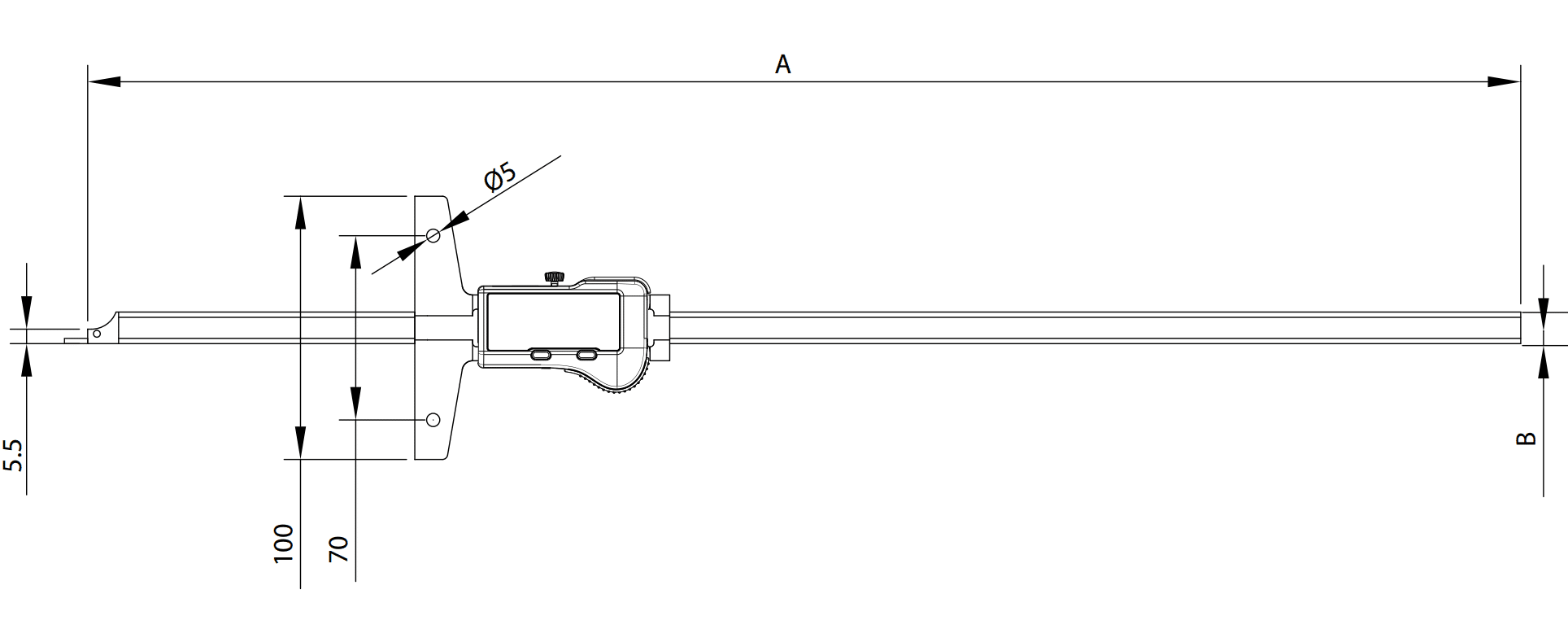

A (mm) | 300 | 400 | 600 |
B (mm) | 12 x 4 | ||
Connection type (instrument to device) | Bluetooth® Wireless Technology ¹ | ||
Functions | Zero setting, Preset (max 999.99), mm/inch, Hold, Data | ||
Smart Inductive System (SIS) | ⬤ |
¹ Device: PC, display unit, …
Standard Delivery
|
Instrument according to technical specifications |
Lithium battery CR2032 included |
Instruction manual |
-
Battery Change
How To Take Care of your Sylvac instrument : Battery Change
-
-
-
-
- Technical Plan
- 3D Drawing
- Manual
- Certificate
- Brochure
- Not available
- Not available
- Not available
