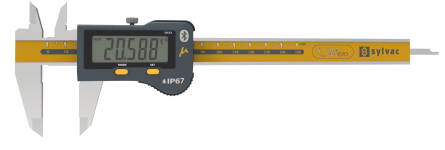

Caliper S_Cal EVO Smart Micron

Starting at :
CHF 322.00

*Available in different measuring ranges

Description

High resolution professional micron caliper with integrated Bluetooth® technology.
1um
Resolution: 1µm
SIS
Smart Inductive System (SIS)

Features

  • Maximum Resolution: The only caliper on the market with a micron resolution, our caliper features an extra-large display unit with a resolution of 0.001 mm and an impressive digits height of 11.5 mm, ensuring clear visibility and precise measurements.
  • Seamless Data Aquisition: Integrated Bluetooth® Smart data transmission, allowing you to transmit measurements wirelessly, quickly and error-free for enhanced productivity.
  • Customizable Functionality: Tailor the programmable button to meet your specific requirements, enabling quick access to essential functions and streamlining your workflow.
  • Built to last: With an IP67 protection rating, our caliper is water protected, making it ideal for heavy-duty tasks involving coolants and lubricants. It’s designed to endure demanding work conditions with its mechanical 3,5 mm thick frame made of hardened and ground stainless steel. Available with rectangular depth rod or cylindrical depth rod.
  • Intelligent Power Management: Benefit from the automatic wake-up feature (Absolute System S.I.S) when moving the electronic on its frame and enjoy the energy-saving sleeping mode (Absolute System S.I.S) after 10 minutes of inactivity. The caliper memorizes the position even in sleeping mode, ensuring uninterrupted measurements.
  • Superior Comfort and Versatility: Our caliper boasts a maximum displacement speed of 2.5 m/sec. The ergonomic frame offers great comfort during extended use, and you can further enhance precision with the optional thumb wheel accessory.

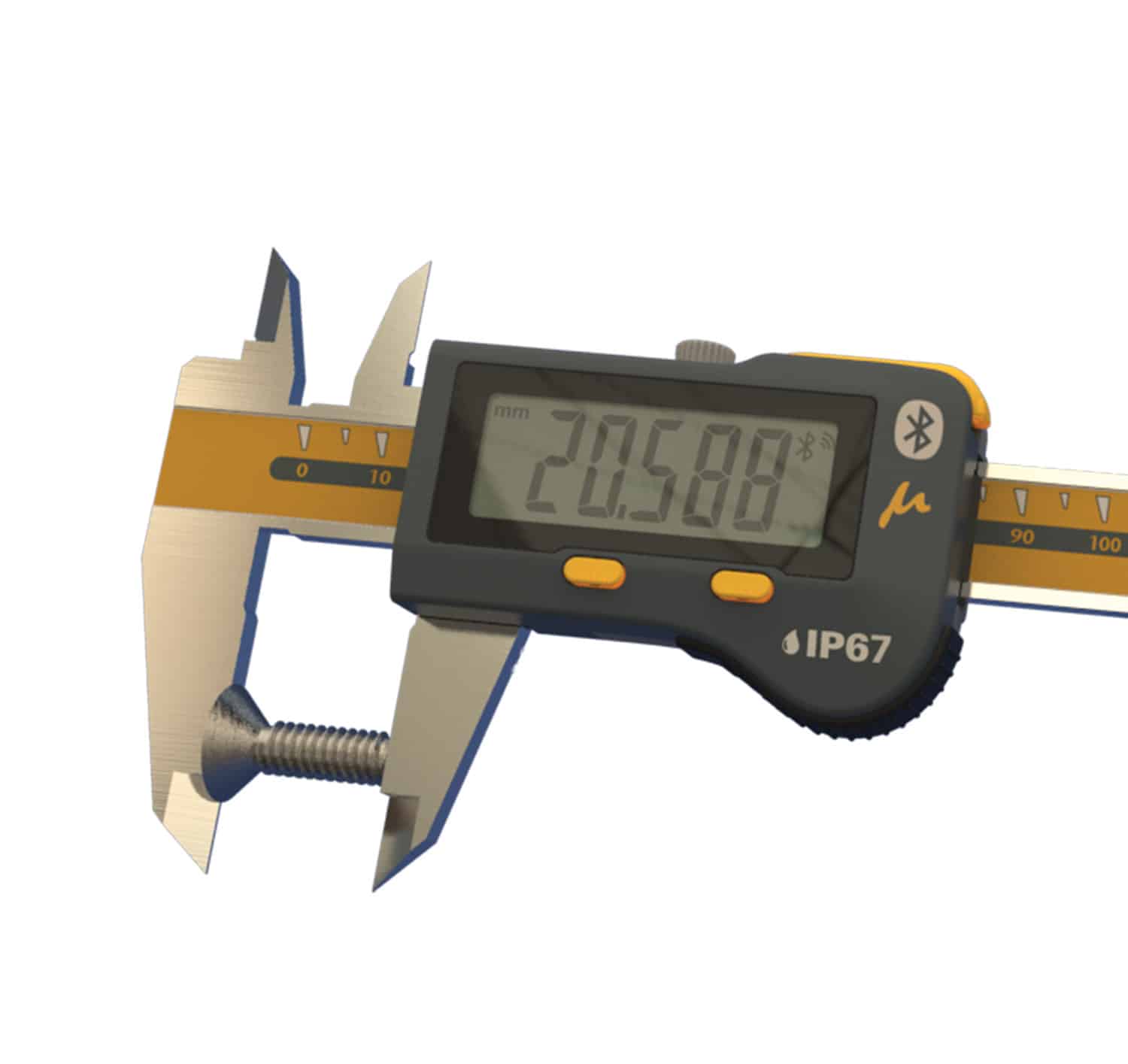

Applications

icon-diameter
Diameter
logicielsDistance
Distance
icon-form-deviation
Form deviation

Industries

icon-automotive-sylvac
Automotive
Electronics
icon-aeronotics-sylvac
Aeronautics
icon-fastening-sylvac
Fastening
icon-oackaging-sylvac
Packaging
icon-machine-tool-sylvac
Machine tool

Overview

810-9506 810-9516 810-9526
EAN 7640125687620 7640125687675 7640125697001

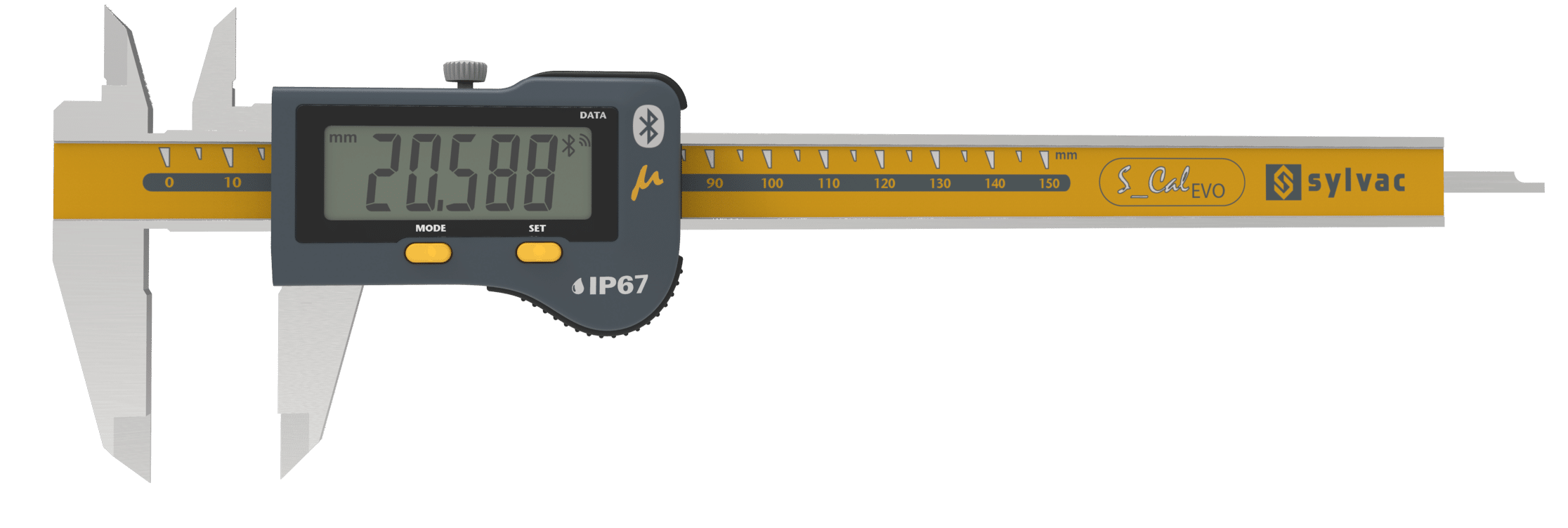

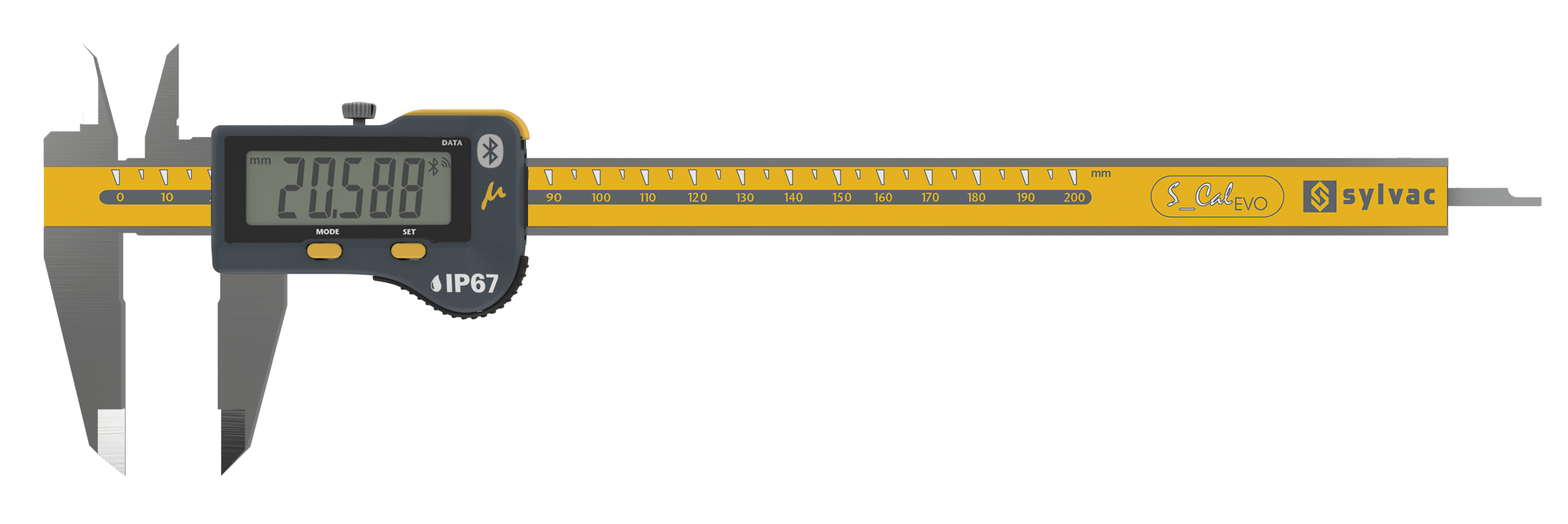

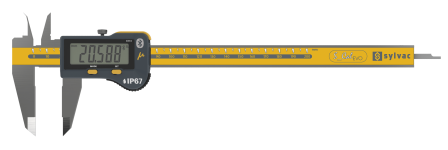

Measuring range (mm) 150 200
Max. Error G – external measurements EMPE (µm) 15 ¹ 25 ¹
Max. Error – internal measurements SMPE (µm) 20-30 ² 30 ²
Resolution (mm) 0.001

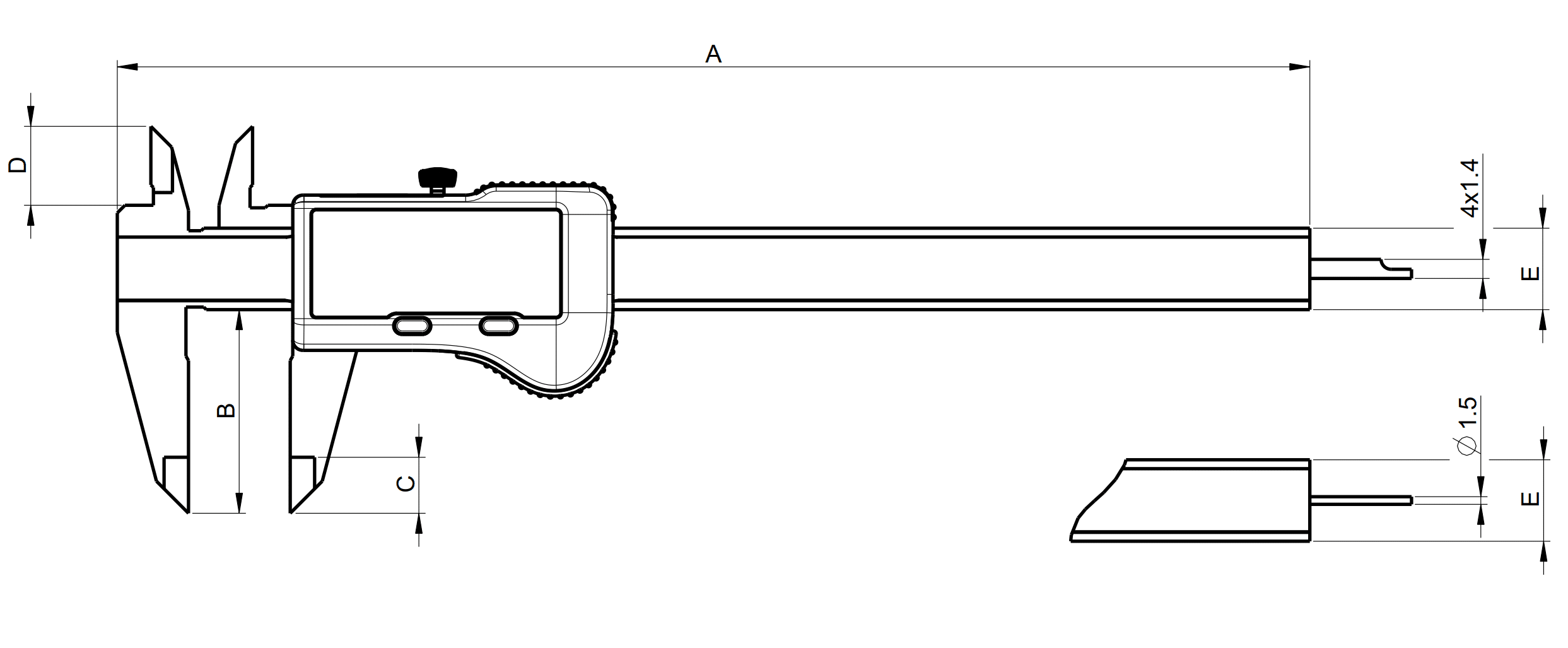

A (mm) 234.5 290.5
B (mm) 40 50
C (mm) 11 14
D (mm) 16 19
E (mm) 16 x 3.5
Depth rod (mm) ▬ 4 x 1.4 Ø 1.5 4 x 1.4
Protection rating according to IEC 60529 IP67
Output data Bluetooth® wireless technology
Functions Zero setting, Preset (max 999.99), mm/inch, Hold
Smart Inductive Sensor
  ¹ Versions 150mm : 0-150 mm : 15 µm / ISO13385-1


Versions 200mm : 0-100 mm : 15 μm / ISO13385-1
100-200 mm : 25 μm / ISO13385-1

² Ø4-25 : 20 µm / ISO13385-1
Ø26-150 : 30 µm / ISO13385-1



810-9506 810-9516 810-9526
EAN 7640125687620 7640125687675 7640125697001
Measuring range (mm) 150 200
Max. Error G – external measurements EMPE (µm) 15 ¹ 25 ¹
Max. Error – internal measurements SMPE (µm) 20-30 ² 30 ²
Resolution (mm) 0.001
A (mm) 234.5 290.5
B (mm) 40 50
C (mm) 11 14
D (mm) 16 19
E (mm) 16 x 3.5
Depth rod (mm) ▬ 4 x 1.4 Ø 1.5 4 x 1.4
Protection rating according to IEC 60529 IP67
Output data Bluetooth® wireless technology
Functions Zero setting, Preset (max 999.99), mm/inch, Hold
Smart Inductive Sensor
  ¹ Versions 150mm : 0-150 mm : 15 µm / ISO13385-1


Versions 200mm : 0-100 mm : 15 μm / ISO13385-1
100-200 mm : 25 μm / ISO13385-1

² Ø4-25 : 20 µm / ISO13385-1
Ø26-150 : 30 µm / ISO13385-1



Instrument according to technical specifications
Lithium battery CR2032 included
Instruction manual
Accessories
985-2215 Battery CR2032
926-7022 S_Footswitch Smart
810-2203 Thumb wheel
910-2205 Base for depth measurement
910-2207 Accessory kit for S_Cal (12 pieces)
810-2000 Anvils M2.5/Ø2.5 Length 12mm
