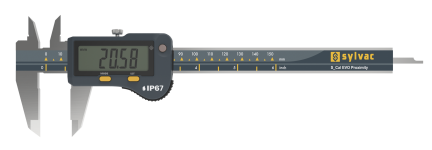

Caliper S_Cal EVO Proximity
Starting at :
CHF 141.00
*Available in different measuring ranges
Description
Reliable wired transmission caliper.
Features
- Compliance Confidence : Industries with strict regulations and standards can restrict the use of Bluetooth® technology. This caliper,with a Proximity to USB or to RS232 output enables you to effortlessly comply with these requirements.
- Versatile options : Ergonomic caliper available in measuring ranges of 150 mm, 200 mm, and 300 mm, available in a variety of configurations including rectangular and cylindrical depth rod options. Thumb wheel available on request.
- Built to Last: Crafted with a mechanical frame in 3.5 mm thick hardened and ground stainless steel, our IP67 caliper ensures durability and longevity, providing reliable performance in even the most demanding metrology environments.
- Enhanced Efficiency: Maximize productivity with a swift maximum speed of displacement of 2.5 m/sec and benefit from the automatic wake-up feature (Absolute System S.I.S) when moving the electronic on its frame and enjoy the energy-saving sleeping mode (Absolute System S.I.S) after 10 minutes of inactivity. The caliper memorizes the position even in sleeping mode, ensuring uninterrupted measurements.
- User-Friendly Design: Experience effortless measurement reading with the new extra-large display unit, boasting 11.5mm high digits for exceptional clarity, reducing the risk of errors and enhancing efficiency.
Applications
Diameter
Distance
Form deviation
Industries
Automotive
Aeronautics
Fastening
Packaging
Machine tool
Medical device
Overview
Specifications
Standard Delivery
Accessories
Applications
Tutorials
Resources
| 810-1702 | 810-1707 | 810-1722 | 810-1732 | |
| EAN | 7640125699630 | 7640125699623 | 7640125699616 | 7640125699609 |
| Measuring range (mm) | 150 | 200 | ||
| Max. Error G – external measurements EMPE (µm) | 20 ¹ | 30 ¹ | ||
| Max. Error – internal measurements SMPE (µm) | 20 – 30 ² | 30 ² | 40 ² | |

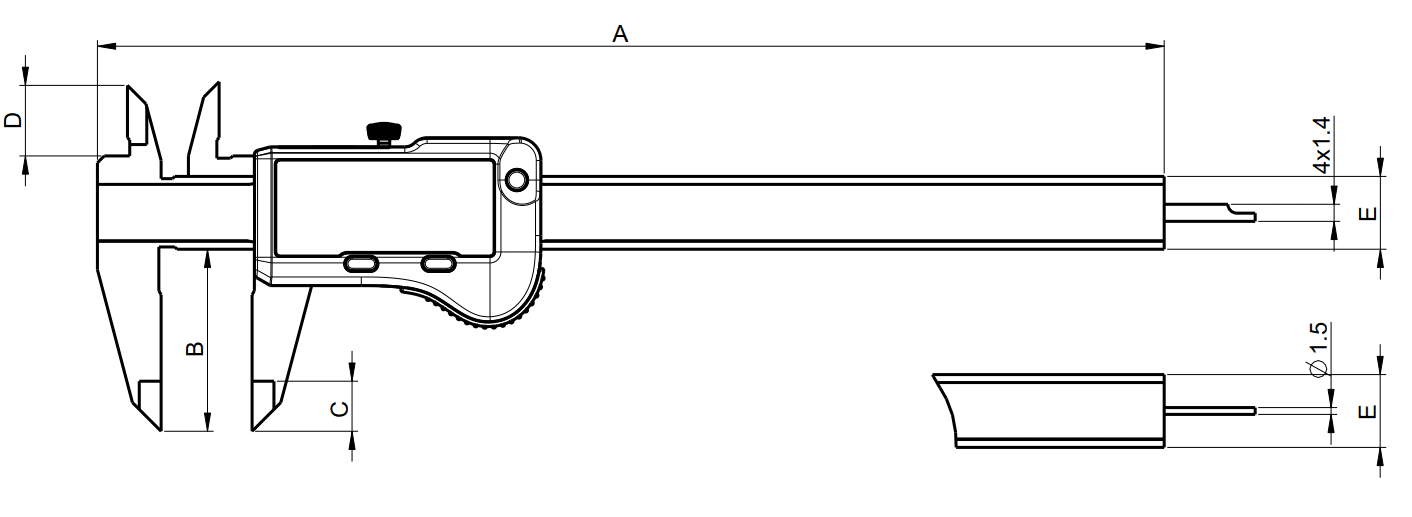

| A (mm) | 234.5 | 290.5 | 388 | |
| B (mm) | 40 | 50 | 64 | |
| C (mm) | 11 | 14 | ||
| D (mm) | 16 | 19 | ||
| E (mm) | 16 x 3.5 | 16 x 4 | ||
| Depth rod (mm) | ▬ 4 x 1.4 | Ø 1.5 | ▬ 4 x 1.4 | – |
| Protection rating according to IEC 60529 | IP67 | |||
| Functions | Zero setting, Preset (max 999.99), mm/inch, Hold | |||
| Output data | USB / RS232 | |||
¹ 0-150 mm : 20 µm / ISO13385-1
> 150 mm : 30 µm / ISO13385-1
² Ø4-25 : 20 µm / ISO13385-1
Ø26-150 : 30 µm / ISO13385-1
>Ø150 : 40 µm / ISO13385-1
Spécifications
| 810-1702 | 810-1707 | 810-1722 | 810-1732 | |
| EAN | 7640125699630 | 7640125699623 | 7640125699616 | 7640125699609 |
| Measuring range (mm) | 150 | 200 | ||
| Max. Error G – external measurements EMPE (µm) | 20 ¹ | 30 ¹ | ||
| Max. Error – internal measurements SMPE (µm) | 20 – 30 ² | 30 ² | 40 ² | |
| A (mm) | 234.5 | 290.5 | 388 | |
| B (mm) | 40 | 50 | 64 | |
| C (mm) | 11 | 14 | ||
| D (mm) | 16 | 19 | ||
| E (mm) | 16 x 3.5 | 16 x 4 | ||
| Depth rod (mm) | ▬ 4 x 1.4 | Ø 1.5 | ▬ 4 x 1.4 | – |
| Protection rating according to IEC 60529 | IP67 | |||
| Functions | Zero setting, Preset (max 999.99), mm/inch, Hold | |||
| Output data | USB / RS232 | |||
¹ 0-150 mm : 20 µm / ISO13385-1
> 150 mm : 30 µm / ISO13385-1
² Ø4-25 : 20 µm / ISO13385-1
Ø26-150 : 30 µm / ISO13385-1
>Ø150 : 40 µm / ISO13385-1
Standard Delivery
| Standard Delivery |
| Instrument according to technical specifications |
| Lithium battery CR2032 included |
| Instruction manual |
Accessories
| Accessories | ||
 |
910-2207 | Accessory kit for S_Cal (12 pieces) |
 |
910-2205 | Base for Depth Measurement |
 |
810-2205 | Thumb wheel |
| 810-2000 | Anvils M2.5/Ø2.5 Length 12mm | |
 |

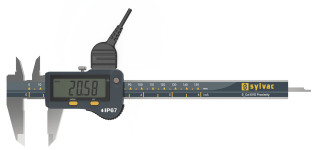

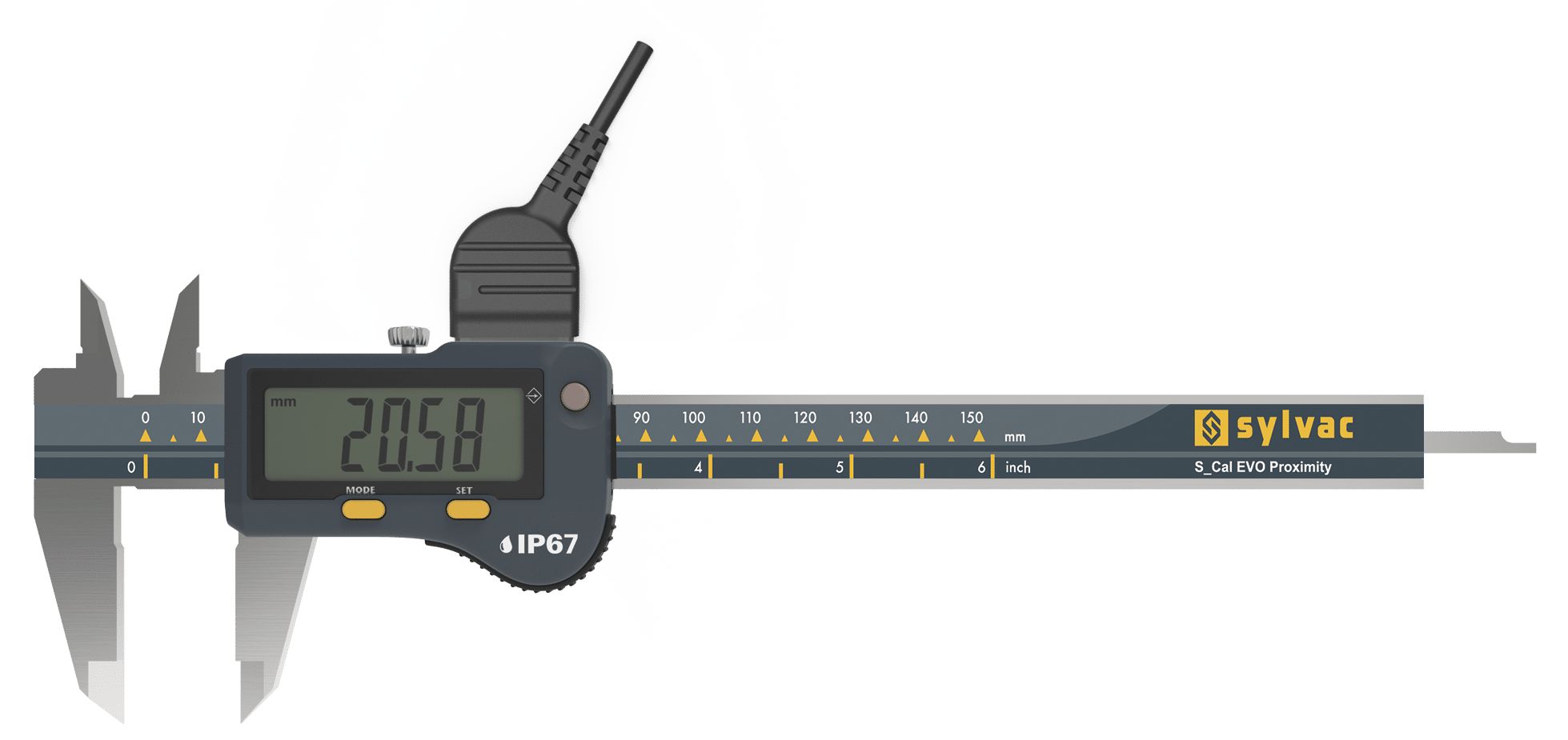

926-6723 | Proximity RS232 (Standard 3 m) |
 |
926-6721 | Proximity USB (Standard 3 m) |
 |
985-2215 | Battery CR2032 |
