    Bench table PS16 V2 Smart

    *Available in different measuring ranges

    Description

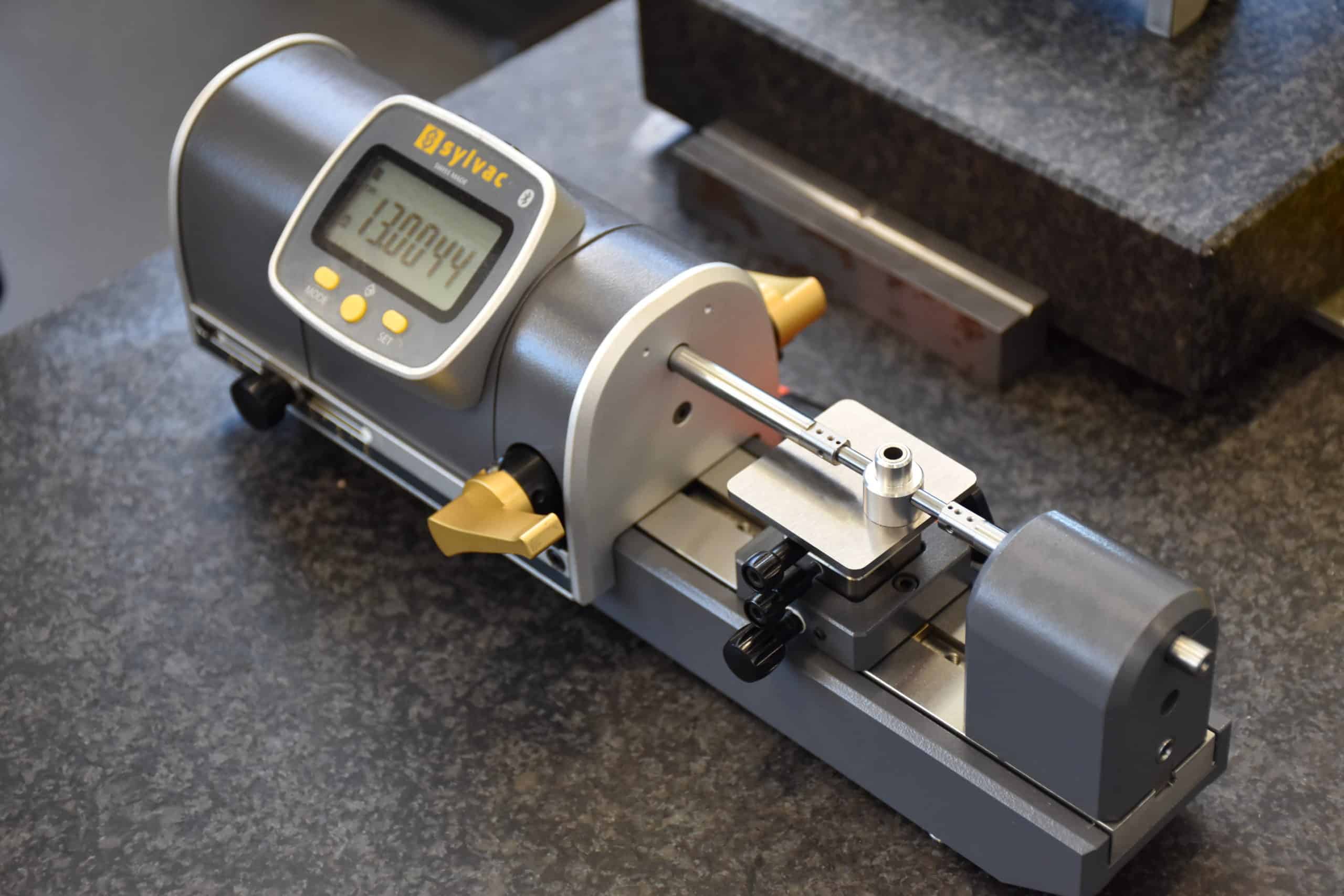

    All-in-one horizontal measuring bench with integrated measuring system, display and Bluetooth® technology.
    MicrosoftTeams-image (5)
    Swiss made
    0.1um
    0.1µm
    Cable
    Cable

    Features

    • All-in-one Integration: This measuring bench comes with integrated measuring system, integrated display and integrated Bluetooth technology for the measurement of external dimensions up tp 25mm or 50mm depending on model.
    • Seamless Data Aquisition: Integrated Bluetooth® Smart data transmission, allowing you to transmit measurements wirelessly, quickly and error-free for enhanced productivity. Also features a Proximity and Power data output.
    • User-Friendly Design: With a large display resolution of 0.0001 mm and color LEDs indicating tolerance status, it offers precise and easy readings. The ergonomic levers with ball bearing guide and compatibility with Sylvac Ø 1.5 mm and Cary type anvils provide ease of use.
    • Built to Last: Our PS16 bench series is built to last in demanding workshop environments. Ball bearing guide, hard metal measuring anvils Ø1.5mm and IP67 protection class ensure reliability in various conditions.
    • Versatile and Customizable: Our bench can be equipped with an extensive selection of measuring anvils and support tables, it is compatible with Sylvac Ø 1.5 mm and Cary type anvils. Tailored solutions are also available upon request. It also features an adjustable and reversible measuring force (0.1-0.6 N) eliminating operator’s biases.
    • Superior Performance: Our bench enables accurate measurement of small and intricate components that would otherwise be challenging to handle, ensuring consistent and reliable results. With a proven track record in demanding watchmaking applications, you can trust our bench to deliver accurate measurements every time.

    Applications

    icon-diameter

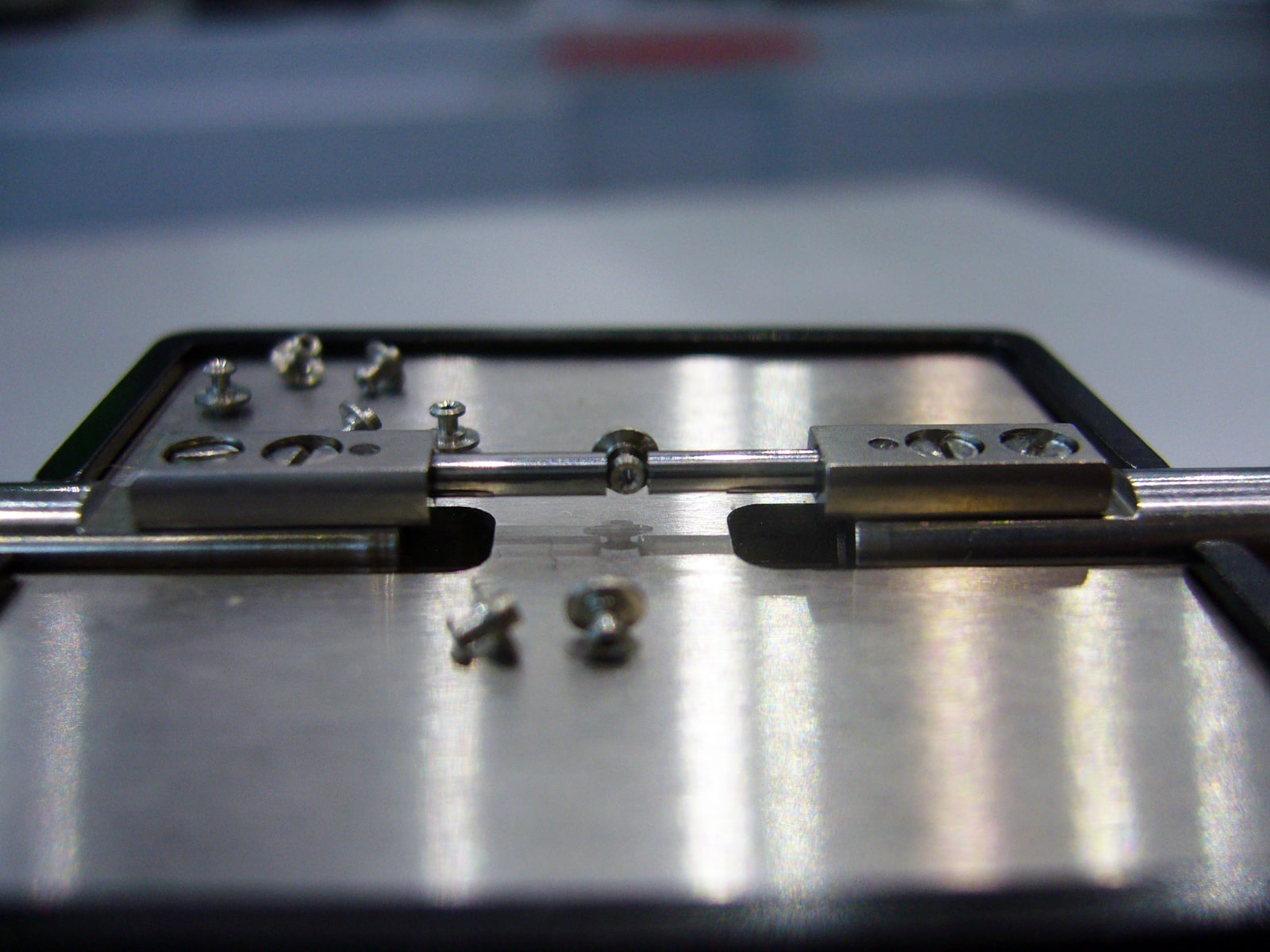

    Diameter
    logicielsDistance
    Distance
    icon-form-deviation
    Form deviation

    Industries

    icon-automotive-sylvac
    Automotive
    Electronics
    icon-machine-tool-sylvac
    Machine tool
    icon-medical-device-sylvac
    Medical device
    icon-watch-making-sylvac
    Watch making

    Overview

    External measurement 808-1231 808-1232
    EAN 7640125713633 7640125713992
    Max. Capacity C (mm) 25 50
    Max. Error (µm) 1.5 2.0
    Repeatability (µm) 0.2
    Resolution (µm) 0.1
    Measuring force (Adjustable) (N) 0.1 – 0.6 ¹
    Weight (kg) 3.6 4.2
    Output data Bluetooth® wireless technology / RS232 / USB
    Anvils clamping dimension (mm) Ø 1.5
    Cary compatibility

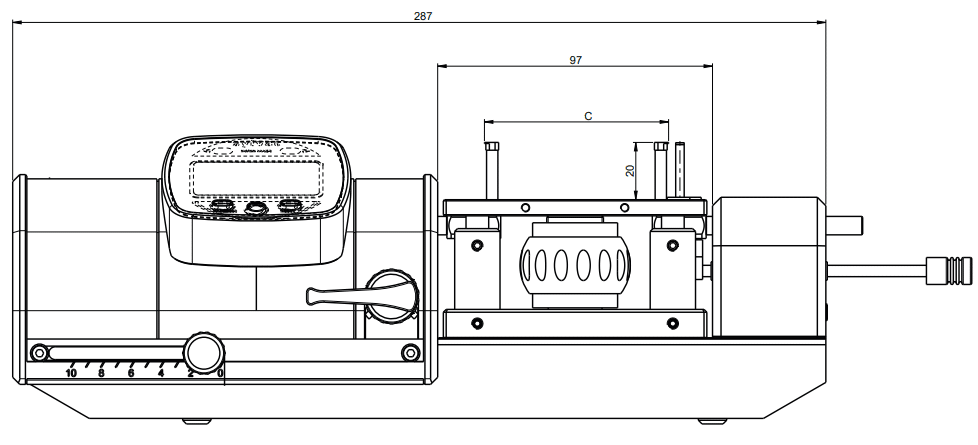

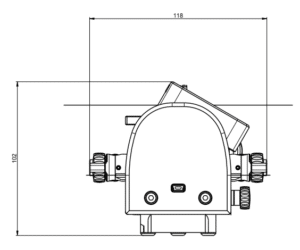

    A (mm) 232 287
    B (mm) 66 97

    ¹ ± 20%

    External measurement 808-1231 808-1232
    EAN 7640125713633 7640125713992
    Max. Capacity C (mm) 25 50
    Max. Error (µm) 1.5 2.0
    Repeatability (µm) 0.2
    Resolution (µm) 0.1
    Measuring force (Adjustable) (N) 0.1 – 0.6 ¹
    Weight (kg) 3.6 4.2
    Output data Bluetooth® wireless technology / RS232 / USB
    Anvils clamping dimension (mm) Ø 1.5
    Cary compatibility
    A (mm) 232 287
    B (mm) 66 97

    ¹ ± 20%

    Instrument according to technical specifications
    Instruction manual
    Lithium battery CR2477 included
    Adapter for Lithium battery CR2032
    Calibration certificate
    Table not included
    Anvils Ø 1.5mm (908-2175)
    Dust cover
    Accessories  Designation
        808-2190 Supporting table XYZ
    808-2302 Supporting table adjustable XZ
    908-2198 Replacement lapping stone for 908-2199
    908-2199 Lapping device (3 stones and lapping liquid included)
    926-6723 Proximity RS232
    926-6721 Proximity USB
    926-6001 Mini USB-USB
    985-2216 Battery CR2477
    926-7022 S_Footswitch Smart



    Anvils Ø1.5 Designation B F C
    908-2175 Cylindrical anvils TC Ø 1.5 mm 8 Ø 1.5
    908-2176 Cylindrical anvils TC Ø 2 mm 8 Ø 2
    908-2177 Cylindrical anvils TC Ø 6.5 mm 2 Ø 6.5
    908-2174 Knife-shaped anvils TC 0.7 mm 0.70 2.2 4
    908-2178 Knife-shaped anvils TC 0.4 mm 0.40 2.2 4
    908-2179 Knife-shaped anvils TC 0.3 mm 0.30 2.2 4
    908-2180 Knife-shaped anvils standard TC 0.2 mm 0.20 2.2 4
    908-2201 Knife-shaped anvils TC 0.7 mm/V 0.70 2.2 4
    908-2202 Knife-shaped anvils standard TC 1.5 mm 1.5 2.2 4



    Anvils Cary Designation B F C
    908-2213 Knife-shaped anvils TC 0.15 mm 0.15 2.2 4
    908-2216 Knife-shaped anvils TC 0.20 mm 0.20 2.2 4
    908-2217 Knife-shaped anvils TC 0.30 mm 0.30 2.2 4
    908-2218 Knife-shaped anvils TC 0.40 mm 0.40 2.2 4
    908-2219 Knife-shaped anvils TC 0.70 mm 0.70 2.2 4
    908-2220 Knife-shaped anvils TC 0.70 mm/vé 0.70 2.2 4
    908-2223 Knife-shaped anvils TC 1.5 mm 6 Ø1.5
    908-2224 Cylindrical anvils TC Ø 1.5 mm 6 Ø2
    908-2225 Cylindrical anvils TC Ø 2.0 mm 6 Ø3
    908-2222 Beveled anvils TC 1.5×0.05 mm 1.50 2.2 4



    Bench table PS16 V2 Smart
    CHF 3'478.00
