Measuring benches’ accessories

N°	Designation	PS15BH	PS15BV / BV+	PS16V2 25	PS16V2 50	PS16V2 LV	PS16V2 3Points	PS16V2 Goutte	PS17VS / VP

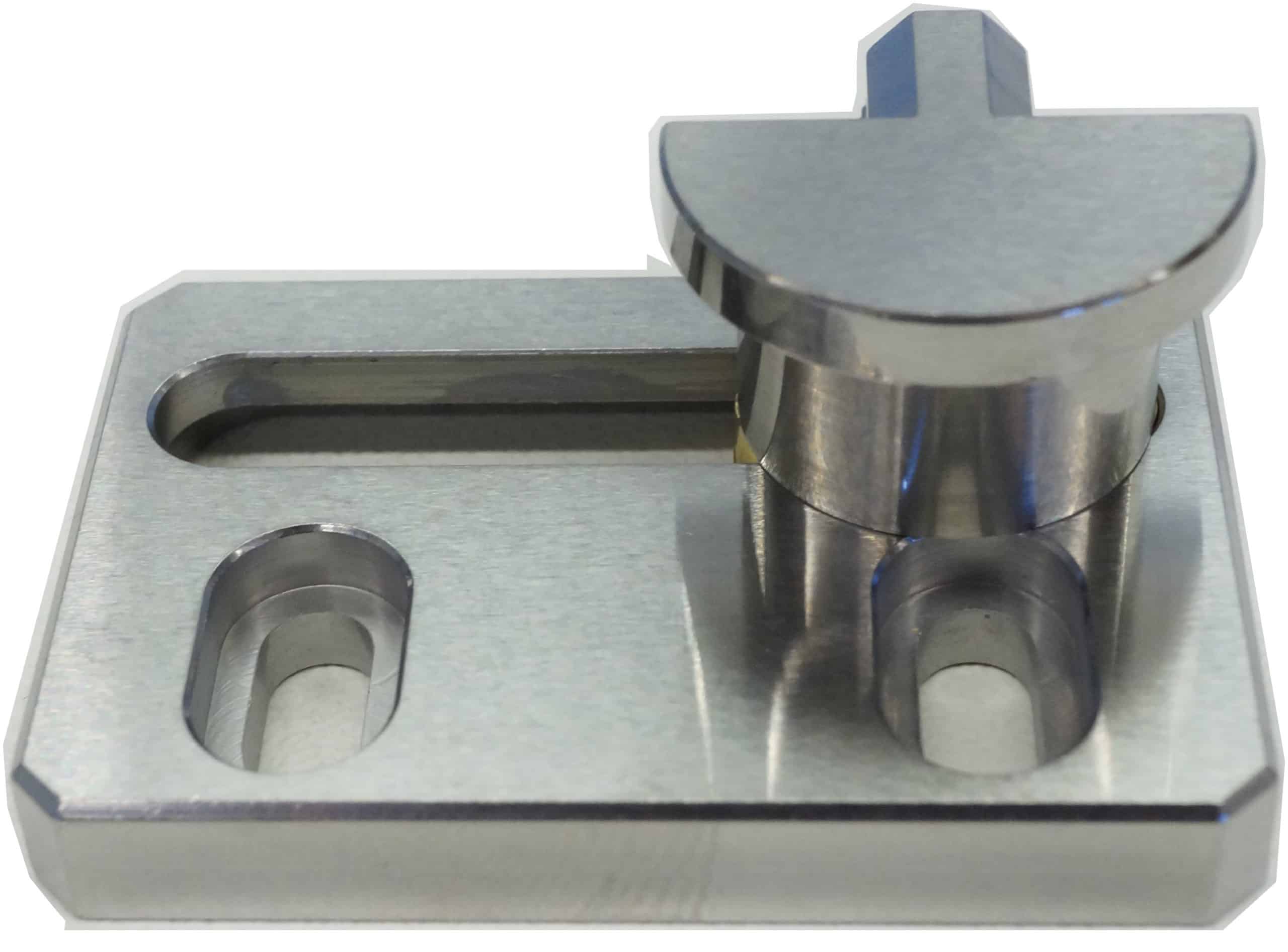

808-2190	Supporting table XYZ	⬤		⬤	⬤

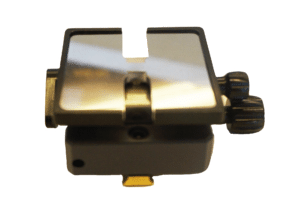

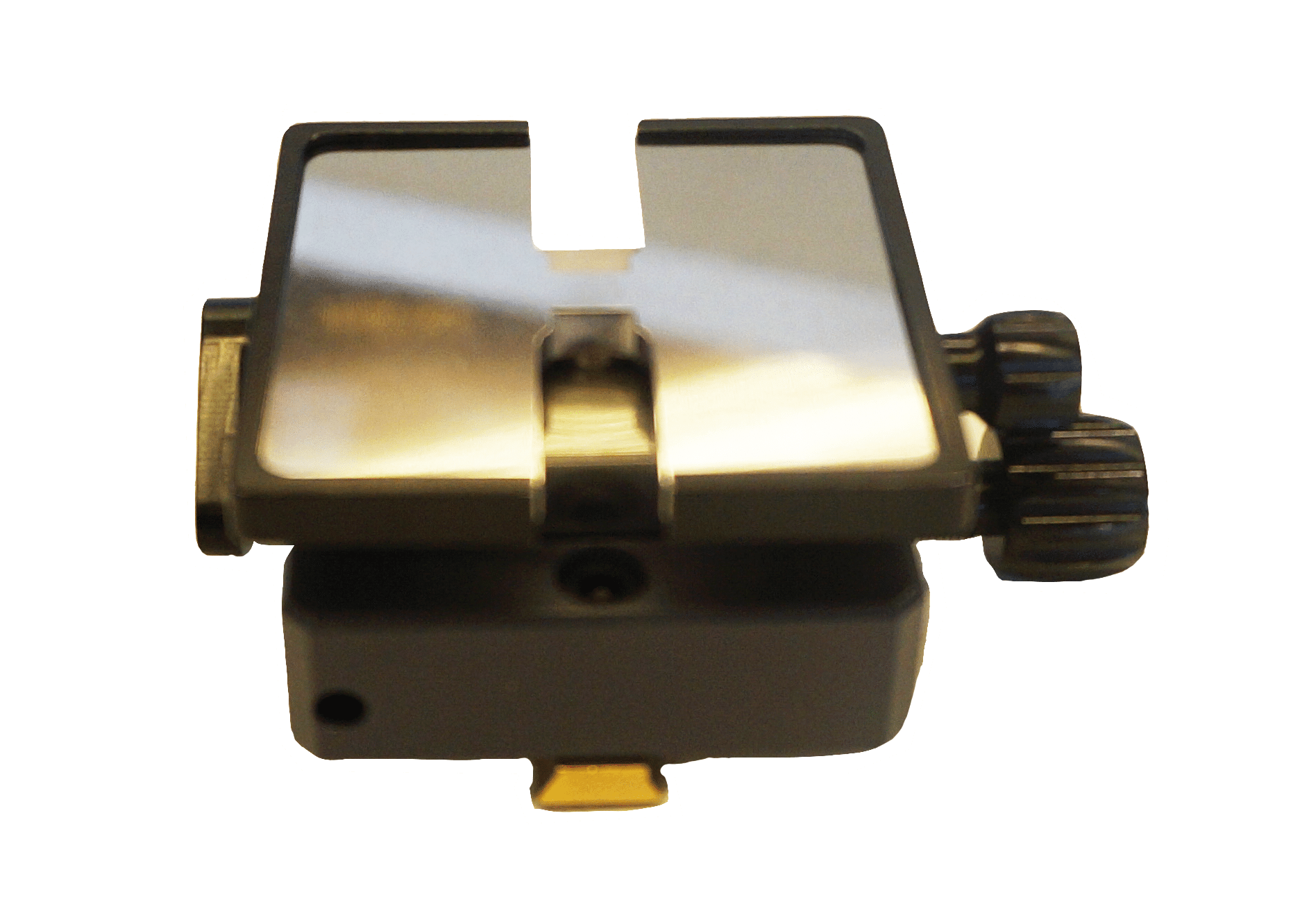

808-2302	Supporting table XYZ			⬤	⬤
808-2196	Setting ring Ø20mm					⬤

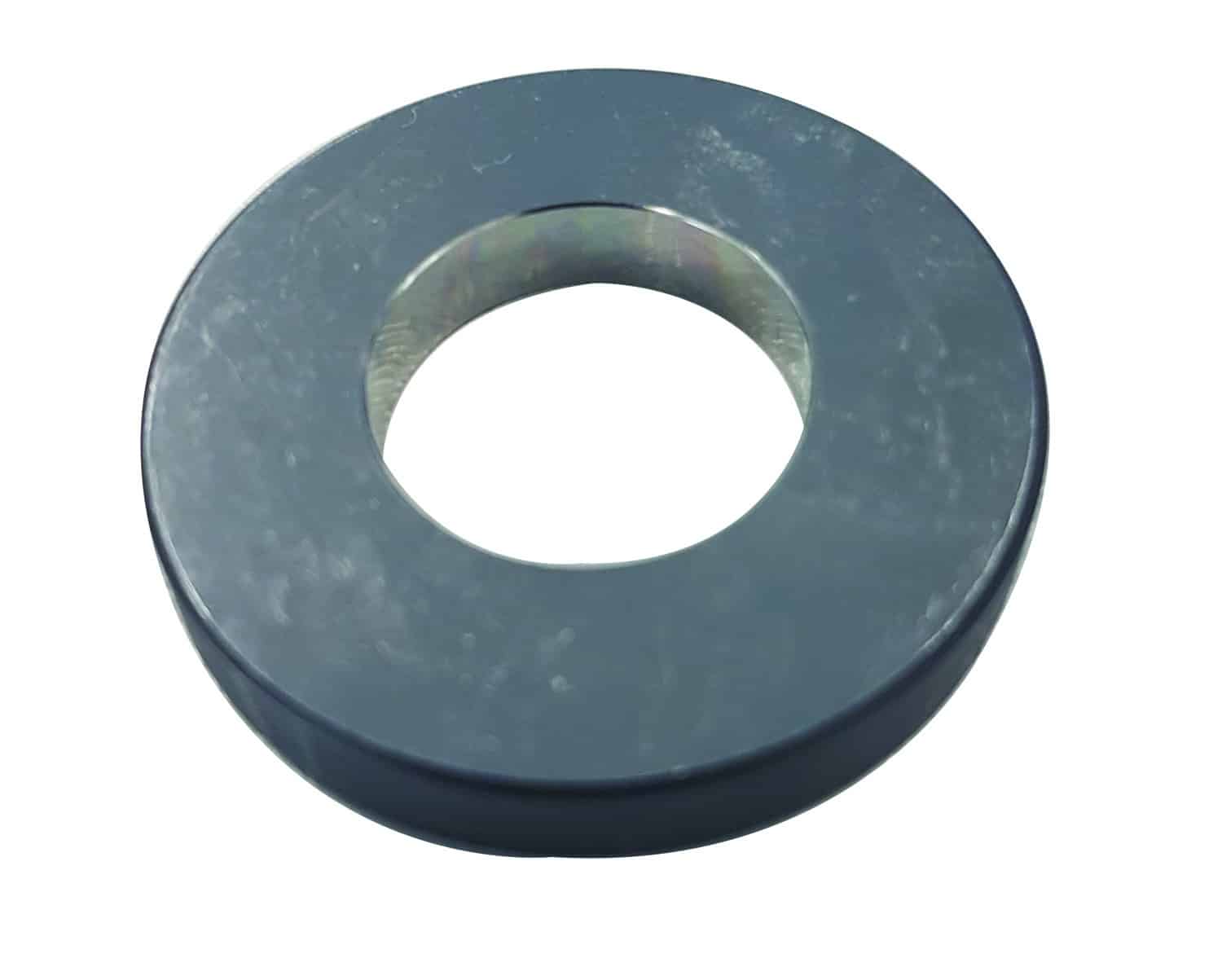

808-2197	Setting ring Ø30mm					⬤

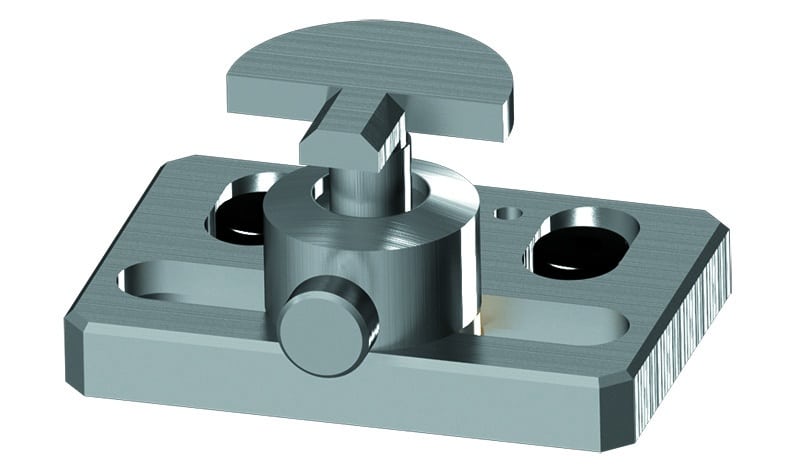

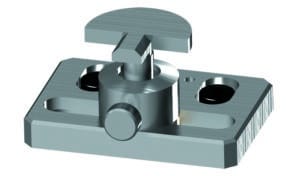

908-2170	Supporting table adjustable in XYZ	⬤

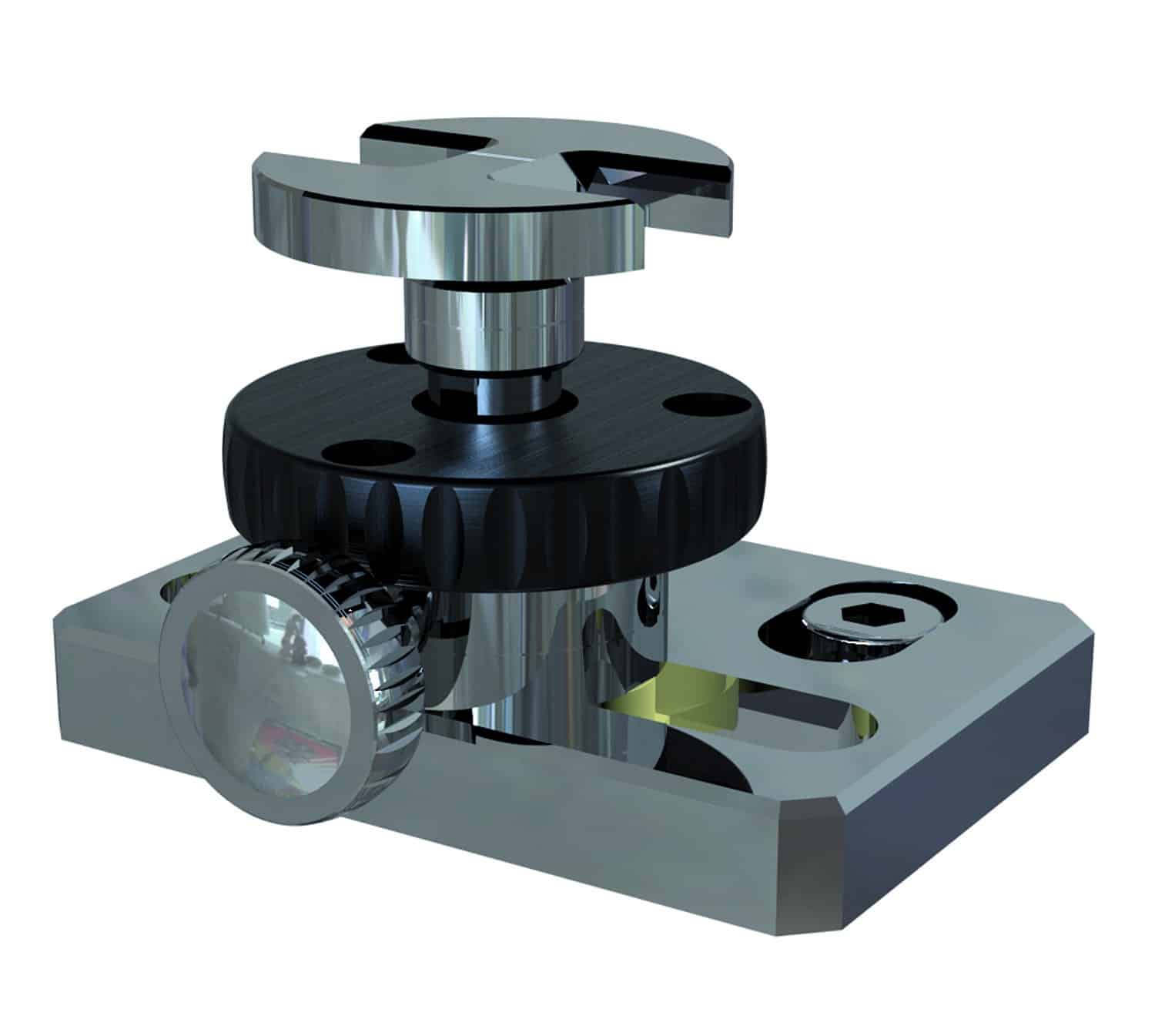

908-2160	Supporting table with fine adjustement XYZ	⬤

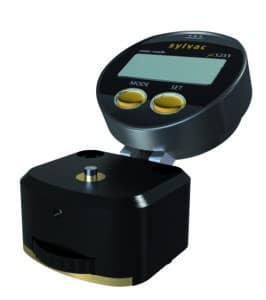

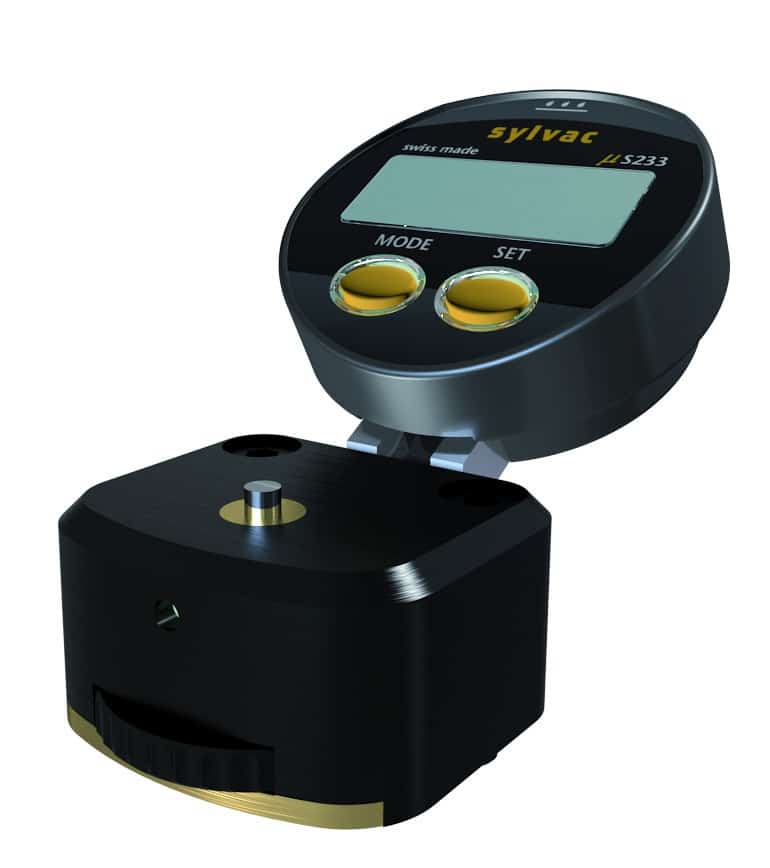

908-2161	Supporting table with fine adjustement Z	⬤

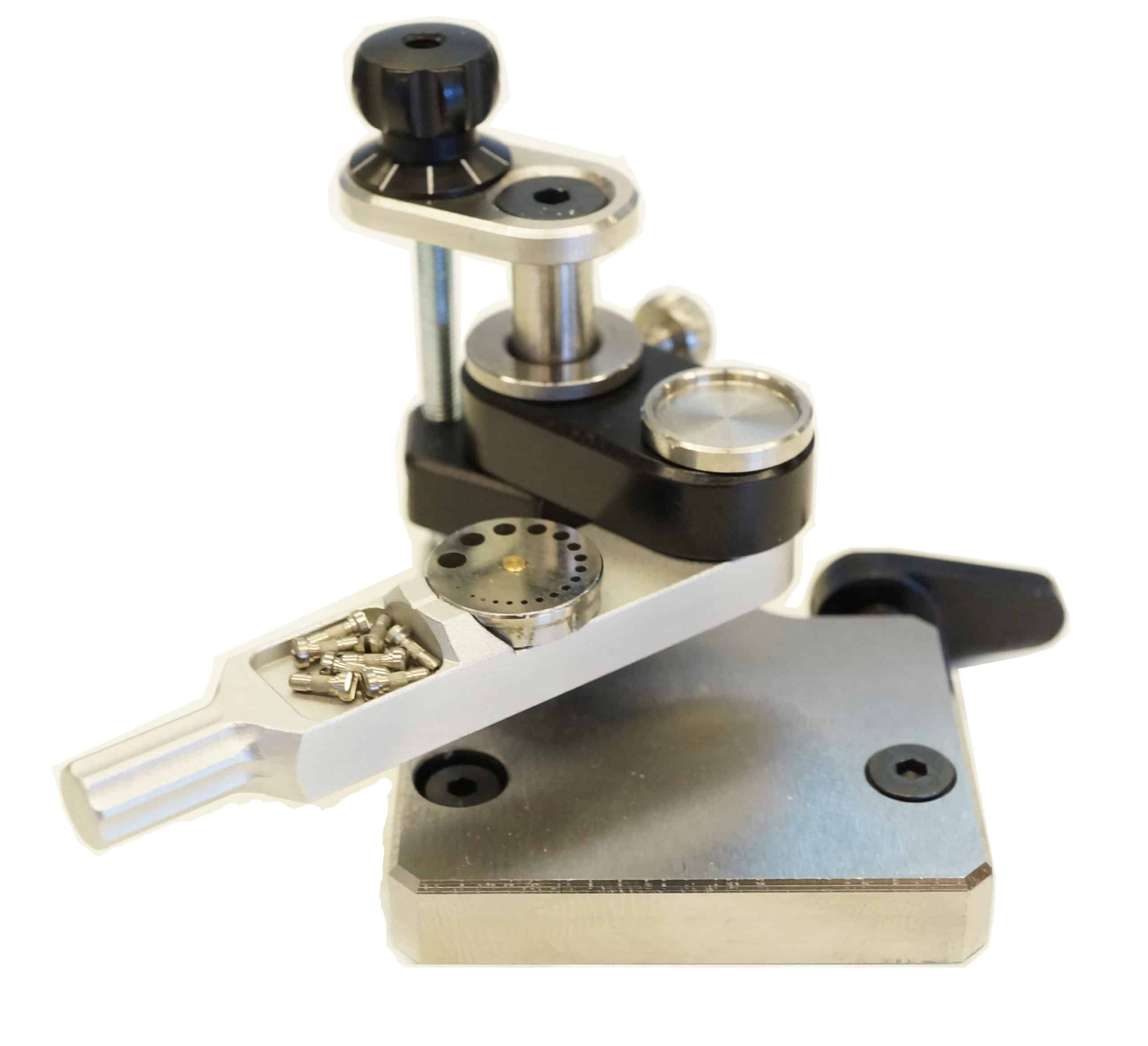

908-2166	Floating table	⬤

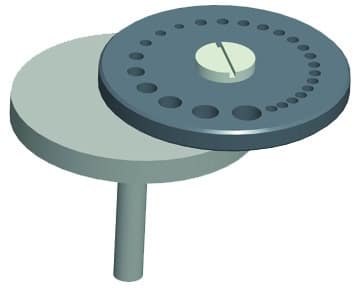

908-2172	Rotating table with 25 bores		⬤

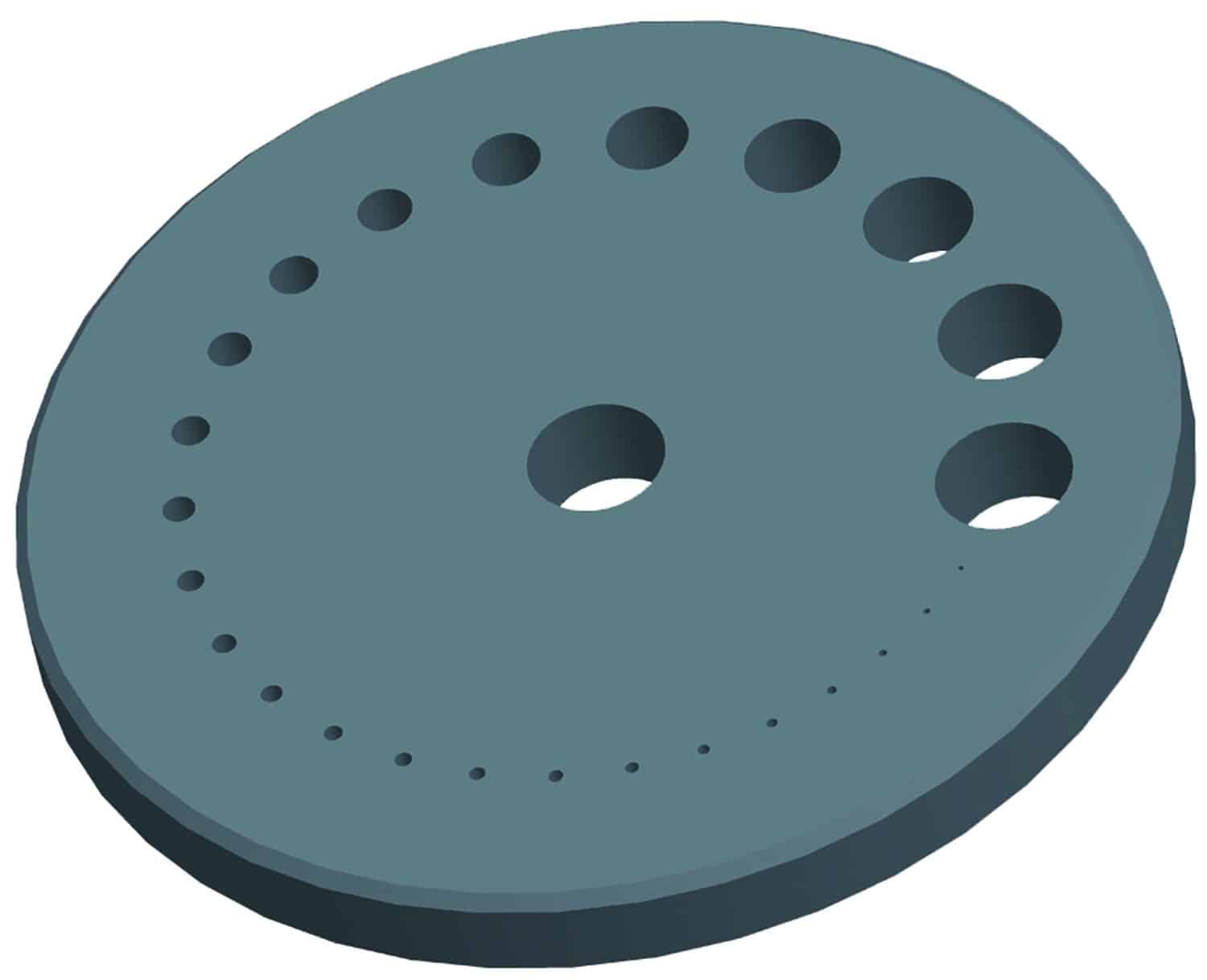

908-2162	Cylindrical plate with 25 bores from 0.2 to 5 mm		⬤

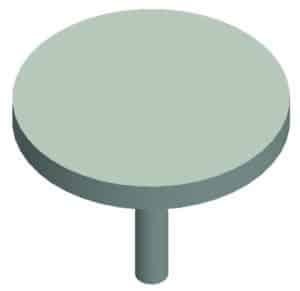

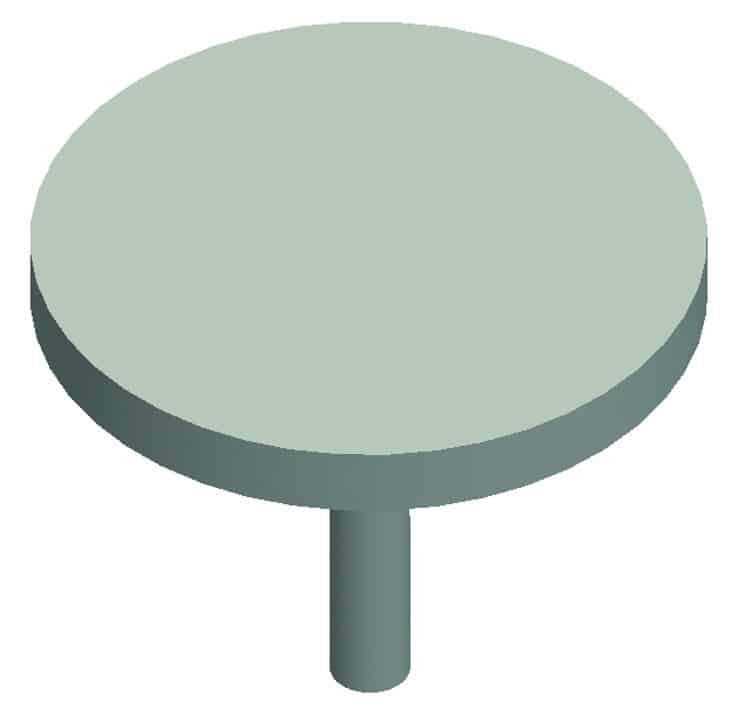

908-2165	Plain table only		⬤

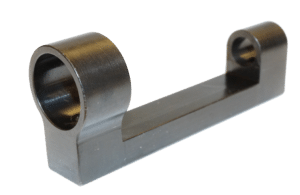

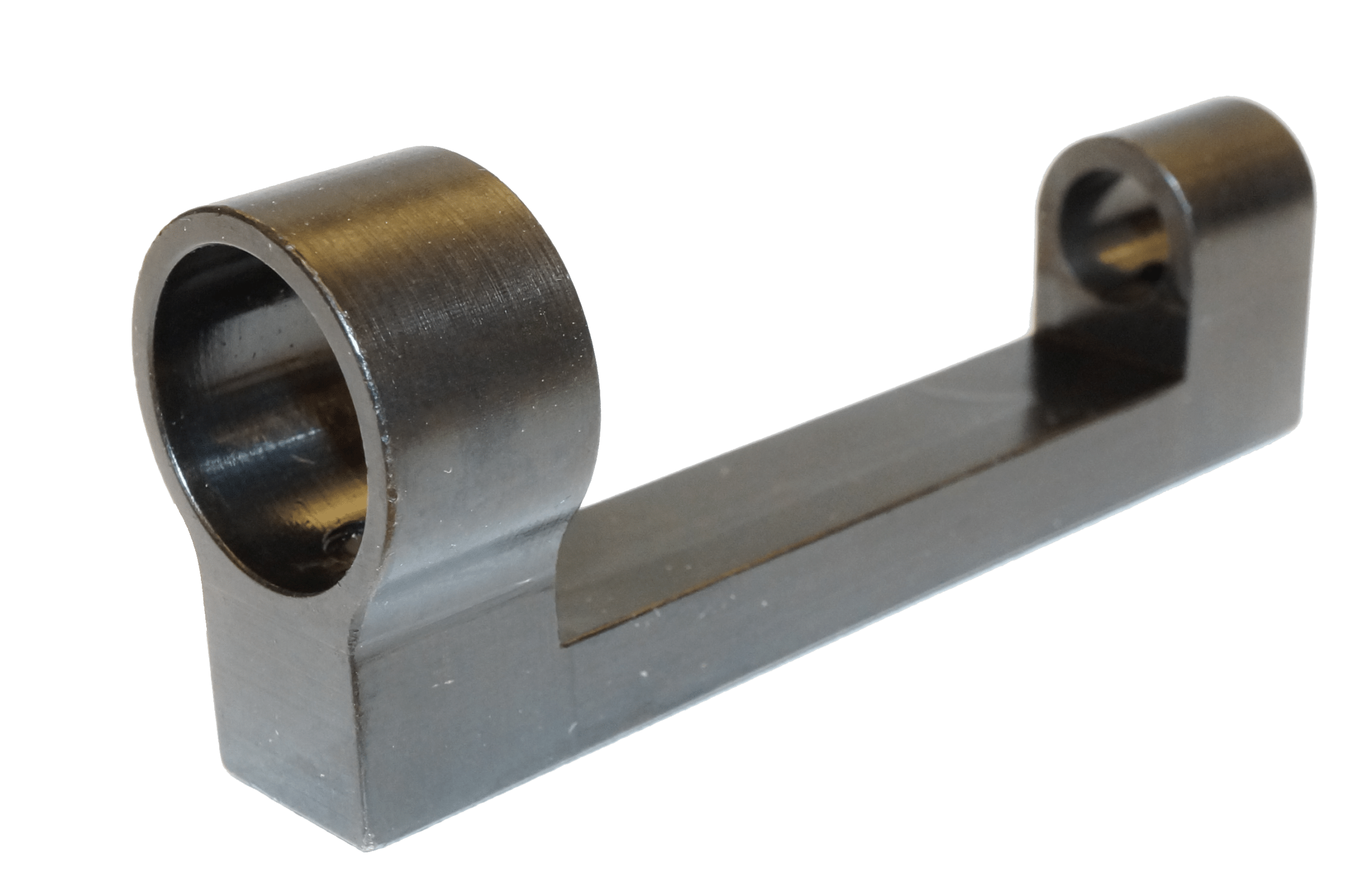

908-2194	Digital indicator holder (display height / depth)					⬤

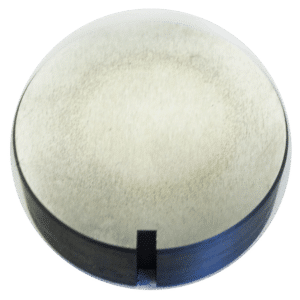

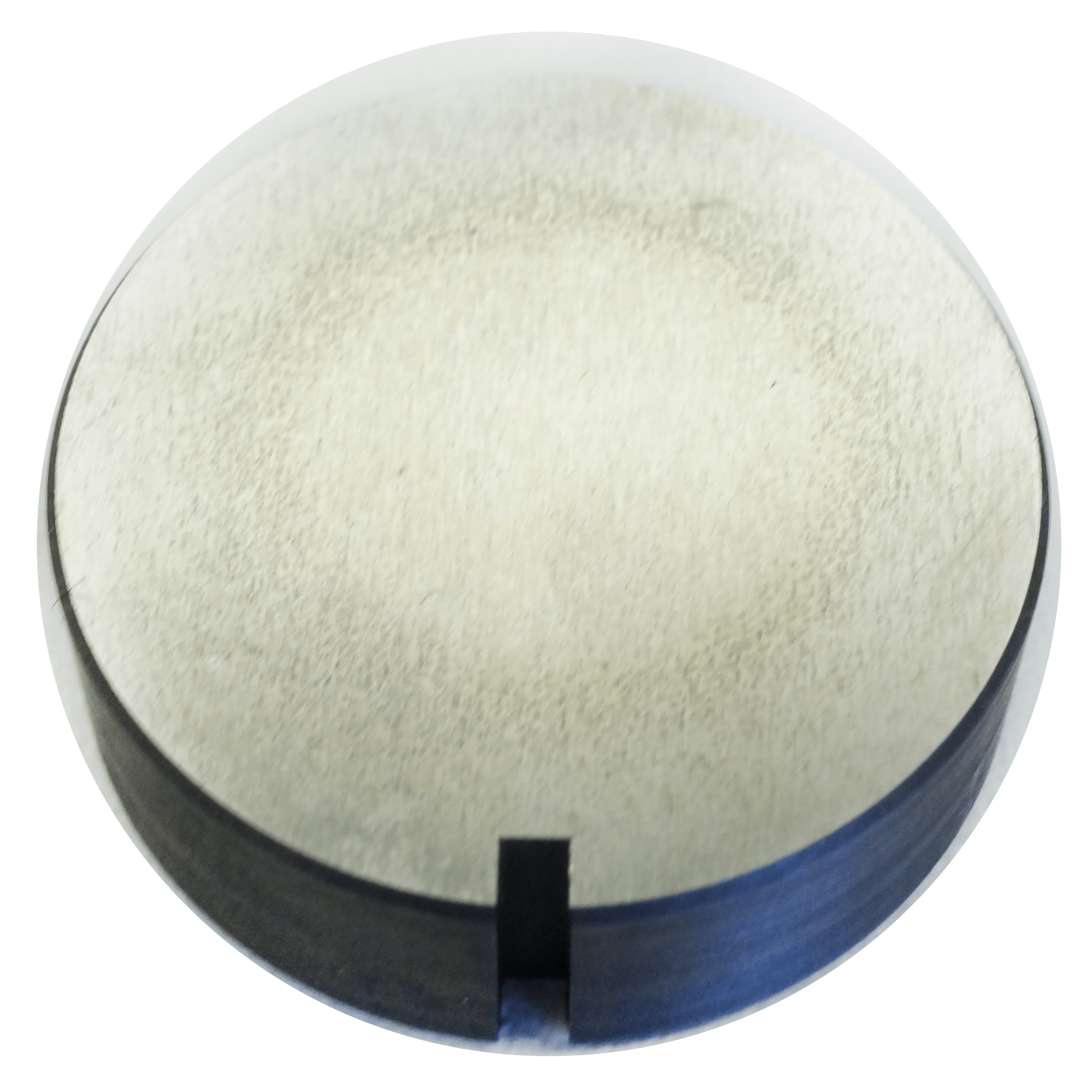

908-2198	Replacement lapping stone for 908-2199	⬤		⬤	⬤			⬤	⬤

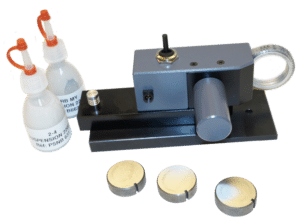

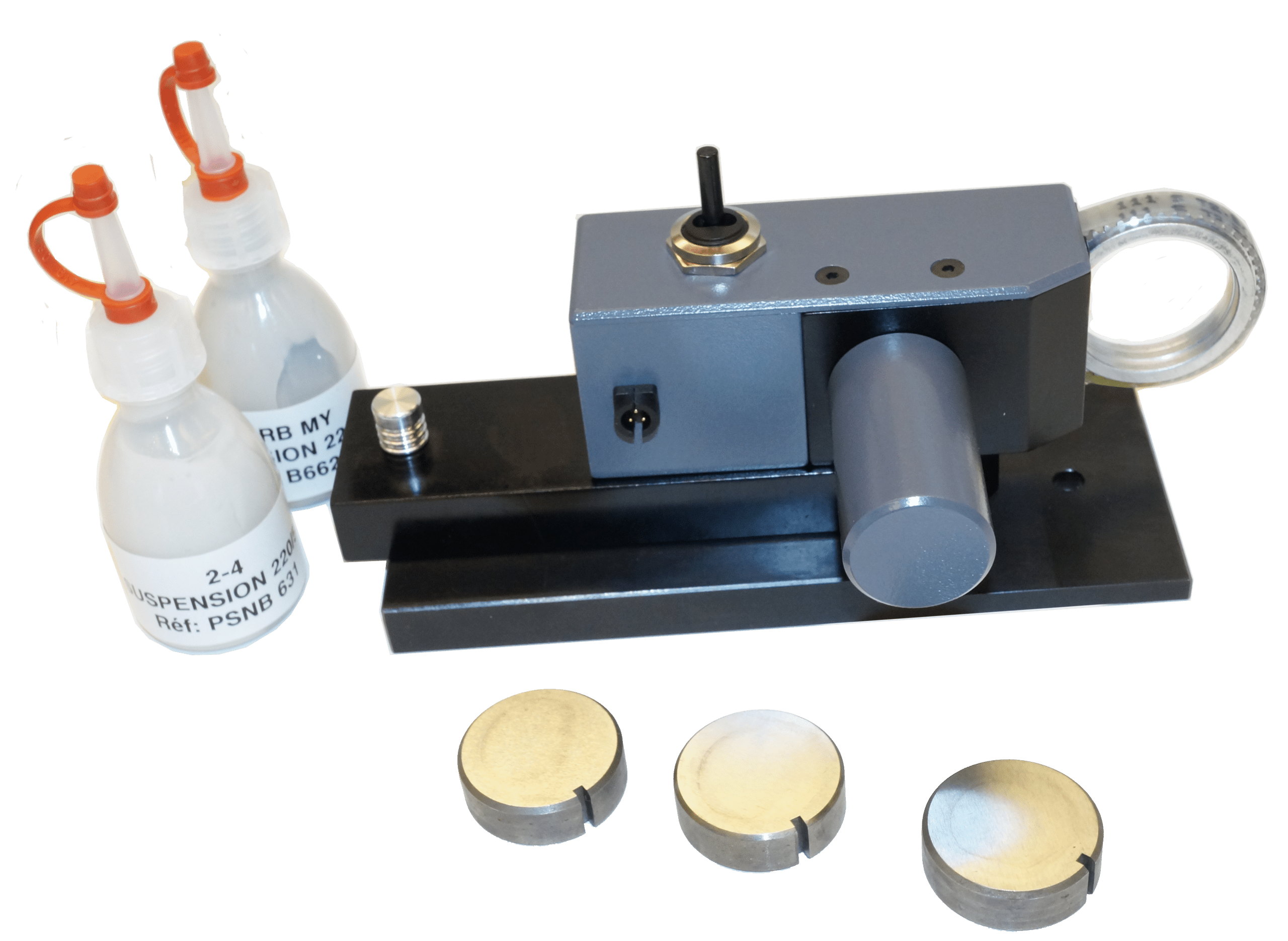

908-2199	Lapping device (3 stones and lapping liquid included)	⬤		⬤	⬤			⬤	⬤

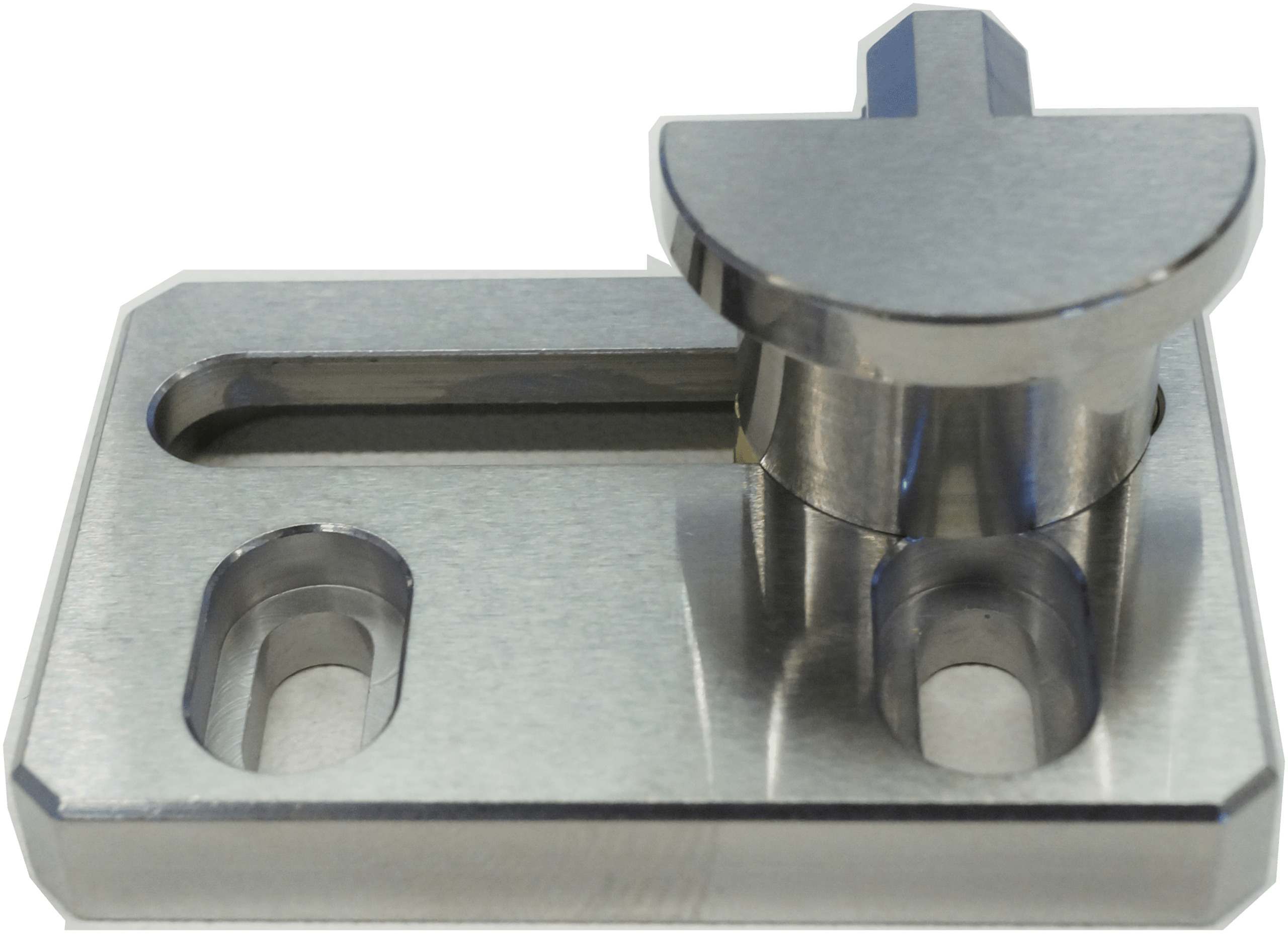

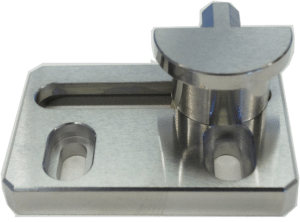

908-2290	Supporting table adjustable XYZ								⬤

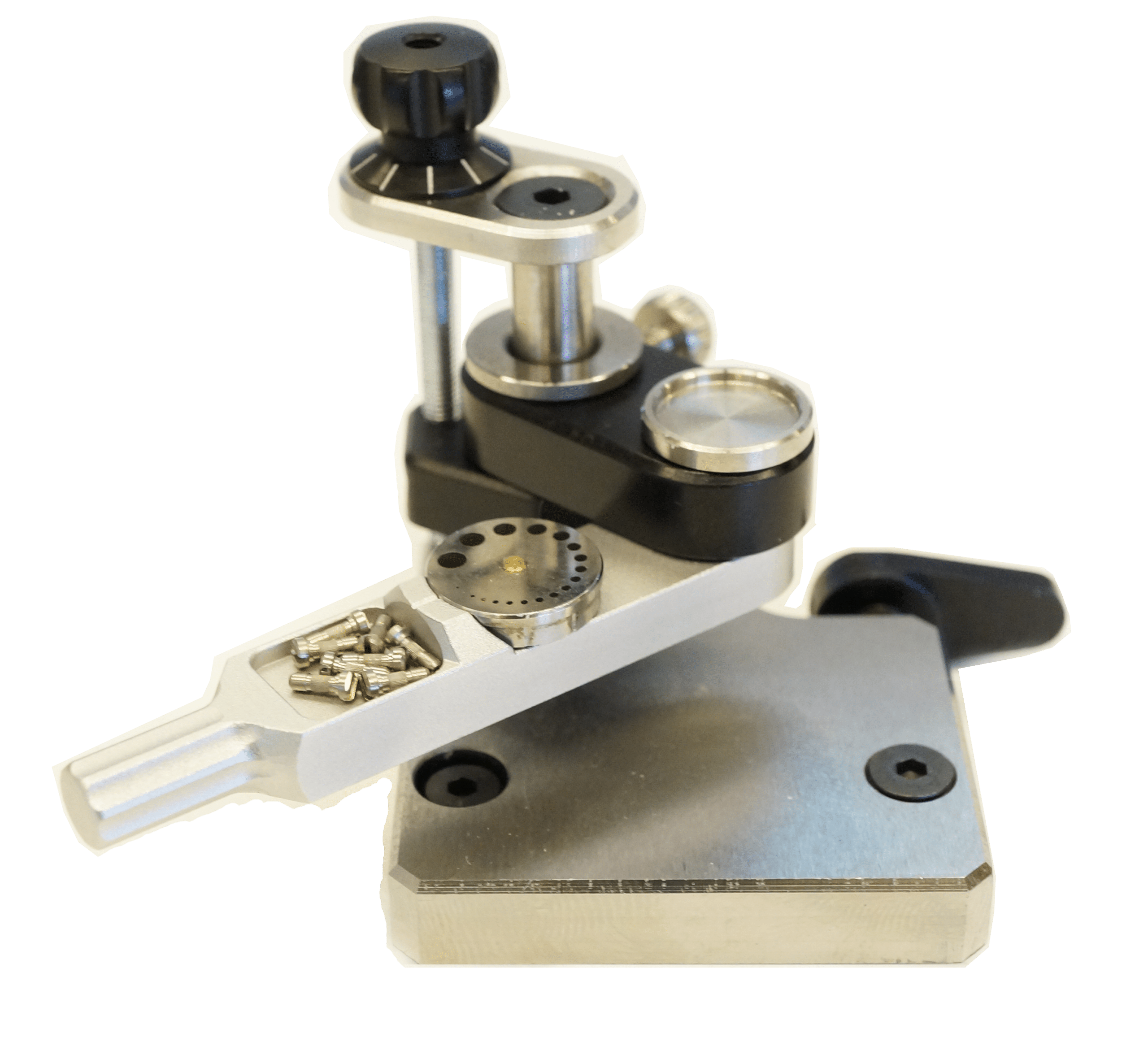

908-2296	Floating table								⬤

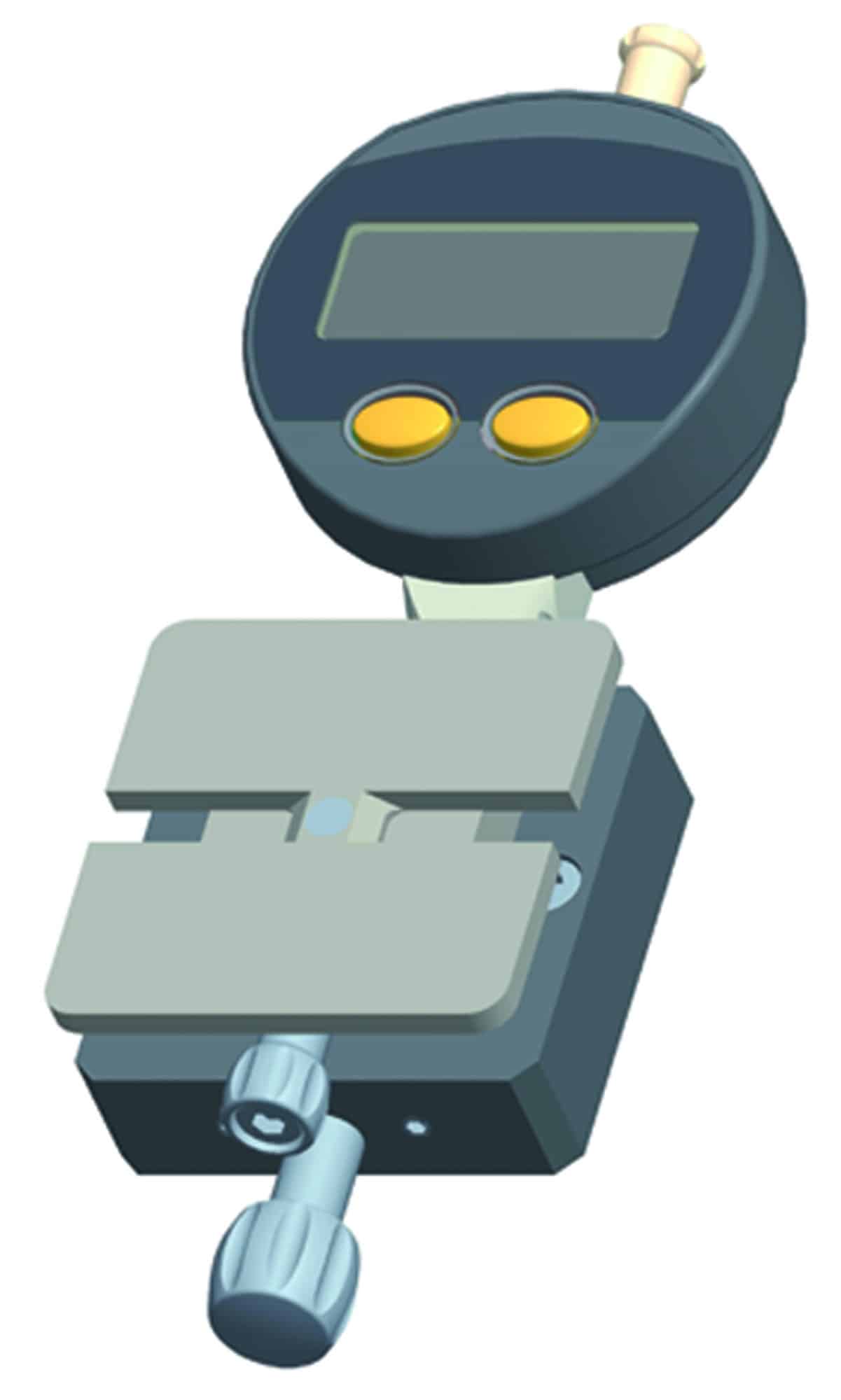

908-2301	Supporting table adjustable XZ								⬤

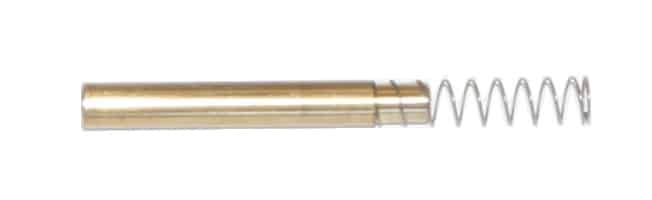

908-2310	Kit for low and strong measuring force								⬤

Anvils Ø1.5	N°	Designation	B	F	C	PS15BH	PS15BV	PS15BV+	PS16V2	PS16V2 LV	PS17

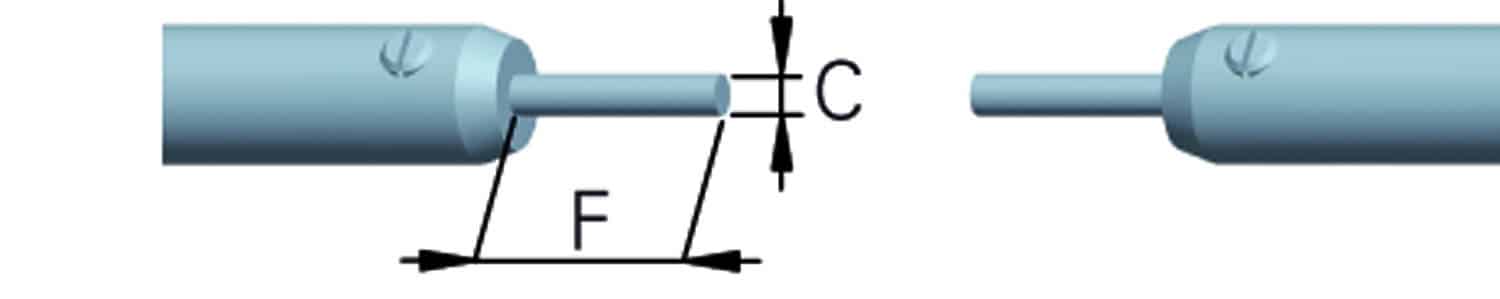

	908-2175	Cylindrical anvils TC Ø 1.5 mm	–	8	Ø1.5	⬤		⬤	⬤		⬤
	908-2176	Cylindrical anvils TC Ø 2 mm	–	8	Ø2	⬤		⬤	⬤		⬤
	908-2177	Cylindrical anvils TC Ø 6.5 mm	–	2	Ø6.5				⬤

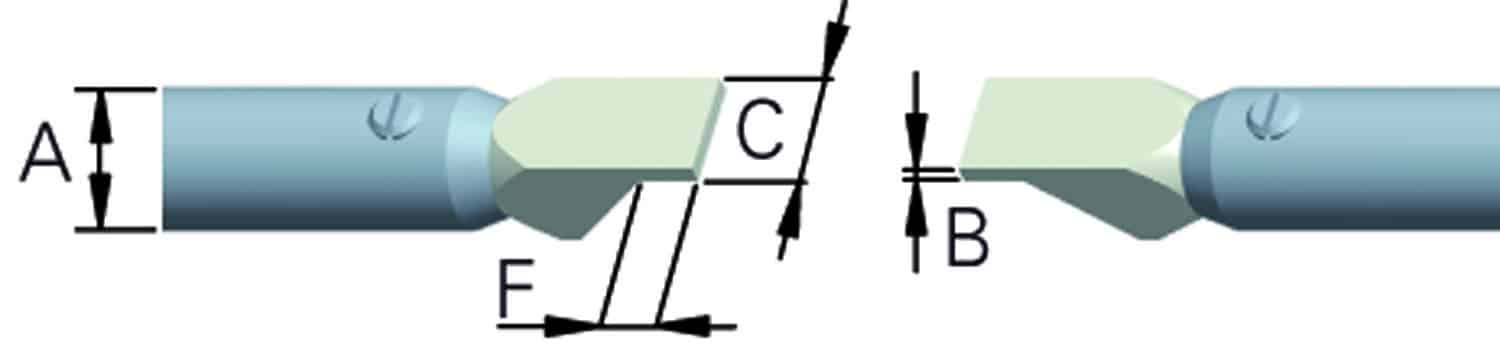

	908-2174	Knife-shaped anvils TC 0.7 mm	0.70	2.2	4	⬤		⬤	⬤		⬤
	908-2178	Knife-shaped anvils TC 0.4 mm	0.40	2.2	4	⬤		⬤	⬤		⬤
	908-2179	Knife-shaped anvils TC 0.3 mm	0.30	2.2	4	⬤		⬤	⬤		⬤
	908-2180	Knife-shaped anvils standard TC 0.2 mm	0.20	2.2	4	⬤		⬤	⬤		⬤
	908-2181	Knife-shaped anvils standard TC 0.14 mm	0.14	2.2	4	⬤		⬤			⬤
	908-2182	Knife-shaped anvils standard TC 0.1 mm	0.10	2.2	4	⬤		⬤			⬤
	908-2201	Knife-shaped anvils TC 0.7 mm/V	0.70	2.2	4	⬤		⬤	⬤		⬤

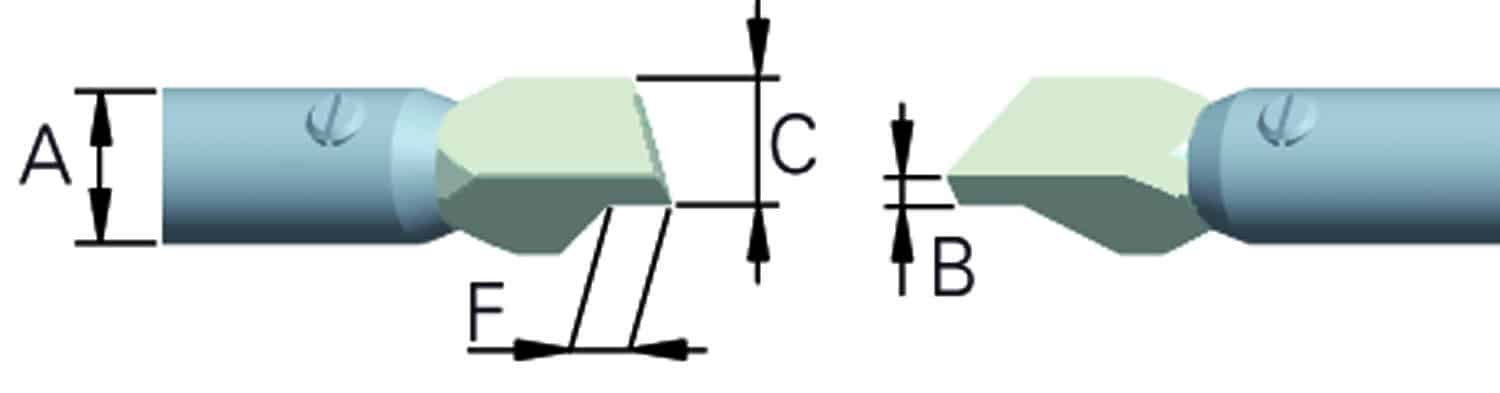

	908-2202	Knife-shaped anvils standard TC 1.5 mm	1.5	2.2	4	⬤		⬤	⬤		⬤
