SCANs’ accessories

Centres and drive centres			S25T	Morse 2 F60	S145

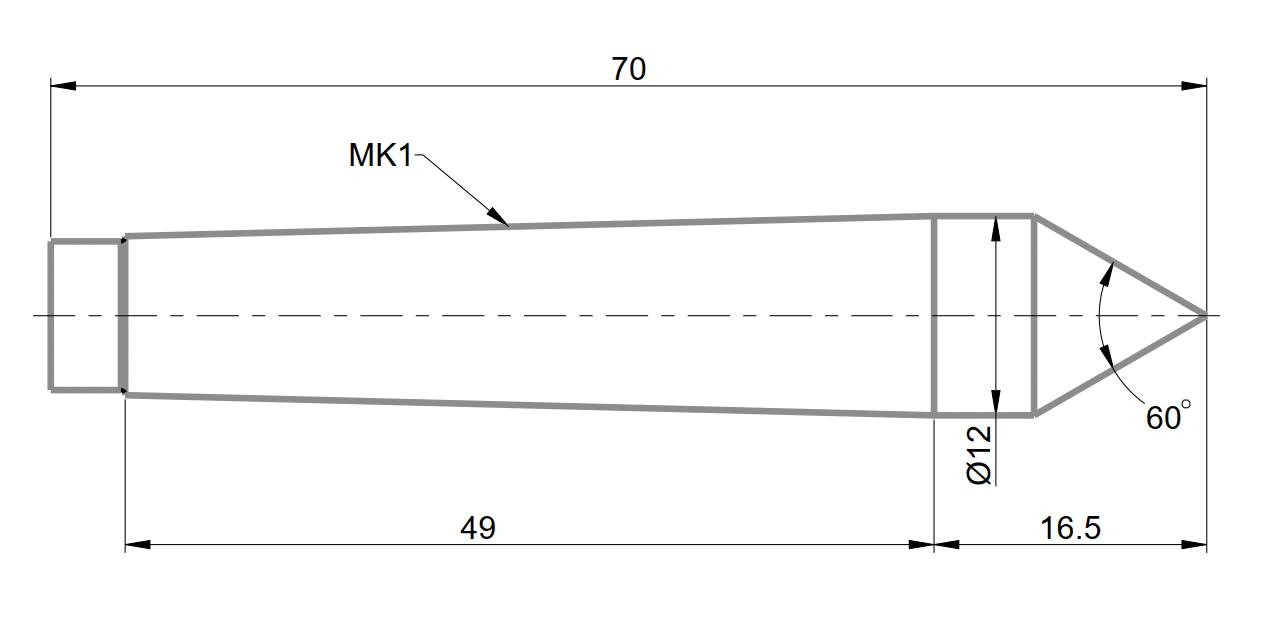

	902-6000	Male centre 10 mm MK1	⬤ Requires 902-6360	⬤ Requires 902-6360	⬤ Requires 902-6360
	902-6160	Rotation centre with a B12 male taper plus a Morse 1 taper shank	⬤ Requires 902-6360	⬤ Requires 902-6360	⬤ Requires 902-6360

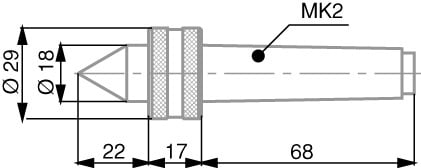

	902-6161	Rotation centre, Morse 2	⬤	⬤	⬤

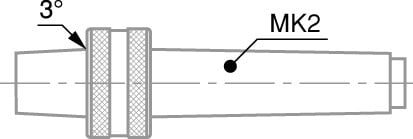

	902-6162	Rotation centre with a B18 male taper plus a Morse 2 taper shank	⬤	⬤	⬤

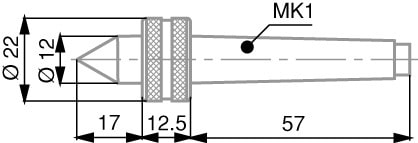

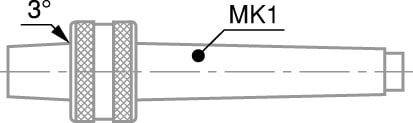

	902-6163	Rotation centre, Morse 1	⬤ Requires 902-6360	⬤ Requires 902-6360	⬤ Requires 902-6360

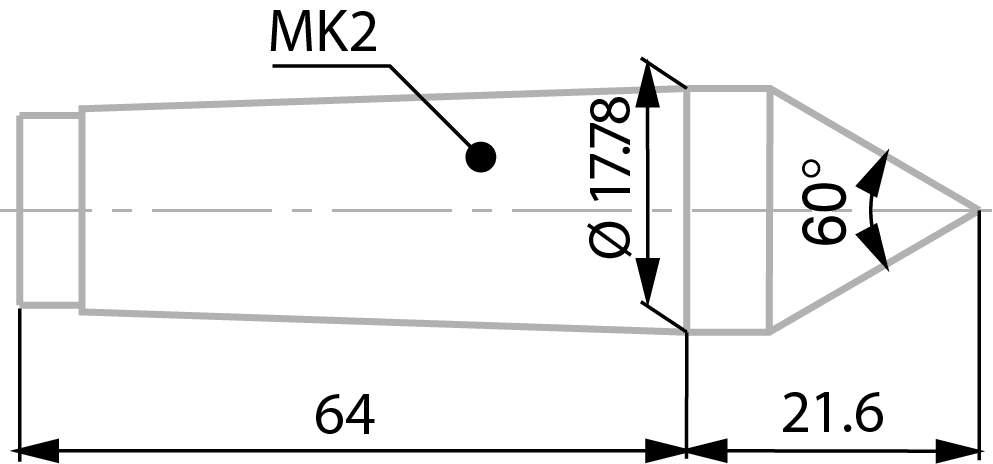

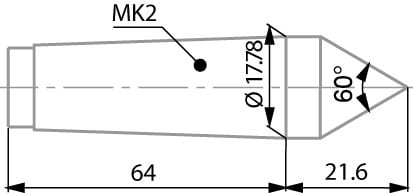

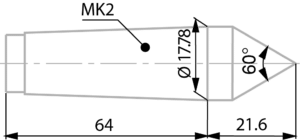

	902-6202	Male centre 17.78 mm, extra (Standard delivery with Sylvac-SCAN S25, F60 and S145)	⬤	⬤	⬤

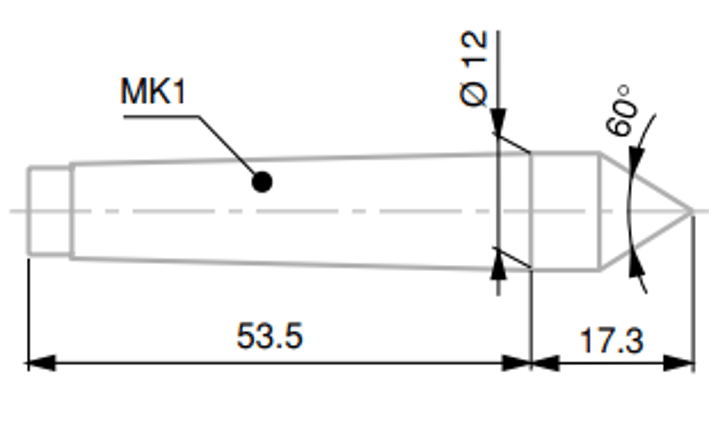

	902-6203	Drive centre (Diamond coated 10mm)	⬤ Requires 902-6360	⬤ Requires 902-6360	⬤ Requires 902-6360

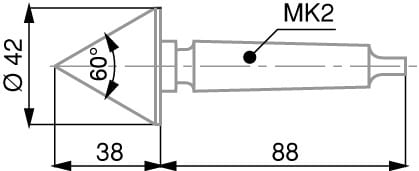

	902-6210	Drive centre, Ø 42 mm plus a Morse 2 taper shank Diamond coated	⬤	⬤	⬤
Image soon available	902-6211	Non diamond coated Drive centre Ø 42mm	⬤	⬤	⬤
	902-6212	Centre MK2 diamond coated, Ø 17mm	⬤	⬤	⬤

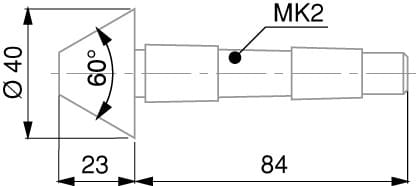

	902-6341	Male centre, Ø 15÷40 mm, plus a Morse 2 taper shank	⬤	⬤	⬤

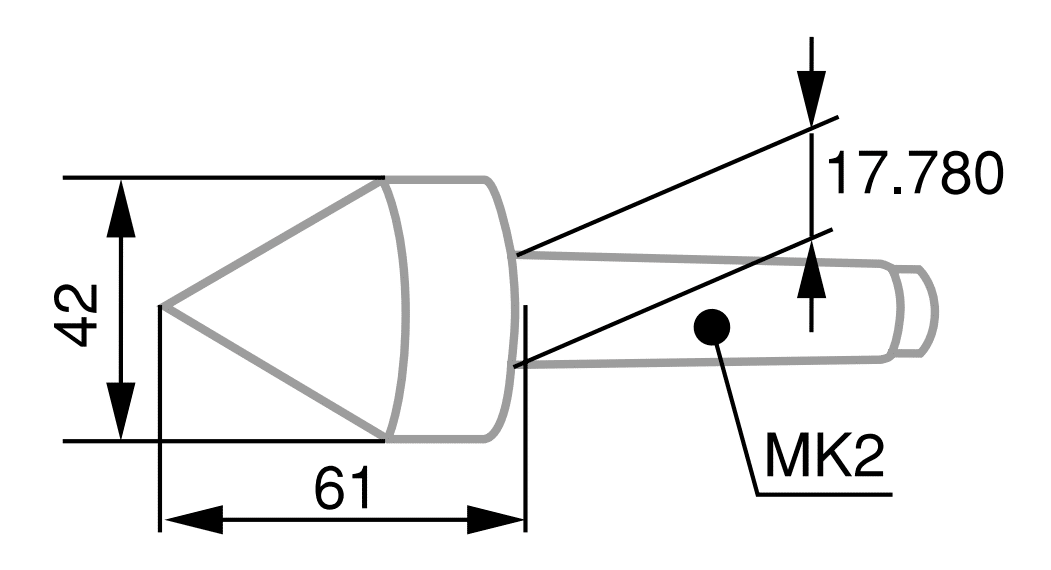

	902-6380	Rotation centre Ø 42mm MK2	⬤	⬤	⬤

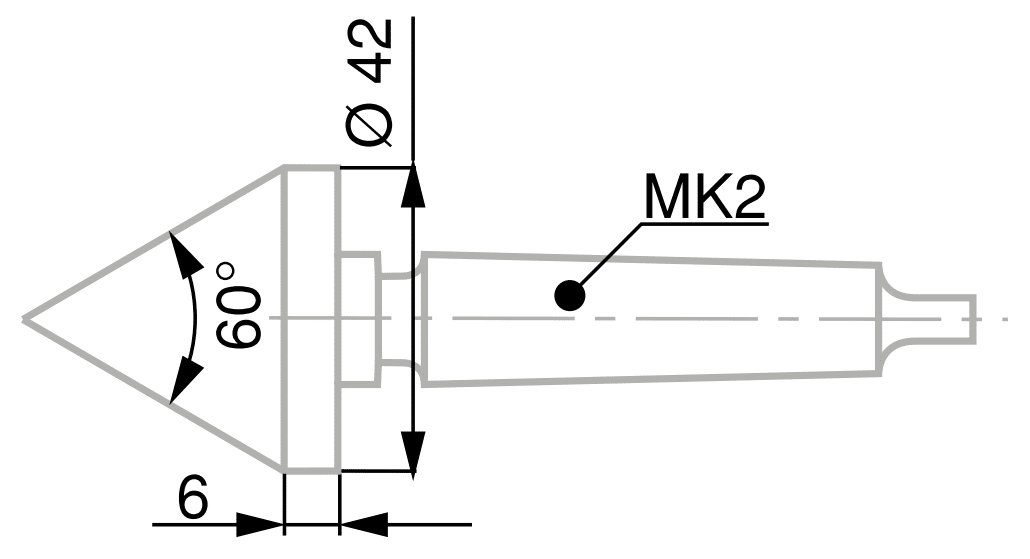

	902-6410	Drive centre – diamond coated with reference diameter. Ø 42 mm max	⬤	⬤	⬤

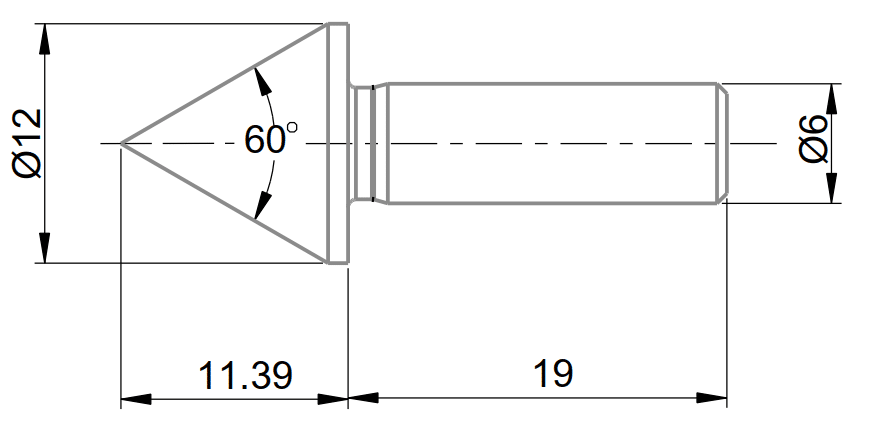

	902-6420	Small male centre	⬤ Requires 902-6251

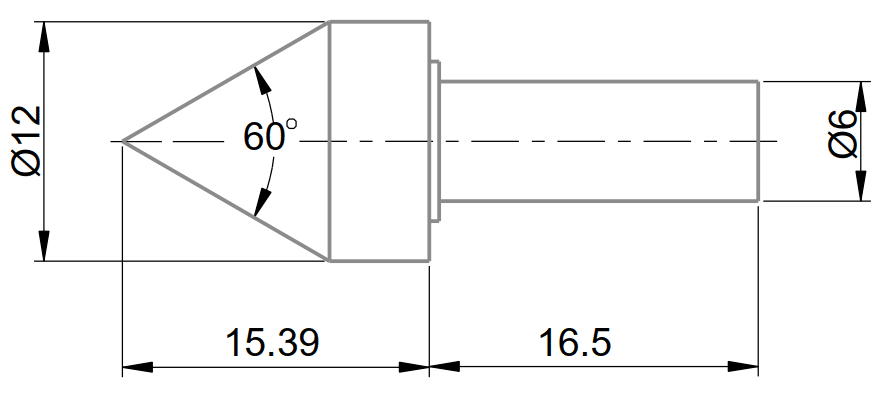

	902-6421	Small male rotating centre	⬤ Requires 902-6251
	902-6430	Fixed center Ø110 with diamond coating			⬤
	902-6431	Rotating center Ø110			⬤

Inverted V-centres			S25T	Morse 2 F60	S145

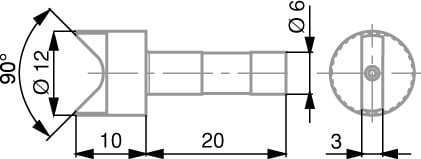

	902-6204	Female centre Ø10mm Capacity Ø3 – 10mm	⬤ Requires 902-6251	⬤ Requires 902-6251	⬤ Requires 902-6251

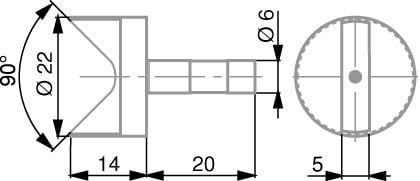

	902-6205	Female centre Ø20mm Capacity Ø5 – 20mm	⬤ Requires 902-6251	⬤ Requires 902-6251	⬤ Requires 902-6251

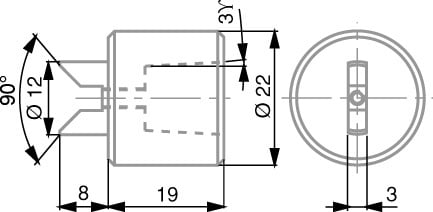

	902-6206	Female centre Ø10mm Capacity Ø4 – 10mm B12 female taper	⬤ Requires 902-6360 902-6160	⬤ Requires 902-6360 902-6160	⬤ Requires 902-6360 902-6160

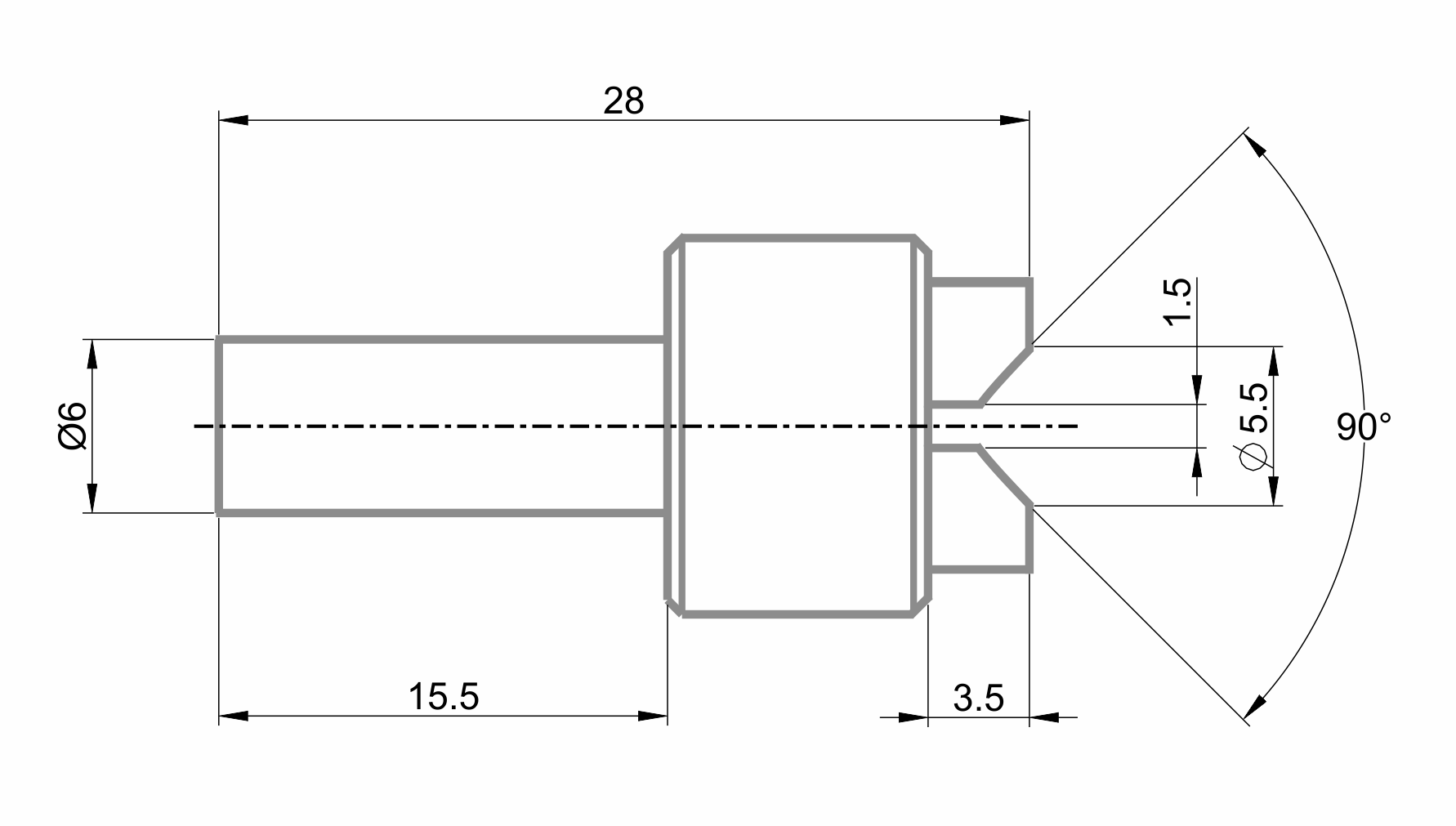

	902-6214	Female centre Ø1.7 – 5.4mm	⬤ Requires 902-6251	⬤ Requires 902-6251	⬤ Requires 902-6251

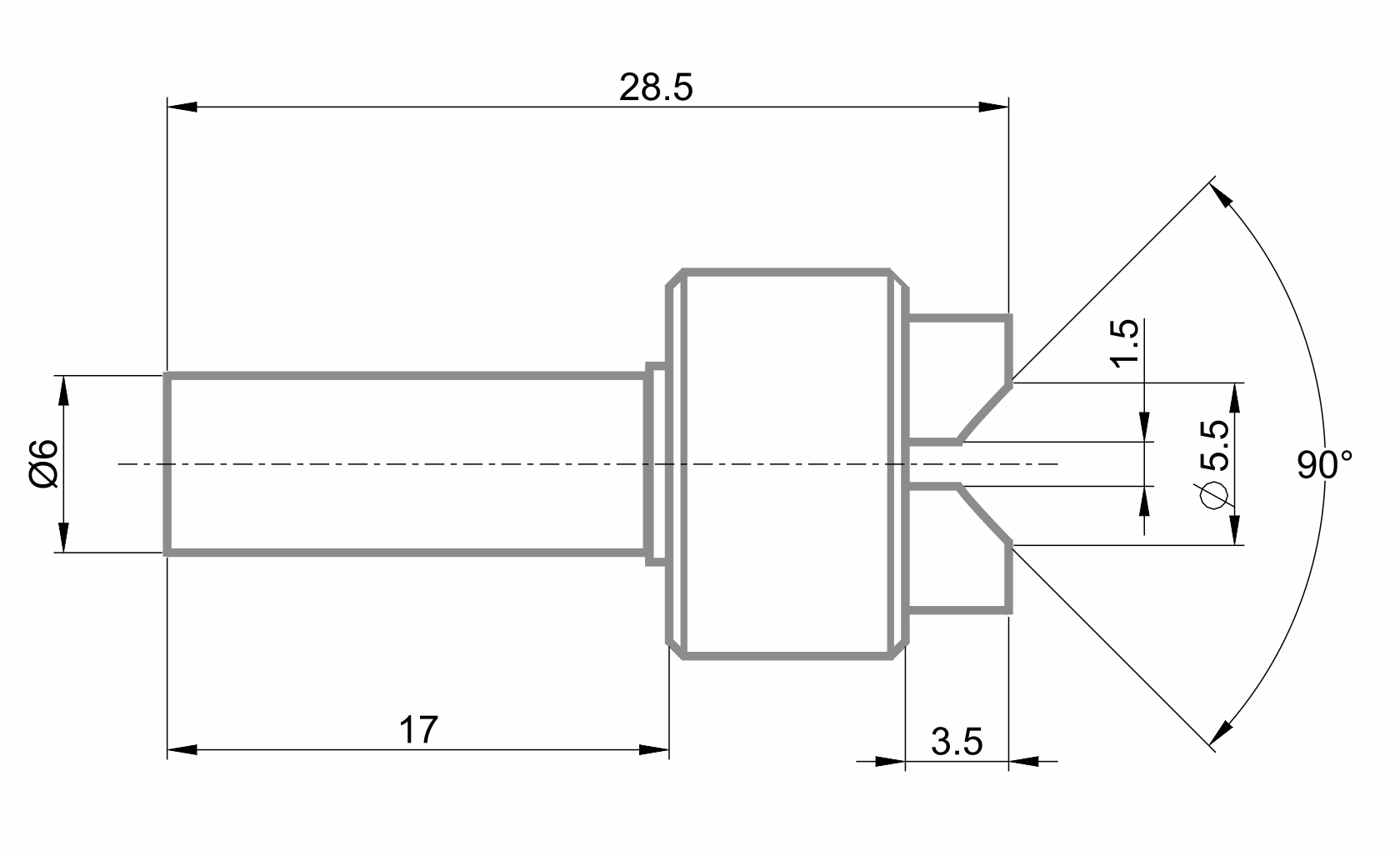

	902-6215	Rotating female centre Ø1.7 – 5.4mm	⬤ Requires 902-6251	⬤ Requires 902-6251	⬤ Requires 902-6251

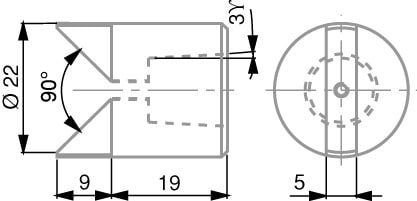

	902-6207	Rotating female centre Ø20mm Capacity Ø5 – 20mm	⬤ Requires 902-6360 902-6160	⬤ Requires 902-6360 902-6160	⬤ Requires 902-6360 902-6160

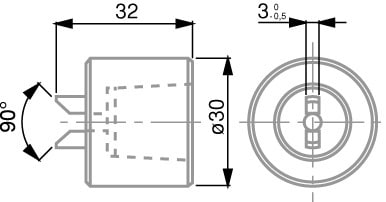

	902-6310	Female centre Ø10mm Capacity Ø4 – 10mm B18 male taper	⬤ Requires 902-6162	⬤ Requires 902-6162	⬤ Requires 902-6162

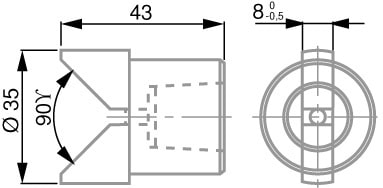

	902-6311	Female centre Ø30 Capacity Ø5 – 30mm B18 male taper	⬤ Requires 902-6162	⬤ Requires 902-6162	⬤ Requires 902-6162

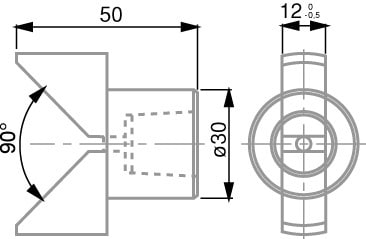

	902-6312	Female centre Ø45mm	⬤ Requires 902-6162	⬤ Requires 902-6162	⬤ Requires 902-6162

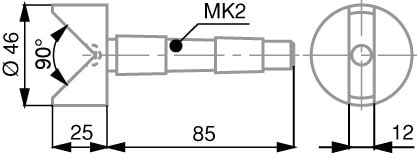

	902-6340	Female centre Ø40mm MK2 Capacity Ø5 – 40mm	⬤	⬤	⬤

Chuck			S25T	Morse 2 F60	S145
	902-6222	Two-jaw gripper External clamping for manual use		⬤	⬤ Requires 902-6260

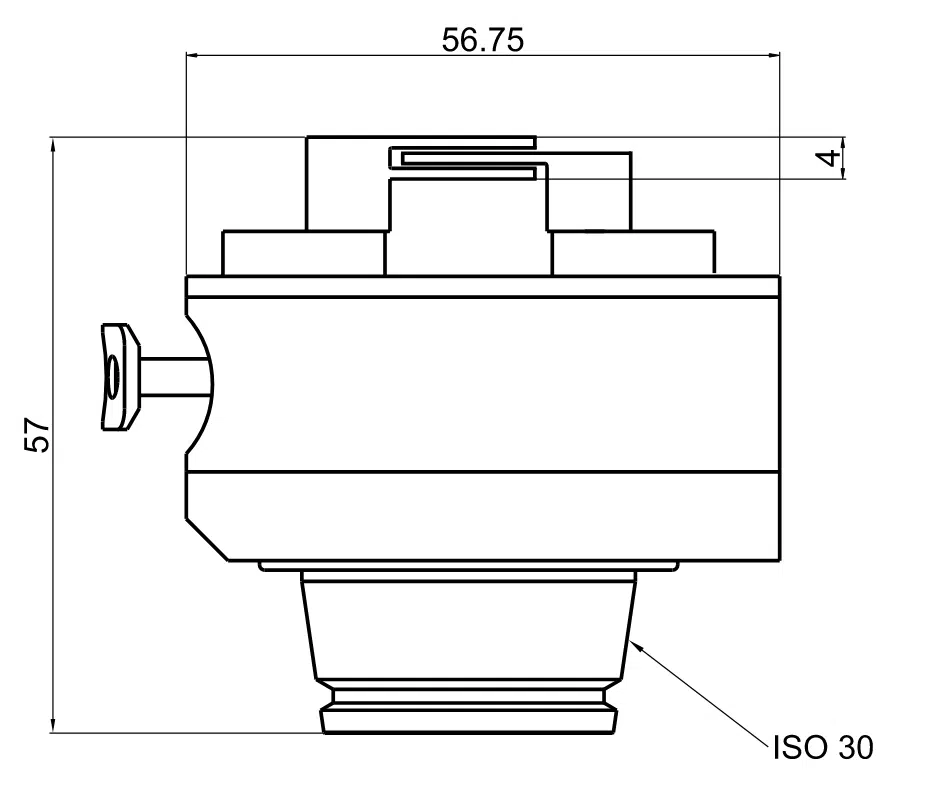

	902-6270	Two-jaw pliers Ø 0-20 mm with H=4mm jaws (only one jaw is exchangeable)	⬤
	902-6271	Two-jaw pliers Ø 0-20 mm with H=8mm jaws Ø 0-20mm	⬤
	902-6272	Two-jaw pliers Ø 0-20 mm with jaws H=14mm Ø 0-20mm	⬤
	902-6273	Exchangeable jaw Ø 2-19mm H=4mm	For 902-6267, 902-6268, 902-6269, 902-6270, 902-6271 and 902-6272	For 902-6267, 902-6268, 902-6269, 902-6270, 902-6271 and 902-6272	For 902-6267, 902-6268, 902-6269, 902-6270, 902-6271 and 902-6272
	902-6274	Exchangeable jaw Ø 2-19mm H=8mm	For 902-6267, 902-6268, 902-6269, 902-6270, 902-6271 and 902-6272	For 902-6267, 902-6268, 902-6269, 902-6270, 902-6271 and 902-6272	For 902-6267, 902-6268, 902-6269, 902-6270, 902-6271 and 902-6272
	902-6275	Exchangeable jaw Ø 0-20mm H=14mm	For 902-6267, 902-6268, 902-6269, 902-6270, 902-6271 and 902-6272	For 902-6267, 902-6268, 902-6269, 902-6270, 902-6271 and 902-6272	For 902-6267, 902-6268, 902-6269, 902-6270, 902-6271 and 902-6272
	902-6276	Jaw raiser, H=10mm Stackable, maximum 2x10mm	For 902-6267, 902-6268, 902-6269, 902-6270, 902-6271 and 902-6272	For 902-6267, 902-6268, 902-6269, 902-6270, 902-6271 and 902-6272	For 902-6267, 902-6268, 902-6269, 902-6270, 902-6271 and 902-6272
	902-6278	Two-jaw pliers Ø 0-7 mm with H=1.5mm jaws	⬤
	902-6267	Two-jaw pliers Ø 0-20mm MK2 with H=4mm jaws ((only one jaw is exchangeable, delivered in pairs)		⬤	⬤ Requires 902-6260
	902-6268	Two-jaw pliers Ø 0-20mm MK2 with H=8mm jaws (only one jaw is exchangeable)		⬤	⬤ Requires 902-6260
	902-6269	Two-jaw pliers Ø 0-20mm MK2 with jaws H=14mm (only one jaw is exchangeable)		⬤	⬤ Requires 902-6260
	902-6306	3-jaw chuck MK2 External clamping Ø 0.5mm – 41mm Internal clamping Ø 12mm – 36mm Step Height : 5mm	⬤	⬤	⬤ Requires 902-6260
	902-6307	3-jaw chuck MK2 External clamping Ø 1mm – 71mm Internal clamping Ø 18mm – 66mm Step Height : 10mm		⬤
	902-6308	3-jaw chuck ISO40 External clamping Ø 1mm – 150mm Internal clamping Ø 34mm – 174mm Step Height : 10mm			⬤
	902-6140 6÷12mm / T=15mm902-6141 0÷6mm / T=1.5mm902-6142 0÷6mm / T=3mm 902-6143 6÷12mm / T=3mm 902-6144 12÷18mm / T=6mm 902-6145 18÷24mm / T=9mm 902-6152 0÷6mm / T=6mm 902-6153 0÷6mm / T=15mm	External jaws, in pairs	For 902-6220, 902-6221, 902-6222, 902-6223	For 902-6220, 902-6221, 902-6222, 902-6223	For 902-6220, 902-6221, 902-6222, 902-6223
	902-6154	External jaws, in pairs 902-6141 : Mors dia 0-6mm, T1=1.5mm, B=18mm 902-6142 : Mors dia 0-6mm, T1=1.3mm, B=18mm 902-6143 : Mors dia 6-12mm, T1=3mm, B=18mm 902-6144 : Mors dia 12-18mm, T1=6mm, B=20mm 902-6145 : Mors dia 18-24mm, T1=9mm, B=25mm	Requires 902-6220, 902-6221, 902-6222, 902-6223	Requires 902-6220, 902-6221, 902-6222, 902-6223	Requires 902-6220, 902-6221, 902-6222, 902-6223
	902-6231	Raising blocks for external jaws, in pairs	Requires 902-6220, 902-6221, 902-6222, 902-6223	Requires 902-6220, 902-6221, 902-6222, 902-6223	Requires 902-6220, 902-6221, 902-6222, 902-6223

* soon available

Pneumatic chucks

S25T

Morse 2

F60

S145

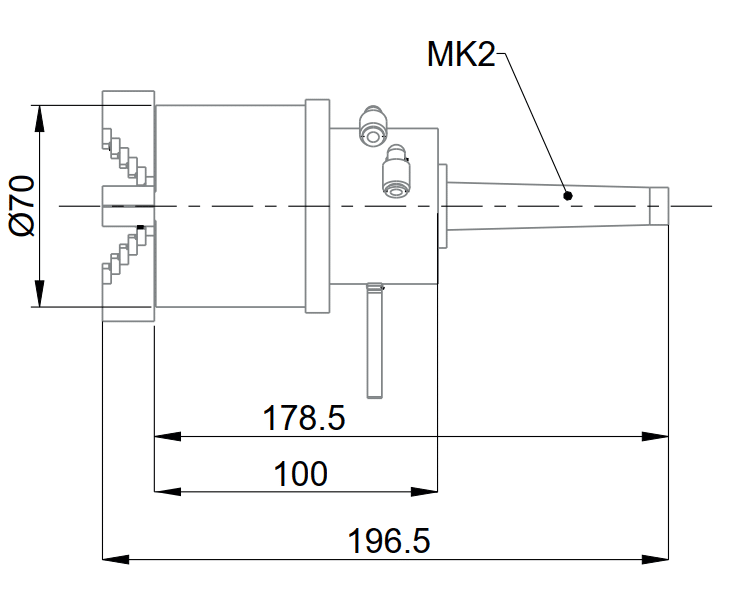

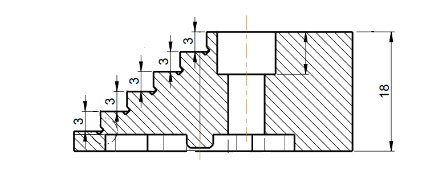

902-6309

3-jaw pneumatic chuck MK2
1mm – 60mm

⬤

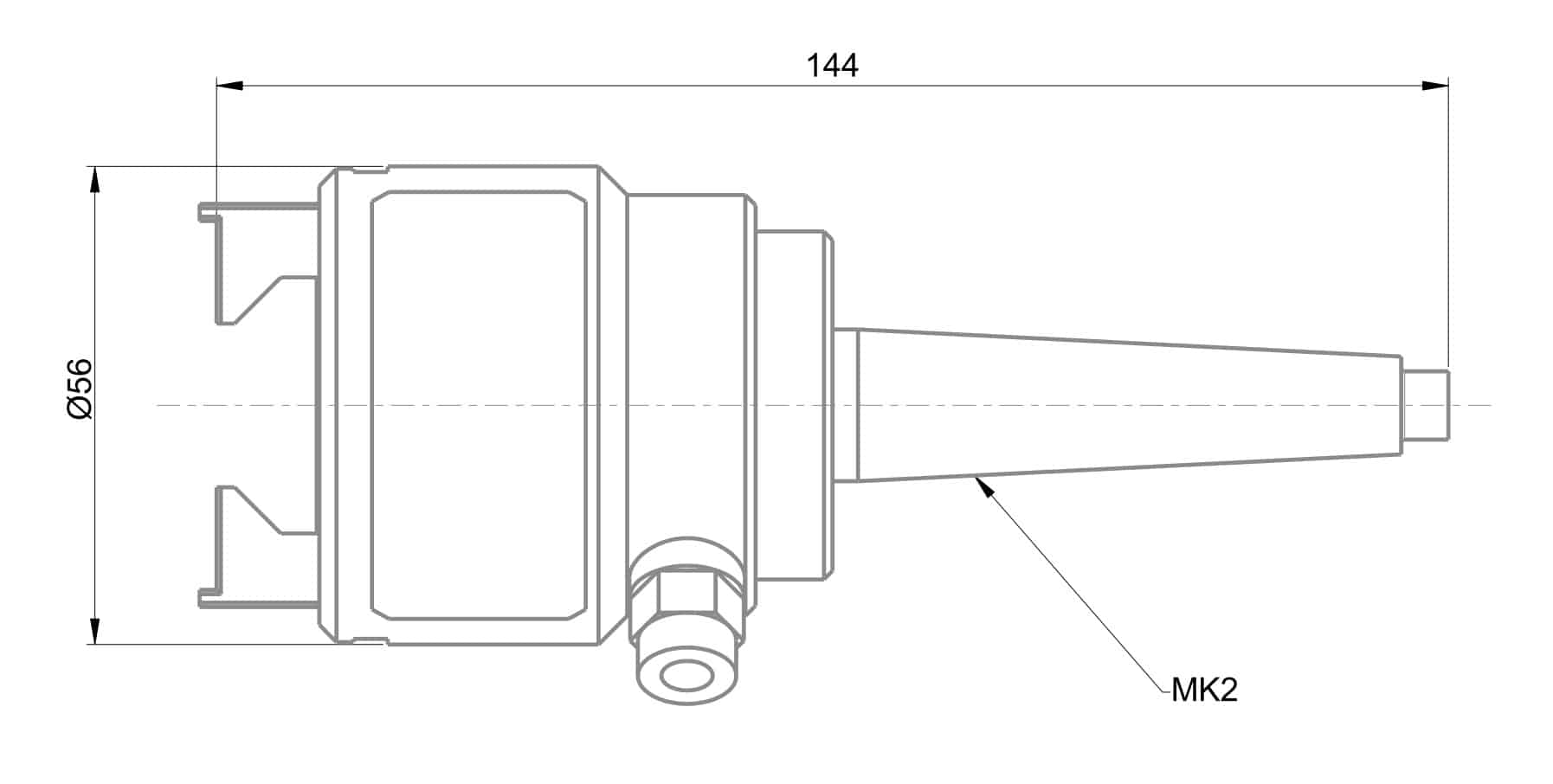

902-6223

2-jaw pneumatic chuck MK2

⬤

⬤

Plates			S25T	Morse 2 F60	S145

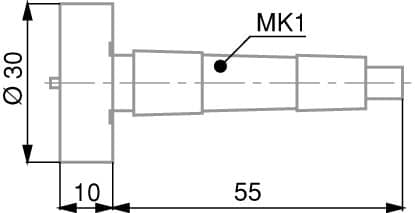

	902-6208	Plate, Ø 30 mm MK1	⬤ Requires 902-6360	⬤ Requires 902-6360	⬤ Requires 902-6360

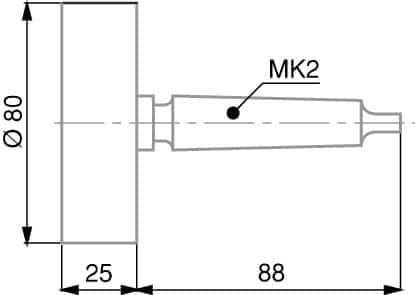

	902-6209	Plate, Ø 80 mm MK2		⬤	⬤

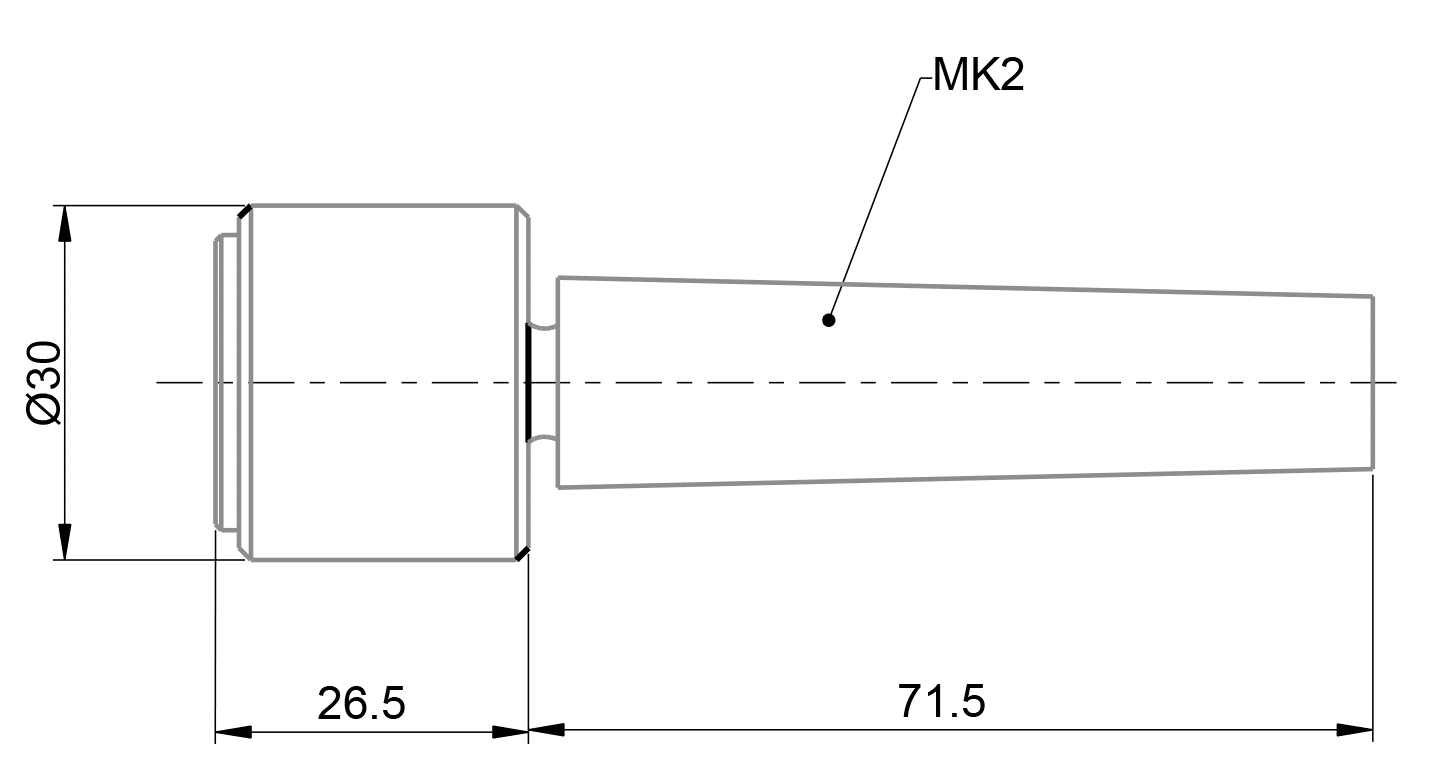

	902-6228	Magnetic clamping plate Ø0-24 mm MK2	⬤	⬤	⬤

Adapters			S25T	Morse 2 F60	S145
	902-6258	Adapter MK1 for SCAN S25	⬤

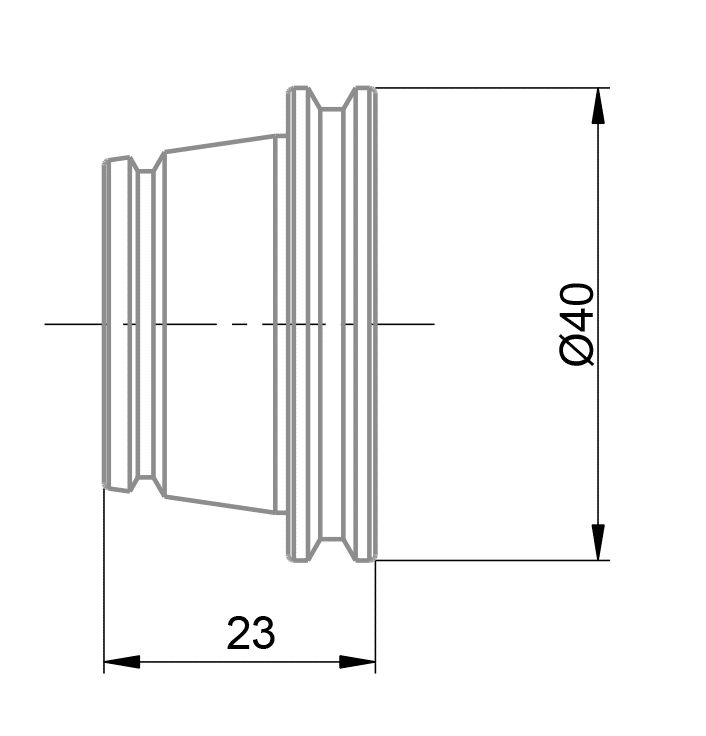

	902-6259	Adapter MK2 for SCAN S25	⬤

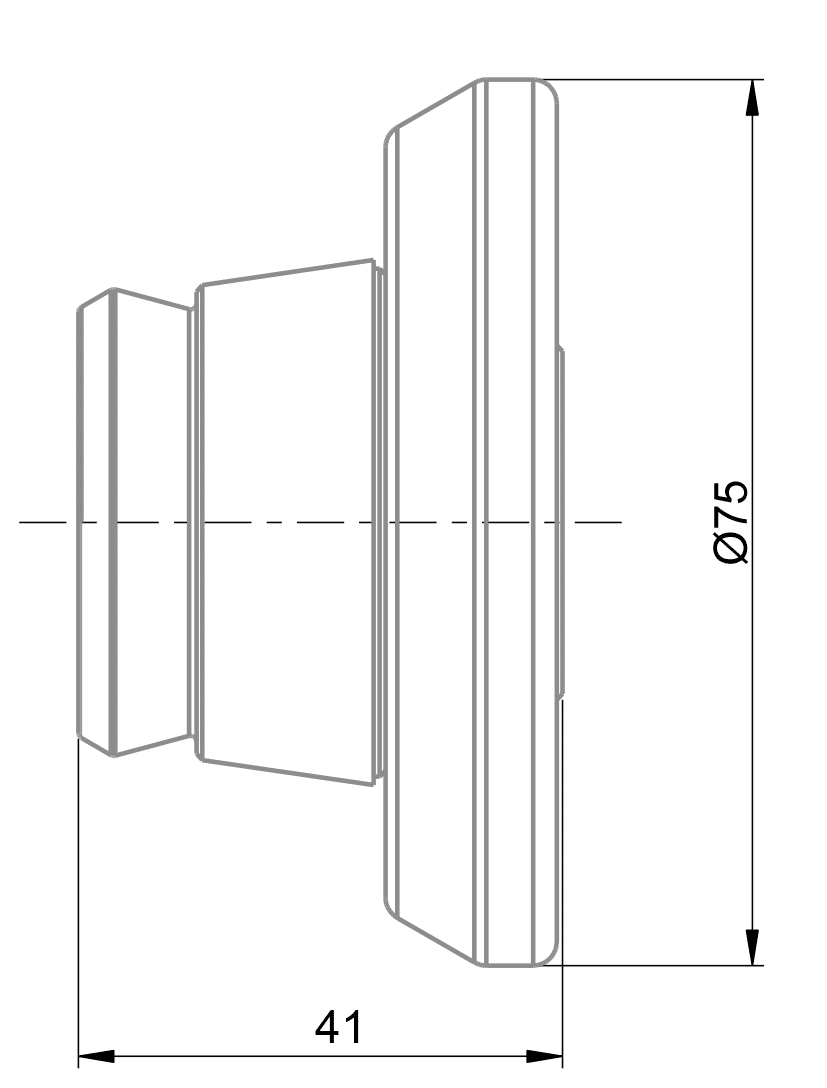

	902-6260	Adapter MK2 for SCAN S145			⬤

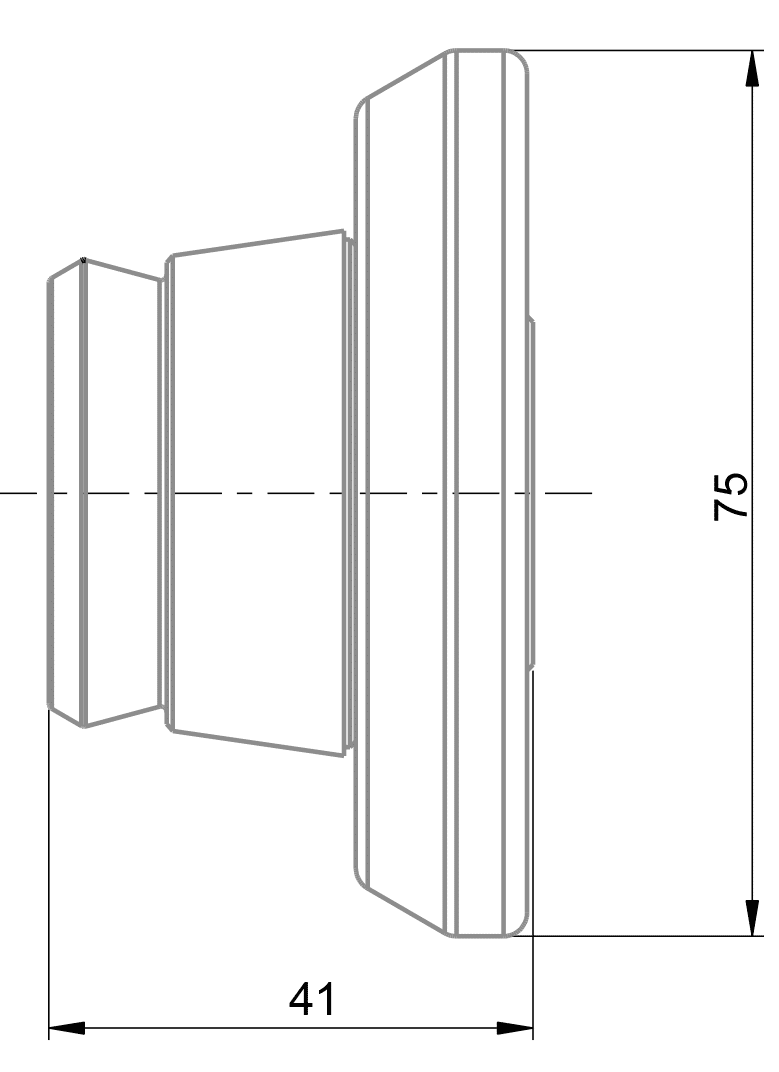

	902-6263	Adapter MK3 for SCAN S145			⬤

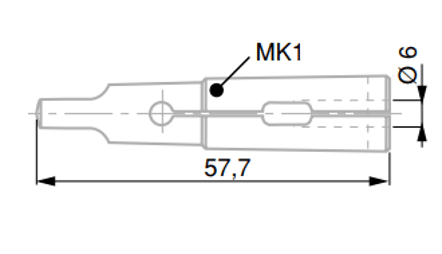

	902-6250	Adapter with bore Ø 6 mm MK1	⬤ Requires 902-6360	⬤ Requires 902-6360	⬤ Requires 902-6360

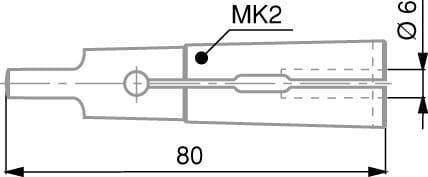

	902-6251	Adapter with bore Ø 6 mm MK2	⬤	⬤	⬤

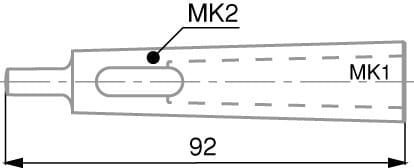

	902-6360	Reduction sleeve DIN 2185 MK A/I 2:1	⬤	⬤	⬤

Gripping of small parts			S25T	Morse 2 F60	S145

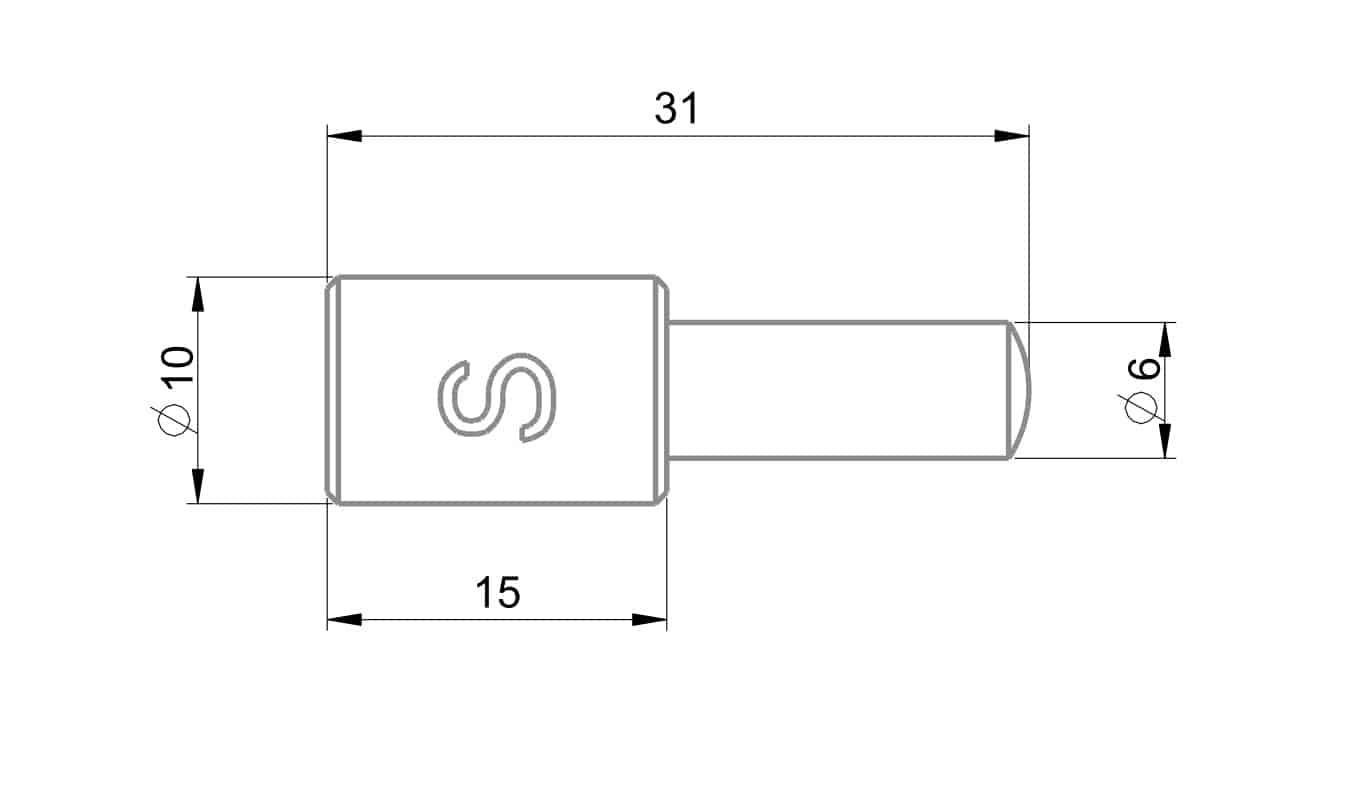

	902-6330	Centered magnetic plate, magnetized – SUD for the headstock	⬤ Requires 902-6251

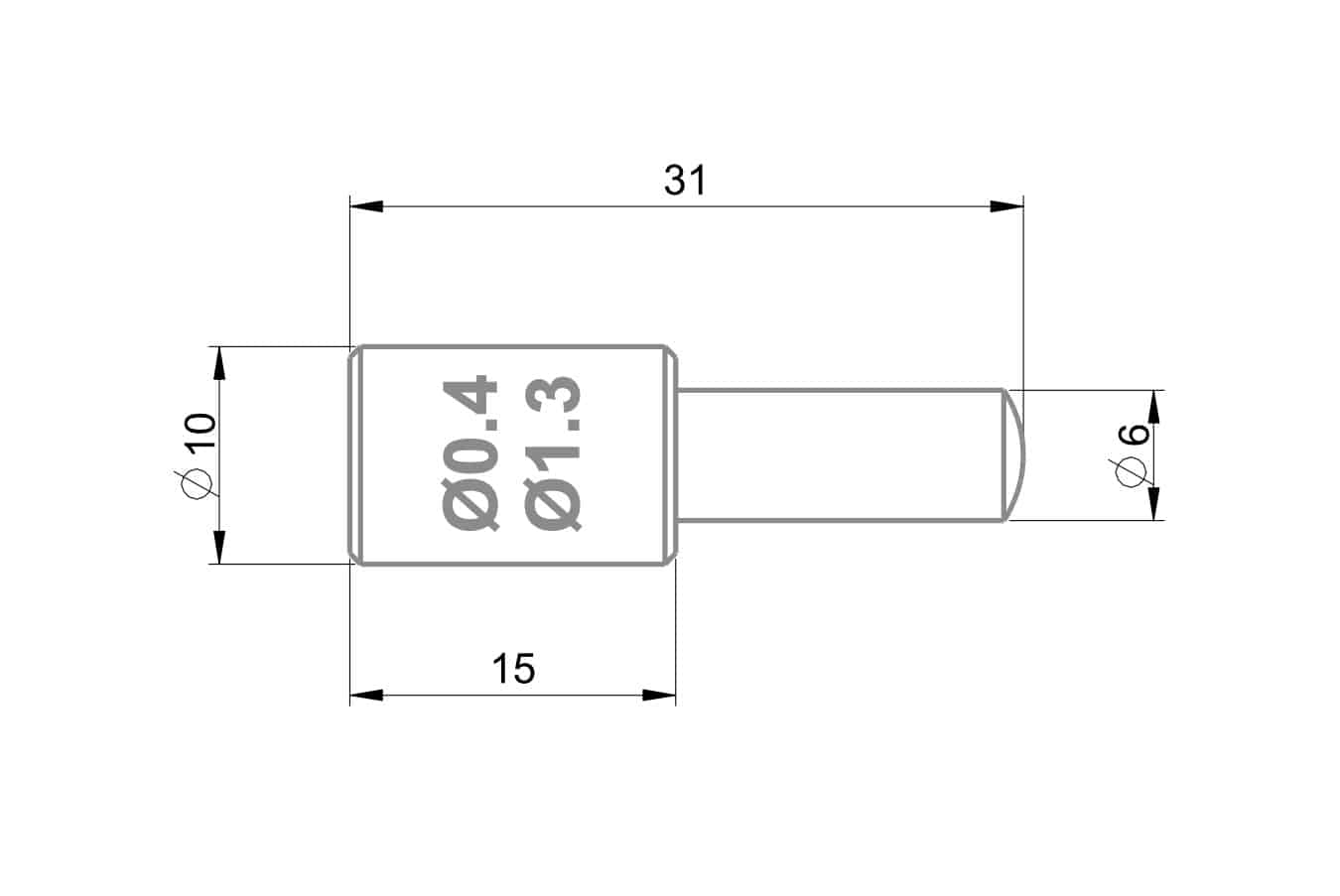

	902-6335	Magnetic gripper with V for parts with Ø0.4mm – 1.3mm tip, magnetized – NORD	⬤ Requires 902-6251

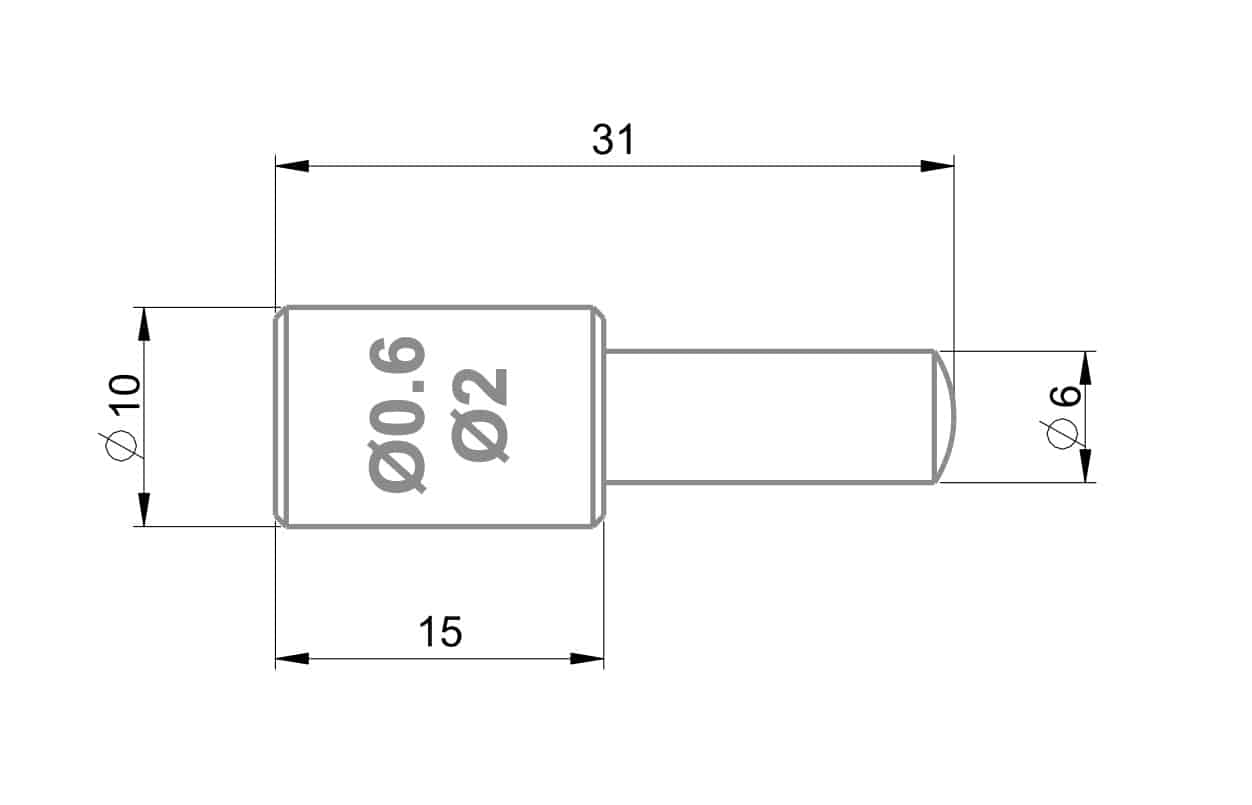

	902-6336	Magnetic gripper with V for parts with Ø0.6mm – 2.0mm tip, magnetized – NORD	⬤ Requires 902-6251

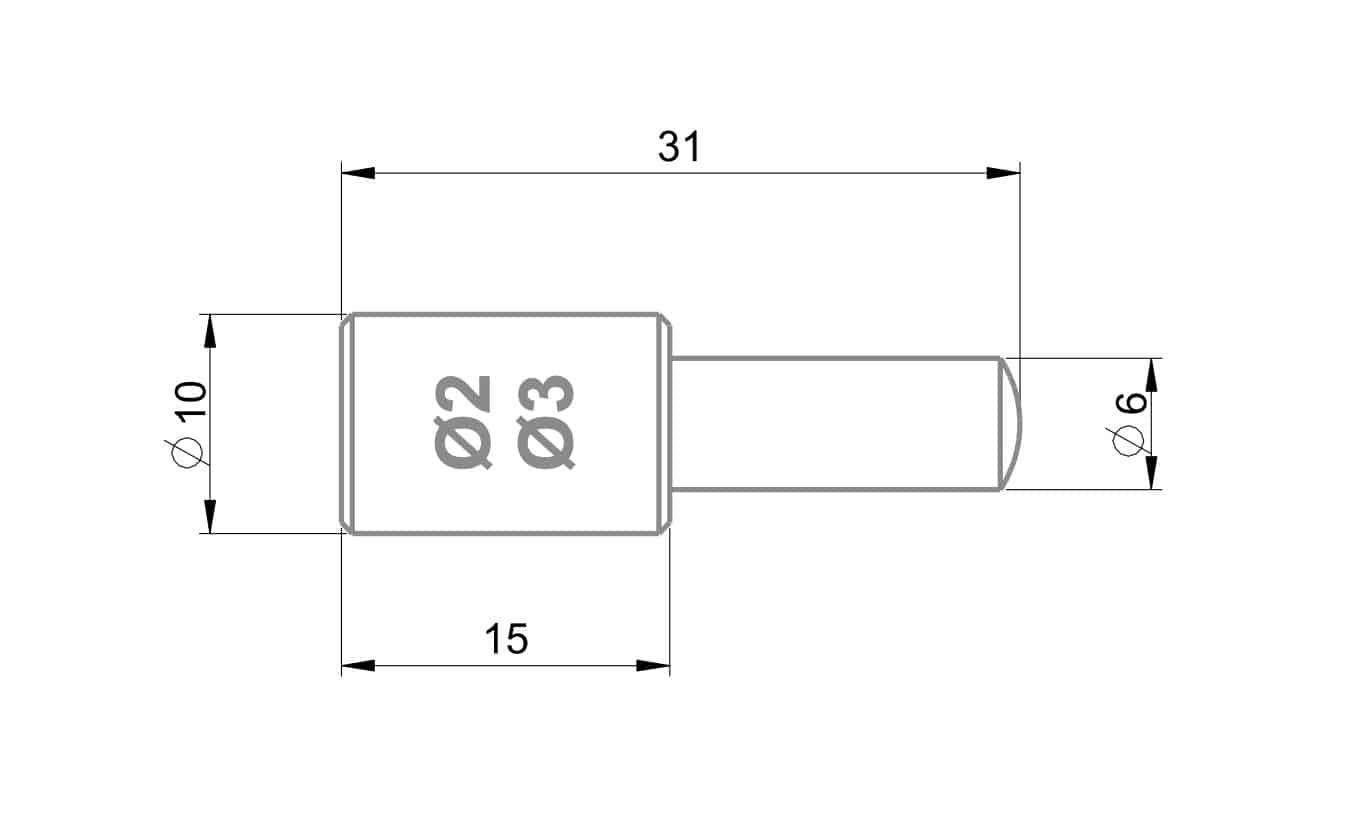

	902-6337	Magnetic gripper with V for parts with Ø2.0mm – 3.0mm tip, magnetized – NORD	⬤ Requires 902-6251

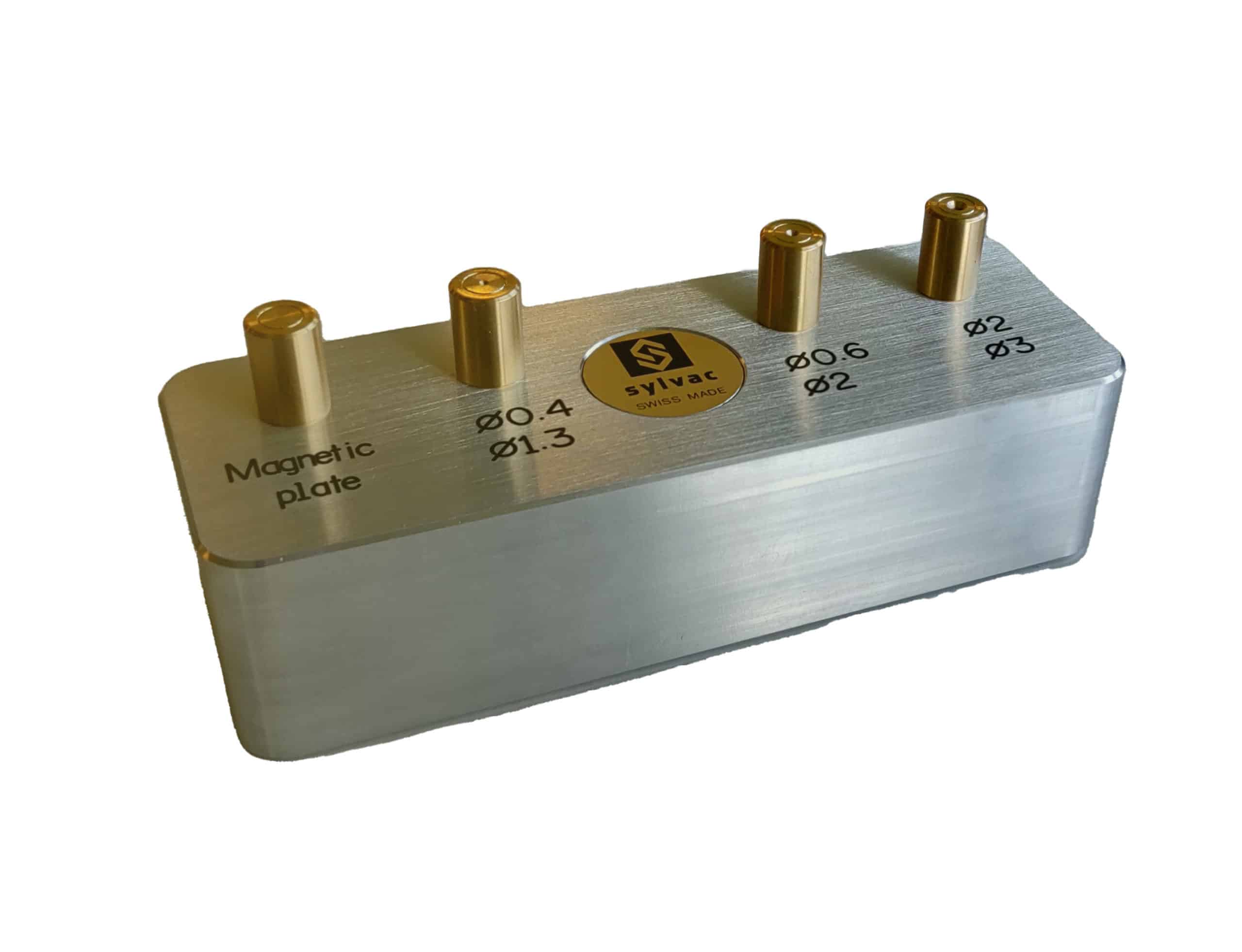

	902-6339	Set of 3 NORTH magnetic plates (902-6335, 902-6336, 902-6337) and 1 SOUTH magnet (602-6330)	⬤ Requires 902-6251

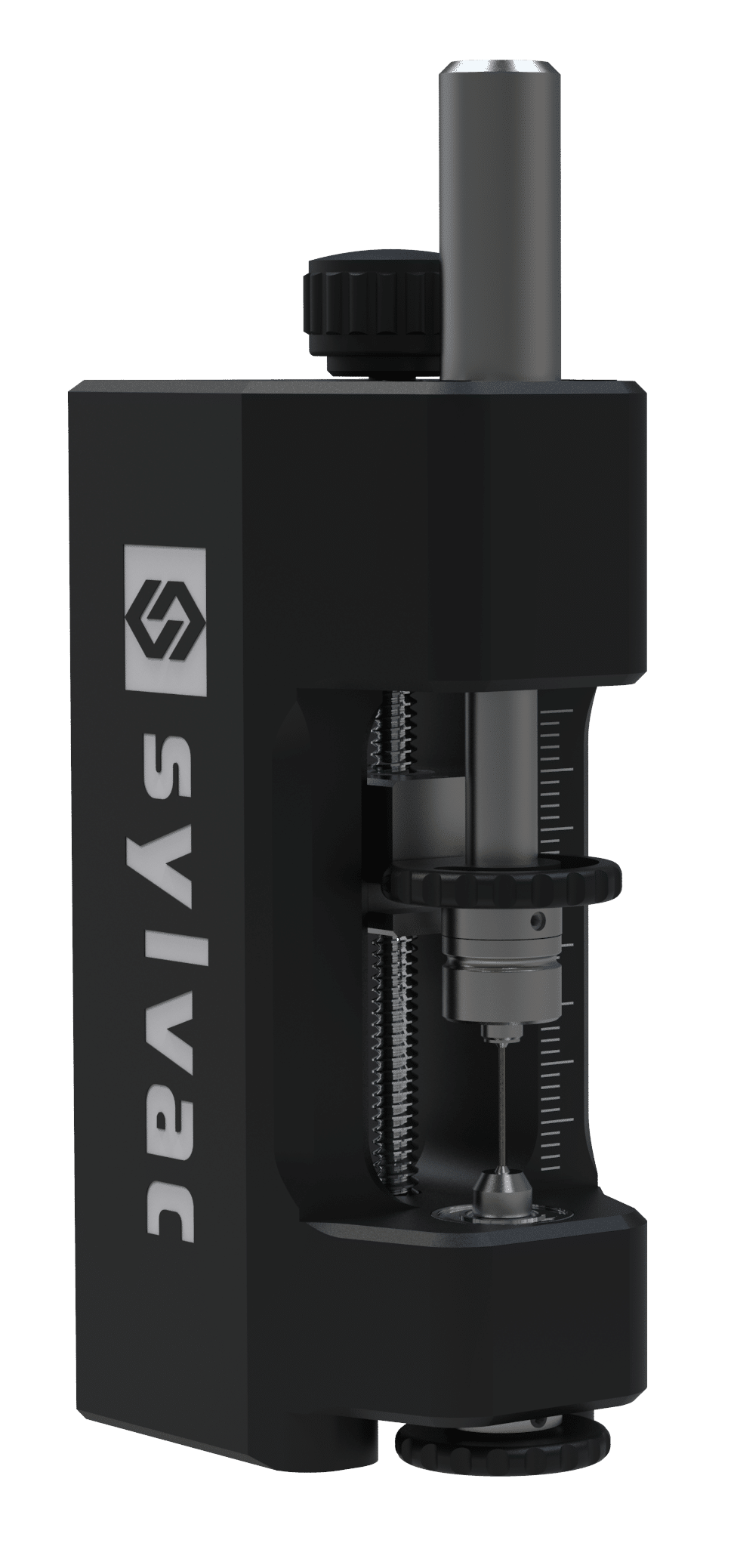

	902-6242	Universal jig for watch parts 0 – 25mm, Ø0.15 – 20mm Delivered without tip	⬤

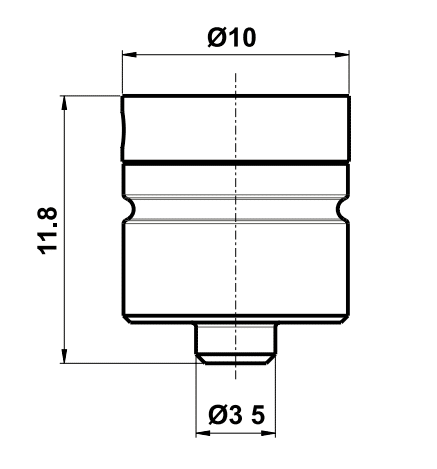

	902-6243	Upper magnetic plate SOUTH	⬤ Requires 902-6242

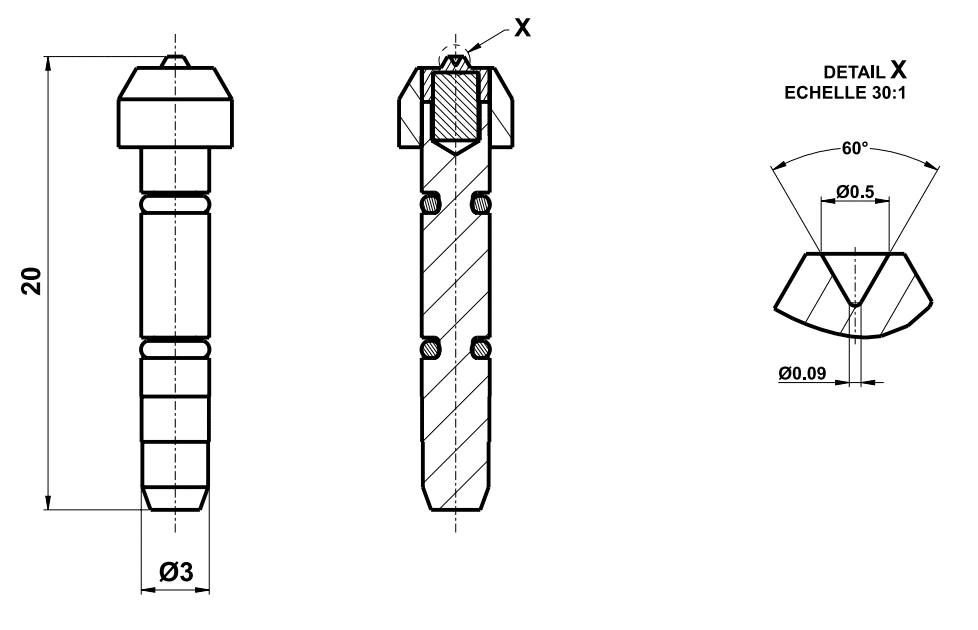

	902-6244	Bottom female Magnetic Center	⬤ Requires 902-6242

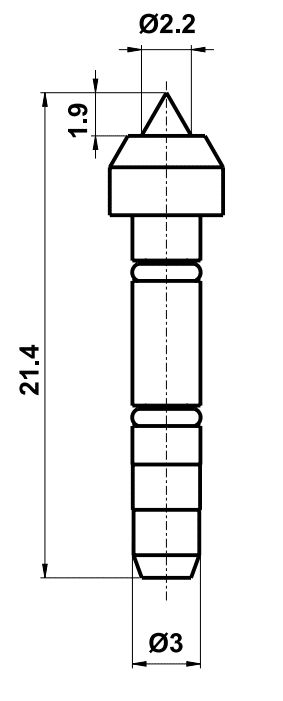

	902-6245	Bottom female Magnetic Tip	⬤ Requires 902-6242

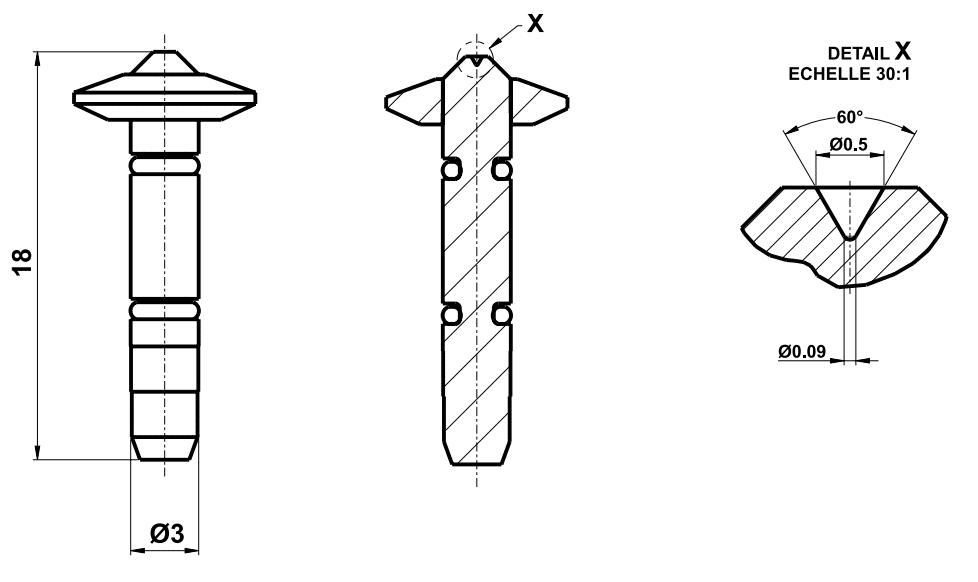

	902-6246	Bottom Non-Magnetic female Center	⬤ Requires 902-6242

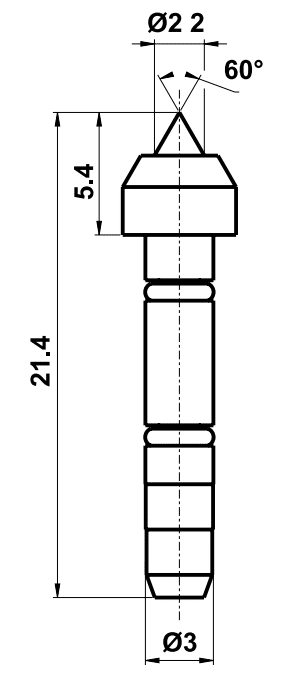

	902-6247	Bottom Non-Magnetic female Tip	⬤ Requires 902-6242

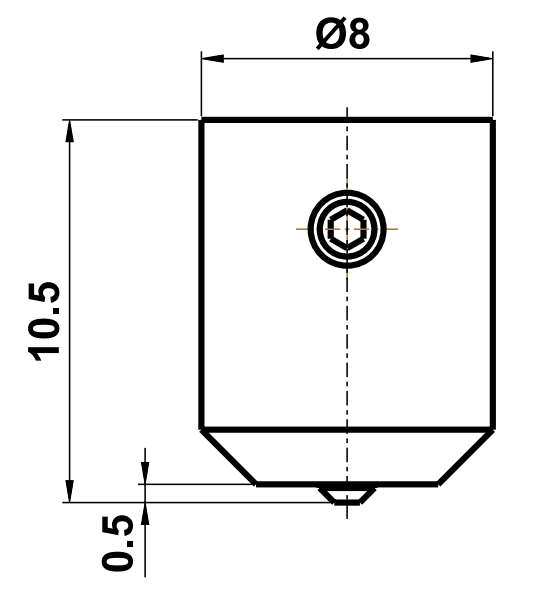

	902-6248	Rotating upper center	⬤ Requires 902-6242

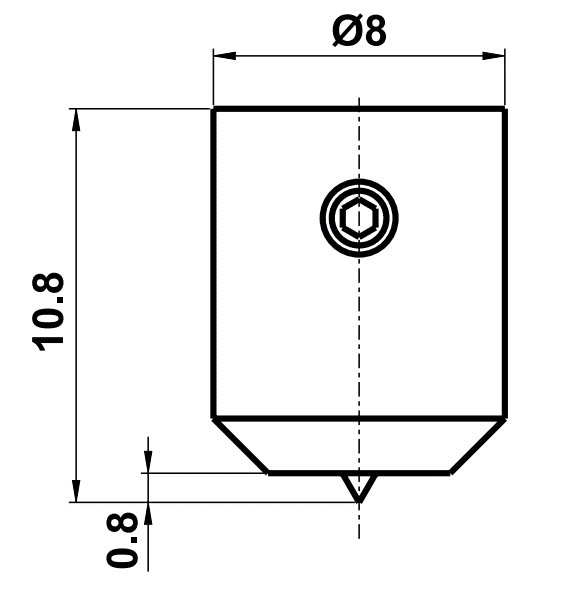

	902-6249	Rotating upper tip	⬤ Requires 902-6242

Other accessories			S25T	Morse 2 F60	S145

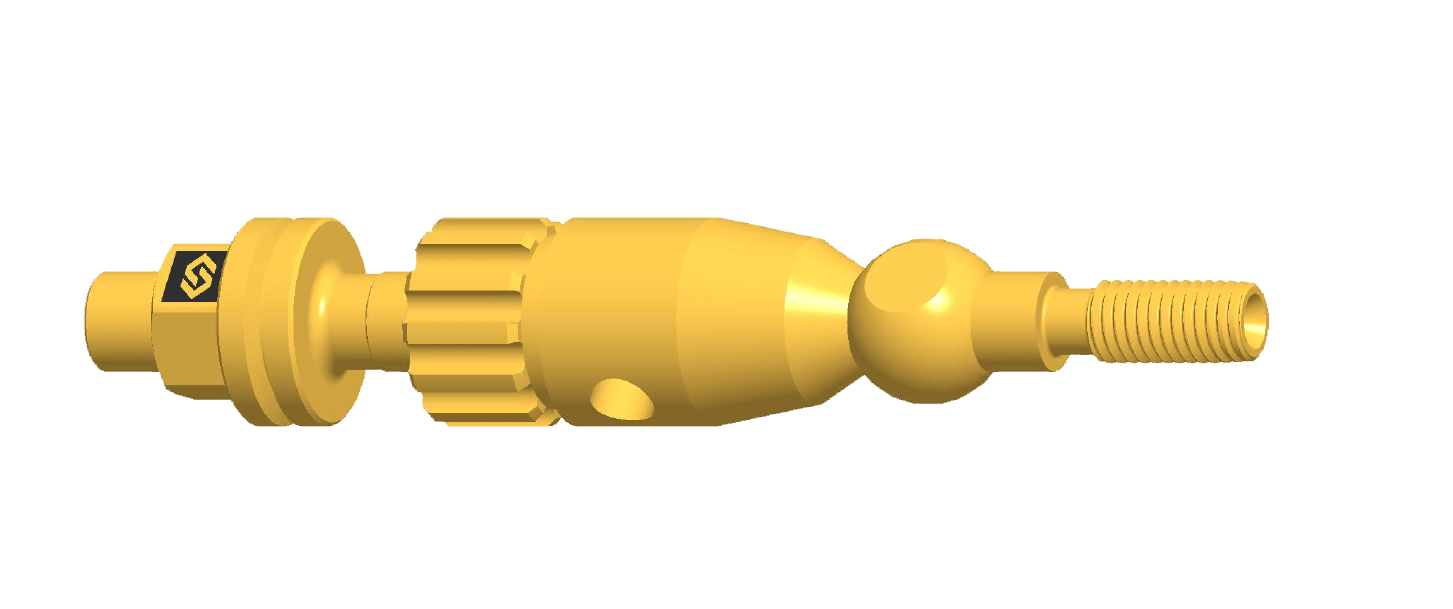

	902-6012	Gold demo part	⬤	⬤	⬤

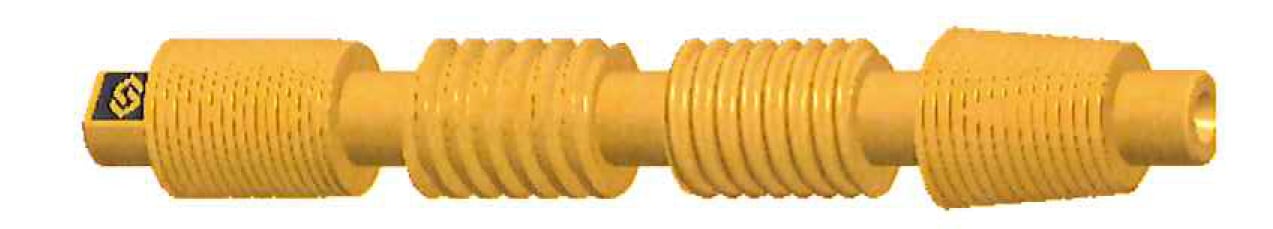

	902-6013	Gold demo part for threads	⬤	⬤	⬤

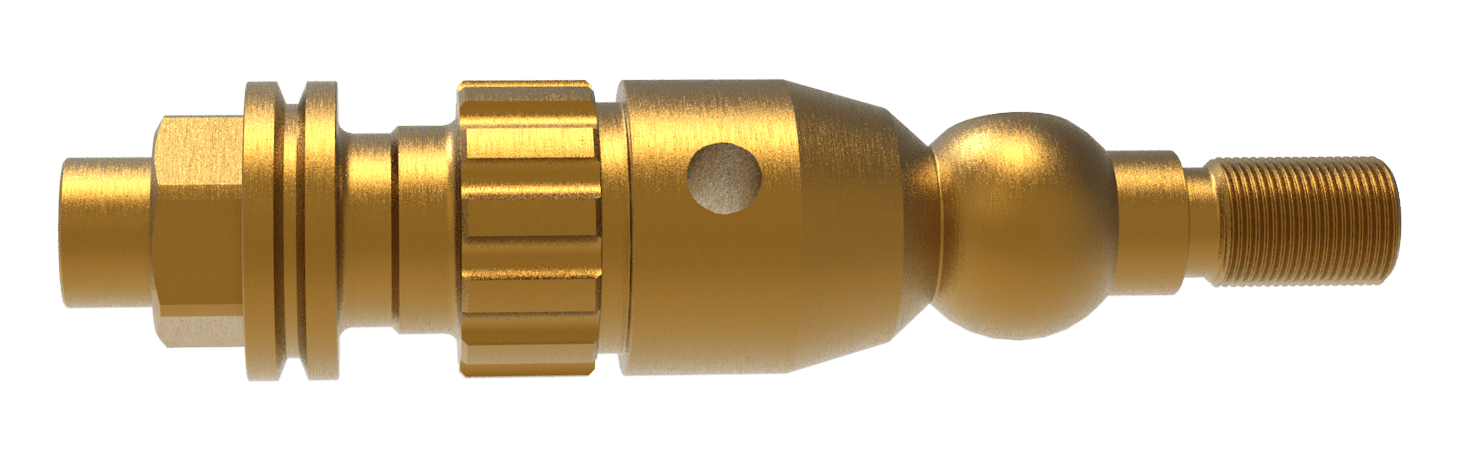

	902-6014	Gold demo part XL			⬤

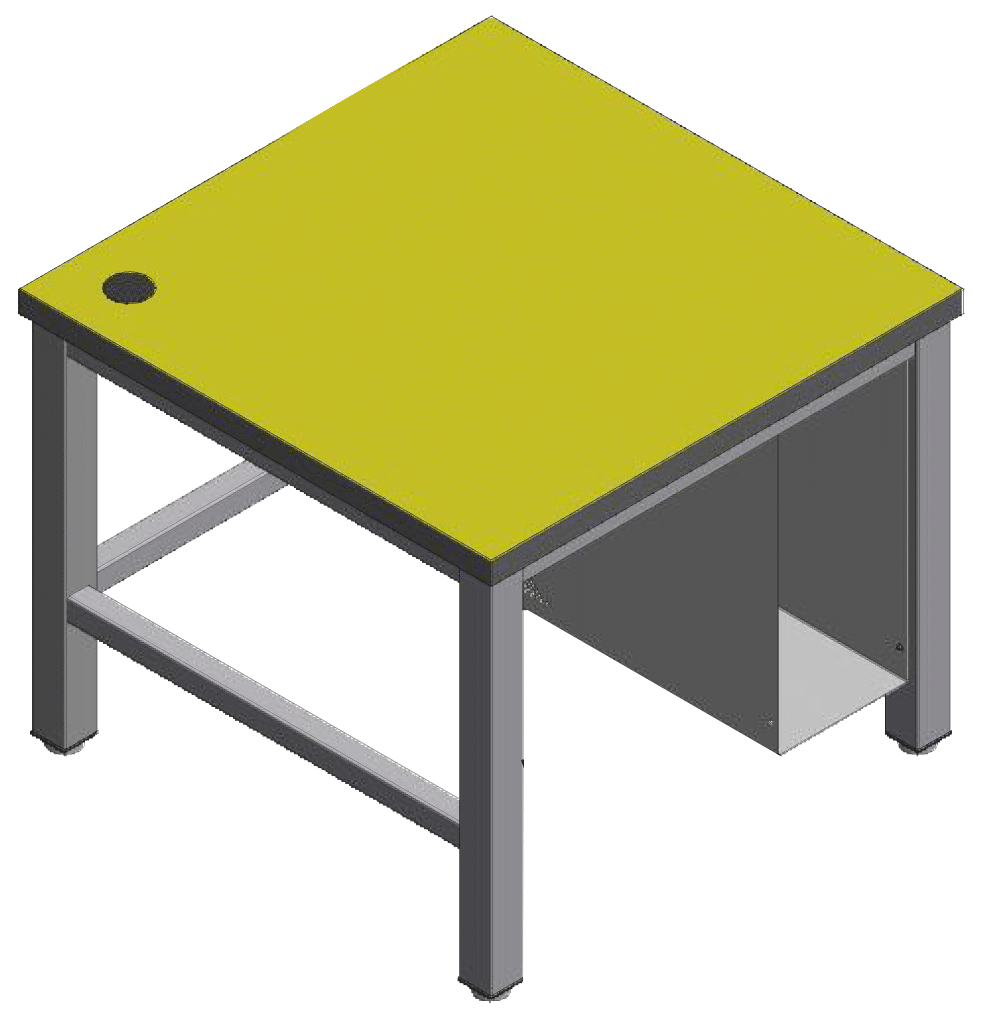

	902-6600	Table for Sylvac SCAN F60 (85x85x70cm)	⬤	⬤

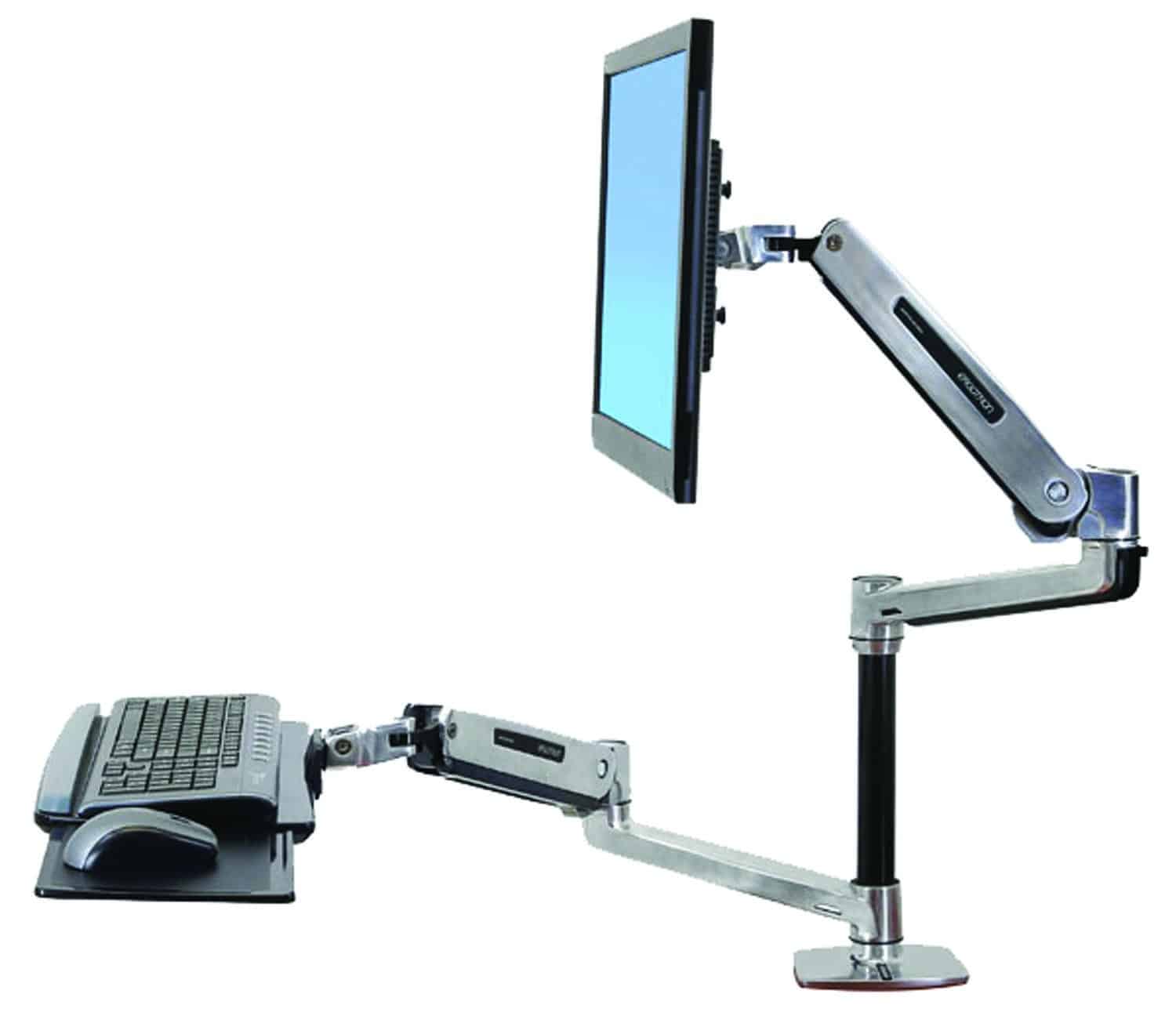

	902-6601	Furniture for Sylvac SCAN F60 storage for PC, drawer with lock and arm for keyboard and screen		⬤
Image soon available	902-6602	Table for Sylvac-Scan S25T (75cmx75cm) selectable height 75cm or 105cm	⬤

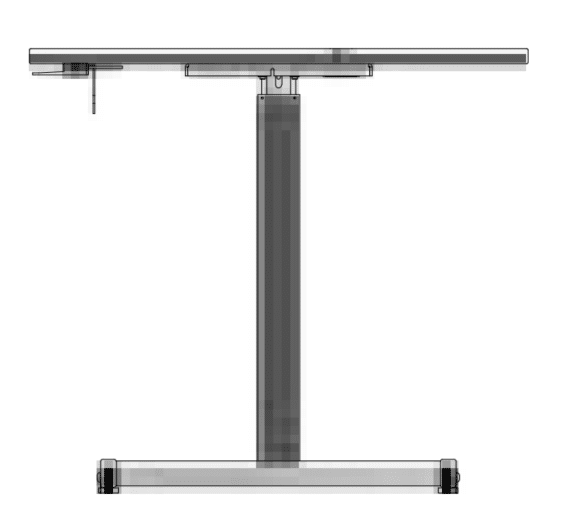

	902-6605	Height-adjustable table (71-1140mm) for keyboard, screen and mouse (80x60mm)	⬤	⬤

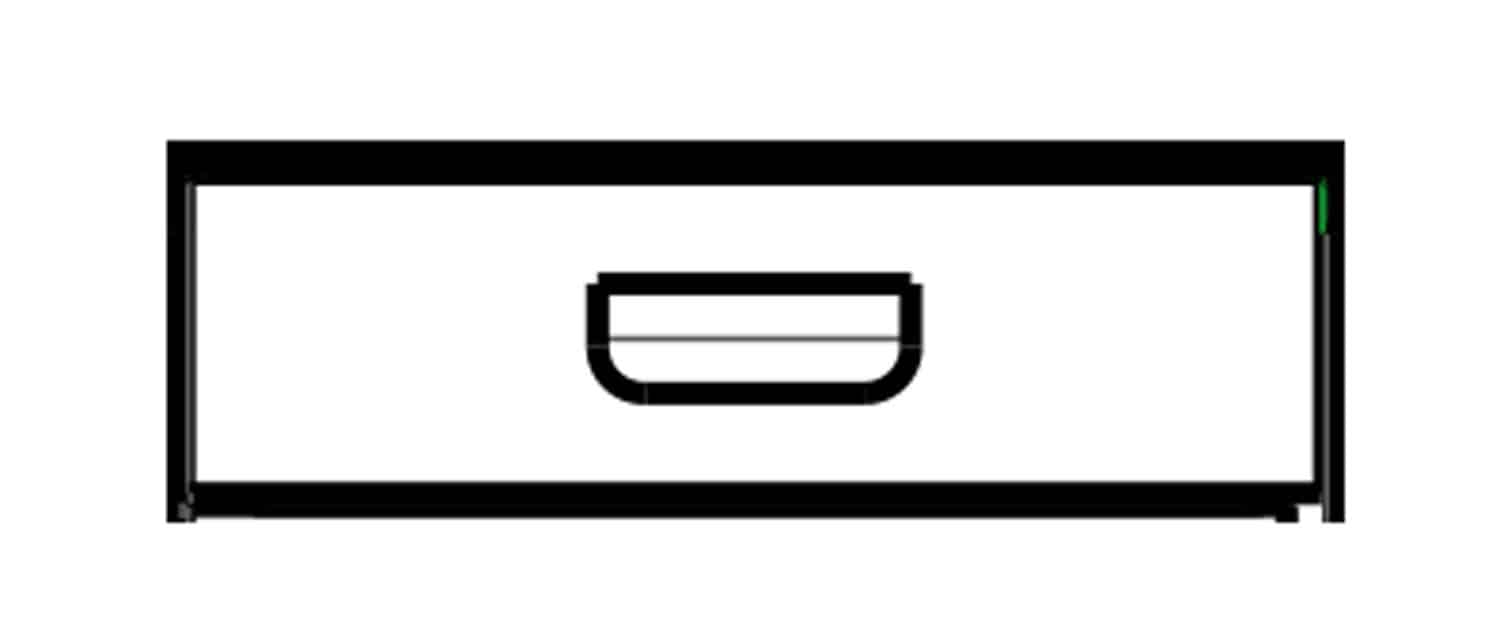

	902-6607	Accessories tidy insert for drawer (included with 902-6601)		⬤

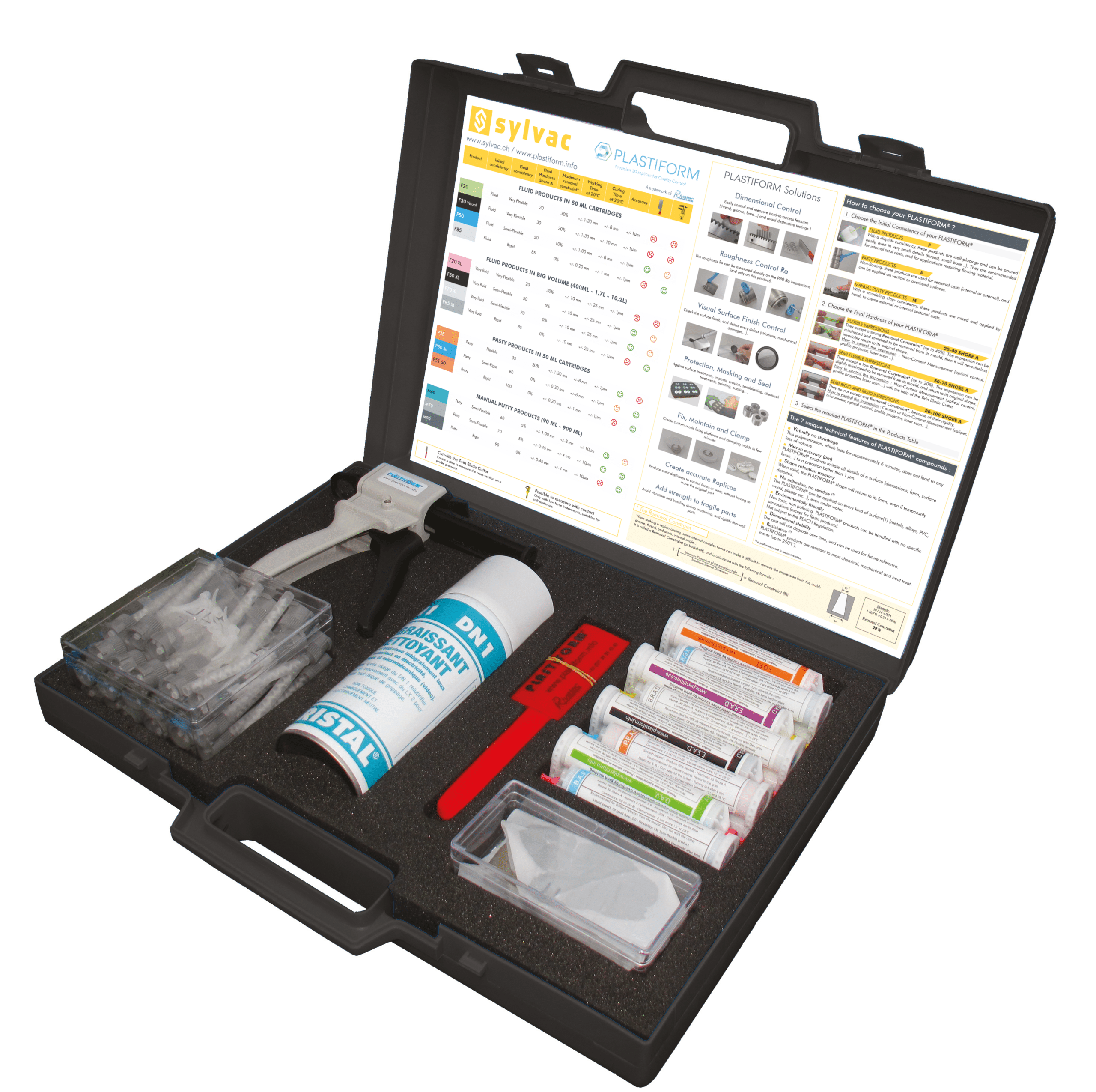

	902-6006	Plastiform case for SCAN and VISIO	⬤	⬤	⬤

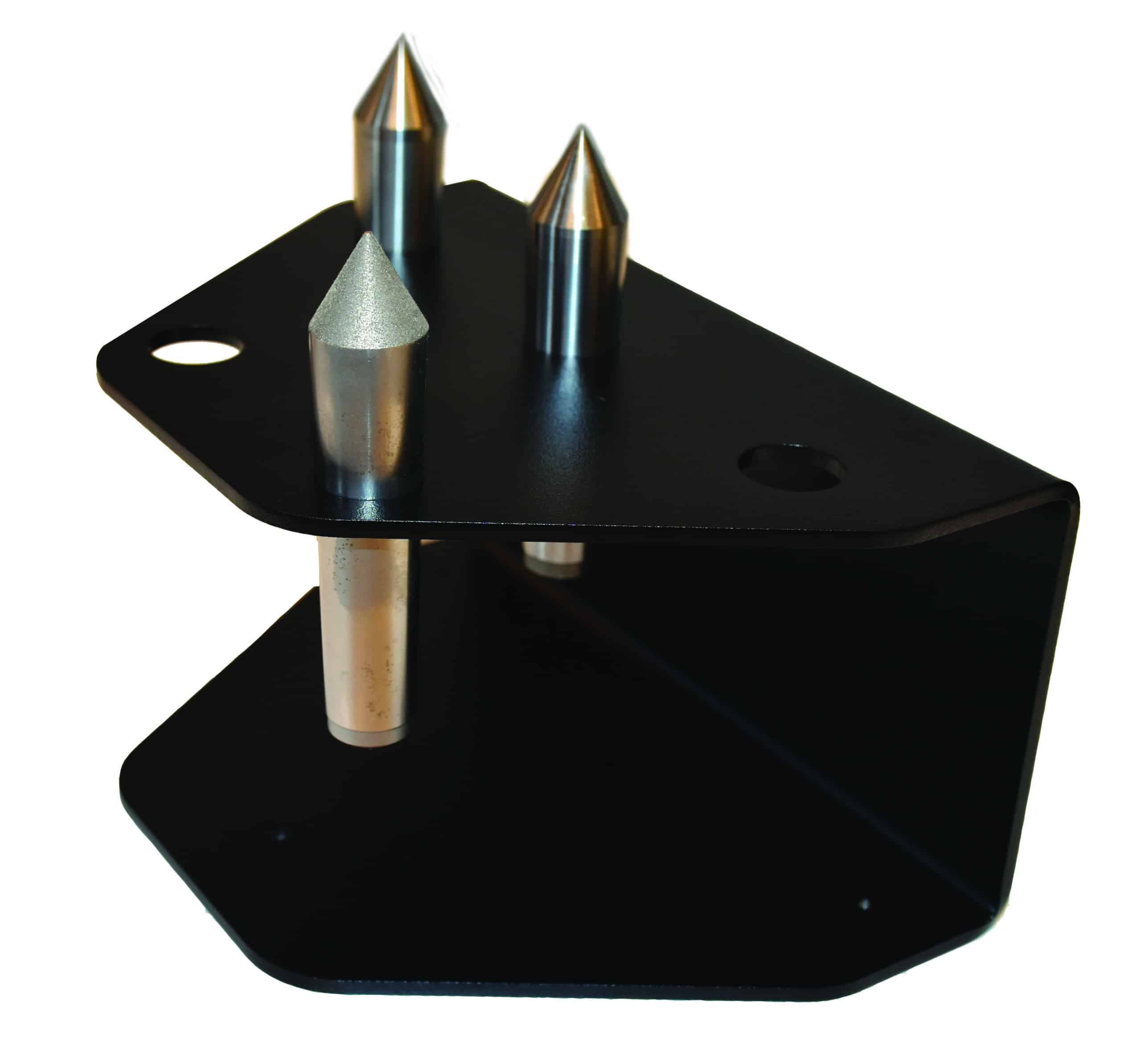

	902-6609	Rack	⬤	⬤	⬤

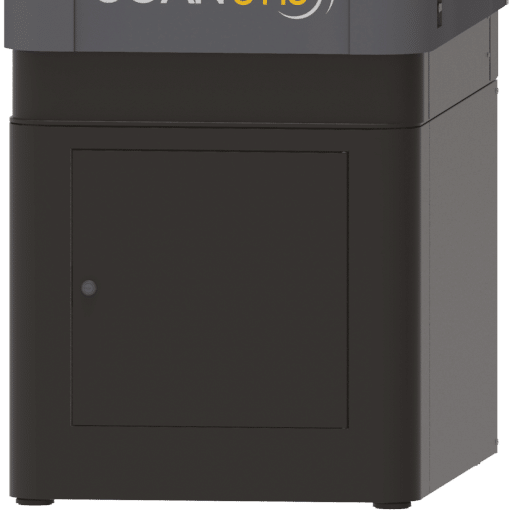

	902-6611	Option table 700mm (replaces the standard 350mm table)			⬤
Image soon available	902-6608	Automation preparation for F60 series (I/O & Pneumatic prep, includes 902-7017		⬤
Image soon available	902-6610	Pneumatic actuation of tailstock for F60 series		⬤
Image soon available	602-104-01	Protective cover	⬤

Softwares			S25T	Morse 2 F60	S145
	***	Reflex SCAN+ Standard (delivered with 902-4060, 902-4062, 902-4065, 902-4067, 902-4020 & 902-4025)	⬤	⬤	⬤
	902-7015	Reflex SCAN+ Offline Software	⬤	⬤	⬤

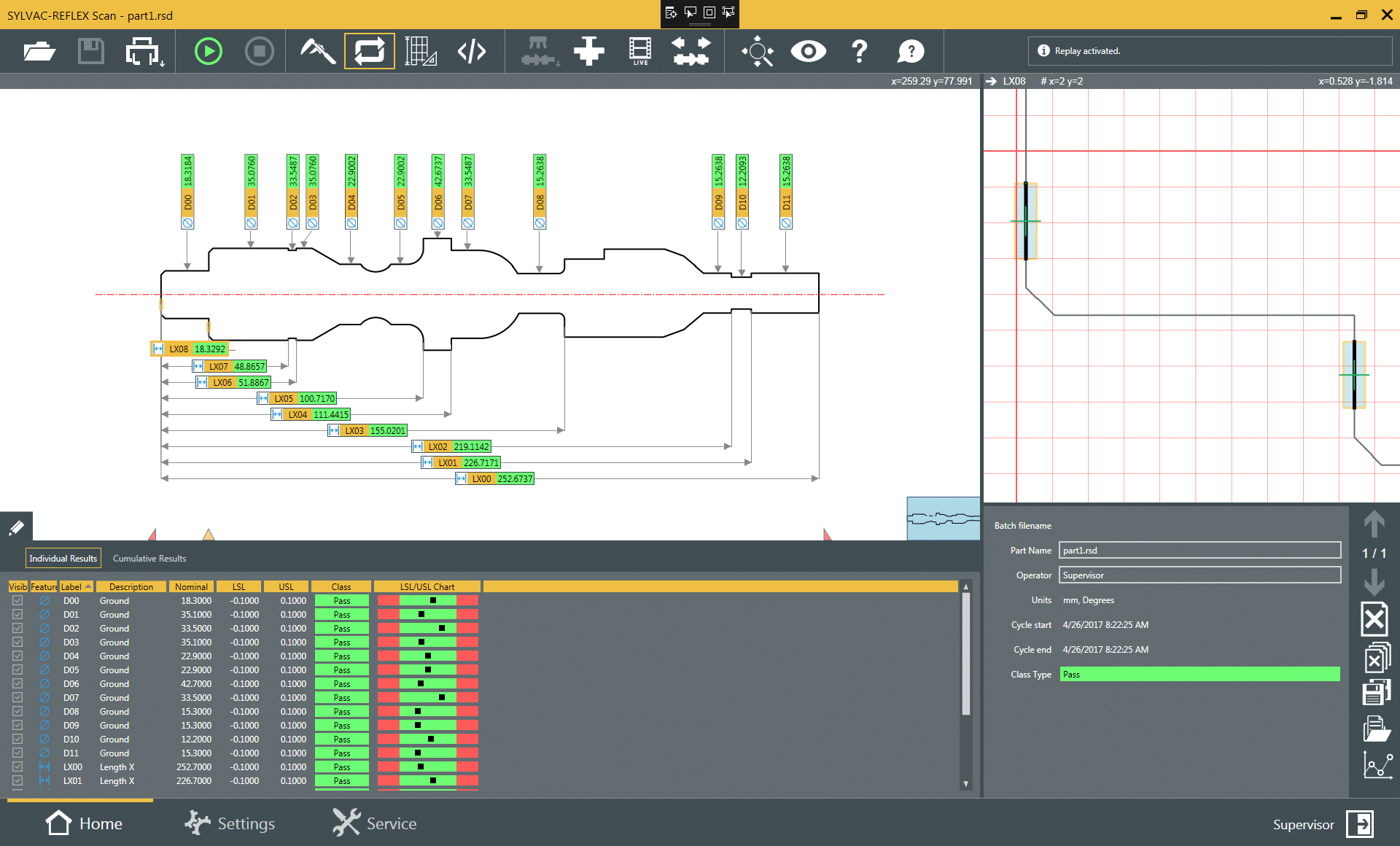

	902-7017	Reflex-SCAN+ Automation software module (Option, require Reflex SCAN+, standard delivery with S145 and S25)	⬤	⬤	⬤
	902-7021	Reflex-Scan+ «PRO» including advanced thread wizard, CAD compare, Monitoring SPC, scripting	⬤	⬤	⬤
	902-7022	Reflex-SCAN+ PRO Offline	⬤	⬤	⬤
	902-7023	Reflex SCAN+ Expert	⬤	⬤	⬤
	902-7024	Reflex SCAN+ Expert Offline	⬤	⬤	⬤
	902-7025	Reflex SCAN+ Expert upgrade from PRO	⬤	⬤	⬤
