    Optical measurement SYLVAC-VISIO 300 V3

    *Available in different measuring ranges

    Description

    Optical video measuring system.
    MicrosoftTeams-image (5)
    Swiss made
    0.1um
    0.1µm
    Cable
    Cable

    Features

    • Enhanced Precision and Versatility: Experience an extended field of view up to 15×9.5mmb and improved image quality through our full HD camera. Our machine offers high-resolution measurements with an ergonomic 2.5D optical (video) measuring system, ensuring accuracy and reliability.

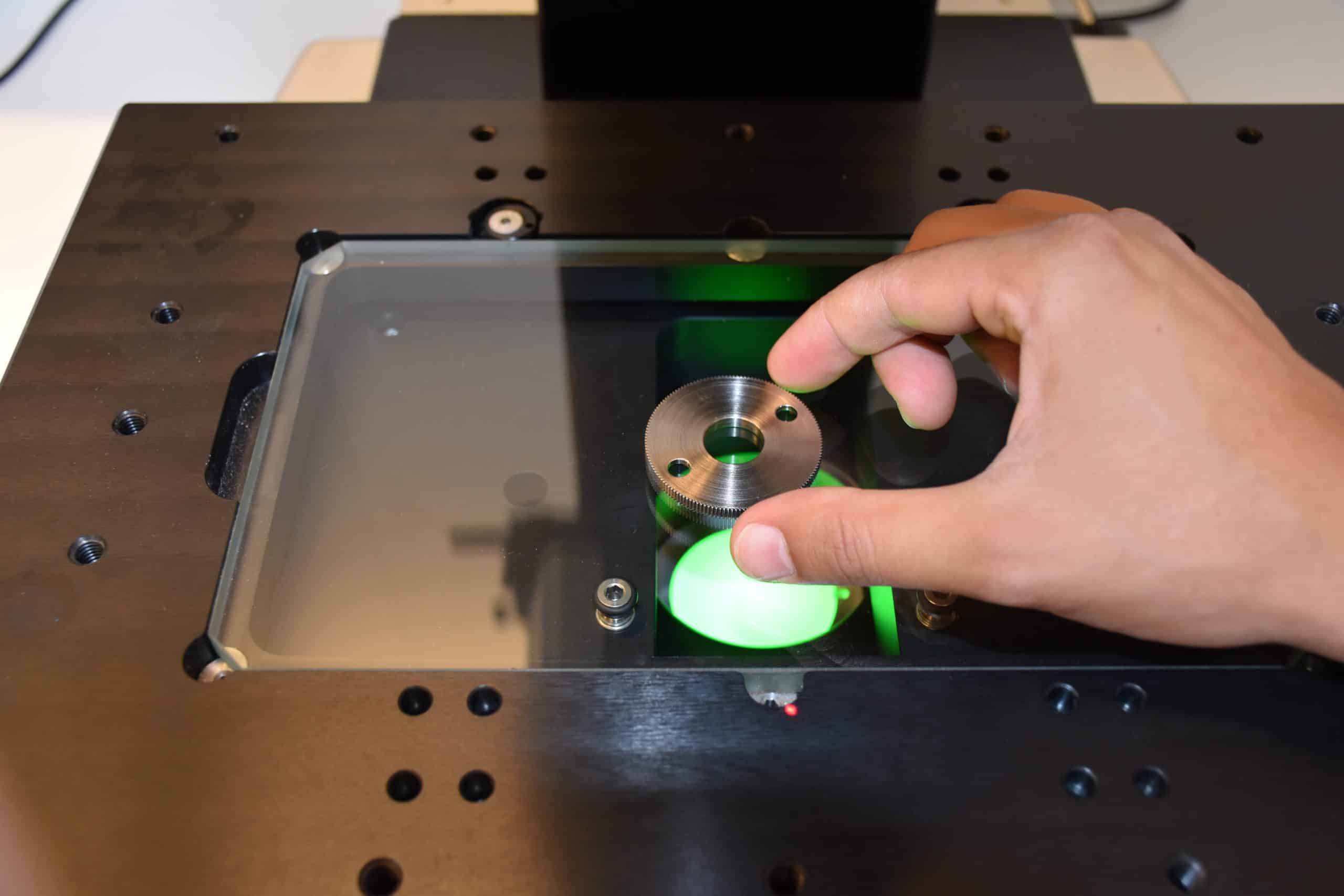

    • Robust Construction for Durability: Our metrology solution features a very robust granite construction and a durable guidance system, guaranteeing long-lasting performance. The granite base and gooseneck provide exceptional stability, while the manual movement of the table with a quick displacement system enables easy and precise adjustments.
    • Flexible Zoom Options: Choose between manual or motorized zoom functionality depending on model,. We offer both options to cater to different needs, ensuring seamless operations and optimal performance in your metrology processes.

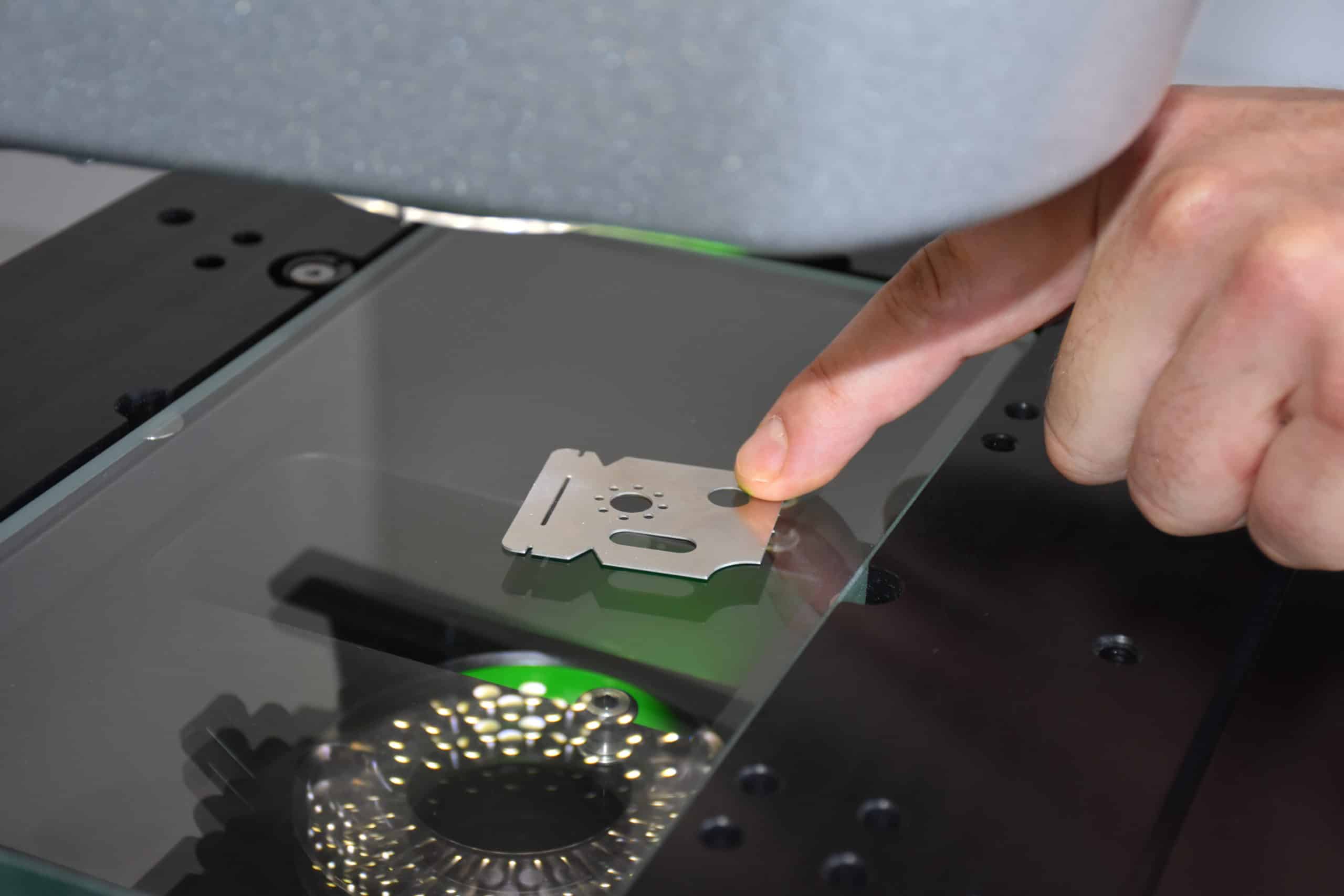

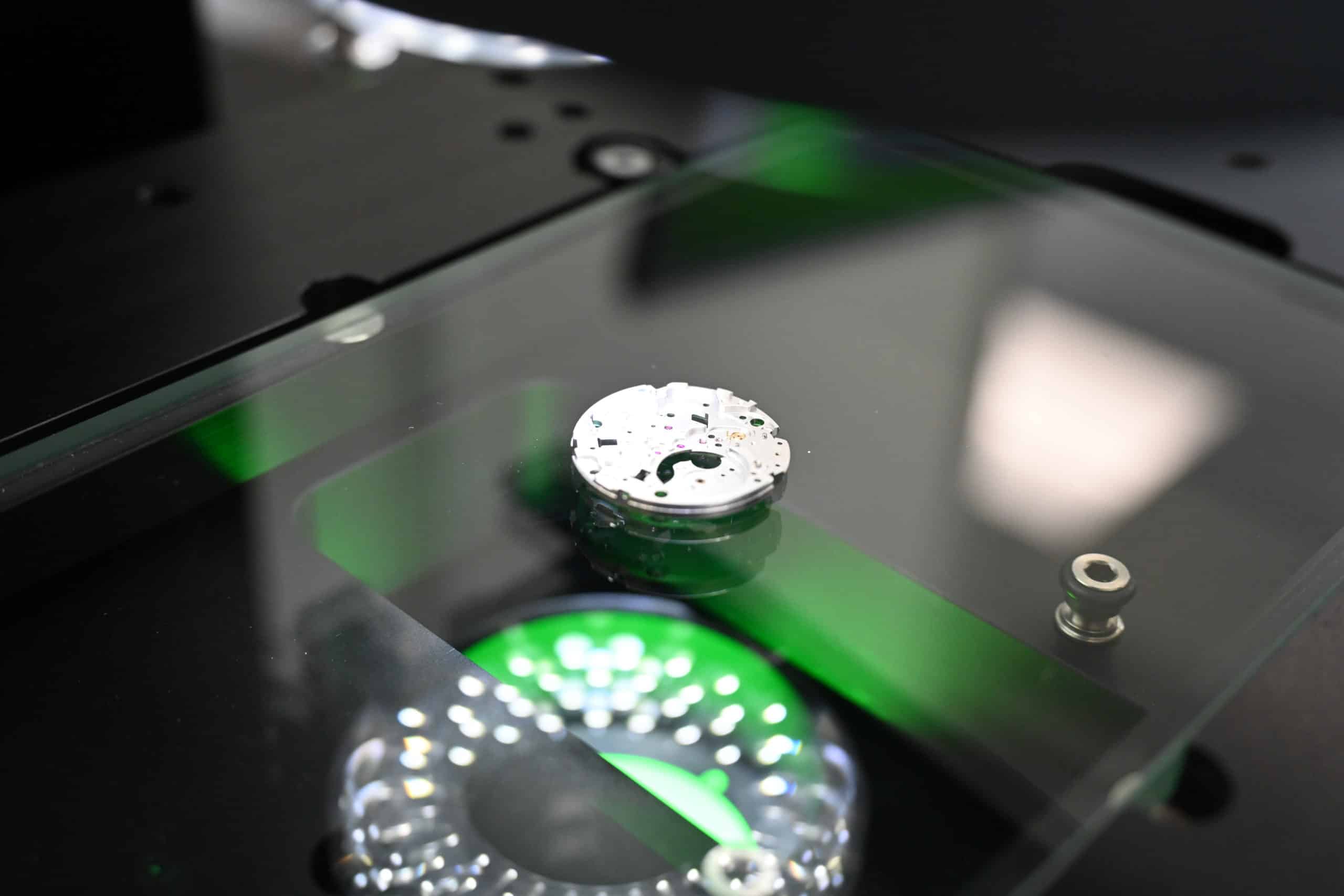

    • Optimal Visibility: Benefit from triple programmable lighting options, including ring light adjustable in segments, coaxial light, and diascopic light. This comprehensive lighting setup allows you to achieve optimal visibility, enhancing the accuracy of your measurements.

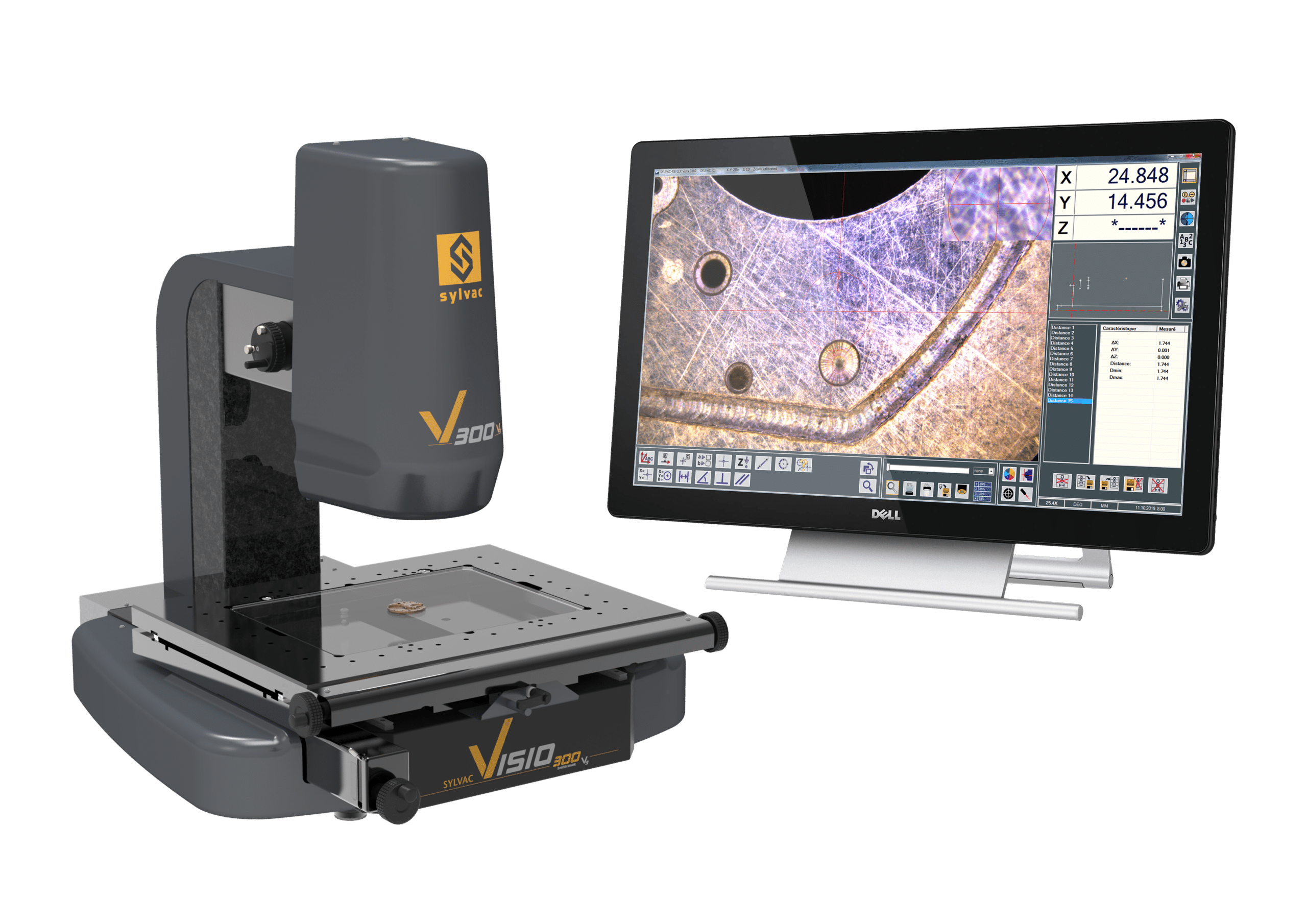

    • Advanced Software with CAD Comparison: Our metrology system comes with Sylvac Vista software, which offers a wide range of functionalities for intuitive measurements. Enjoy features like semi-automatic measurement, automatic edge detection, and comparison with imported DXF contour. This software also includes CAD comparison functions, streamlining your workflow.

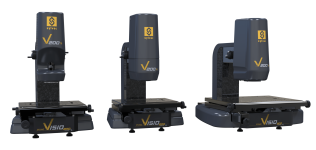

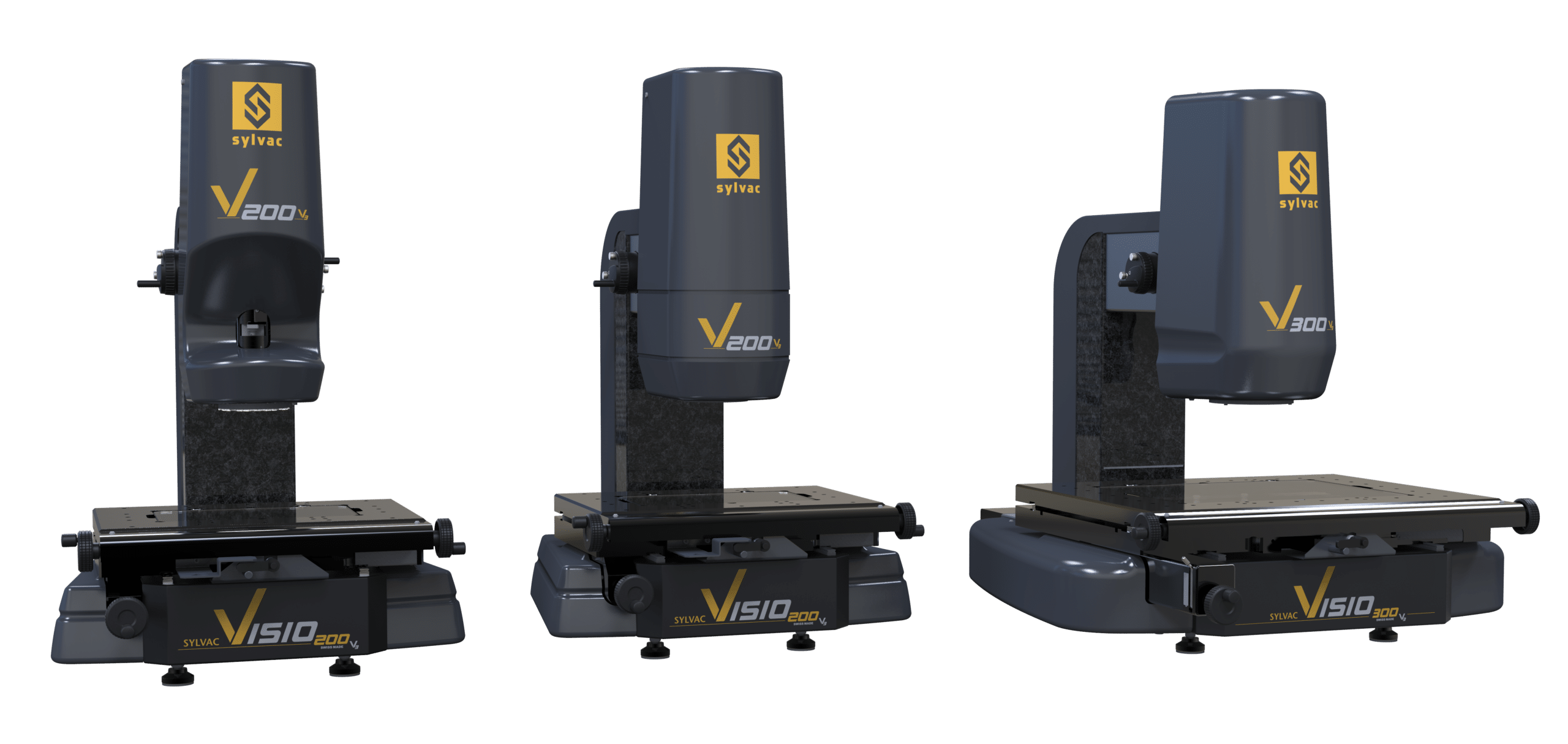

    • Versatile Measurement Ranges: Choose from our three versions to match your measurement needs precisely. The VISIO 200 models (902-2210 and 902-2211) provide a measuring range of 200 x 100 x 150 mm, while the VISIO 300 model (902-2212) offers a larger range of 300 x 200 x 150 mm. With these options, you can select the model that best suits your application.

    Applications

    icon-diameter
    Diameter
    logicielsPosition
    Localisation
    angle-icon
    Angle
    logicielsDistance
    Distance
    icon-form-deviation
    Form deviation

    Industries

    icon-automotive-sylvac
    Automotive
    icon-watch-making-sylvac
    Watch making
    icon-machine-tool-sylvac
    Machine tool
    icon-oackaging-sylvac
    Packaging
    icon-aeronotics-sylvac
    Aeronautics
    Electronics

    Overview

    902-2310
    EAN 7640125714883
    Measuring volume (mm) 300x200x150
    X, Y Accuracy (E1, X, Y) (µm) 1.9 + 4L/1000 (L = mm) ¹/³
    XY Accuracy (E2, XY) (µm) 2.4 + 4L/1000 (L = mm) ¹/³
    Z Accuracy (E1, Z) ² (µm) 2.9 + 10L/1000 (L = mm)
    Resolution (mm) 0.001
    Max. load capacity (kg) 20
    Magnification (screen 23.8’’) 24x – 144x (12x – 288x with additional lenses)
    Zoom Motorised 6x
    Weight 170
    International standards EN61000-6-2, EN61000-6-4, EN61326-1, EN12100-1, EN12100-2

    ¹ m ≤ 5 kg

    ² mechanical accuracy

    ³ at glass plate level



    902-2310
    EAN 7640125714883
    Measuring volume (mm) 300x200x150
    X, Y Accuracy (E1, X, Y) (µm) 1.9 + 4L/1000 (L = mm) ¹/³
    XY Accuracy (E2, XY) (µm) 2.4 + 4L/1000 (L = mm) ¹/³
    Z Accuracy (E1, Z) ² (µm) 2.9 + 10L/1000 (L = mm)
    Resolution (mm) 0.001
    Max. load capacity (kg) 20
    Magnification (screen 23.8’’) 24x – 144x (12x – 288x with additional lenses)
    Zoom Motorised 6x
    Weight 170
    International standards EN61000-6-2, EN61000-6-4, EN61326-1, EN12100-1, EN12100-2

    ¹ m ≤ 5 kg

    ² mechanical accuracy

    ³ at glass plate level



    Standard Delivery
    Instrument according to technical specifications
    Software Sylvac-REFLEX Vista multilingual
    Computer with touchscreen 23.8’’, keyboard and mouse
    CAD compare software
    Windows 10 multilingual operating system
    Manual
    Calibration certificat
    Accessories
    902-6020 Visio demo part
    902-7100 Additional lens, 0,5x for zoom 6,5x
    902-7101 Additional lens, 0,75x for zoom 6,5x
    902-7102 Additional lens, 1.5x for zoom 6,5x
    902-7103 Additional lens, 2x for zoom 6,5x
    902-7380 Foot switch for value capture
    902-7390 Sylvac – Reflex Vista COMPARE (Standard delivery)
    928-6006 Plastiform case for SCAN and VISIO


    902-7300 Basic fixtures Kit :
    • 1x Quick-Load Corner Fixture (QLC)
    • 1x 13mm x 150mm x 150mm R&R Acrylic Multi-Hole Fixture Plate
    • 1x (3) Dowel Pins
    • 3x 6mm Dia. x 10 and x 25mm Standoff
    • 3x 9mm Dia. x 5, x 10, x 20 and x 25mm Standoff
    • 3x 12mm Dia. x 10 and x 25mm Standoff
    • 2x 6mm Dia. x 10mm Pin Standoff
    • 2x 9mm Dia. x 10mm Pin Standoff
    • 2x 40mm Tension Clamp with Rubber Coated Tip
    • 2x 25mm Wire Clamp with Rubber Coated Tip
    • 2x 50mm Wire Clamp with Rubber Coated Tip
    • 4x Aluminium Resting Pin with M4 Thread
    • 1x 50mm x 50mm Corner Viewer for M4
    • 1x 9mm Dia. Adjustable Jackstand with M4 Thread
    • 1x M4 Pusher Clamp
    • 1x 30mm and 1x 45mm Long Adjustable Slide with M4 Thread
    • 1x M4 Tower Block
    • 1x Micro-Clamp Vise with Base for M4 Components
    • 1x 12mm Dia. x10mm Spring Pusher Standoff Clamp
    • 1x 300mm x 190mm x 25mm Component Tray to Hold M4 Components

    902-7301 Advanced fixtures Kit :
    All Basic fixtures (acrylic plate 13x200x200mm) kit added with :
    • 3x 6mm Dia. x 5, x 10 and x 25mm Standoff
    • 3x 9mm Dia. x 10, x 20, x 25mm Standoff
    • 3x 12mm Dia. x 10, x25mm Standoff
    • 2x 6mm Dia. x 10mm Pin Standoff
    • 2x 9mm Dia. x 10mm Pin Standoff
    • 4x 12mm Dia. x 10mm Pin Standoff
    • 2x 40mm Tension Clamp with Rubber Coated Tip
    • 2x 25mm Wire Clamp with Rubber Coated Tip
    • 2x 50mm Wire Clamp with Rubber Coated Tip with 50mm Post
    • 1x 9mm Dia. Adjustable Jackstand with M4 Thread
    • 1x 30mm and 1x 45mm Long Adjustable Slide with M4 Thread
    • 1x Base 16mm Sq x 19mm (for M4 Tower Block)
    902-7104 Fresnel kit 0.5x / Fresnel lens + lens 0.5x + fixation screws (for Ringlight)
    902-7105 Fresnel kit 0.75x / Fresnel lens + lens 0.75x + fixation screws (for Ringlight)
    902-7106 Fresnel kit 1.5x / Fresnel lens + lens 1.5x + fixation screws (for Ringlight)





    Optical measurement SYLVAC-VISIO 300 V3
    CHF 30'054.00
    Scroll to Top

    Request a demo

    Optical measurement SYLVAC-VISIO 300 V3

    Contact us

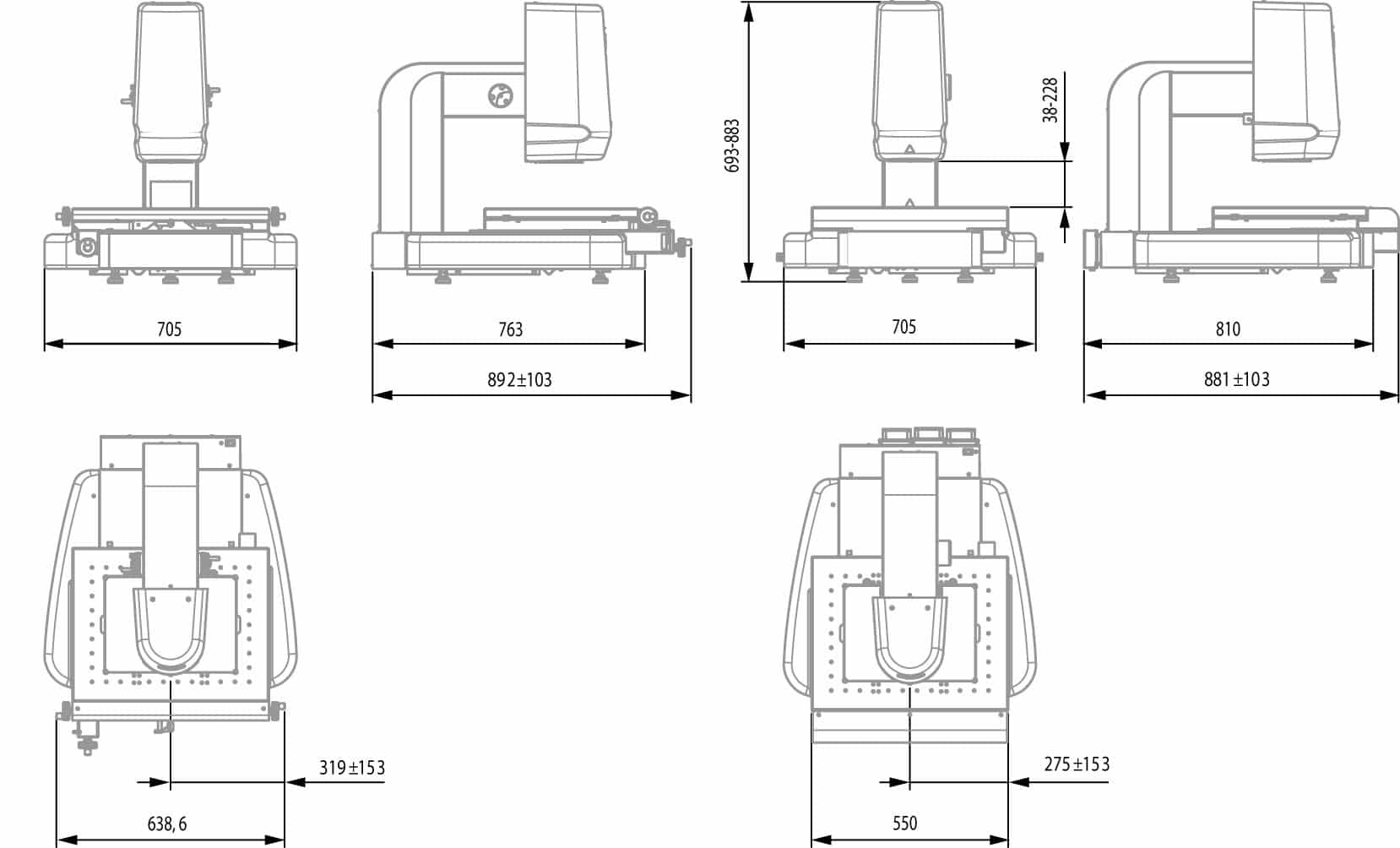

    Download Technical Plan :Optical measurement SYLVAC-VISIO 300 V3
