    Optical measurement SYLVAC-VISIO 200 V3

    Starting at :
    CHF 23'158.00

    *Available in different measuring ranges

    Description

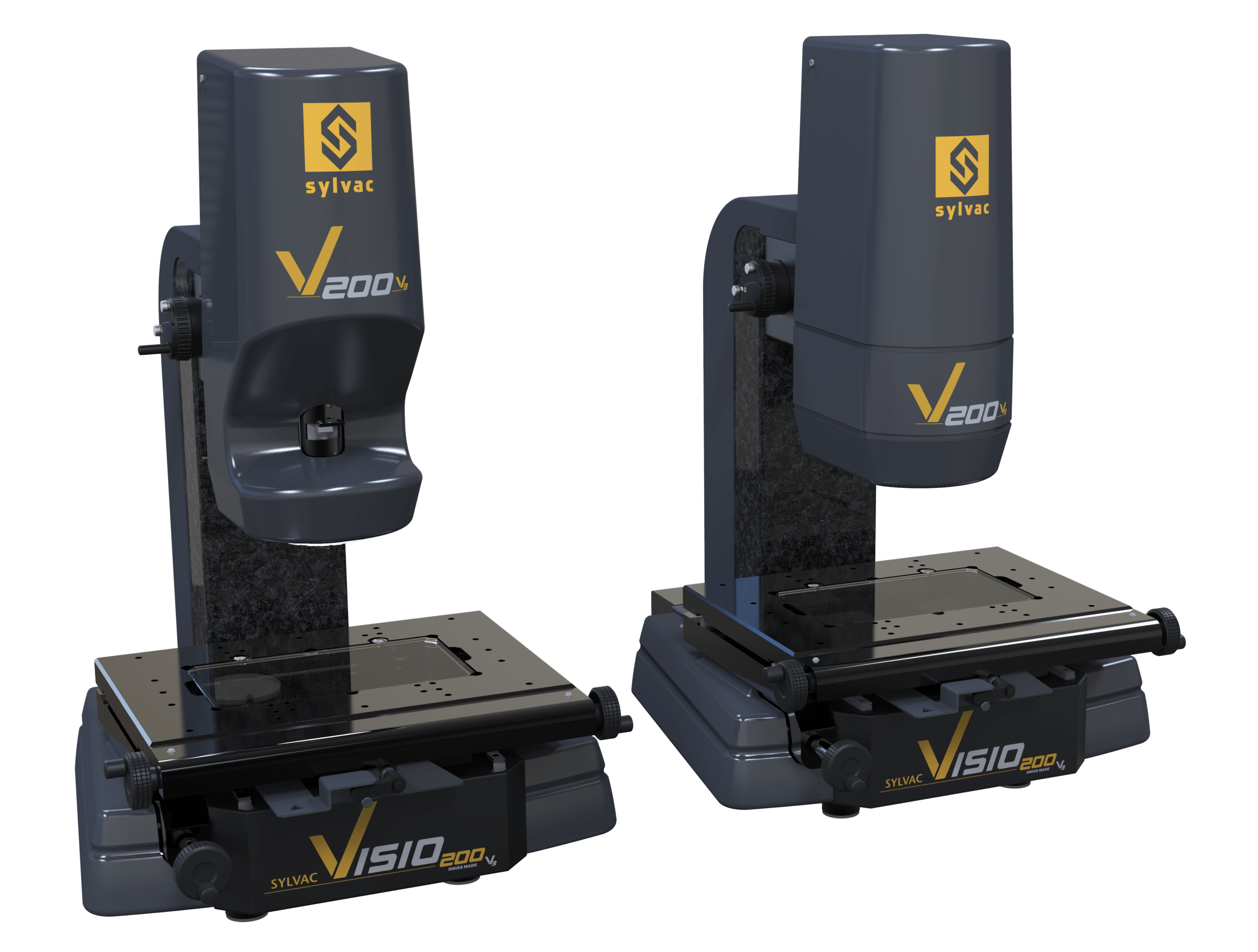

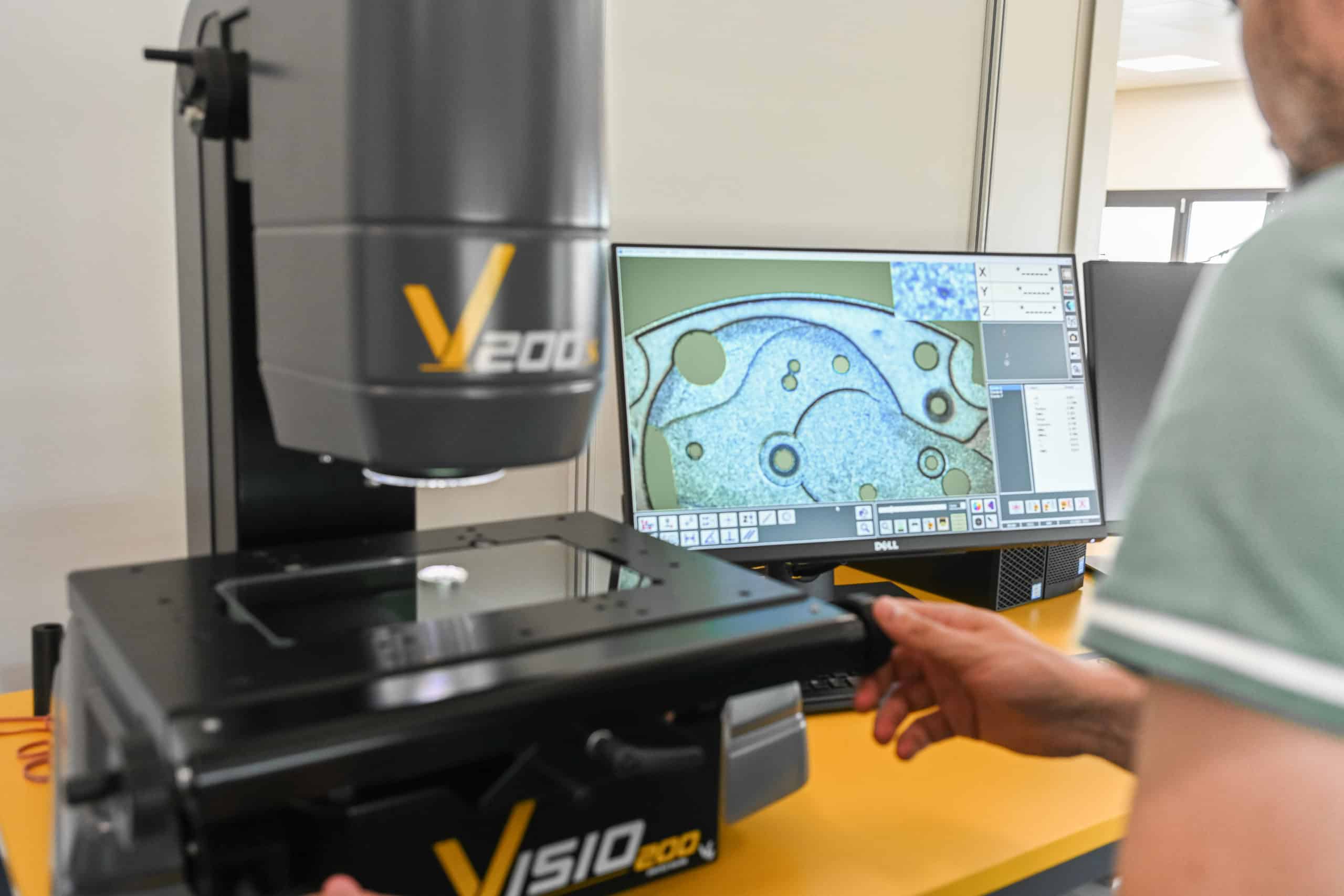

    Optical video measuring system.
    MicrosoftTeams-image (5)
    Swiss made
    0.1um
    0.1µm
    Cable
    Cable

    Features

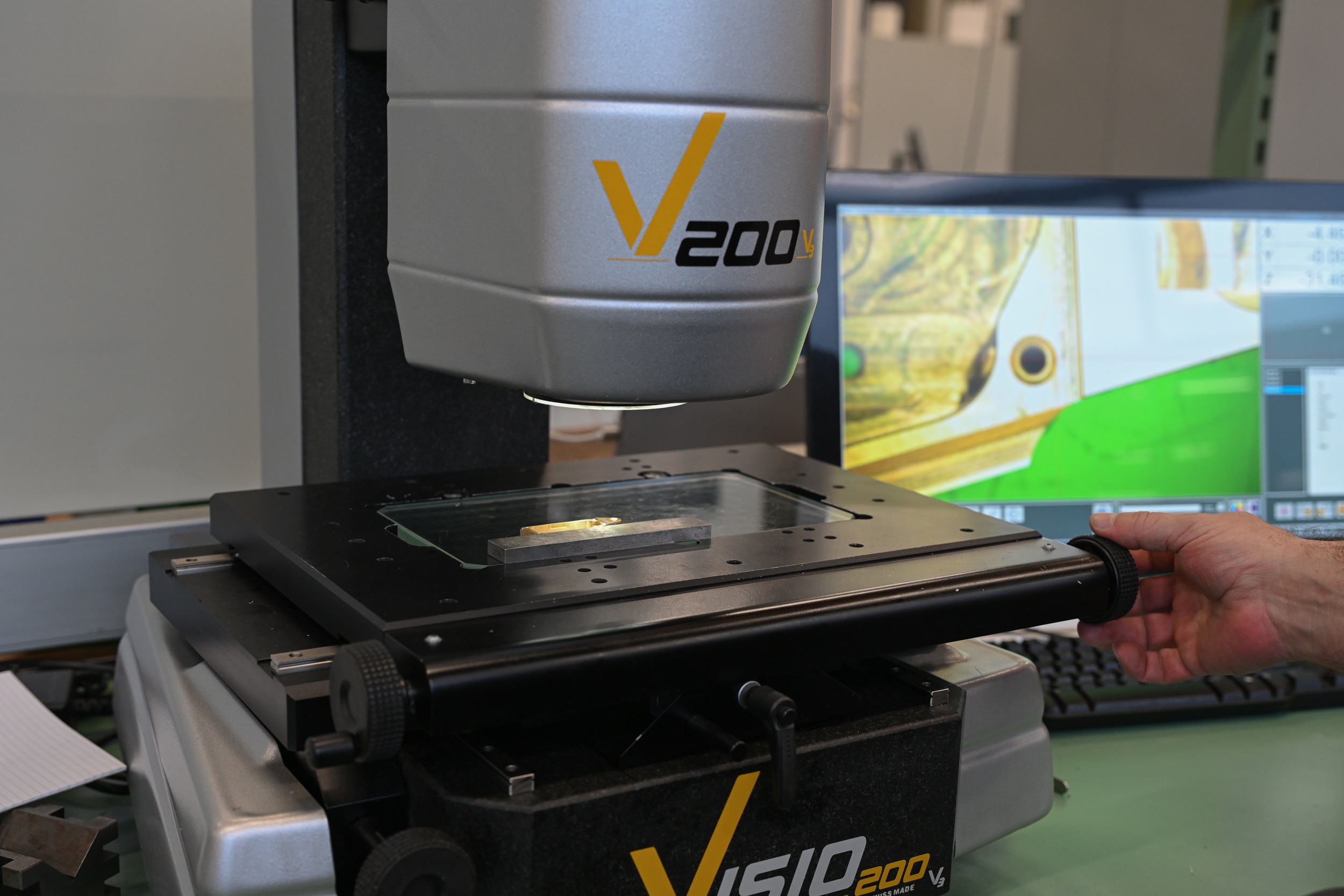

    • Enhanced Precision and Versatility: Experience an extended field of view up to 15×9.5mm and improved image quality through our full HD camera. Our machine offers high-resolution measurements with an ergonomic 2.5D optical (video) measuring system, ensuring accuracy and reliability.

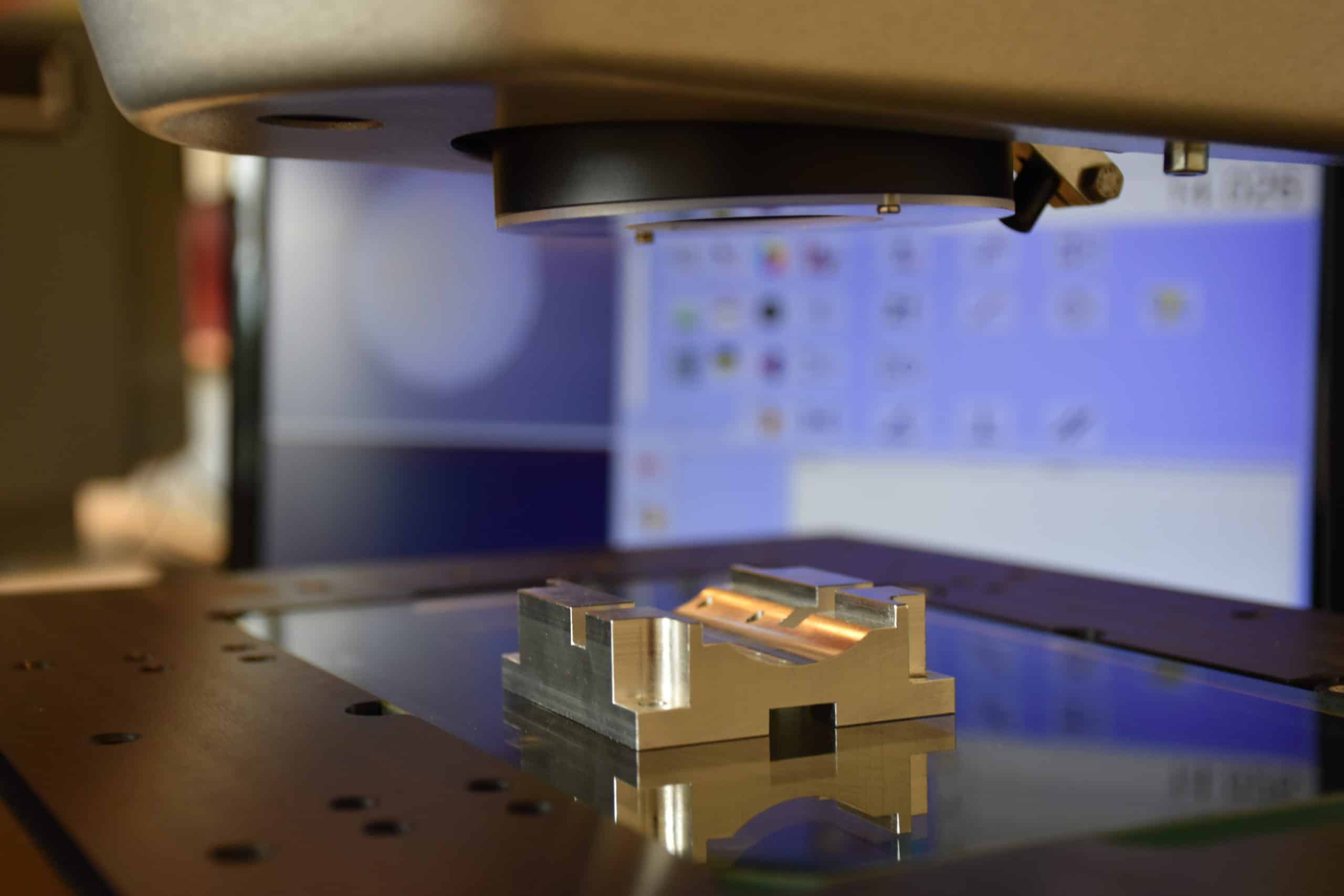

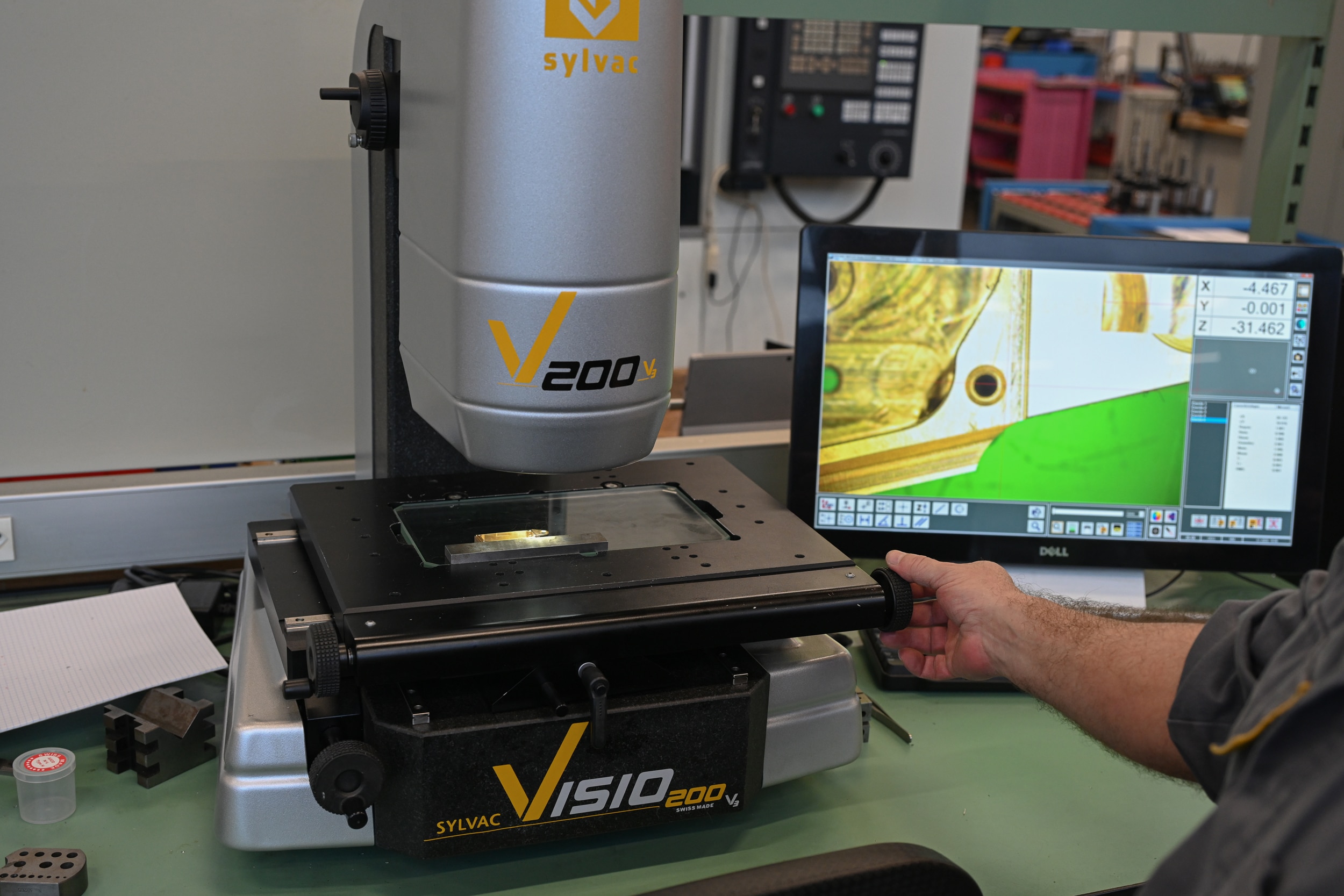

    • Robust Construction for Durability: Our metrology solution features a very robust granite construction and a durable guidance system, guaranteeing long-lasting performance. The granite base and gooseneck provide exceptional stability, while the manual movement of the table with a quick displacement system enables easy and precise adjustments.
    • Flexible Zoom Options: Choose between manual or motorized zoom functionality depending on model,. We offer both options to cater to different needs, ensuring seamless operations and optimal performance in your metrology processes.
    • Optimal Visibility: Benefit from triple programmable lighting options, including ring light adjustable in segments, coaxial light, and diascopic light. This comprehensive lighting setup allows you to achieve optimal visibility, enhancing the accuracy of your measurements.

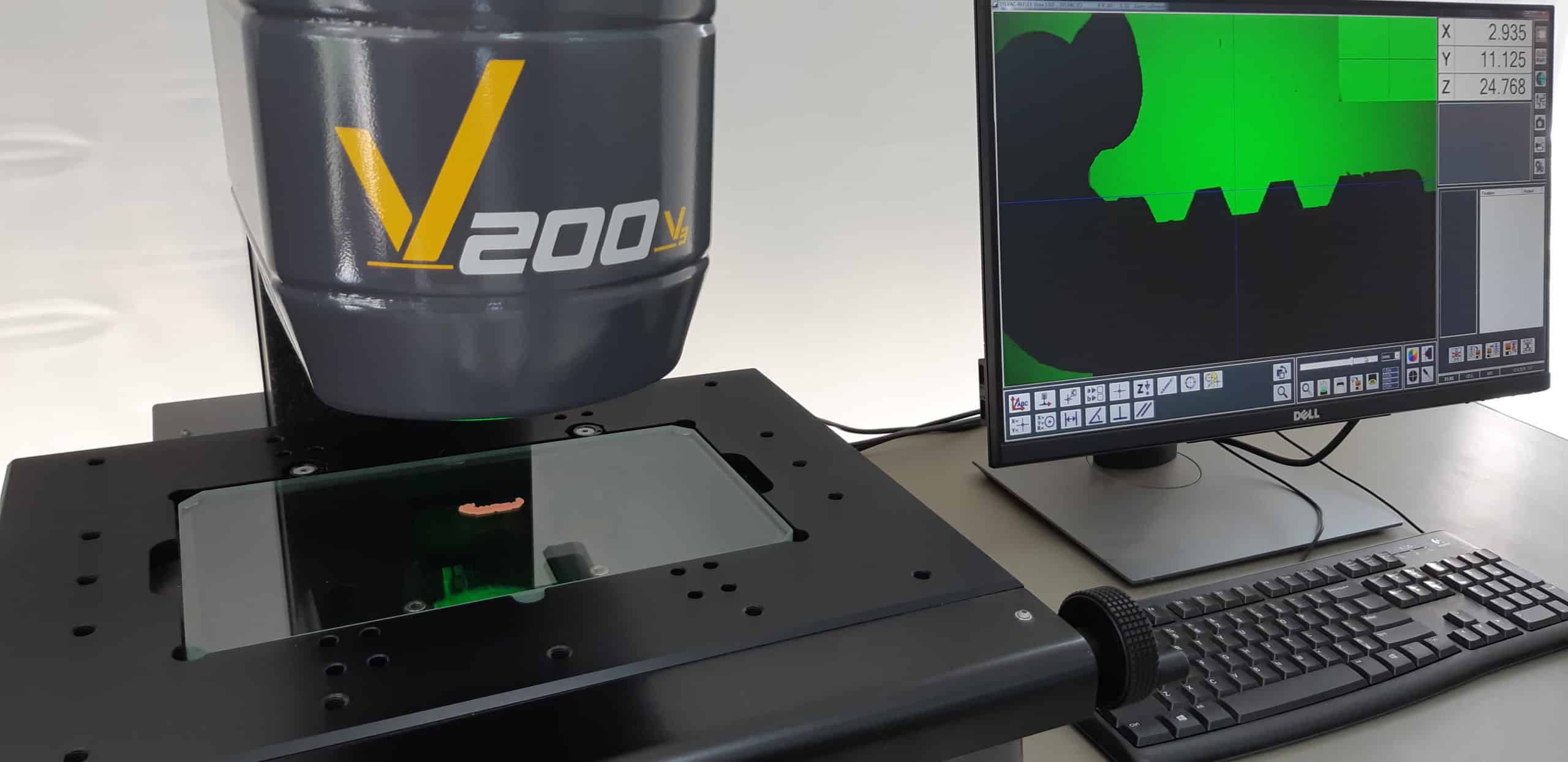

    • Advanced Software with 2D CAD Comparison: Our metrology system comes with Sylvac Vista software, which offers a wide range of functionalities for intuitive measurements. Enjoy features like semi-automatic measurement, automatic edge detection, and comparison with imported DXF contour. This software also includes 2D CAD comparison functions, streamlining your workflow.
    • Versatile Measurement Ranges: The VISIO 200 models provide a measuring range of 200 x 100 x 150 mm.

    Applications

    icon-diameter
    Diameter
    logicielsPosition
    Localisation
    angle-icon
    Angle
    logicielsDistance
    Distance
    icon-form-deviation
    Form deviation

    Industries

    icon-automotive-sylvac
    Automotive
    icon-watch-making-sylvac
    Watch making
    icon-medical-device-sylvac
    Medical device
    icon-machine-tool-sylvac
    Machine tool
    icon-oackaging-sylvac
    Packaging
    icon-aeronotics-sylvac
    Aeronautics

    Overview

    902-2210 902-2211
    EAN 7640125699708 7640125694895
    Measuring volume (mm) 200x100x150
    X, Y Accuracy (E1, X, Y) (µm) 1.9 + 10L/1000 (L = mm) ¹/³
    XY Accuracy (E2, XY) (µm) 2.4 + 10L/1000 (L = mm) ¹/³
    Z Accuracy (E1, Z) ² (µm) 2.9 + 10L/1000 (L = mm)
    Resolution (mm) 0.001
    Max. load capacity (kg) 10
    Magnification (screen 23.8’’) 24x – 144x (12x – 288x with additional lenses)
    Zoom Manuel 4x Motorised 6x
    Weight 98
    International standards EN61000-6-2, EN61000-6-4, EN61326-1, EN12100-1, EN12100-2

    ¹ m ≤ 5 kg

    ² mechanical accuracy

    ³ at glass plate level

    902-2210 902-2211
    EAN 7640125699708 7640125694895
    Measuring volume (mm) 200x100x150
    X, Y Accuracy (E1, X, Y) (µm) 1.9 + 10L/1000 (L = mm) ¹/³
    XY Accuracy (E2, XY) (µm) 2.4 + 10L/1000 (L = mm) ¹/³
    Z Accuracy (E1, Z) ² (µm) 2.9 + 10L/1000 (L = mm)
    Resolution (mm) 0.001
    Max. load capacity (kg) 10
    Magnification (screen 23.8’’) 24x – 144x (12x – 288x with additional lenses)
    Zoom Manuel 4x Motorised 6x
    Weight 98
    International standards EN61000-6-2, EN61000-6-4, EN61326-1, EN12100-1, EN12100-2

    ¹ m ≤ 5 kg

    ² mechanical accuracy

    ³ at glass plate level

    Standard Delivery
    Instrument according to technical specifications
    Software Sylvac-REFLEX Vista multilingual
    Computer with touchscreen 23.8’’, keyboard and mouse
    2D CAD compare software
    Windows 10 multilingual operating system
    Manual
    Calibration certificat
    Optical measurement SYLVAC-VISIO 200 V3
    CHF 23'158.00
    Scroll to Top

    Request a demo

    Optical measurement SYLVAC-VISIO 200 V3

    Contact us

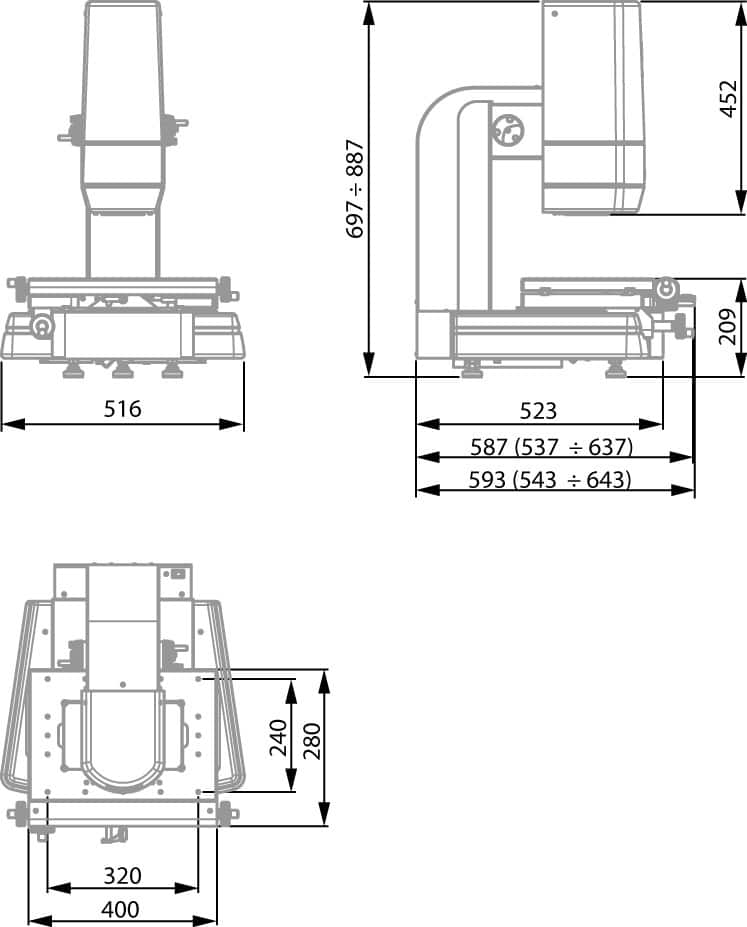

    Download Technical Plan :Optical measurement SYLVAC-VISIO 200 V3

    Download 3D Drawing :Optical measurement SYLVAC-VISIO 200 V3
