    Optical measurement SYLVAC-SCAN S25T

    Starting at :
    CHF 48'406.00

    *Available in different measuring ranges

    Description

    Vertical optical machine for cylindrical parts up to ⌀26mm with tilt system.
    MicrosoftTeams-image (5)
    Swiss made
    0.1um
    0.1µm
    Cable
    Cable

    Features

    • Cost Savings at Every Turn: Our non-contact machine is designed for the measurement of threads, while preserving the integrity of your parts, eliminating the risk of damage during quality control. One of our machine can handle virtually all measurements on cylindrical parts up to 26mm wide and 200mm long. With a complete 2D part scan taking less than 3 seconds, you can reduce inspection time, minimize scrap, and increase overall productivity.
    • Intuitive Operation: Enjoy easy operation right at your workplace with the new touch screen control panel. The dynamic LED indicator and intuitive Reflex SCAN+ concept provide real-time feedback on the measured part’s status (GO/NG) and operator messages. No prior programming is required—just a simple touch-button solution.
    • Precision and Efficiency: Experience exceptional precision with our machine’s bi-telecentric optical system and high-resolution CMOS camera. It features a precision sliding headstock with an integrated and protected daily standard, as well as a quick and hassle-free accessory changing system. The machine also includes integrated temperature sensors and a tilt system for true comprehensive thread measurement.

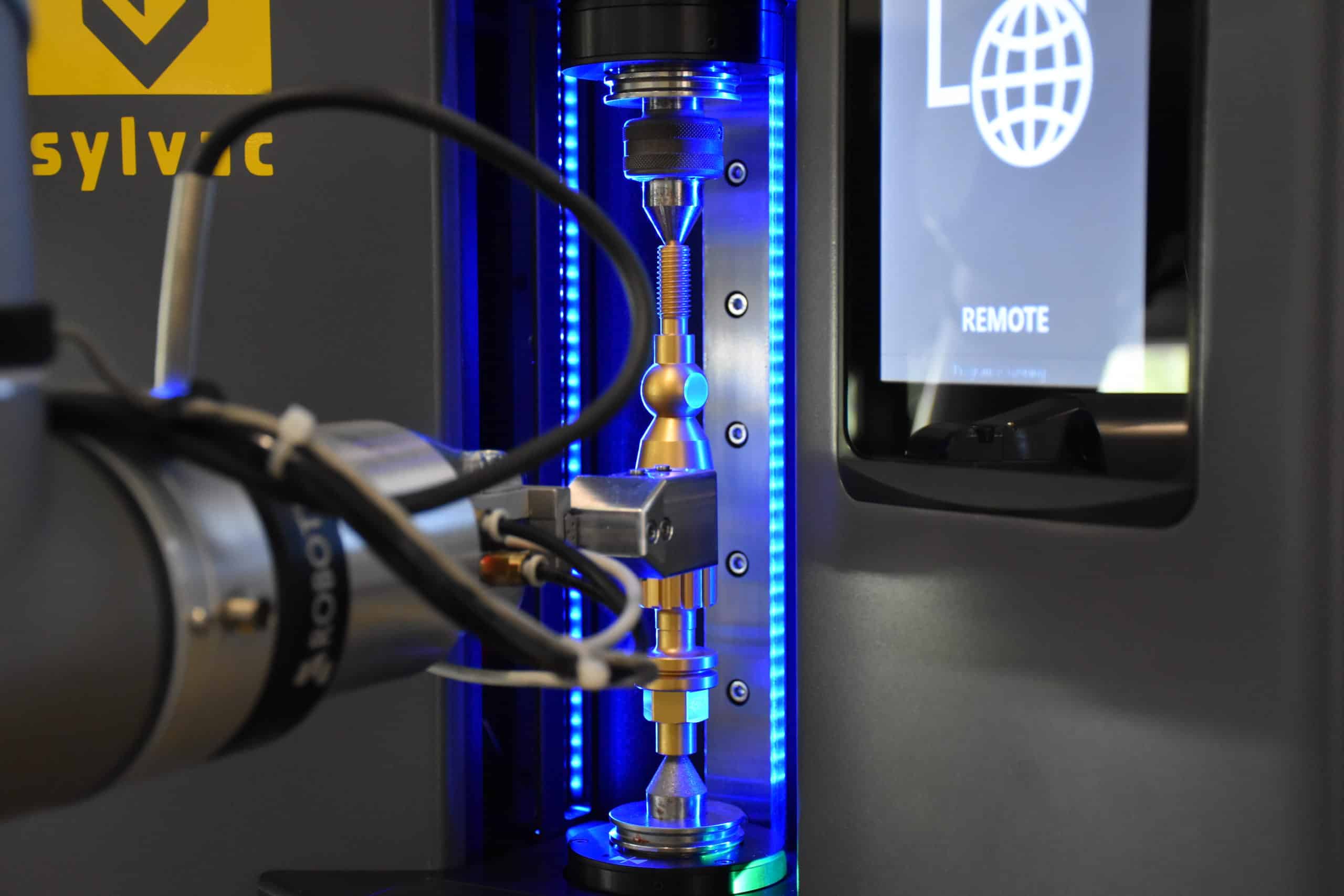

    • Seamless Integration: Our offering includes the Reflex SCAN+ software and a PC, empowering you to effortlessly measure a wide range of elements in an intuitive manner. With its ‘Automation Ready’ configuration, the machine seamlessly integrates into your workflow.

    Applications

    icon-diameter
    Diameter
    logicielsDistance
    Distance
    angle-icon
    Angle
    logicielsPosition
    Localisation
    icon-form-deviation
    Form deviation

    Industries

    icon-automotive-sylvac
    Automotive
    icon-watch-making-sylvac
    Watch making
    icon-medical-device-sylvac
    Medical device
    icon-fastening-sylvac
    Fastening
    icon-aeronotics-sylvac
    Aeronautics
    Electronics

    Overview

    902-4025
    EAN 7640125688986
    Diameter Length
    Measuring range (mm) 26 200
    Resolution up to (mm) 0.0001
    Max. error (µm) 0.9 +(D[mm]/100) µm ¹ 2.5 +(L[mm]/200) µm ¹
    Repeatability 2δ (µm) 0.5 0.8
    Holding capacity (mm) 51 200
    Tilting for thread measurement 30°
    Headstock High precision rotary
    Axial move speed (mm/s) Up to 100mm/s
    Max. weight of part (kg) 3
    Machine’s weight (kg) 73

    902-4025
    EAN 7640125688986
    Diameter Length
    Measuring range (mm) 26 200
    Resolution up to (mm) 0.0001
    Max. error (µm) 0.9 +(D[mm]/100) µm ¹ 2.5 +(L[mm]/200) µm ¹
    Repeatability 2δ (µm) 0.5 0.8
    Holding capacity (mm) 51 200
    Tilting for thread measurement 30°
    Headstock High precision rotary
    Axial move speed (mm/s) Up to 100mm/s
    Max. weight of part (kg) 3
    Machine’s weight (kg) 73
    Instrument according to technical specifications
    Computer with screen, keyboard and mouse
    Windows multilingual operating system
    Sylvac Reflex SCAN Software +
    Accessories : 2x 902-6259 ISO / MK2 adapter, 2x 902-6202, 902-6161 & 902-6212
    Manual
    S25TOptical measurement SYLVAC-SCAN S25T
    CHF 48'406.00
    Scroll to Top

    Request a demo

    Optical measurement SYLVAC-SCAN S25T

    Contact us

    Download Technical Plan :Optical measurement SYLVAC-SCAN S25T

    Download 3D Drawing :Optical measurement SYLVAC-SCAN S25T
