Optical measurement SYLVAC-SCAN S145L

Starting at :
CHF 108'202.00

*Available in different measuring ranges

Description

Vertical optical machine for cylindrical parts up to ⌀145mm and 1280mm long.
MicrosoftTeams-image (5)
Swiss made
0.1um
0.1µm
Cable
Cable

Features

  • Cost Savings at Every Turn: Our non-contact machine is designed for the measurement of extra large cylindrical parts. One of our machine can handle virtually all measurements (static and dynamic) on cylindrical parts up to 145mm wide and 1280mm long. With a complete 2D part scan taking a few seconds, you can reduce inspection time, minimize scrap, and increase overall productivity.
  • Intuitive Operation: Enjoy easy operation right at your workplace with the new touch screen control panel. The dynamic LED indicator and intuitive Reflex SCAN+ concept provide real-time feedback on the measured part’s status (GO/NG) and operator messages. No prior programming is required—just a simple touch-button solution.
  • Precision and Efficiency: Experience exceptional precision with our no-contact machine’s bi-telecentric optical system and high-resolution CMOS camera. It features a precision sliding headstock with an integrated and protected daily standard, as well as a quick and hassle-free accessory changing system. The machine also includes integrated temperature sensors and exists with or without tilt system for true comprehensive thread measurement.
  • Seamless Integration: Our offering includes the Reflex SCAN+ software and a PC, empowering you to effortlessly measure a wide range of elements in an intuitive manner. With its ‘Automation Ready’ configuration, the machine seamlessly integrates into your workflow.

Applications

icon-diameter
Diameter
logicielsDistance
Distance
angle-icon
Angle
logicielsPosition
Localisation
icon-form-deviation
Form deviation

Industries

icon-automotive-sylvac
Automotive
icon-aeronotics-sylvac
Aeronautics
icon-fastening-sylvac
Fastening
icon-oackaging-sylvac
Packaging
icon-machine-tool-sylvac
Machine tool

Overview

902-4147
EAN 7640125682755
Diameter Length
Measuring range (mm) 145 1280
Resolution up to (mm) 0.0001
Max. error (µm) 1.5 + (D[mm]/100) µm ¹ 4 + (L[mm]/200) µm ¹
Repeatability 2δ (µm) 0.5 1.0
Holding capacity diameter (mm) 254 1280
Axial positioning speed (mm/s) Up to 160
Headstock Rotary headstock for static and dynamic measurements
Max. weight of part (kg) 100
Machine’s weight (kg) 650

¹ 20° C ± 1° C

902-4147
EAN 7640125682755
Diameter Length
Measuring range (mm) 145 1280
Resolution up to (mm) 0.0001
Max. error (µm) 1.5 + (D[mm]/100) µm ¹ 4 + (L[mm]/200) µm ¹
Repeatability 2δ (µm) 0.5 1.0
Holding capacity diameter (mm) 254 1280
Axial positioning speed (mm/s) Up to 160
Headstock Rotary headstock for static and dynamic measurements
Max. weight of part (kg) 100
Machine’s weight (kg) 650

¹ 20° C ± 1° C

Instrument according to technical specifications
Adapter for Morse 2 (902-6260)
Computer with screen, keyboard and mouse
Machine stand, with screen & keyboard holder
Windows multilingual operating system
Sylvac Reflex SCAN Software +
Manual
Optical measurement SYLVAC-SCAN S145L
CHF 108'202.00
Scroll to Top

Request a demo

Optical measurement SYLVAC-SCAN S145L

Contact us

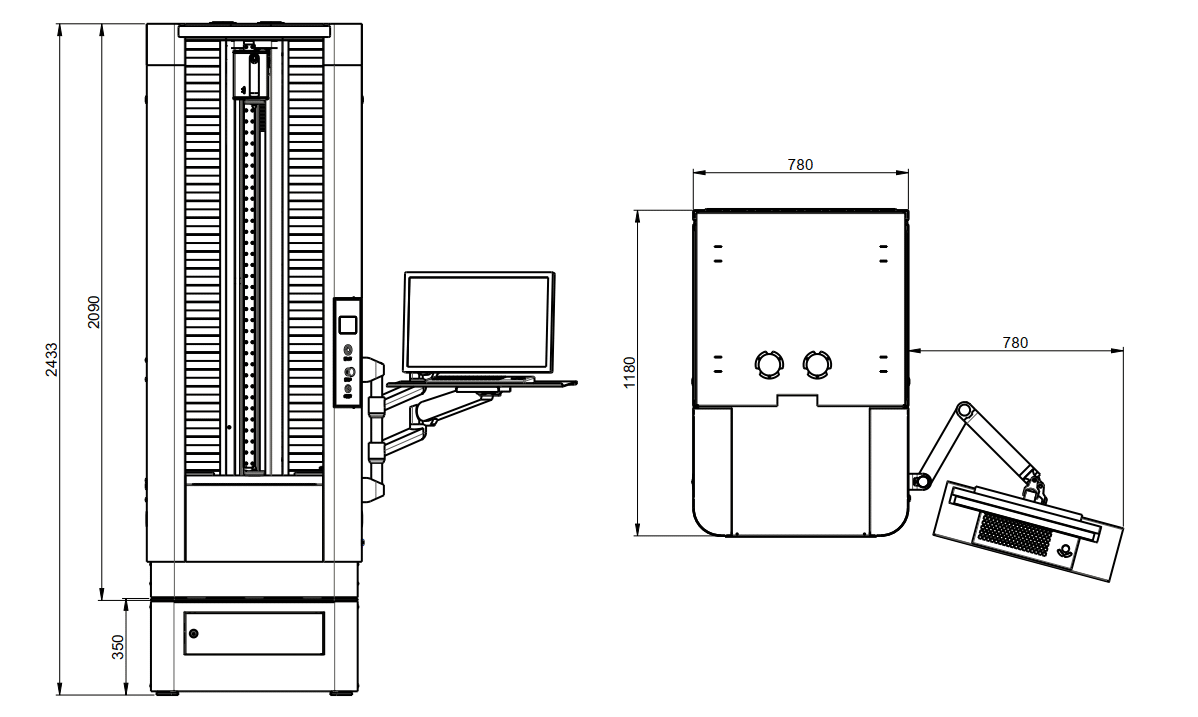

Download Technical Plan :Optical measurement SYLVAC-SCAN S145L
