    Optical measurement SYLVAC-SCAN S145

    Starting at :
    CHF 91'229.00

    *Available in different measuring ranges

    Description

    Vertical optical machine for cylindrical parts up to ⌀145mm and 615mm long.
    MicrosoftTeams-image (5)
    Swiss made
    0.1um
    0.1µm
    Cable
    Cable

    Features

    • Cost Savings at Every Turn: Our non-contact machine is designed for the measurement of large cylindrical parts up tp 100kg. One of our machine can handle virtually all measurements (static and dynamic) on cylindrical parts up to 145mm wide and 615mm long. With a complete 2D part scan taking less than 3 seconds, you can reduce inspection time, minimize scrap, and increase overall productivity.
    • Intuitive Operation: Enjoy easy operation right at your workplace with the new touch screen control panel. The dynamic LED indicator and intuitive Reflex SCAN+ concept provide real-time feedback on the measured part’s status (GO/NG) and operator messages. No prior programming is required—just a simple touch-button solution.

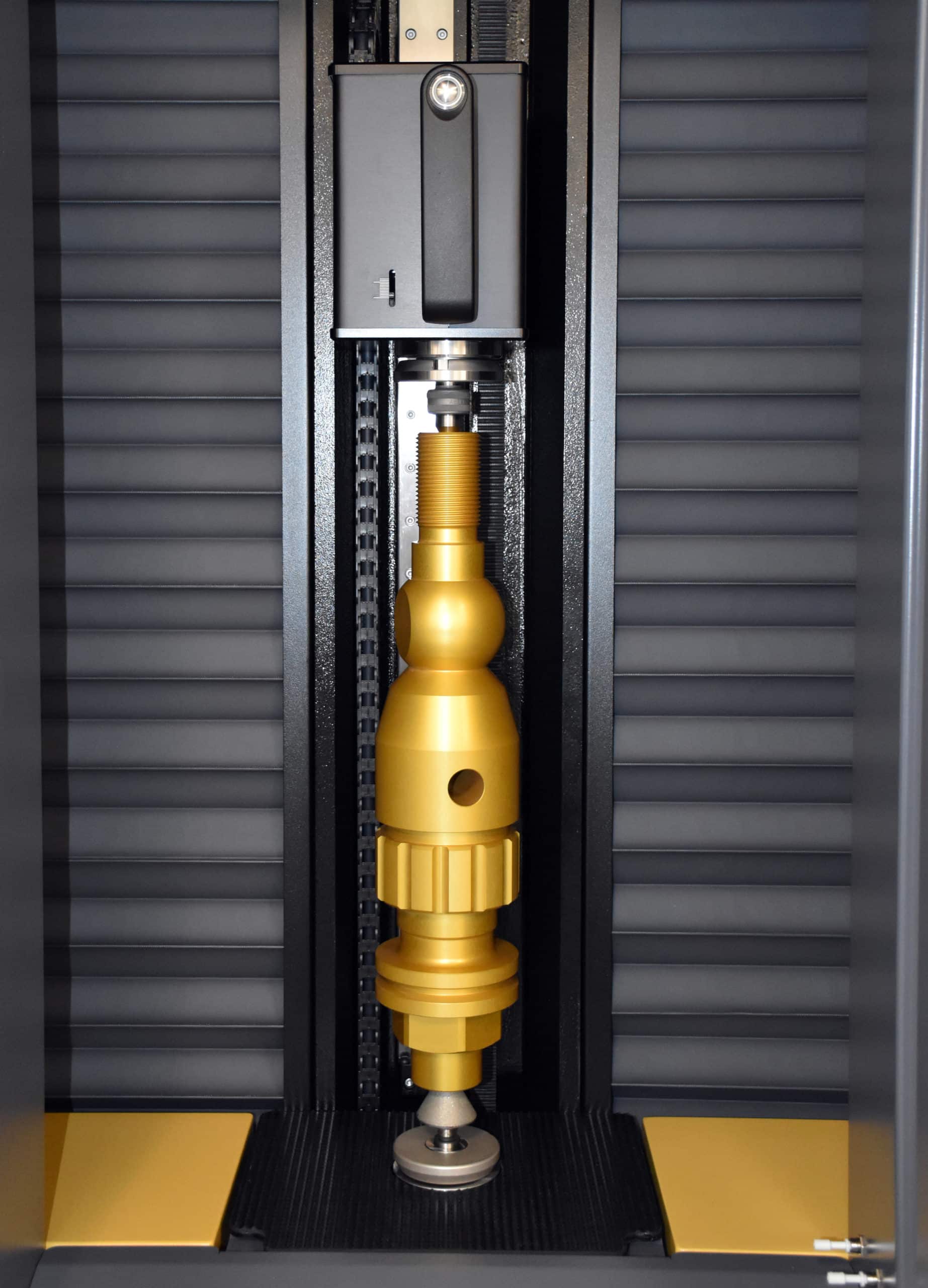

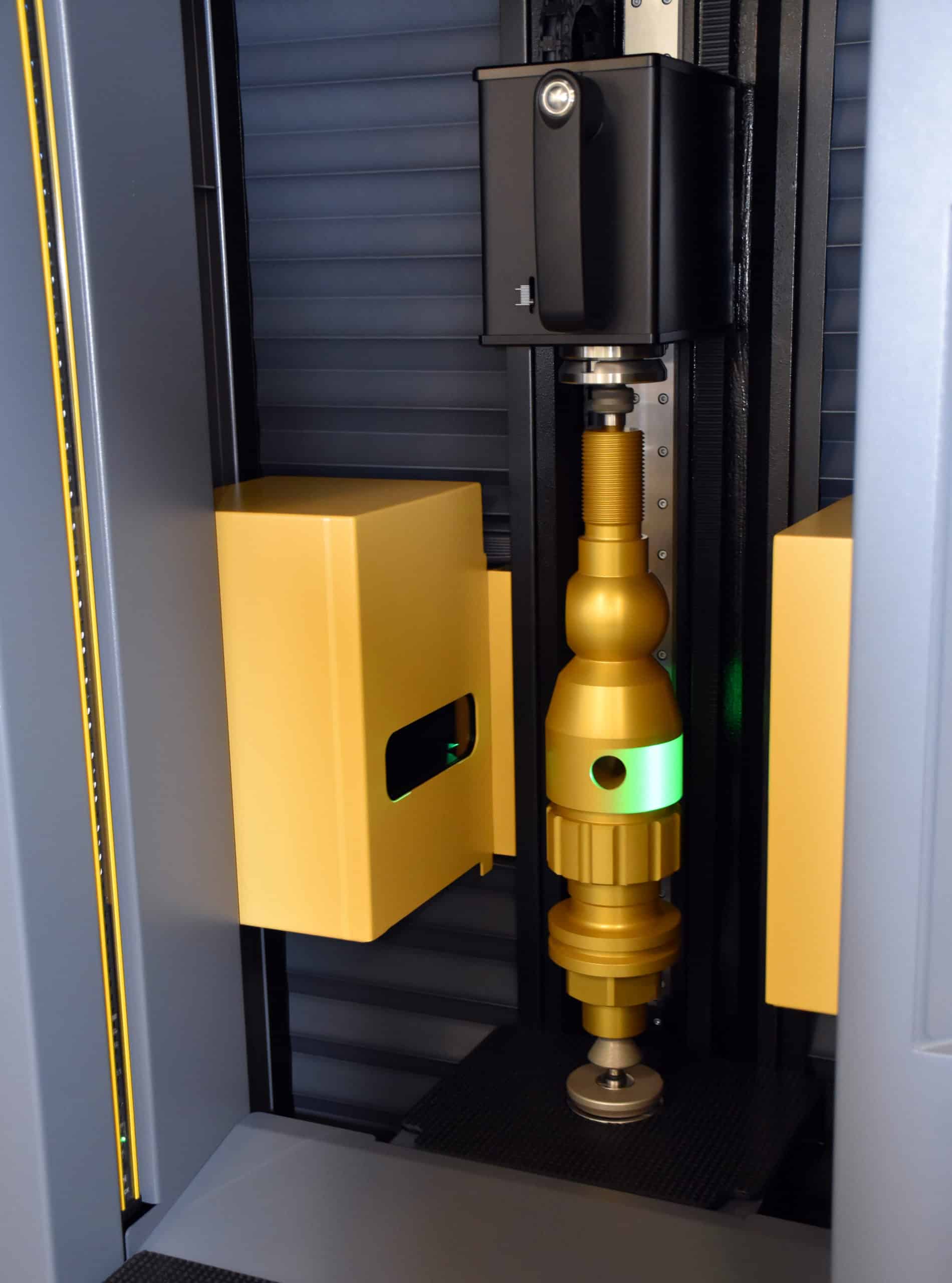

    • Precision and Efficiency: Experience exceptional precision with our no-contact machine’s bi-telecentric optical system and high-resolution CMOS camera. It features a precision sliding headstock with an integrated and protected daily standard, as well as a quick and hassle-free accessory changing system. The machine also includes integrated temperature sensors and exists with or without tilt system for true comprehensive thread measurement.

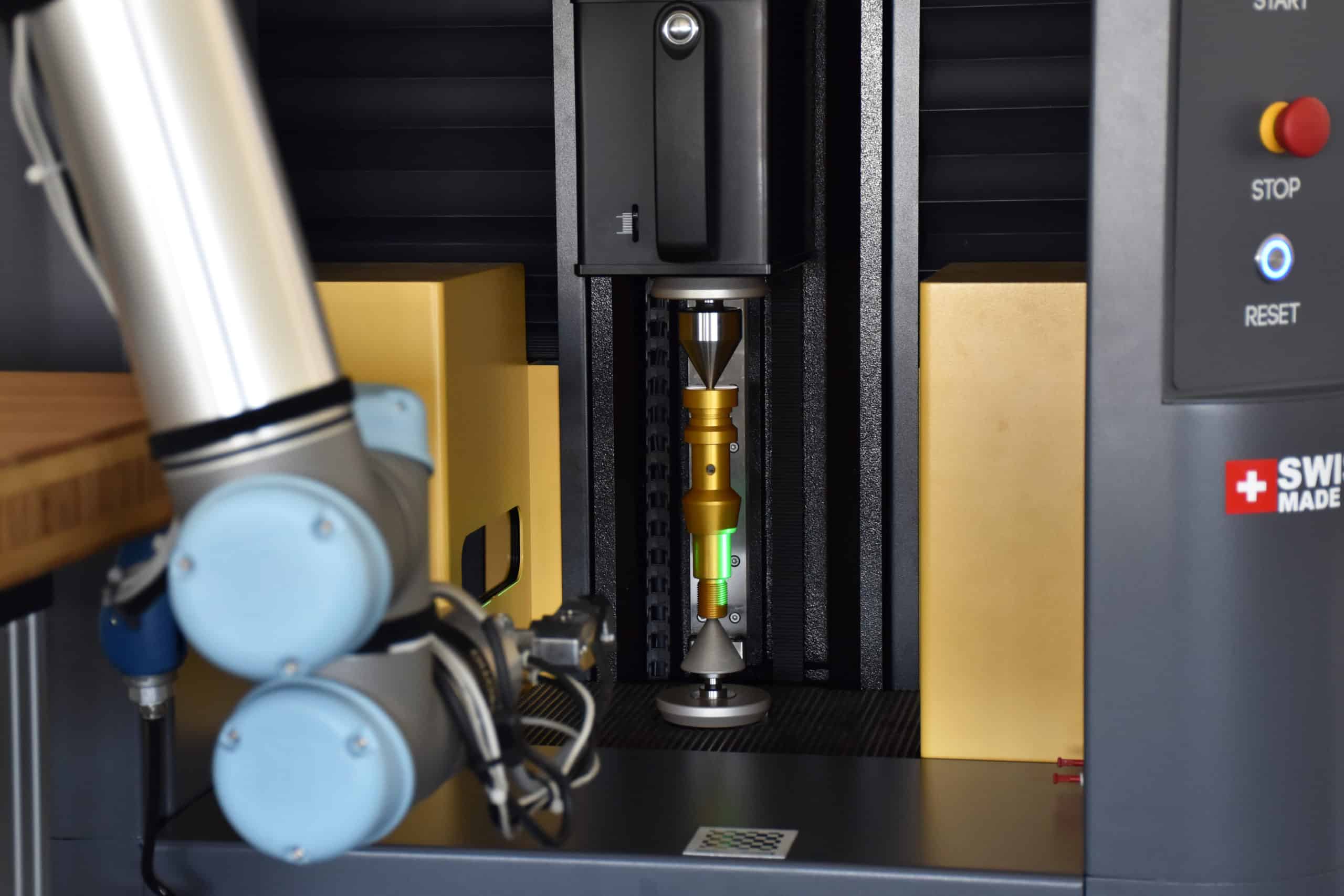

    • Seamless Integration: Our offering includes the Reflex SCAN+ software and a PC, empowering you to effortlessly measure a wide range of elements in an intuitive manner. Also available with ‘Automation Ready’ configuration upon request, to seamlessly integrate into your workflow.

    Applications

    icon-diameter
    Diameter
    logicielsDistance
    Distance
    angle-icon
    Angle
    logicielsPosition
    Localisation
    icon-form-deviation
    Form deviation

    Industries

    icon-automotive-sylvac
    Automotive
    icon-aeronotics-sylvac
    Aeronautics
    icon-fastening-sylvac
    Fastening
    icon-oackaging-sylvac
    Packaging
    icon-machine-tool-sylvac
    Machine tool

    Overview

    902-4145
    EAN 7640125682687
    Diameter Length
    Measuring range (mm) 145 615
    Resolution up to (mm) 0.0001
    Max. Error (µm) 1.5 + (D[mm]/100) µm ¹ 4 + (L[mm]/200) µm ¹
    Repeatability 2δ (µm) 0.5 1.0
    Holding capacity diameter (mm) 254 615
    Axial positioning speed (mm/s) Up to 160
    Headstock Rotary headstock for static and dynamic measurements
    Max. weight of part (kg) 100
    Machine’s weight (kg) 530

    ¹ 20° C ± 1° C

    902-4145
    EAN 7640125682687
    Diameter Length
    Measuring range (mm) 145 615
    Resolution up to (mm) 0.0001
    Max. Error (µm) 1.5 + (D[mm]/100) µm ¹ 4 + (L[mm]/200) µm ¹
    Repeatability 2δ (µm) 0.5 1.0
    Holding capacity diameter (mm) 254 615
    Axial positioning speed (mm/s) Up to 160
    Headstock Rotary headstock for static and dynamic measurements
    Max. weight of part (kg) 100
    Machine’s weight (kg) 530

    ¹ 20° C ± 1° C

    Instrument according to technical specifications
    Adapter for Morse 2 (902-6260)
    Computer with screen, keyboard and mouse
    Table 350mm (700mm optional, 902-6611)
    Windows multilingual operating system
    Sylvac Reflex SCAN Software +
    Manual
    Accessories 902-6210, 902-6380 & Machine stand, with screen & keyboard holder
    Optical measurement SYLVAC-SCAN S145
    CHF 91'229.00
    Scroll to Top

    Request a demo

    Optical measurement SYLVAC-SCAN S145

    Contact us

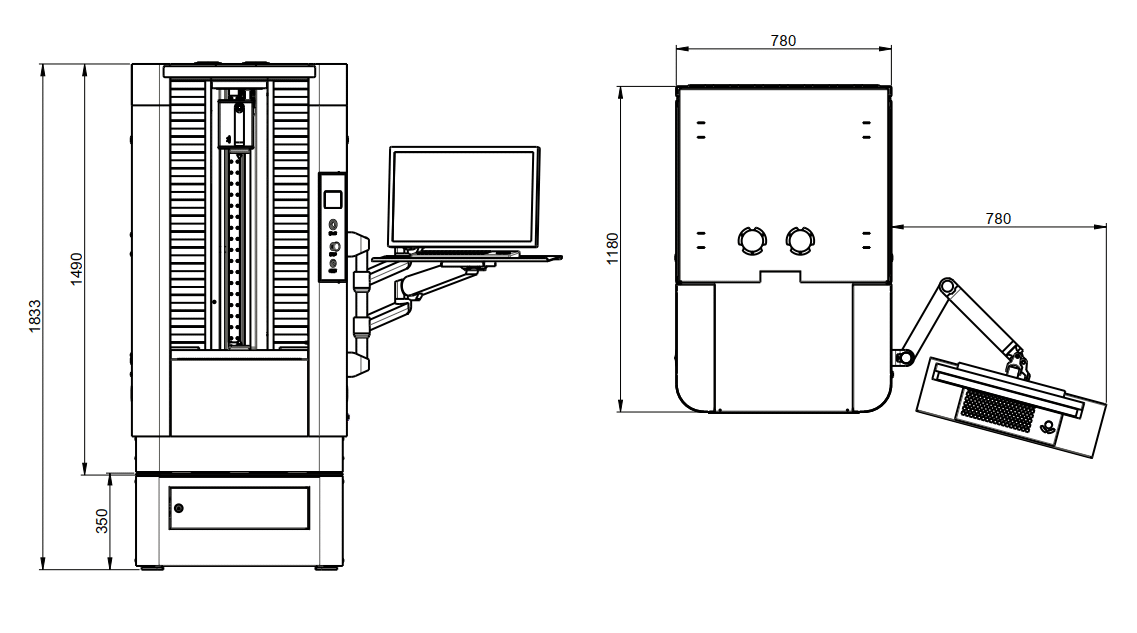

    Download Technical Plan :Optical measurement SYLVAC-SCAN S145
