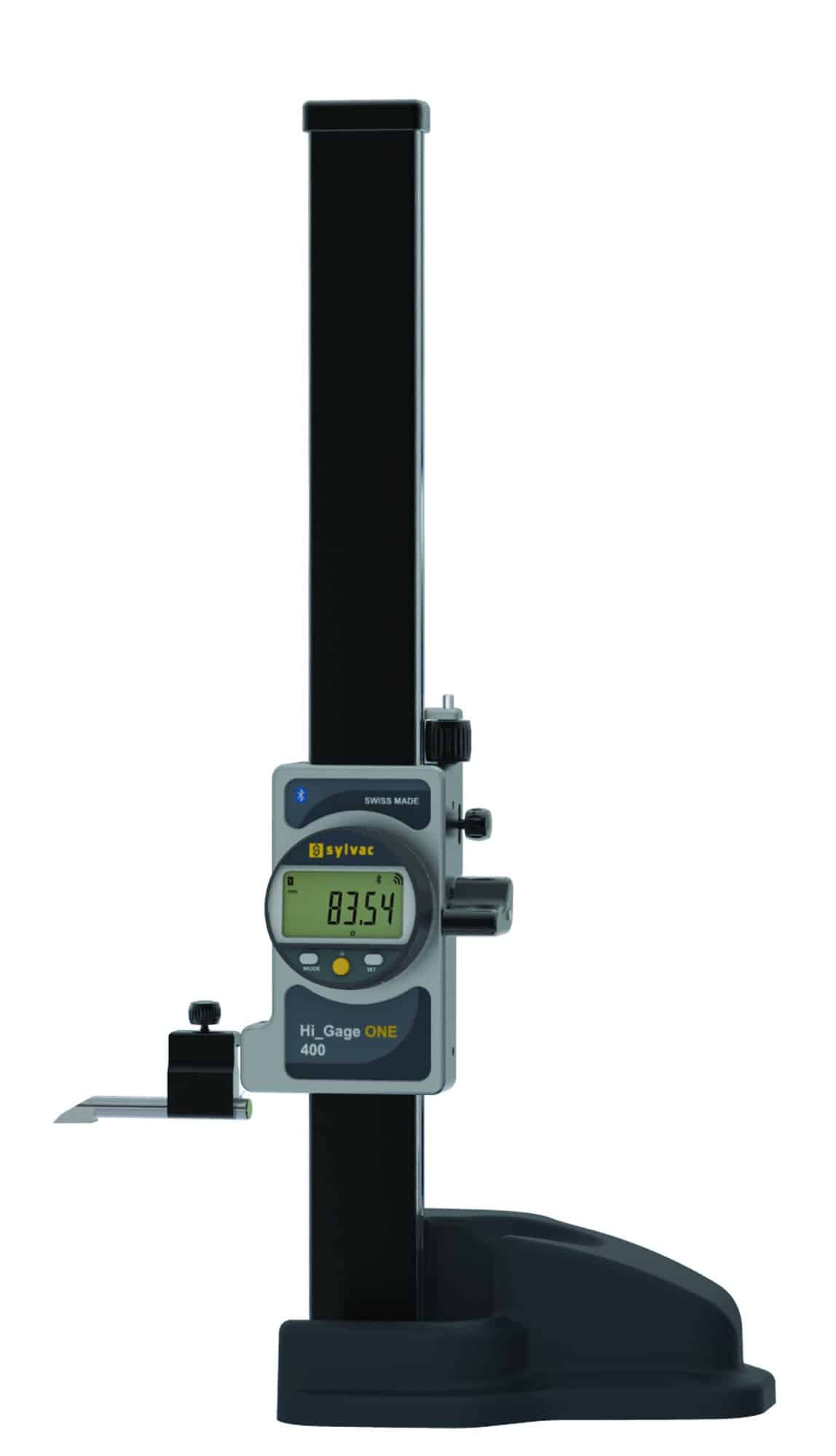

    Height gauge Hi_Gage ONE Smart

    Starting at :
    CHF 1'057.00

    *Available in different measuring ranges

    Description

    Tracing and measuring height gauge with integrated Bluetooth® technology.
    SIS
    Smart Inductive System (SIS)
    MicrosoftTeams-image (5)
    Swiss made
    Cable
    Cable

    Features

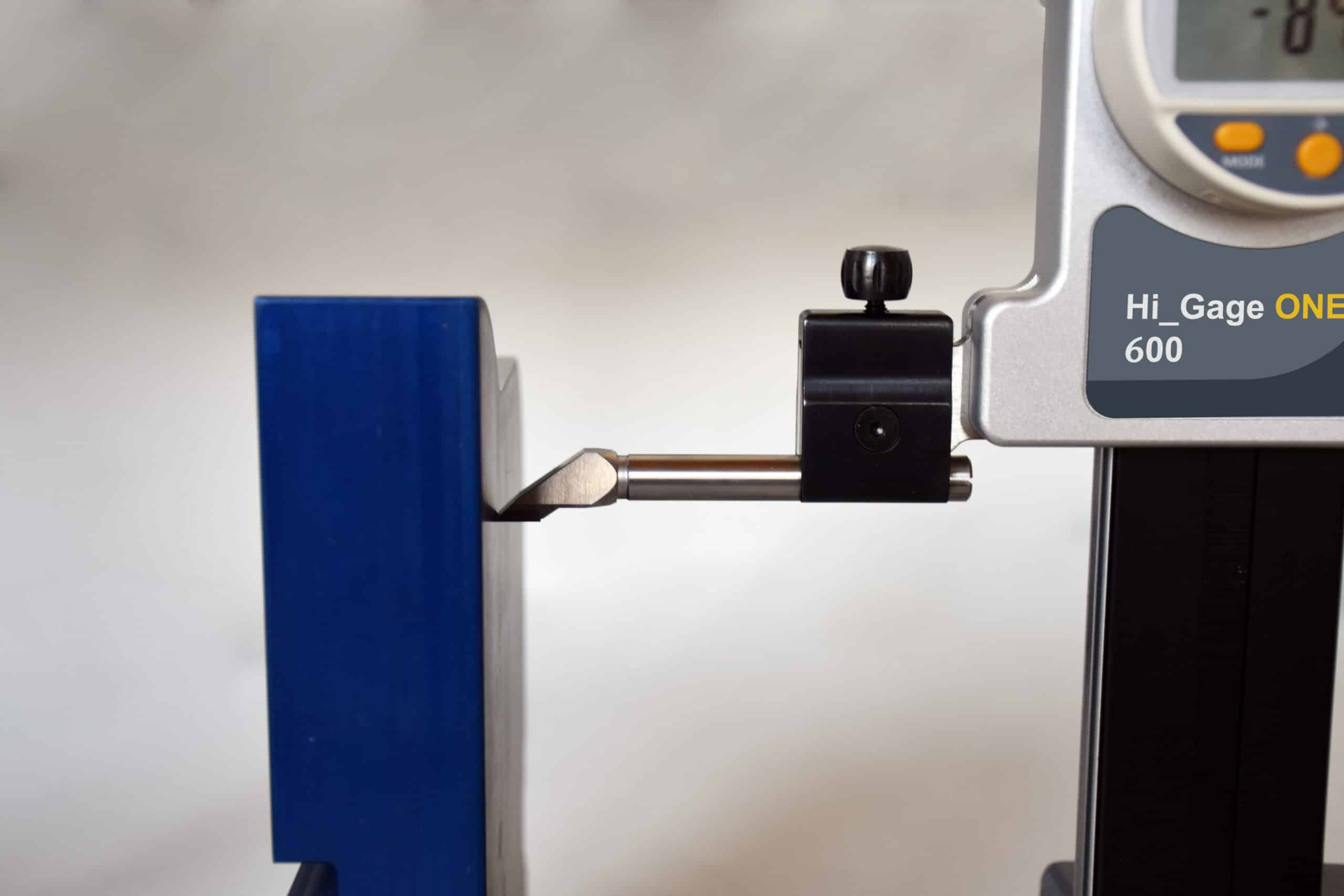

    • Intuitive and Versatile: Enjoy a wide range of functions, including MIN/MAX/DELTA, and the ability to enter a probe constant for measuring diameters and center-to-center distances.
    • Robust and Precise: With a robust mechanics system, self-locking rapid transfer system, and fine adjustment screws, you can expect accuracy and longevity. The device comes with a new, very robust double guide system, making it more reliable.
    • Seamless data acquisition: The device features data outputs for PROXIMITY, POWER, and Bluetooth® that make it easy to integrate into any setup. It also has an integrated Bluetooth® system that allows for wireless data transfer.
    • Ergonomic solution: The measuring and tracing column boasts an ergonomic cast iron base for good sitting posture and a compact case Ø 59.5 mm with a display resolution of 0.01 mm and measuring range of 400 and 600 mm.
    • User-Friendly: The device has three buttons, including the central button with a selectable favorite function, and a light indication validating the probing, making it easy to use and convenient.
    • Complete Package: The device comes supplied with a tracing probe, ball probe Ø 8 mm, and clamping stem for a lever indicator.

    Applications

    icon-diameter

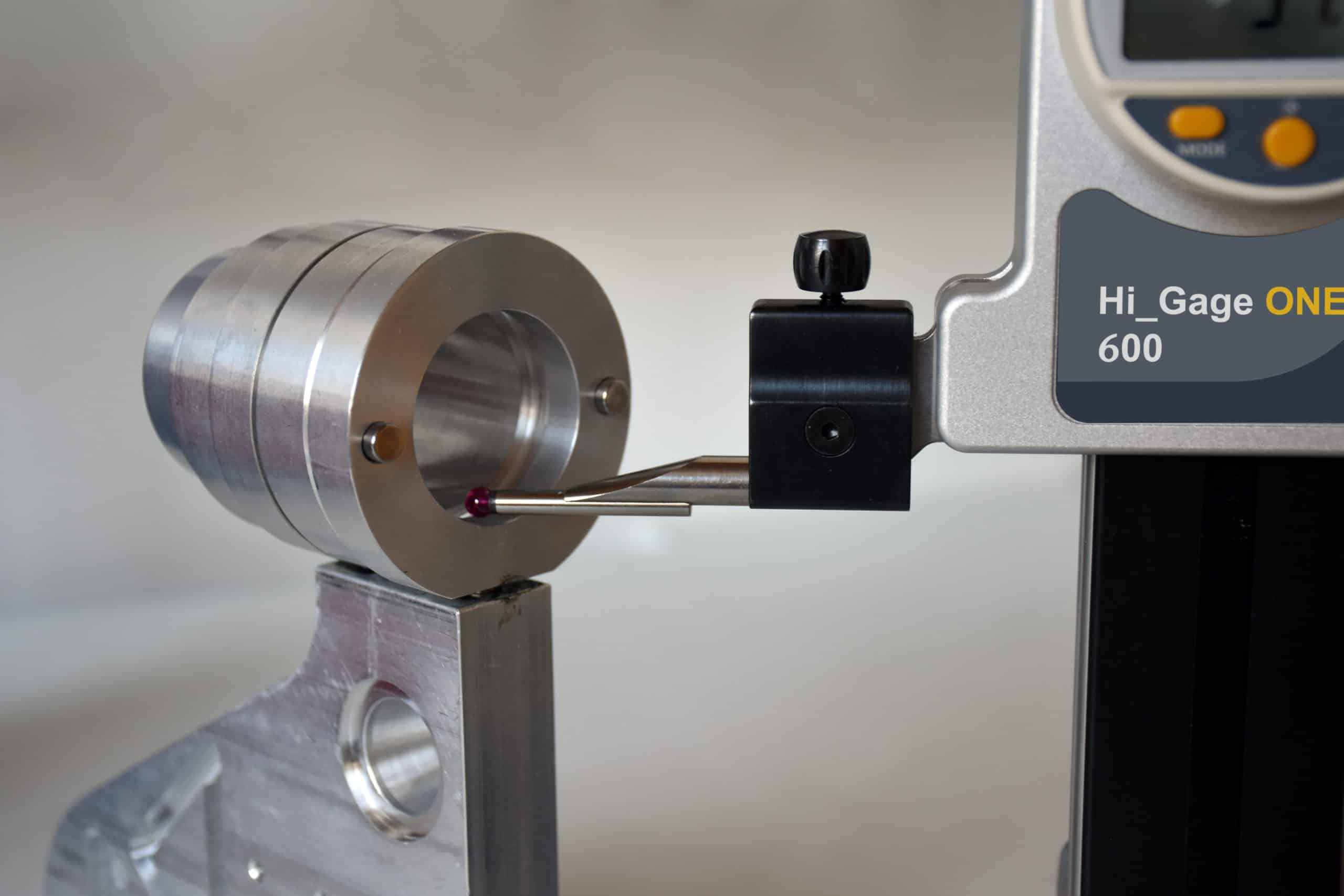

    Diameter
    logicielsDistance

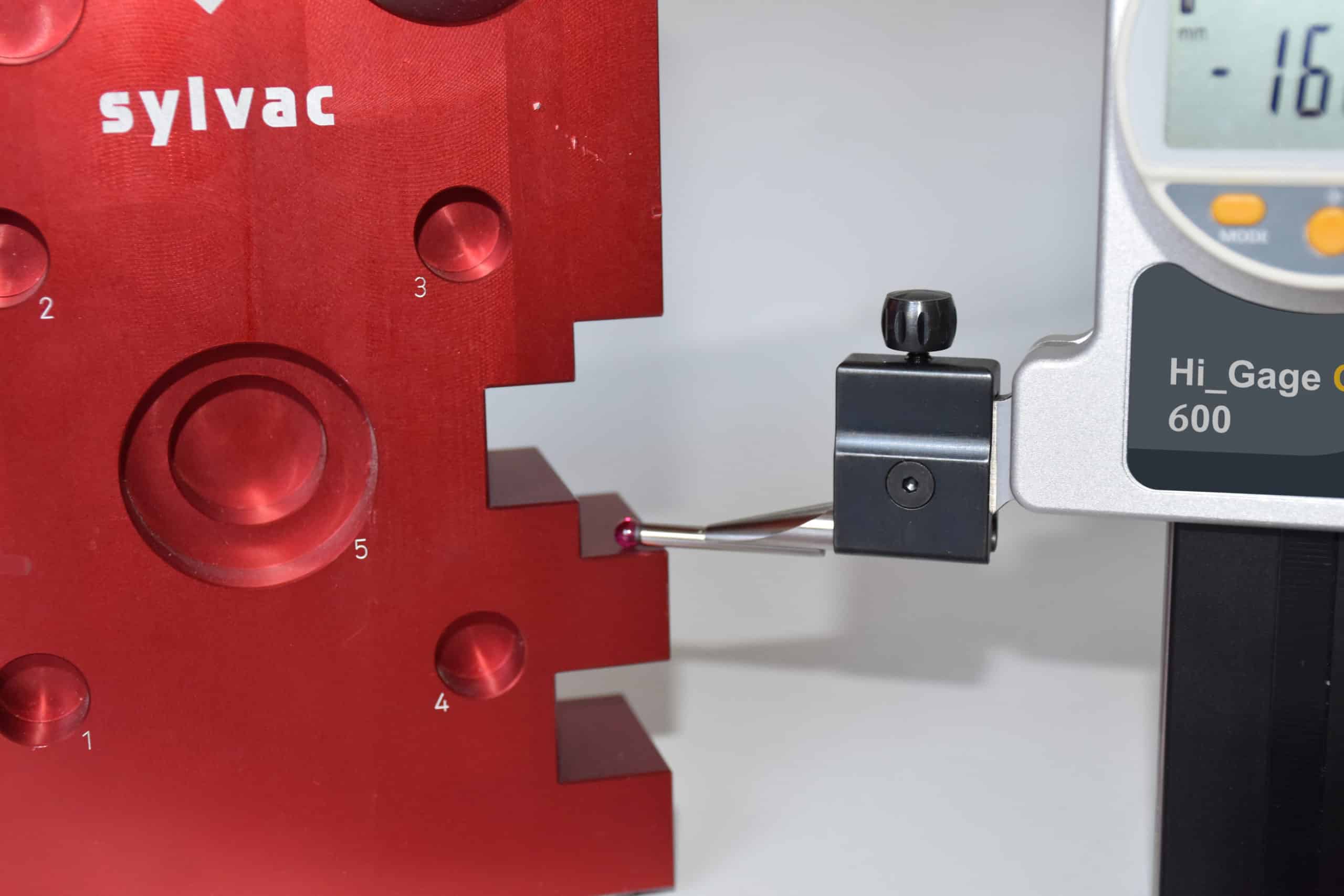

    Distance

    Industries

    icon-automotive-sylvac
    Automotive
    Electronics
    icon-aeronotics-sylvac
    Aeronautics
    icon-oackaging-sylvac
    Packaging
    icon-machine-tool-sylvac
    Machine tool
    icon-medical-device-sylvac
    Medical device

    Overview

    840-0406 840-0606
    EAN 7640125698848 7640125698831
    Measurement range (mm) 400 600
    Resolution (mm) 0.01
    Max. error (μm) 40 50
    Repeatability (μm) 10 ¹
    2 references
    PRESET 9000.00
    Selection of measuring direction
    Smart Inductive Sensor (S.I.S)
    Output data Tracing probe (840-9002)
    Bluetooth® wireless technology / RS232 / USB

    ¹ ± 1 digit

    840-0406 840-0606
    EAN 7640125698848 7640125698831
    Measurement range (mm) 400 600
    Resolution (mm) 0.01
    Max. error (μm) 40 50
    Repeatability (μm) 10 ¹
    2 references
    PRESET 9000.00
    Selection of measuring direction
    Smart Inductive Sensor (S.I.S)
    Output data Tracing probe (840-9002)
    Bluetooth® wireless technology / RS232 / USB

    ¹ ± 1 digit

    Standard Delivery
    Tracing probe (840-9002)
    Calibration certificate
    Quickstart
    Accessories
    930-2112 Demonstration piece
    840-9001 Ball probe Ø8mm
    840-9002 Tracing probe (standard delivery)

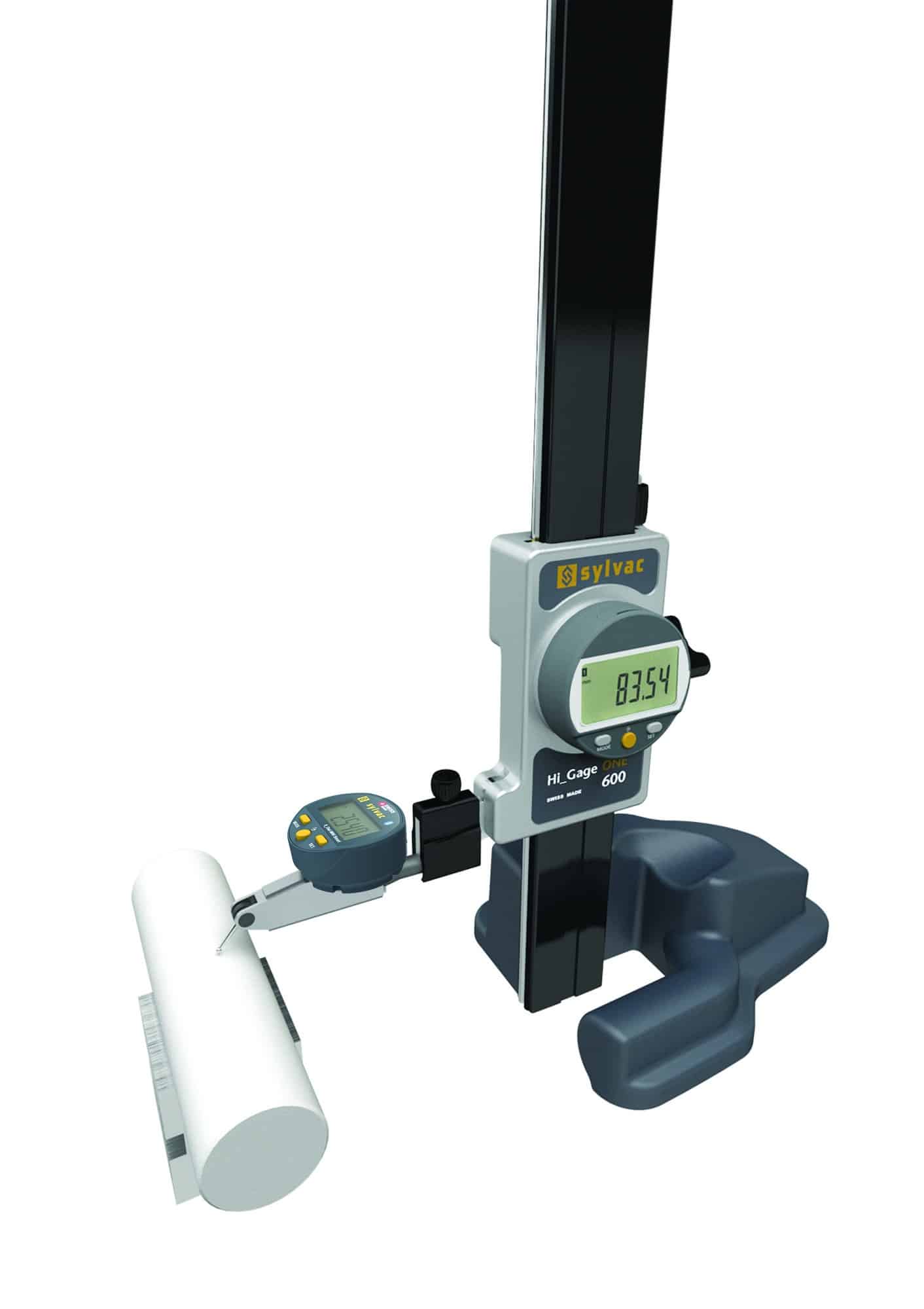

    905-2247 Clamping stem
    926-7022 S_Footswitch Smart
    • Not available

    Height gauge Hi_Gage ONE Smart
    CHF 1'057.00
    Scroll to Top

    Request a demo

    Height gauge Hi_Gage ONE Smart

    Contact us

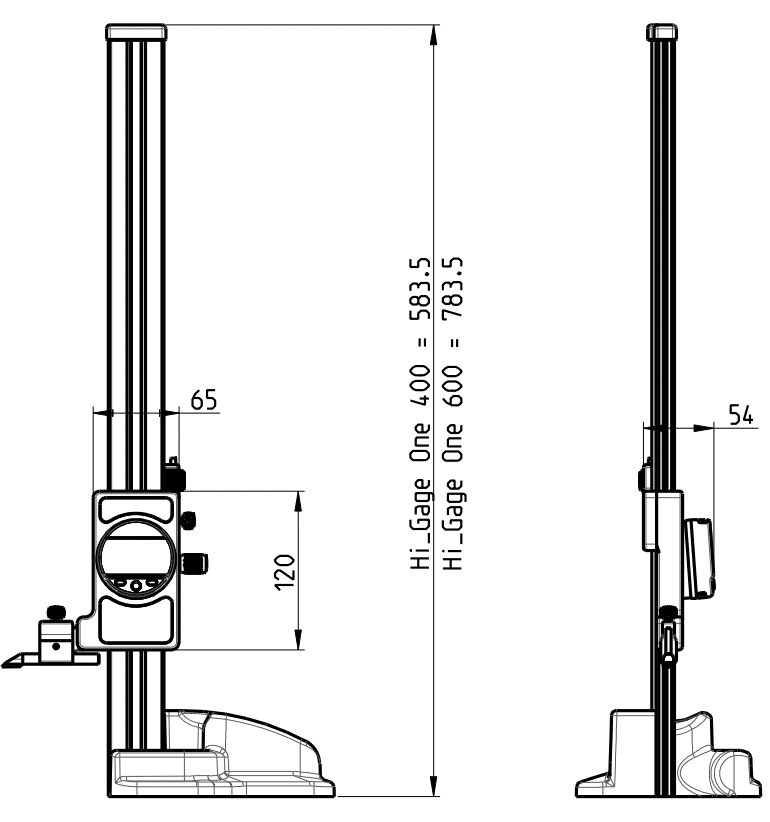

    Download Technical Plan :Height gauge Hi_Gage ONE Smart
