Digital indicator S_Dial WORK PLC

*Available in different measuring ranges

Description

Digital indicator with PLC connector.
1um
Resolution: 1µm
MicrosoftTeams-image (5)
Swiss made
Cable
Cable

Features

  • Automation at your fingertips: Our indicator features a direct PLC connector that seamlessly integrates with your automation systems. Enjoy seamless connectivity with multiple communication protocols, such as ASCII, MODBUS, and ORBIT.
  • Built to last: Water and coolant resistant our indicator boasts an IP54 protection for the 0.01 mm resolution version and IP67 for the 0.001 mm resolution version
  • Convenient features: Benefit from a broad range of functions, including MIN/MAX/DELTA, TOL, Factor, PRESET, and AUTO OFF, tailored to your specific needs.
  • Easy readings: With Ø 59.5 mm housing rotatable by 270° and a Large display offering a resolution of 0.01 mm or 0.001 mm, and a LED tolerance status indication enables quick and accurate decision-making.

Applications

icon-form-deviation
Form deviation
logicielsDistance
Distance

Industries

icon-automotive-sylvac
Automotive
Electronics
icon-aeronotics-sylvac
Aeronautics
icon-oackaging-sylvac
Packaging
icon-machine-tool-sylvac
Machine tool
icon-medical-device-sylvac
Medical device

Overview

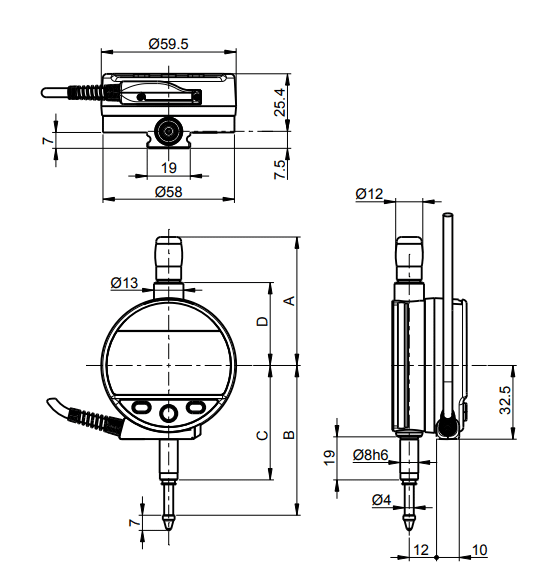

805-7301 805-7201 805-7501 805-7401
EAN 7640125713480 7640125680973 7640125713503 7640125718294
Measuring range (mm) 12.5 25
A (mm) 56.7 69.4
B (mm) 66.1 78.5
C (mm) 50.5 50.5
D (mm) 36.6 49.4
Resolution (mm) 0.001 0.01 0.001 0.01
Max. Error fe (µm) 4 10 5 10
Repeatability (µm) 2
Output data PLC cable / RS232 (Proximity) and RS485 (cable) compatible
Data bus RS485 compatible / Charge 1/256 (Protocole MODBUS, ASCII or ORBIT)
Measuring force (N) 0.65 – 0.9 0.65 – 1.15
IP rating IP67 IP54 IP67 IP54
Clamping Ø8h6, interchangeable anvil probe M2.5
Standard functions (customizable by PC) mm/inch, ref I/II, preset (max 999.999)
min/max/delta, tolerances, resolution, measuring direction, multiplier, keylock
805-7301 805-7201 805-7501 805-7401
EAN 7640125713480 7640125680973 7640125713503 7640125718294
Measuring range (mm) 12.5 25
A (mm) 56.7 69.4
B (mm) 66.1 78.5
C (mm) 50.5 50.5
D (mm) 36.6 49.4
Resolution (mm) 0.001 0.01 0.001 0.01
Max. Error fe (µm) 4 10 5 10
Repeatability (µm) 2
Output data PLC cable / RS232 (Proximity) and RS485 (cable) compatible
Data bus RS485 compatible / Charge 1/256 (Protocole MODBUS, ASCII or ORBIT)
Measuring force (N) 0.65 – 0.9 0.65 – 1.15
IP rating IP67 IP54 IP67 IP54
Clamping Ø8h6, interchangeable anvil probe M2.5
Standard functions (customizable by PC) mm/inch, ref I/II, preset (max 999.999)
min/max/delta, tolerances, resolution, measuring direction, multiplier, keylock
Standard Delivery
Instrument according to technical specifications
PLC cable + binder included
Manual
Calibration certificate
Contact points M2.5
905-2201 (carbide)
905-2202
905-2203
905-2206
905-2204
905-2205
905-2207



Standard Accessories
805-0214 Lifting device, range 12.5mm
805-0215 Lifting device, range 25mm
805-0213 Lug back
(delivered with 4 screws M2x4 DIN 963A)
905-2231 Sleeve Ø8 –> 10mm with locking screw
905-2214 Lifting device
905-2215 Upper lifting device
905-2216 Lifting device with photo-cable
905-2218 Pneumatic lifting device with foot pedal
905-2217 Lifter only for 905-2218
905-2219 Pneumatic foot pedal for 905-2218
905-2221 Dust protection for indicator, range 12.5 mm
905-2222 Dust protection for indicator, range 25 mm
905-2223 Depth measuring base
905-2261 Snap connector for pneumatic lifter x2
905-2262 Snap connector for pneumatic lifter x4
905-2224 Plastic lifting lever (bottom)
905-2225 Plastic lifting ring (bottom)
905-4214 ¹ Lower lifting device, range 12.5 mm
926-6101 Replacement cable for digital indicator PLC
905-4516 Power RS (Standard 3 m)
905-4519 Power RS (Standard 15 m)
905-4538 Power RS (bent) (Standard 3 m)
926-6821 Power USB (Standard 3 m)
926-6838 Power USB (bent) (Standard 3 m)
926-6723 Proximity RS232 (Standard 3 m)
926-6721 Proximity USB (Standard 3 m)
926-7024 Battery Pack

¹ used on range 20 mm max

Avavilable soon
