Digital indicator S_Dial WORK Nano & Nano Smart
Description

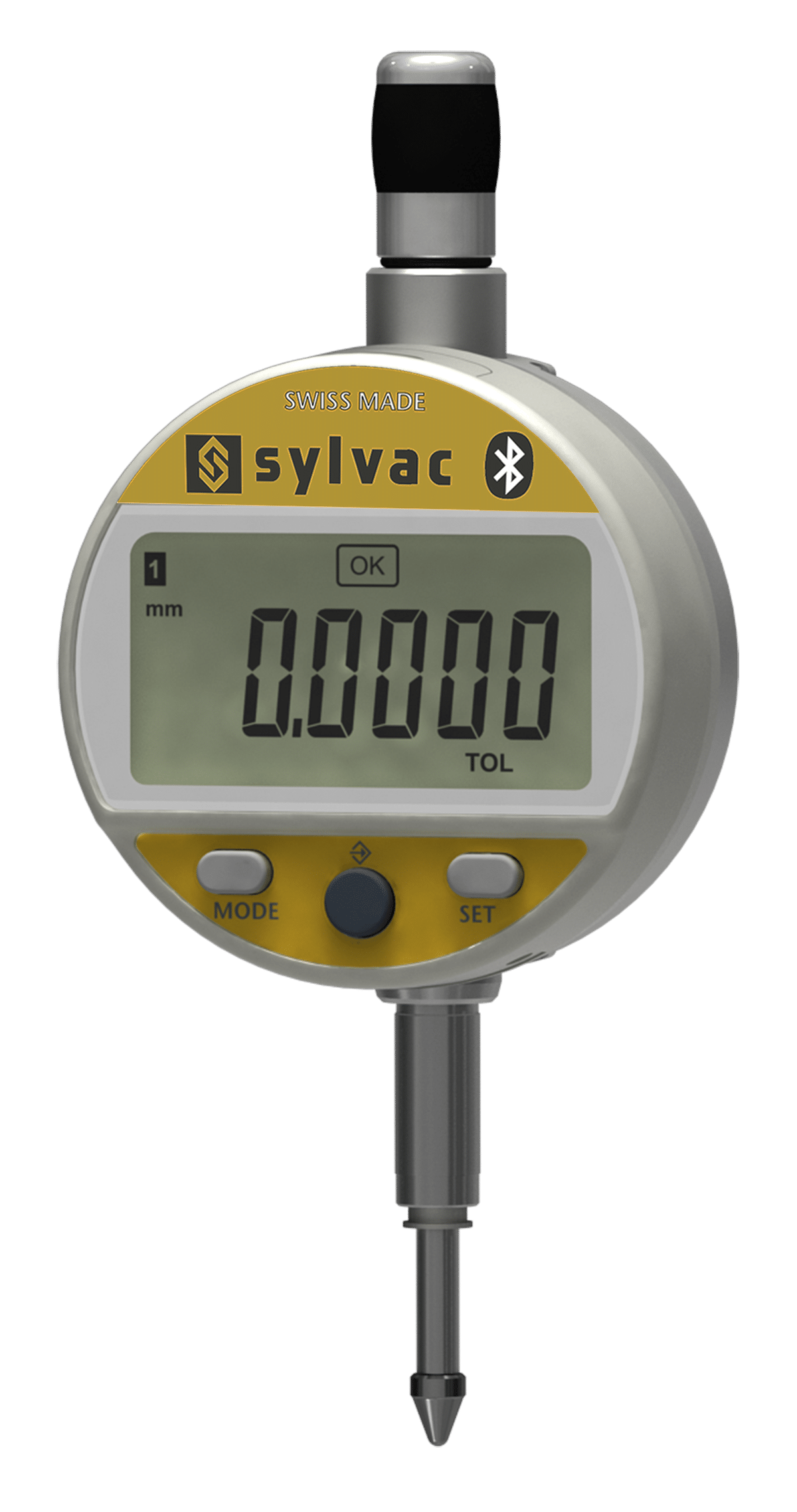

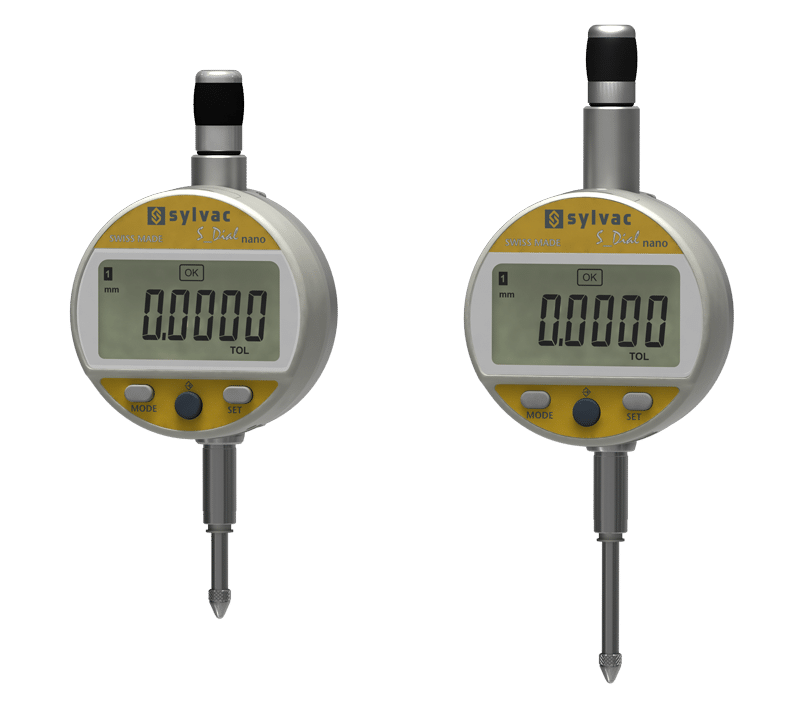

0.1 Micron resolution Digital Indicator. Available in wired or Smart version.
* Available in different measuring ranges
* Available in different measuring ranges

Smart Inductive System (SIS)

Swiss made

0.1µm

Proximity output
Features
- Maximum Resolution: With a micron resolution, our indicator features a large display with a resolution of 0.0001 mm and LED tolerance status indication.
- Seamless Data Aquisition: Integrated Bluetooth® technology, allowing you to transmit measurements wirelessly, quickly and error-free for enhanced productivity on Nano Smart Model.
- Battery-Free Operation: Operate the digital comparator without batteries by utilizing the “Proximity” and “Power” data outputs.
- Customizable Functionality: Tailor the programmable button to meet your specific requirements, enabling quick access to essential functions and streamlining your workflow.
- Built to Last: The robust Ø 59.5 mm housing with a 270° rotatable design is built to withstand tough conditions, and the comparator’s protection class of IP54 ensures durable performance.
- Convenient Features: Benefit from a broad range of functions, including MIN/MAX/DELTA, TOL, Factor, PRESET, and AUTO OFF and favourite function button. Automatically wakes up when moved, enters sleep mode after 10 minutes of inactivity, position memorized in sleeping mode, enhancing efficiency and battery longevity.
- Flexible Measuring Range: Choose your measuring range from one our options: 12.5 or 25 mm.
Overview
Specifications
Standard Delivery
Accessories
Applications
Tutorials
Documents
805-5306 | 805-5506 | 805-6306 | 805-6506 | |
EAN | 7640125697490 | 7640125697520 | 7640125697629 | 7640125697643 |
Measuring range (mm) | 12.5 | 25 | 12.5 | 25 |
Resolution (mm) | 0.0001 | |||
Max. error fe (µm) | 1.2 | 1.6 | 1.2 | 1.6 |
Repeatability (µm) | 0.3 | |||
Protection rating according to IEC 60529 | IP54 | |||
A (mm) | 56.7 | 69.4 | 56.7 | 69.4 |
B (mm) | 66.1 | 78.5 | 66.1 | 78.5 |
C (mm) | 50.5 | 50.5 | 50.5 | 50.5 |
D (mm) | 36.6 | 49.4 | 36.6 | 49.4 |
Connection type (instrument to device) | Power to RS232 ¹ Power to USB ¹ Proximity to RS232 ¹ Proximity to USB ¹ Adaptator RS – USB ¹ View cables info |
Bluetooth® wireless technology ¹ Power to RS232 ¹ Power to USB ¹ Proximity to RS232 ¹ Proximity to USB ¹ Adaptator RS – USB ¹ View cables info |
||
Programmable by PC | ⬤ | |||
Standard functions (customized by PC) |
mm/inch, ref I/II, preset (max 999.999) min/max/delta, toleances, resolution, direction of measurement, multiplication factor, automatic or manual switch off, key lock |
¹ Device: PC, display unit, …
Measuring Force | S 12.5 | S 25 |
Standard (N) | 0.65 – 0.9 | 0.65 – 1.15 |
Low (N) | 0.4 – 0.55 ² | 0.45 – 0.9 ² |
High (N) | 1.0 – 1.6 ² | 0.9 – 1.8 ² |
Tolerance ± 20%, spindle in outgoing measurement position.
² on request
Standard Delivery |
Instrument according to technical specifications |
Lithium battery CR2032 included |
Instruction manual |
Calibration certificate |
Available soon
-
Battery Change
How To Take Care of your instrument : Battery Change
-
-
-
-

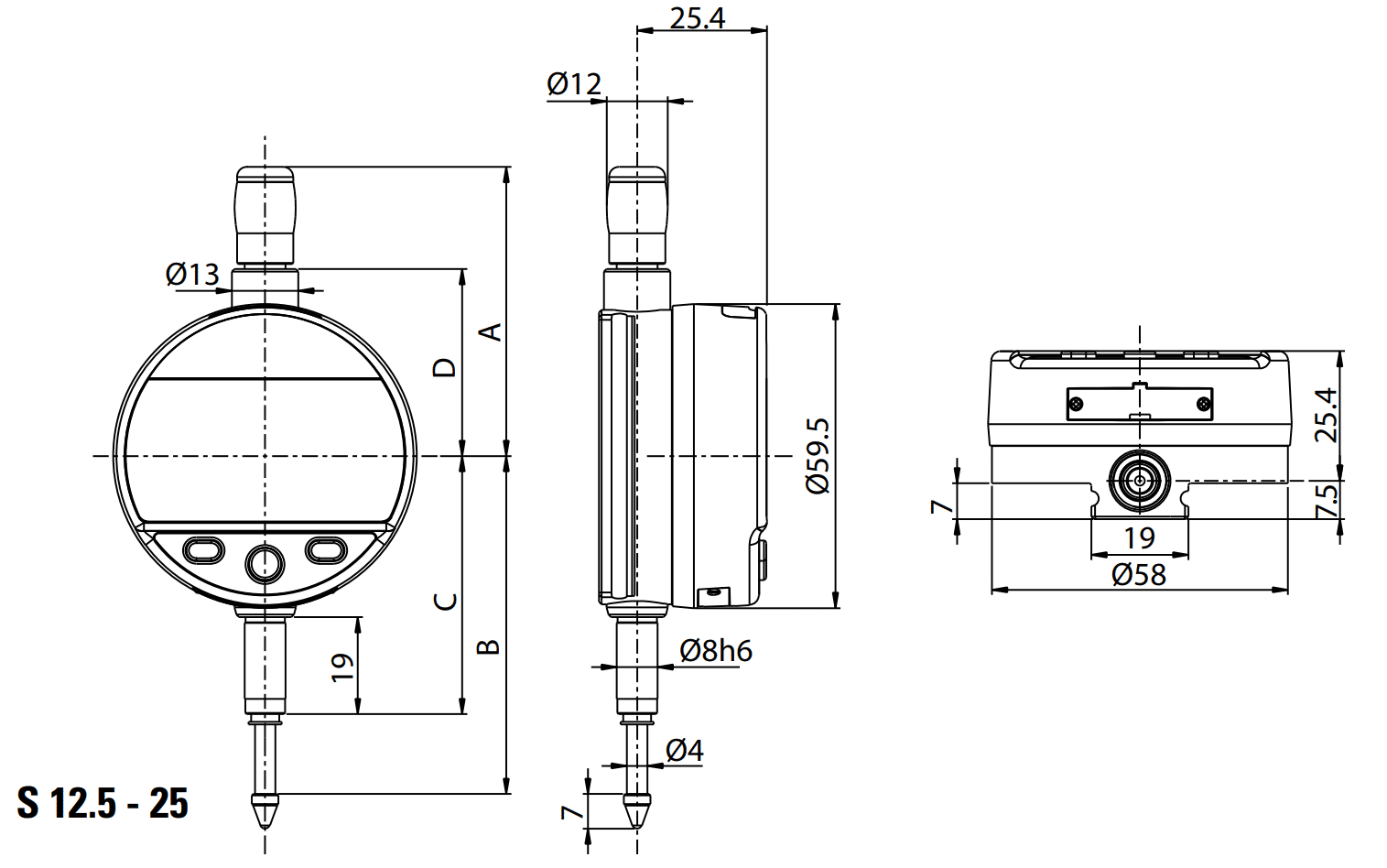

- Technical Plan
- 3D Drawing
- Manual
- Certificate
- Brochure
- Not available
- Not available
- Not available
