Digital indicator S_Dial WORK CBG
Description
The S_Dial WORK CBG is a digital indicator specifically designed for cylindrical bore gauges and comparative internal diameter measurement. Its adaptive analog display helps operators locate the reversal point quickly and reliably, while integrated Bluetooth® connectivity enables efficient measurement data collection for bore inspection.
Best for: comparative internal diameter measurement with cylinder bore gauges, fast reversal-point detection and connected bore inspection.
Features
Designed for cylindrical bore gaugesÂ
Specifically designed for cylindrical bore gauges, the S_Dial WORK CBG provides an efficient solution for comparative internal diameter measurement and bore inspection.Â
Fast reversal-point detectionÂ
The adaptive analog display provides clear visual guidance when searching for the reversal point. The Preset value can be applied directly to the memorized MIN value, helping operators perform bore measurements quickly and consistently.Â
Reliable measurement performanceÂ
With a 12.5 mm measuring range, 0.001 mm resolution, 3 µm maximum error and 2 µm repeatability, the S_Dial WORK CBG provides reliable measurement performance for comparative bore inspection.Â
Flexible data connectivityÂ

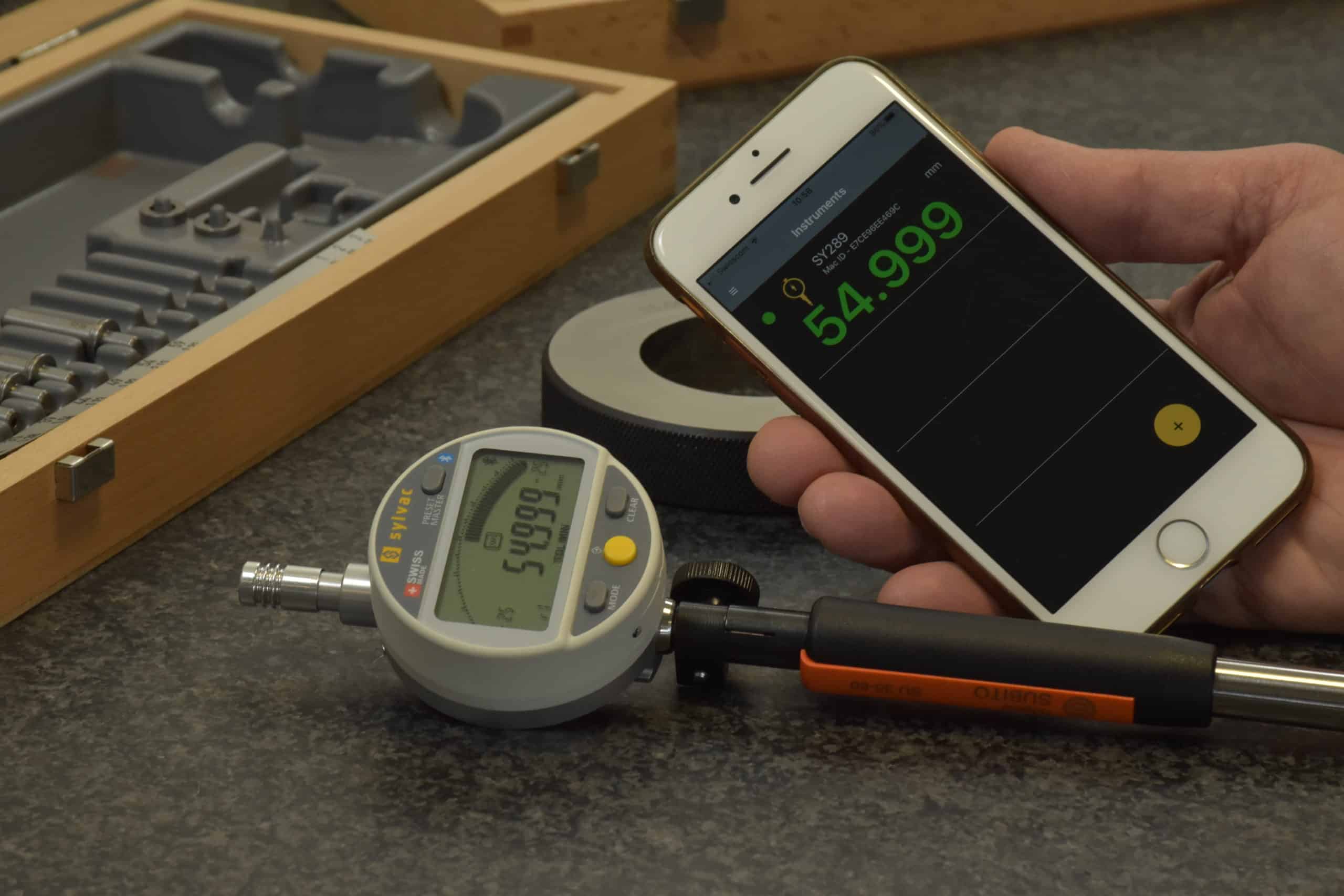

Integrated Bluetooth® wireless technology enables fast measurement data transmission, while Power and Proximity connectors support wired data transmission via USB or RS232 cables for connection to PCs and display units.Â
Measurement data can be collected and processed with Sylcom, or transferred to third-party software using Vmux2.Â
Robust for workshop useÂ
The durable construction and IP54 protection support reliable everyday use in workshop and industrial measurement environments.Â
Advanced measurement functionsÂ
MIN, MAX and DELTA modes, tolerances, Preset, resolution selection and multiplication factor provide the functions required for efficient comparative measurement and inspection tasks.Â
Programmable for your measurement setupÂ
The S_Dial WORK CBG can be programmed by PC, allowing its standard functions to be customized for specific measurement workflows.Â
Applications
Diameter
Form deviation
Industries
Automotive
Electronics
Aeronautics
Packaging
Machine tool
Medical device
Overview
Specifications
Standard Delivery
Accessories
Applications
Tutorials
Documents
FAQ

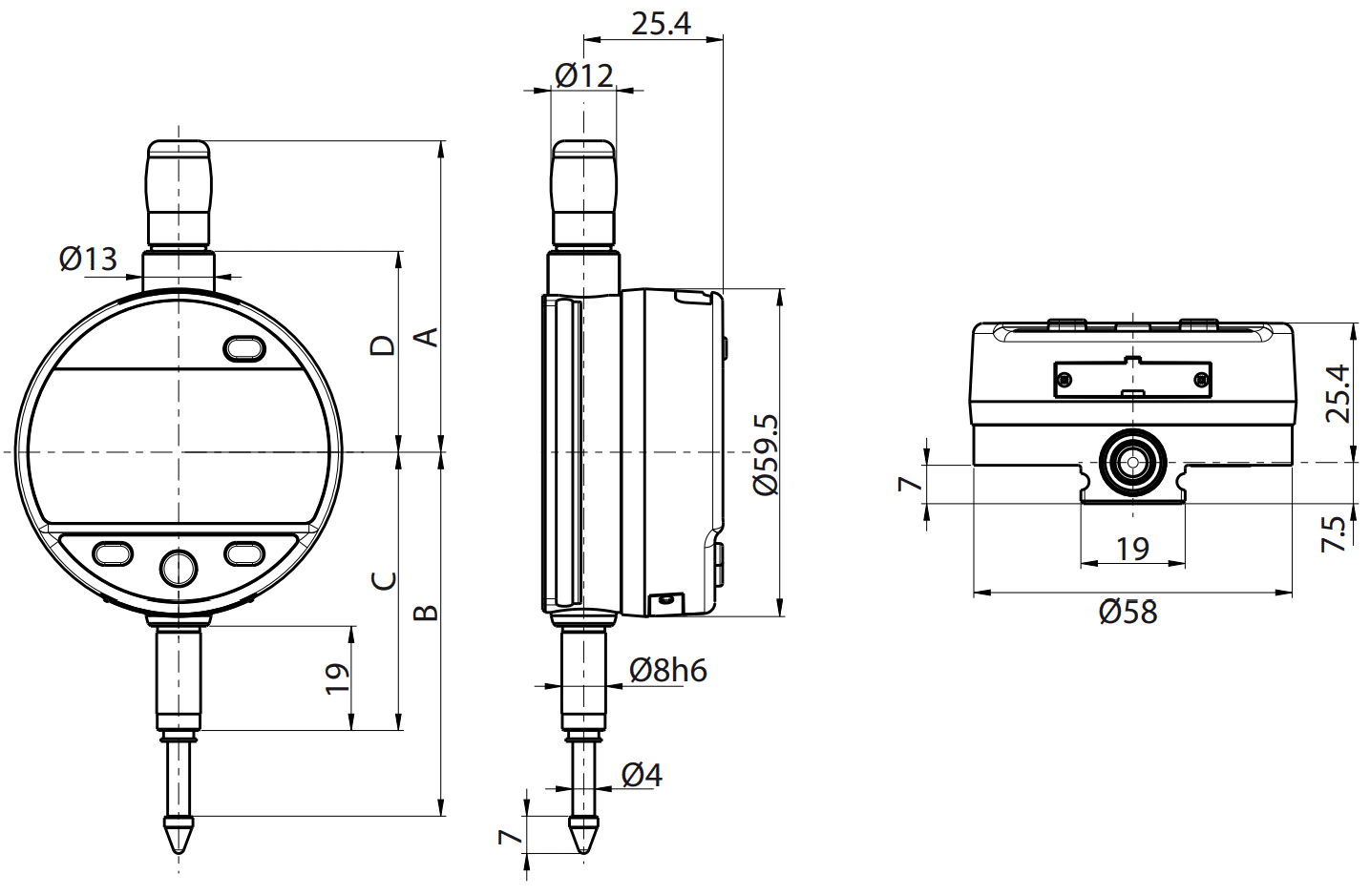

| 805-6317 | |
| EAN | 7640125698411 |
| Measuring range (mm) | 12.5 |
| Resolution (mm) | 0.001 |
| Max. error fe (µm) | 3 |
| Repeatability (µm) | 2 |
| Protection rating according to IEC 60529 | IP54 |
| A (mm) | 56.7 |
| B (mm) | 66.1 |
| C (mm) | 50.5 |
| D (mm) | 36.6 |
| Connection type (instrument to device) | Bluetooth® wireless technology ¹ Power to RS232 ¹ Power to USB ¹ Proximity to RS232 ¹ Proximity to USB ¹ Adaptator RS – USB ¹ View cables info |
| Programmable by PC | ⬤ |
| Standard functions (customizable by PC) | mm/inch, preset (max 999.999) min/max/delta, tolerances, resolution, multiplication factor, automatic or manual switch off |
¹ Device: PC, display unit, …
Measuring Force
| S 12.5 | |
| Standard (N) | 0.65 – 0.90 |
| Low (N) | 0.4 – 0.55 ² |
| High (N) | 1.0 – 1.6 ² |
Tolerance ± 20%, spindle in outgoing measurement position.
² on request
Spécifications
| 805-6317 | |
| EAN | 7640125698411 |
| Measuring range (mm) | 12.5 |
| Resolution (mm) | 0.001 |
| Max. error fe (µm) | 3 |
| Repeatability (µm) | 2 |
| Protection rating according to IEC 60529 | IP54 |
| A (mm) | 56.7 |
| B (mm) | 66.1 |
| C (mm) | 50.5 |
| D (mm) | 36.6 |
| Connection type (instrument to device) | Bluetooth® wireless technology ¹ Power to RS232 ¹ Power to USB ¹ Proximity to RS232 ¹ Proximity to USB ¹ Adaptator RS – USB ¹ View cables info |
| Programmable by PC | ⬤ |
| Standard functions (customizable by PC) | mm/inch, preset (max 999.999) min/max/delta, tolerances, resolution, multiplication factor, automatic or manual switch off |
¹ Device: PC, display unit, …
Measuring Force
| S 12.5 | |
| Standard (N) | 0.65 – 0.90 |
| Low (N) | 0.4 – 0.55 ² |
| High (N) | 1.0 – 1.6 ² |
Tolerance ± 20%, spindle in outgoing measurement position.
² on request
Standard Delivery
|
Standard Delivery
|
| Instrument according to technical specifications |
| Lithium battery CR2032 included |
| Instruction manual |
| Calibration certificate |
Tutorials
Documents
FAQ
What is the S_Dial WORK CBG designed for?
The S_Dial WORK CBG is specifically designed for use with cylindrical bore gauges for comparative internal diameter measurement. It helps operators locate the reversal point and determine the minimum measured value during bore inspection.Â
Which digital indicator should I use with a cylinder bore gauge?
The S_Dial WORK CBG is Sylvac’s dedicated digital indicator for cylindrical bore gauges. Its adaptive analog display and MIN function make it particularly suitable for comparative internal diameter measurement and reversal-point detection.Â
How does the S_Dial WORK CBG help find the reversal point?
During a bore measurement, the adaptive analog display helps the operator identify the reversal point visually. The instrument can memorize the minimum value, and the Preset value can be applied directly to this saved MIN value for efficient comparative measurement.Â
Can the S_Dial WORK CBG transmit measurement data wirelessly?
Yes. The S_Dial WORK CBG features integrated Bluetooth® wireless technology for measurement data transmission. Measurement data can be collected and processed with Sylcom, or transferred to third-party software using Vmux2. Power and Proximity outputs also support wired USB and RS232 connections.Â
What is the resolution of the S_Dial WORK CBG?
The S_Dial WORK CBG has a resolution of 0.001 mm (1 µm), with a 12.5 mm measuring range, a maximum error of 3 µm and a repeatability of 2 µm.Â
What is the protection rating of the S_Dial WORK CBG?
The S_Dial WORK CBG has an IP54 protection rating and is designed for reliable use in workshop and industrial measurement environments.Â
