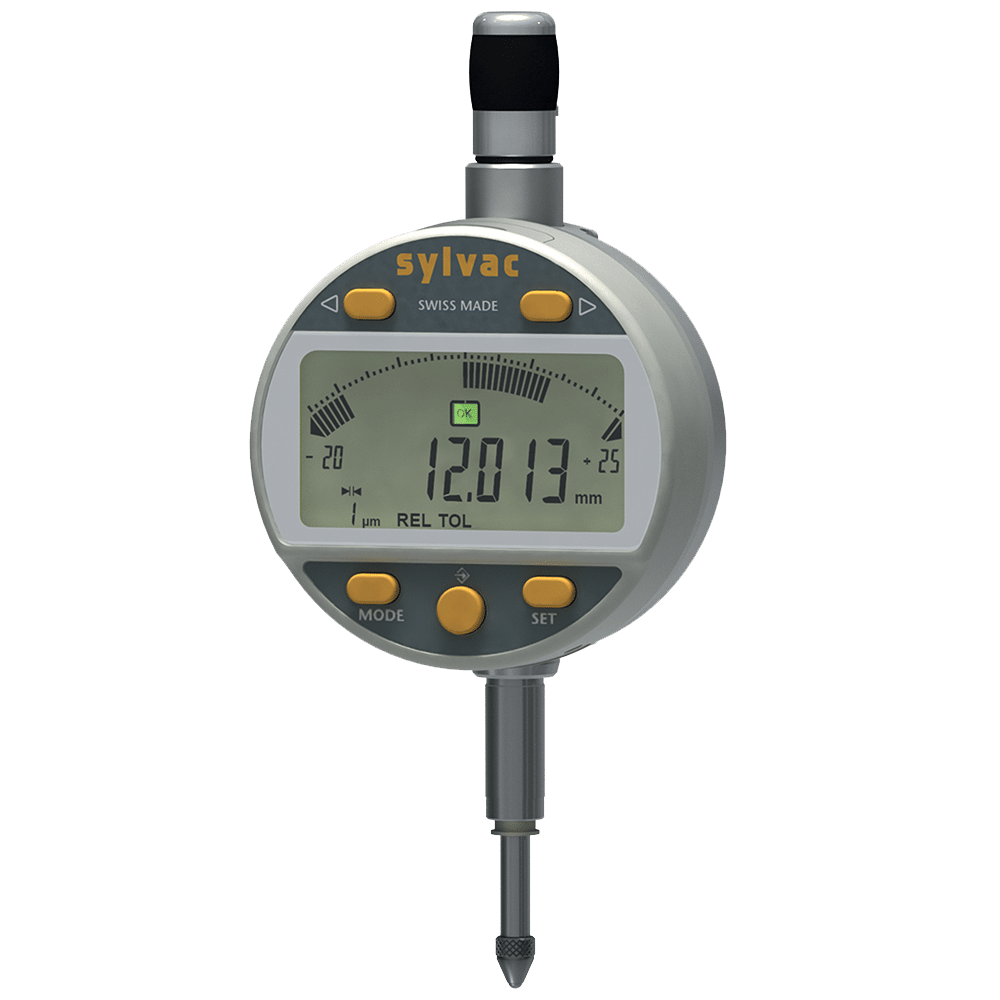

    Digital indicator S_Dial WORK Analog & Analog Smart

    *Available in different measuring ranges

    Description

    Robust digital indicator with analog display.
    1um
    Resolution: 1µm
    SIS
    Smart Inductive System (SIS)
    MicrosoftTeams-image (5)
    Swiss made
    Cable
    Cable

    Features

    • Adjustable Scale : Adaptive analog display with up to 0.2 μm per segment resolution and our robust digital comparator featuring 0.001 mm resolution for meticulous measurements for precise readings.
    • Built to last: Robust construction, IP54 protection class, ensuring long-lasting performance.
    • Intelligent Efficiency: Optimize power consumption with automatic wake-up and sleeping modes powered by our Absolute System SIS. Access a wide range of functions, including MIN/MAX/DELTA, TOL, Factor, PRESET, and AUTO OFF.
    • Advanced connectivity: This indicator features a PUSB/RS232 data output on all models. Smart model adds an integrated Bluetooth® system, enabling quick and easy wireless data transfer. With just one button press, you can transfer measurement data seamlessly, saving time and minimizing the potential for data acquisition errors.
    • Intuitive Design, Impeccable Display: large, high-resolution display featuring a vibrant LED status indicator.
    • Versatile Measuring Ranges: selectable ranges of 12.5 mm and 25 mm, catering to various applications. Request special low or high-pressure versions as needed. Maximum error of 3 μm.

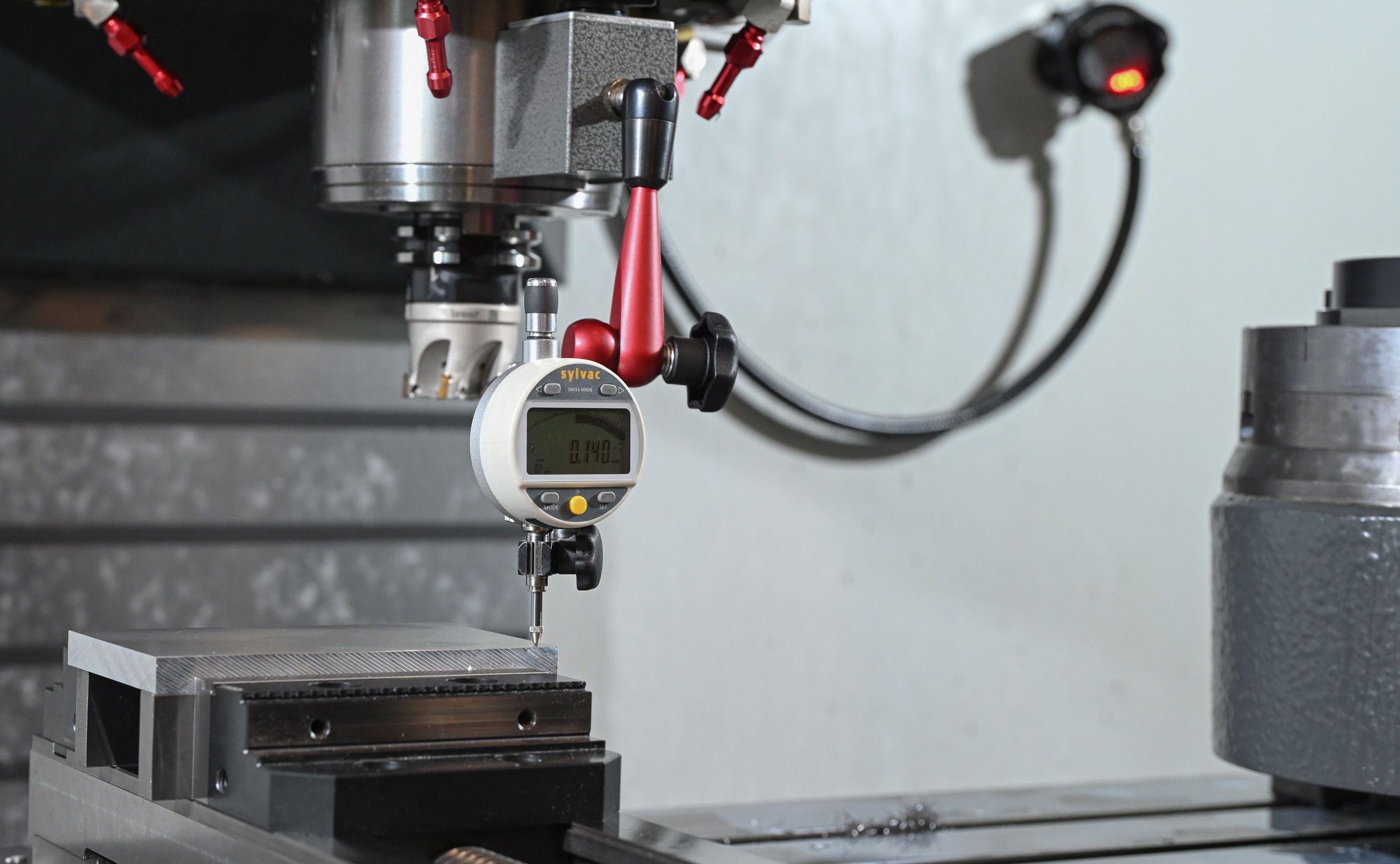

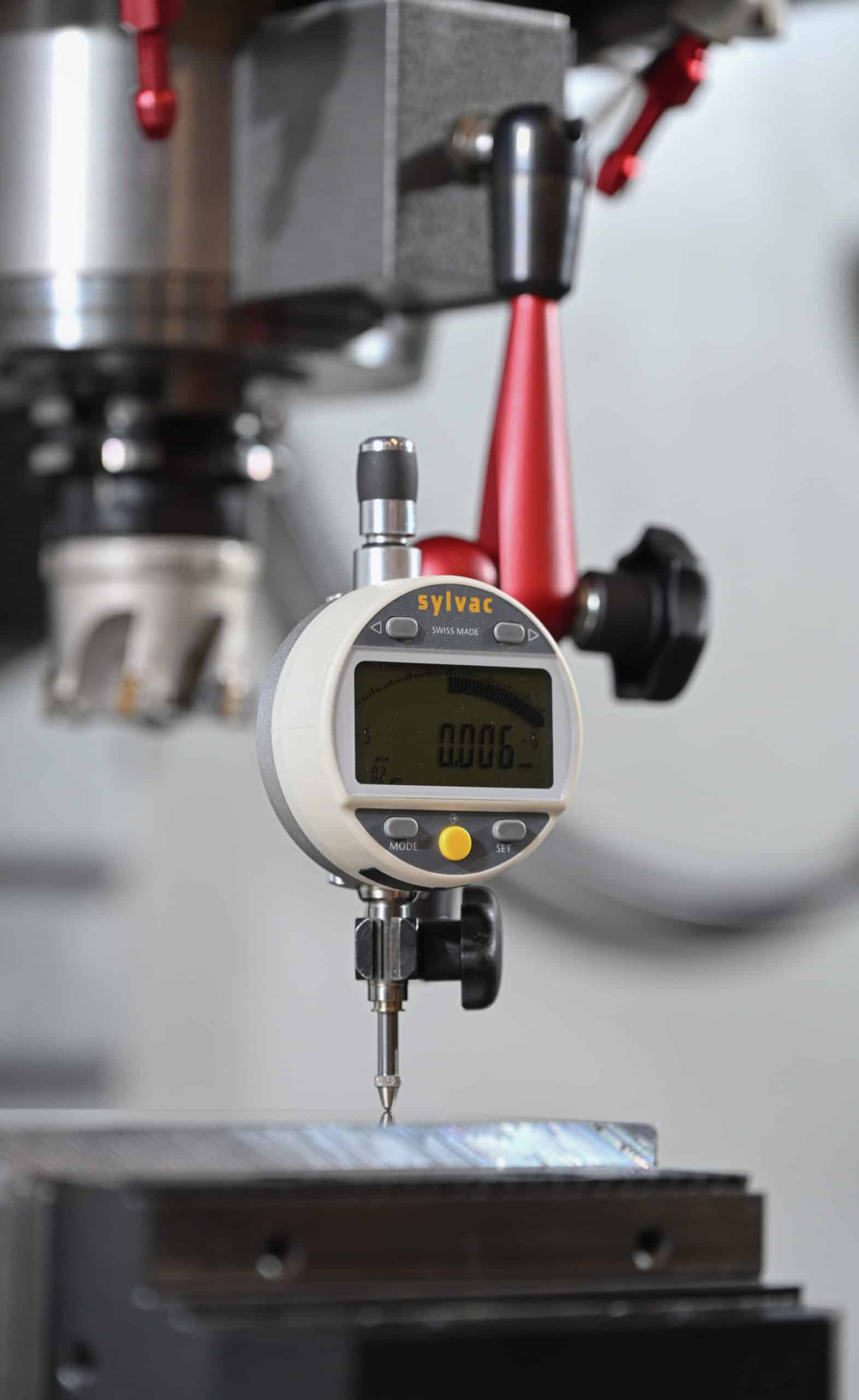

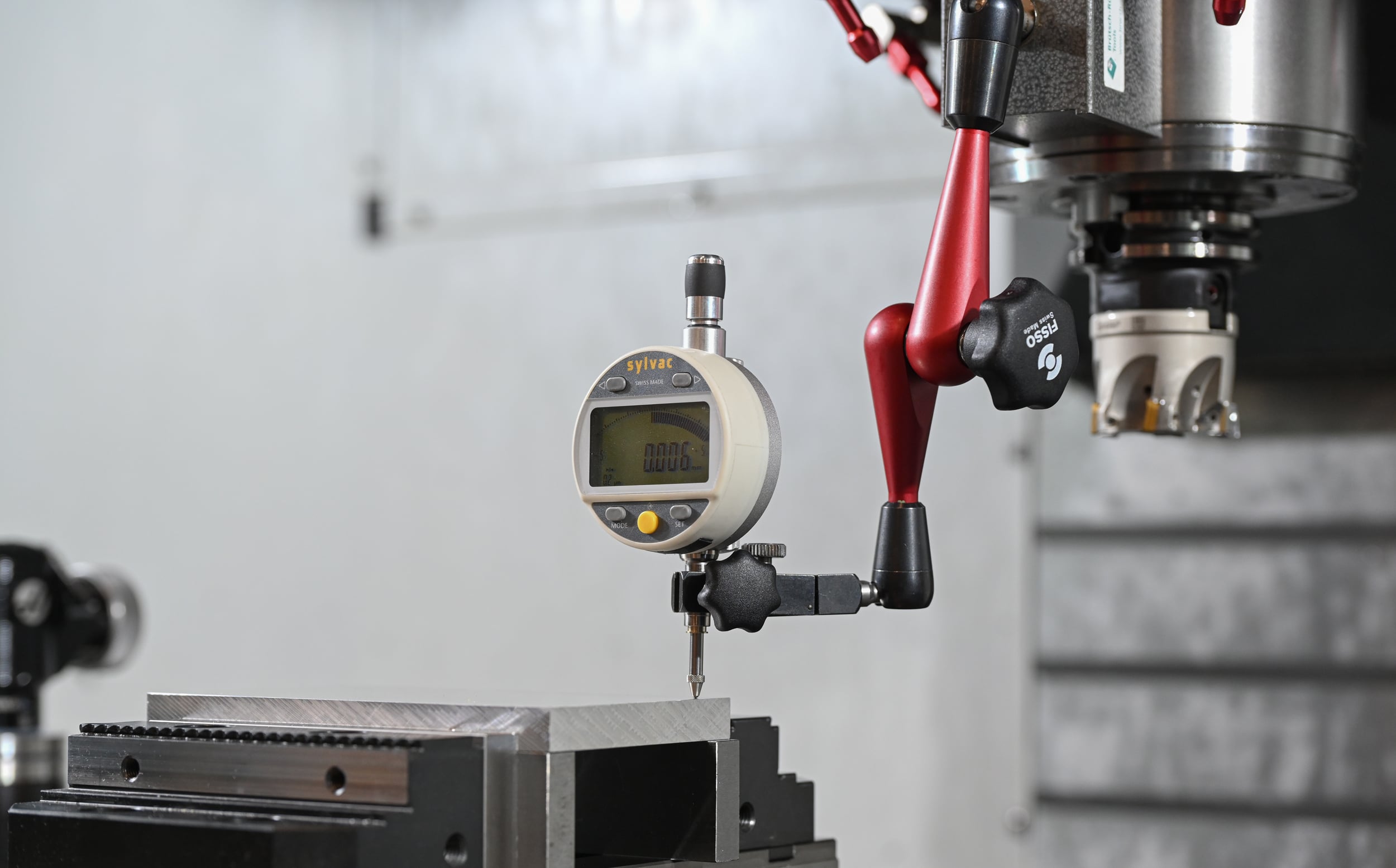

    Applications

    icon-form-deviation
    Form deviation
    logicielsDistance
    Distance

    Industries

    icon-automotive-sylvac
    Automotive
    Electronics
    icon-aeronotics-sylvac
    Aeronautics
    icon-oackaging-sylvac
    Packaging
    icon-machine-tool-sylvac
    Machine tool
    icon-medical-device-sylvac
    Medical device

    Overview

    805-5307 805-5507 805-6308
    EAN 7640125697506 7640125697537 7640125698923
    Measuring range (mm) 12.5 25 12.5
    Resolution (mm) 0.001
    Max. Error fe (µm) 3 4 3
    Repeatability (µm) 2
    IP rating IP54

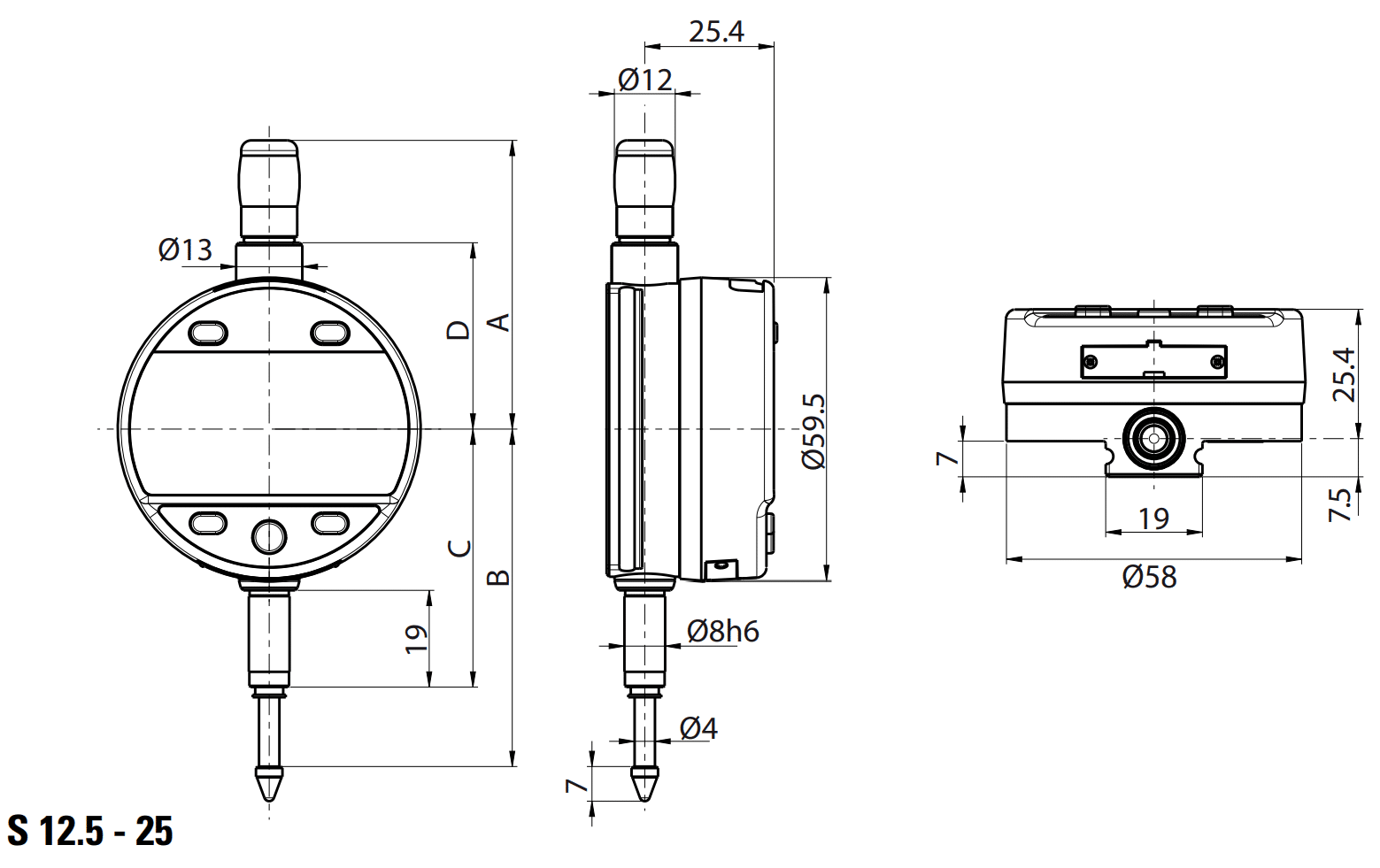

    A (mm) 56.7 69.4 56.7
    B (mm) 66.1 78.5 66.1
    C (mm) 50.5
    D (mm) 36.6 49.4 36.6
    Output data USB / RS232 Bluetooth® / USB / RS232
    Programmable by PC
    Standard functions
    (customized by PC)
    mm/inch, preset (max 999.999)
    min/max/delta, tolerances, resolution, direction of measurement, multiplication factor, automatic or manual switch off, key lock



    Measuring Force S 12.5 S 25
    Standard (N) 0.65 – 0.90 0.65 – 1.15
    Low ¹ (N) 0.4 – 0.55 0.45 – 0.9
    High ¹ (N) 1.0 – 1.6 0.9 – 1.8

    Tolerance ± 20%, spindle in outgoing measurement position.
    ¹ on request



    805-5307 805-5507 805-6308
    EAN 7640125697506 7640125697537 7640125698923
    Measuring range (mm) 12.5 25 12.5
    Resolution (mm) 0.001
    Max. Error fe (µm) 3 4 3
    Repeatability (µm) 2
    IP rating IP54
    A (mm) 56.7 69.4 56.7
    B (mm) 66.1 78.5 66.1
    C (mm) 50.5
    D (mm) 36.6 49.4 36.6
    Output data USB / RS232 Bluetooth® / USB / RS232
    Programmable by PC
    Standard functions
    (customized by PC)
    mm/inch, preset (max 999.999)
    min/max/delta, tolerances, resolution, direction of measurement, multiplication factor, automatic or manual switch off, key lock



    Measuring Force S 12.5 S 25
    Standard (N) 0.65 – 0.90 0.65 – 1.15
    Low ¹ (N) 0.4 – 0.55 0.45 – 0.9
    High ¹ (N) 1.0 – 1.6 0.9 – 1.8

    Tolerance ± 20%, spindle in outgoing measurement position.
    ¹ on request



    Instrument according to technical specifications
    Lithium battery CR2032 included
    Instruction manual
    Calibration certificate
    Contact points M2.5
    905-2201 (carbide)
    905-2202
    905-2203
    905-2206
    905-2204
    905-2205
    905-2207



    Standard Accessories
    805-0214 Lifting device, range 12.5mm
    805-0215 Lifting device, range 25mm
    805-0213 Lug back
    (delivered with 4 screws M2x4 DIN 963A)
    905-2231 Sleeve Ø8 –> 10mm with locking screw
    905-2214 Lifting device
    905-2215 Upper lifting device
    905-2216 Lifting device with photo-cable
    905-2218 Pneumatic lifting device with foot pedal
    905-2217 Lifter only for 905-2218
    905-2219 Pneumatic foot pedal for 905-2218
    905-2221 Dust protection for indicator, range 12.5 mm
    905-2222 Dust protection for indicator, range 25 mm
    905-2223 Depth measuring base
    905-2261 Snap connector for pneumatic lifter x2
    905-2262 Snap connector for pneumatic lifter x4
    905-2224 Plastic lifting lever (bottom)
    905-2225 Plastic lifting ring (bottom)
    905-4214 ¹ Lower lifting device, range 12.5 mm
    905-4516 Power RS (Standard 3 m)
    905-4519 Power RS (Standard 15 m)
    905-4538 Power RS (bent) (Standard 3 m)
    926-6821 Power USB (Standard 3 m)
    926-6838 Power USB (bent) (Standard 3 m)
    926-6723 Proximity RS232 (Standard 3 m)
    926-6721 Proximity USB (Standard 3 m)
    985-2215 Battery CR2032
    926-7022 S_Footswitch Smart
    926-7024 Battery Pack

    ¹  used on range 20 mm max
