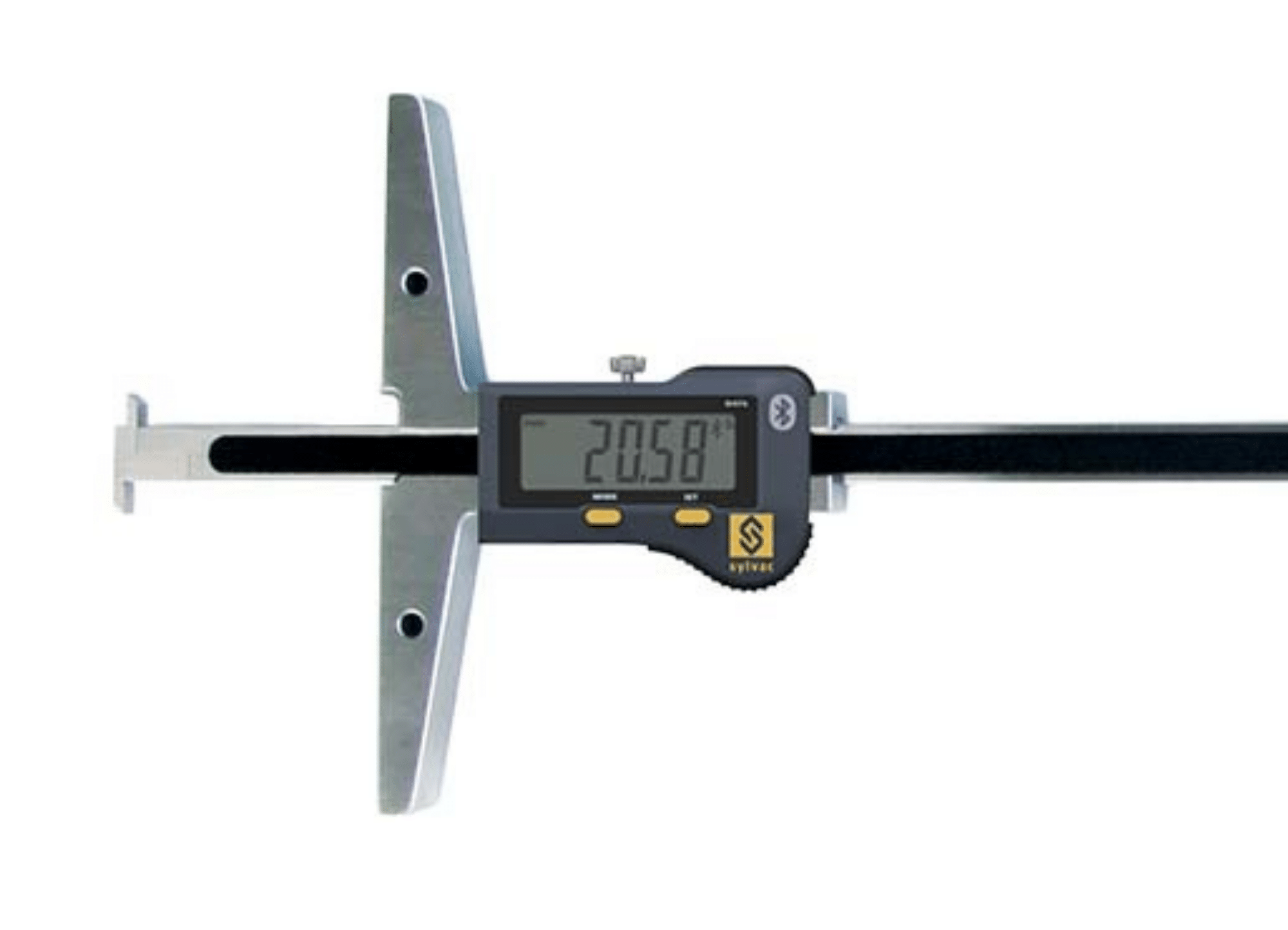

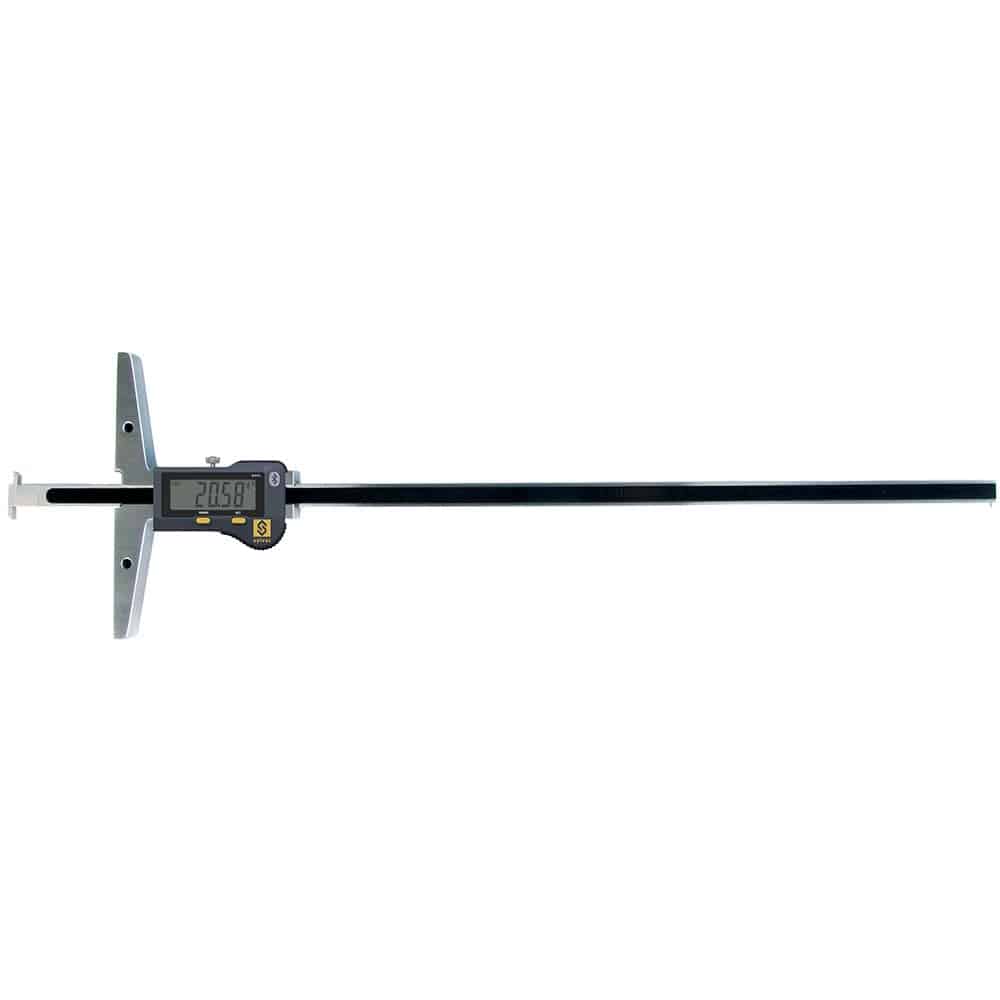

Depth gauge S_Depth EVO Two Fixed Measuring Jaws
Starting at :
CHF 604.00
*Available in different measuring ranges
Description
Depth gauge with two fixed jaws and integrated Bluetooth® technology. Interchangeable anvils.
Features
- Unmatched Accuracy: Achieve precise measurements with our high-quality depth gauge featuring a hardened steel measuring pin Ø 1.5mm x 5mm, a 100mm bridge with holes for attachment of additional wider bridge, and a maximum displacement speed of 2,5m/sec.
- Seamless Data Aquisition: Our ergonomic depth gauge is equipped with integrated Bluetooth® technology, allowing you to transmit measurements wirelessly, quickly and error-free for enhanced productivity.
- User-Friendly Design: Experience enhanced usability with our convenient push button, which not only facilitates easy data transmission but can also be programmed to suit your specific needs. Additionally, the new extra-large display unit with 11.5mm high digits ensures clear visibility of measurements.
- Built to Last: With a rugged construction, our gauge is designed to withstand heavy-duty work environments, including exposure to coolants and lubricants. Its water protection rating of IP67, according to IEC 60529, ensures durability and reliability. The precision of the instrument is not affected by liquids.
- Versatile Measurement: Our depth gauge caters to a variety of measurement needs with three different measuring ranges: 300mm, 400mm, and 600mm. Equipped with two fixed measuring jaws for both upward and downward measurements, this model provides versatility in capturing internal dimensions of various parts. Optional interchangeable anvils expands its potential for measuring intricate features.
- Intelligent Power Management: Save energy and maximize efficiency with our device’s automatic wake-up feature upon movement, and sleeping mode activation after 10 minutes of inactivity. The absolute system S.I.S ensures that the position is memorized even in sleeping mode.
Applications
Distance
Industries
Automotive
Aeronautics
Packaging
Machine tool
Medical device
Overview
Specifications
Standard Delivery
Accessories
Applications
Tutorials
Resources
| 812-1601 | 812-1603 | 812-1605 | |
| EAN | 7640125687460 | 7640125712315 | 7640125711974 |
| Measuring range (mm) | 200 | 300 | 500 |
| Max. Error (µm) | 30 | 30 | 50 |
| Resolution (mm) | 0.01 | ||

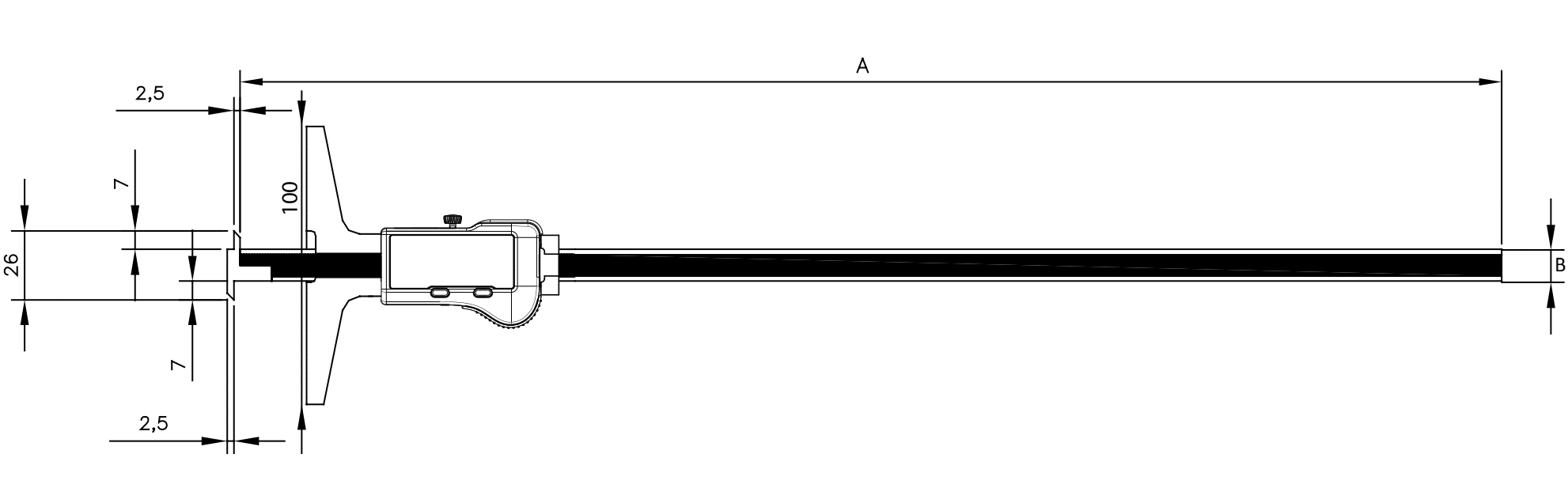

| A (mm) | 300 | 400 | 600 |
| B (mm) | 12 x 4 | ||
| Output data | Bluetooth® wireless technology | ||
| Functions | Zero setting, Preset (max 999.99), mm/inch, Hold, Data | ||
| Smart Inductive Sensor | ⬤ | ||
Spécifications
| 812-1601 | 812-1603 | 812-1605 | |
| EAN | 7640125687460 | 7640125712315 | 7640125711974 |
| Measuring range (mm) | 200 | 300 | 500 |
| Max. Error (µm) | 30 | 30 | 50 |
| Resolution (mm) | 0.01 | ||
| A (mm) | 300 | 400 | 600 |
| B (mm) | 12 x 4 | ||
| Output data | Bluetooth® wireless technology | ||
| Functions | Zero setting, Preset (max 999.99), mm/inch, Hold, Data | ||
| Smart Inductive Sensor | ⬤ | ||
Standard Delivery
|
Standard Delivery
|
| Instrument according to technical specifications |
| Lithium battery CR2032 included |
| Instruction manual |
Accessories
| Accessories | ||
 |
812-2231 | PRA (Included) |
| 812-2237 | PRA-W (titanium) | |
 |
812-2232 | PRB |
 |
812-2233 | PRC |
 |
812-2234 | PRD |
 |
812-2235 | PRE |
 |
812-2236 | PRF |
 |
985-2215 | Battery CR2032 |
 |
926-7022 | S_Footswitch Smart |
| Length | Thickness | |||
 |
812-2240 | Additional base | 320 | 8 |
| 812-2241 | Additional base | 200 | 8 |
