Caliper S_Cal EVO Proximity Micron
Description
High precision wired transmission micron caliper.
* Available in different measuring ranges
* Available in different measuring ranges
Features
- Maximum Resolution: The only calipers on the market with a micron resolution, our caliper features an extra-large display unit with a resolution of 0.001 mm and an impressive digits height of 11.5 mm, ensuring clear visibility and precise measurements.
- Compliance Confidence : Industries with strict regulations and standards can restrict the use of Bluetooth® technology. This caliper,with a Proximity to USB or to RS232 output enables you to effortlessly comply with these requirements.
- Versatile options : Ergonomic caliper available in a measuring range of 150 mm, with rectangular or cylindrical depth rod options. Thumb wheel available on request.
- Built to Last: Crafted with a mechanical frame in 3.5 mm thick hardened and ground stainless steel, our IP67 caliper ensures durability and longevity, providing reliable performance in even the most demanding metrology environments.
- Enhanced Efficiency: Maximize productivity with a swift maximum speed of displacement of 2.5 m/sec and benefit from the automatic wake-up feature (Absolute System S.I.S) when moving the electronic on its frame and enjoy the energy-saving sleeping mode (Absolute System S.I.S) after 10 minutes of inactivity. The caliper memorizes the position even in sleeping mode, ensuring uninterrupted measurements.
Applications

Diameter

Distance

Form deviation
Industries

Automotive

Aeronautics

Fastening

Packaging

Machine tool

Medical device
Overview
Specifications
Standard Delivery
Accessories
Applications
Tutorials
Documents
810-9702 | 810-9707 | |
EAN | 7640125699593 | 7640125699586 |
Measuring range (mm) | 150 | |
Max. error G – external measurements EMPE (µm) | 15 ² | |
Max. error – internal measurements SMPE (µm) | 20 – 30 ³ | |
Resolution (mm) | 0.001 | |

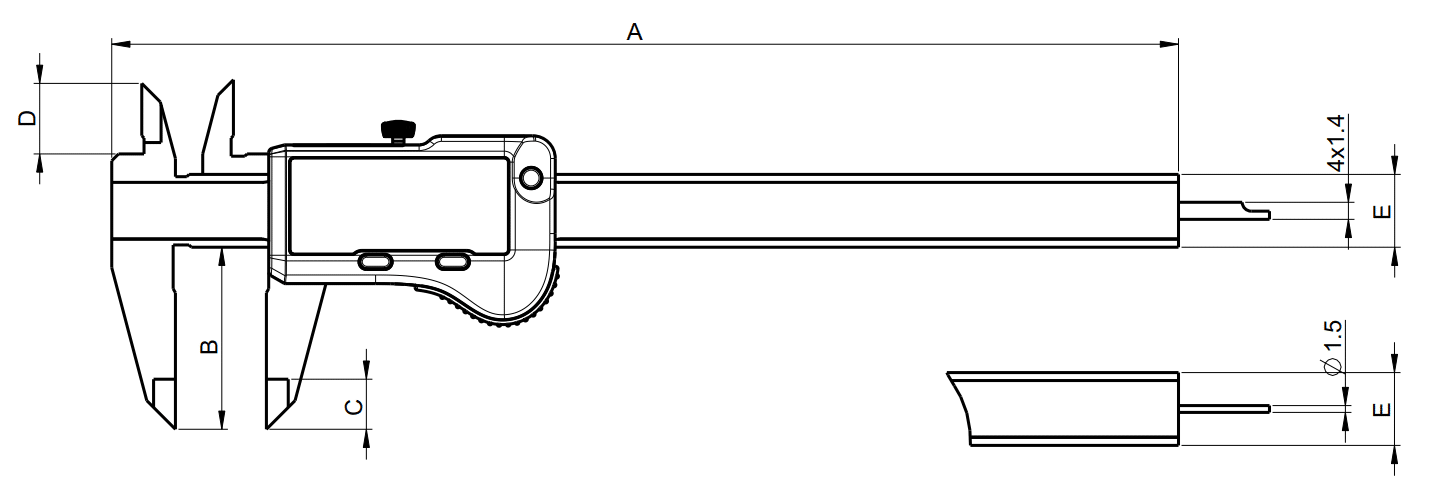

A (mm) | 234.5 | |
B (mm) | 40 | |
C (mm) | 11 | |
D (mm) | 16 | |
E (mm) | 16 x 3.5 | |
Depth rod (mm) | ▬ 4 x 1.4 | Ø 1.5 |
Functions | Zero setting, Preset (max 999.99), mm/inch, Hold | |
Protection rating according to IEC 60529 | IP67 | |
Connection type (instrument to device) | Proximity to RS232 ¹ Proximity to USB ¹ Adaptator RS – USB ¹ View cables info |
|
Smart Inductive System (SIS) | ⬤ |
¹ Device: PC, display unit, …
² 0-150 mm : 15 µm / ISO13385-1
³ Ø4-25 : 20 µm / ISO13385-1
Ø26-150 : 30 µm / ISO13385-1
Standard Delivery |
Instrument according to technical specifications |
Lithium battery CR2032 included |
Instruction manual |
Calibration certificate |
Available soon
-
Disassemble & reassemble a caliper
How to disassemble and reassemble a Sylvac caliper?
-
Battery Change
How To Take Care of your Sylvac instrument : Battery Change
-
-
-
- Technical Plan
- 3D Drawing
- Manual
- Certificate
- Brochure
