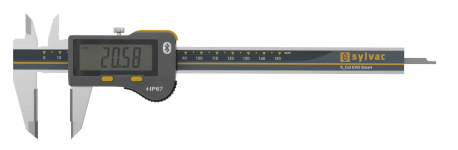

Caliper S_Cal EVO Carbide

Starting at :
CHF 247.00

*Available in different measuring ranges

Description

Carbide jaws high quality caliper with or without integrated Bluetooth® technology
noCable
Connection: No Cable
SIS
Smart Inductive System (SIS)

Features

  • Versatile options: Ergonomic caliper available with measuring ranges of 150mm and 200mm, available in a variety of configurations including rectangular and cylindrical depth rod options. Thumb wheel available on request.
  • Seamless Data Aquisition: Integrated Bluetooth® Smart data transmission, allowing you to transmit measurements wirelessly, quickly and error-free for enhanced productivity.
  • Built to Last: Crafted with a mechanical frame in 3.5 mm thick hardened and ground stainless steel, our IP67 caliper ensures durability and longevity, providing reliable performance in even the most demanding metrology environments. This model also features soldered carbide outer jaws.
  • Enhanced Efficiency: Maximize productivity with a swift maximum speed of displacement of 2.5m/sec and benefit from the automatic wake-up feature (Absolute System S.I.S) when moving the electronic on its frame and enjoy the energy-saving sleeping mode (Absolute System S.I.S) after 10 minutes of inactivity. The caliper memorizes the position even in sleeping mode, ensuring uninterrupted measurements.
  • User-Friendly Design: Experience effortless measurement reading with the new extra-large display unit, boasting 11.5mm high digits for exceptional clarity, reducing the risk of errors and enhancing efficiency.

Applications

icon-diameter
Diameter
logicielsDistance
Distance
icon-form-deviation
Form deviation

Industries

icon-automotive-sylvac
Automotive
icon-aeronotics-sylvac
Aeronautics
icon-fastening-sylvac
Fastening
icon-oackaging-sylvac
Packaging
icon-machine-tool-sylvac
Machine tool
icon-medical-device-sylvac
Medical device

Overview

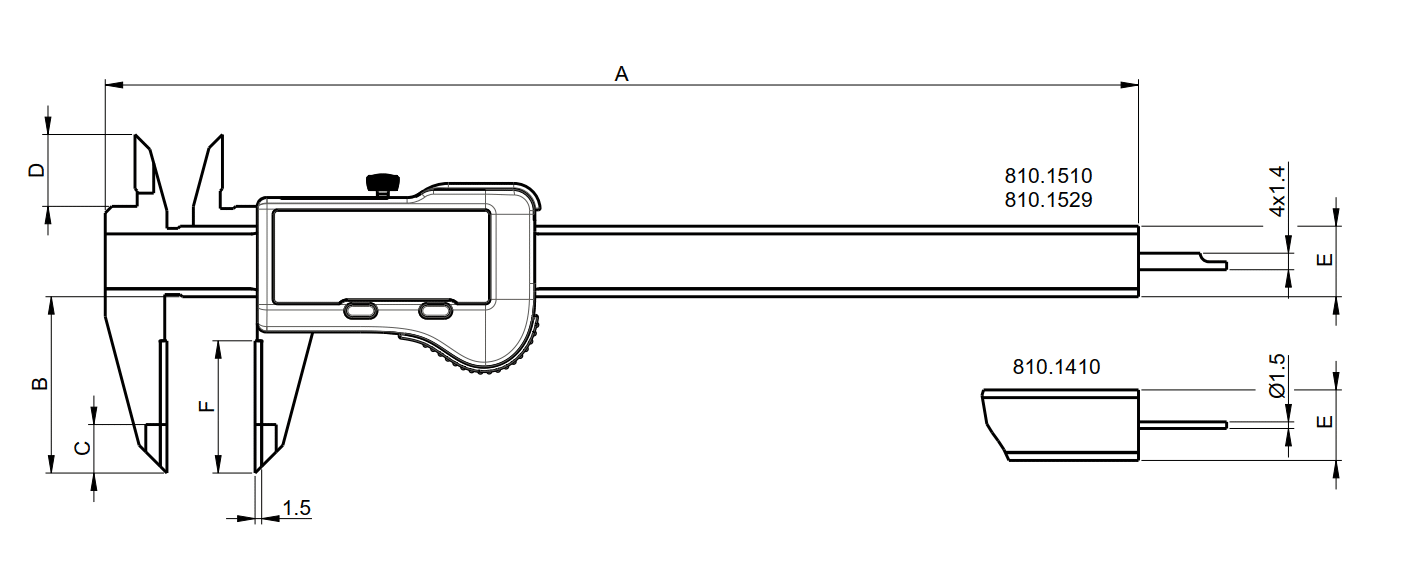

810-1410 810-1510 810-1529
EAN 7640125691030 7640125692747 7640125695380
Measuring range (mm) 150 200
Max. Error G – external measurements (µm) 20 ¹ 30 ¹
Max. Error – internal measurements (µm) 20-30 ² 30 ²
A (mm) 234.5 290
B (mm) 40 50
C (mm) 11 14
D (mm) 16 19
E (mm) 16 x 3.5 16 x 3.5
F (mm) 30 36
Depth rod (mm) Ø 1.5 4 x 1.4
Protection rating according to IEC 60529 IP67
Output data Bluetooth® wireless technology
Functions Zero setting, Preset (max 999.99), mm/inch, Hold
Smart Inductive System (SIS)

¹ 0-150 mm : 20 µm / ISO13385-1

810-1410 810-1510 810-1529
EAN 7640125691030 7640125692747 7640125695380
Measuring range (mm) 150 200
Max. Error G – external measurements (µm) 20 ¹ 30 ¹
Max. Error – internal measurements (µm) 20-30 ² 30 ²
A (mm) 234.5 290
B (mm) 40 50
C (mm) 11 14
D (mm) 16 19
E (mm) 16 x 3.5 16 x 3.5
F (mm) 30 36
Depth rod (mm) Ø 1.5 4 x 1.4
Protection rating according to IEC 60529 IP67
Output data Bluetooth® wireless technology
Functions Zero setting, Preset (max 999.99), mm/inch, Hold
Smart Inductive System (SIS)

¹ 0-150 mm : 20 µm / ISO13385-1

Standard Delivery
Instrument according to technical specifications
Lithium battery CR2032 included
Instruction manual
Accessories
985-2215 Battery CR2032
926-7022 S_Footswitch Smart
810-2203/810-2204 Thumb wheel
910-2205 Base for depth measurement
910-2207 Accessory kit for S_Cal (12 pieces)
810-2000 Anvils M2.5/Ø2.5 Length 12mm
