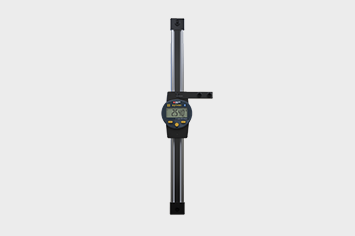

Digital scales S_Scale EVO Smart
Description
Digital scale with integrated Bluetooth® system.
* Available in different measuring ranges
* Available in different measuring ranges
Features
- Solution for linear measurement : Designed to equip machine tables and special linear measurement systems, The ruler is fixed on a table, and the unit displays the exact linear distance traveled between point A and point B. Available in 150, 200, 300 and 600 mm measuring range.
- Seamless Connectivity: Effortless wireless data transfer with integrated Bluetooth® system for seamless communication and connectivity. Additional RS232 or USB Data output and External power supply by Power cable
- Versatile Housing: Ø 45 mm housing rotatable by 270°, allowing horizontal or vertical use, providing flexibility and convenience.
- Built to last: IP54 protected, Flat pole measuring 20 x 5 mm in hardened and ground stainless steel, ensuring durability and reliable performance.
- Clear and Accurate: Digital display with 0.01 mm resolution
- Intuitive Operation: Three buttons, including central button with selectable favorite function, for user-friendly navigation and customization.
- Flexible Drive Bar Positioning: Supplied with a drive bar that can be positioned at the top or bottom of the display, offering flexibility in usage.
Applications
Industries
Overview
Specifications
Standard Delivery
Accessories
Applications
Tutorials
Documents
| 816-1615 | 816-1620 | 816-1630 | 816-1660 | |
| EAN | 7640125689556 | 7640125689563 | 7640125689570 | 7640125689594 |
| Measuring range (mm) | 150 | 200 | 300 | 600 |
| Type | H / V | |||
| Max. error (µm) | 20 | 20 | 30 | 30 |
| Repeatability (µm) | 10 ² | |||
| Resolution (mm) | 0.01 | |||
| A (mm) | 185 | 235 | 335 | 665 |
| B (mm) | 282 | 332 | 432 | 762 |
| C (mm) | 298 | 348 | 448 | 778 |
| Connection type (instrument to device) | Bluetooth® Wireless Technology ¹ Power to RS232 ¹ Power to USB ¹ Adaptator RS – USB ¹ View cables info |
|||
| Selection of measuring direction | ⬤ | |||
| PRESET function | ⬤ | |||
| 2 references | ⬤ | |||
¹ Device: PC, display unit, …
² ± 1 digit
Spécifications
| 816-1615 | 816-1620 | 816-1630 | 816-1660 | |
| EAN | 7640125689556 | 7640125689563 | 7640125689570 | 7640125689594 |
| Measuring range (mm) | 150 | 200 | 300 | 600 |
| Type | H / V | |||
| Max. error (µm) | 20 | 20 | 30 | 30 |
| Repeatability (µm) | 10 ² | |||
| Resolution (mm) | 0.01 | |||
| A (mm) | 185 | 235 | 335 | 665 |
| B (mm) | 282 | 332 | 432 | 762 |
| C (mm) | 298 | 348 | 448 | 778 |
| Connection type (instrument to device) | Bluetooth® Wireless Technology ¹ Power to RS232 ¹ Power to USB ¹ Adaptator RS – USB ¹ View cables info |
|||
| Selection of measuring direction | ⬤ | |||
| PRESET function | ⬤ | |||
| 2 references | ⬤ | |||
¹ Device: PC, display unit, …
² ± 1 digit
