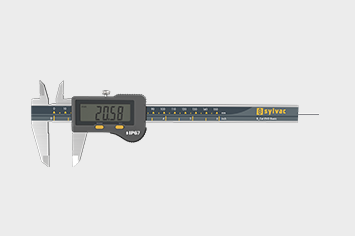

Caliper S_Cal EVO Basic

*Available in different measuring ranges

Description

Affordable professional caliper with IP67 protection.
noCable
Connection: No Cable
SIS
Smart Inductive System (SIS)
ip67
IP67

Features

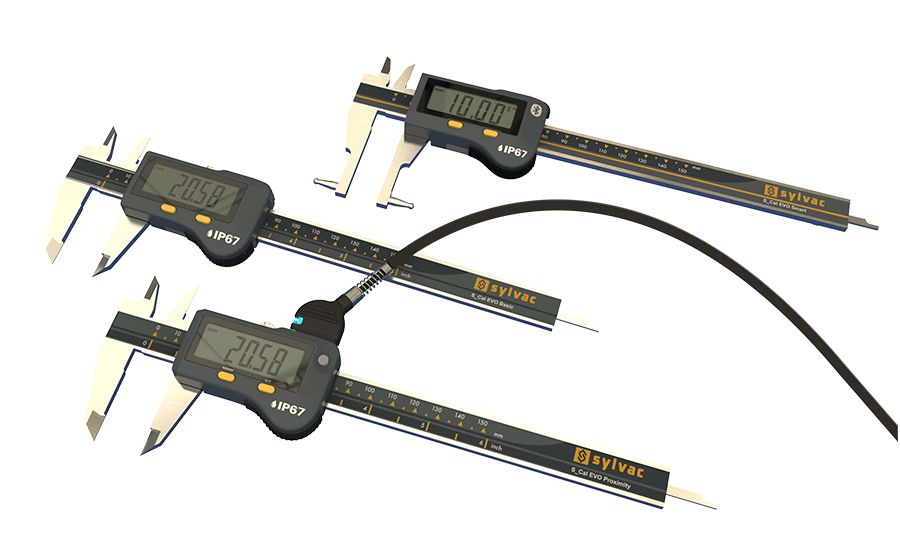

  • Versatile options: Ergonomic caliper available in different measuring ranges of 150mm, 200mm, and 300mm, available in a variety of configurations including rectangular and cylindrical depth rod options. Thumb wheel available on request.
  • Enhanced Efficiency: Maximize productivity with a swift maximum speed of displacement of 2.5m/sec, while the intelligent sleeping mode conserves power after 10 minutes of inactivity, optimizing battery life.
  • Built to Last: Crafted with a mechanical frame in 3.5 mm thick hardened and ground stainless steel, our IP67 caliper ensures durability and longevity, providing reliable performance in even the most demanding metrology environments
  • User-Friendly Design: Experience effortless measurement reading with the new extra-large display unit, boasting 11.5mm high digits for exceptional clarity, reducing the risk of errors and enhancing efficiency.
  • Intelligent Power Management: Benefit from the automatic wake-up feature (Absolute System S.I.S) when moving the electronic on its frame and enjoy the energy-saving sleeping mode (Absolute System S.I.S) after 20 minutes of inactivity. The caliper memorizes the position even in sleeping mode, ensuring uninterrupted measurements.

Applications

icon-diameter
Diameter
logicielsDistance
Distance
icon-form-deviation
Form deviation

Industries

icon-automotive-sylvac
Automotive
icon-aeronotics-sylvac
Aeronautics
icon-fastening-sylvac
Fastening
icon-oackaging-sylvac
Packaging
icon-machine-tool-sylvac
Machine tool
icon-medical-device-sylvac
Medical device

Overview

810-1502 810-1507 810-1522 810-1532
EAN 7640125682090 7640125714098 7640125682304 7640125682366
Measuring range (mm) 150 200 300
Max. Error G – external measurements EMPE (µm) 20 ¹ 30 ¹
Max. Error – internal measurements SMPE (µm) 20-30 ² 30 ² 40 ²
A (mm) 234.5 290.5 388
B (mm) 40 50 64
C (mm) 11 14
D (mm) 16 19
E (mm) 16 x 3.5 16 x 4
Depth rod (mm) 4 x 1.4 Ø 1.5 ▬ 4 x 1.4
Protection rating according to IEC 60529 IP67
Functions Zero setting, Preset (max 999.99), mm/inch, Hold

¹ 0-150 mm : 20 µm / ISO13385-1
>150 mm : 30 µm / ISO13385-1

² Ø4-25 : 20 µm / ISO13385-1
Ø26-150 : 30 µm / ISO13385-1
>Ø150 : 40 µm / ISO13385-1

810-1502 810-1507 810-1522 810-1532
EAN 7640125682090 7640125714098 7640125682304 7640125682366
Measuring range (mm) 150 200 300
Max. Error G – external measurements EMPE (µm) 20 ¹ 30 ¹
Max. Error – internal measurements SMPE (µm) 20-30 ² 30 ² 40 ²
A (mm) 234.5 290.5 388
B (mm) 40 50 64
C (mm) 11 14
D (mm) 16 19
E (mm) 16 x 3.5 16 x 4
Depth rod (mm) 4 x 1.4 Ø 1.5 ▬ 4 x 1.4
Protection rating according to IEC 60529 IP67
Functions Zero setting, Preset (max 999.99), mm/inch, Hold

¹ 0-150 mm : 20 µm / ISO13385-1
>150 mm : 30 µm / ISO13385-1

² Ø4-25 : 20 µm / ISO13385-1
Ø26-150 : 30 µm / ISO13385-1
>Ø150 : 40 µm / ISO13385-1

Standard Delivery
Instrument according to technical specifications
Lithium battery CR2032 included
Instruction manual



Accessories
910-2207 Accessory kit for S_Cal
(12 pieces)
910-2205 Base for Depth Measurement
810-2204 Thumb wheel
810-2000 Anvils M2.5/Ø2.5 Length 12mm
985-2215 Battery CR2032
Caliper S_Cal EVO Basic
CHF 123.00
