Ultra light caliper UL4
Starting at :
CHF 1'336.00

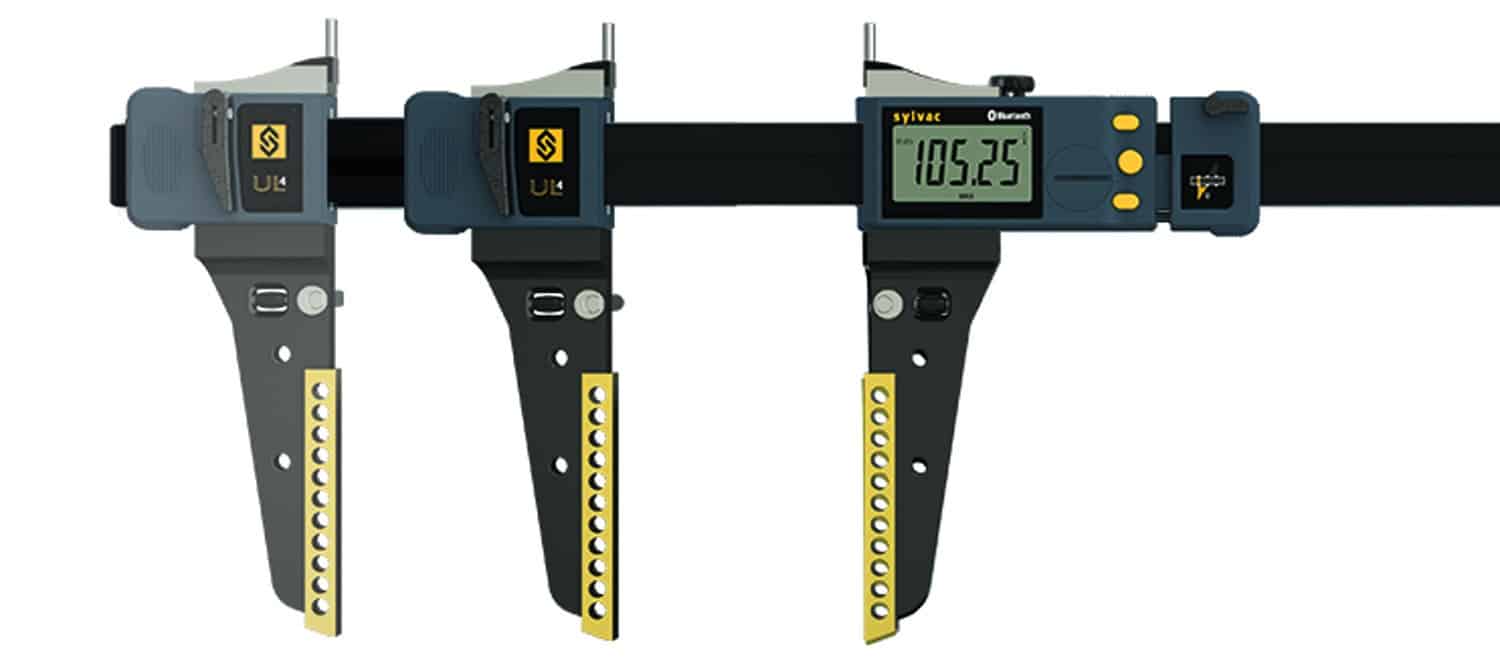

*Available in different measuring ranges
Description
Ultra light large caliper with integrated Bluetooth® technology.
Features
- Unprecedented Size, Unmatched Portability: Our large calipers offer impressive measuring ranges from 400 to 3000 mm, making them perfect for accurately measuring large dimensions. Despite their size, these callipers are remarkably lightweight, ensuring easy handling and transport.
- Seamless Data Aquisition: Integrated Bluetooth® Smart data transmission, allowing you to transmit measurements wirelessly, quickly and error-free for enhanced productivity. Also features a Proximity data output.
- Built to last : Crafted with a frame made of special aluminum profile reinforced with 4 stainless steel guide rods, our IP67 callipers are built to withstand the demands of rigorous use while maintaining stability and accuracy. 200 mm long outer jaws made of hardened steel 124 x 8 mm coated with titanium nitride (TiN), ensures durability and precise results. 400mm long jaws available on demand.

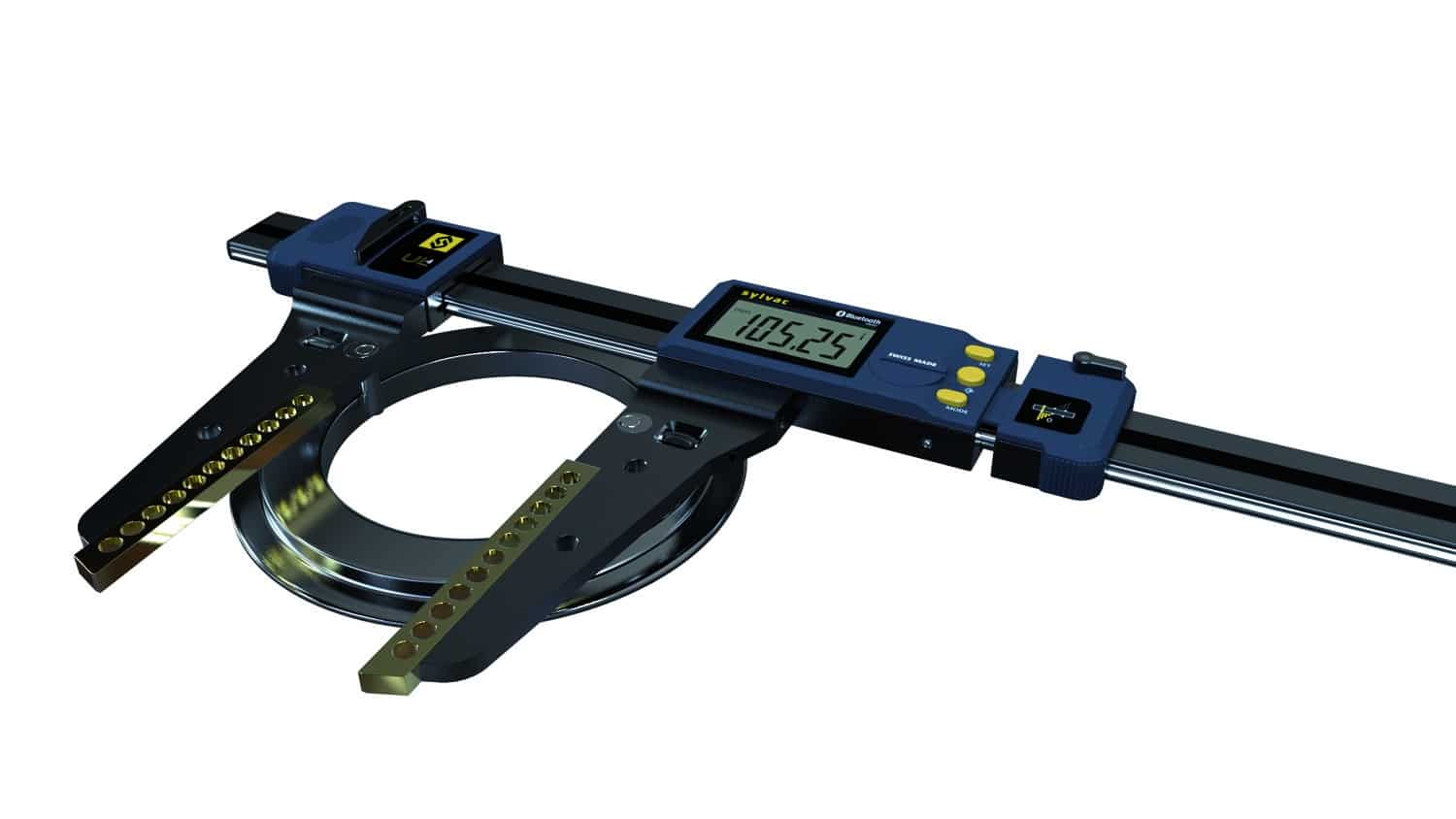

- User-Friendly Design : The XXL display unit, with digits 20 mm high, offers excellent readability. With three buttons, including a central button with a selectable favorite function, operating this light calliper becomes effortless. The lever-lockable movable left jaw and removable upper studs with a hardened metal pin Ø 5 mm simplify internal measurements, providing convenience and flexibility.
- Controlled force : To ensure accurate and consistent measurements, our calipers are equipped with an integrated force control device. This feature allows the operator to verify and apply the same force to all measurements, eliminating potential discrepancies and ensuring reliable results.
Applications

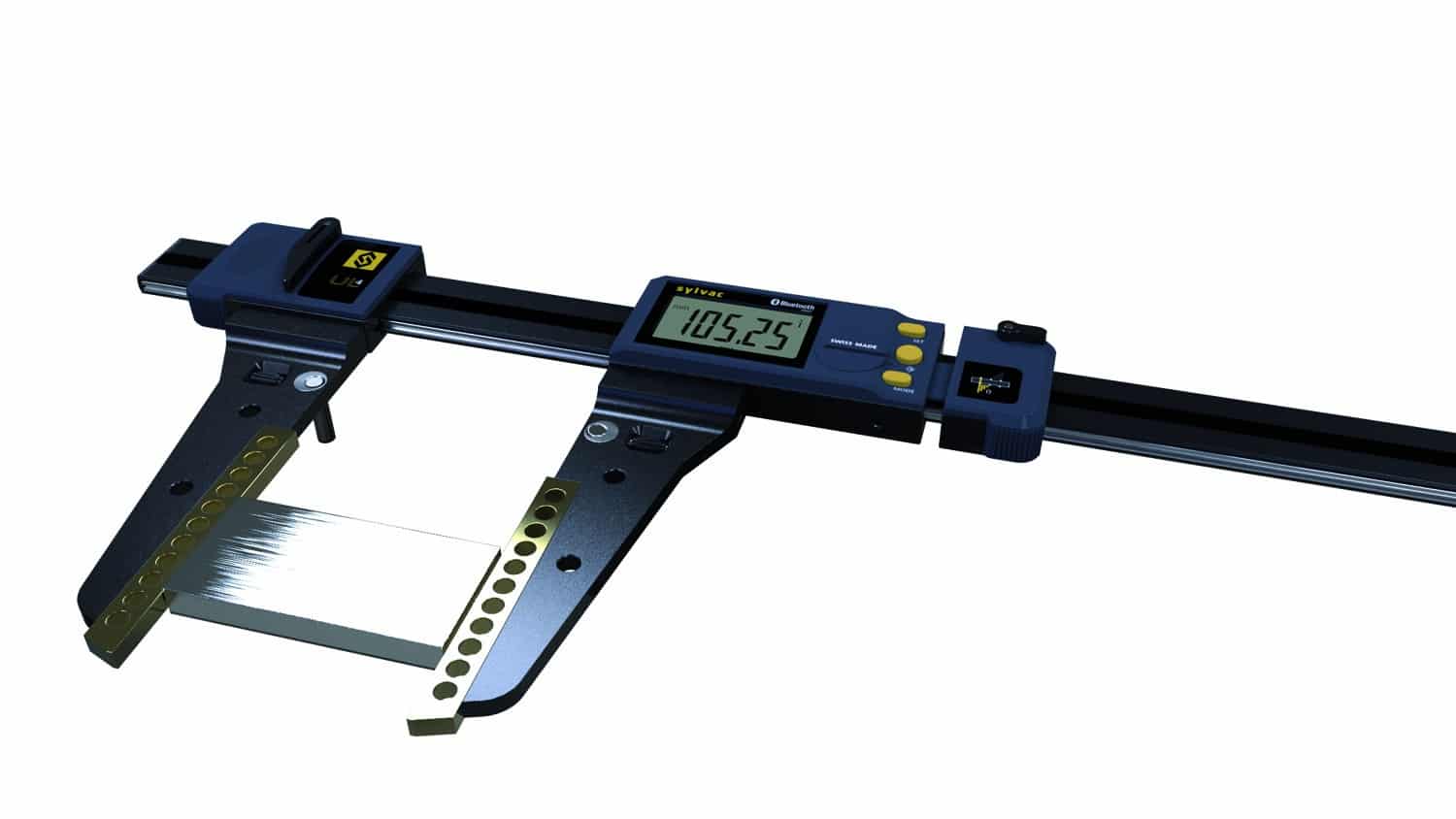

Diameter
Distance
Form deviation
Industries
Automotive
Aeronautics
Fastening
Packaging
Machine tool
Medical device
Overview
Specifications
Standard Delivery
Accessories
Applications
Tutorials
Resources
| 811-1404 | 811-1406 | 811-1410 | 811-1415 | |
| EAN | 7640125713190 | 7640125713206 | 7640125697759 | 7640125713213 |
| Model (mm) | 400 | 600 | 1000 | 1500 |
| Max. Error (µm) | 30 | 40 | 50 | 90 |
| Repeatability (µm) | 20 | |||
| Resolution (mm) | 0.01 | |||

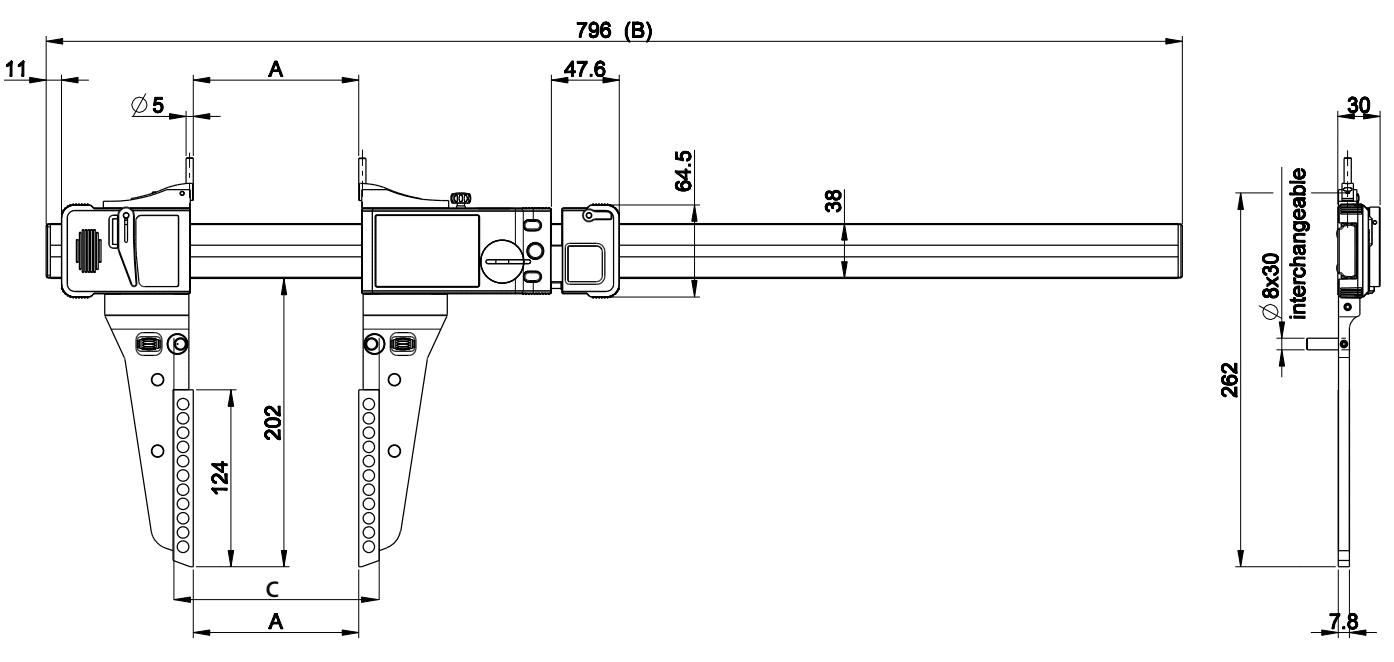

| A (mm) | 0-478 | 0-683 | 0-1093 | 0-1608 |
| B (mm) | 796 | 1001 | 1411 | 1926 |
| C (mm) | 27-505 | 27-710 | 27-1110 | 27-1635 |
| Measuring Force (N) | 7.5 – 11.5 (±20%) | |||
| Output data | Bluetooth® wireless technology / RS232 / USB | |||
| IP67 Protection | ● | |||
| Preset max. | ±9999.99 mm / ±399.9995 IN | |||
| Weight (kg) | 1.5 | 1.6 | 1.9 | 2.3 |
| Setting by PC | ● | |||
| 2 references | ● | |||
| Min/Max function | ● | |||
| Tolerance limit indicators | ● | |||
| 811-1420 | 811-1425 | 811-1430 | |
| EAN | 7640125697766 | 7640125697773 | 7640125697780 |
| Model (mm) | 2000 | 2500 | 3000 |
| Max. Error (µm) | 120 | 150 | 200 |
| Repeatability (µm) | 30 | ||
| Resolution (mm) | 0.01 | ||
| A (mm) | 0-2123 | 0-2638 | 0-3153 |
| B (mm) | 2441 | 2956 | 3471 |
| C (mm) | 27-2150 | 27-2665 | 27-3180 |
| Measuring Force (N) | 7.5 – 11.5 (±20%) | ||
| Output data | Bluetooth® wireless technology / RS232 / USB | ||
| IP67 Protection | ● | ||
| Preset max. | ±9999.99 mm / ±399.9995 IN | ||
| Weight (kg) | 2.6 | 2.9 | 3.3 |
| Setting by PC | ● | ||
| 2 references | ● | ||
| Min/Max function | ● | ||
| Tolerance limit indicators | ● | ||
Spécifications
| 811-1404 | 811-1406 | 811-1410 | 811-1415 | |
| EAN | 7640125713190 | 7640125713206 | 7640125697759 | 7640125713213 |
| Model (mm) | 400 | 600 | 1000 | 1500 |
| Max. Error (µm) | 30 | 40 | 50 | 90 |
| Repeatability (µm) | 20 | |||
| Resolution (mm) | 0.01 | |||
| A (mm) | 0-478 | 0-683 | 0-1093 | 0-1608 |
| B (mm) | 796 | 1001 | 1411 | 1926 |
| C (mm) | 27-505 | 27-710 | 27-1110 | 27-1635 |
| Measuring Force (N) | 7.5 – 11.5 (±20%) | |||
| Output data | Bluetooth® wireless technology / RS232 / USB | |||
| IP67 Protection | ● | |||
| Preset max. | ±9999.99 mm / ±399.9995 IN | |||
| Weight (kg) | 1.5 | 1.6 | 1.9 | 2.3 |
| Setting by PC | ● | |||
| 2 references | ● | |||
| Min/Max function | ● | |||
| Tolerance limit indicators | ● | |||
| 811-1420 | 811-1425 | 811-1430 | |
| EAN | 7640125697766 | 7640125697773 | 7640125697780 |
| Model (mm) | 2000 | 2500 | 3000 |
| Max. Error (µm) | 120 | 150 | 200 |
| Repeatability (µm) | 30 | ||
| Resolution (mm) | 0.01 | ||
| A (mm) | 0-2123 | 0-2638 | 0-3153 |
| B (mm) | 2441 | 2956 | 3471 |
| C (mm) | 27-2150 | 27-2665 | 27-3180 |
| Measuring Force (N) | 7.5 – 11.5 (±20%) | ||
| Output data | Bluetooth® wireless technology / RS232 / USB | ||
| IP67 Protection | ● | ||
| Preset max. | ±9999.99 mm / ±399.9995 IN | ||
| Weight (kg) | 2.6 | 2.9 | 3.3 |
| Setting by PC | ● | ||
| 2 references | ● | ||
| Min/Max function | ● | ||
| Tolerance limit indicators | ● | ||
Standard Delivery
| Standard delivery |
| Instrument according to technical specificationsLithium battery CR2477 included |
| Calibration certificate for UL up to 3000mm |
| Upper internal measurement anvil (811-2323 – 2pcs) |
| Universal base 811-2301 |
| Instruction manual |
Accessories
| Other accessories | ||
|
811-2301 | Universal base (2 pieces) |
  |
811-2302 | Ø8 Anvil holder (2 pieces, to combine with 811-2301) |
 |
811-2303 | Accessories holder (2 different pieces) |
 |
811-2305 | Support with int. thread M 2.5 (2 pieces) |
 |
811-2307 | Inserts in hardened steel, cone 60° for bore clearance measurement > 10 mm, (2 pieces) |
 |
811-2309 | Holder for dial gauge contact points for internal groove measurement, (2 pieces) |
 |
811-2304 | Thread anvils holders (2 pieces) |
 |
811-2310 | Anvil Ø10mm (2 pieces) |
 |
811-2311 | Anvil Ø20mm (2 pieces) |
 |
811-2312 | Anvil Ø25x5mm (2 pieces) |
 |
811-2322 | Lower internal anvil (2 pieces) |
 |
811-2323 | Upper internal measurement anvil (2 pieces)* (to combine with 811-2303) |
 |
811-2324 | Long cylindrical anvil Ø8x80mm (2 pieces) (to combine with 811-2302 & 811-2301) |
 |
811-2325 | Cylindrical anvil Ø8x30mm (2 pieces) |
 |
985-2216 | Battery CR2477 |
 |
926-7022 | S_Footswitch Smart |
