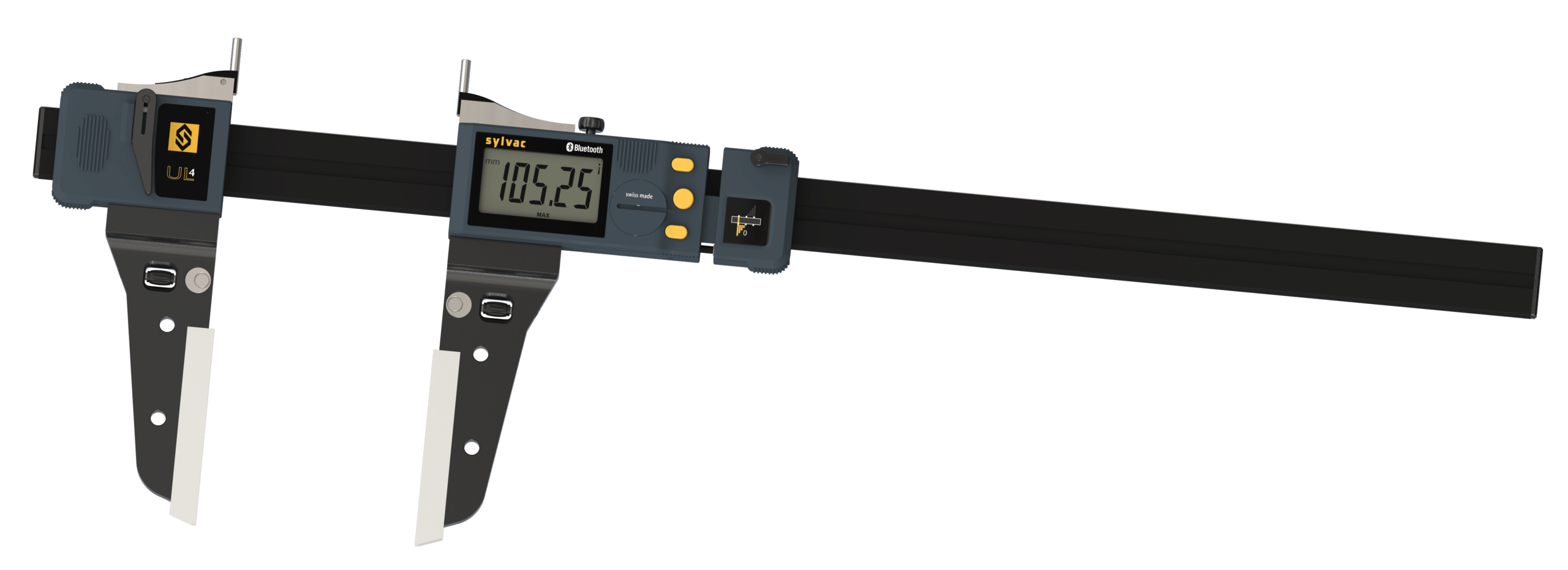

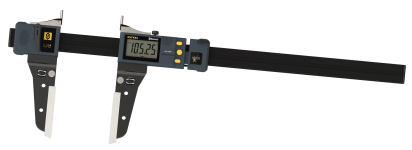

Ultra light caliper UL4 Special ceramical jaws
Starting at :
Description
Ultra light large caliper with integrated Bluetooth® technology.
*Available in different measuring ranges
Features
- Unprecedented Size, Unmatched Portability: Our large calipers offer impressive measuring ranges from 400 to 3000 mm, making them perfect for accurately measuring large dimensions. Despite their size, these callipers are remarkably lightweight, ensuring easy handling and transport.
- Seamless Data Aquisition: Integrated Bluetooth® Smart data transmission, allowing you to transmit measurements wirelessly, quickly and error-free for enhanced productivity. Also features a Proximity data output.
- Built to last: Crafted with a frame made of special aluminum profile reinforced with 4 stainless steel guide rods, our IP67 callipers are built to withstand the demands of rigorous use while maintaining stability and accuracy. 175 mm long outer jaws made of ceramic (non-magnetic), ensures durability and precise results.
- User-Friendly Design: The XXL display unit, with digits 20 mm high, offers excellent readability. With three buttons, including a central button with a selectable favorite function, operating this light calliper becomes effortless. The lever-lockable movable left jaw and removable upper studs with a hardened metal pin Ø 5 mm simplify internal measurements, providing convenience and flexibility.
- Controlled force: To ensure accurate and consistent measurements, our calipers are equipped with an integrated force control device. This feature allows the operator to verify and apply the same force to all measurements, eliminating potential discrepancies and ensuring reliable results.
Applications

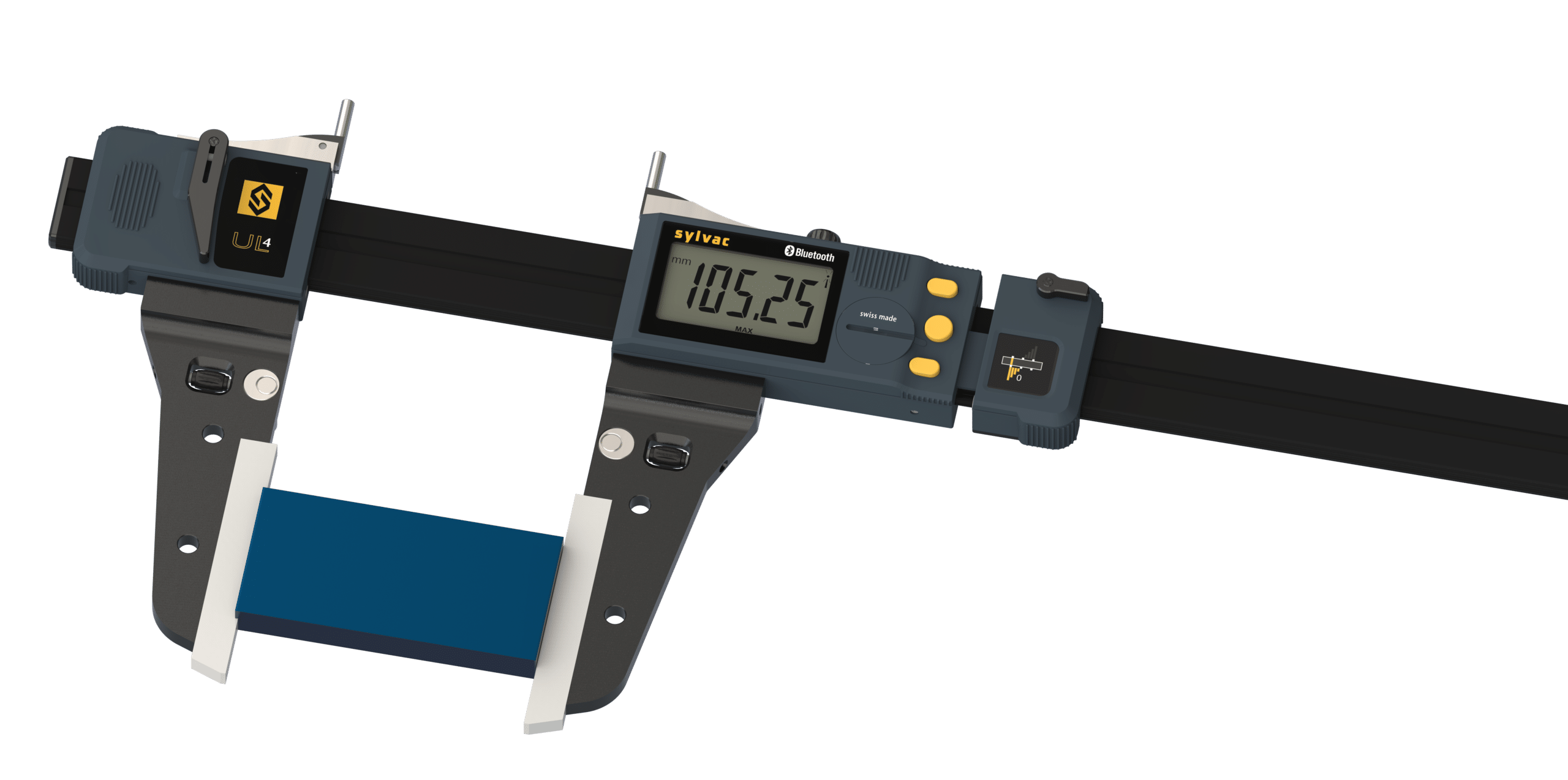

Diameter
Distance
Form deviation
Industries
Automotive
Aeronautics
Fastening
Packaging
Machine tool
Medical device
Overview
Specifications
Standard Delivery
Accessories
Applications
Tutorials
Documents
| 811-2320-99 ¹ | |
| EAN | 7640125698282 |
| Jaws length (mm) | 175 |
| Ceramic part length (mm) | 104 |
¹ Jaws must be mounted on a special UL4 of your choice
| UL 400 | UL 600 | UL 1000 | UL 1500 | |
| Reference | 811-1404-99 | 811-1406-99 | 811-1410-99 | 811-1415-99 |
| UL specification |
Max. error. (μm) / Repeatability (μm) | |||
| With ceramical jaws (mm) | 30/20 | 40/20 | 50/20 | 90/20 |
| Measuring range (mm) | 400 | 600 | 1000 | 1500 |
| Measuring Force (N) | 7.5 – 11.5 (±20%) | |||
| Weight (kg) | 1.5 | 1.6 | 1.9 | 2.3 |

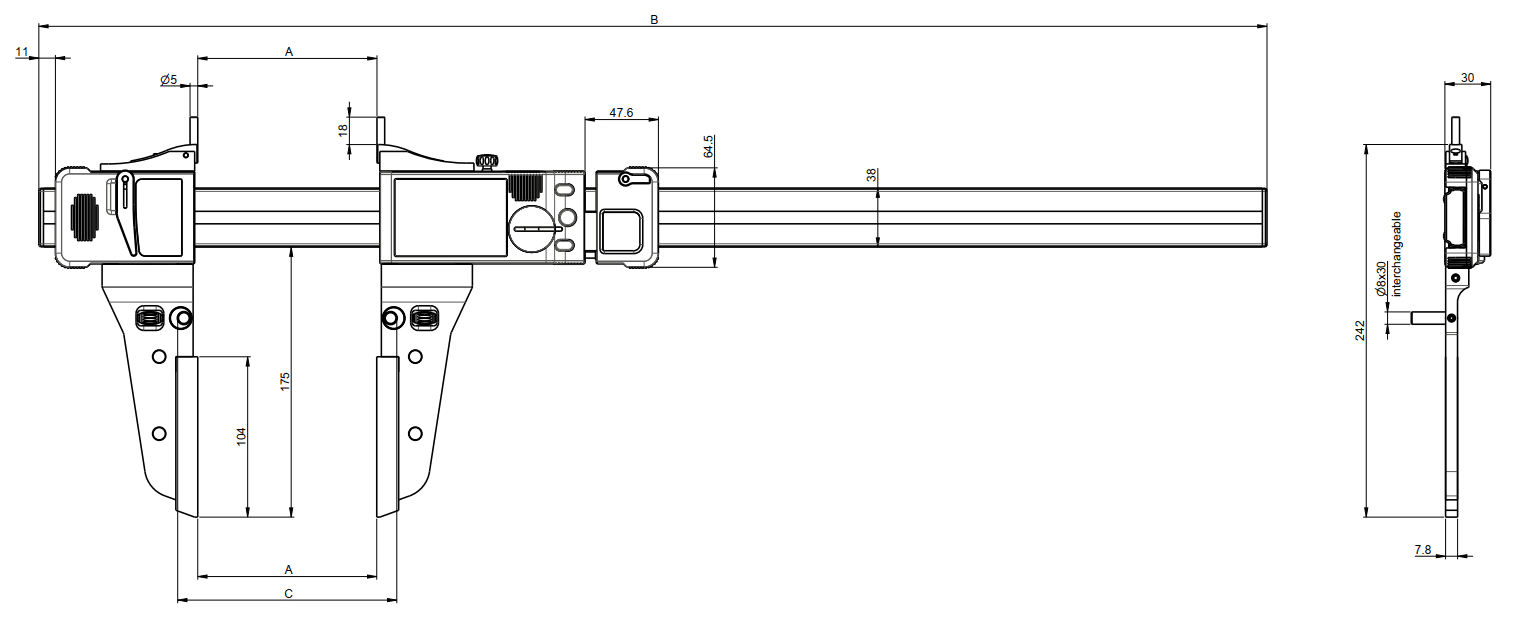

| A (mm) | 0-478 | 0-683 | 0-1093 | 0-1608 |
| B (mm) | 27-505 | 27-710 | 27-1110 | 27-1635 |
| C (mm) | 796 | 1001 | 1411 | 1926 |
| Resolution (mm) | 0.01 | |||
| Connection type (instrument to device) | Bluetooth® wireless technology ² Proximity to RS232 ² Proximity to USB ² Adaptator RS – USB ² View cables info |
|||
| Protection rating according to IEC 60529 | IP67 | |||
| Preset max. | ±9999.99 mm / ±399.9995 IN | |||
| Setting by PC | ⬤ | |||
| 2 references | ⬤ | |||
| Min/Max function | ⬤ | |||
| Tolerance limit indicators | ⬤ | |||
² Device: PC, display unit, …
Spécifications
| 811-2320-99 ¹ | |
| EAN | 7640125698282 |
| Jaws length (mm) | 175 |
| Ceramic part length (mm) | 104 |
¹ Jaws must be mounted on a special UL4 of your choice
| UL 400 | UL 600 | UL 1000 | UL 1500 | |
| Reference | 811-1404-99 | 811-1406-99 | 811-1410-99 | 811-1415-99 |
| UL specification |
Max. error. (μm) / Repeatability (μm) | |||
| With ceramical jaws (mm) | 30/20 | 40/20 | 50/20 | 90/20 |
| Measuring range (mm) | 400 | 600 | 1000 | 1500 |
| Measuring Force (N) | 7.5 – 11.5 (±20%) | |||
| Weight (kg) | 1.5 | 1.6 | 1.9 | 2.3 |
| A (mm) | 0-478 | 0-683 | 0-1093 | 0-1608 |
| B (mm) | 27-505 | 27-710 | 27-1110 | 27-1635 |
| C (mm) | 796 | 1001 | 1411 | 1926 |
| Resolution (mm) | 0.01 | |||
| Connection type (instrument to device) | Bluetooth® wireless technology ² Proximity to RS232 ² Proximity to USB ² Adaptator RS – USB ² View cables info |
|||
| Protection rating according to IEC 60529 | IP67 | |||
| Preset max. | ±9999.99 mm / ±399.9995 IN | |||
| Setting by PC | ⬤ | |||
| 2 references | ⬤ | |||
| Min/Max function | ⬤ | |||
| Tolerance limit indicators | ⬤ | |||
² Device: PC, display unit, …
Standard Delivery
| Standard delivery |
| Instrument according to technical specifications |
| Lithium battery CR2477 included |
| Special ceramical jaws (811-2320-99) |
| Calibration certificate for UL up to 3000mm |
| Upper internal measurement anvil (811-2323 – 2pcs) |
| Universal base 811-2301 |
| Instruction manual |
