Ultra light caliper UL H4
Starting at :
CHF 1'325.00
*Available in different measuring ranges
Description

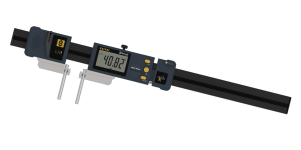

Ultra light large universal caliper with integrated Bluetooth® technology and interchangeable keys.
Features
- Unprecedented Size, Unmatched Portability: Our large callipers offer impressive measuring ranges from 400 to 3000 mm, making them perfect for accurately measuring large dimensions. Despite their size, these callipers are remarkably lightweight, ensuring easy handling and transport.
- Seamless Data Aquisition: Integrated Bluetooth® Smart data transmission, allowing you to transmit measurements wirelessly, quickly and error-free for enhanced productivity. Also features a Proximity data output.
- Built to last : Crafted with a frame made of special aluminum profile reinforced with 4 stainless steel guide rods, our IP67 callipers are built to withstand the demands of rigorous use while maintaining stability and accuracy.
- User-Friendly Design : The XXL display unit, with digits 20 mm high, offers excellent readability. With three buttons, including a central button with a selectable favorite function, operating this light calliper becomes effortless. The lever-lockable movable left jaw simplify measurements, providing convenience and flexibility.
- Controlled force : To ensure accurate and consistent measurements, our callipers are equipped with an integrated force control device. This feature allows the operator to verify and apply the same force to all measurements, eliminating potential discrepancies and ensuring reliable results.
- Enhanced Efficiency: Our caliper comes with interchangeable measuring keys equipped with hard metal pins Ø 8 x 80 mm, providing versatility and adaptability. You can also choose from a range of optional measuring keys for specific applications.
Applications
Diameter
Distance
Form deviation
Industries
Automotive
Aeronautics
Fastening
Packaging
Machine tool
Medical device
Overview
Specifications
Standard Delivery
Accessories
Applications
Tutorials
Resources
| 811-8040 | 811-8060 | 811-8100 | 811-8150 | |
| EAN | 7640125697797 | 7640125697803 | 7640125697810 | 7640125697827 |
| Model (mm) | 400 | 600 | 1000 | 1500 |
| Max. Error (µm) | 30 | 40 | 50 | 90 |
| Repeatability (µm) | 20 | |||
| Resolution (mm) | 0.01 | |||

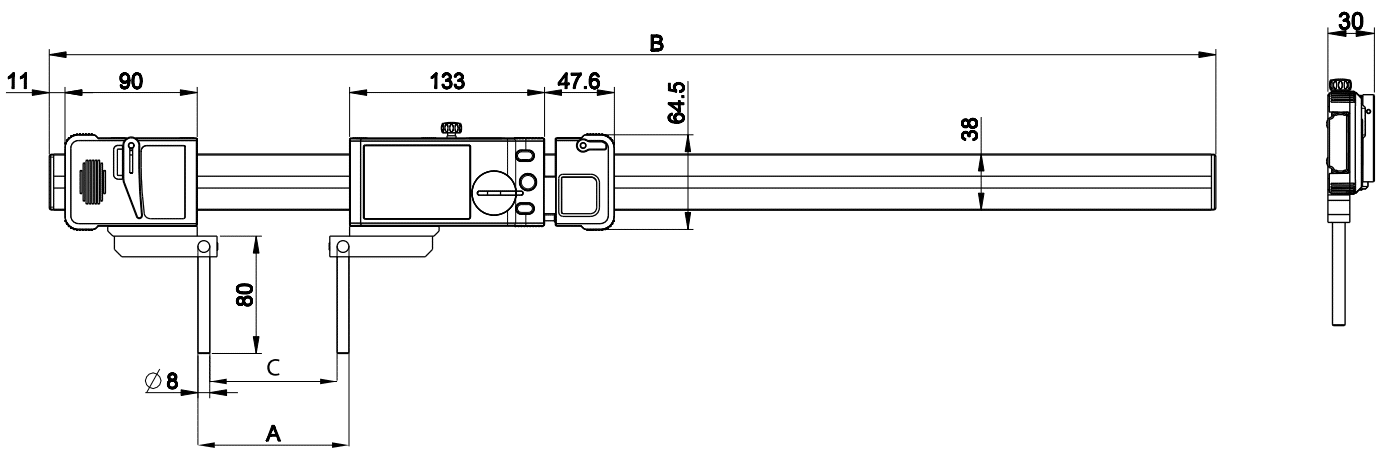

| A (mm) | 26-480 | 26-685 | 26-1095 | 26-1610 |
| C (mm) | 10-464 | 10-669 | 10-1079 | 10-1594 |
| B (mm) | 796 | 1001 | 1411 | 1926 |
| Measuring Force (N) | 7.5 – 11.5 (±20%) | |||
| Output data | Bluetooth® wireless technology / RS232 / USB | |||
| IP67 Protection | ⬤ | |||
| Preset max. | ±9999.99 mm / ±399.9995 IN | |||
| Weight (kg) | 1.1 | 1.2 | 1.5 | 1.9 |
| Setting by PC | ⬤ | |||
| 2 references | ⬤ | |||
| Min/Max function | ⬤ | |||
| Tolerance limit indicators | ⬤ | |||
| 811-8200 | 811-8250 | 811-8300 | |
| EAN | 7640125697834 | 7640125697841 | 7640125697858 |
| Model (mm) | 2000 | 2500 | 3000 |
| Max. Error (µm) | 120 | 150 | 200 |
| Repeatability (µm) | 30 | ||
| Resolution (mm) | 0.01 | ||
| A (mm) | 26-2125 | 26-2640 | 26-3155 |
| C (mm) | 10-2109 | 10-2624 | 10-3139 |
| B (mm) | 2441 | 2956 | 3471 |
| Measuring Force (N) | 7.5 – 11.5 (±20%) | ||
| Output data | Bluetooth® wireless technology / RS232 / USB | ||
| IP67 Protection | ⬤ | ||
| Preset max. | ±9999.99 mm / ±399.9995 IN | ||
| Weight (kg) | 2.2 | 2.5 | 2.9 |
| Setting by PC | ⬤ | ||
| 2 references | ⬤ | ||
| Min/Max function | ⬤ | ||
| Tolerance limit indicators | ⬤ | ||
Spécifications
| 811-8040 | 811-8060 | 811-8100 | 811-8150 | |
| EAN | 7640125697797 | 7640125697803 | 7640125697810 | 7640125697827 |
| Model (mm) | 400 | 600 | 1000 | 1500 |
| Max. Error (µm) | 30 | 40 | 50 | 90 |
| Repeatability (µm) | 20 | |||
| Resolution (mm) | 0.01 | |||
| A (mm) | 26-480 | 26-685 | 26-1095 | 26-1610 |
| C (mm) | 10-464 | 10-669 | 10-1079 | 10-1594 |
| B (mm) | 796 | 1001 | 1411 | 1926 |
| Measuring Force (N) | 7.5 – 11.5 (±20%) | |||
| Output data | Bluetooth® wireless technology / RS232 / USB | |||
| IP67 Protection | ⬤ | |||
| Preset max. | ±9999.99 mm / ±399.9995 IN | |||
| Weight (kg) | 1.1 | 1.2 | 1.5 | 1.9 |
| Setting by PC | ⬤ | |||
| 2 references | ⬤ | |||
| Min/Max function | ⬤ | |||
| Tolerance limit indicators | ⬤ | |||
| 811-8200 | 811-8250 | 811-8300 | |
| EAN | 7640125697834 | 7640125697841 | 7640125697858 |
| Model (mm) | 2000 | 2500 | 3000 |
| Max. Error (µm) | 120 | 150 | 200 |
| Repeatability (µm) | 30 | ||
| Resolution (mm) | 0.01 | ||
| A (mm) | 26-2125 | 26-2640 | 26-3155 |
| C (mm) | 10-2109 | 10-2624 | 10-3139 |
| B (mm) | 2441 | 2956 | 3471 |
| Measuring Force (N) | 7.5 – 11.5 (±20%) | ||
| Output data | Bluetooth® wireless technology / RS232 / USB | ||
| IP67 Protection | ⬤ | ||
| Preset max. | ±9999.99 mm / ±399.9995 IN | ||
| Weight (kg) | 2.2 | 2.5 | 2.9 |
| Setting by PC | ⬤ | ||
| 2 references | ⬤ | ||
| Min/Max function | ⬤ | ||
| Tolerance limit indicators | ⬤ | ||
Standard Delivery
| Standard Delivery |
| Instrument according to technical specifications |
| Lithium battery CR2477 included |
| Calibration certificate for UL up to 3000mm |
| Universal base 811-2301 |
| Anvil holder 811-2302 |
| Long cylindrical anvil Ø8x80mm (811-2324) |
| Instruction manual |
Accessories
| Accessories | ||
|
811-2301 | Universal base (2 pieces) |
  |
811-2302 | Ø8 Anvil holder (2 pieces, to combine with 811-2301) |
 |
811-2303 | Accessories holder (2 different pieces) |
 |
811-2307 | Inserts in hardened steel, cone 60° for bore clearance measurement > 10 mm, (2 pieces) |
 |
811-2309 | Holder for dial gauge contact points for internal groove measurement, (2 pieces) |
 |
811-2310 | Anvil Ø10mm (2 pieces) |
 |
811-2311 | Anvil Ø20mm (2 pieces) |
 |
811-2312 | Anvil Ø25x5mm (2 pieces) |
 |
811-6306 | Wooden box for UL4 400 and 600mm |
| 811-6310 | Wooden box for UL4 1000mm | |
| 811-6315 | Wooden box for UL4 1500mm | |
 |
811-2322 | Lower internal anvil (2 pieces) |
 |
811-2323 | Upper internal measurement anvil (2 pieces)* (to combine with 811-2303) |
 |
811-2324 | Long cylindrical anvil Ø8x80mm (2 pieces) (to combine with 811-2302 & 811-2301) |
 |
811-2325 | Cylindrical anvil Ø8x30mm (2 pieces) |
 |
926-6723 | Proximity RS232 (Standard 3 m) |
 |
926-6721 | Proximity USB (Standard 3 m) |
 |
985-2216 | Battery CR2477 |
 |
926-7022 | S_Footswitch Smart |
