Digital scales S_Scale EVO Smart
Description
Digital scale with integrated Bluetooth® system.
* Available in different measuring ranges
* Available in different measuring ranges
Features
- Solution for linear measurement : Designed to equip machine tables and special linear measurement systems, The ruler is fixed on a table, and the unit displays the exact linear distance traveled between point A and point B. Available in 150, 200, 300 and 600 mm measuring range.
- Seamless Connectivity: Effortless wireless data transfer with integrated Bluetooth® system for seamless communication and connectivity. Additional RS232 or USB Data output and External power supply by Power cable

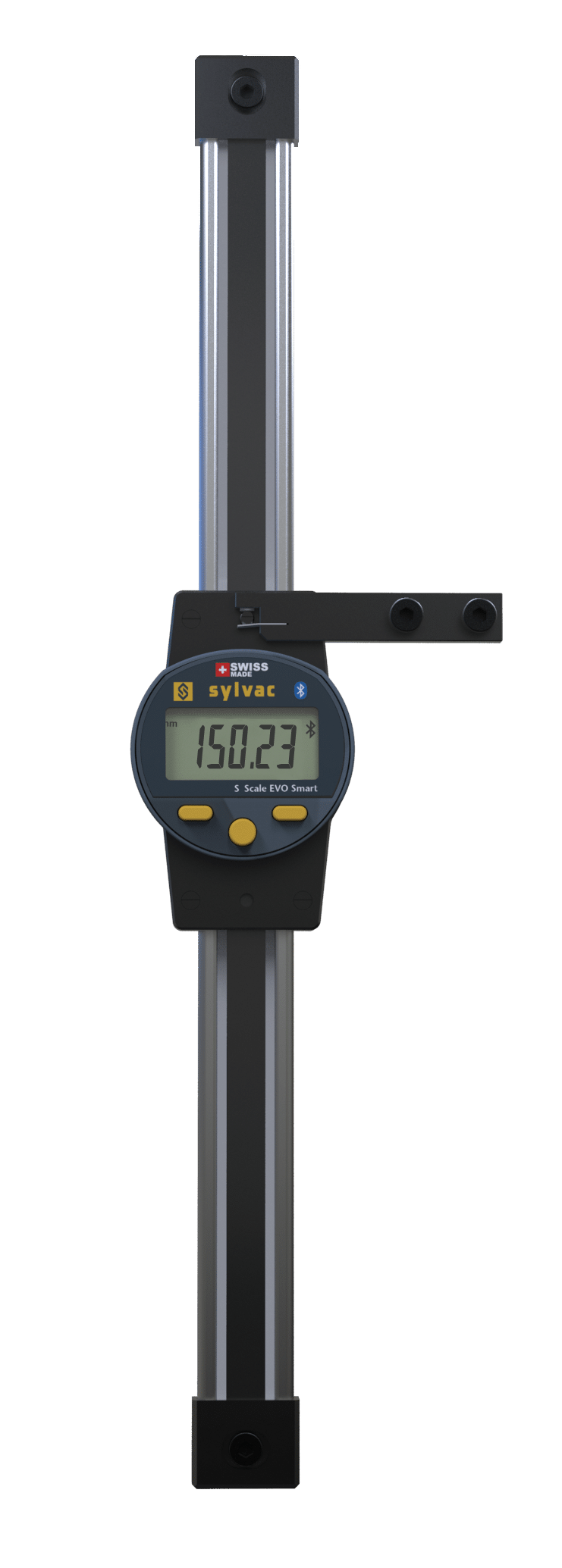

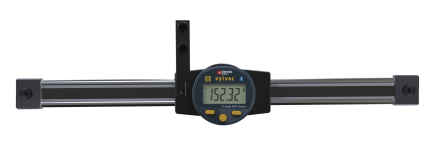

- Versatile Housing: Ø 45 mm housing rotatable by 270°, allowing horizontal or vertical use, providing flexibility and convenience.
- Built to last: IP54 protected, Flat pole measuring 20 x 5 mm in hardened and ground stainless steel, ensuring durability and reliable performance.
- Clear and Accurate: Digital display with 0.01 mm resolution
- Intuitive Operation: Three buttons, including central button with selectable favorite function, for user-friendly navigation and customization.
- Flexible Drive Bar Positioning: Supplied with a drive bar that can be positioned at the top or bottom of the display, offering flexibility in usage.
Applications
Form deviation
Distance
Industries
Automotive
Aeronautics
Packaging
Machine tool
Overview
Specifications
Standard Delivery
Accessories
Applications
Tutorials
Documents
| 816-1615 | 816-1620 | 816-1630 | 816-1660 | |
| EAN | 7640125689556 | 7640125689563 | 7640125689570 | 7640125689594 |
| Measuring range (mm) | 150 | 200 | 300 | 600 |
| Type | H / V | |||
| Max. error (µm) | 20 | 20 | 30 | 30 |
| Repeatability (µm) | 10 ² | |||
| Resolution (mm) | 0.01 | |||

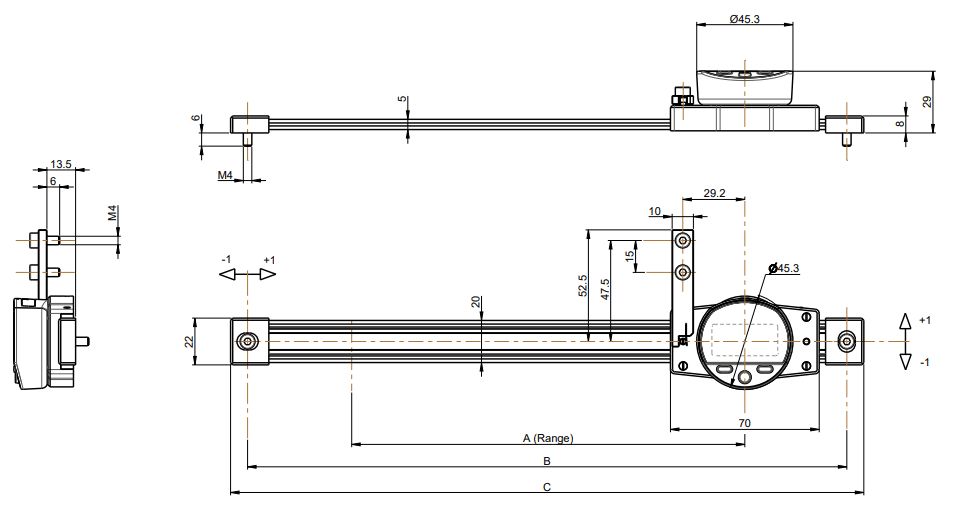

| A (mm) | 185 | 235 | 335 | 665 |
| B (mm) | 282 | 332 | 432 | 762 |
| C (mm) | 298 | 348 | 448 | 778 |
| Connection type (instrument to device) | Bluetooth® Wireless Technology ¹ Power to RS232 ¹ Power to USB ¹ Adaptator RS – USB ¹ View cables info |
|||
| Selection of measuring direction | ⬤ | |||
| PRESET function | ⬤ | |||
| 2 references | ⬤ | |||
¹ Device: PC, display unit, …
² ± 1 digit
Spécifications
| 816-1615 | 816-1620 | 816-1630 | 816-1660 | |
| EAN | 7640125689556 | 7640125689563 | 7640125689570 | 7640125689594 |
| Measuring range (mm) | 150 | 200 | 300 | 600 |
| Type | H / V | |||
| Max. error (µm) | 20 | 20 | 30 | 30 |
| Repeatability (µm) | 10 ² | |||
| Resolution (mm) | 0.01 | |||
| A (mm) | 185 | 235 | 335 | 665 |
| B (mm) | 282 | 332 | 432 | 762 |
| C (mm) | 298 | 348 | 448 | 778 |
| Connection type (instrument to device) | Bluetooth® Wireless Technology ¹ Power to RS232 ¹ Power to USB ¹ Adaptator RS – USB ¹ View cables info |
|||
| Selection of measuring direction | ⬤ | |||
| PRESET function | ⬤ | |||
| 2 references | ⬤ | |||
¹ Device: PC, display unit, …
² ± 1 digit
