Plastiform® SRL Liquid ProductsCHF 100.00
Menu
Close
Plastiform® SRL Liquid Products
Starting at :
CHF 100.00
*Available in different measuring ranges
Description
Versatile liquid imprint product.
Features
- Versatile: effortlessly imprinting various shapes and forms of parts within seconds with simple steps.
- Precise: preserve the shapes of the part without changes. The replication capture all details at the micron scale with utmost accuracy.
- Residue-free: no residue left is left on the parts once applied and removed due to the products‘ textures and characteristics.
Overview
Specifications
Accessories
Applications
Tutorials
| Cartridges 50ml | 928-2001 | 928-2005 | 928-2101 | 928-2105 |
| EAN | 3760291480505 | 3760291480543 | 3760291480581 | 3760291480628 |
| Type | SRL2 | SRL3V | SRL5 | SRL8 |
| Description | 2 Cartridges 50ml + 12 Standard Nozzles + 3 Tips | |||
| Color | ||||
| Final consistency | Flexible | Flexible | Semi-Flexible | Rigid |
| Final hardness Shore A | 20 | 30 | 50 | 85 |
| Removal constraint | 30% | 20% | 10% | 0% |
| Curing time |  |
|
|
|
| Contact measurement | x | x | ✓* | ✓ |
| Cut with cutter ? | x | x | ✓ | x |
| Cartridges 50ml | 928-2002 | 928-2006 | 928-2102 | 928-2106 |
| EAN | 3760291480512 | 3760291480550 | 3760291480598 | 3760291480635 |
| Type | SRL2 | SRL3V | SRL5 | SRL8 |
| Description | 8 Cartridges 50ml + 48 Standard Nozzles + 6 Tips | |||
| Color | ||||
| Final consistency | Flexible | Semi-Flexible | Semi-Flexible | Rigid |
| Final hardness Shore A | 20 | 30 | 50 | 85 |
| Removal constraint | 30% | 20% | 10% | 0% |
| Curing time | |
|
|
|
| Contact measurement | x | x | ✓* | ✓ |
| Cut with cutter ? | x | x | ✓ | x |

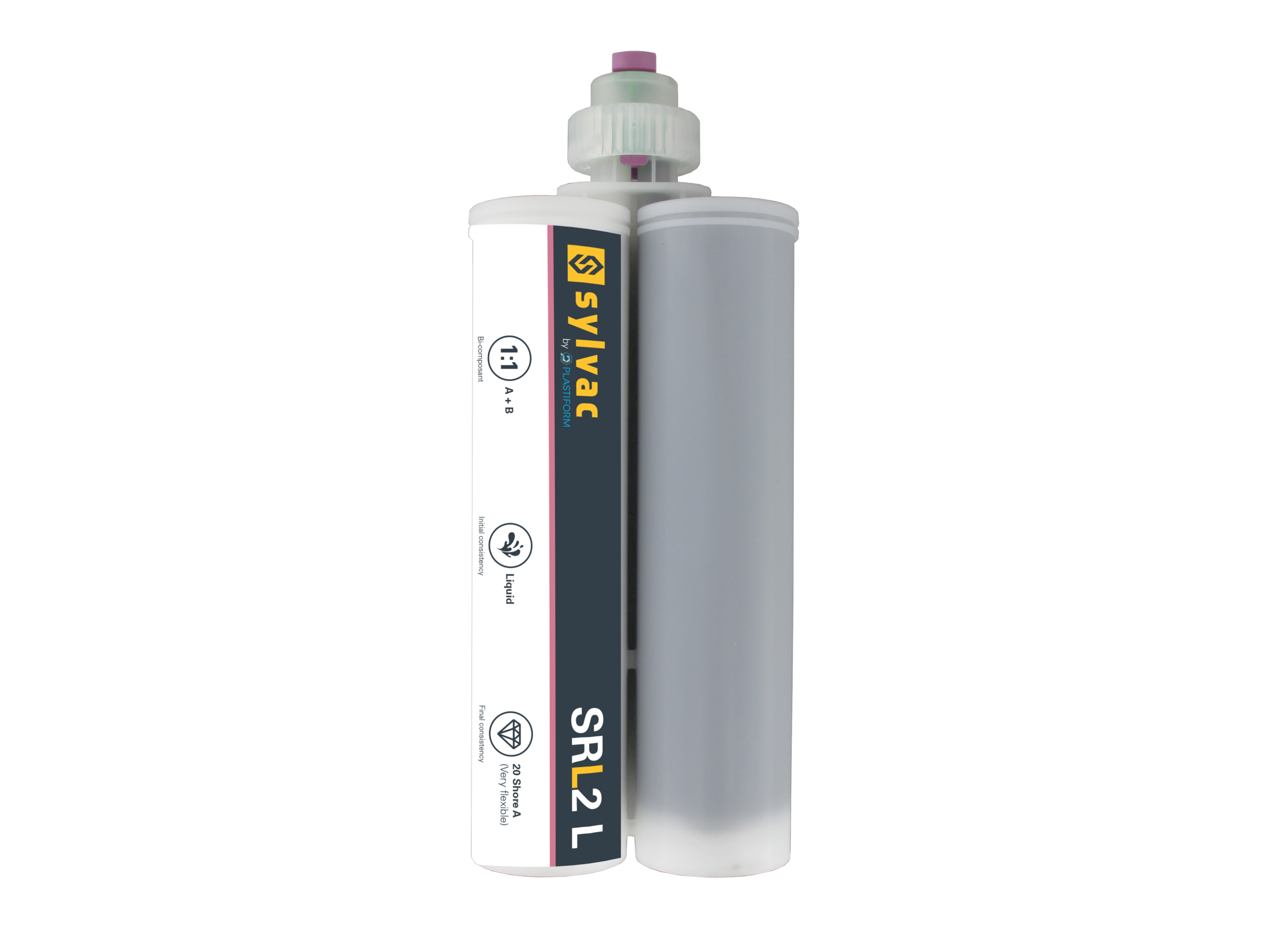

| Cartridges 400ml | 928-3001 | 928-3003 | 928-3005 |
| EAN | 3760291480727 | 3760291480741 | 3760291480765 |
| Type | SRL2 L | SRL5 L | SRL8 L |
| Description | 1 Cartridge 400ml + 10 Quadro Nozzles | ||
| Color | |||
| Final consistency | Flexible | Semi-Flexible | Semi-Rigid |
| Removal constraint | 30% | 5% | 0% |
| Final hardness Shore A | 20 | 50 | 85 |
| Curing time | |
|
|
| Contact measurement | x | x | ✓ |
| Cut with cutter ? | x | ✓ | x |

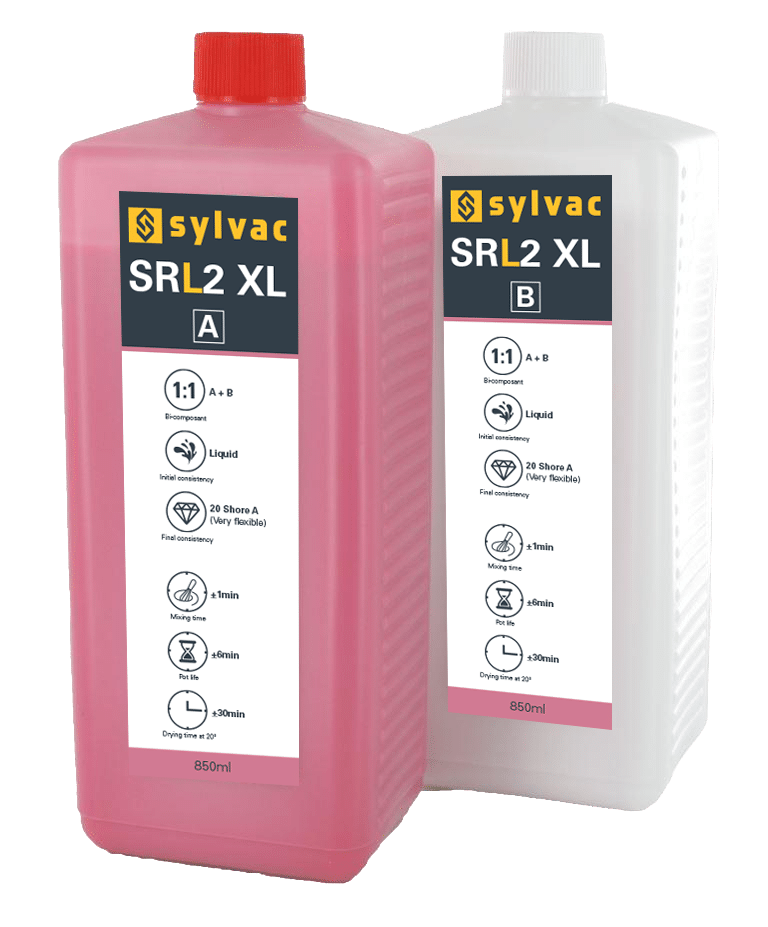

| Cans 1.7l | 928-8001 | 928-8005 | 928-8009 |
| EAN | 3760291480994 | 3760291481038 | 3760291481076 |
| Type | SRL2 XL | SRL5 XL | SRL8 XL |
| Description | 1 Can 1.7l (2x 850ml) | ||
| Color | |||
| Final consistency | Flexible | Semi-Flexible | Semi-Rigid |
| Removal constraint | 30% | 5% | 0% |
| Final hardness Shore A | 20 | 50 | 85 |
| Curing time | |
|
|
| Contact measurement | x | x | ✓ |
| Cut with cutter ? | x | ✓ | x |

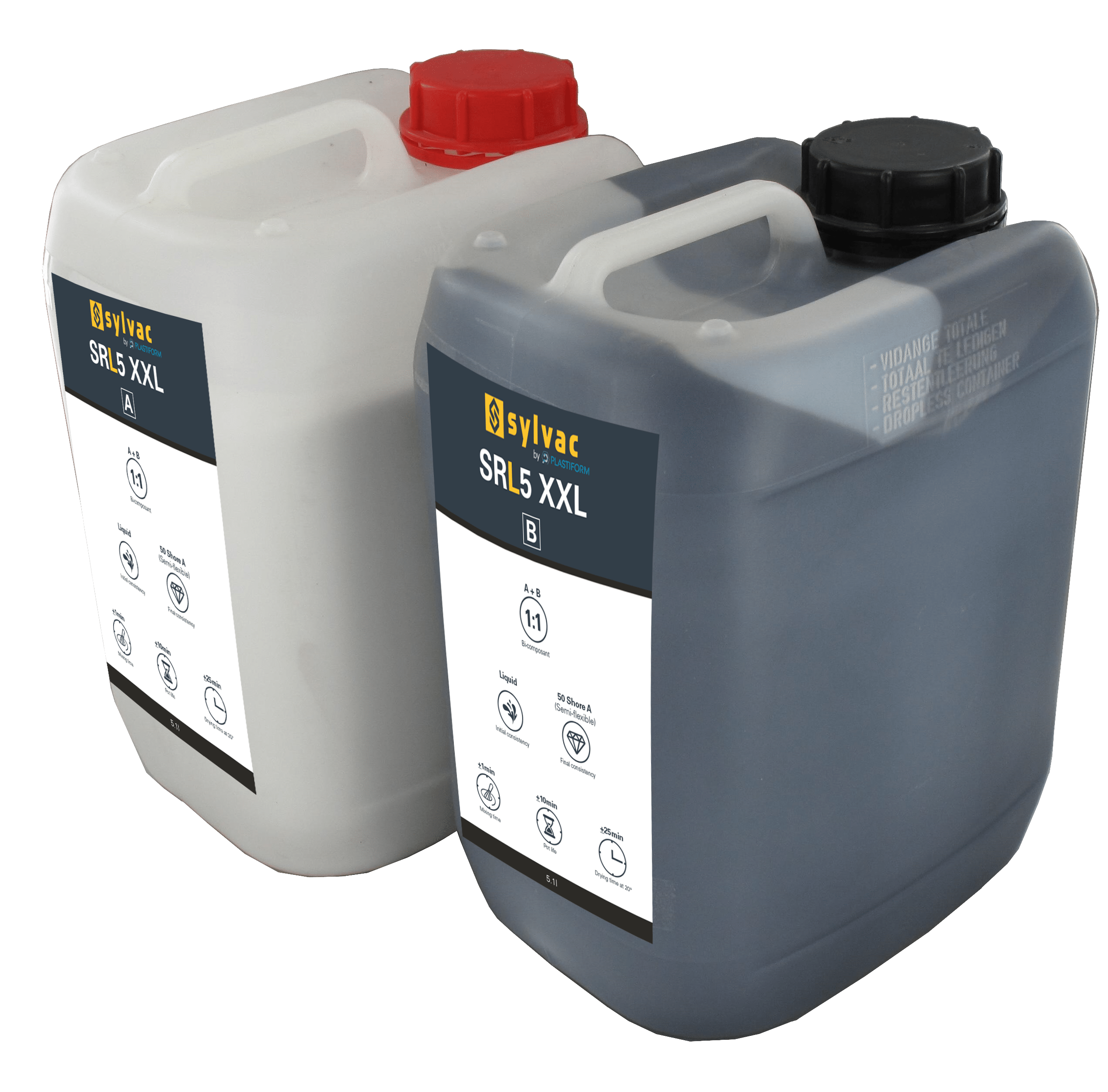

| Cans 10.2l | 928-8002 | 928-8006 | 928-8010 |
| EAN | 3760291481007 | 3760291481045 | 3760291481083 |
| Type | SRL2 XXL | SRL5 XXL | SRL8 XXL |
| Description | 1 Can 10.2l (2x 5.1l) | ||
| Color | |||
| Final consistency | Flexible | Semi-Flexible | Semi-Rigid |
| Removal constraint | 30% | 5% | 0% |
| Final hardness Shore A | 20 | 50 | 85 |
| Curing time | |
|
|
| Contact measurement | x | x | ✓ |
| Cut with cutter ? | x | ✓ | x |
Applications

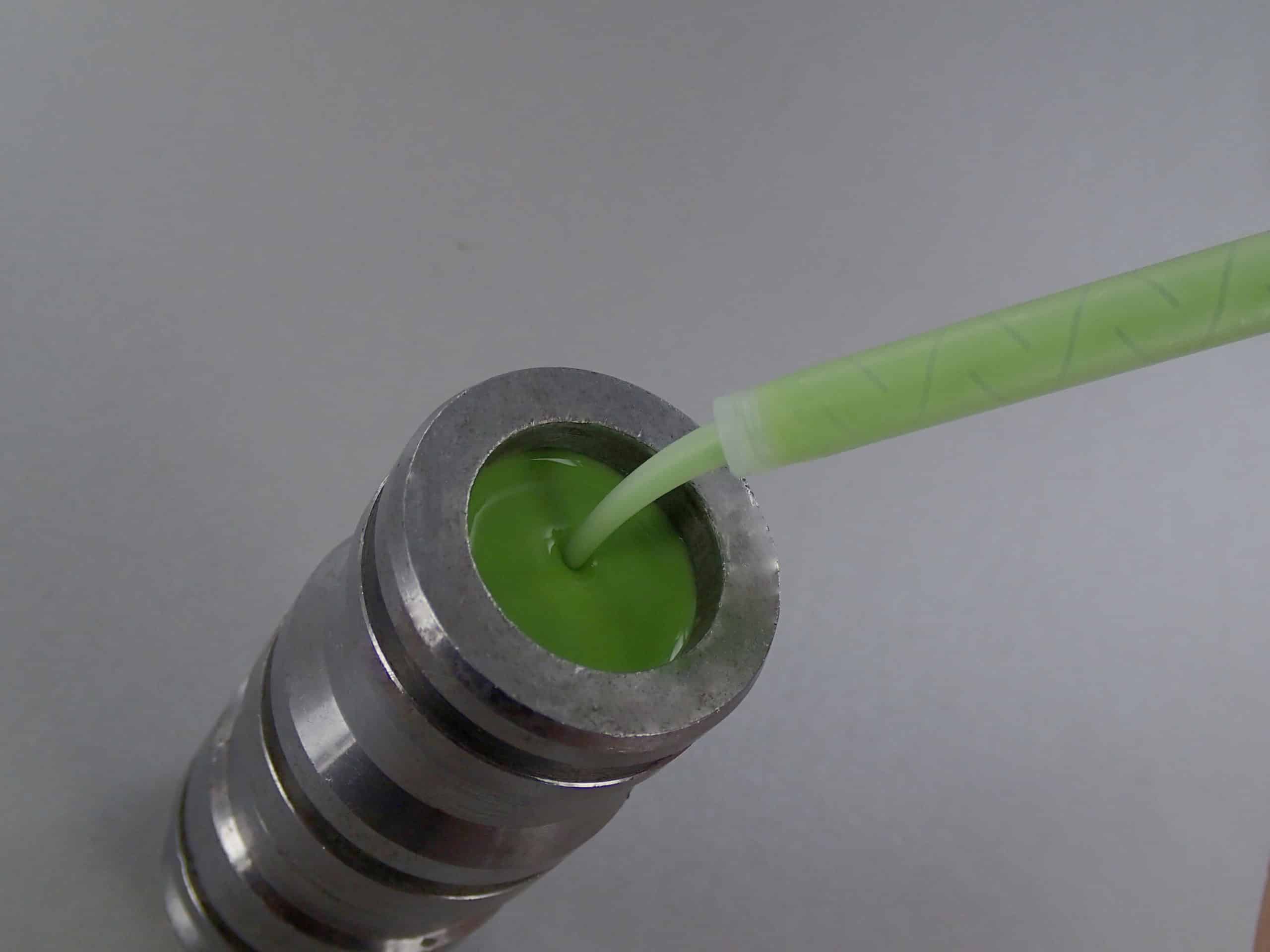

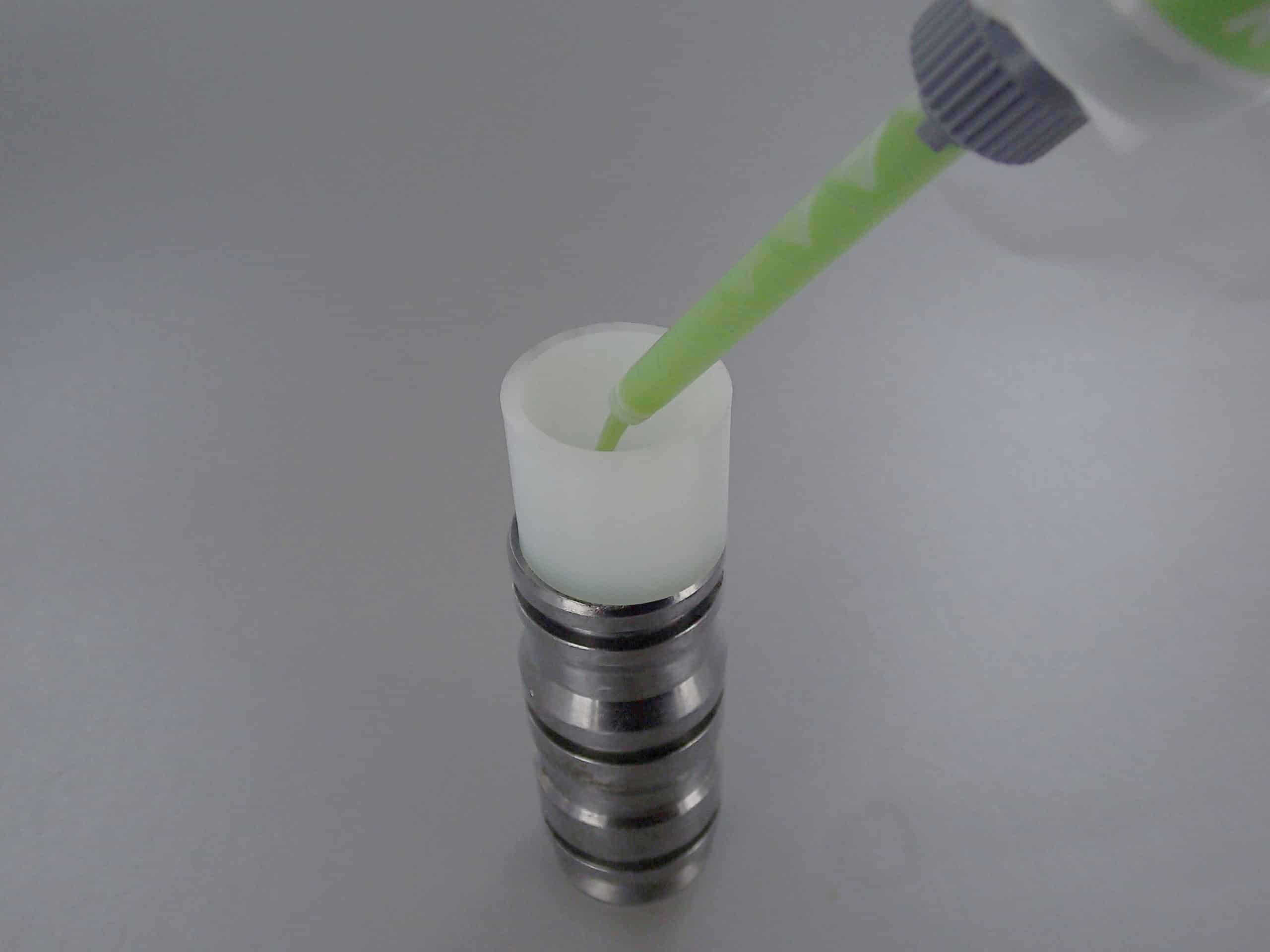

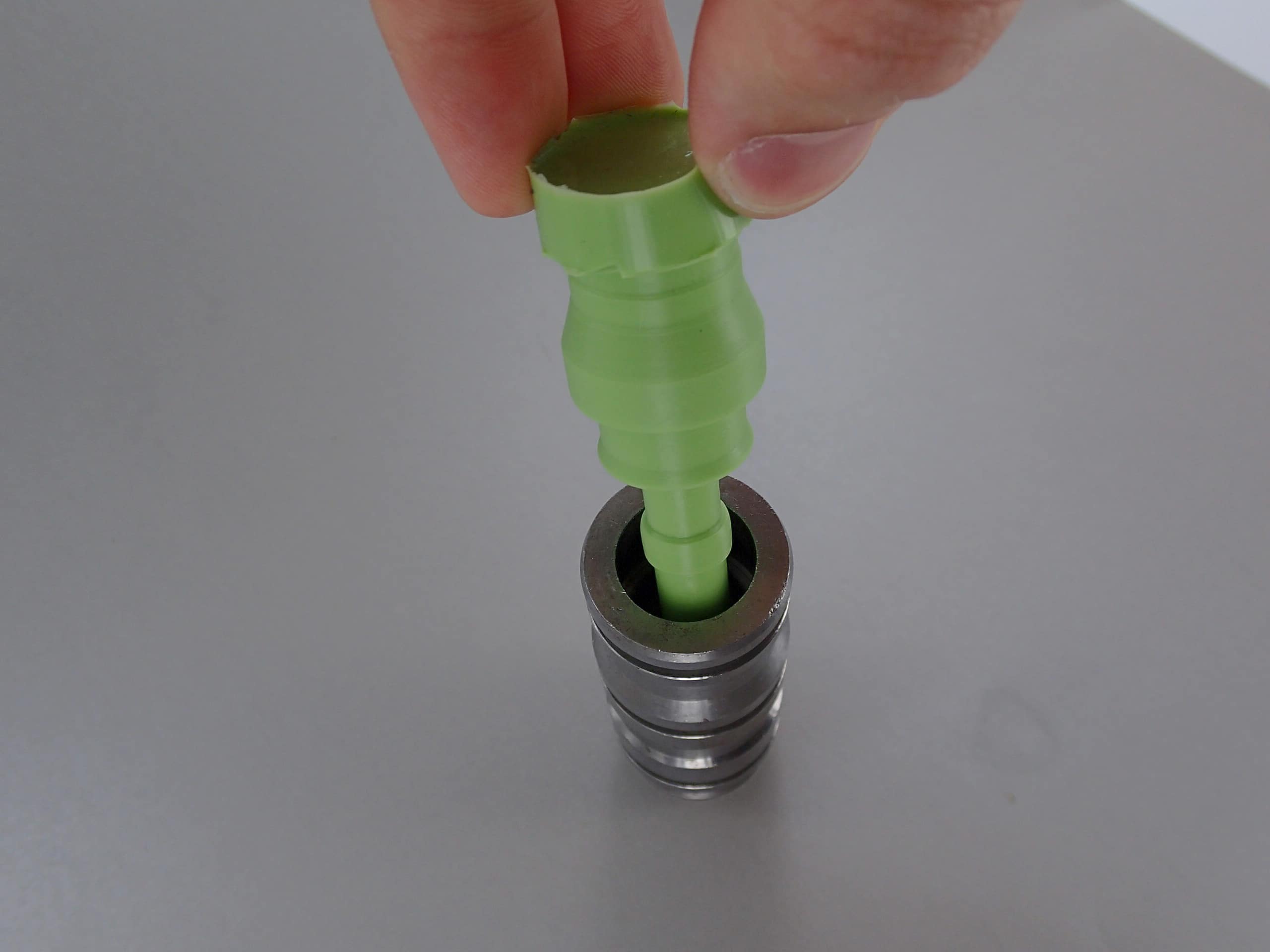

Internal impression
Internal impression
Internal impression

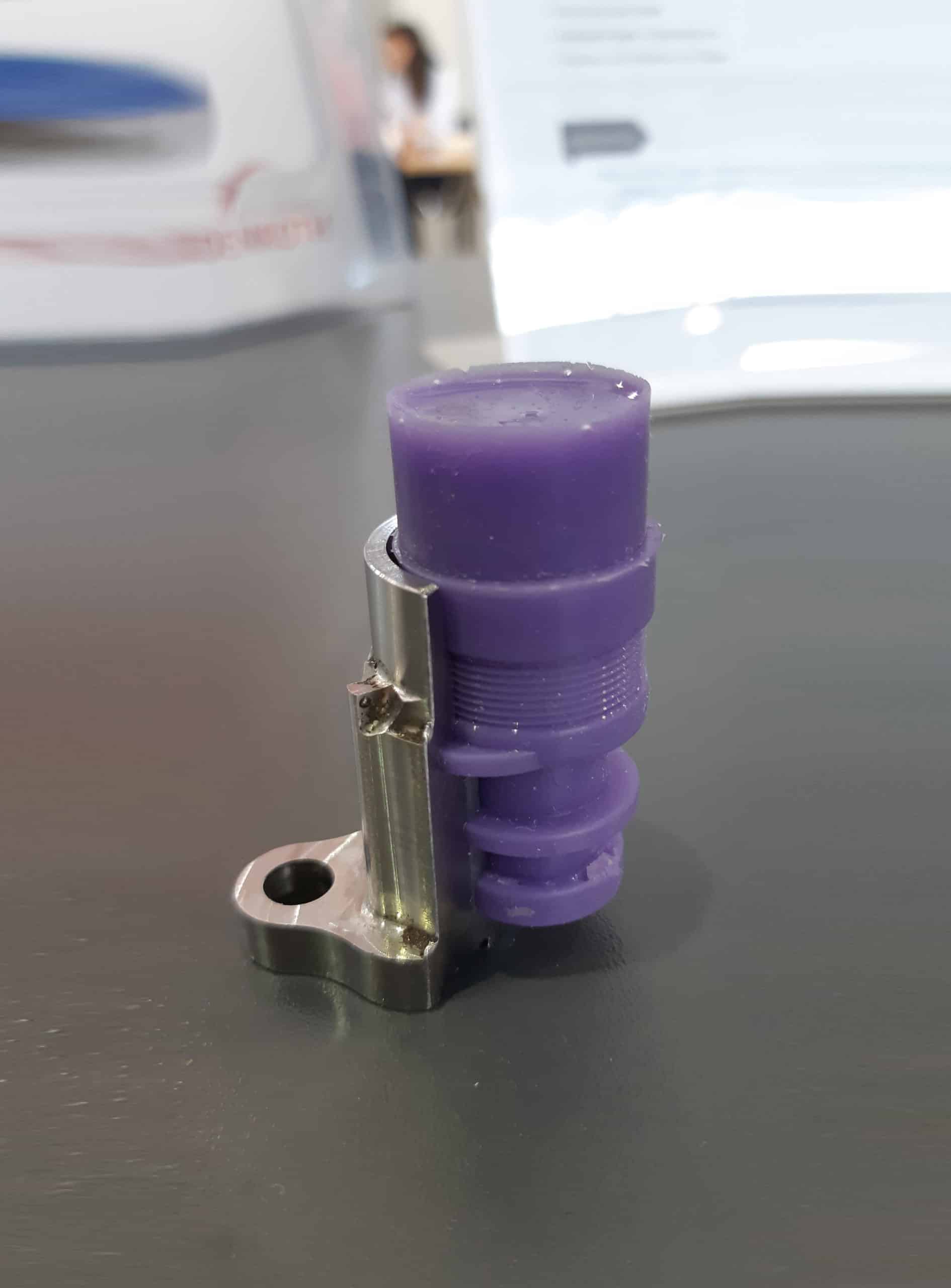

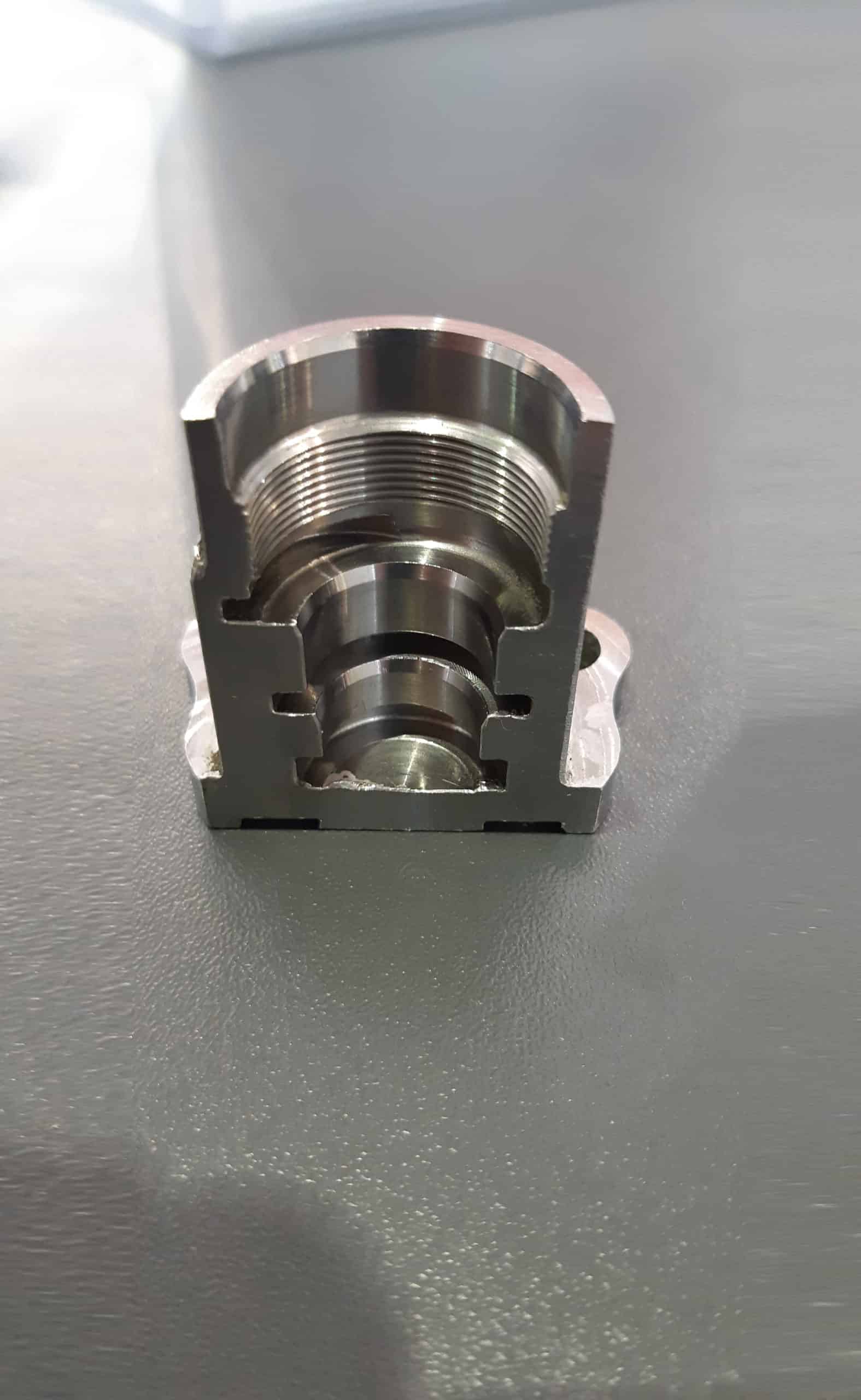

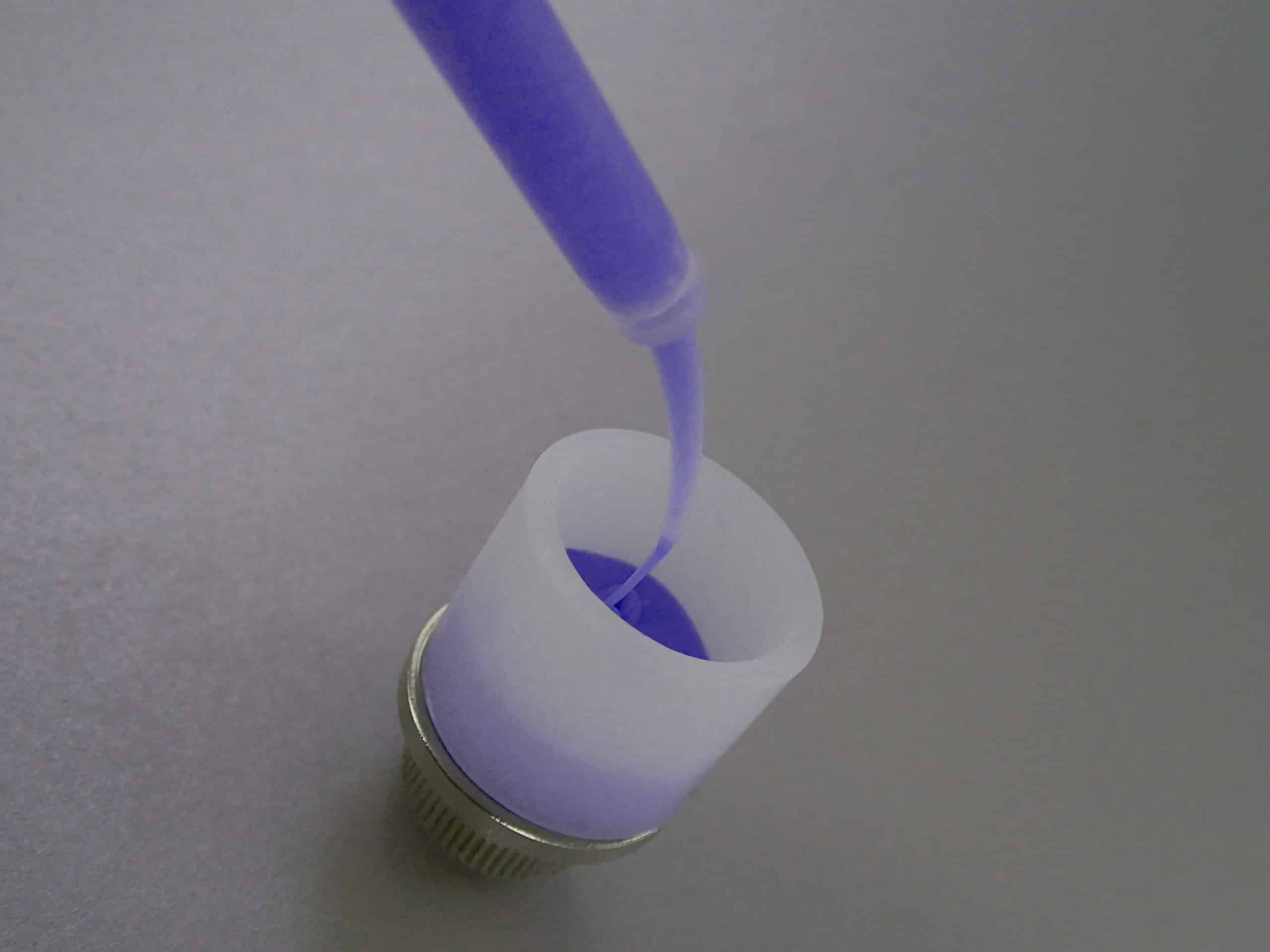

Non-destructive control
Non-destructive control
Non-destructive control
Tutoriel
Spécifications
| Cartridges 50ml | 928-2001 | 928-2005 | 928-2101 | 928-2105 |
| EAN | 3760291480505 | 3760291480543 | 3760291480581 | 3760291480628 |
| Type | SRL2 | SRL3V | SRL5 | SRL8 |
| Description | 2 Cartridges 50ml + 12 Standard Nozzles + 3 Tips | |||
| Color | ||||
| Final consistency | Flexible | Flexible | Semi-Flexible | Rigid |
| Final hardness Shore A | 20 | 30 | 50 | 85 |
| Removal constraint | 30% | 20% | 10% | 0% |
| Curing time | |
|
|
|
| Contact measurement | x | x | ✓* | ✓ |
| Cut with cutter ? | x | x | ✓ | x |
| Cartridges 50ml | 928-2002 | 928-2006 | 928-2102 | 928-2106 |
| EAN | 3760291480512 | 3760291480550 | 3760291480598 | 3760291480635 |
| Type | SRL2 | SRL3V | SRL5 | SRL8 |
| Description | 8 Cartridges 50ml + 48 Standard Nozzles + 6 Tips | |||
| Color | ||||
| Final consistency | Flexible | Semi-Flexible | Semi-Flexible | Rigid |
| Final hardness Shore A | 20 | 30 | 50 | 85 |
| Removal constraint | 30% | 20% | 10% | 0% |
| Curing time | |
|
|
|
| Contact measurement | x | x | ✓* | ✓ |
| Cut with cutter ? | x | x | ✓ | x |
| Cartridges 400ml | 928-3001 | 928-3003 | 928-3005 |
| EAN | 3760291480727 | 3760291480741 | 3760291480765 |
| Type | SRL2 L | SRL5 L | SRL8 L |
| Description | 1 Cartridge 400ml + 10 Quadro Nozzles | ||
| Color | |||
| Final consistency | Flexible | Semi-Flexible | Semi-Rigid |
| Removal constraint | 30% | 5% | 0% |
| Final hardness Shore A | 20 | 50 | 85 |
| Curing time | |
|
|
| Contact measurement | x | x | ✓ |
| Cut with cutter ? | x | ✓ | x |
| Cans 1.7l | 928-8001 | 928-8005 | 928-8009 |
| EAN | 3760291480994 | 3760291481038 | 3760291481076 |
| Type | SRL2 XL | SRL5 XL | SRL8 XL |
| Description | 1 Can 1.7l (2x 850ml) | ||
| Color | |||
| Final consistency | Flexible | Semi-Flexible | Semi-Rigid |
| Removal constraint | 30% | 5% | 0% |
| Final hardness Shore A | 20 | 50 | 85 |
| Curing time | |
|
|
| Contact measurement | x | x | ✓ |
| Cut with cutter ? | x | ✓ | x |
| Cans 10.2l | 928-8002 | 928-8006 | 928-8010 |
| EAN | 3760291481007 | 3760291481045 | 3760291481083 |
| Type | SRL2 XXL | SRL5 XXL | SRL8 XXL |
| Description | 1 Can 10.2l (2x 5.1l) | ||
| Color | |||
| Final consistency | Flexible | Semi-Flexible | Semi-Rigid |
| Removal constraint | 30% | 5% | 0% |
| Final hardness Shore A | 20 | 50 | 85 |
| Curing time | |
|
|
| Contact measurement | x | x | ✓ |
| Cut with cutter ? | x | ✓ | x |
Accessoires
| Large volume kits | 928-5001 | 928-5002 | 928-5004 |
| EAN | 3760291480796 | 3760291480802 | 3760291480826 |
| Type | Kit SRL2 KXL | Kit SRL5 KXL | Kit SRL8 KXL |
| Description | Kit with 4 cartridges 400ml and accessories | ||
| Color | |||
| Final consistency | Flexible | Semi-Flexible | Semi-Rigid |
| Cut with cutter ? | x | x | x |
| Removal constraint | 20% | 5% | 0% |
| Guns | 928-1001 | 928-1002 | 928-1207 | 928-1208 | 928-1209 |
| Description | Manual Dispensing Gun DS53 (for 50 ml cartridges) | Pneumatic Dispensing Gun DP50 (for 50 ml cartridges) | Manual Dispensing Gun DS 400 (for 400 ml cartridges) | Battery Dispensing Gun DB 400 (for 400ml cartridges) | Pneumatic Dispensing Gun DS 400 (for 400 ml cartridges) |
| Nozzles, tips and rings |
928-1003 | 928-1004 | 928-1005 | 928-1301 | 928-1302 |
| Description | Pack of 48 Standard Grey Mixer Injectors | Pack of 96 Standard Grey Mixer Injectors | Pack of 192 Standard Grey Mixer Injectors | Pack of 10 Needle Mixer Injectors | Pack of 50 Needle Mixer Injectors |
| Compatibility | Cartouches 50ml | ||||
| Nozzles, tips and rings |
928-1303 | 928-1304 | 928-1305 | 928-1306 | 928-1210 |
| Description | Pack of 100 Needle Mixer Injectors |
Pack of 200 Needle Mixer Injectors |
Pack of 50 Quadro Mixer Injectors |
Pack of 100 Quadro Mixer Injectors |
Pack of 10 Large Mixer Injectors |
| Compatibility | Cartouches 50ml | Cartouches 400ml | |||
| Nozzles, tips and rings | 928-1211 | 928-1212 | 928-1008 | 928-1202 | 928-1203 | 928-1201 |
| Description | Pack of 50 Large Mixer Injectors | Box of 4 different Fill’in |
Pack of 21 Rings for mould removal |
Pack of 20 White Nozzles Tips |
Pack of 50 White Nozzles Tips |
Plastin |
| Compatibility | Cartouches 400ml | – | – | Injecteur mélangeurs standards gris | – | |
| Cutters & products | 928-1011 | 928-1101 | 928-1102 | 928-1103 | 928-1104 |
| Description | Standard Twin Blade Cutter + Support | Special Twin Blade Cutter 60mm + Support | Special Twin Blade Cutter 60mm + Support | Special Twin Blade Cutter 100mm + Support | Special Twin Blade Cutter 100mm + Support |
| Space between blades | 1mm | 0.5mm | 2mm | 0.5mm | 1mm |
| Cutters & products | 928-1105 | 928-1106 | 928-1107 | 928-1108 | 928-1205* | 928-1206* |
| Description | Special Twin Blade Cutter 100mm + Support | Special Twin Blade Cutter 200mm + Support | Special Twin Blade Cutter 200mm + Support | Special Twin Blade Cutter 200mm + Support | Surface cleaner DN1 400ml |
Surface cleaner DN1 1l |
| Space between blades | 2mm | 0.5mm | 1mm | 2mm | – | – |
* Not included or delivered if shipped by air
