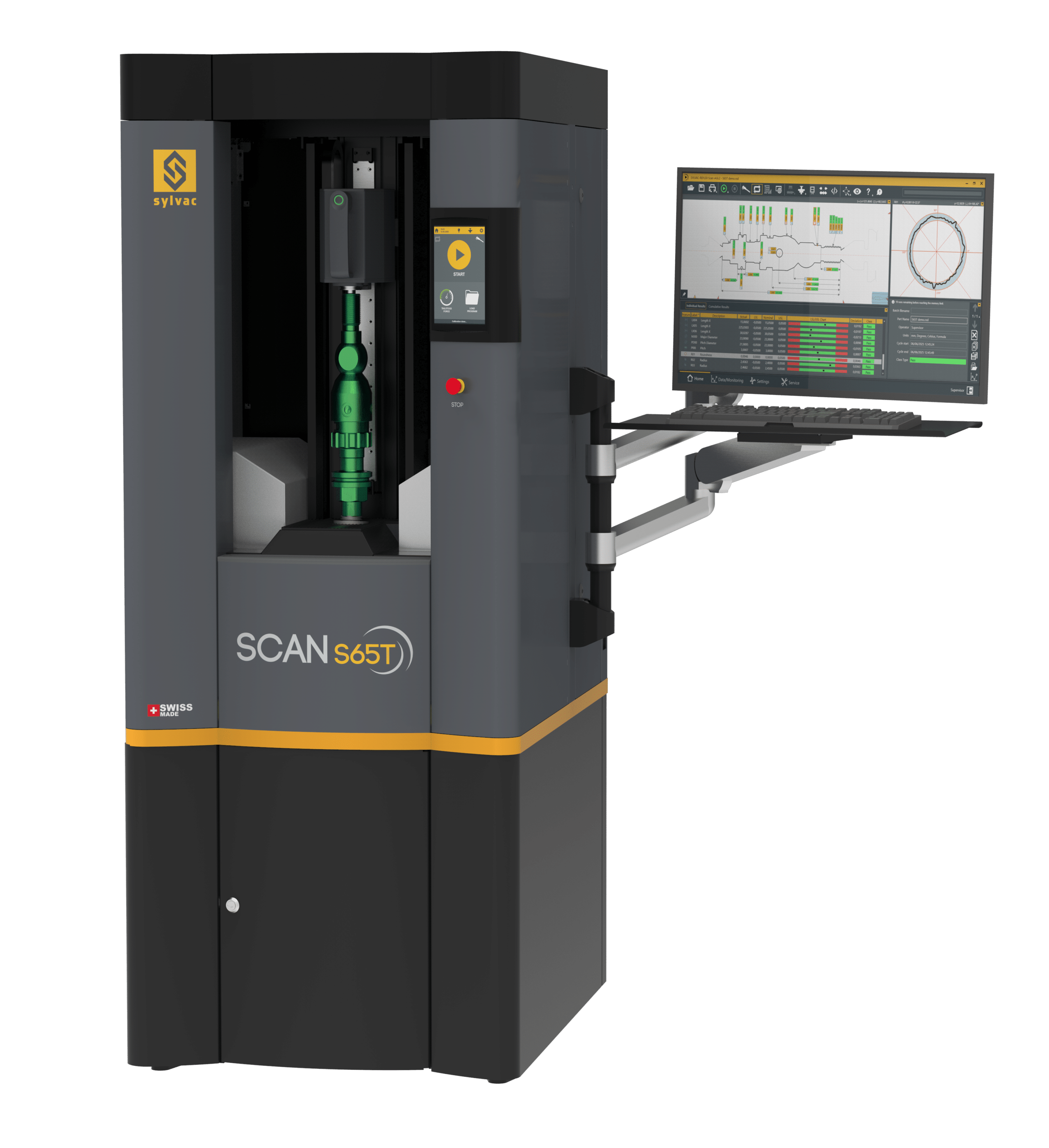

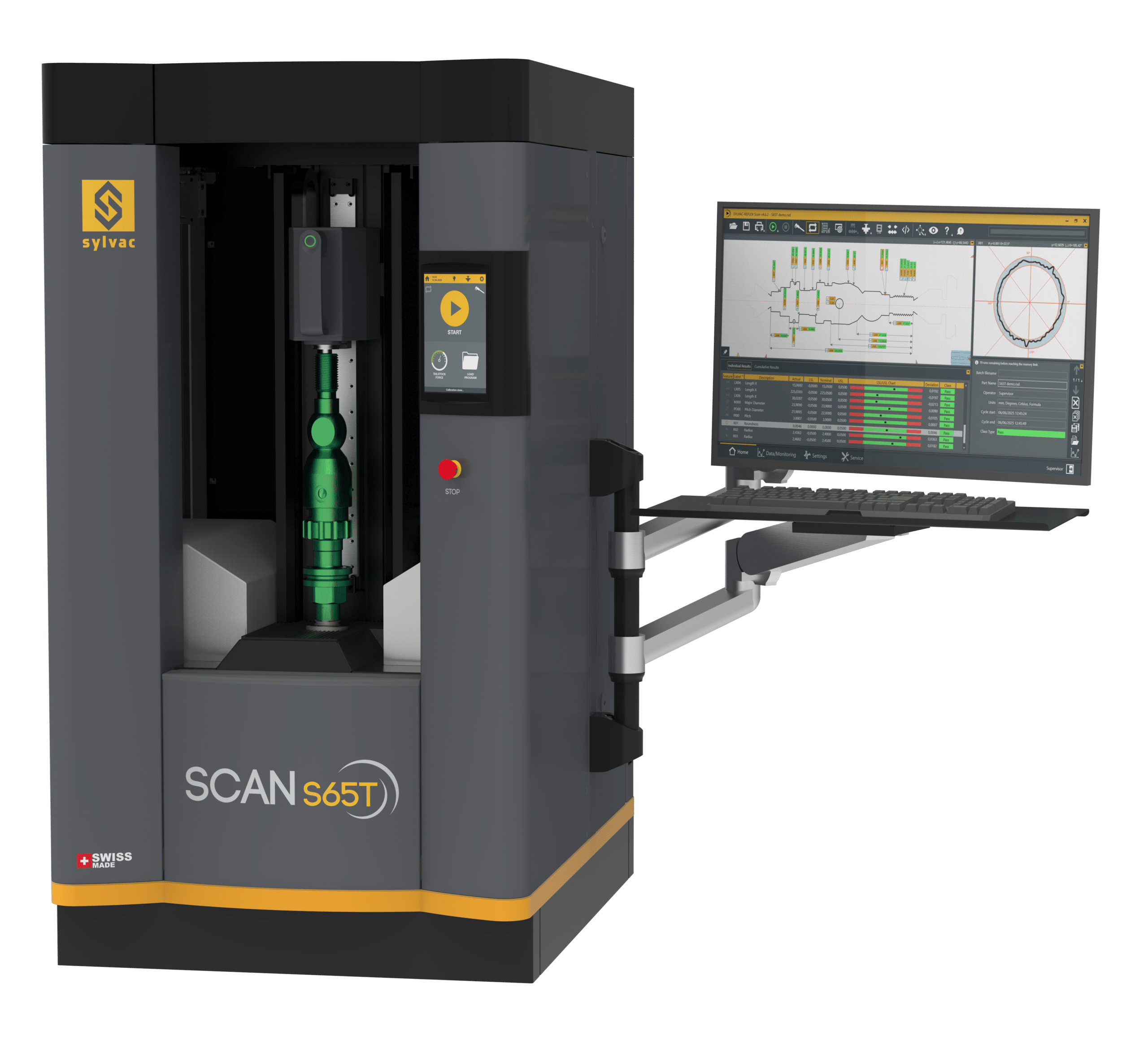

Optical measurement SYLVAC-SCAN S65T
Description
High-performance machine for dynamic measurement of cylindrical parts up to Ø65 mm.
Swiss made
Features
- Motorized tailstock: essential for full automation integration
- Adjustable clamping force: adaptable to any type of part
- LED-illuminated interior: for improved setup visibility
- 8” touchscreen interface: simple, fast, and user-friendly operation
- Quick-release tooling (ISO): for rapid part changeovers
Applications
Diameter
Form deviation
Distance
Angle
Localisation
Industries
Automotive
Aeronautics
Fastening
Machine tool
Medical device
Overview
Specifications
Standard Delivery
Accessories
Applications
Tutorials
Documents
| 902-4265 | ||
| EAN | ||
| Diameter | Length | |
| Measuring range (mm) | 65 | 350 |
| Resolution up to (mm) | Diameter : 0.0001 / Length : 0.0001 | |
| Max. error (µm) | Diameter : (1 + D[mm]/100) / Length : (3 + L[mm]/200) | |
| Repeatability 2δ (µm) | Diameter : 0.5 / Length : <1 | |
| Holding capacity (mm) | 200 | 360 |
| Tilt axis (°) | 30 | |
| Headstock | Rotary headstock for dynamic measurements | |
| Axial move speed (mm/s) | Up to 160 | |
| Max. part weight (kg) | 60 | |
| Machine weight (kg) | 420 | |
Spécifications
| 902-4265 | ||
| EAN | ||
| Diameter | Length | |
| Measuring range (mm) | 65 | 350 |
| Resolution up to (mm) | Diameter : 0.0001 / Length : 0.0001 | |
| Max. error (µm) | Diameter : (1 + D[mm]/100) / Length : (3 + L[mm]/200) | |
| Repeatability 2δ (µm) | Diameter : 0.5 / Length : <1 | |
| Holding capacity (mm) | 200 | 360 |
| Tilt axis (°) | 30 | |
| Headstock | Rotary headstock for dynamic measurements | |
| Axial move speed (mm/s) | Up to 160 | |
| Max. part weight (kg) | 60 | |
| Machine weight (kg) | 420 | |
Standard Delivery
|
Standard Delivery
|
| Instrument according to technical specifications, delivered with stand & screen support |
| Computer with screen, keyboard and mouse |
| Windows multilingual operating system |
| Sylvac Reflex SCAN Software + |
| Accessories : 2x 902-6259 ISO / MK2 adapter, 2x 902-6202, 902-6161 & 902-6212 |
| Manual |
