    Optical measurement SYLVAC-SCAN F60LT

    Starting at :
    CHF 76'658.00

    *Available in different measuring ranges

    Description

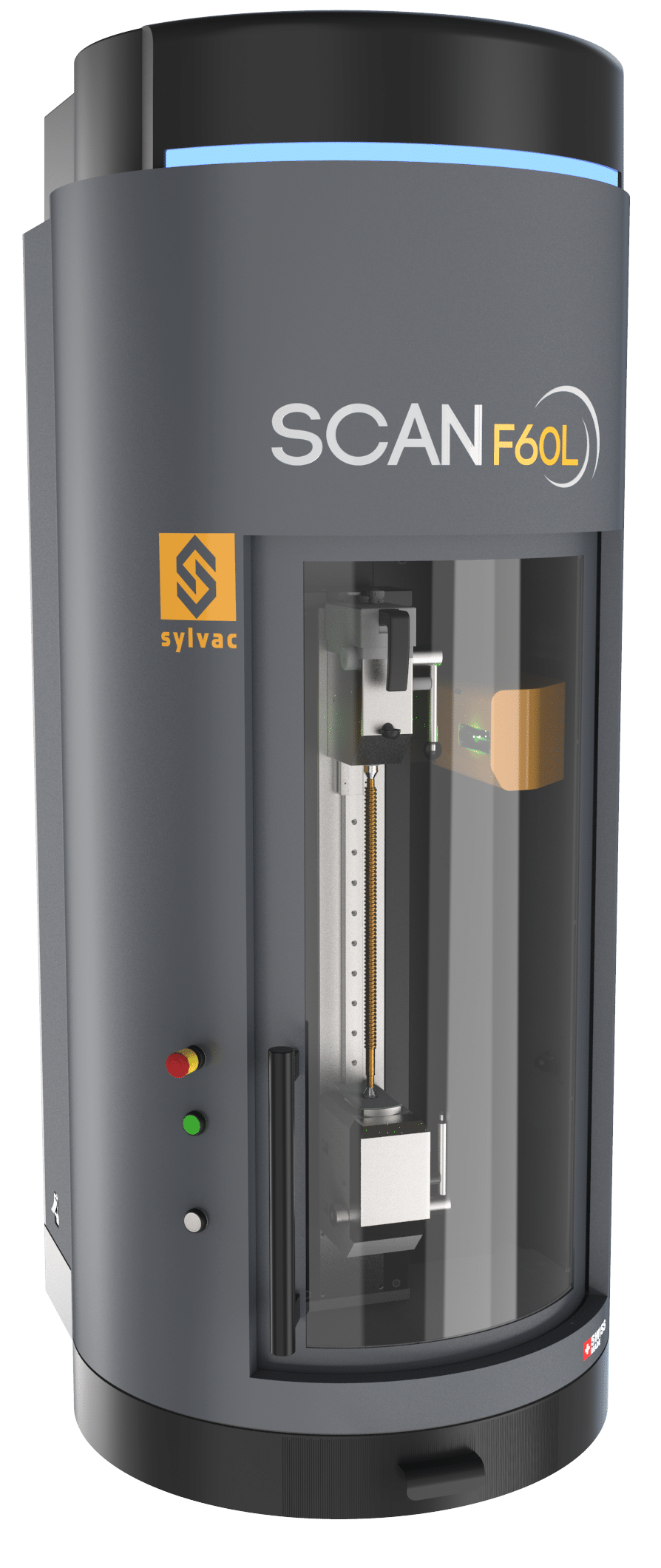

    Vertical optical machine for cylindrical parts up to ⌀64mm and 500mm long. With tilt system
    MicrosoftTeams-image (5)
    Swiss made

    Features

    • Cost Savings at Every Turn: Our non-contact machine is designed for the measurement of threads, while preserving the integrity of your parts, eliminating the risk of damage during quality control. One of our machine can handle virtually all measurements on cylindrical parts up to 64mm wide and 500mm long. With a complete 2D part scan taking less than 3 seconds, you can reduce inspection time, minimize scrap, and increase overall productivity.
    • Intuitive Operation: Enjoy easy operation right at your workplace with the new touch screen control panel. The dynamic LED indicator and intuitive Reflex SCAN+ concept provide real-time feedback on the measured part’s status (GO/NG) and operator messages. No prior programming is required—just a simple touch-button solution.
    • Precision and Efficiency: Experience exceptional precision with our no-contact machine’s bi-telecentric optical system and high-resolution CMOS camera. It features a precision sliding headstock with an integrated and protected daily standard, as well as a quick and hassle-free accessory changing system. The machine also includes integrated temperature sensors and exists with or without tilt system for true comprehensive thread measurement.
    • Seamless Integration: Our offering includes the Reflex SCAN+ software and a PC, empowering you to effortlessly measure a wide range of elements in an intuitive manner. Also available with ‘Automation Ready’ configuration upon request, to seamlessly integrate into your workflow.

    Applications

    icon-diameter
    Diameter
    logicielsDistance
    Distance
    angle-icon
    Angle
    logicielsPosition
    Localisation
    icon-form-deviation
    Form deviation

    Industries

    icon-automotive-sylvac
    Automotive
    icon-aeronotics-sylvac
    Aeronautics
    icon-fastening-sylvac
    Fastening
    icon-oackaging-sylvac
    Packaging
    icon-machine-tool-sylvac
    Machine tool
    icon-medical-device-sylvac
    Medical device

    Overview

    902-4067
    EAN 7640125699470
    Diameter Length
    Measuring range (mm) 64 500
    Resolution up to (mm) 0.0001
    Max. error (µm) 1 + (D[mm]/100) µm¹ 3 + (L[mm]/200) µm¹
    Repeatability 2δ (µm) 0.5 1.8
    Holding capacity (mm) 120 500
    Headstock Rotary headstock for dynamic measurements
    Tilting for thread measurement 30°
    Axial move speed (mm/s) Up to 100mm/s
    Max. weight of part (kg) 10
    Machine’s weight (kg) 330

    ¹ 20° C ± 1° C

    902-4067
    EAN 7640125699470
    Diameter Length
    Measuring range (mm) 64 500
    Resolution up to (mm) 0.0001
    Max. error (µm) 1 + (D[mm]/100) µm¹ 3 + (L[mm]/200) µm¹
    Repeatability 2δ (µm) 0.5 1.8
    Holding capacity (mm) 120 500
    Headstock Rotary headstock for dynamic measurements
    Tilting for thread measurement 30°
    Axial move speed (mm/s) Up to 100mm/s
    Max. weight of part (kg) 10
    Machine’s weight (kg) 330

    ¹ 20° C ± 1° C

    Instrument according to technical specifications
    Accessories : 2x 902-6202, 902-6161, 902-6212
    Computer with screen, keyboard and mouse
    Windows multilingual operating system
    Sylvac Reflex SCAN Software +
    Manual
    Optical measurement SYLVAC-SCAN F60LT
    CHF 76'658.00
    Scroll to Top

    Request a demo

    Optical measurement SYLVAC-SCAN F60LT

    Contact us

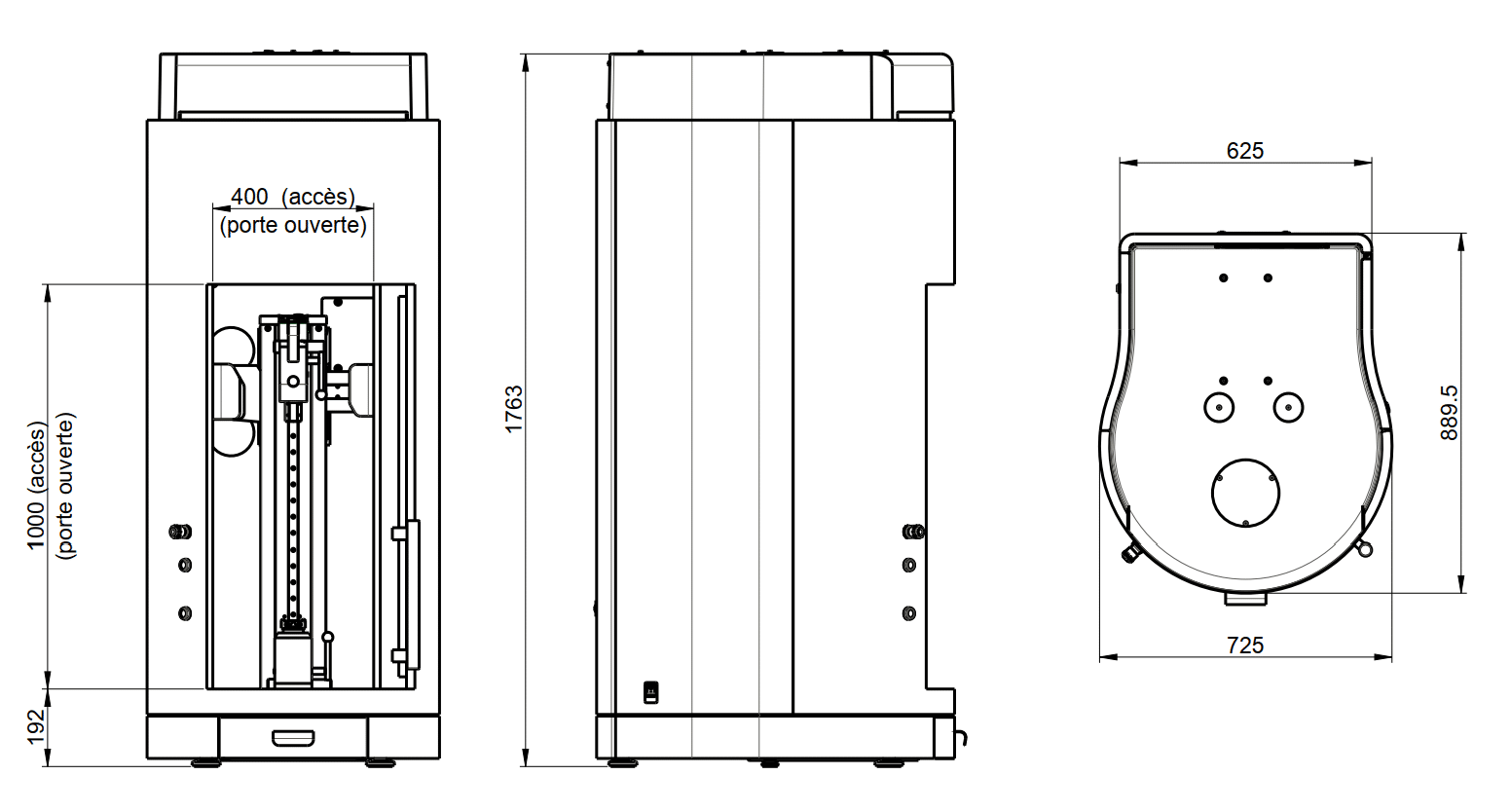

    Download Technical Plan :Optical measurement SYLVAC-SCAN F60LT
