Multiplexer unit D200S
Starting at :
CHF 2'173.00
*Available in different measuring ranges
Description
Multiplexer with 8 inputs.
Swiss made
Cable
Features
- Versatile Multiplexer with 8 Inputs: Connect up to 8 SYLVAC capacitive probes (P2 to P25) to expand your multigauging capabilities and achieve comprehensive measurement solutions.
- Dynamic Measurements with High Speed: Benefit from dynamic measurements with a fast acquisition rate of 200 measurements per second, ensuring real-time and accurate data capture.
- Seamless Integration with Pneumatic Lifting Unit: Command your pneumatic lifting unit effortlessly, enhancing the efficiency of your measurement setup.
- Advanced Software for Data Analysis: Included software enables the treatment of up to 24 channels simultaneously, providing a comprehensive view of your measurements. Generate graphs, export data to Excel, notepad, or specific files, and create sequences to streamline your data analysis process.

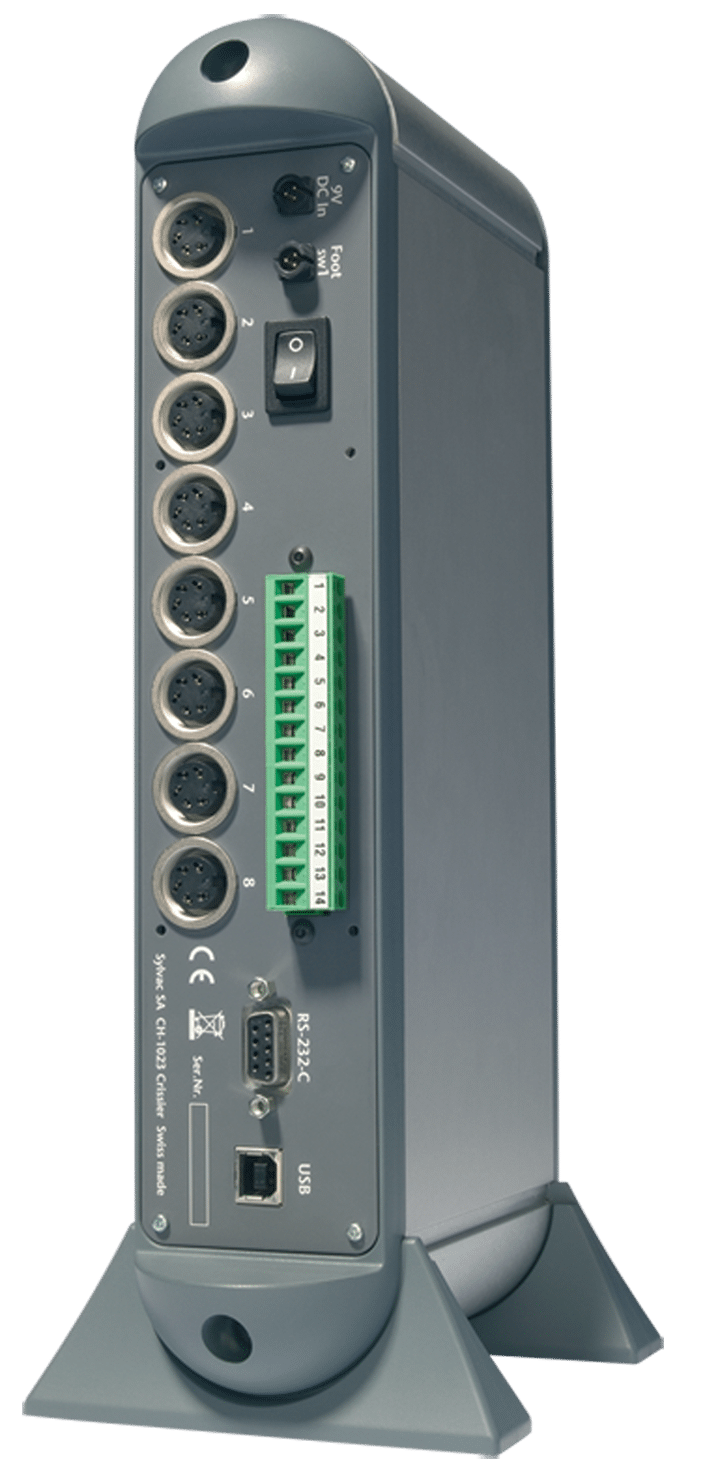

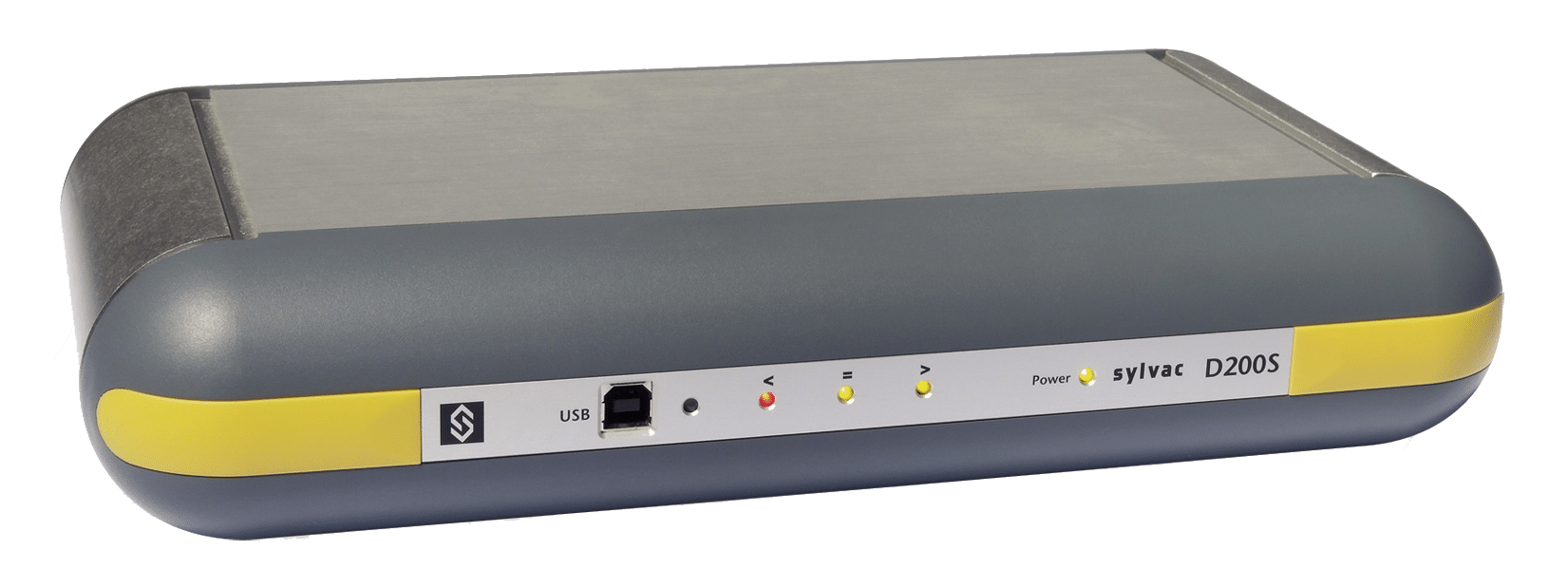

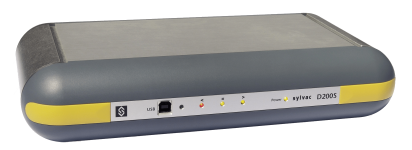

- Flexible Configuration and Connectivity: The D200S multiplexer offers multiple options for configuration and connectivity. Its aluminum profile and ABS plastic housing can be placed vertically or horizontally to suit your workspace. The unit features an I/O terminal block with opto-coupled inputs/outputs and USB/RS232 data outputs for convenient and reliable connectivity.
Industries
Automotive
Electronics
Aeronautics
Packaging
Machine tool
Medical device
Overview
Specifications
Standard Delivery
Accessories
Applications
Tutorials
Resources
| 804-1200 | |
| EAN | 7640125711356 |
| Max. Error (µm) | P2 : 1.5 / P5 : 1.6 / P10 : 1.6 / P25 : 1.9 |
| Repeatability (µm) | P2 : 0.2 / P5 : 0.2 / P10 : 0.2 / P25 : 0.2 |
| Frequency of measurement | 200 values /second |
| Overall dimensions (mm) | 304 x 171 x 61 |
| Weight (kg) | 1.2 |
| Case | Aluminium profile, Terlend plastic, ABS and aluminium vanished |
| Protection rating according to IEC 60529 | IP50 |
| Output data | USB / RS232 |
| Programmable by PC | ⬤ |
Spécifications
| 804-1200 | |
| EAN | 7640125711356 |
| Max. Error (µm) | P2 : 1.5 / P5 : 1.6 / P10 : 1.6 / P25 : 1.9 |
| Repeatability (µm) | P2 : 0.2 / P5 : 0.2 / P10 : 0.2 / P25 : 0.2 |
| Frequency of measurement | 200 values /second |
| Overall dimensions (mm) | 304 x 171 x 61 |
| Weight (kg) | 1.2 |
| Case | Aluminium profile, Terlend plastic, ABS and aluminium vanished |
| Protection rating according to IEC 60529 | IP50 |
| Output data | USB / RS232 |
| Programmable by PC | ⬤ |
Standard Delivery
| Standard Delivery |
| Instrument according to technical specifications |
| Feet for use in vertical position |
| Charging unit according to country (904-4200) |
| PC Connection cable type USB (804-1210) |
| CD with D200S software |
| Instruction manual |
Accessories
| Accessories | ||
 |
925-5609 | RS232 1:1 |
 |
804-1210 | USB-USB |
 |
925-1142 | Adaptator RS-USB |
 |
904-1112 | D110V-control unit with 16 vacuum outputs |
 |
904-4200 | Charging set 100-240V / 9V |
| 904-4205 | EUR cable, included in 904-4200 | |
| 904-4204 | UK cable, included in 904-4200 | |
| 904-4203 | USA/JPN cable, included in 904-4200 | |
| 904-4201 | CH cable, included in 904-4200 | |
 |
904-4101 | External contact (footpedal) |
 |
926-7020 | Footpedal USB (PC only) |
 |
926-7021 | Footpedal USB robust (PC only) |
| 804-1211 | Connection cable D200S – D110/V | |
Applications
Available soon
