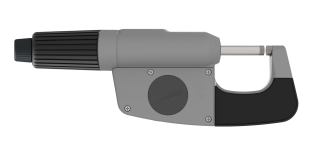

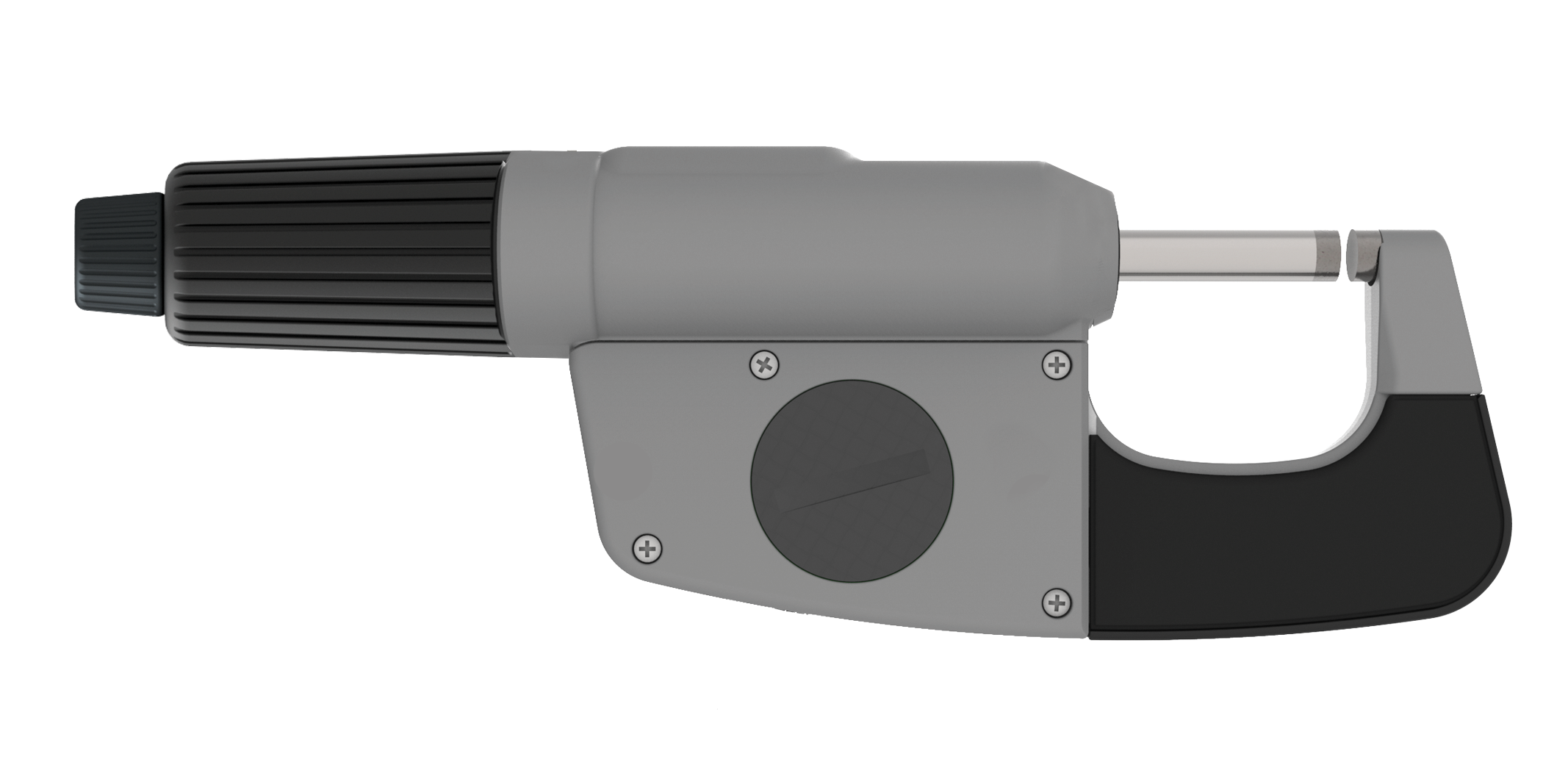

Professional micrometer S_Mike EVO
Description
Micrometer with rotating spindle and integrated Bluetooth®. Ø 6.5 mm anvils.
* Available in different measuring ranges
* Available in different measuring ranges
Features
- Wireless Connectivity: The integrated Bluetooth® system allows for easy transfer and management of data without the need for cables or wires.
- High Precision: The micrometer provides precise measurements with a spindle feed rate of 1 mm per revolution and a resolution of 0.001 mm on the XXL display.
- Durability and Reliability: The micrometer is designed with tungsten carbide measuring anvils and has a protection class IP67 rating, ensuring that it is robust and reliable in harsh environments.
- Versatility: With a measuring range of up to 100mm, the micrometer can be used for a wide range of applications.
- Consistent Results: With a measuring force of 10N, the micrometer delivers consistent and reliable readings, ensuring high-quality measurements.
Applications
Diameter
Form deviation
Distance
Industries
Automotive
Electronics
Aeronautics
Packaging
Machine tool
Medical device
Overview
Specifications
Standard Delivery
Accessories
Applications
Tutorials
Documents
| 803-6025 | 803-6050 | 803-6075 | 803-6100 | |
| EAN | 7640125688962 | 7640125689037 | 7640125689051 | 7640125689082 |
| Measuring range (mm) | 0-25 | 25-50 | 50-75 | 75-100 |
| Max. error MPEյ (µm) | 2 ² | 3 ² | ||
| Repeatability (µm) | 1 ³ | 2 ³ | ||
| Anvils types | Ø6.5 | |||

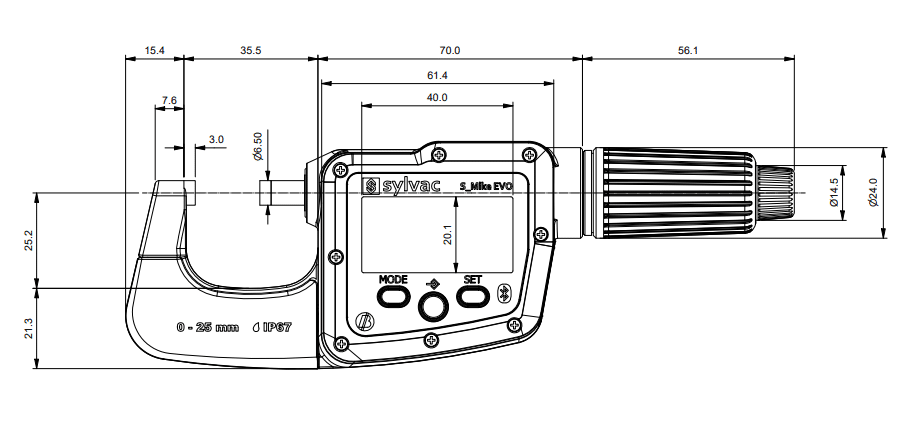

| L (mm) | 35.5 | 61 | 86 | 112 |
| B (mm) | 7.5 | 11 | 12 | 13 |
| C (mm) | 25 | 37 | 50 | 63 |
| D (mm) | 3 | |||
| Connection type (instrument to device) | Bluetooth® wireless technology ¹ | |||
| Protection rating according to IEC 60529 | IP67 even connected | |||
| Setting by PC | ⬤ | |||
| Measuring force | 7-10N | |||
| Rotating spindle | ⬤ | |||
| Advance | 1mm/rotation | |||
| Preset function | ⬤ | |||
| Smart Inductive System (SIS) | ⬤ | |||
¹ Device: PC, display unit, …
² according to DIN 863 / ISO 3611
³ ± 1 digit
Spécifications
| 803-6025 | 803-6050 | 803-6075 | 803-6100 | |
| EAN | 7640125688962 | 7640125689037 | 7640125689051 | 7640125689082 |
| Measuring range (mm) | 0-25 | 25-50 | 50-75 | 75-100 |
| Max. error MPEյ (µm) | 2 ² | 3 ² | ||
| Repeatability (µm) | 1 ³ | 2 ³ | ||
| Anvils types | Ø6.5 | |||
| L (mm) | 35.5 | 61 | 86 | 112 |
| B (mm) | 7.5 | 11 | 12 | 13 |
| C (mm) | 25 | 37 | 50 | 63 |
| D (mm) | 3 | |||
| Connection type (instrument to device) | Bluetooth® wireless technology ¹ | |||
| Protection rating according to IEC 60529 | IP67 even connected | |||
| Setting by PC | ⬤ | |||
| Measuring force | 7-10N | |||
| Rotating spindle | ⬤ | |||
| Advance | 1mm/rotation | |||
| Preset function | ⬤ | |||
| Smart Inductive System (SIS) | ⬤ | |||
¹ Device: PC, display unit, …
² according to DIN 863 / ISO 3611
³ ± 1 digit
Standard Delivery
| Standard Delivery |
| Instrument according to technical specifications |
| Lithium battery CR2032 included |
| Instruction manual |
| Calibration certificate |
Accessories
Not available
