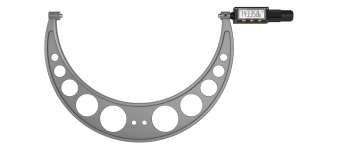

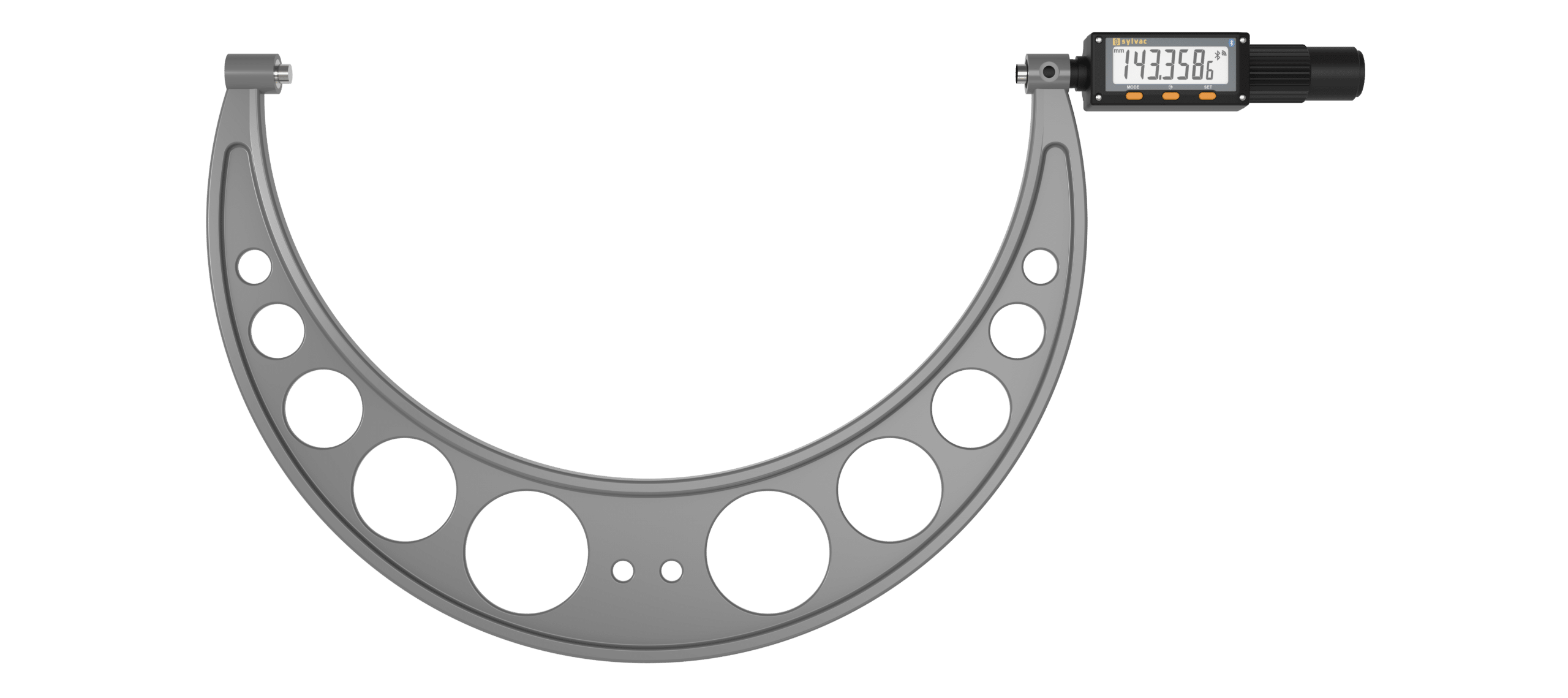

Large micrometer S_Mike LARGE Smart
Description
Large micrometer with integrated Bluetooth®.
* Available in different measuring ranges
Smart Inductive System (SIS)
Features
- Large micrometer with integrated Bluetooth® system
- Measuring ranges from 150 to 1000 mm
- 2mm pitch
- Spindle diameter Ø8mm
- Protection class IP65
Applications
Diameter
Form deviation
Distance
Industries
Automotive
Electronics
Aeronautics
Packaging
Machine tool
Medical device
Overview
Specifications
Standard Delivery
Accessories
Applications
Tutorials
Documents
| 803-2015 | 803-2030 | 803-2040 | 803-2050 | |
| EAN | 7640125710045 | 7640125680003 | 7640125690002 | 7640125710052 |
| Measuring range (mm) | 150-300 | 300-400 | 400-500 | 500-600 |
| Max. Error MPEJ (µm) | ±4 ¹ | ±6 ¹ | ±7 ¹ | ±8 ¹ |
| Max. Error Spindle advance (µm) | 3 | |||
| Parallelism (µm) | 3 | 5 | 6 | 7 |
| Repeatability MPER (µm) | ≤ 1 ² | |||

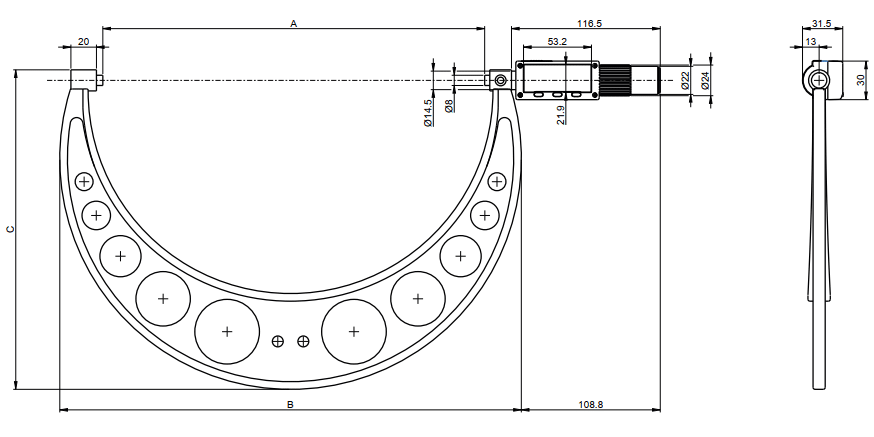

| A (mm) | 150-300 | 300-400 | 400-500 | 500-600 |
| B (mm) | 361.5 | 505 | 610 | 716 |
| C (mm) | 250 | 373.5 | 443.5 | 513.5 |
| Output data | Bluetooth® wireless technology | |||
| Prot. accor. to IEC 60529 | IP65 | |||
| Setting by PC | ⬤ | |||
| Measuring force (N) | 10-12 | |||
| Rotating spindle | ⬤ | |||
| Advance | 2mm/rotation | |||
| Calibration gauge supplied |
150 mm 175 mm 200 mm 225 mm 250 mm 275 mm |
325 mm 375 mm |
425 mm 475 mm |
525 mm 575 mm |
| Preset function | ⬤ | |||
| Smart Inductive Sensor | ⬤ | |||
| 803-2060 | 803-2070 | 803-2080 | 803-2090 | |
| EAN | 7640125710120 | 7640125710182 | 7640125710229 | 7640125710236 |
| Measuring range (mm) | 600-700 | 700-800 | 800-900 | 900-1000 |
| Max. Error MPEJ (µm) | ±10 ¹ | ±11 ¹ | ±12 ¹ | ±14 ¹ |
| Max. Error Spindle advance (µm) | 3 | |||
| Parallelism (µm) | 8 | 9 | 10 | 11 |
| Repeatability MPER (µm) | ≤ 1 ² | |||
| A (mm) | 600-700 | 700-800 | 800-900 | 900-1000 |
| B (mm) | 822 | 935 | 1044 | 1152 |
| C (mm) | 583.5 | 668.5 | 743.5 | 818.5 |
| Output data | Bluetooth® wireless technology | |||
| Prot. accor. to IEC 60529 | IP65 | |||
| Setting by PC | ⬤ | |||
| Measuring force (N) | 10-12 | |||
| Rotating spindle | ⬤ | |||
| Advance | 2mm/rotation | |||
| Calibration gauge supplied | 625 mm 675 mm |
725 mm 775 mm |
825 mm 875 mm |
925 mm 975 mm |
| Preset function | ⬤ | |||
| Smart Inductive Sensor | ⬤ | |||
¹ according to DIN 863 / ISO 3611
² ±1 digit
Spécifications
| 803-2015 | 803-2030 | 803-2040 | 803-2050 | |
| EAN | 7640125710045 | 7640125680003 | 7640125690002 | 7640125710052 |
| Measuring range (mm) | 150-300 | 300-400 | 400-500 | 500-600 |
| Max. Error MPEJ (µm) | ±4 ¹ | ±6 ¹ | ±7 ¹ | ±8 ¹ |
| Max. Error Spindle advance (µm) | 3 | |||
| Parallelism (µm) | 3 | 5 | 6 | 7 |
| Repeatability MPER (µm) | ≤ 1 ² | |||
| A (mm) | 150-300 | 300-400 | 400-500 | 500-600 |
| B (mm) | 361.5 | 505 | 610 | 716 |
| C (mm) | 250 | 373.5 | 443.5 | 513.5 |
| Output data | Bluetooth® wireless technology | |||
| Prot. accor. to IEC 60529 | IP65 | |||
| Setting by PC | ⬤ | |||
| Measuring force (N) | 10-12 | |||
| Rotating spindle | ⬤ | |||
| Advance | 2mm/rotation | |||
| Calibration gauge supplied |
150 mm 175 mm 200 mm 225 mm 250 mm 275 mm |
325 mm 375 mm |
425 mm 475 mm |
525 mm 575 mm |
| Preset function | ⬤ | |||
| Smart Inductive Sensor | ⬤ | |||
| 803-2060 | 803-2070 | 803-2080 | 803-2090 | |
| EAN | 7640125710120 | 7640125710182 | 7640125710229 | 7640125710236 |
| Measuring range (mm) | 600-700 | 700-800 | 800-900 | 900-1000 |
| Max. Error MPEJ (µm) | ±10 ¹ | ±11 ¹ | ±12 ¹ | ±14 ¹ |
| Max. Error Spindle advance (µm) | 3 | |||
| Parallelism (µm) | 8 | 9 | 10 | 11 |
| Repeatability MPER (µm) | ≤ 1 ² | |||
| A (mm) | 600-700 | 700-800 | 800-900 | 900-1000 |
| B (mm) | 822 | 935 | 1044 | 1152 |
| C (mm) | 583.5 | 668.5 | 743.5 | 818.5 |
| Output data | Bluetooth® wireless technology | |||
| Prot. accor. to IEC 60529 | IP65 | |||
| Setting by PC | ⬤ | |||
| Measuring force (N) | 10-12 | |||
| Rotating spindle | ⬤ | |||
| Advance | 2mm/rotation | |||
| Calibration gauge supplied | 625 mm 675 mm |
725 mm 775 mm |
825 mm 875 mm |
925 mm 975 mm |
| Preset function | ⬤ | |||
| Smart Inductive Sensor | ⬤ | |||
¹ according to DIN 863 / ISO 3611
² ±1 digit
Standard Delivery
| Standard Delivery |
| Instrument according to technical specifications |
| Lithium battery CR2032 included |
| Instruction manual |
