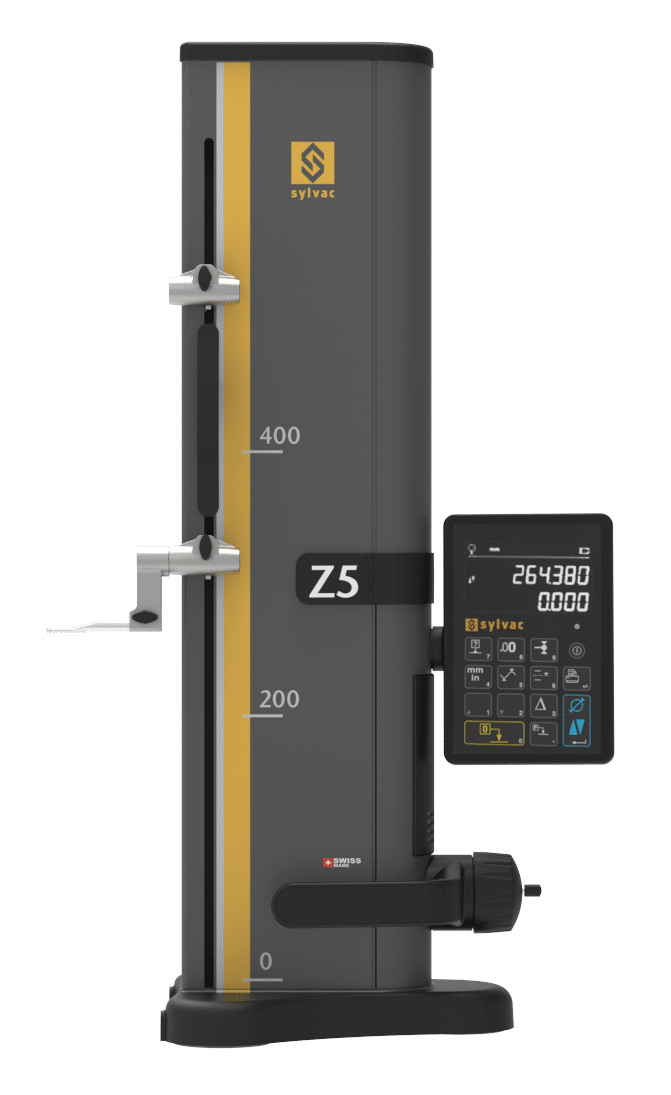

Height gauge Z5
Description
400mm or 700 mm measuring range height gauge.
* Available in different measuring ranges
* Available in different measuring ranges

Resolution: 1µm

Swiss made

RS232 output

Mini-USB output
Features
- Versatile Measuring: The device has a measuring range of 400 or 700mm and is perfectly suited for the rapid measurement of heights, depths, thicknesses, internal and external diameters, center-to-center distances, etc.

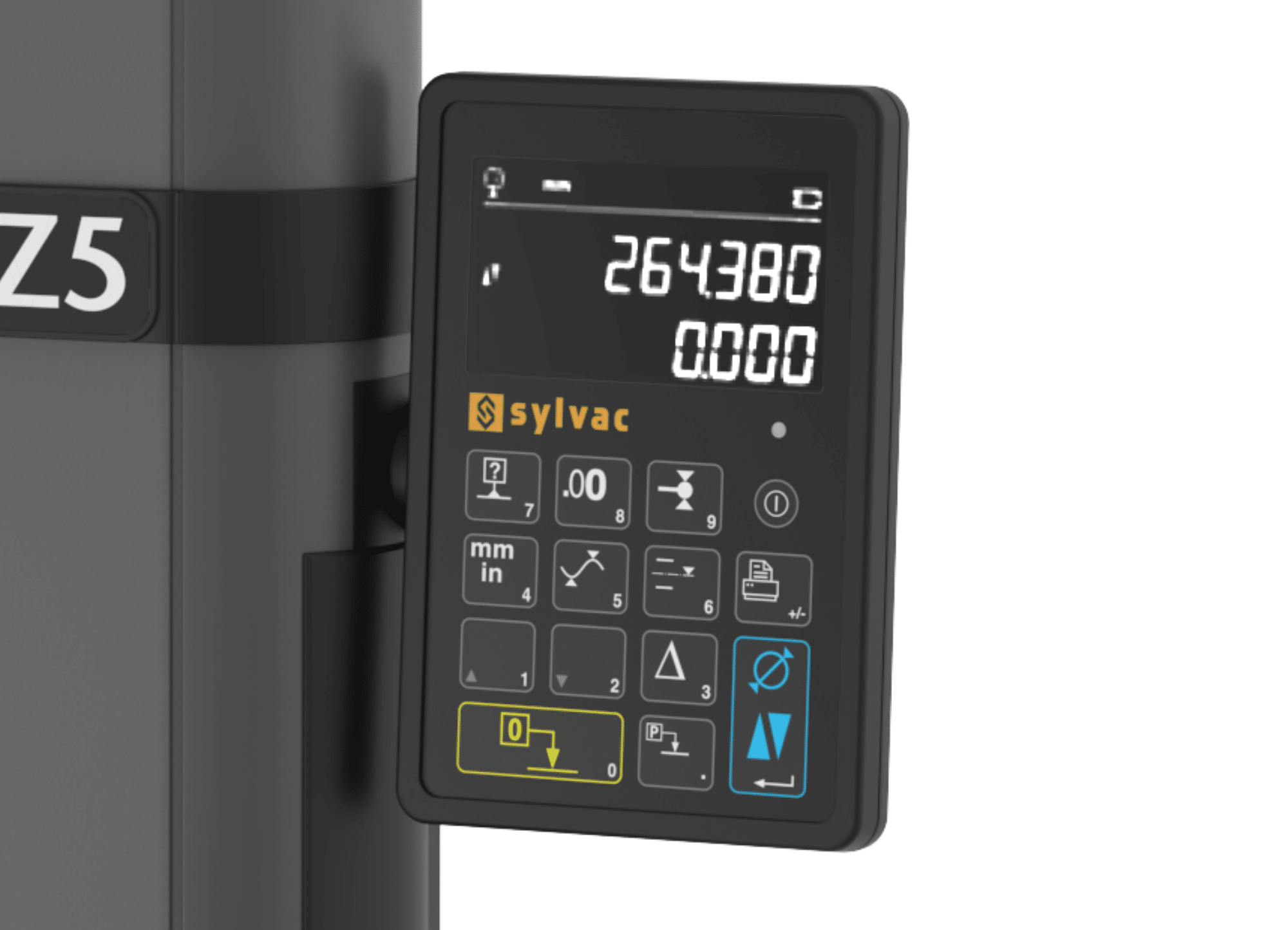

- User-Friendly: The device is extremely easy to use and comes with an XL display module with 0.001 mm resolution and intuitive functions. All adjustments are possible without tools, and the lateral probe holder allows for the use of extra-long keys (up to 400 mm) with excellent repeatability.

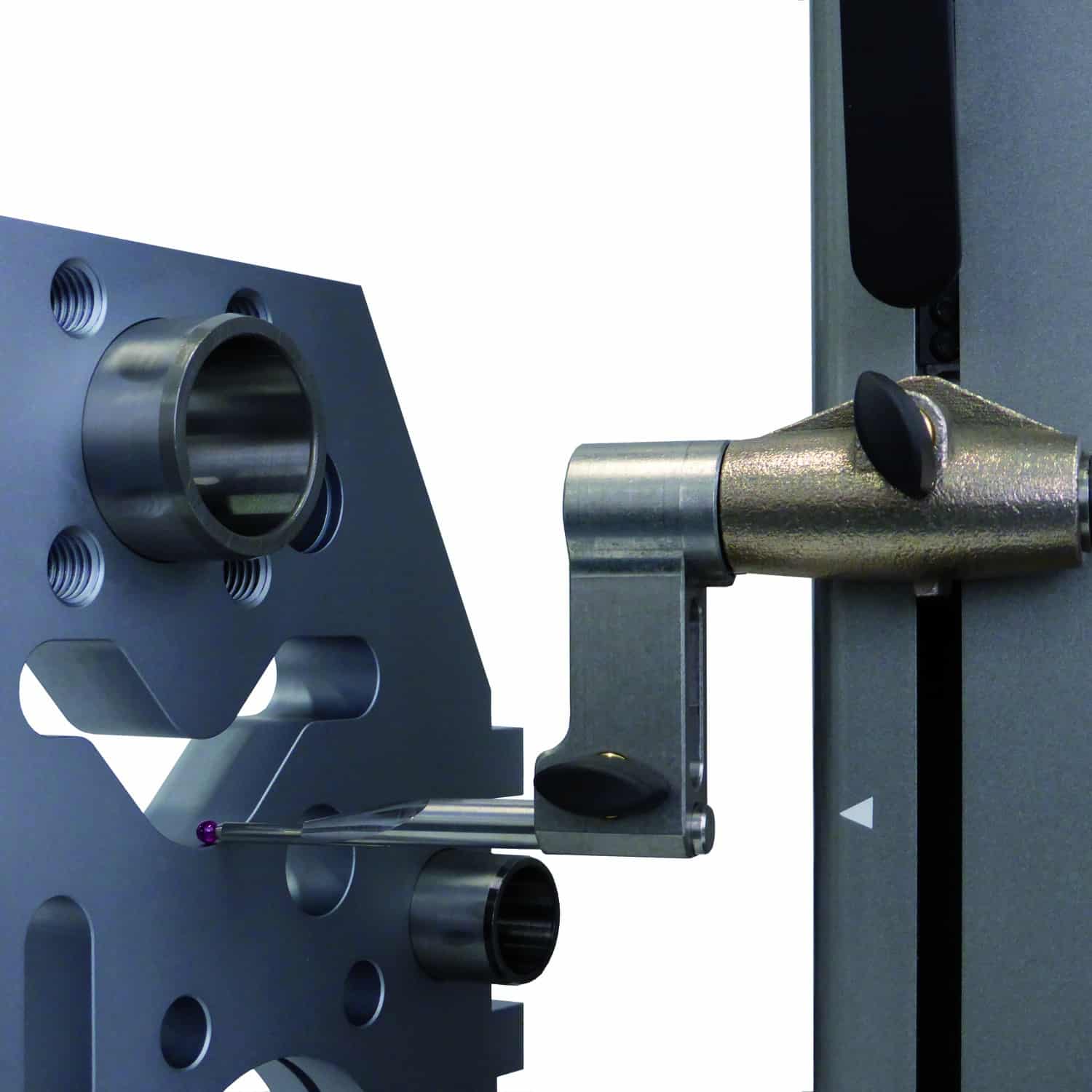

- Robust and Ergonomic: The device boasts a cast iron base with an ergonomic handle with air cushion control knob, and the measuring force is electronically adjustable (0.75-1.5 N), providing accuracy and comfort.
- Motorized and Manual Displacement: The device features a revolutionary crank handle offering the user the choice of manual or motorized carriage and travel (700mm version). On the 400mm version, movement is manual only.
- Extended Measuring Range: The device has a measuring range of 411mm (719 with extension) or 711mm (1023mm with extension), enabling it to meet a wide range of measurement needs.
- Complete Package: The device comes supplied with interchangeable Ø 4 mm ruby ball button and a large choice of accessories. It also features RS232 and USB interfaces and a rechargeable battery with 12-hour working autonomy. Optionally, a Sylcom-compatible Bluetooth® communication accessory can be ordered as an accessory.
Overview
Specifications
Standard Delivery
Accessories
Applications
Tutorials
Documents
936-0400 |
936-0700 | |
EAN | 7640125696813 | 7640125713091 |
Measuring range (mm) | 407 | 711 |
Measuring range with extension (mm) | 719 | 1023 |
Max. error (µm) | 2.5 + L / 300 | |
Repeatability RMPE (µm) | 2 | |
Frontal squareness deviation SMPE (µm) | 5 | 8 |
Maximum resolution (mm) | 0.0001 | |
Measuring force (N) | 0.75 ÷ 1.5 | |
Autonomy (h) | 12 | 12 |
Connection type (instrument to device) | Bluetooth® Wireless Technology ¹ ² Mini-USB to USB ¹ Special-mini to RS232 ¹ View cables info |
|
Air cushion | ⬤ | |
Weight (kg) | 21 | 24 |
Programmable by PC | ⬤ | |
Zero setting | ⬤ | |
Min / max / delta | ⬤ | |
PRESET function | ⬤ | |

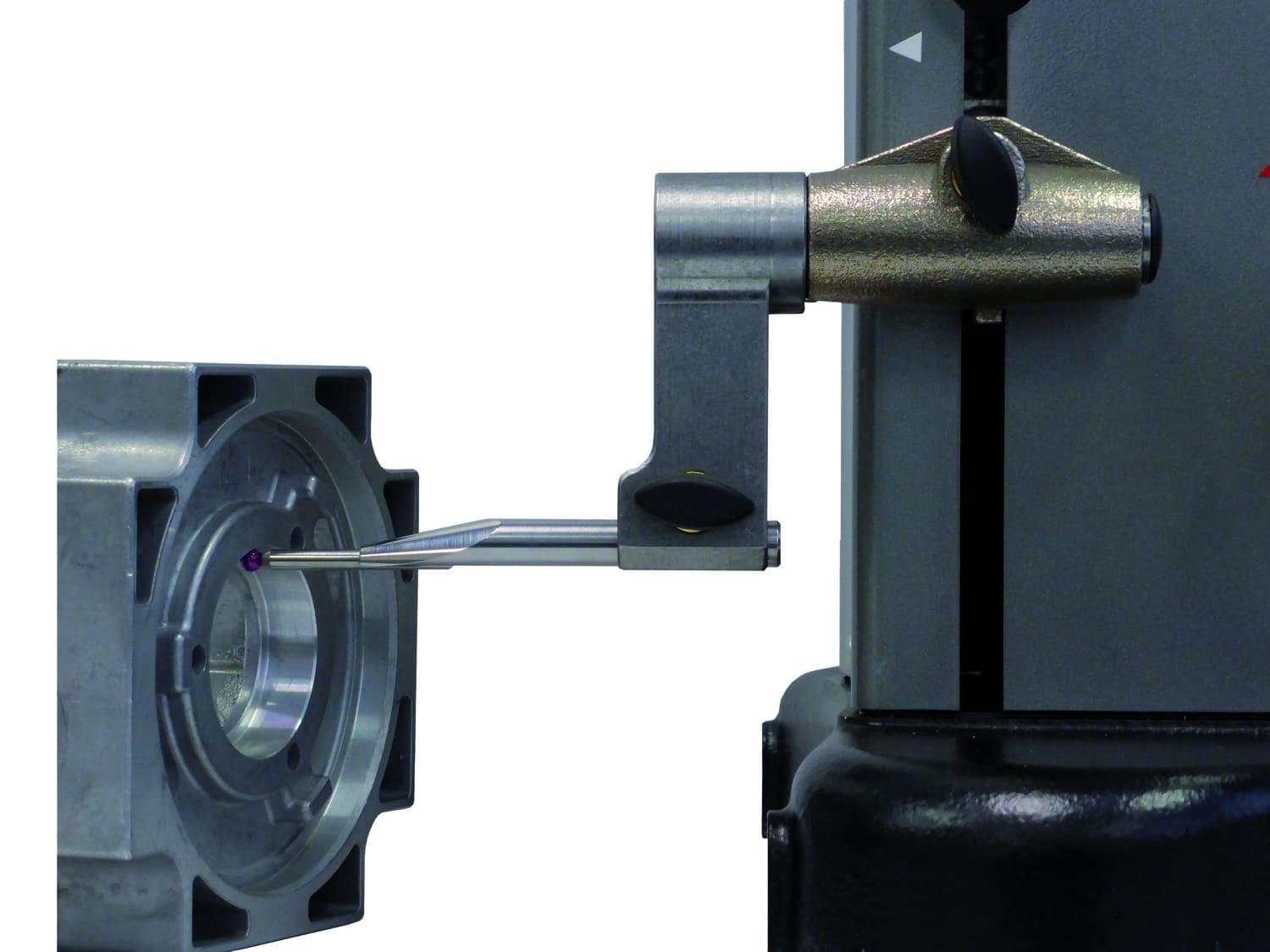

Simultaneous display of diameters and centerlines | ⬤ | |

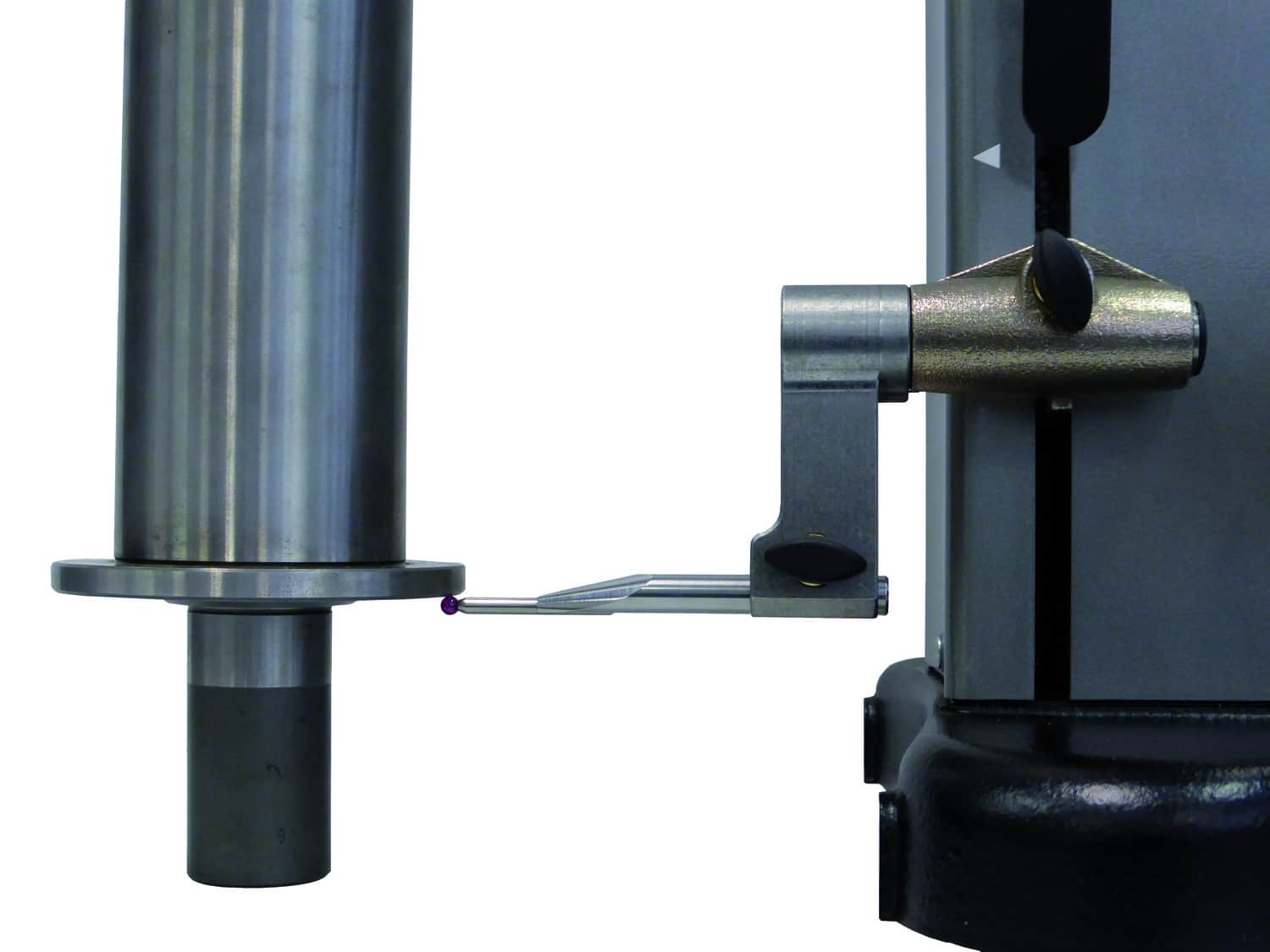

Thickness, chain and height measurements | ⬤ | |
Manual and motorised displacement | ⬤ |
¹ Device: PC, display unit, …
² Bluetooth® module Z5 required
The above values have been determined according to ISO 13225, with the standard measuring insert.
Standard Delivery |
Instrument according to technical specifications |
Protection cover |
Charging set (904-4200) ¹ /01/03/04/05) |
Ruby ball probe Ø 4 mm |
Calibration master |
Calibration certificate |
Instruction manual |
¹ By country
-
Not available
-
-
-
-

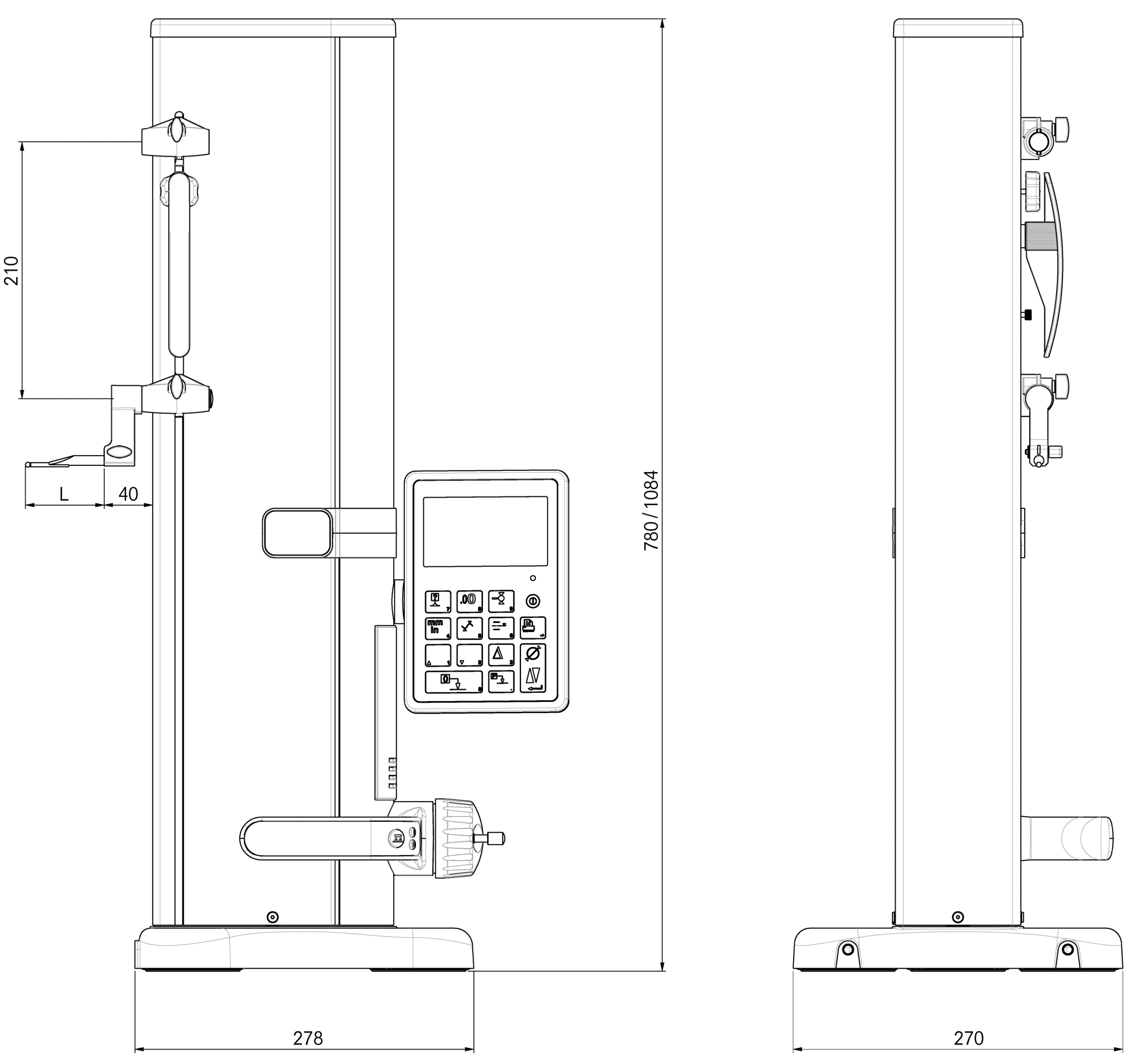

- Technical Plan
