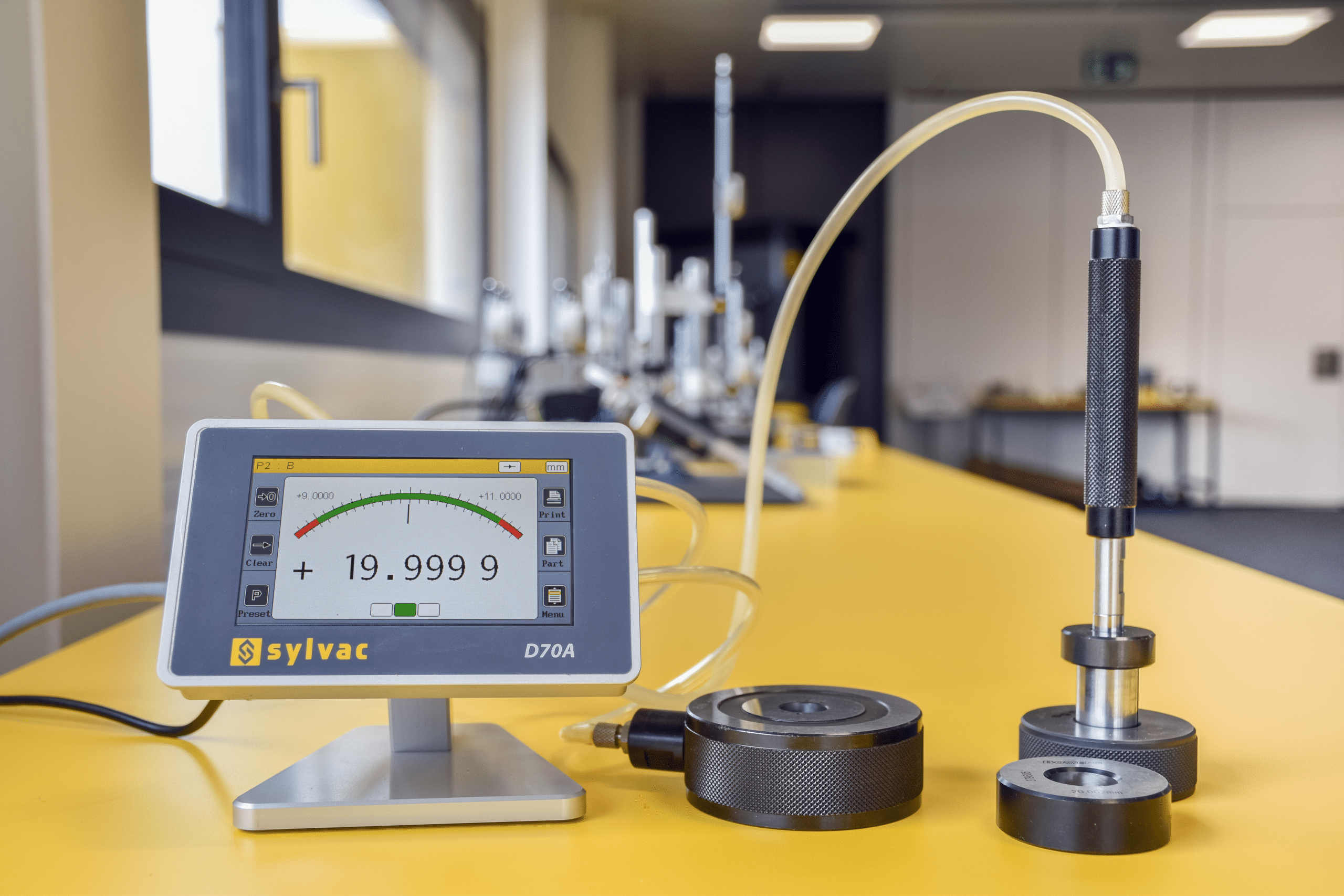

Digital display D70A
Description
Display unit with 1 or 2 inputs for air measurement.
Resolution: 0.01µm
Cable
RS232 output
Features
- Designed for Air Gages: Enjoy unique features tailored for air measurement, including throttle-equipped inlets, calibration with standards, alarm activation, and QR code configurability.
- Intuitive Touch Screen Display: Navigate effortlessly with the 4.3” touch screen display, ensuring ease of use and intuitive operation.

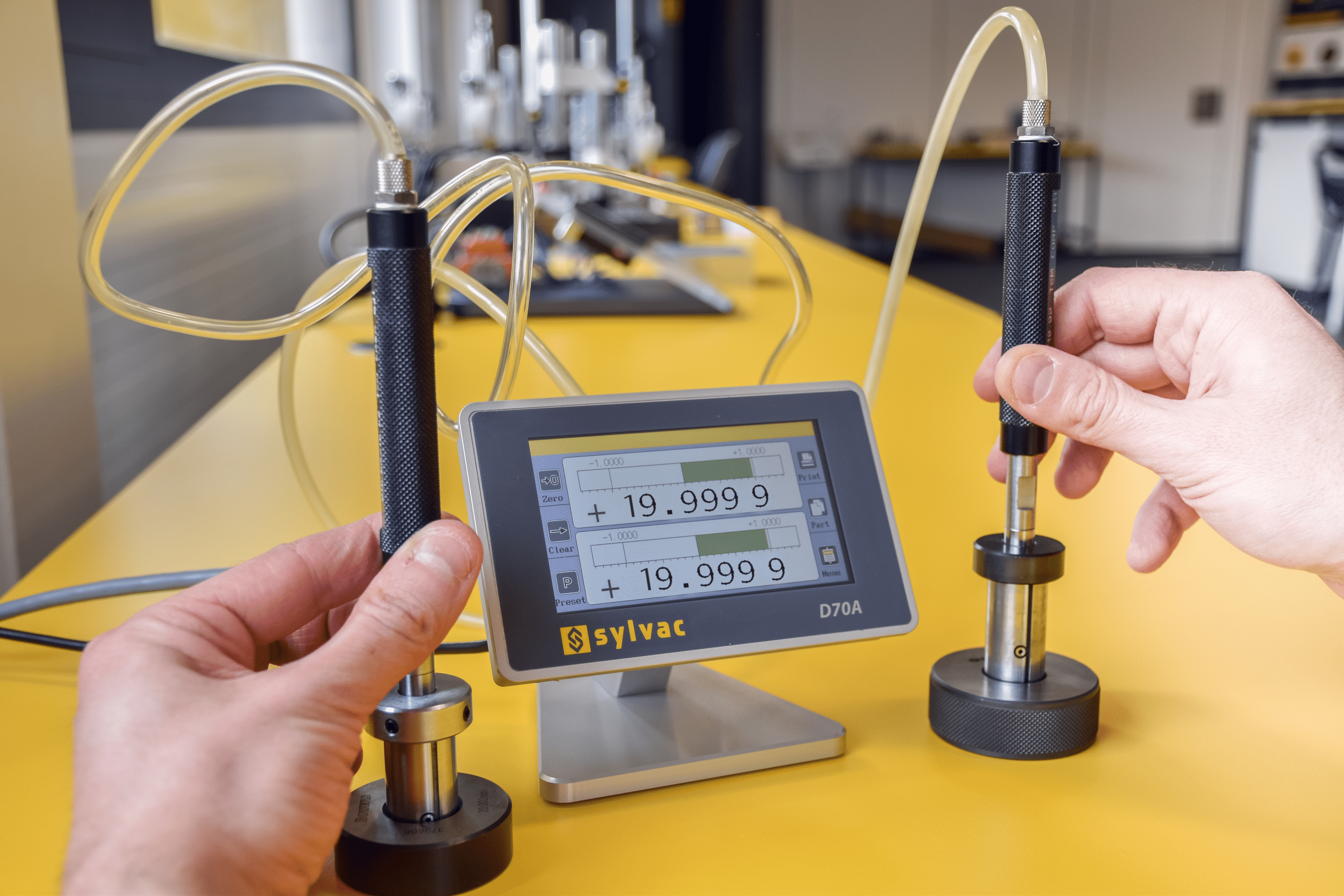

- Versatile Input Options: Choose between the D70A1 with one input or the D70A2 with two inputs, providing flexibility to suit your measurement requirements.
- High Resolution for Precision: Experience exceptional resolution up to 0.00001 mm (0.01 µm), delivering precise and detailed air measurement readings.
- Workshop-Ready Design: With a durable aluminum construction and an IP65 liquid-proof front panel, our units are designed to withstand workshop conditions, ensuring reliable performance.
Industries
Automotive
Electronics
Aeronautics
Packaging
Machine tool
Medical device
Overview
Specifications
Standard Delivery
Accessories
Applications
Tutorials
Documents
| 804-2074 | 804-2075 | |
| EAN | 7640125691429 | 7640125691474 |
| Type | D70A – 1 input | D70A – 2 inputs |
| Overall dimensions (mm) | 140x105x111 | |
| Weight (kg) | 0.6 | |
| Case | Aluminium | |
| Protection according to IEC 60529 | IP65 | |

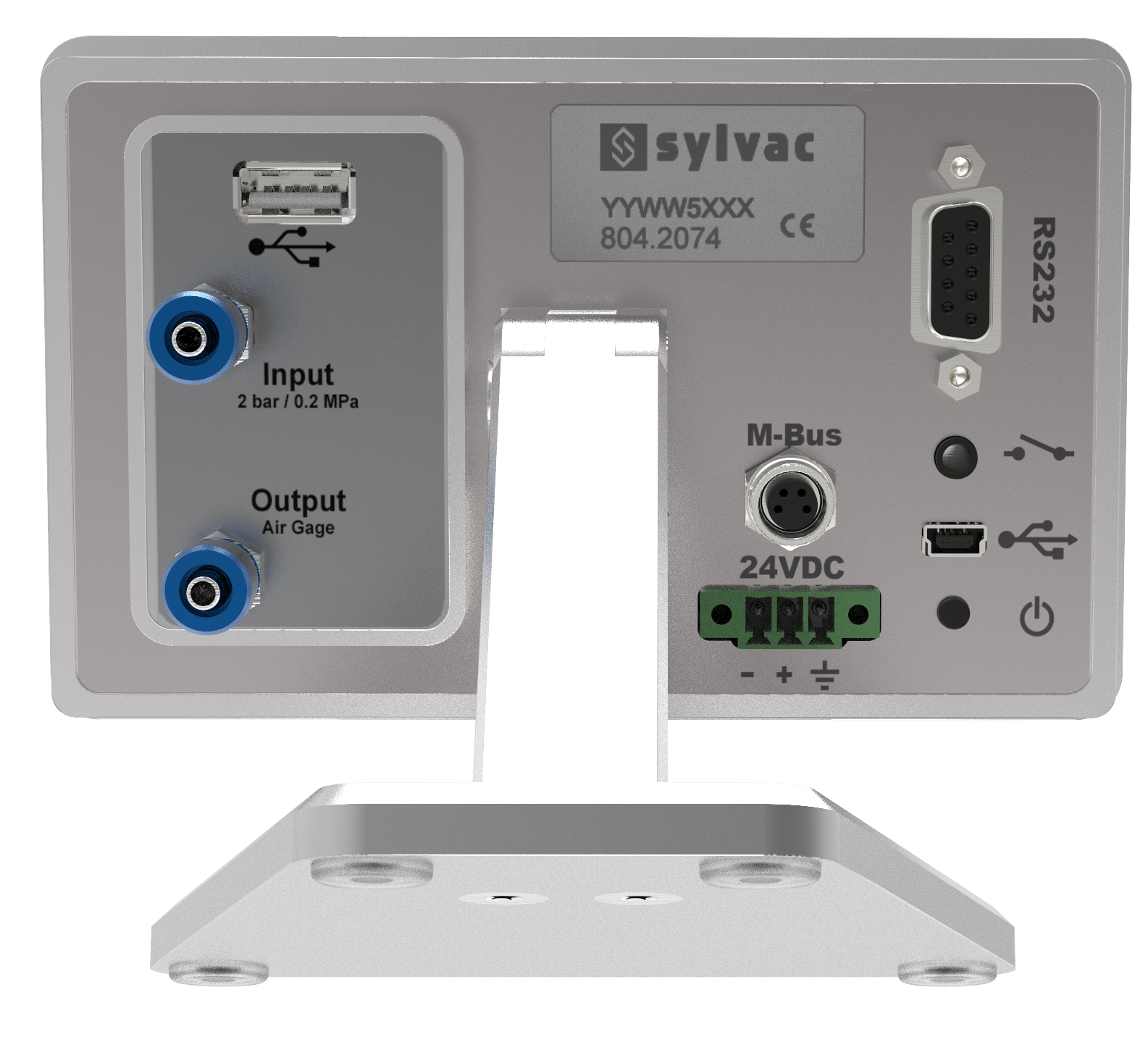

| Connection type (instrument to device) | RS232 1:1 ¹ Adaptator RS – USB ¹ M8 to RS485 ¹ View cables info |
Adaptator RS – USB ¹ RS232 1×1 (3 pins wired) ¹ RS232 1×1 ¹ M8 to RS485 ¹ View cables info |
| Instruments | Plug gages and air gages / P12D / P25D ² | |
| Programmable by PC | ⬤ | |
¹ Device: PC, display unit, …
² via M-Bus modules
Spécifications
| 804-2074 | 804-2075 | |
| EAN | 7640125691429 | 7640125691474 |
| Type | D70A – 1 input | D70A – 2 inputs |
| Overall dimensions (mm) | 140x105x111 | |
| Weight (kg) | 0.6 | |
| Case | Aluminium | |
| Protection according to IEC 60529 | IP65 | |
| Connection type (instrument to device) | RS232 1:1 ¹ Adaptator RS – USB ¹ M8 to RS485 ¹ View cables info |
Adaptator RS – USB ¹ RS232 1×1 (3 pins wired) ¹ RS232 1×1 ¹ M8 to RS485 ¹ View cables info |
| Instruments | Plug gages and air gages / P12D / P25D ² | |
| Programmable by PC | ⬤ | |
¹ Device: PC, display unit, …
² via M-Bus modules
Standard Delivery
|
Standard Delivery
|
| Unit according to technical specifications |
| Table base |
| Charging unit |
| Instruction manual |
| 2 additional sets of restrictors |
