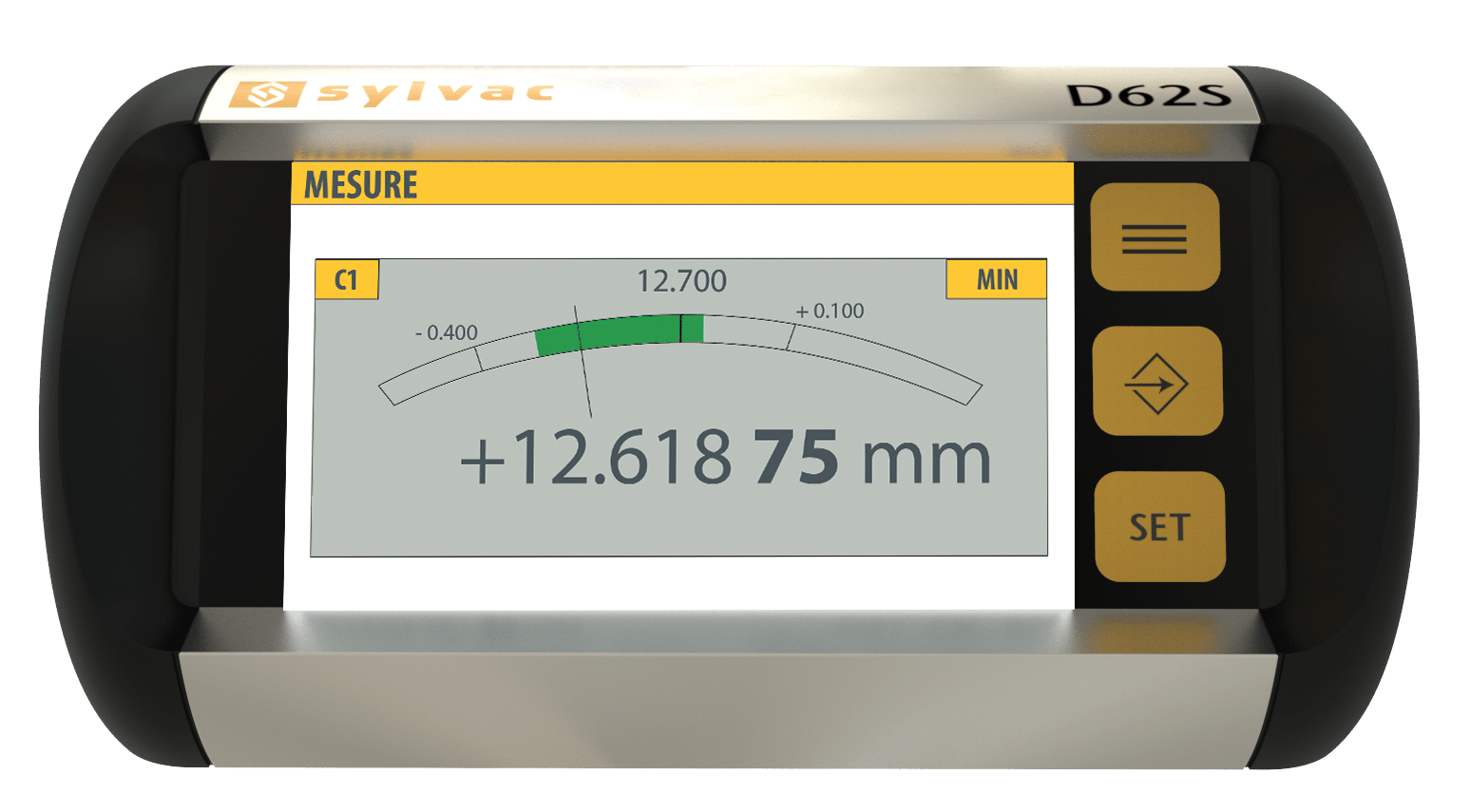

Digital display D62S
Description
Digital display unit for Sylvac absolute digital probes.
Features

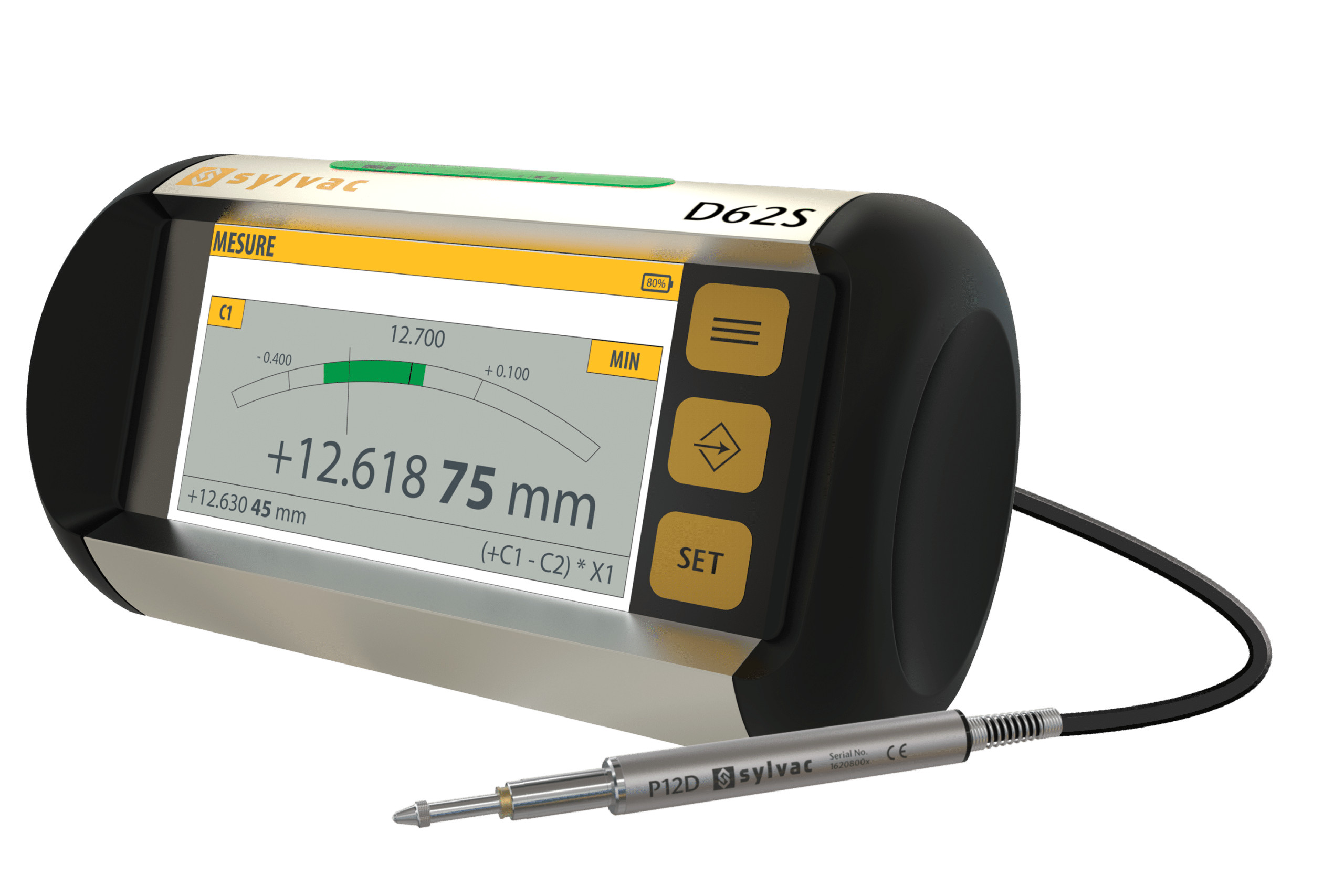

- Modern and Compact Design: Experience the modern and compact design of our digital display units, offering a sleek and portable solution for your measurement needs. 2x P12D digital probe inputs (M8) – no pairing required
- Intuitive Touch Screen Display: Enjoy the large 4.3’’ touch screen display with intuitive functions, making it easy to navigate and operate the device.
- Robust and Shockproof Construction: Designed for workshops, our units feature a robust and shockproof construction with IP65 front panel, ensuring durability and reliability in demanding environments.
- High Resolution for Precise Readings: Experience exceptional precision with a resolution of up to 0.00001 mm (0.01 µm), providing accurate and detailed measurement results.
- Mobile Solution: The D62S Advanced offers a built-in battery with 8 hours of autonomy, allowing for portable and mobile use. Additionally, it features Bluetooth® technology for wireless connectivity.
- Programmable for Customization: Our units can be easily programmed by PC, enabling customization and tailored functionality to meet your specific requirements.
Overview
Specifications
Standard Delivery
Accessories
Applications
Tutorials
Documents
804-1062 | 804-1063 | |
EAN | 7640125715699 | 7640125712230 |
Model | D62S | D62S Advanced |

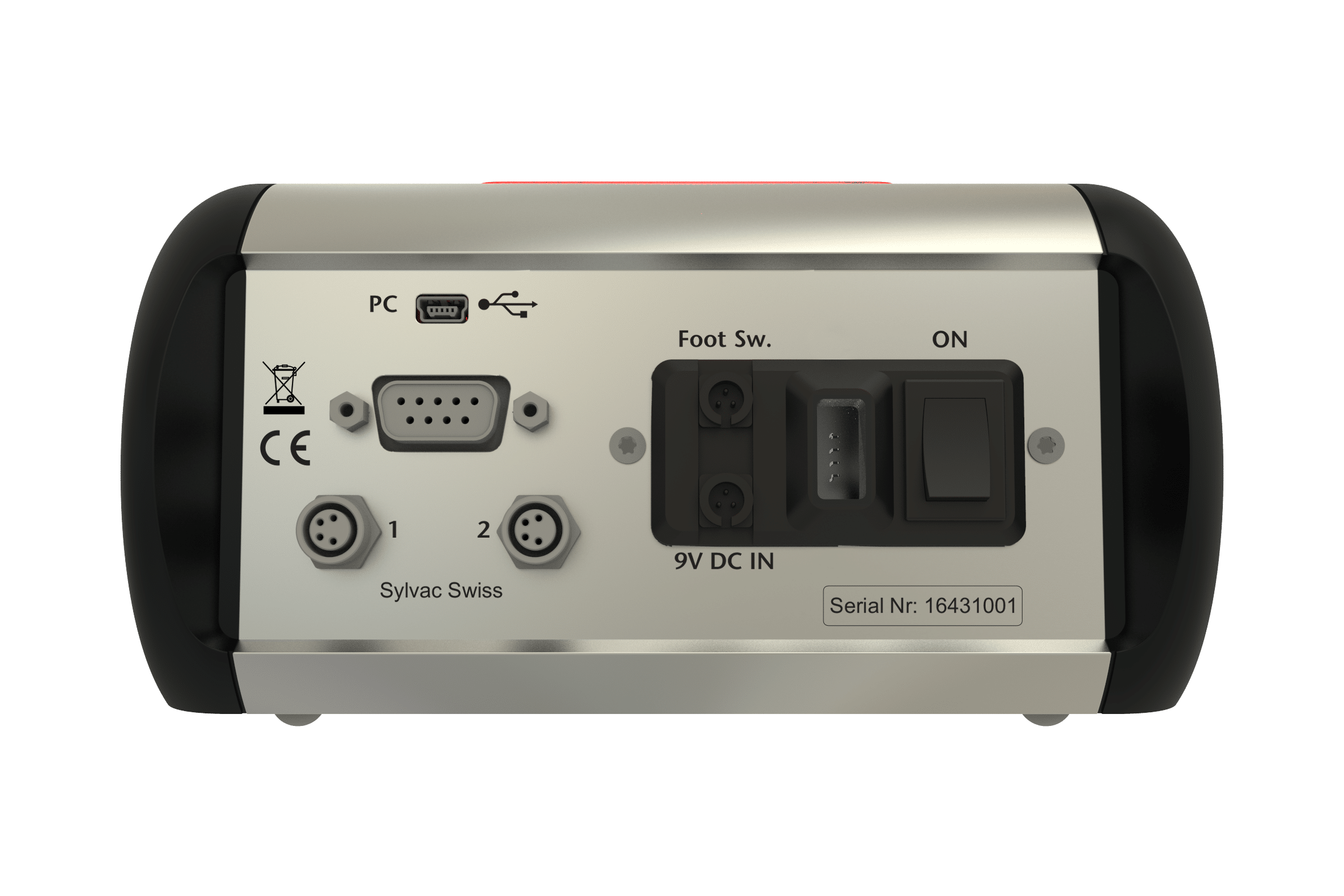

Inputs | 2x M8 for Sylvac absolute digital probes | |
Resolution (µm) | 0.01 | |
Max. error (µm) | P12D HR : 0.6 | |
Repeatability (µm) | P12D HR : 0.08 | |
Overall dimensions (mm) | 170 x 90 x90 | |
Weight (g) | 613 | 665 |
Case | Aluminium and thermoplastic elastomer | |
Protection according to IEC 60529 | IP40 (Front face : IP65) | |
Connection type (instrument to device) | RS232 1:1 ¹ Mini-USB to USB ¹ Adaptator RS – USB ¹ View cables info |
Bluetooth® Wireless Technology ¹ RS232 1:1 ¹ Mini-USB to USB ¹ Adaptator RS – USB ¹ View cables info |
Indicator of the global tolerance | ⬤ | |
Battery | ⬤ | |
Time and date display (RTC) | ⬤ |
¹ Device: PC, display unit, …
Standard Delivery |
Unit according to technical specifications |
Charging unit according to country (904-4200) |
Instruction manual |
-
Not available
-
-
-
-
- Technical Plan
- 3D Drawing
- Manual
- Certificate
- Brochure
