Digital display D400S

*Available in different measuring ranges

Description

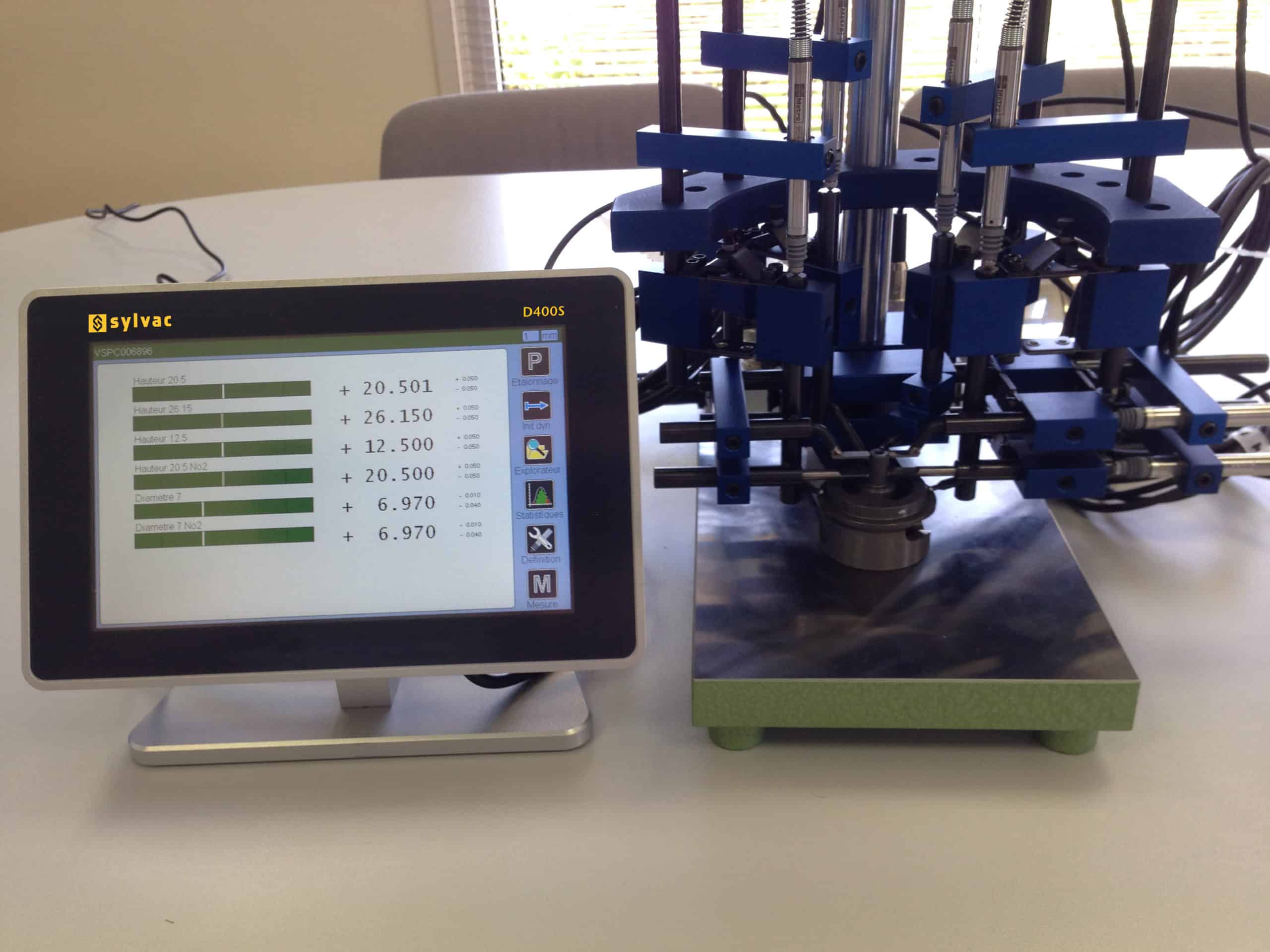

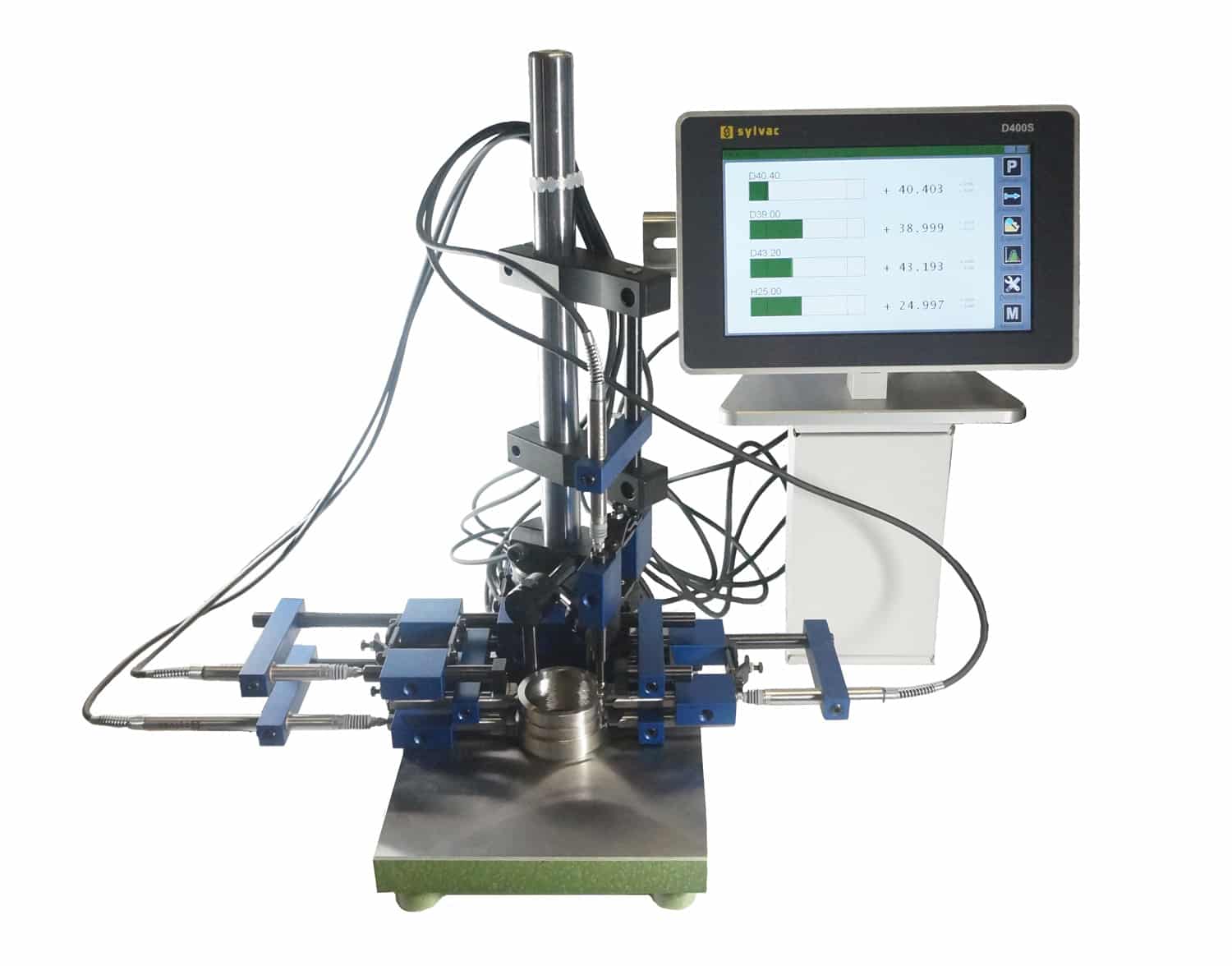

Multifunction digital display unit for multigauging applications.
MicrosoftTeams-image (5)
Swiss made
0.1um
0.1µm
Cable
Cable

Features

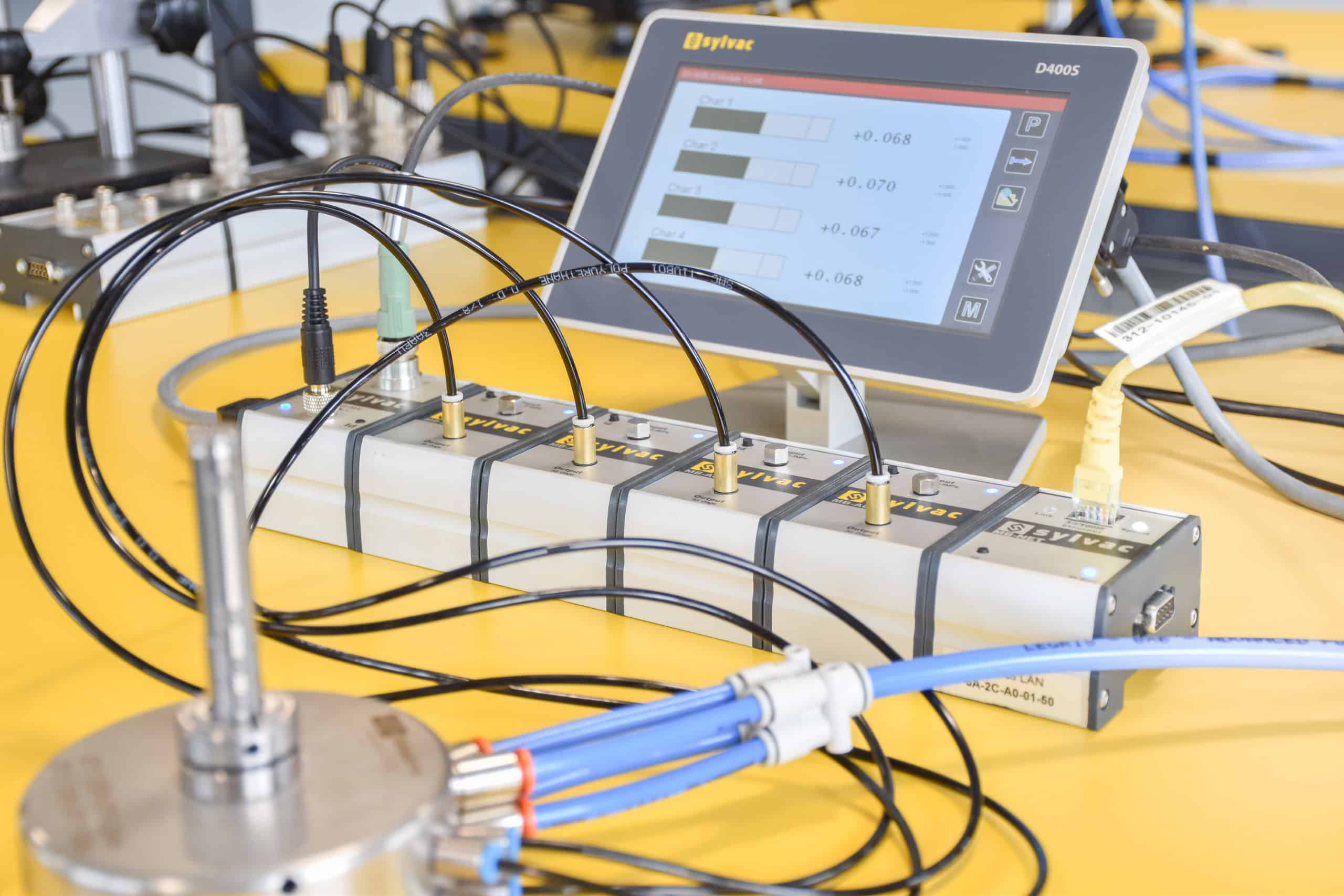

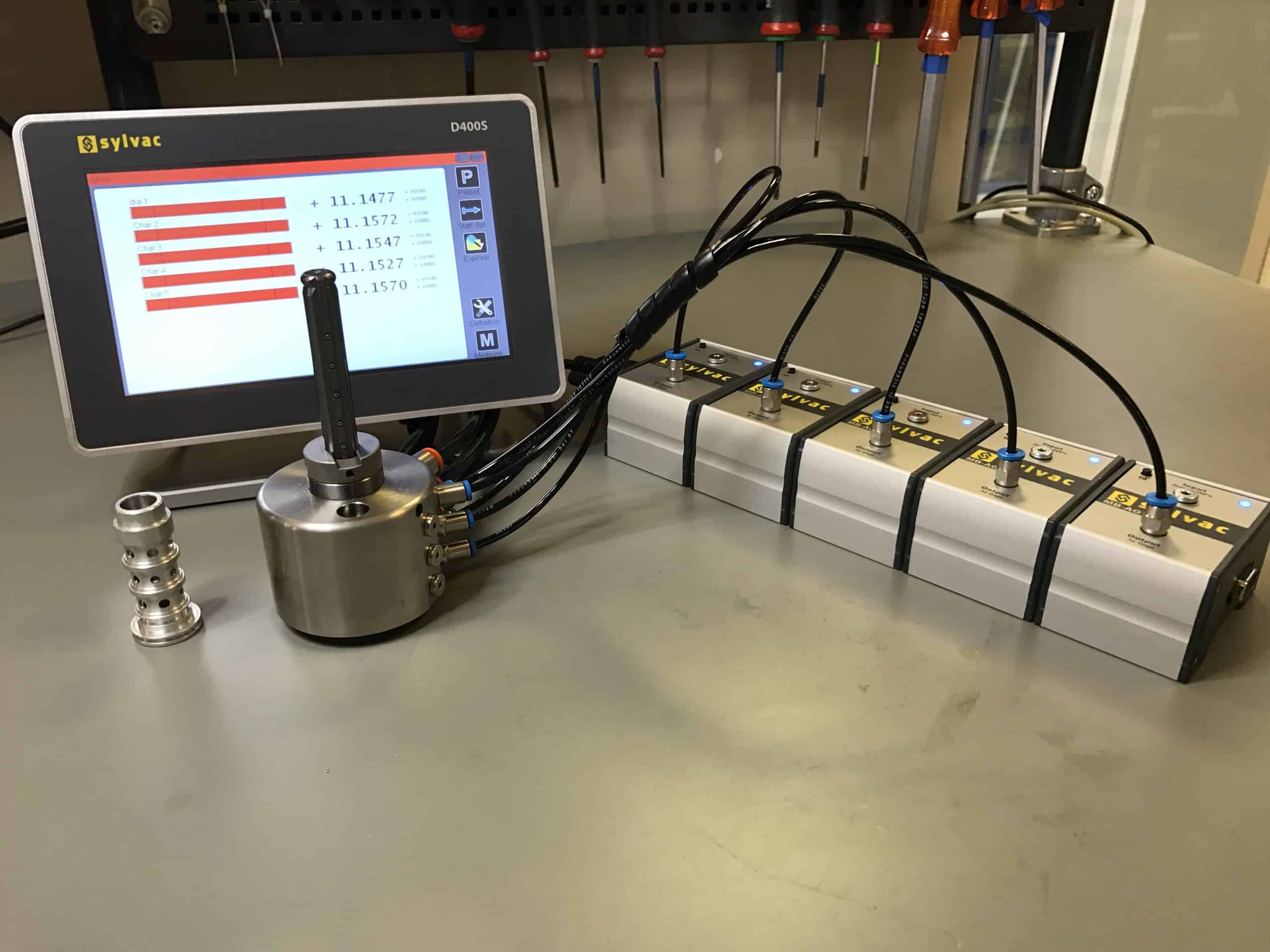

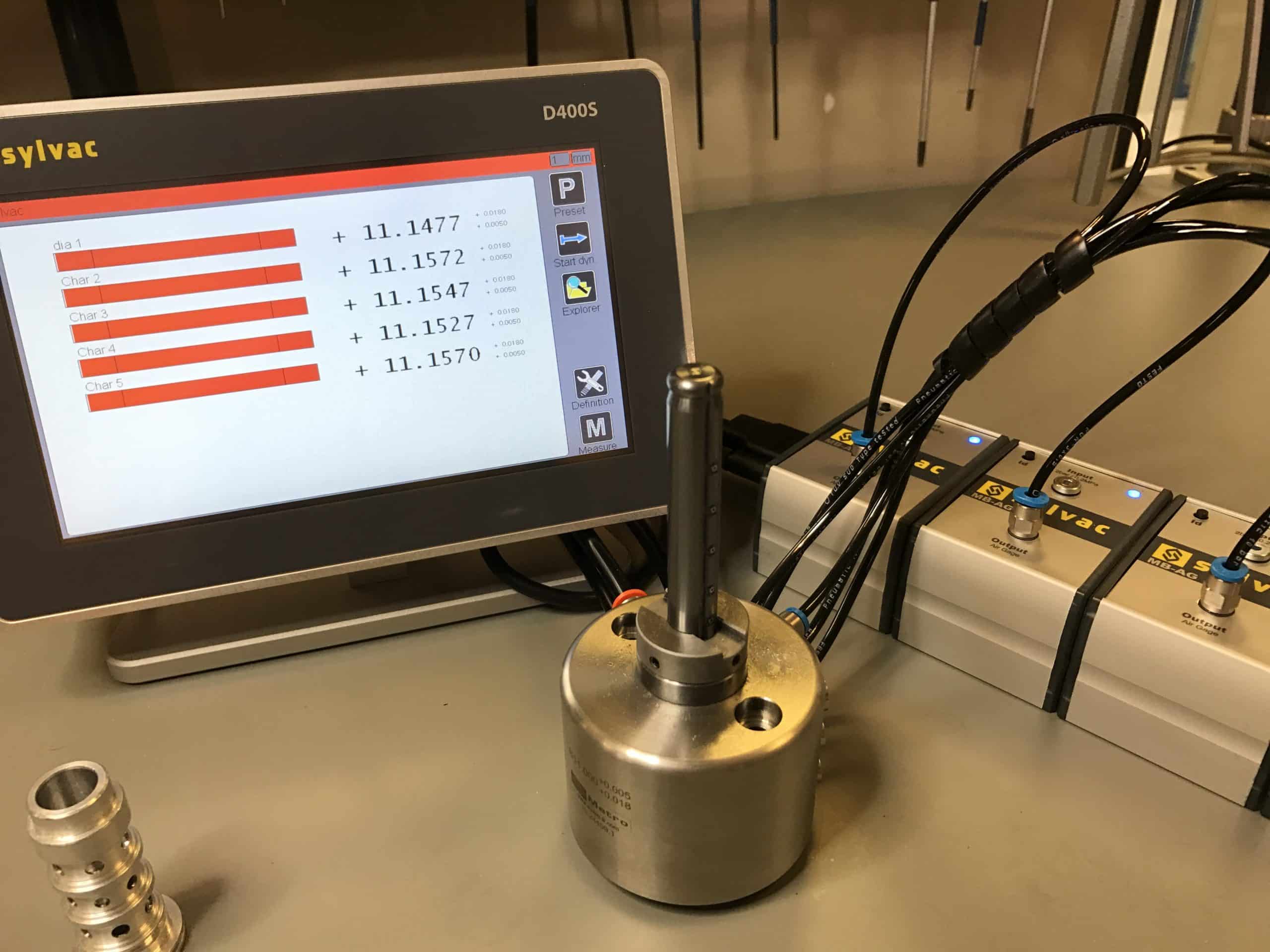

  • Multi-Brand Compatibility and Extensive Inputs: Connect up to 99 instruments of different makes through M-BUS multiplexers, enabling comprehensive multigauging capabilities with extensive input options.
  • Versatile Touch Screen Interface: Navigate effortlessly using the 7” touch screen display, providing a user-friendly and intuitive interface for seamless operation.
  • Advanced Configuration and Storage: Store up to 128 different parts configurations and save up to 30,000 measurements per configuration, ensuring efficient organization and easy access to measurement data.
  • Flexible Display Options: View up to 32 channels simultaneously on the same screen or across multiple pages, allowing for convenient monitoring of multiple measurements and configurations.
  • Powerful Functions and Protocols: Benefit from SPC functions, PLC functions, formula editor, Modbus TCP Ethernet connection, and PLC communication protocols, expanding the capabilities of your multigauging system.
  • Robust Construction and Mounting Versatility: With a sturdy aluminum housing, the D400S is designed to withstand workshop environments and offers flexible table or panel mounting options, ensuring durability and adaptability.

Industries

icon-automotive-sylvac
Automotive
Electronics
icon-aeronotics-sylvac
Aeronautics
icon-oackaging-sylvac
Packaging
icon-machine-tool-sylvac
Machine tool
icon-medical-device-sylvac
Medical device

Overview

804-2400
EAN 7640125680041
Overall dimensions (mm) 200x143x151.6
Weight (kg) 1.3
Case Aluminium
Protection rating according to IEC 60529 IP65 (front face)

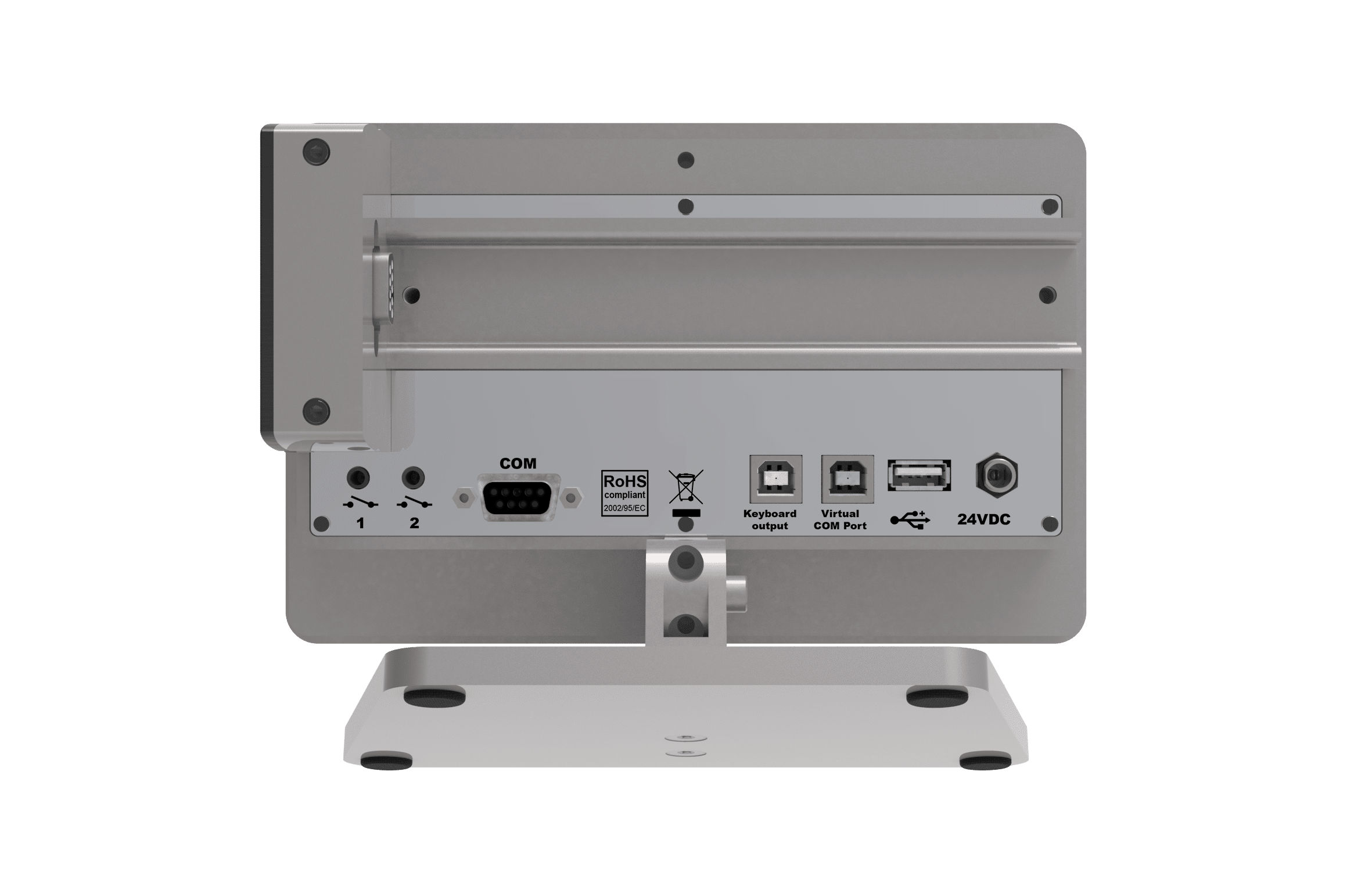

Output data USB / RS232
Programmable by PC
804-2400
EAN 7640125680041
Overall dimensions (mm) 200x143x151.6
Weight (kg) 1.3
Case Aluminium
Protection rating according to IEC 60529 IP65 (front face)
Output data USB / RS232
Programmable by PC
Unit according to technical specifications
Charging unit
Instruction manual
Accessories
925-5609 RS232 1:1 ¹
804-1210 USB-USB
925-1142 Adaptator RS-USB ²
804-4000* Charging set 100-240V / 24V
904-4001 EUR cable included in 804-4000
904-4003 UK cable included in 804-4000
904-4002 USA/JPN cable included in 804-4000
804-4010* Charging set 100-240V / 24V
804-4011 EUR cable included in 804-4010
804-4013 UK cable included in 804-4010
804-4012 USA/JPN cable included in 804-4010
904-4101 External contact (footpedal)
804-2211 Cable M12 male/female length 1m
804-2104 MB-4C
804-2107/08 MB-4i & MB-8i
804-2122 MB-2S
804-2111/14 MB-1D & MB-4D
804-2130 MB-IO
804-2140 MB-PS
804-2170 MB-TP
804-2180 MB-BT
804-2190 MB-AG
804-2105 MB-4P
804-2132 MB-NET
804-2133 MB-RO
804-2202 Bracket for panel mounting
804-4103 Table knob with binder connector
804-2210 M-Bus module mounting kit
804-2203 Air preparation kit
804-2212 Air preparation kit with air saving system ³
804-2213 Additional air preparation for pneumatic probes lifting (requires 804-2203 or 804-2212)

¹ For MB-XX module and RS232 PC connections

² The D70 and D400S do not work on Vmux with this adapter

³ Concept of energy saving consisting of automatically cutting off the air supply when not measuring. A menu on the D70A and D400S unit allows to adjust the ECO mode, by defining a time delay and a wake-up threshold. The savings made with such a system can be up to 50% on the energy bill. This system requires 804-2212, 804-2133 & 804-2211.

  • Not available

Digital display D400S
CHF 3'522.00
