Digital display D300S V2
Starting at :
CHF 2'926.00
*Available in different measuring ranges
Description

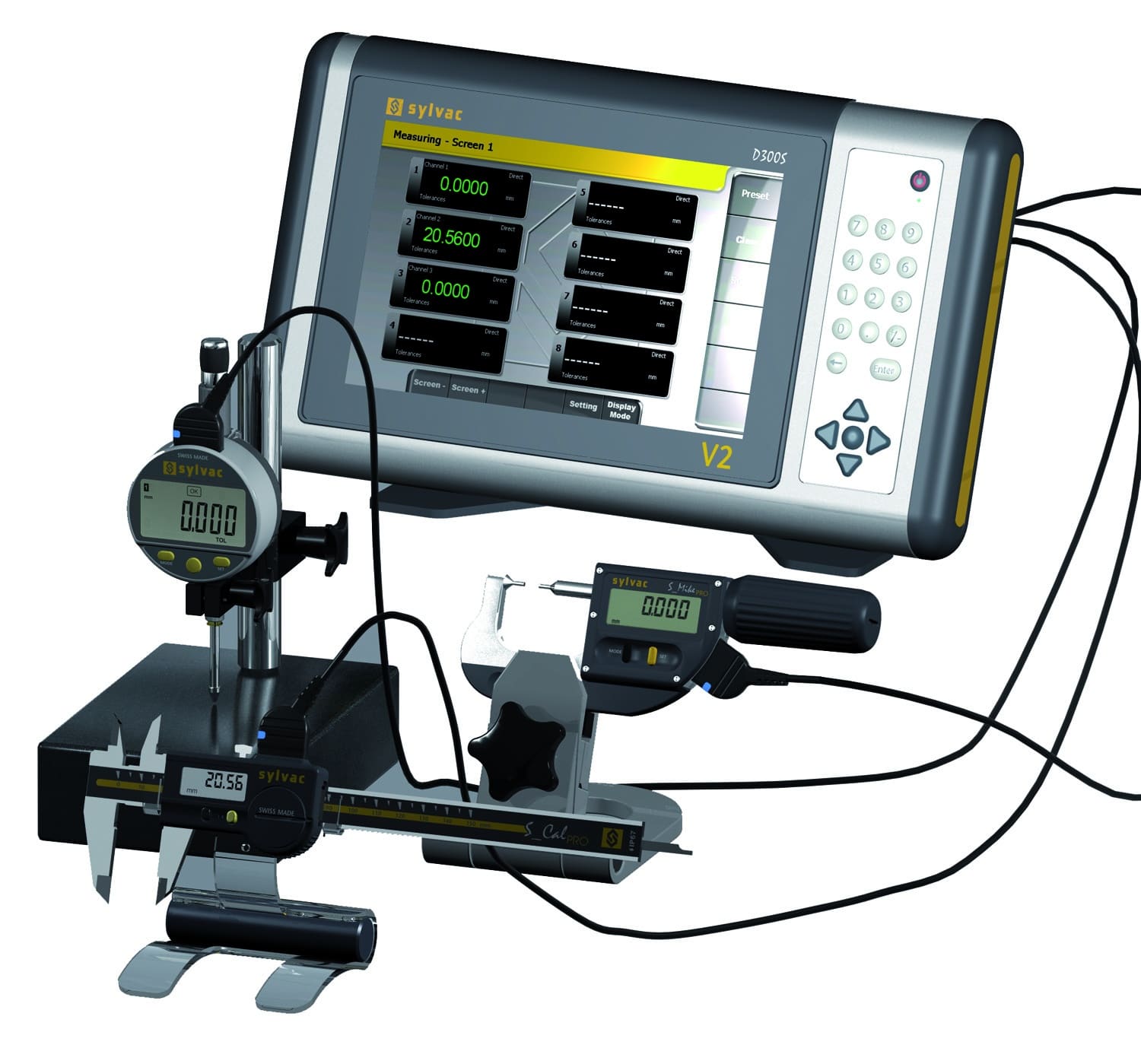

Multifunction digital display unit for probes and handtools.
Swiss made
0.1µm
Cable
Features

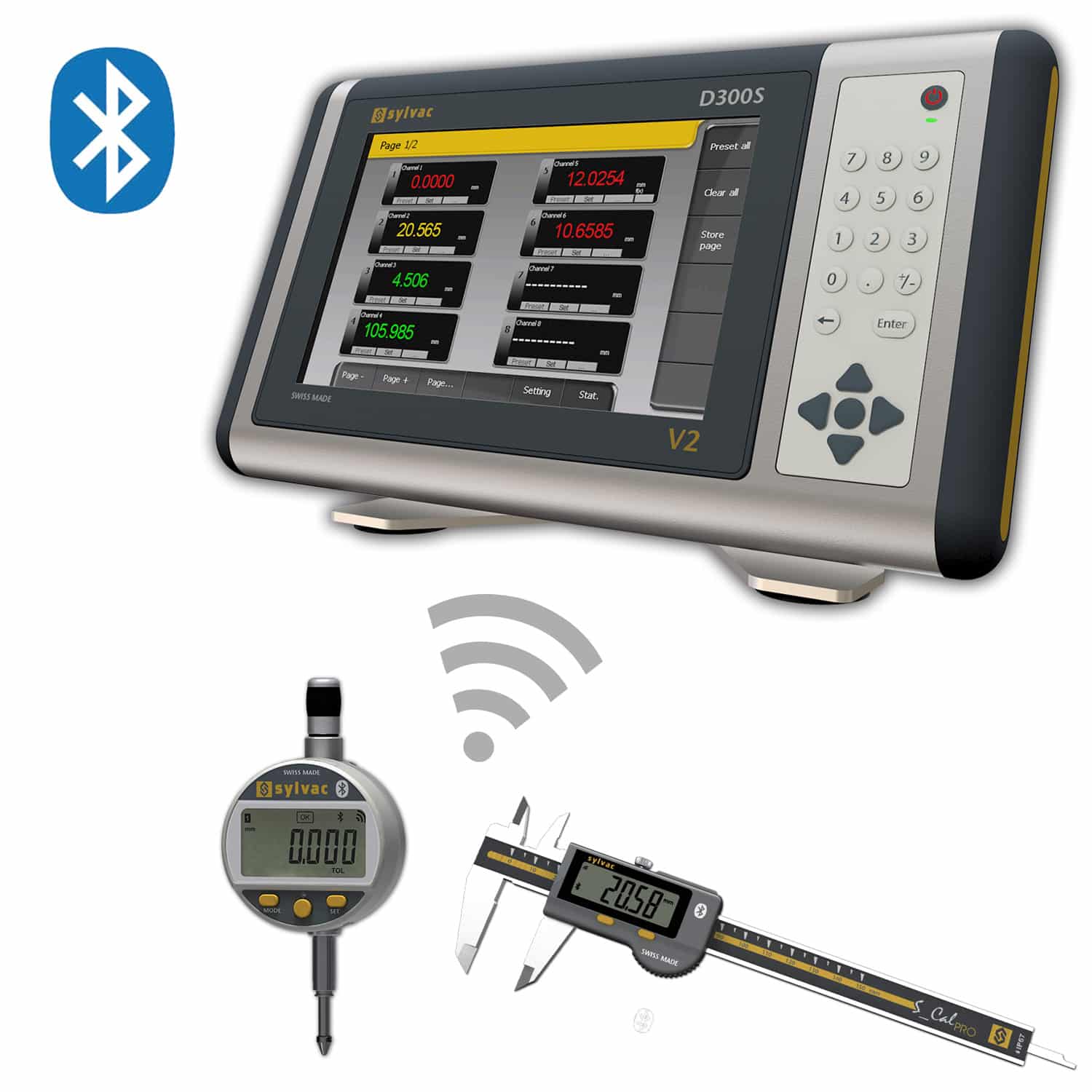

- Compatibility and Connectivity: Experience automatic detection of connected instruments, compatibility with Bluetooth® instruments, and convenient connectivity options like Ethernet and USB data outputs.
- Large Touchscreen Display: Navigate effortlessly on the 8.5” touchscreen, ensuring a user-friendly interface for seamless operation.
- Versatile Connection Options: Choose from versions with different connectivity possibilities, including USB inputs and capacitive probe inputs, providing flexibility to suit your measurement needs.
- Enhanced Performance and Configurability: Benefit from faster processing speeds with the new CPU unit, while enjoying configurable display and page settings for personalized measurement views.
- Advanced Features for Enhanced Analysis: Utilize math functions for each channel, access numeric, analog, and statistical display options, and save setups and values for efficient analysis and reporting.
- Robust Design for Workshop Use: The sturdy housing made of aluminum profile and ABS plastic, along with the IP65 liquid-proof front panel, ensures durability and suitability for workshop environments.
Industries
Automotive
Electronics
Aeronautics
Packaging
Machine tool
Medical device
Overview
Specifications
Standard Delivery
Accessories
Applications
Tutorials
Resources
| 804-1300 | 804-1320 | 804-1350 | |||
| EAN | 7640125715583 | 7640125712568 | 7640125697124 | ||
| Model | D300S-2 | D300S-4 | D300S | ||
| Inputs * | 2 probes | 4 probes | — | ||
| USB inputs | 6 USB | ||||
| Max. error (µm) | P2 : 1.5 / P5 : 1.6 / P10 : 1.6 / P25 : 1.9 | — | |||
| Max. error ¹ (µm) | P2 : 0.5 / P5 : 0.6 / P10 : 0.6 / P25 : 0.8 | — | |||
| Repeatability (µm) | P2 : 0.2 / P5 : 0.2 / P10 : 0.2 / P25 : 0.2 | — | |||
| Overall dimensions (mm) | 330 x 175 x 77 | ||||
| Weight (kg) | 3.3 | ||||
| Case | Steel / Plastic | ||||
| Protection rating according to IEC 60529 | IP40 / Front face IP65 | ||||
| Output data | USB / RS232 | ||||
| Programmable by PC | ⬤ | ||||
¹ Probe and unit calibrated
* Extandable to 32 probes and 12 USB instruments
Spécifications
| 804-1300 | 804-1320 | 804-1350 | |||
| EAN | 7640125715583 | 7640125712568 | 7640125697124 | ||
| Model | D300S-2 | D300S-4 | D300S | ||
| Inputs * | 2 probes | 4 probes | — | ||
| USB inputs | 6 USB | ||||
| Max. error (µm) | P2 : 1.5 / P5 : 1.6 / P10 : 1.6 / P25 : 1.9 | — | |||
| Max. error ¹ (µm) | P2 : 0.5 / P5 : 0.6 / P10 : 0.6 / P25 : 0.8 | — | |||
| Repeatability (µm) | P2 : 0.2 / P5 : 0.2 / P10 : 0.2 / P25 : 0.2 | — | |||
| Overall dimensions (mm) | 330 x 175 x 77 | ||||
| Weight (kg) | 3.3 | ||||
| Case | Steel / Plastic | ||||
| Protection rating according to IEC 60529 | IP40 / Front face IP65 | ||||
| Output data | USB / RS232 | ||||
| Programmable by PC | ⬤ | ||||
¹ Probe and unit calibrated
* Extandable to 32 probes and 12 USB instruments
Standard Delivery
| Standard Delivery |
| Unit according to technical specifications |
| Table base |
| External contact (foot-pedal) |
| Charging unit according to country (804-4000) |
| Instruction manual |
Accessories
| D300S instr. input | D300S output PC | |||
 |
905-4516 | Power RS (Standard 3 m) | ⬤ | |
| 905-4519 | Power RS (≤15 m) | ⬤ | ||
 |
905-4538 | Power RS (bent) (Standard 3 m) | ⬤ | |
 |
926-6821 | Power USB (Standard 3 m) | ⬤ | |
 |
926-6838 | Power USB (bent) (Standard 3 m) | ⬤ | |
 |
926-6723 | Proximity RS232 | ⬤ | |
 |
926-6721 | Proximity USB | ⬤ | |
 |
925-5609 | RS232 1:1 | ⬤ | |
 |
804-1210 | USB-USB | ⬤ |
| Accessories | ||
 |
904-1112 | D110V-control unit with 16 vacuum output |
 |
804-4000 | Charging set 100-240V / 24V |
| 904-4001 | EUR cable included in 804-4000 | |
| 904-4003 | UK cable included in 804-4000 | |
| 904-4002 | USA/JPN cable included in 804-4000 | |
 |
904-4101 | External contact (footpedal) |
 |
926-7022 ¹ | Footpedal Smart |
| 904-6001 | Dust cover | |
 |
926-7020 | Footpedal USB (pc only) |
 |
926-7021 | Footpedal USB robust (pc only) |
¹ Dongle required
