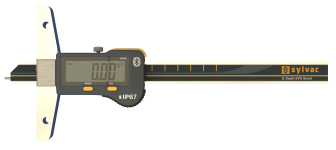

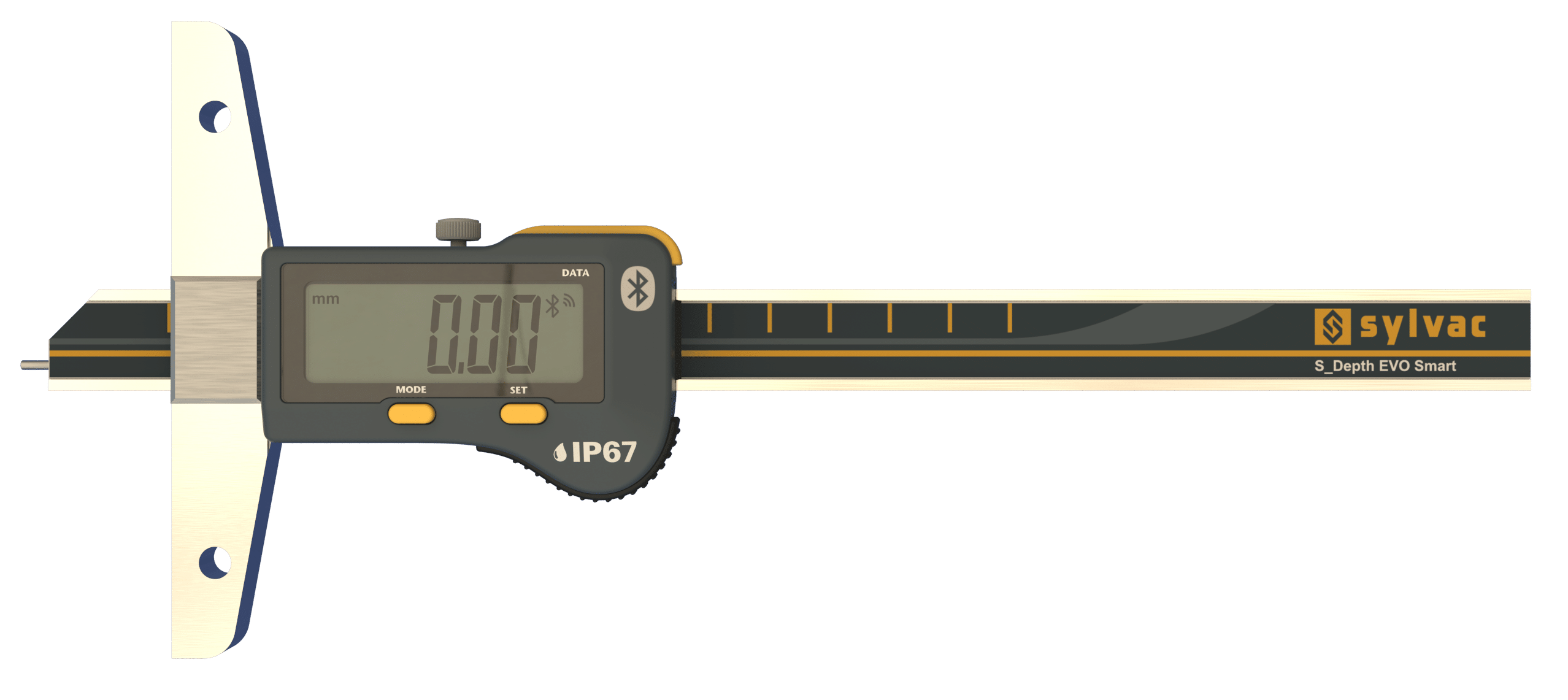

Depth gauge S_Depth EVO Smart Pin Ø1.5

Starting at :
CHF 399.00

*Available in different measuring ranges

Description

Depth gauge with integrated Bluetooth® technology.
SIS
Smart Inductive System (SIS)

Features

  • Unmatched Accuracy: Achieve precise measurements with our high-quality depth gauge featuring a hardened steel measuring pin Ø 1.5mm x 5mm, a 100mm bridge with holes for attachment of additional wider bridge, and a maximum displacement speed of 2,5m/sec.
  • Seamless Data Aquisition: Our ergonomic depth gauge is equipped with integrated Bluetooth® technology, allowing you to transmit measurements wirelessly, quickly and error-free for enhanced productivity.
  • User-Friendly Design: Experience enhanced usability with our convenient push button, which not only facilitates easy data transmission but can also be programmed to suit your specific needs. Additionally, the new extra-large display unit with 11.5mm high digits ensures clear visibility of measurements.
  • Built to Last: With a rugged construction, our gauge is designed to withstand heavy-duty work environments, including exposure to coolants and lubricants. Its water protection rating of IP67, according to IEC 60529, ensures durability and reliability. The precision of the instrument is not affected by liquids.
  • Versatile Measurement: Our depth gauge is available in 3 different measuring range :150mm, 200mm, and 300mm.
  • Intelligent Power Management: Save energy and maximize efficiency with our device’s automatic wake-up feature upon movement, and sleeping mode activation after 10 minutes of inactivity. The absolute system S.I.S ensures that the position is memorized even in sleeping mode.

Applications

logicielsDistance
Distance

Industries

icon-automotive-sylvac
Automotive
icon-aeronotics-sylvac
Aeronautics
icon-oackaging-sylvac
Packaging
icon-machine-tool-sylvac
Machine tool
icon-medical-device-sylvac
Medical device

Overview

812-1506 812-1526 812-1536
EAN 7640125698909 7640125698893 7640125698886
Measuring range (mm) 150 200 300
Max. Error (µm) 20 ¹ 30
Resolution (mm) 0.01

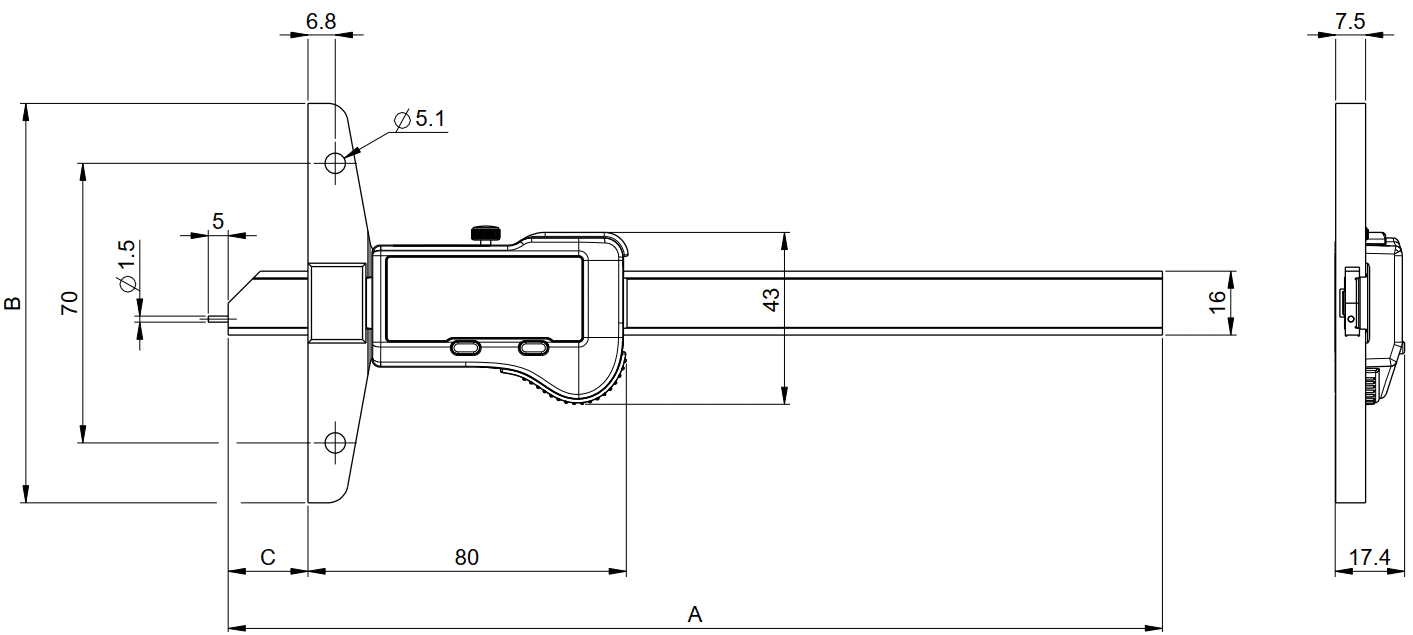

A (mm) 234 284 384
B – Bridge (mm) 100
C (mm) 0-152 0-202 0-302
Frame (mm) 16 x 3.5
Output data Bluetooth® wireless technology
Functions Zero setting, Preset (max 999.99), mm/inch, Hold, Data
Smart Inductive System (SIS)

¹ > 100 mm : 30 µm / ISO13385-2

812-1506 812-1526 812-1536
EAN 7640125698909 7640125698893 7640125698886
Measuring range (mm) 150 200 300
Max. Error (µm) 20 ¹ 30
Resolution (mm) 0.01
A (mm) 234 284 384
B – Bridge (mm) 100
C (mm) 0-152 0-202 0-302
Frame (mm) 16 x 3.5
Output data Bluetooth® wireless technology
Functions Zero setting, Preset (max 999.99), mm/inch, Hold, Data
Smart Inductive System (SIS)

¹ > 100 mm : 30 µm / ISO13385-2

Instrument according to technical specifications
Lithium battery CR2032 included
Instruction manual
Accessories
985-2215 Battery CR2032
926-7022 Footpedal Smart

Available soon

  • Battery change

    Care instructions for your Sylvac device: Changing the battery
