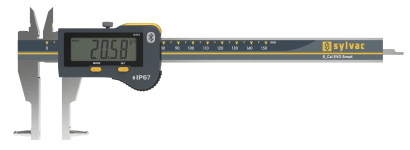

Caliper S_Cal EVO Smart Points Jaws
Description

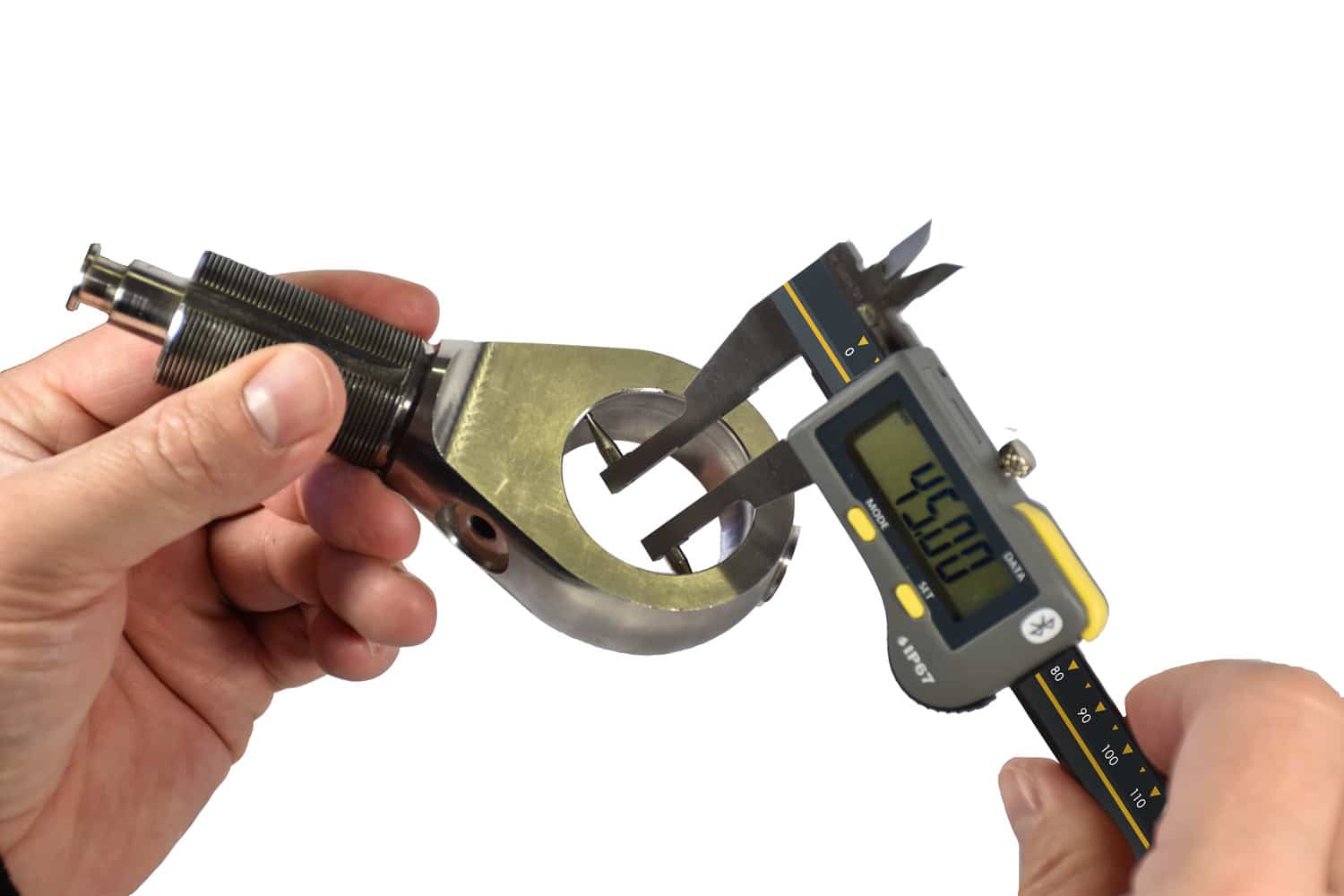

Round-tipped anvils for groove and internal seatings caliper with integrated Bluetooth® technology.
Features
- Modularity unleashed: Equipped with interchangeable M2.5 keys with hard metal ball of Ø2.5 mm, for internal measurements from 34 mm wide.
- Seamless Data Aquisition: Integrated Bluetooth® Smart data transmission, allowing you to transmit measurements wirelessly, quickly and error-free for enhanced productivity.
- Built to Last: Crafted with a mechanical frame in 3.5 mm thick hardened and ground stainless steel, our IP67 caliper ensures durability and longevity, providing reliable performance in even the most demanding metrology environments.
- Enhanced Efficiency: Maximize productivity with a swift maximum speed of displacement of 2.5m/sec and benefit from the automatic wake-up feature (Absolute System S.I.S) when moving the electronic on its frame and enjoy the energy-saving sleeping mode (Absolute System S.I.S) after 10 minutes of inactivity. The caliper memorizes the position even in sleeping mode, ensuring uninterrupted measurements.
- User-Friendly Design: Experience effortless measurement reading with the new extra-large display unit, boasting 11.5mm high digits for exceptional clarity, reducing the risk of errors and enhancing efficiency.
Applications

Diameter

Distance

Form deviation
Industries

Automotive

Aeronautics

Fastening

Packaging

Machine tool

Medical device
Overview
Specifications
Standard Delivery
Accessories
Applications
Tutorials
Documents
810-1601 | |
EAN | 7640125687897 |
Measuring range (mm) | 150 |
Max. error G – external measurements EMPE (µm) | 20 ² |
Max. error – internal measurements SMPE (µm) | 20-30 ³ |
Depth rod (mm) | ▬ 4 x 1.4 |
Protection rating according to IEC 60529 | IP67 |
Connection type (instrument to device) | Bluetooth® Wireless Technology ¹ |
Functions | Zero setting, Preset (max 999.99), mm/inch, Hold |
Smart Inductive System (SIS) | ⬤ |
¹ Device: PC, display unit, …
² 0-150 mm : 20 µm / ISO13385-1
³ Ø4-25 : 20 µm / ISO13385-1
Ø26-150 : 30 µm / ISO13385-1
Standard Delivery
|
Instrument according to technical specifications |
Lithium battery CR2032 included |
Instruction manual |
-
Battery Change
How To Take Care of your Sylvac instrument : Battery Change
-
-
-
-

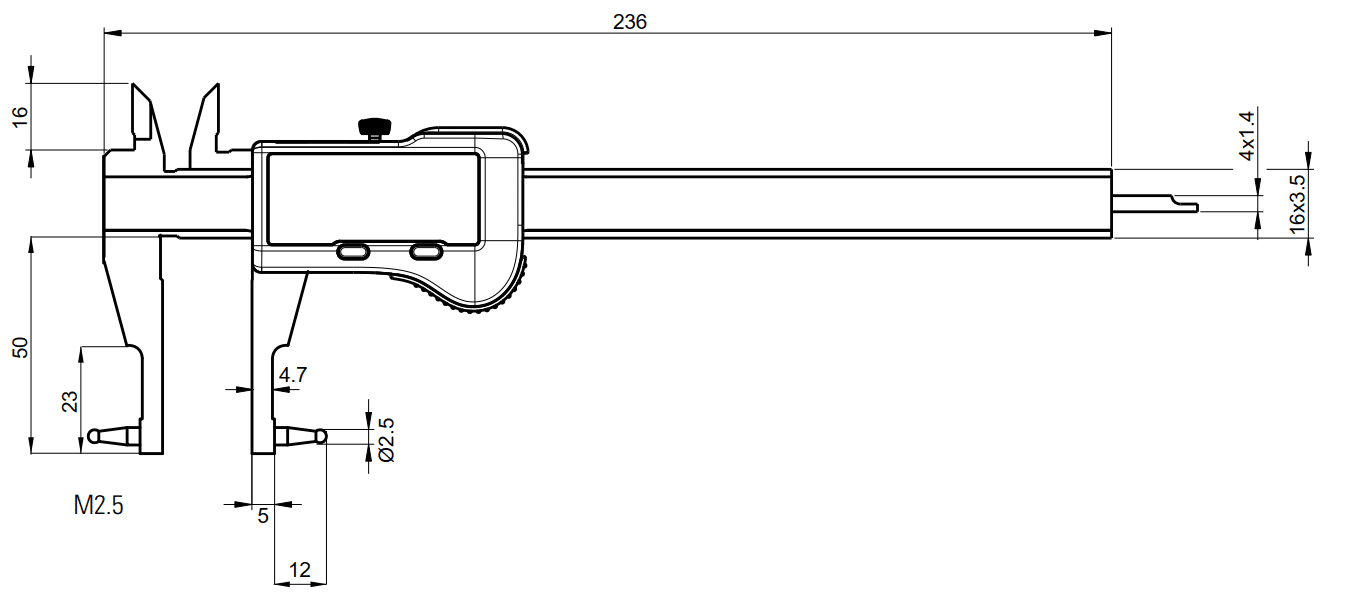

- Technical Plan
- 3D Drawing
- Manual
- Certificate
- Brochure
Spécifications
810-1601 | |
EAN | 7640125687897 |
Measuring range (mm) | 150 |
Max. error G – external measurements EMPE (µm) | 20 ² |
Max. error – internal measurements SMPE (µm) | 20-30 ³ |
Depth rod (mm) | ▬ 4 x 1.4 |
Protection rating according to IEC 60529 | IP67 |
Connection type (instrument to device) | Bluetooth® Wireless Technology ¹ |
Functions | Zero setting, Preset (max 999.99), mm/inch, Hold |
Smart Inductive System (SIS) | ⬤ |
¹ Device: PC, display unit, …
² 0-150 mm : 20 µm / ISO13385-1
³ Ø4-25 : 20 µm / ISO13385-1
Ø26-150 : 30 µm / ISO13385-1
Standard Delivery
Standard Delivery
|
Instrument according to technical specifications |
Lithium battery CR2032 included |
Instruction manual |
Accessories
Tutorials
-
Battery Change
How To Take Care of your Sylvac instrument : Battery Change
-
-
-
-
Documents
- Technical Plan
- 3D Drawing
- Manual
- Certificate
- Brochure
