Caliper S_Cal EVO Smart Internal GrooveCHF 734.00
Menu
Close
Caliper S_Cal EVO Smart Internal Groove
Starting at :
CHF 734.00
*Available in different measuring ranges
Description

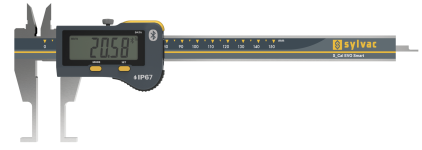

Special groove and internal seating caliper with integrated Bluetooth® technology
Features

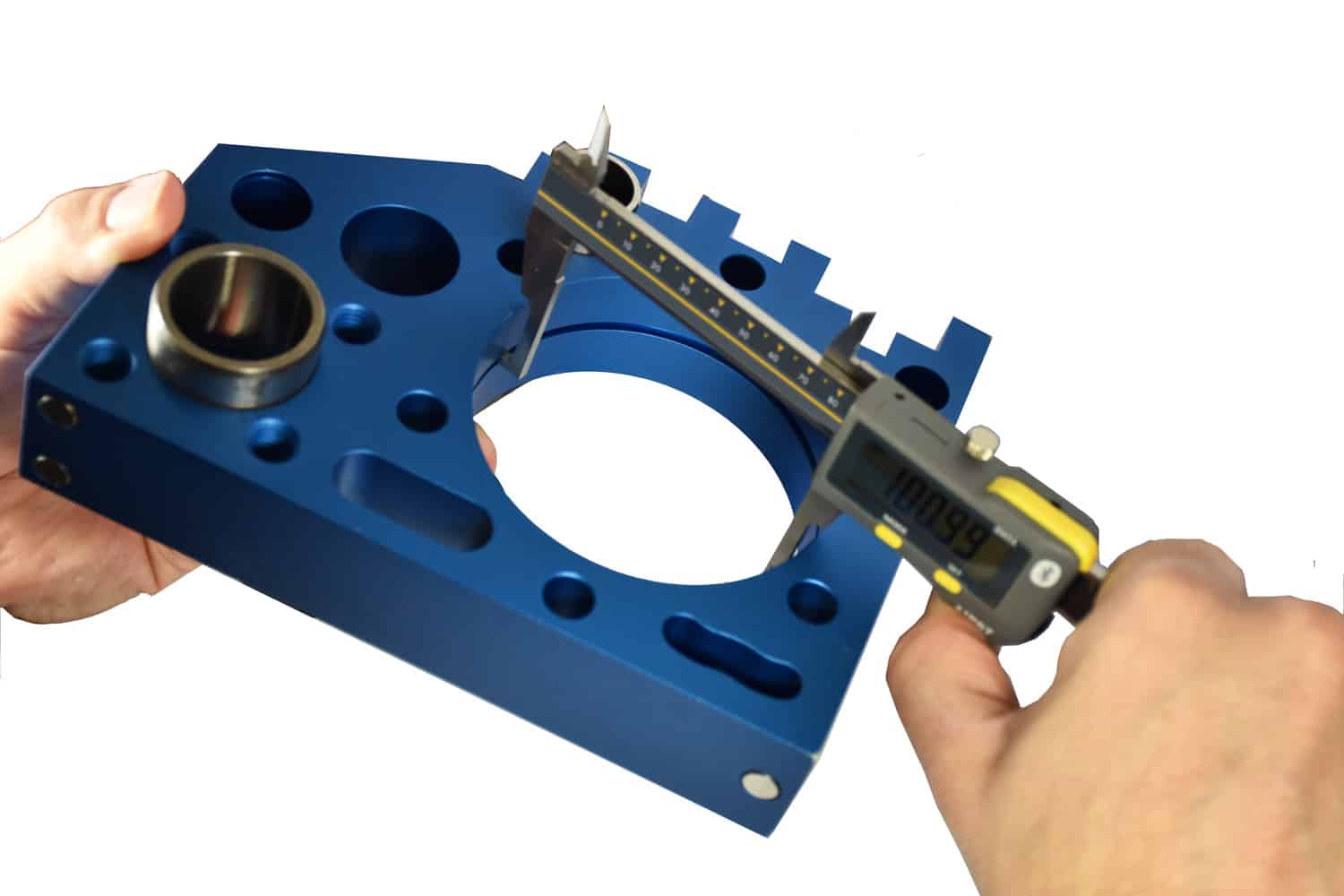

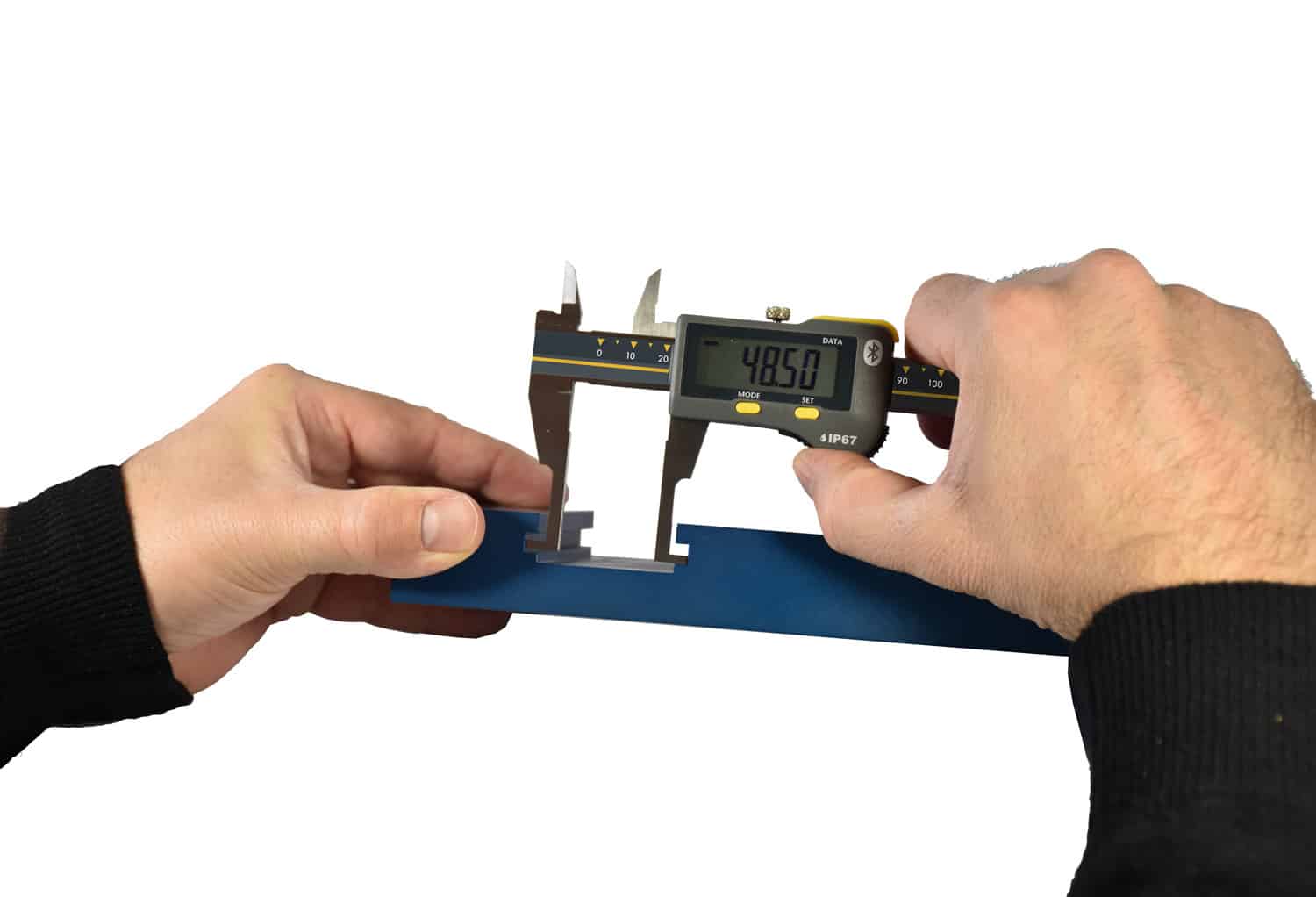

- Easy Reach: Designed for the measurement of grooves and internal seatings from 2.6mm wide.
- Seamless Data Aquisition: Integrated Bluetooth® Smart data transmission, allowing you to transmit measurements wirelessly, quickly and error-free for enhanced productivity.
- Built to Last: Crafted with a mechanical frame in 3.5 mm thick hardened and ground stainless steel, our IP67 caliper ensures durability and longevity, providing reliable performance in even the most demanding metrology environments.
- Enhanced Efficiency: Maximize productivity with a swift maximum speed of displacement of 2.5m/sec and benefit from the automatic wake-up feature (Absolute System S.I.S) when moving the electronic on its frame and enjoy the energy-saving sleeping mode (Absolute System S.I.S) after 10 minutes of inactivity. The caliper memorizes the position even in sleeping mode, ensuring uninterrupted measurements.
- User-Friendly Design: Experience effortless measurement reading with the new extra-large display unit, boasting 11.5mm high digits for exceptional clarity, reducing the risk of errors and enhancing efficiency.
Applications
Diameter
Distance
Form deviation
Industries
Automotive
Aeronautics
Fastening
Packaging
Machine tool
Medical device
Overview
Specifications
Standard Delivery
Accessories
Applications
Tutorials
Resources
| 810-1600 | |
| EAN | 7640125687835 |
| Measuring range (mm) | 150 |
| Max. Error G – external measurements EMPE (µm) | 20 ¹ |
| Max. Error – internal measurements SMPE (µm) | 20-30 ² |
| Depth rod (mm) | ▬ 4 x 1.4 |
| Protection rating according to IEC 60529 | IP67 |
| Output data | Bluetooth® wireless technology |
| Functions | Zero setting, Preset (max 999.99), mm/inch, Hold |
| Smart Inductive Sensor | ⬤ |
Spécifications
| 810-1600 | |
| EAN | 7640125687835 |
| Measuring range (mm) | 150 |
| Max. Error G – external measurements EMPE (µm) | 20 ¹ |
| Max. Error – internal measurements SMPE (µm) | 20-30 ² |
| Depth rod (mm) | ▬ 4 x 1.4 |
| Protection rating according to IEC 60529 | IP67 |
| Output data | Bluetooth® wireless technology |
| Functions | Zero setting, Preset (max 999.99), mm/inch, Hold |
| Smart Inductive Sensor | ⬤ |
Standard Delivery
|
Standard Delivery
|
| Instrument according to technical specifications |
| Lithium battery CR2032 included |
| Instruction manual |
Accessories
| Accessories | ||
 |
985-2215 | Battery CR2032 |
 |
926-7022 | S_Footswitch Smart |
 |
810-2203 | Thumb wheel |
 |
910-2205 | Base for depth measurement |
