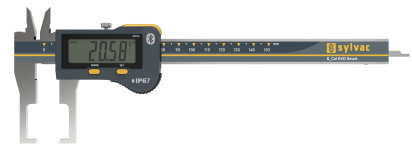

Caliper S_Cal EVO Smart External Groove

Starting at :
CHF 734.00

*Available in different measuring ranges

Description

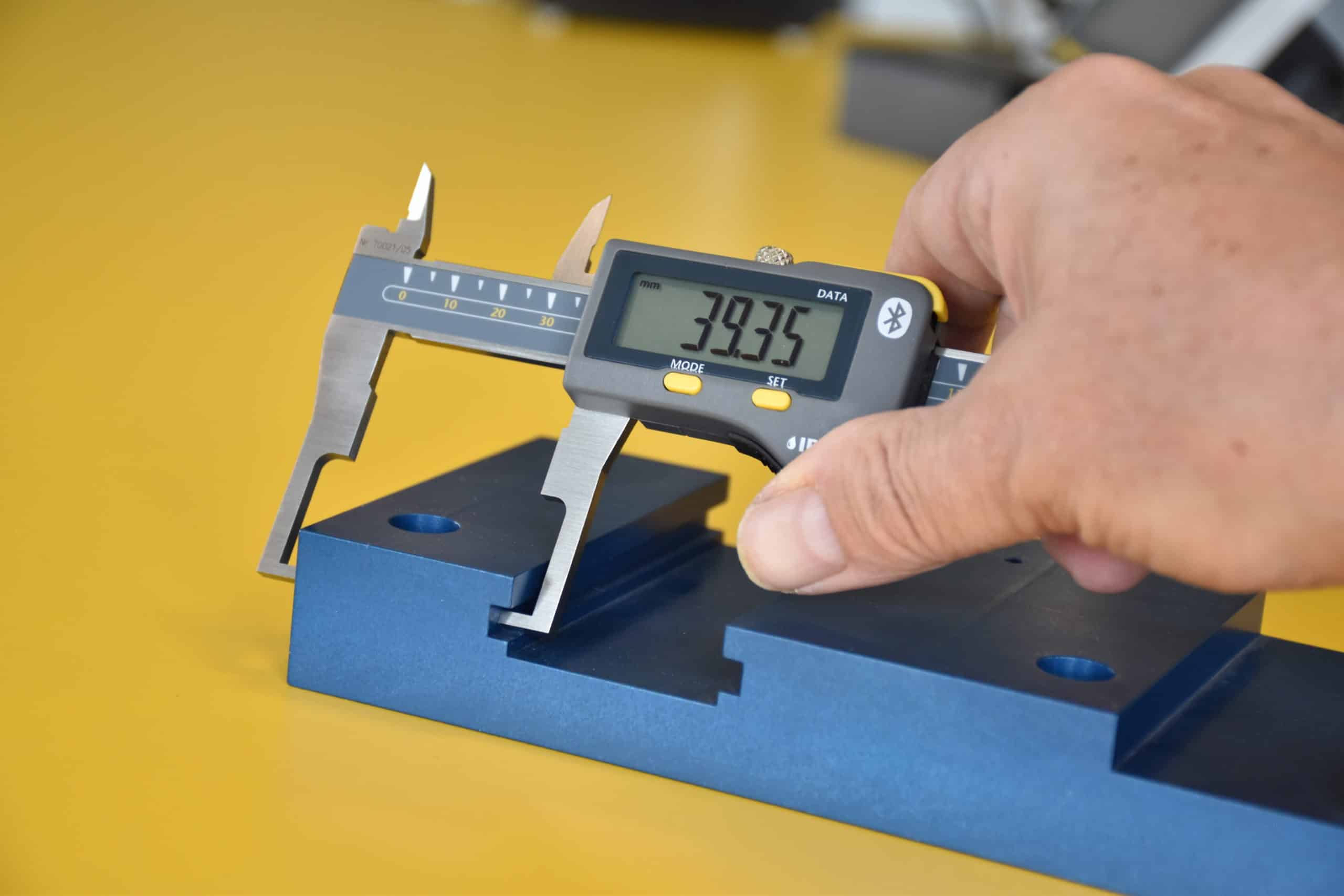

Caliper for groove and external seating measure with integrated Bluetooth®.
SIS
Smart Inductive System (SIS)

Features

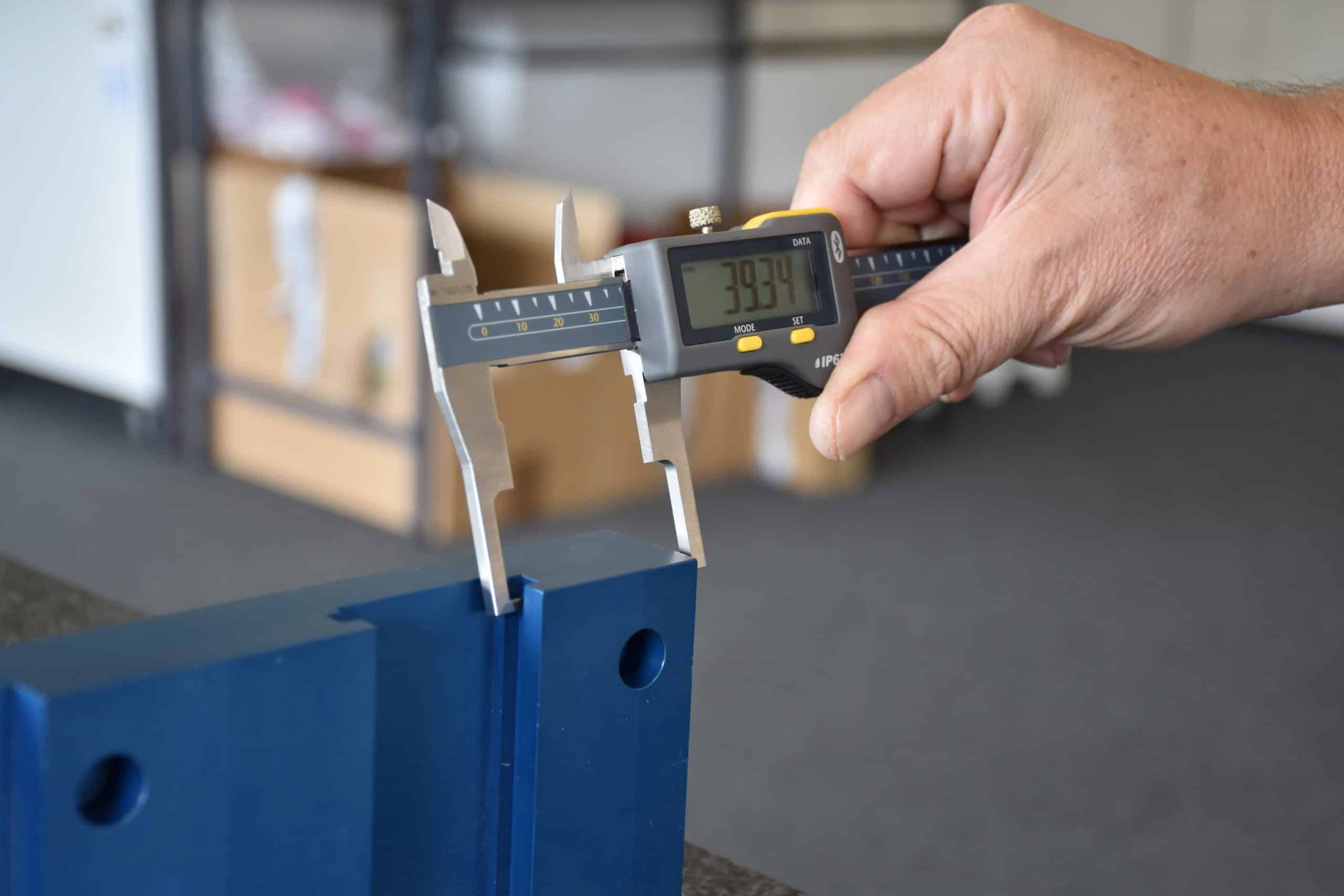

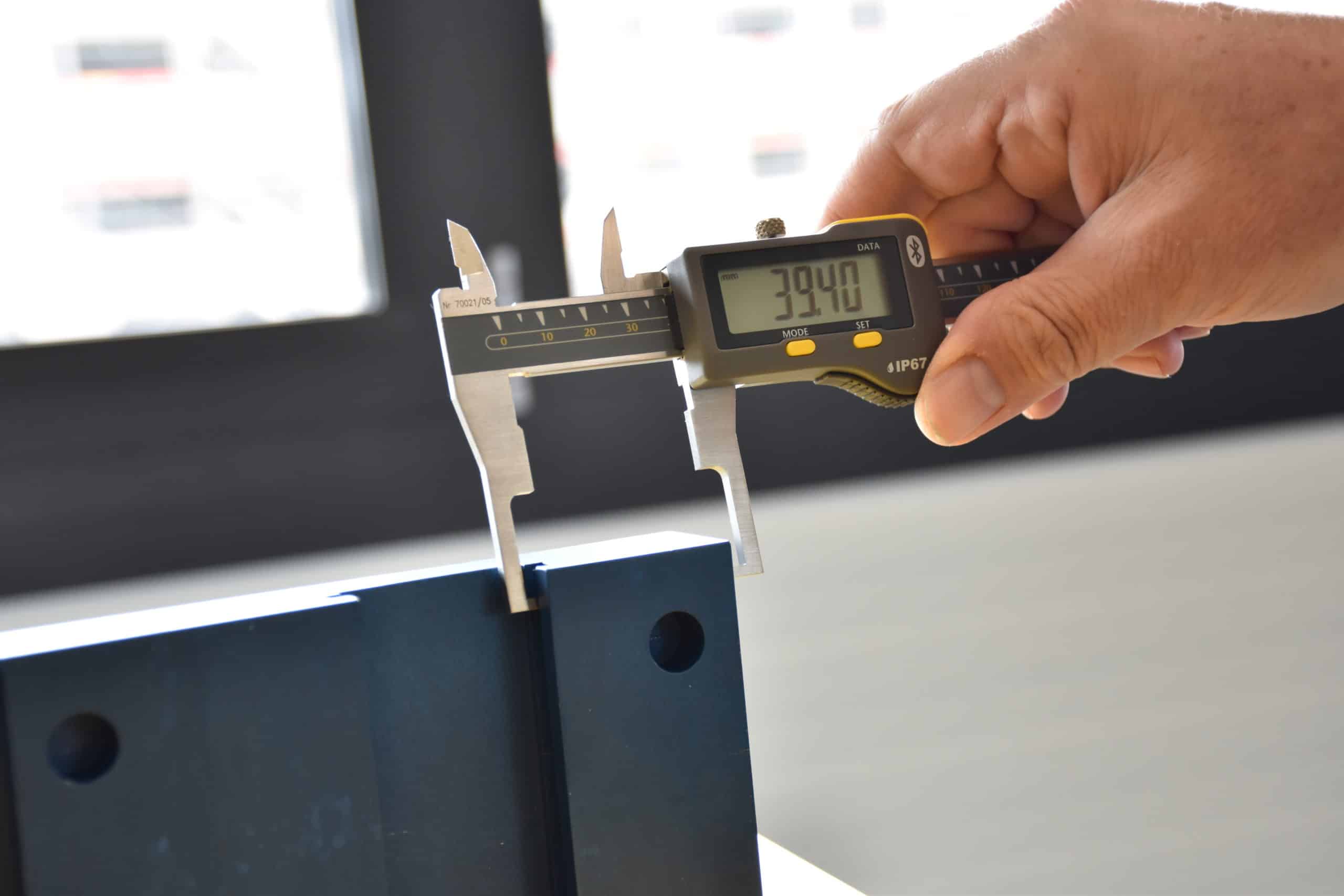

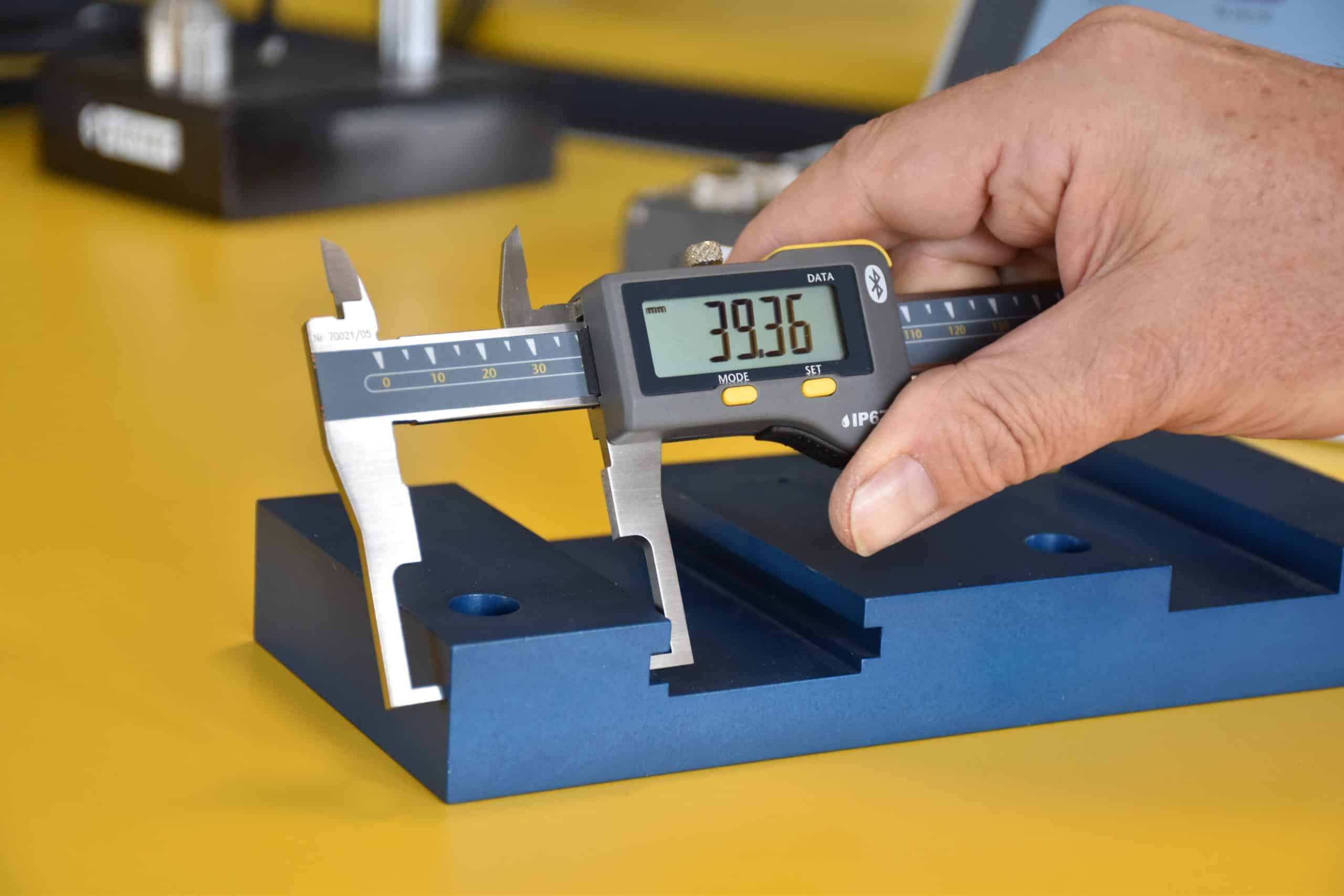

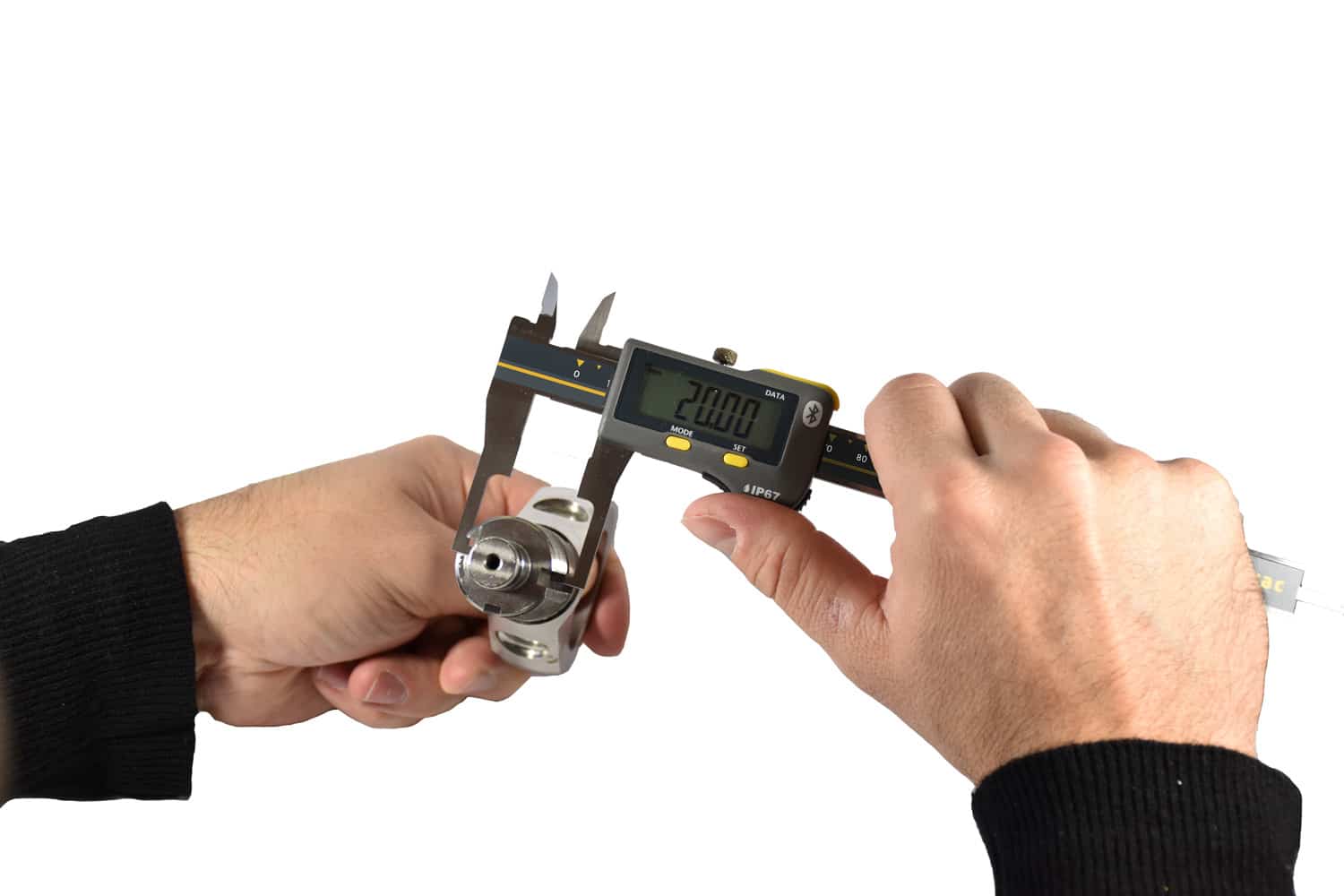

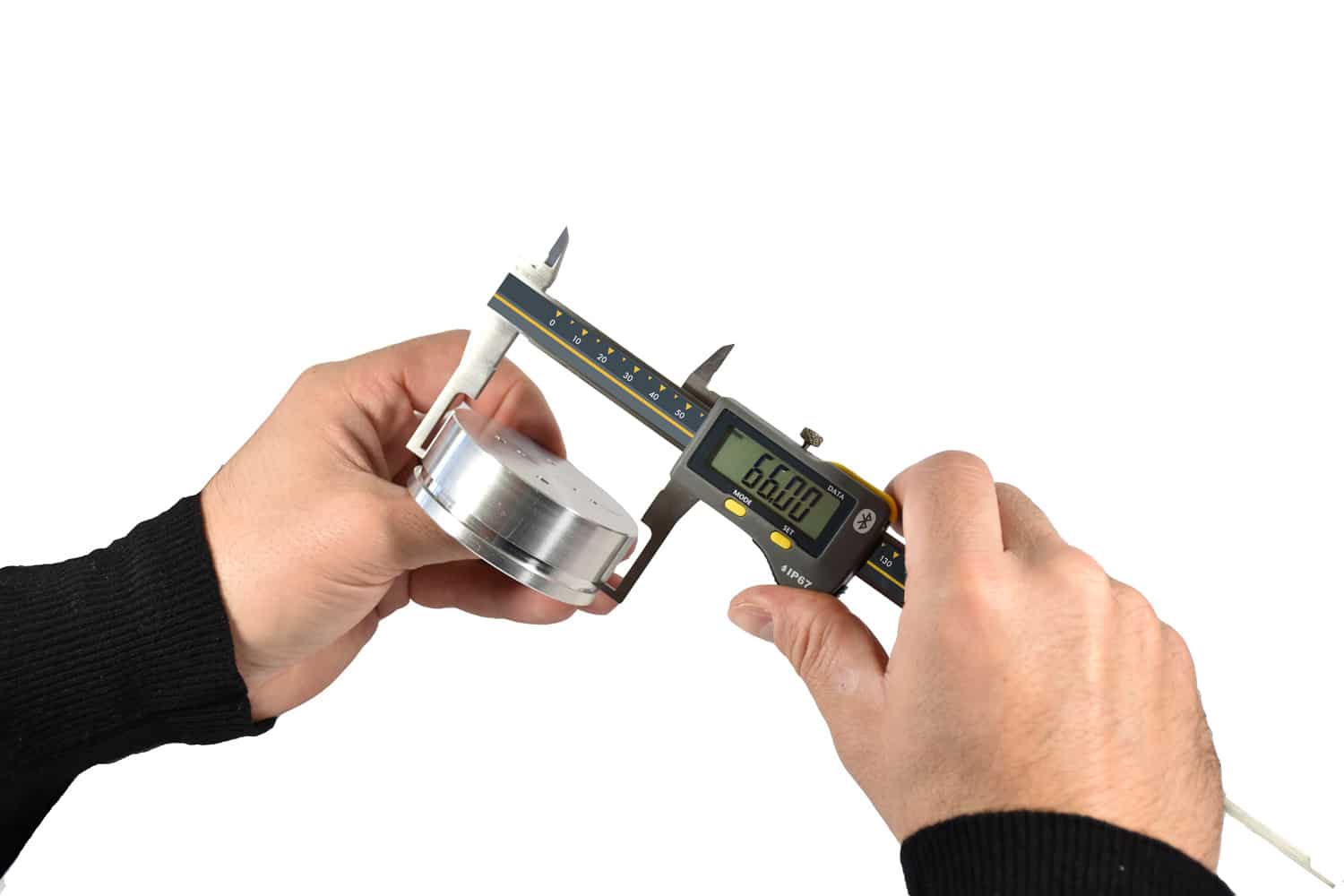

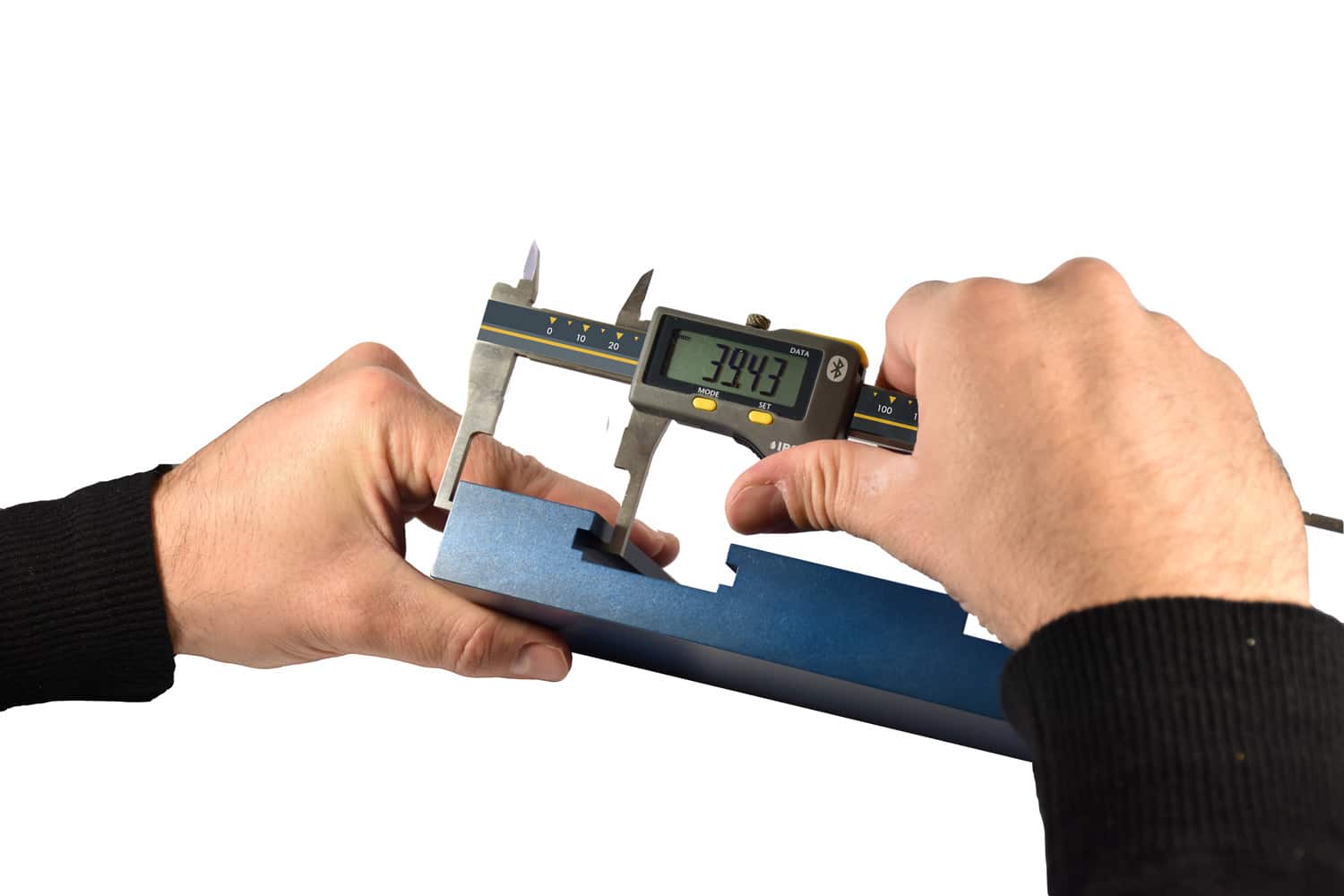

  • Easy Reach: Designed for the measurement of grooves and external seatings from 2.6mm wide
  • Seamless Data Aquisition: Integrated Bluetooth® Smart data transmission, allowing you to transmit measurements wirelessly, quickly and error-free for enhanced productivity.
  • Built to Last: Crafted with a mechanical frame in 3.5 mm thick hardened and ground stainless steel, our IP67 caliper ensures durability and longevity, providing reliable performance in even the most demanding metrology environments.
  • Enhanced Efficiency: Maximize productivity with a swift maximum speed of displacement of 2.5m/sec and benefit from the automatic wake-up feature (Absolute System S.I.S) when moving the electronic on its frame and enjoy the energy-saving sleeping mode (Absolute System S.I.S) after 10 minutes of inactivity. The caliper memorizes the position even in sleeping mode, ensuring uninterrupted measurements.
  • User-Friendly Design: Experience effortless measurement reading with the new extra-large display unit, boasting 11.5mm high digits for exceptional clarity, reducing the risk of errors and enhancing efficiency.

Applications

icon-diameter
Diameter
logicielsDistance
Distance
icon-form-deviation
Form deviation

Industries

icon-automotive-sylvac
Automotive
icon-aeronotics-sylvac
Aeronautics
icon-fastening-sylvac
Fastening
icon-oackaging-sylvac
Packaging
icon-machine-tool-sylvac
Machine tool
icon-medical-device-sylvac
Medical device

Overview

810-1602
EAN 7640125687972
Measuring range (mm) 150
Max. Error G – external measurements EMPE (µm) 20 ²
Max. Error – internal measurements SMPE (µm) 20-30 ³
Depth rod (mm) 4 x 1.4
Protection rating according to IEC 60529 IP67
Connection type (instrument to device) ¹ Bluetooth® Wireless Technology
Functions Zero setting, Preset (max 999.99), mm/inch, Hold
Smart Inductive Sensor

¹ Device: PC, display unit, …

² 0-150 mm : 20 µm / ISO13385-1

³ Ø4-25 : 20 µm / ISO13385-1

Ø26-150 : 30 µm / ISO13385-1

810-1602
EAN 7640125687972
Measuring range (mm) 150
Max. Error G – external measurements EMPE (µm) 20 ²
Max. Error – internal measurements SMPE (µm) 20-30 ³
Depth rod (mm) 4 x 1.4
Protection rating according to IEC 60529 IP67
Connection type (instrument to device) ¹ Bluetooth® Wireless Technology
Functions Zero setting, Preset (max 999.99), mm/inch, Hold
Smart Inductive Sensor

¹ Device: PC, display unit, …

² 0-150 mm : 20 µm / ISO13385-1

³ Ø4-25 : 20 µm / ISO13385-1

Ø26-150 : 30 µm / ISO13385-1

Instrument according to technical specifications
Lithium battery CR2032 included
Instruction manual
  • Battery Change

    How To Take Care of your Sylvac instrument : Battery Change

Caliper S_Cal EVO Smart External Groove
CHF 734.00
Scroll to Top

Request a demo

Caliper S_Cal EVO Smart External Groove

Contact us

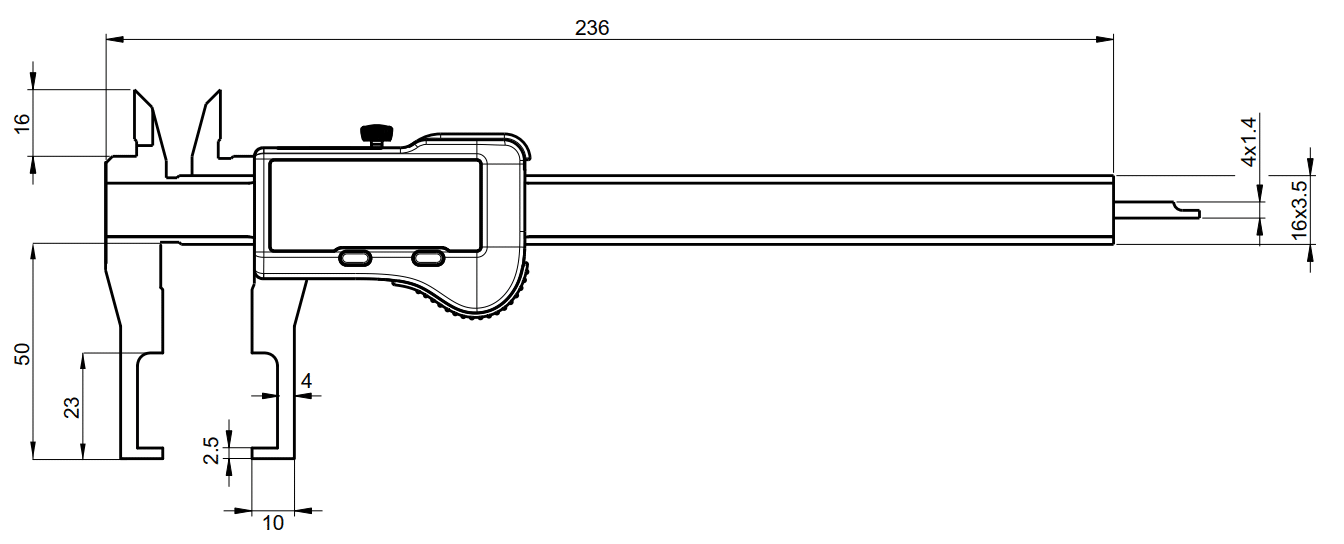

Download Technical Plan :Caliper S_Cal EVO Smart External Groove
